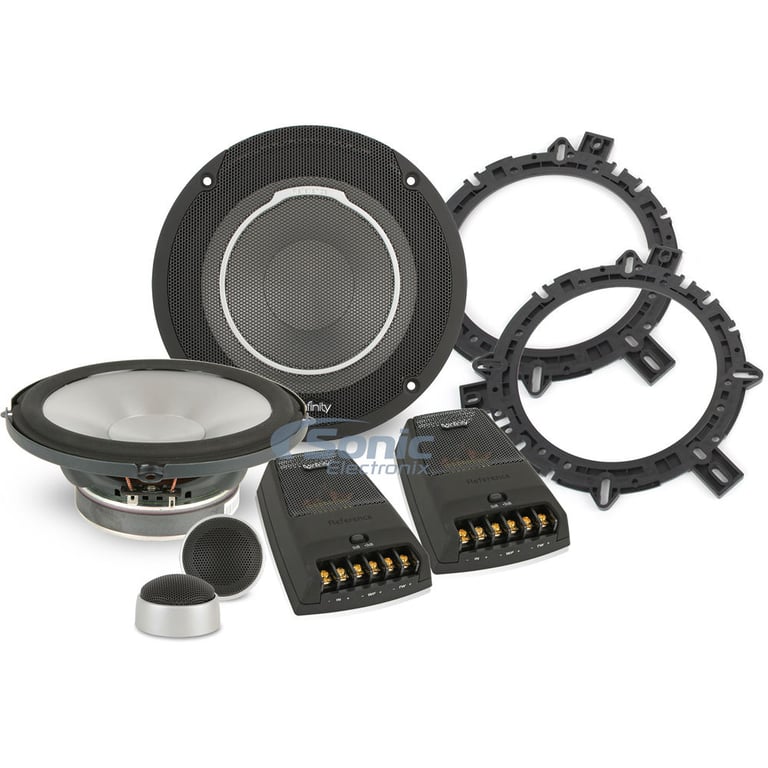

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 1 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 2 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 3 — Infinity Reference 6030cs Open Box Complete (Good, Used)

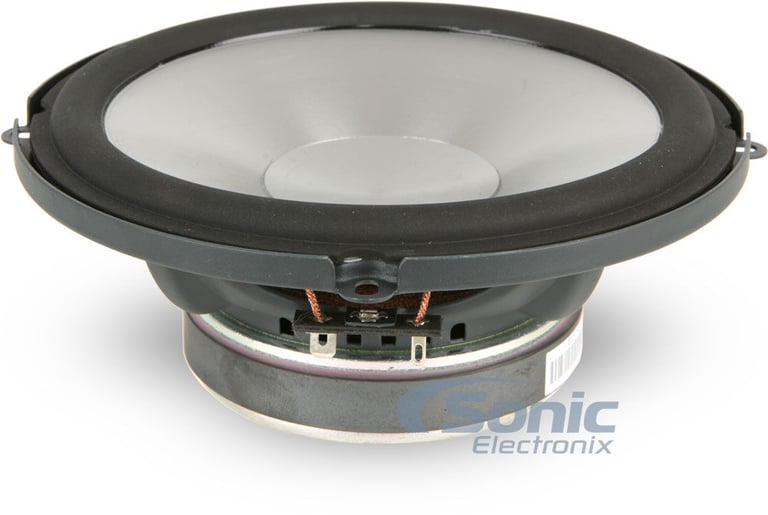

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 4 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 5 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 6 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 7 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 8 — Infinity Reference 6030cs Open Box Complete (Good, Used)

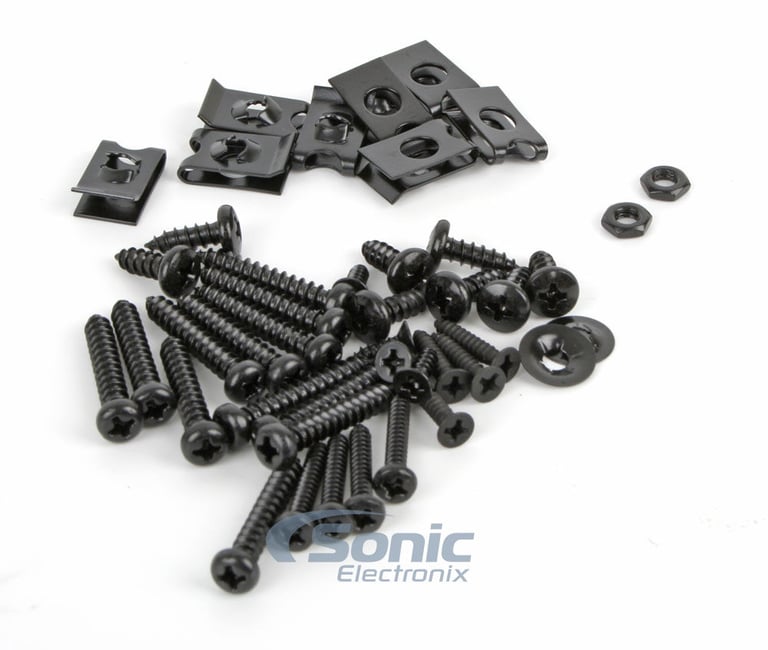

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 9 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 10 — Infinity Reference 6030cs Open Box Complete (Good, Used)

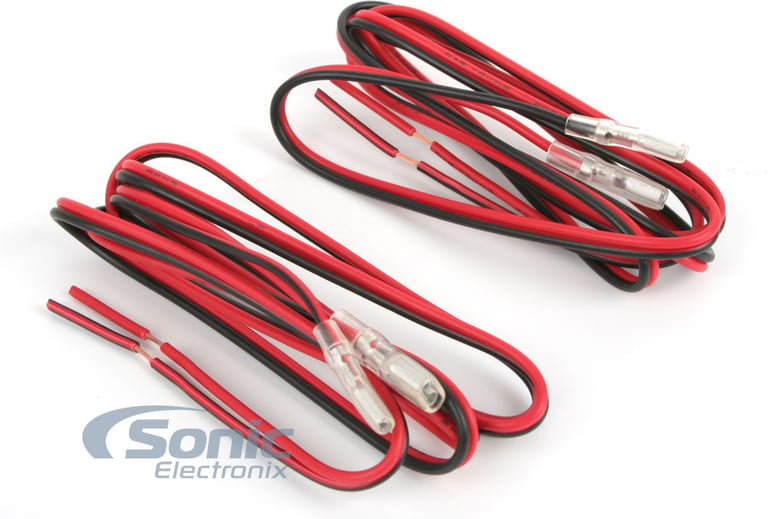

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 11 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 12 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Infinity Reference 6030cs Open Box Complete (Good, Used) Image 13 — Infinity Reference 6030cs Open Box Complete (Good, Used)

Product highlights

• Peak Power: 270W
• RMS Power: 90W
• 1" Edge-Driven Textile Dome Tweeter
• Mounting Depth: 2-1/8"
• Injection Molded Polypropylene Cone
• 4 Ohm Impedance
• Sensitivity: 93dB

Learn more about the ls-6030cs-obc5

Description

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Will fit most 6x9" and 5x7"/6x8" locations, with appropriate speaker adapter. Click ↑ "Related Items" Tab.

Reference Quality Sound from Infinity

Never has getting high-end sound in your car been easier. The Infinity Reference 6030cs car speakers are the perfect solution to aftermarket speakers. With the 2 ohm voice coil, these speakers are ideal for running directly off of a headunit or for use with a aftermarket amplifier. Infinity engineers have combined the Plus One+ cone with the high roll rubber surround to help retain the integrity of the sound. Get more from your audio system with the Infinity Reference 6030cs.

True Four Ohm Technology

The engineers are Infinity have developed a speaker that works for all applications. The True Four Ohm Technology used in these speakers make it perfect for running directly of a headunit or with an aftermarket headunit and amplifier. All of the speakers in the Infinity Reference line feature a 2 ohm voice coil. However, when you factor in the small OEM speaker wire of most vehicles and the heating in the voice coil during use, the impedance actually seen by the amplifier will increase. Infinity has adjusted the speaker to be safely connected to any headunit.

The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.

Item Condition - Open Box, Good Condition:
A Good Open Box used product shows wear from consistent use, but it remains in good condition and works perfectly. It may be marked, have identifying markings on it, or show other signs of previous use or installation. Original packaging, paperwork or protective wrapping may be missing or not included in its entirety. Warranty details are included in the item description or comments.

General Features

6-1/2" 2-way Reference Series Component System
Power Handling:

Peak: 540 watts per set / 270 watts each side
RMS: 180 watts per set / 90 watts each side

Recommended Power Range: 10 - 150 watts RMS per channel
Nominal Impedance: 2 ohm

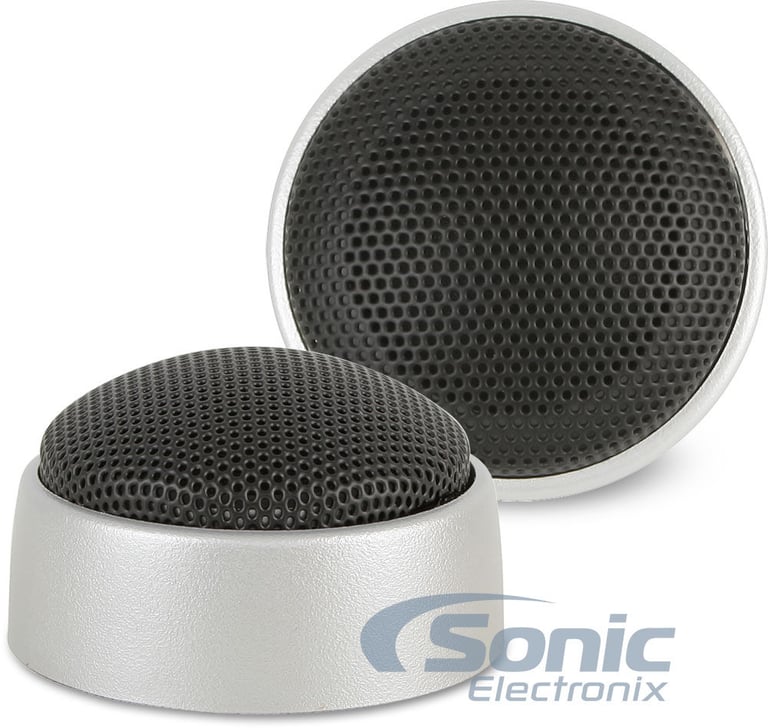

1" Edge-driven textile dome tweeter
Plus One+ woofer cone design offers greater bass output and increased efficiency

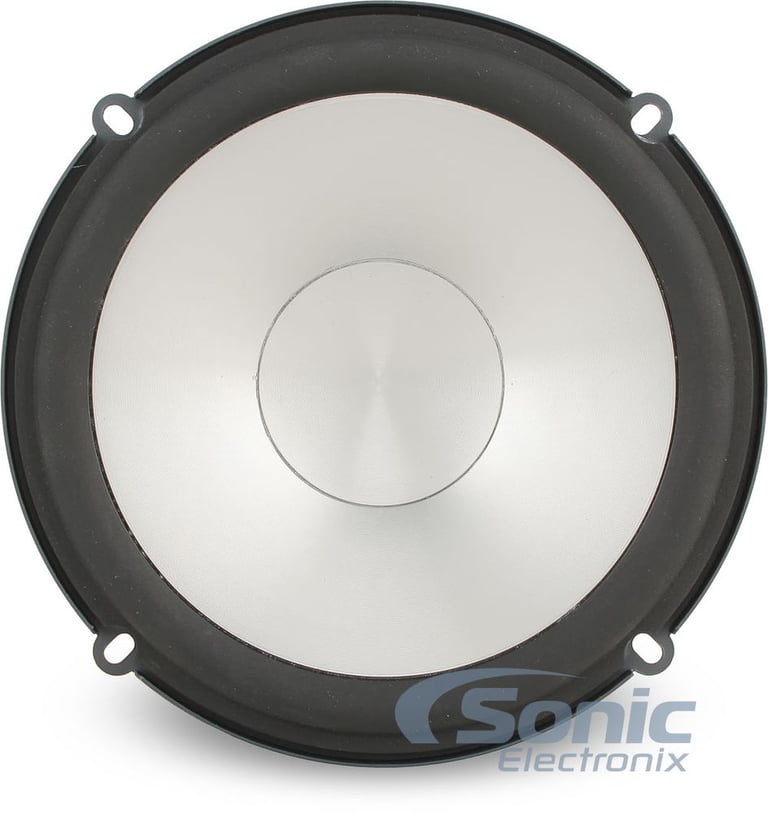

Injection-molded polypropylene cone woofer
Hi-Roll rubber surround
Selectable tweeter output level: 0 / +3 dB

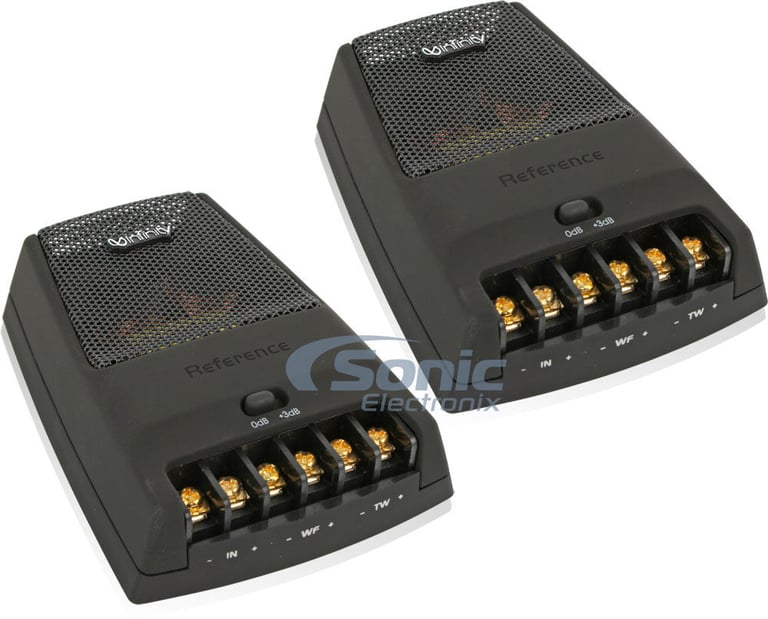

2-way external crossover network (18 dB/octave, 3,500 Hz crossover point)

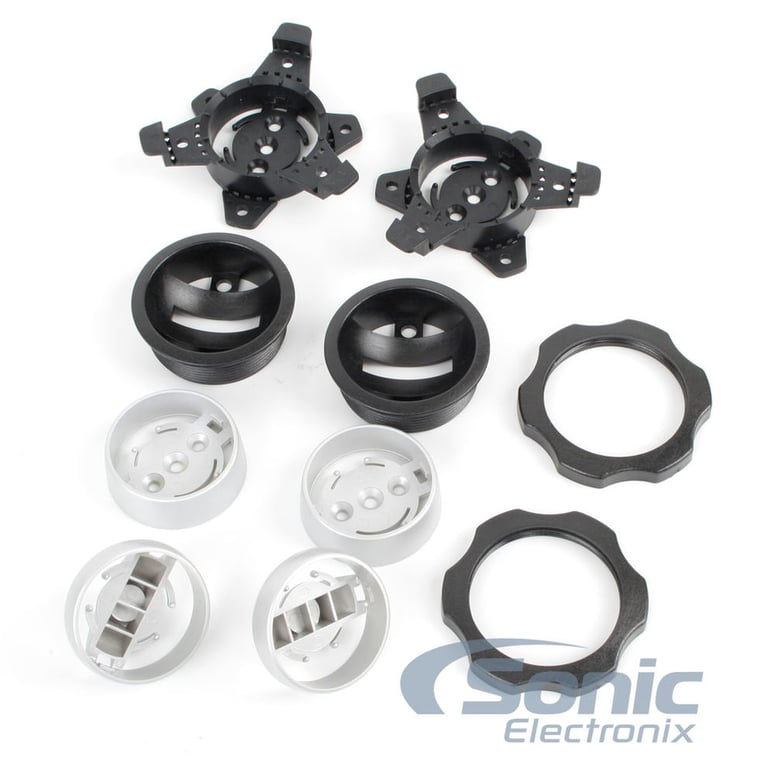

Starfish mounting brackets for easy tweeter installation included
True Four Ohm Technology - speaker's 2 ohm impedance combines with OEM speaker wire impedance for a 4 ohm load. Aftermarket speaker wire greater than 18 gauge will gain natural 2 ohm load.
Top-mount Depth (woofer): 2-1/16"
Cutout Dimensions (woofer: 5"
Top-mount Depth (tweeter): ~7/8"
Cutout Dimensions (tweeter): 1-13/16"
Frequency Response: 53 - 21,000 Hz
Sensitivity: 93dB
Authorized Internet Dealer
30-Day Return Policy
Also Found As: Reference X REF-6500cfx

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

Specifications & Details

Speaker Specifications

Series

Reference Series

Priced Per

Pair

Number of Speakers

2 Speakers + 2 Tweeters

Speaker Size

6-1/2"

Design

2-way Component System

Tweeter Design

Dome

Tweeter Size

Tweeter Composition

Textile

Woofer Composition

Injection Molded Polypropylene

Woofer Surround

Rubber

Peak Power Handling

270 watts

RMS Power Handling

90 watts

Sensitivity

93 dB

Frequency Response

53 - 21,000 Hz

Impedance (Per Voice Coil)

2 ohm

Shallow Mount Installation

Top-Mount Depth (Mounting Depth)

2-1/16""

Cutout Dimensions

General specifications

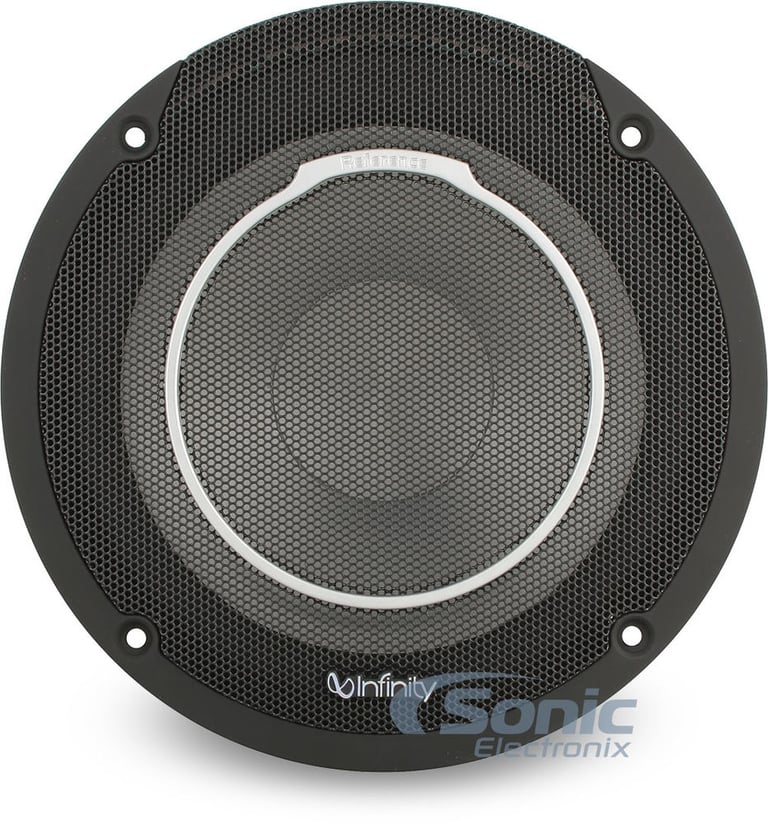

Speaker Grilles

Yes

Warranty and Return Policy

Parts Warranty Duration

Not warranted

Labor Warranty Duration

Not warranted

Warranty Provider

Manufacturer
