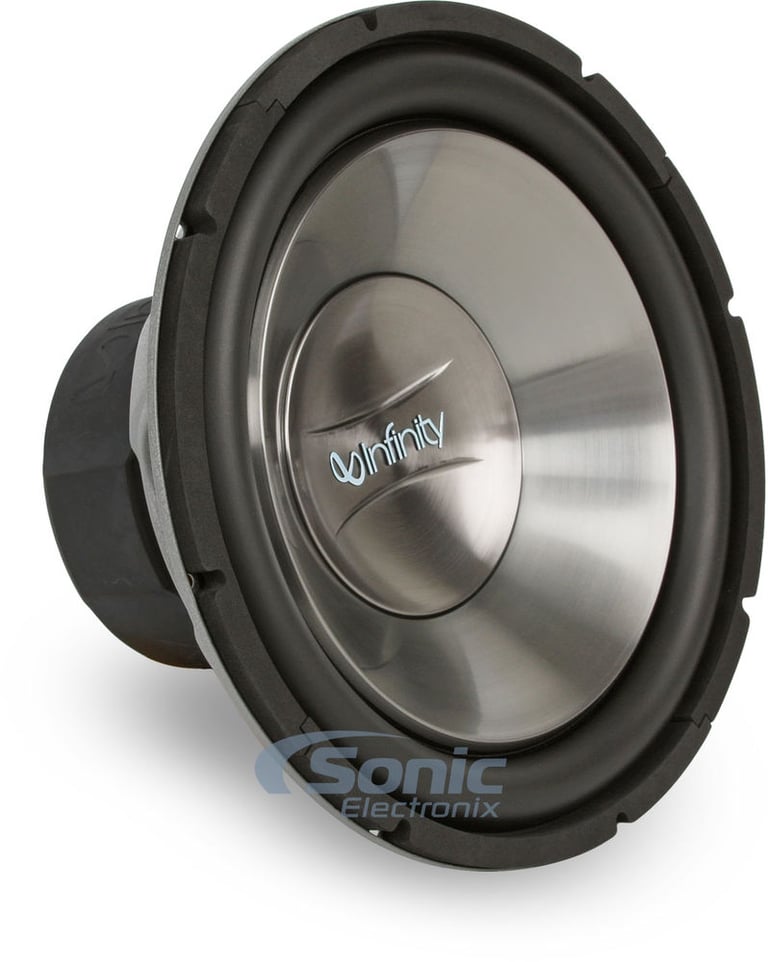

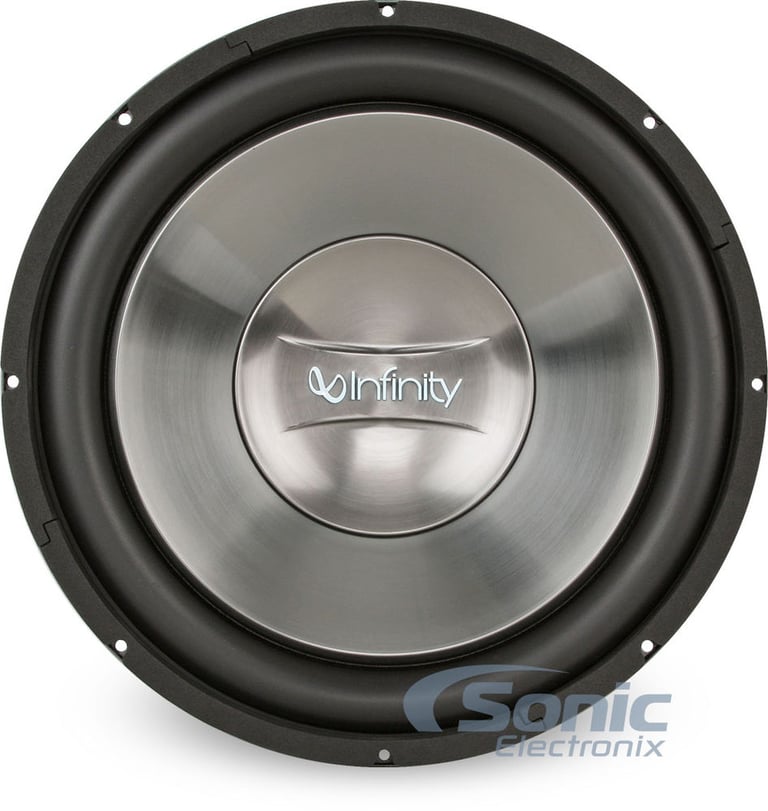

Infinity Reference 1260W

300W 12" Reference Series Single 4 ohm Subwoofer

Infinity
Shop all Infinity
Product videos
highlight-star-icon

• 1200W Peak
• 300W RMS
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces
• Progressive Spider

Learn more about the 1260w

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

REF697F main

Infinity REF697F (INFSPKRF697FUS)

600W Peak (200W RMS) 6x9" Reference Series 2-Way Coaxial 4-ohm Speakers

5
-17.65%

$139.95

List price $169.95

PNW-69CS2 main

AudioControl PNW-69CS2

250W RMS 6x9″ PNW Series 2-way 3-ohm Component Speaker System

1
-5.42%

$349.00

List price $369.00

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TERMINATOR69 main

MTX Audio TERMINATOR69

240W Peak (120W RMS) 6x9" Terminator Series 2 Way Coaxial 4-ohm Speakers

1
-11.12%

$79.95

List price $89.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Product Highlights


• 1200W Peak
• 300W RMS
• High-Gloss Polypropylene Woofer
• Large-Roll Rubber Surround
• 2" Voice Coil
• Vented Pole Pieces
• Progressive Spider

Description


Infinity brand icon

Authorized dealer

To Infinity, and Beyond Your Normal Woofer

A 12 inch subwoofer is thought of as the embodiment of all subwoofers. The perfect blend of everything: power handling, crisp bass, punch or boom, and a wide range of frequencies. Well, this Infinity Reference subwoofer fits this stereotype perfectly. 1200 watts max power while dishing out sweet, tasty bass notes from any music type. Bon Appetit!

Infinity’s product quality and excellence stem from their passion for music. This fact is evident in each of their lines, with no exception to their Reference Series subwoofers. Whether you listen to rock, hip-hop, jazz, country or anything else, these woofers will shine through with every note. High-gloss polypropylene woofer cone is lightweight which assures maximum efficiency which produces high output with modest amplifier power. This in no way means the Reference woofers don’t have a sound quality side, far from it. Sound quality is the name of Infinity’s game, and every beat will be smooth, crisp, and hard hitting. The large-roll rubber surround absorbs distortions that travel through the cone, ensuring clean bass response. Vented polepieces help cool the motor structure which allows for an increase in power handling. Engineering at Infinity is state-of-the-art and a great deal of computer aided design software is used to devise their products. This commitment shows in all of their product lines, and with such a good reference, it’s a no brainer.



The Sound of quality

Sonic Electronix, one of the leaders in car audio, recently visited Harman, the premium global audio and infotainment group, at their research and development locations in Northridge, California and Detroit, Michigan. The purpose of these visits was to utilize and combine the powerful brand of Harman and the industry leading knowledge behind Sonic Electronix to begin working together on developing future car audio projects.


General Features:

  • 12" Reference Series Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 300 watts
  • Recommended power range: 100 - 300 watts RMS
  • Impedance: Single 4 Ohm
  • High-gloss polypropylene woofer cone ensures maximum woofer efficiency
  • Large-roll rubber surround absorbs distortions
  • Vented pole pieces provide additional cooling of the motor
  • Progressive spider provides better control at excursion limits
  • 2" Voice coil
  • Frequency response: 23-400 Hz
  • Sensitivity: 91 dB
  • Mounting Depth: 6-3/8"
  • Cutout Diameter: 11-1/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Also found as: REF1260W

Product history:

Infinity 1260w thumbnail
(newest, current model)
Infinity 1250W thumbnail
(previous model, replaced by Infinity Reference 1260W)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference 1260W Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Infinity Reference 1260W Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference 1260W Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference 1260W Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
Peak Power Handling
1200 watts
RMS Power Handling
300 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
23 - 400 Hz
Sensitivity
93 dB
Xmax (millimeters)
13 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
2.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
6-3/8"
Cutout Diameter
11-1/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
23.50 Hz
Equivalent Compliance (Vas)
82.96 liters
Total Speaker Q Value (Qts)
.39
Electrical Q Value (Qes)
.41
Electrical Resistance of Voice Coil (Re)
3.59 ohm
Mechanical Q Value (Qms)
6.99
