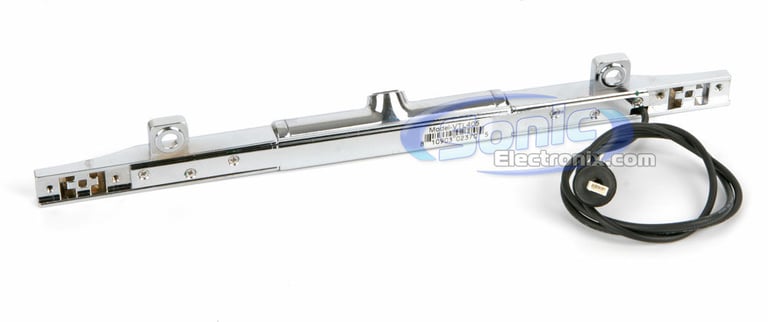

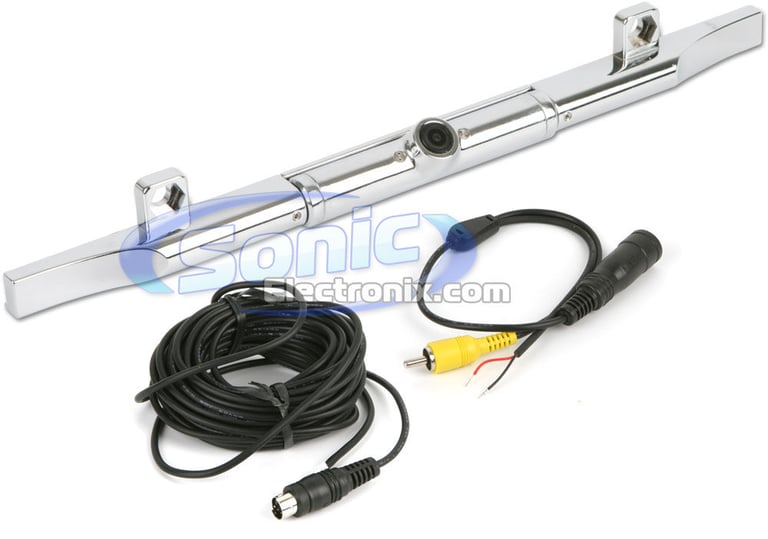

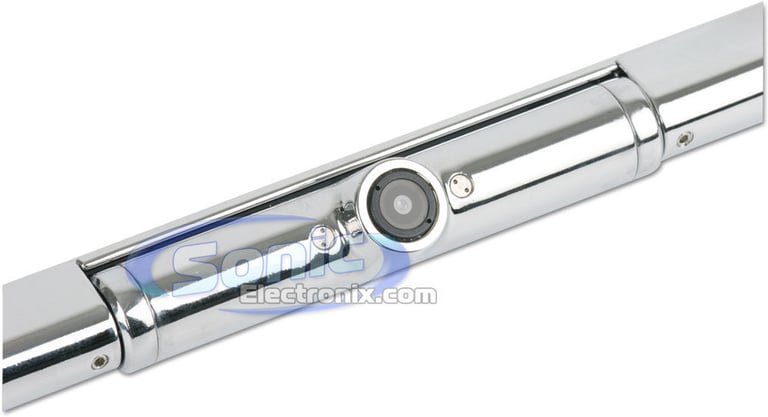

BOYO Vision VTL405 (VTL-405)

Ultra Slim Bar Type Zinc Metal Chrome License Plate Backup Camera

highlight-star-icon

• Zinc Metal Chrome Slim Bar Camera
• Remarkably True Color Reproduction
• Low Lux Performance
• 150° Wide Angle View
• Angle adjustable up/down
• Excellent Auto White Balance
• Waterproof
• 1/3" DSP Color CCD

Learn more about the vtl405

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

SAC656 main

Scosche SAC656

Add 5-1/4" or 6-1/2" Speakers to Factory 7" Mounting Locations

50
-6.69%

$13.95

List price $14.95

99-6507 main

Metra 99-6507 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2004-2010 vehicles from Dodge, Chrysler, Jeep (Matte Black)

8
-11.12%

$23.99

List price $26.99

CR04B main

Scosche CR04B Wiring Harness

Install a new car stereo in select 2005-2007 Dakota and Raider

5
-30.43%

$6.95

List price $9.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

117
-37.15%

$21.99

List price $34.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Description


BOYO Vision brand icon

Authorized dealer

General Features:

  • Zinc Metal Chrome Slim Bar Camera
  • Built-in high sensitive 1/3" DSP color CCD
  • 380 TVL horizontal resolution
  • True color reproduction
  • Low lux performance of 0.3 lux at F2.0
  • Excellent auto white balance
  • Waterproof IP67
  • 150° Wide angle view
  • Angle adjustable up/down
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product Specifications:

  • Imager: 1/4" DSP color CCD(high sensitivity)
  • Horizontal Resolution: 380 TV Lines
  • Total Number Of Pixels:
    • NTSC: 270K
    • PAL: 320K
  • Minimum illumination: 0.3 Lux at F2.0
  • Internal synchronizing system
  • 2:1 Interlaced scanning system

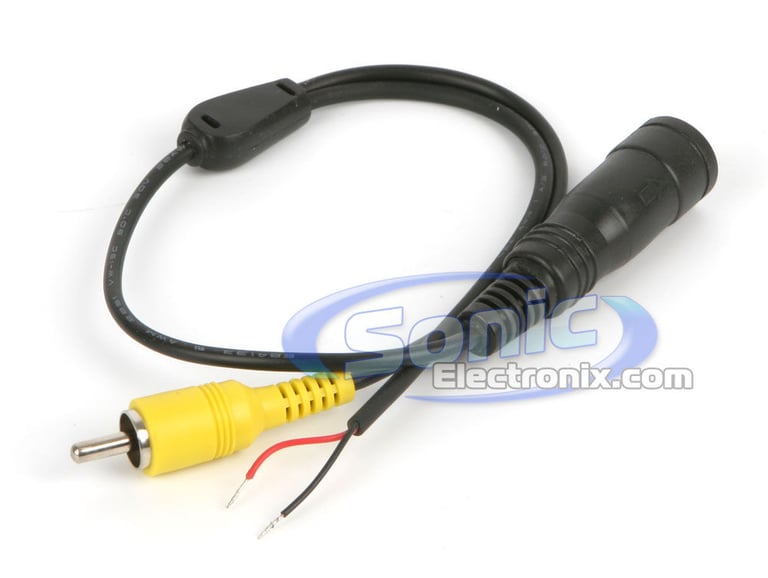

  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50, 1/60-1/100, 000 sec.
  • Smear effect: 0.005%
  • Gamma correction(r): 0.45
  • Auto white balance: 2100'K - 9100'K
  • Auto gain control: 4dB - 30dB
  • Lens mount: 2.8mm Pinhole lens
  • MTBF: 80,000 hours
  • Power source: DC12V(Tolerance: 9V-24V)
  • Operating current: 90mA with regulated power in
