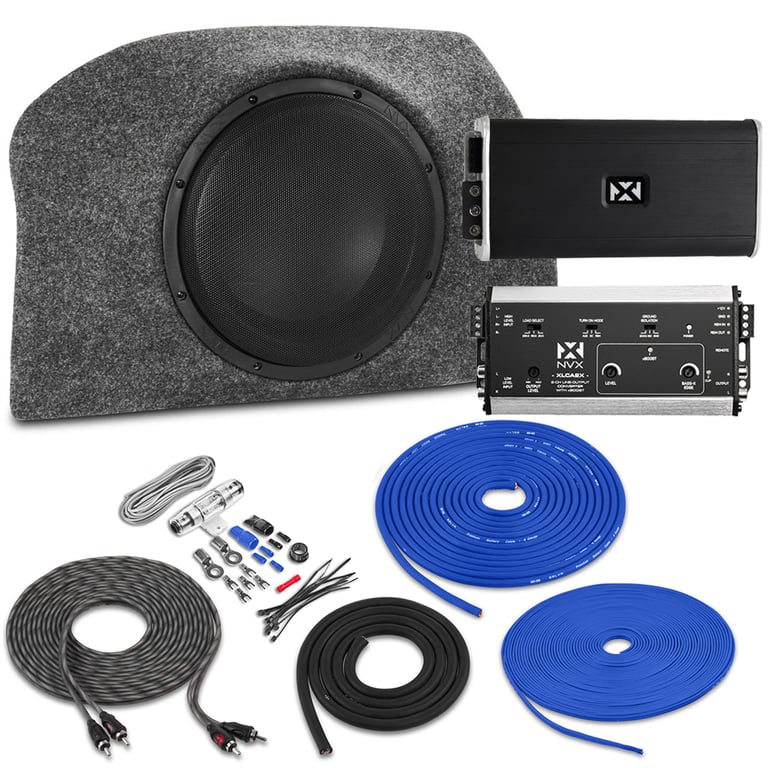

NVX PBK-HYDELA-G6 BOOST Bass Package

Product Details:

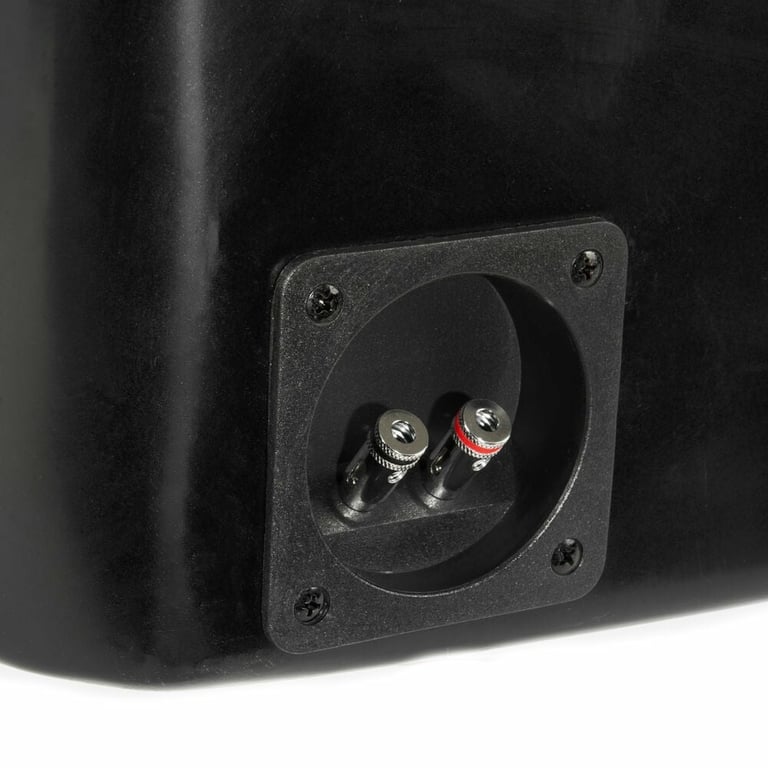

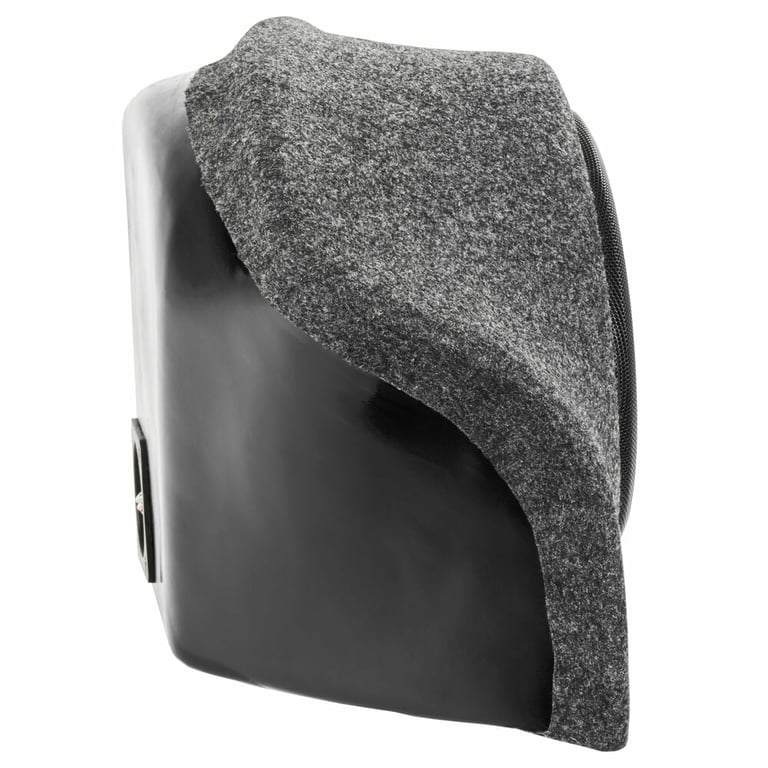

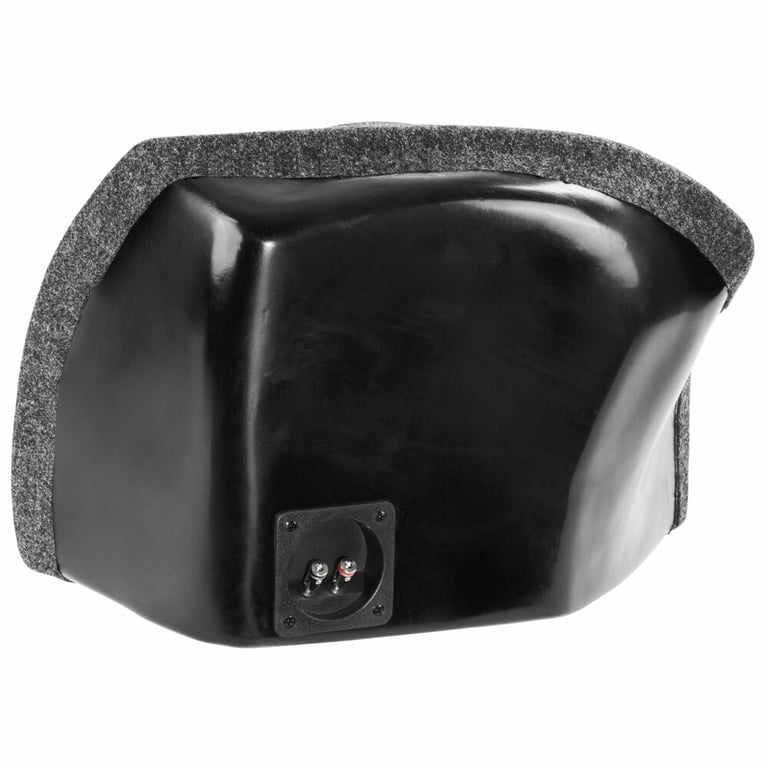

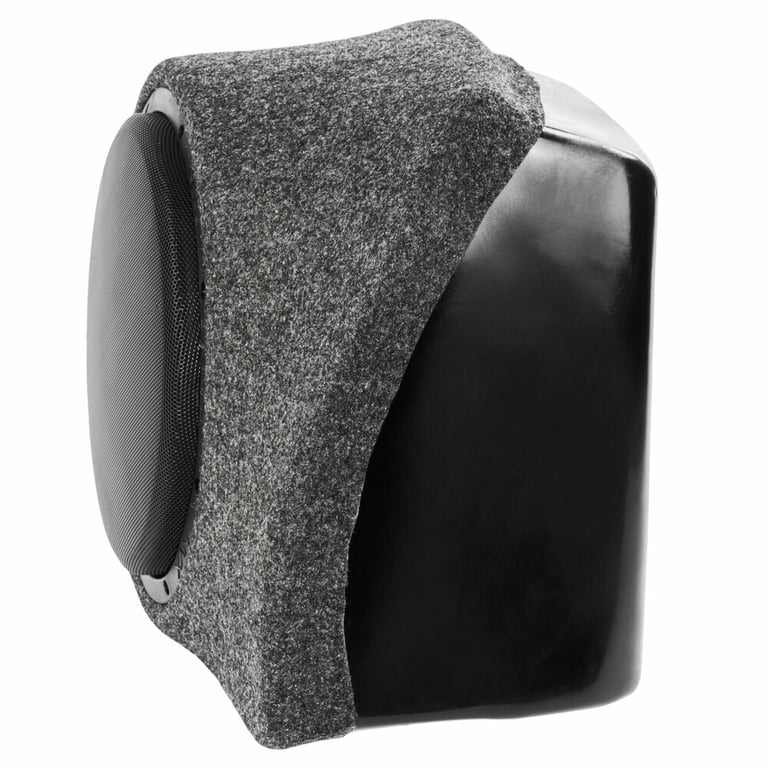

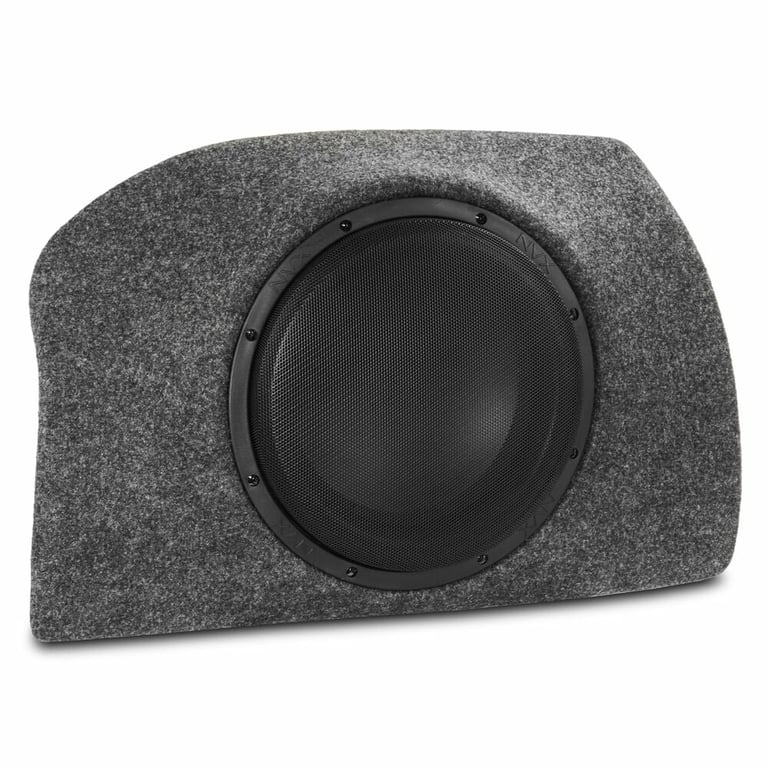

• Custom designed bass enclosure for 2016-2020 Hyundai Elantra vehicles
• Hand-laid fiberglass shell
• Installs quickly and easily into the storage cubby on the left side of the trunk
• 10" Dual 4 Ohm VS Series Subwoofer
• Power Handling:
• RMS: 500 Watts
• Peak: 1500 Watts
• Impedance:2 ohm
• Pressed paper cone with woven fiber top
• Woofer surround type
• Custom high roll foam surround with nylon stitching
• 2.5" high temperature aluminum voice coil
• 127oz. triple stacked ferrite magnet motor structure with protective rubber boot
• Frequency response: 20-220 Hz
• Sensitivity: 87dB
• Complete amplified bass system package available here
• Add bass, no loss of space
• Available in loaded and fully amplified package
• Matches OEM carpet and look
• Custom design without custom price
• Install guide available here
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

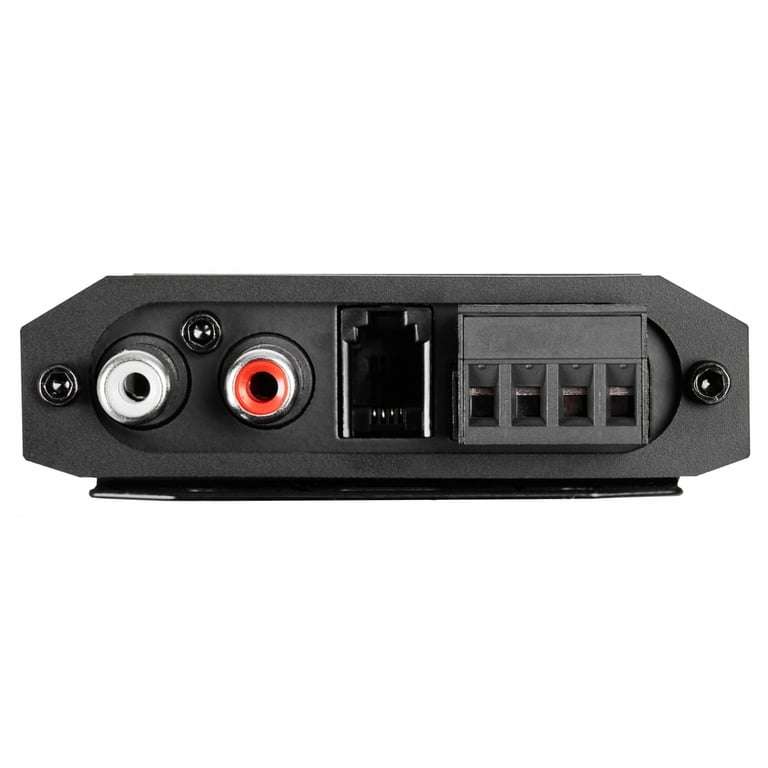

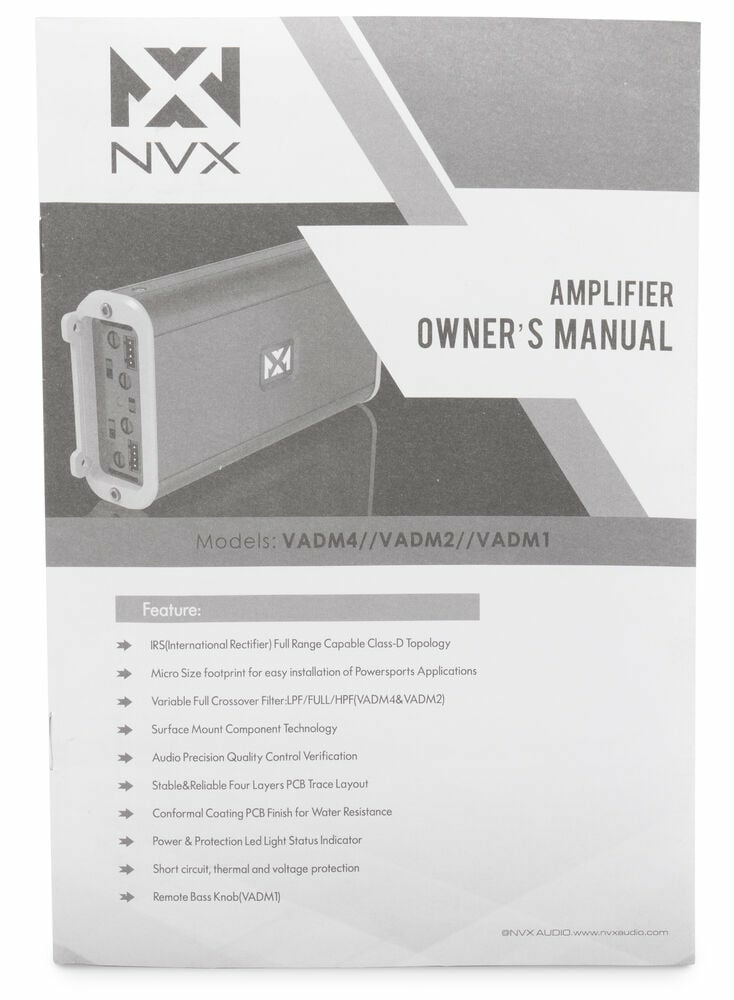

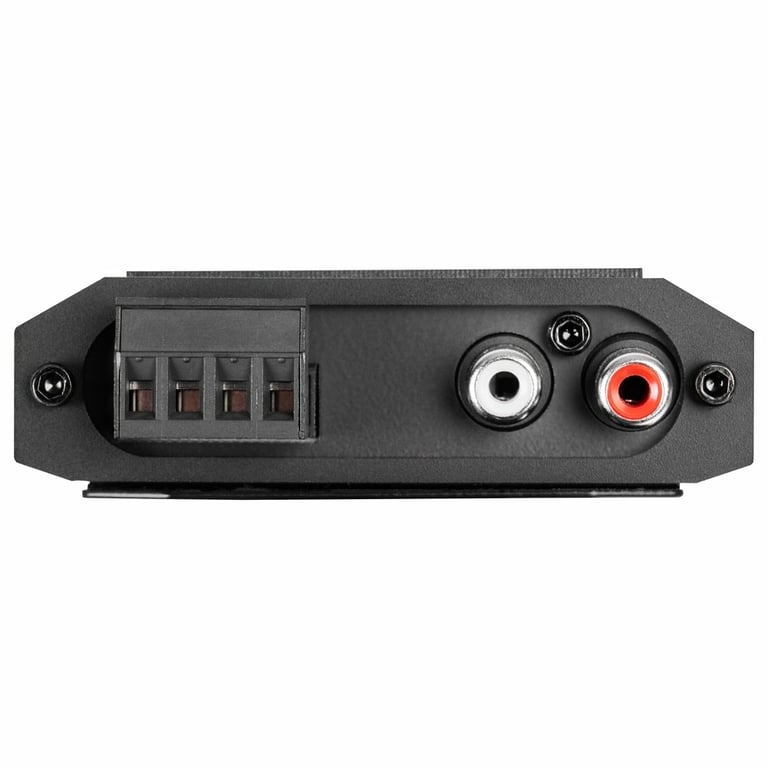

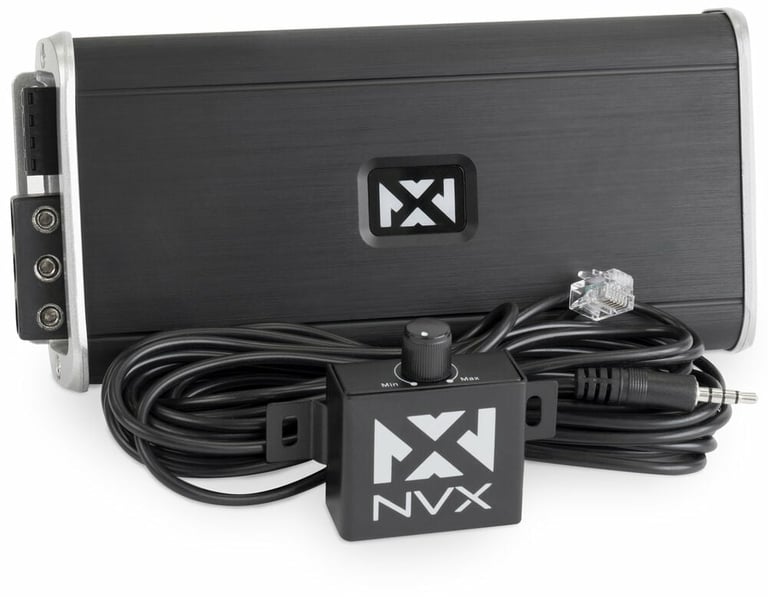

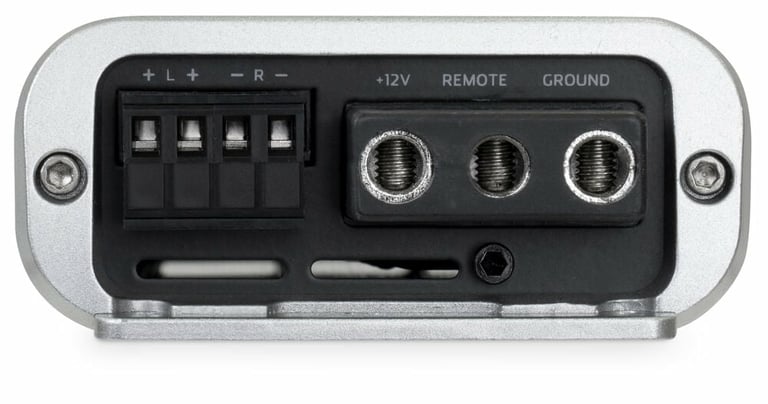

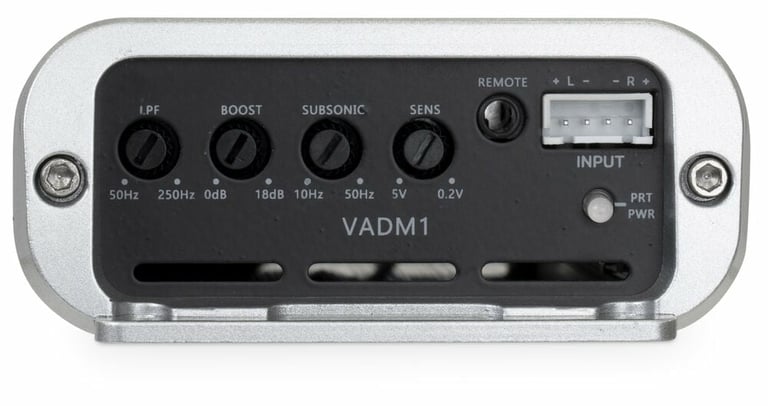

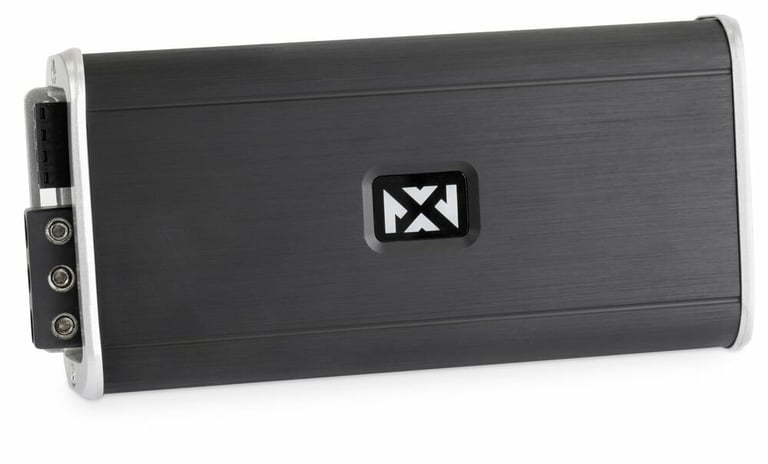

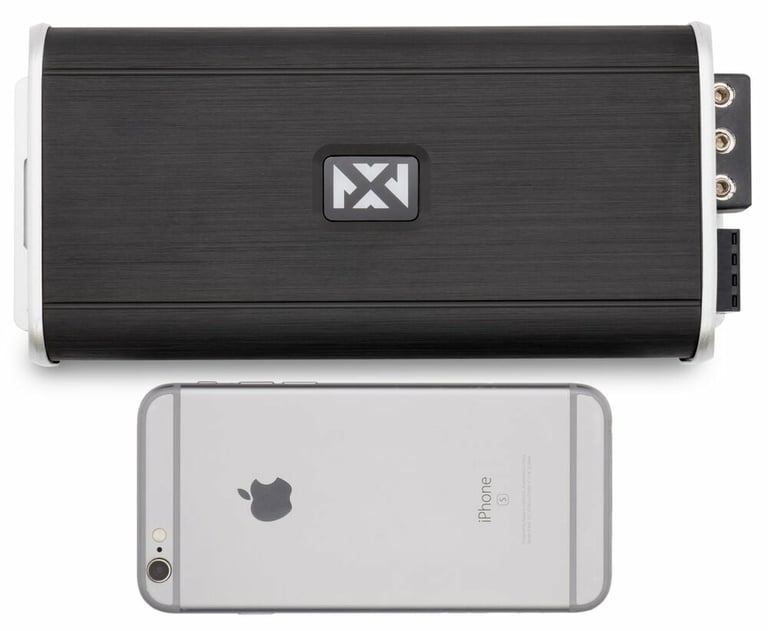

• V Series Micro Class D 1 ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 240 watts x 1 channel
• 2 ohm: 400 watts x 1 channel
• 1 ohm: 600 watts x 1 channel
• Total power output: 600 watts
• LED Power/Protect Light
• Includes a Wired Bass Level Remote Control

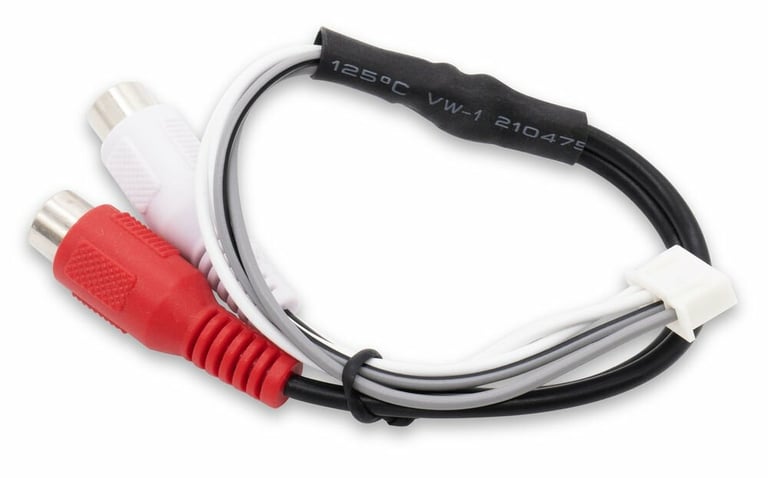

• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
• Balanced differential inputs eliminate noise picked up by signal cables
• Input sensitivity:
• Low level and High level: 0.2 - 10 volts
• Frequency Response: 20 - 500 Hz
• Total Harmonic Distortion (THD): 0.3%
• Signal to Noise Ratio: >85 dB
• Variable low-pass filter: 50 - 250 Hz
• Subsonic filter: 10 - 50 Hz
• Variable Bass Boost: 0 - 18 dB @ 45 Hz
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 6.49" L x 3.3" W x 1.48" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: VADM1v2

Product Features:

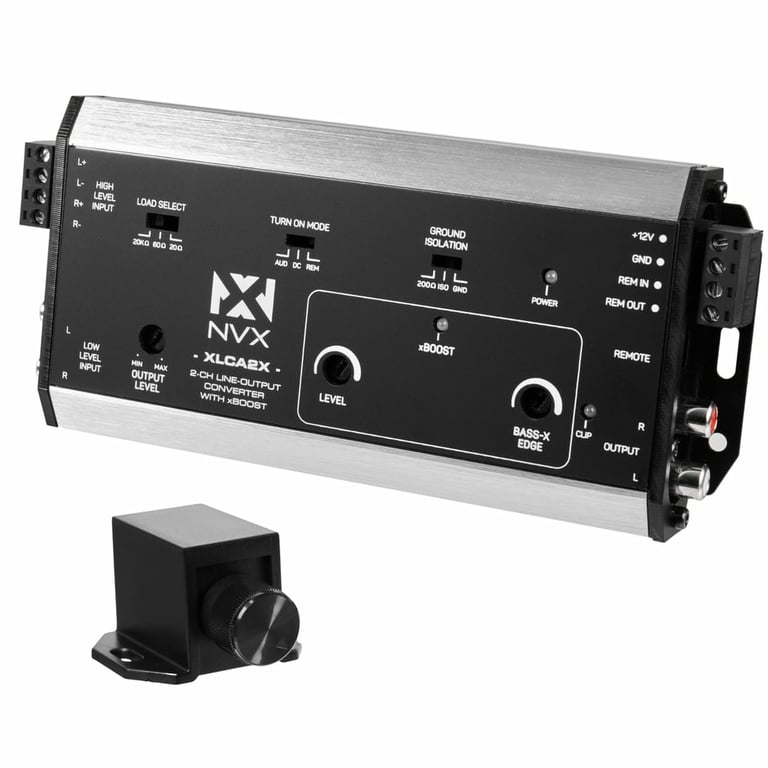

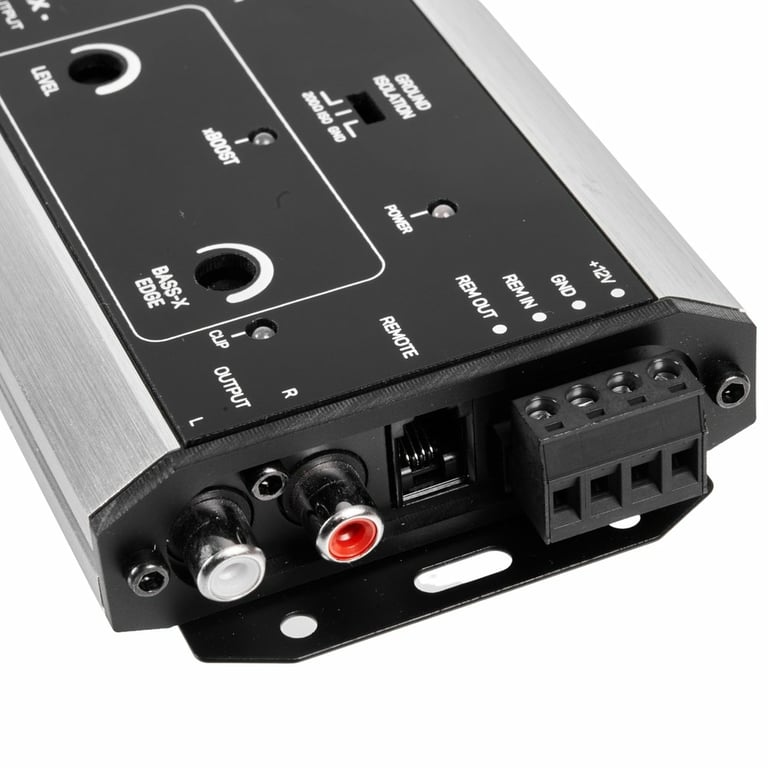

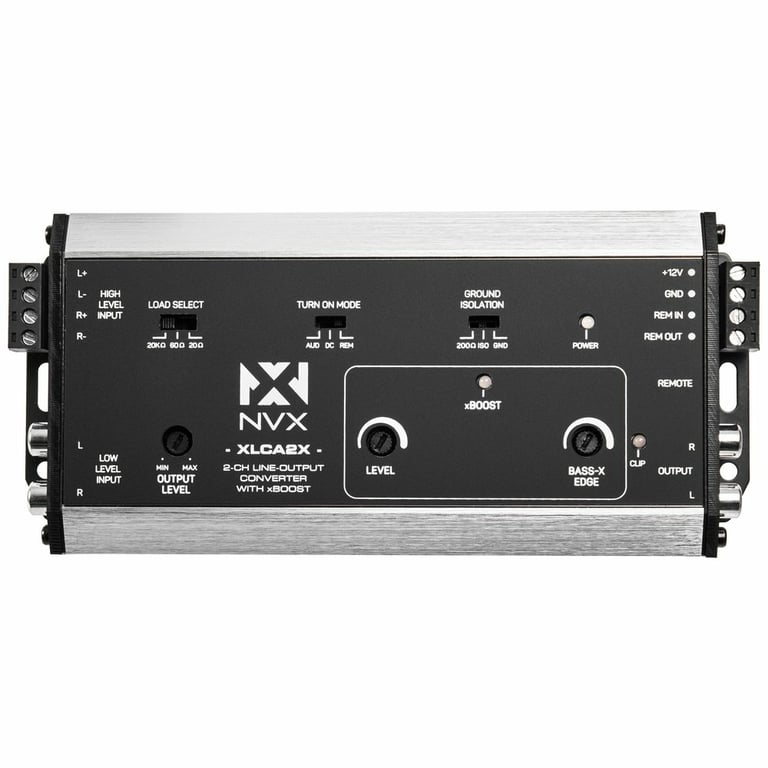

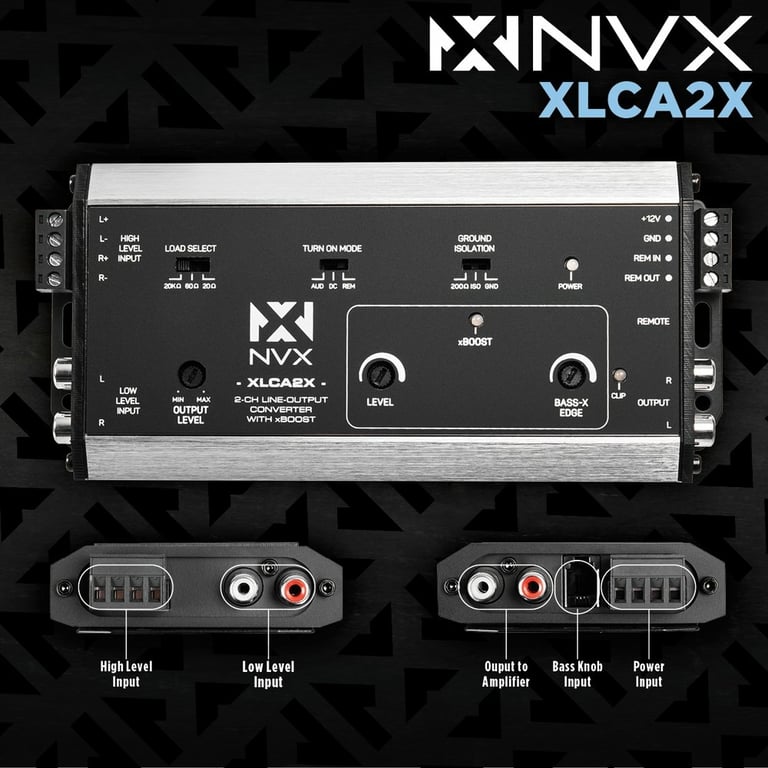

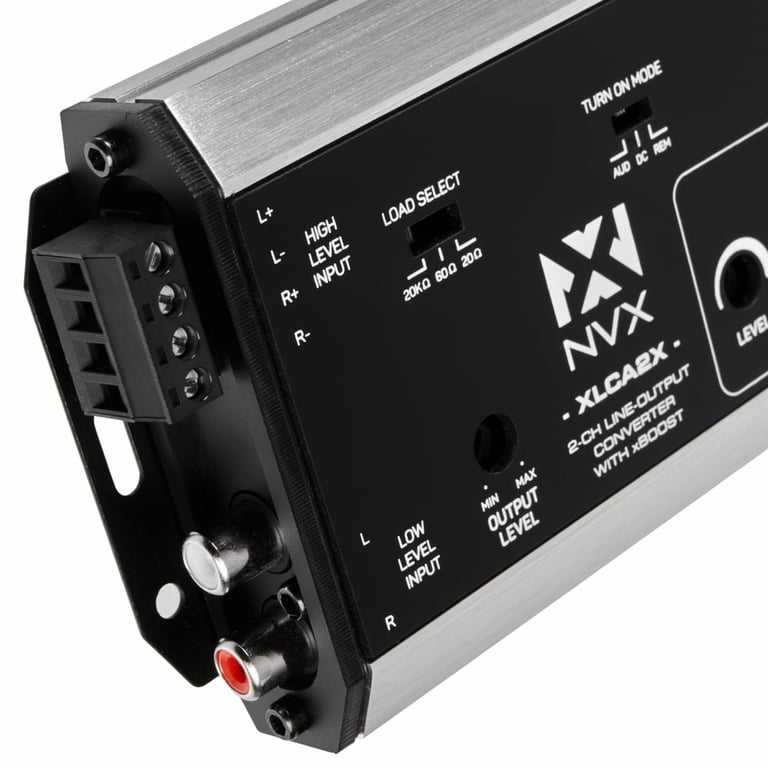

• Active 2 channel line output converter
• Designed to work with factory and aftermarket audio systems
• Speaker-level inputs handle up to 30V (225 watts RMS)
• RCA outputs Provides up to 9.5 Volts of output
• Auto turn-on via DC offset or Audio detection
• Load selection switch (20, 60, or 20K ohms) to prevent factory stereo shut-down
• 12 volt turn-on output for aftermarket amplifiers
• Selectable Ground Isolation switch to eliminate ground and alternator noise
• Molex terminals for speaker signal and power

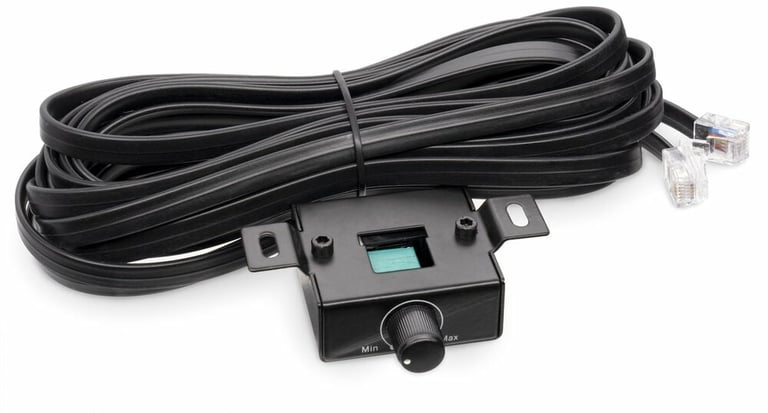

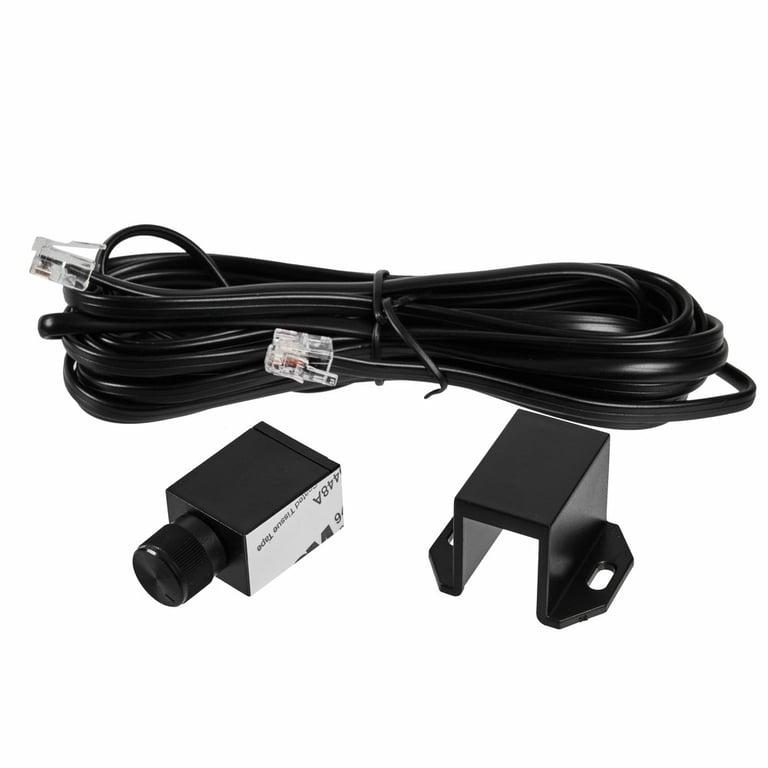

• NVX XLOCXLC wired remote bass level control included
• LED clipping status indicator
• Features digital Bass-X enhancement function
• Separate high and low level inputs (balanced and unbalanced inputs)
• Selectable impedance load: 20, 60, 20k ohm
• Frequency response: 10 - 25000 Hz
• Signal-to-noise ratio: 110dB
• Total harmonic distortion (THD): 0.01%
• Dimensions: 3.23" W x 7.0" L x 0.96" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

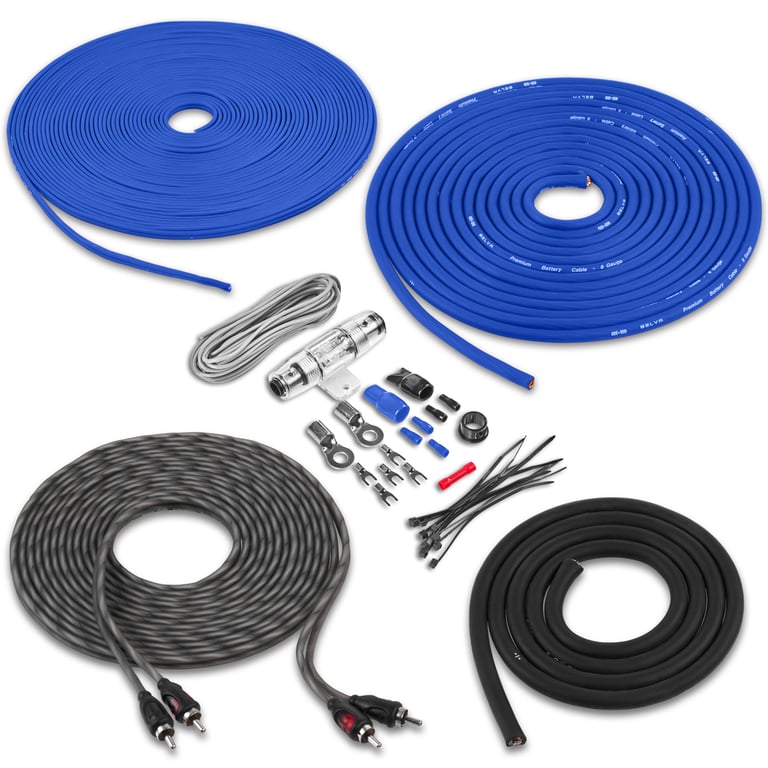

• 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 800 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

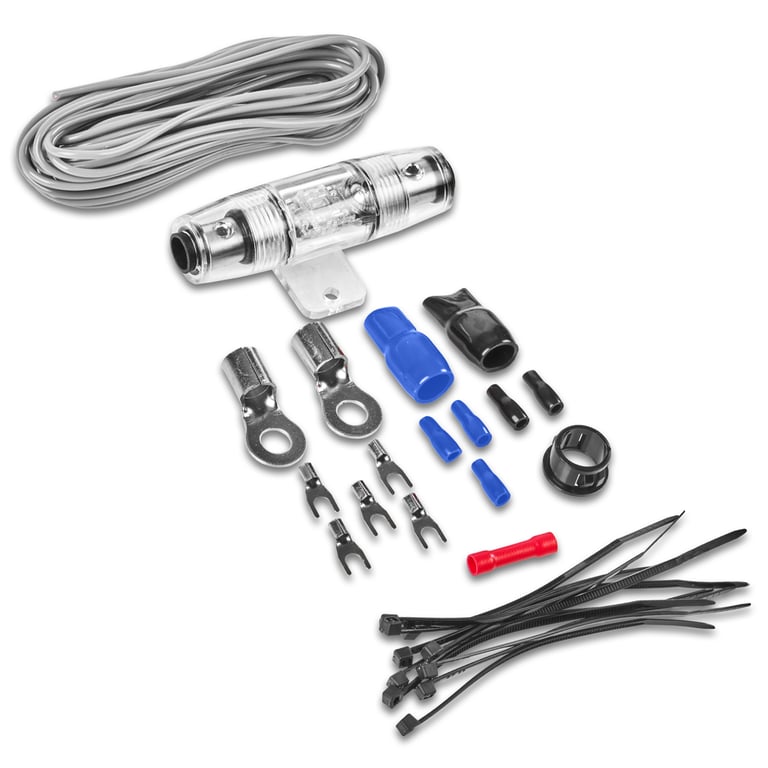

Kit includes:

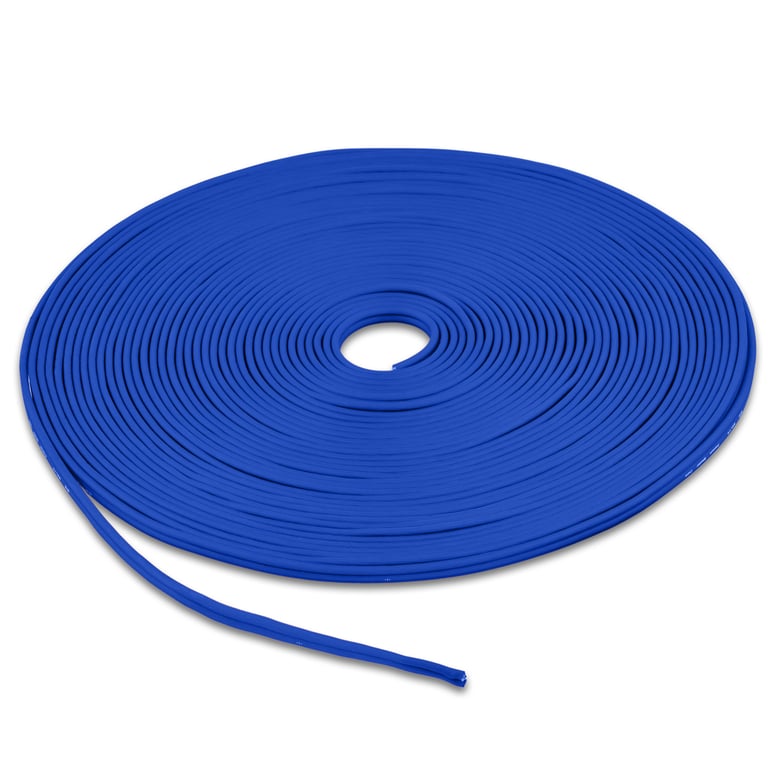

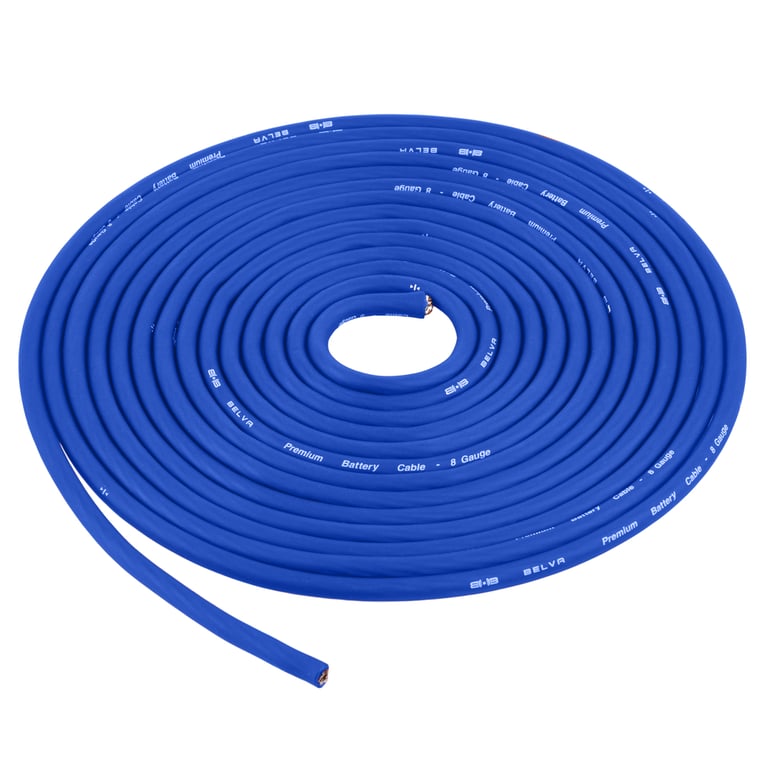

1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 8 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
