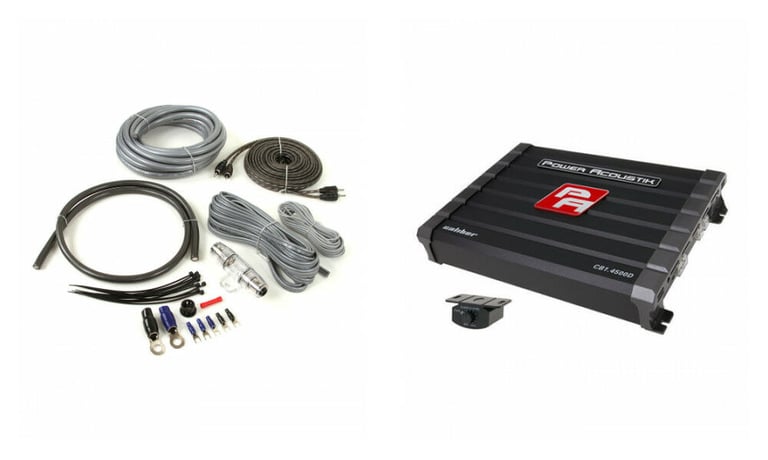

Power Acoustik CB1-4500D + Belva 4 Gauge Amp Wiring Kit

General Features:

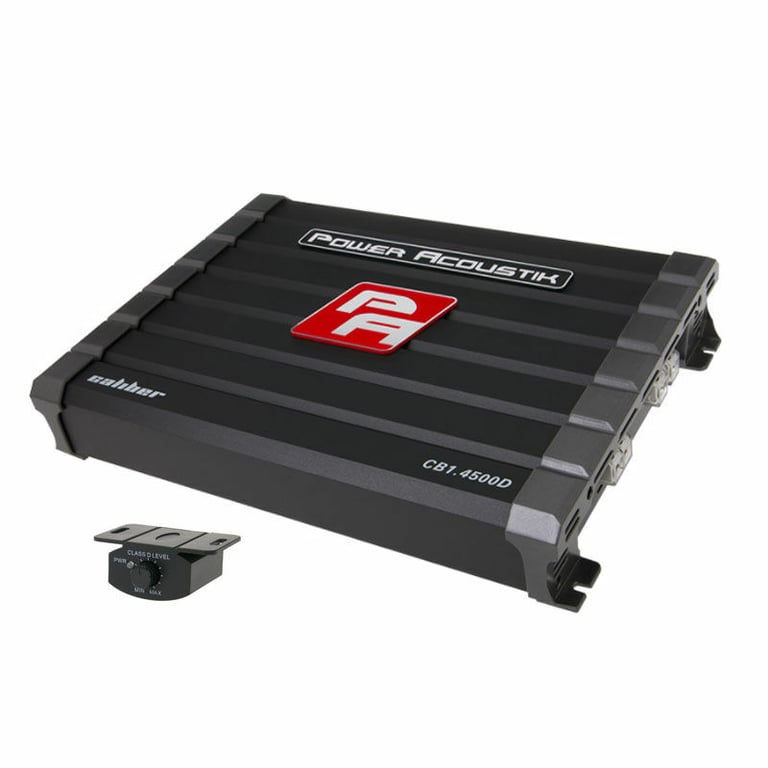

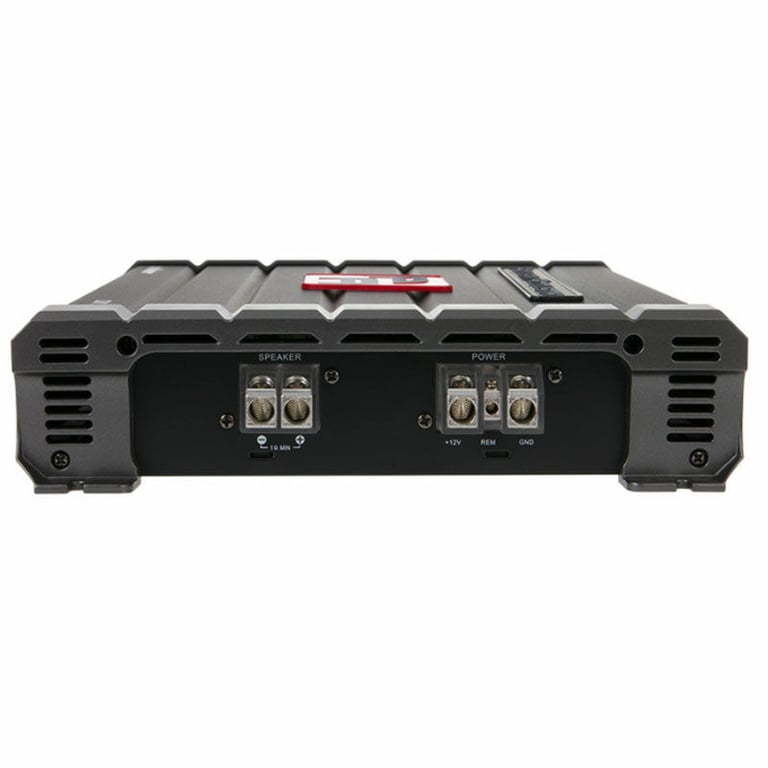

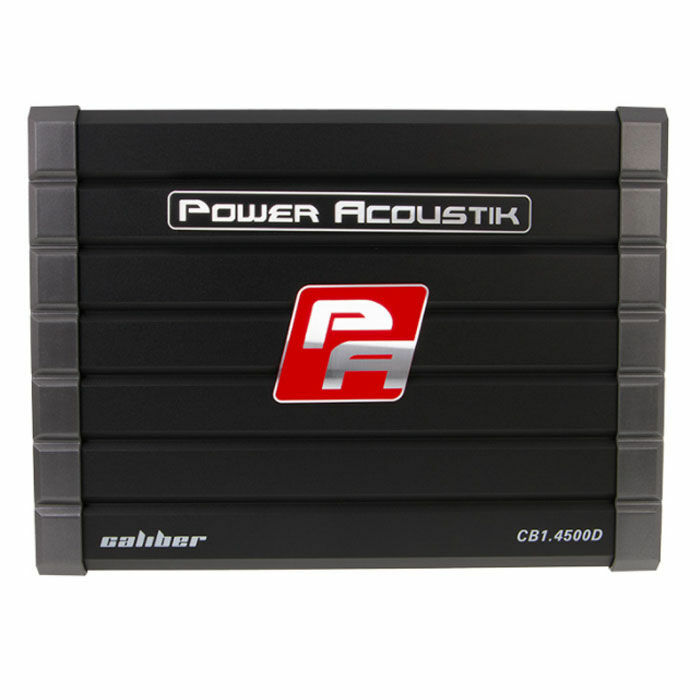

• Power Acoustik CB1-4500D
• Class-D 2-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 900 watts x 1 chan.
• 2 ohm: 1,500 watts x 1 chan.
• 1 ohm: ------------N/A------------
• Strapped to another amp, 4 ohm: 2,200 watts x 1 chan.
• Total power output: 4,500 watts
• Pulse Width Modulated MOSFET power supply

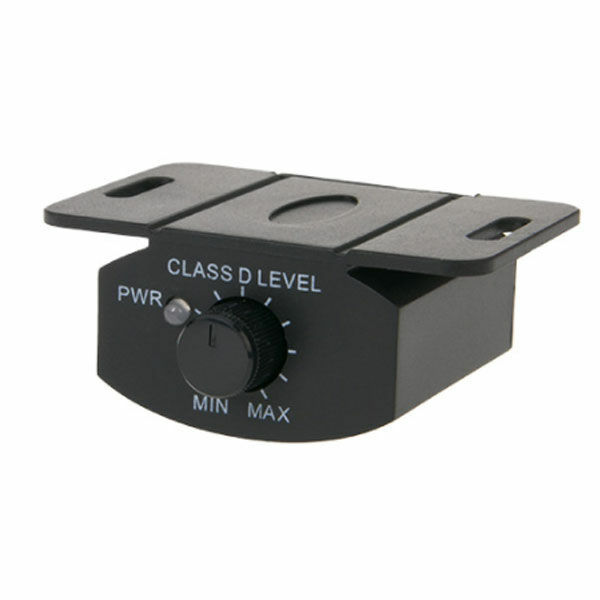

• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation

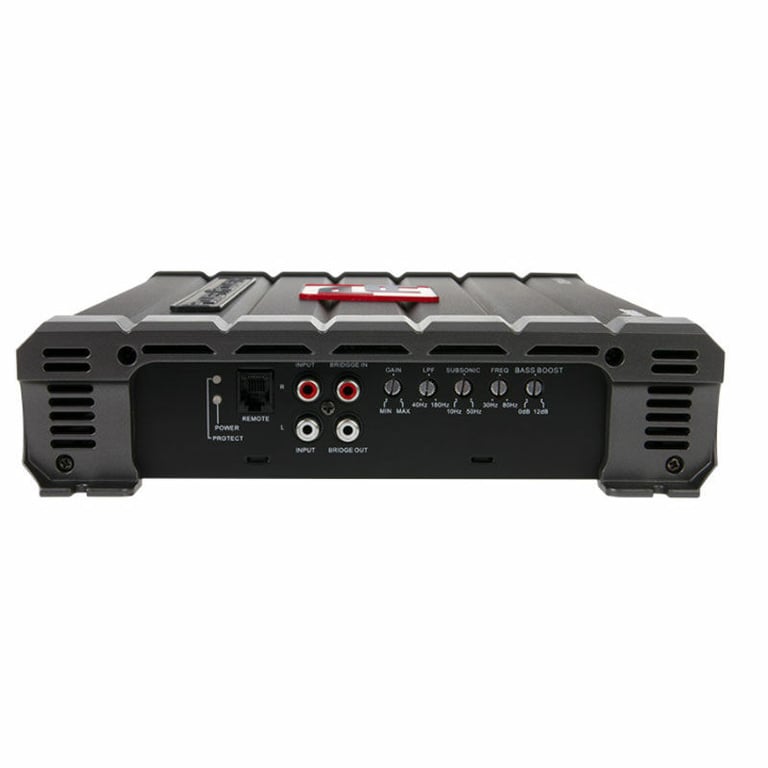

• Speaker-level (high-level) inputs
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• Low level: 200mV-6V
• High level: 250mV-10V
• Frequency Response: 15 - 500 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ration: 96 dB
• Variable low-pass filter: 40 - 480 Hz, 24 dB/octave
• Subsonic filter: 10 - 50 Hz , 24 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• 4 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• *Specifications in manual and packaging differ. Above specs pulled from manufacturer's materials*
• Dimensions: 9.5"W x 13.25"L x 2"H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Power Acoustik CB1-4500D owner’s manual

Product Details:

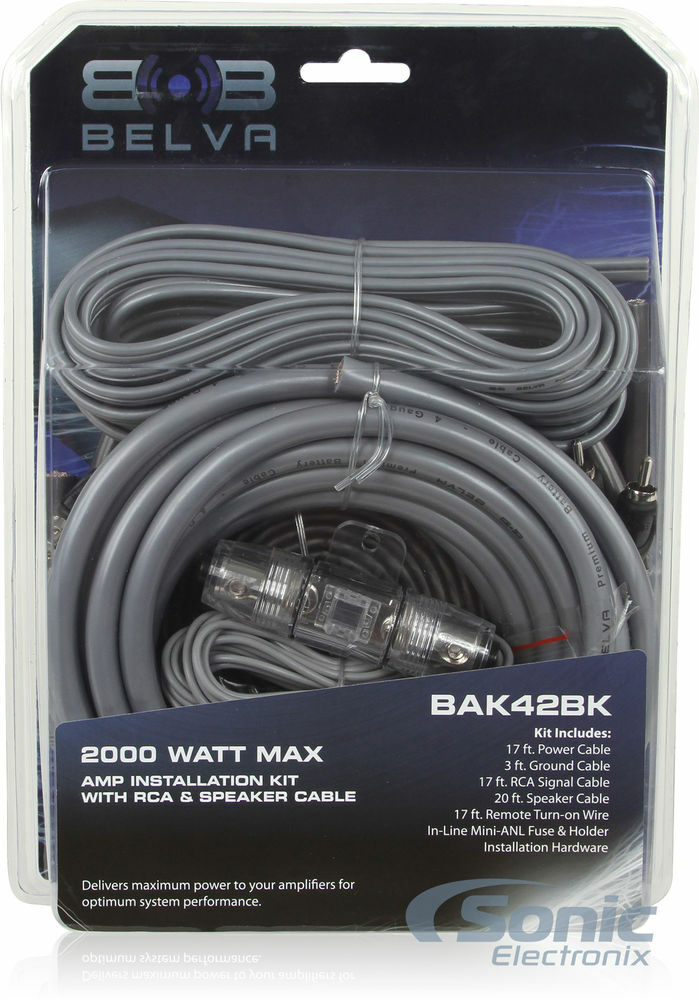

• 4 Gauge 2-Channel Complete Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Made from 100% Copper-Clad Aluminum (CCA)
• Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• RCA Interconnect Cable
• Twisted-pair construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

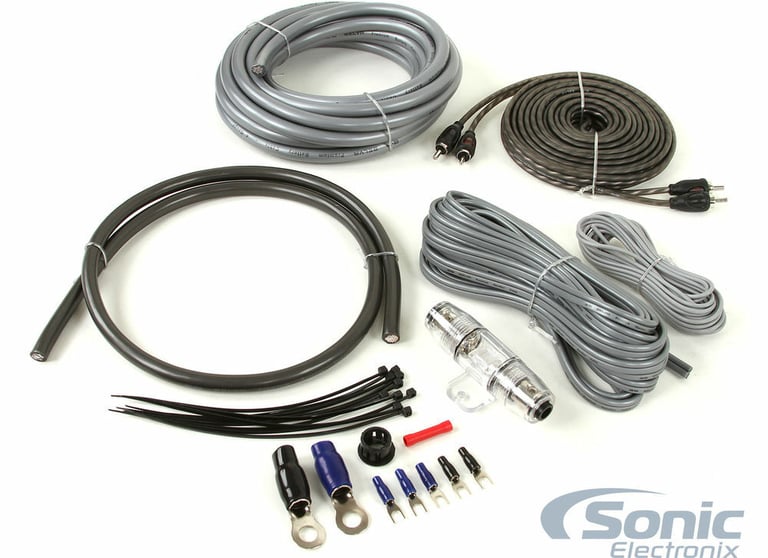

Kit includes:

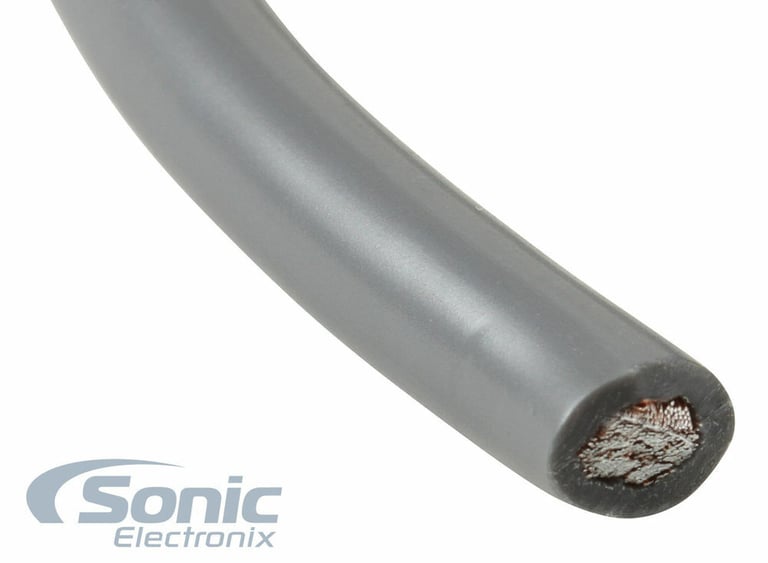

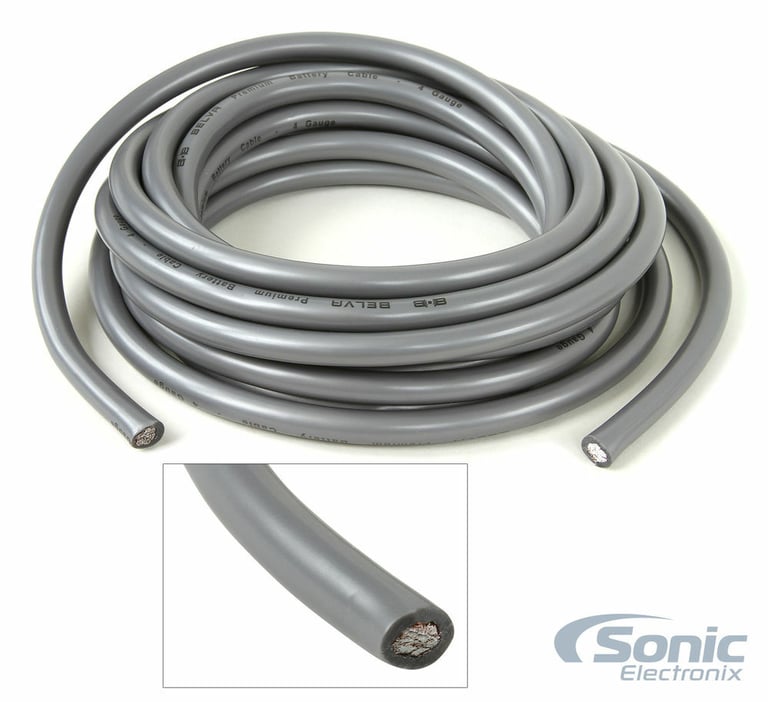

1. 17 ft. Gray 4 gauge power wire

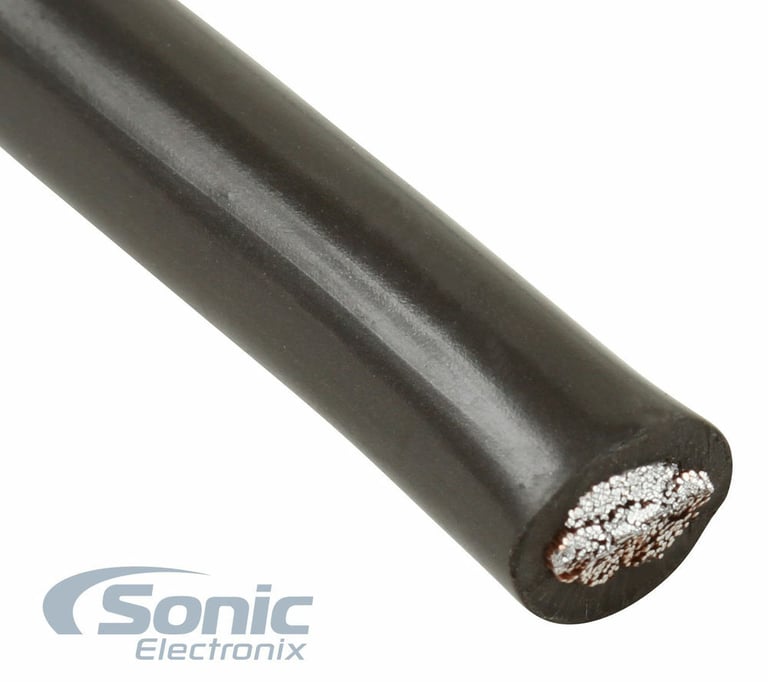

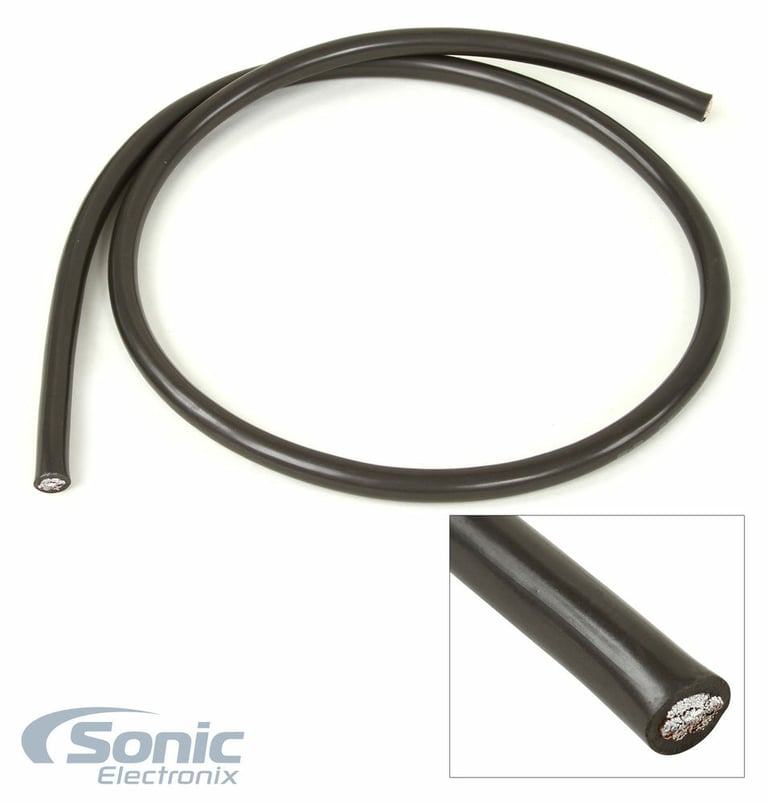

2. 3 ft. Black 4 gauge ground wire

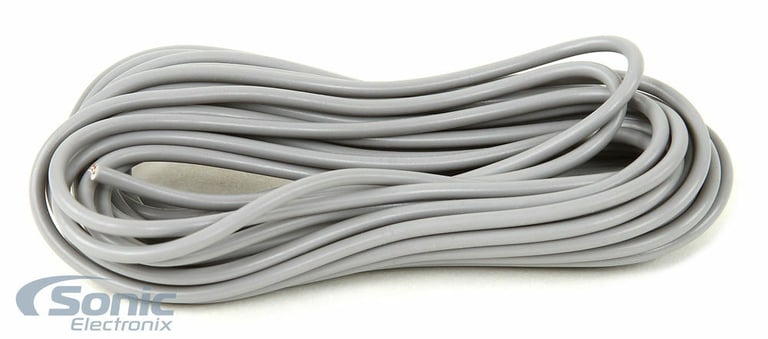

3. 17 ft. Gray 18 gauge remote lead wire

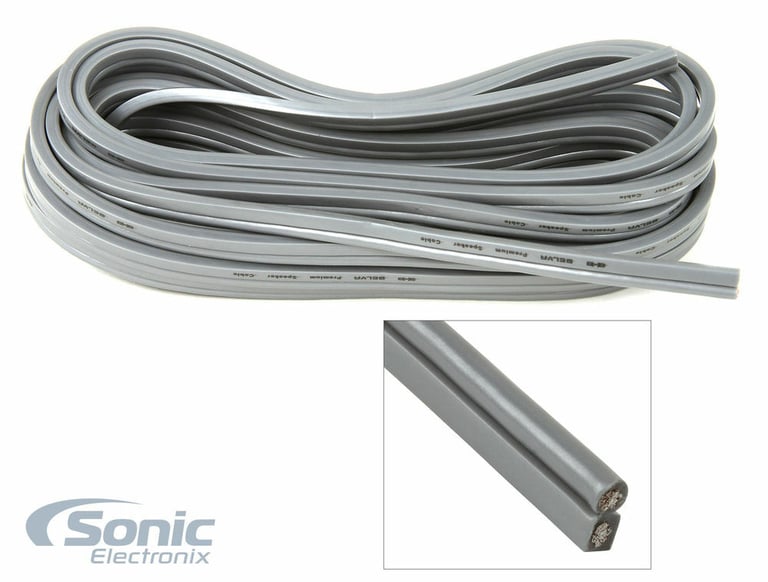

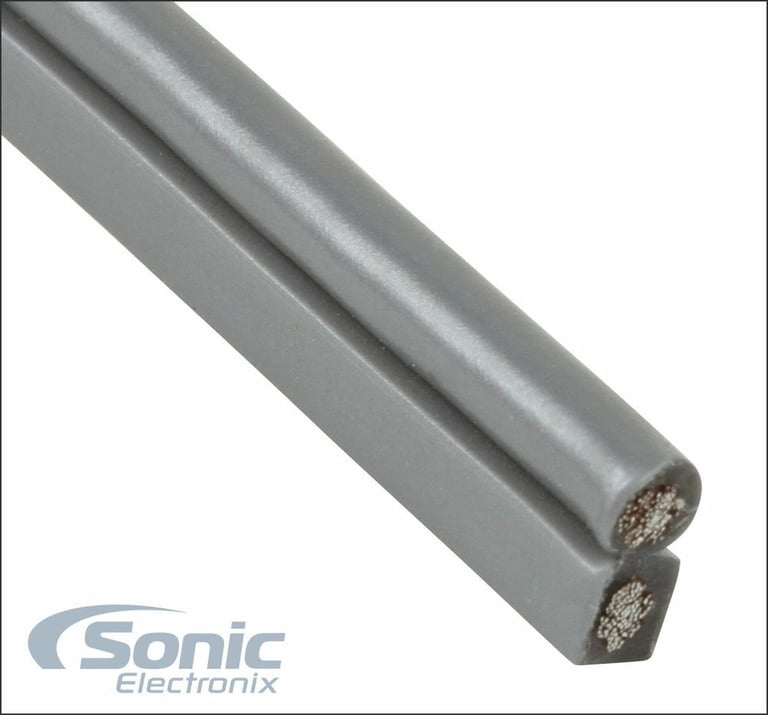

4. 20 ft. 16 gauge speaker wire

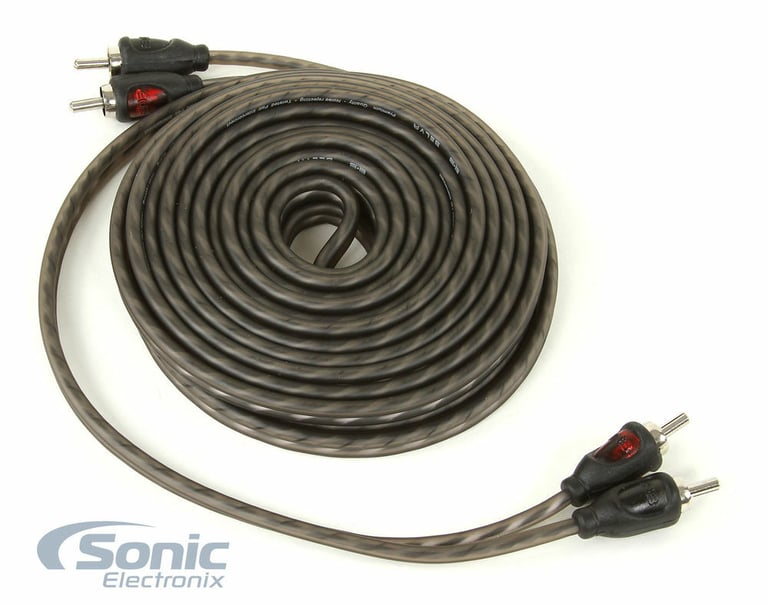

5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable

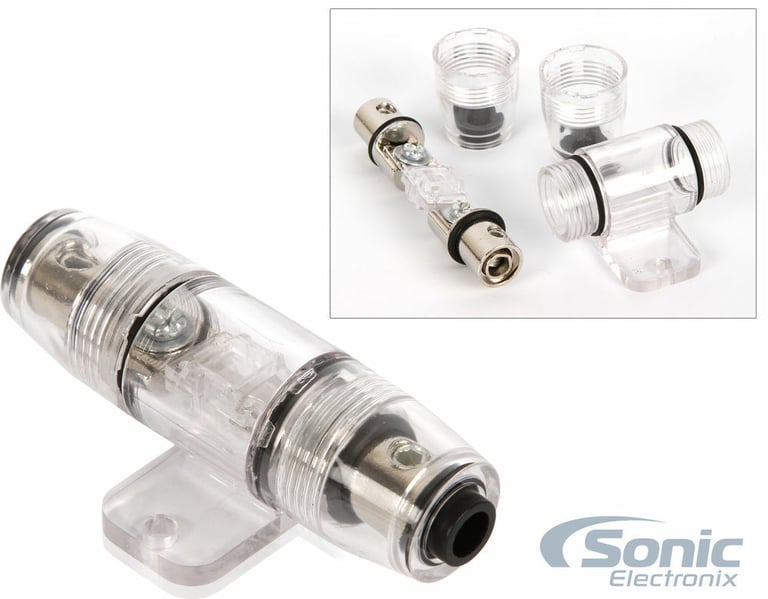

6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse

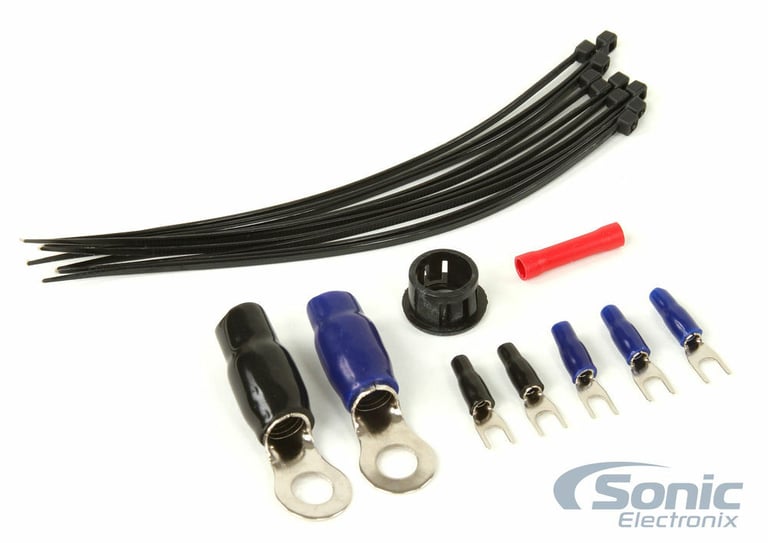

7. One Black rubber firewall grommet
8. Two 4 Gauge Chrome Plated ring terminals
9. Five 16 Gauge Spade terminal
10. One 18 Gauge Red butt connectors
11. Ten 4" Black zip ties
