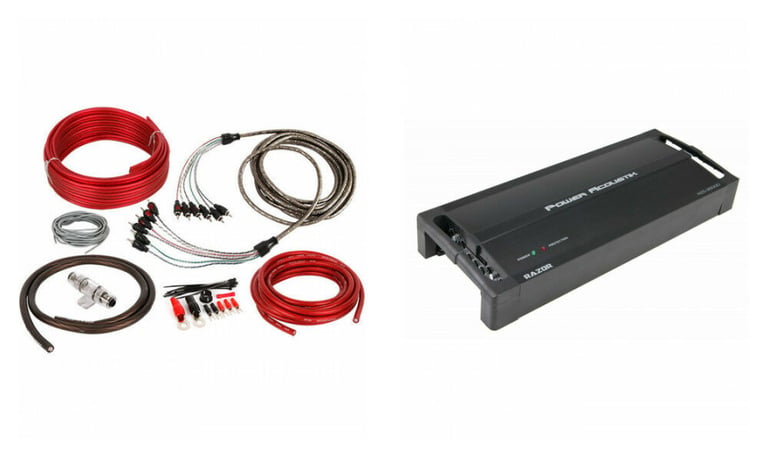

Power Acoustik RZ5‐2500DSP + Belva 4 Gauge Amp Wiring Kit

Control Your Sound

For those who want the most out their car audio system, quality sound processing is a must. After some slight adjustments, your system can sound like it has been tuned by audio professionals. Razor DSP amplifiers offer similar sound processing options by including the functions of a Digital Sound Processor. Adjusting the DSP is easy, using an intutive user interface. Connection to the DSP module is possible via USB connection to personal computers, or by Bluetooth to an available Android & iOS device App. Unlock the best from any system with Razor DSP amplifiers.

Power Ratings

• 4 Ohm: 100 Watts x 4 + 400 Watts x 1
• 2 Ohm: 150 Watts x 4 + 600 Watts x 1
• Bridged 4 Ohm: 300 Watts x 2 + 300 x 1

• Integrated 100dB Dynamic Range, -80dB THD+N ADC
• Integrated 104dB Dynamic Range, -90dB THD+N DAC
• User Friendly SigmaStudioTM User Interface w/ Response Display
• 30V MAX 4-ch High Level & 4V MAX RCA Input Voltage
• 2ch. RCA output for Subwoofer Amplifier Integration
• Optional High Level Input from Hands-Free Bluetooth Module
• Optional Independent Input or Channel Mixing/Summing
• Up to +6dB / -60dB Master Input Level
• Up to -60dB Independent Channel Level Cut
• Up to 20ms Independent Channel Delay, 0.05ms Incriments
• Independent Channel 0°/180° Phase Control
• Independent Channel High, Low or Bandpass Crossover
• Independent Channel 6dB-48dB/Octave Crossover Slope
• Variable Frequency Crossover Setting, 20Hz-20kHz
• 10-Band Graphic Equalizer for Each Channel
• 20dB Boost/Cut for Each Band
• Variable Independent Band Q Adjustment, 0.4-9.6

Compact-full of Power

We’ve also engineered traditional Razor amplifiers to fit in virtually any location in your ride. Other sport compact amplifiers use bizarre technologies with pseudo power supplies, NOT US! Razor amps use tried and tested MOSFET power supplies & tenacious Class D circuitry.

General Features:

• High Efficiency Class D Full Range
• Compact 4.75” Chassis Design for Installation Versatility
• MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
• Military Grade SMT PCB Maintains Dynamic Performance
• 2-ohm Stereo & 4-ohm Bridged Full Range Operation
• 1-ohm Stable Monoblock Operation for MAX Power (3500D)
• Die-Cast Aluminum Alloy Heatsink for Optimum Dissipation
• Direct Short, Thermal, & Overload Circuits Protect Amplifier

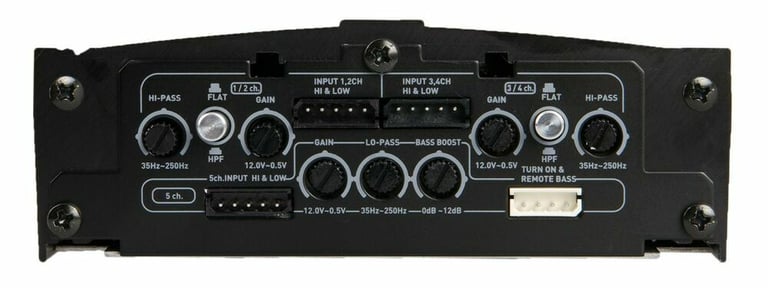

• Variable 12dB High Pass, Low Pass, & Subsonic Crossovers
• 200mV-6V Low Level RCA Inputs

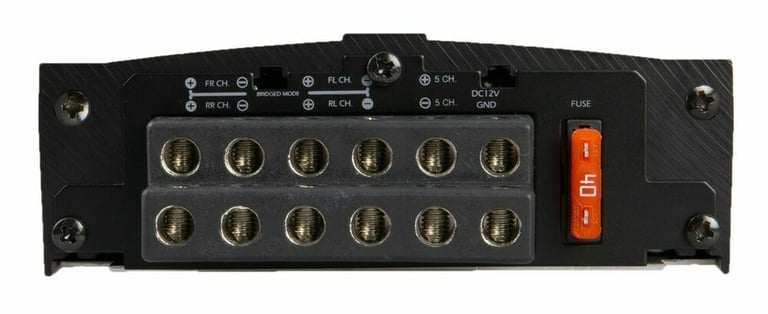

• 4g Power Wire & 8g Speaker Wire Outputs
• High Level Input w/ Signal Sense Auto Turn-on
• 12dB Bass Boost Increases Low Octave Harmonics
• 12.25"L x 4.75”W x 1.625”H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• Complete 4 Gauge 5/6-Channel Amplifier Installation Kit
• Designed for car audio systems up to 1200 watts RMS
• Premium Powerflex power and ground wire provides optimal power transfer
• Belva CCA wire is made from 30% copper while the competition uses only 10%
• Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
• MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
• Complies to American Wire Gauge standards
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

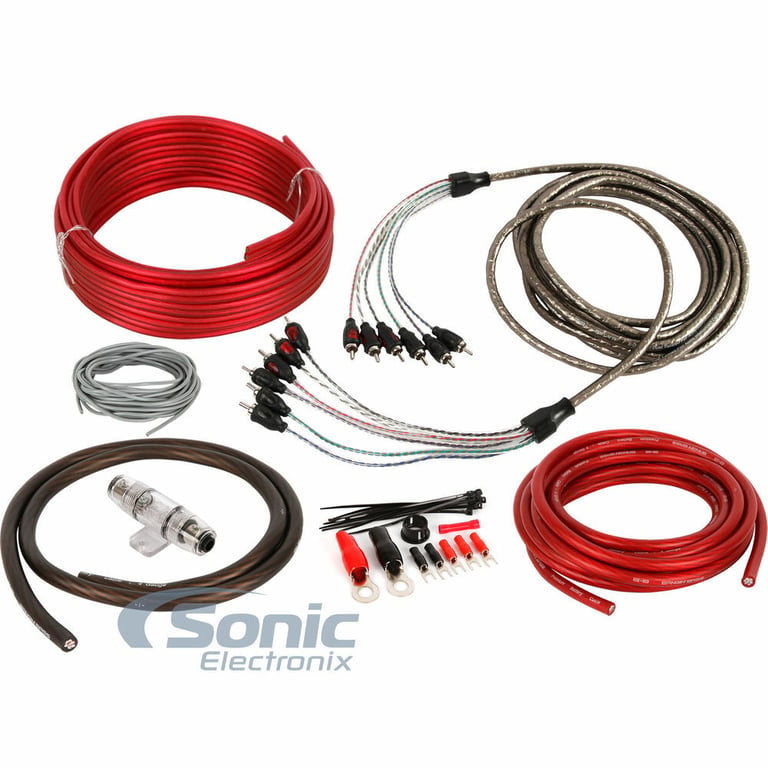

Kit includes:

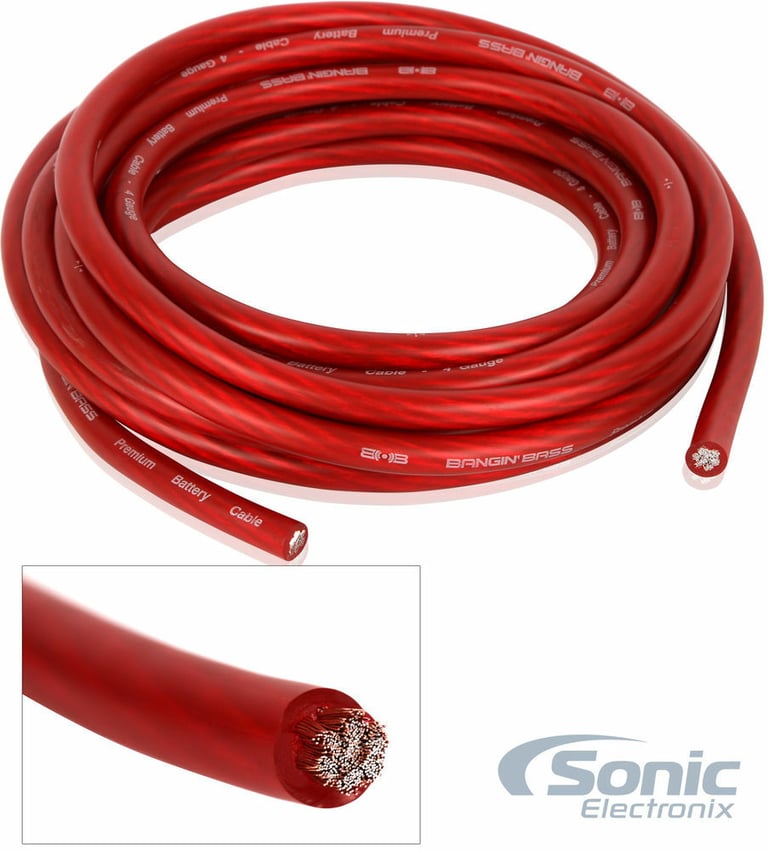

1. 17 ft. (5.2 meters) Red 4 gauge power wire

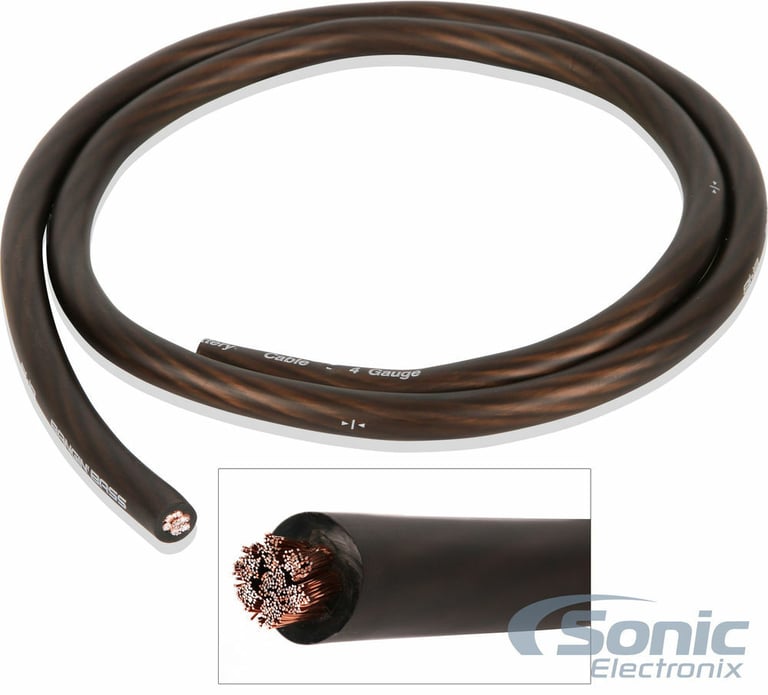

2. 3 ft. (.91 meters) Black 4 gauge ground wire

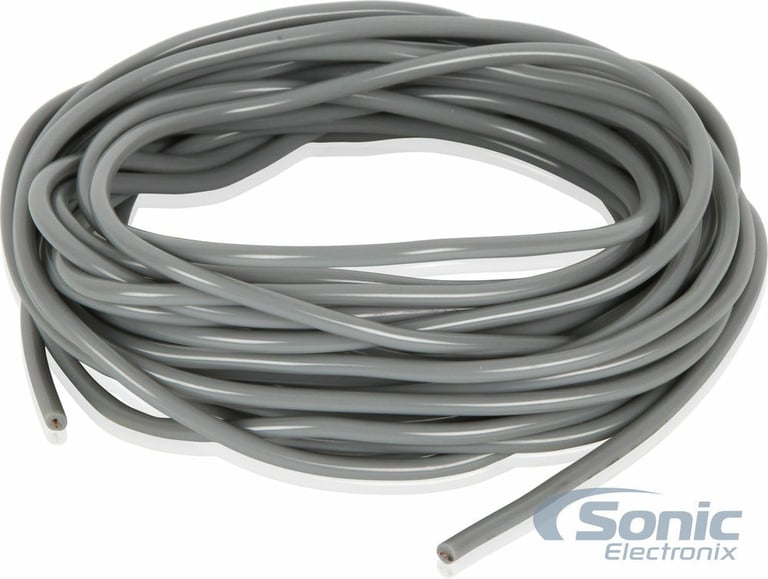

3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

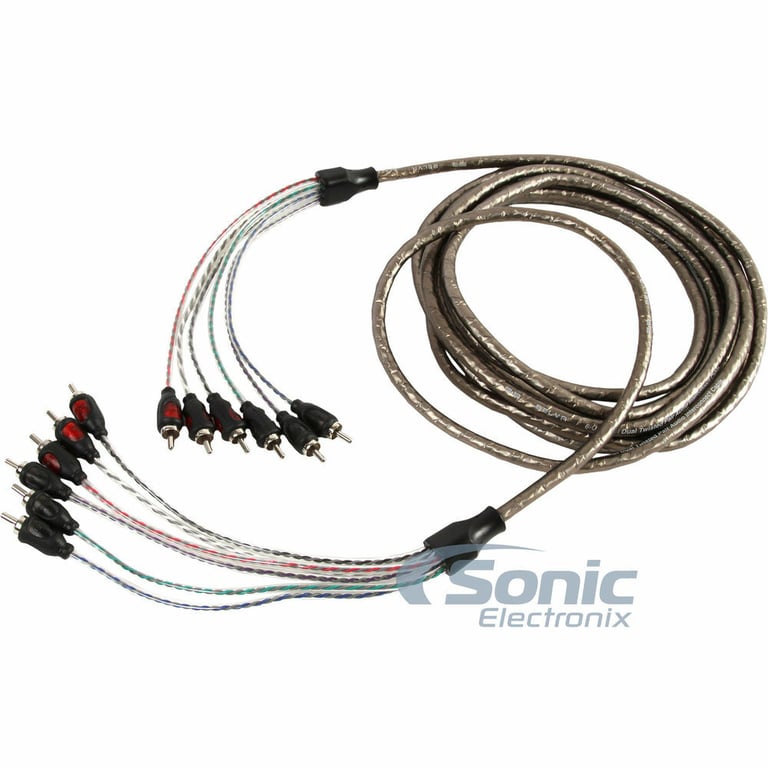

4. 17 ft. (5.2 meters) Helical Twist 5/6-channel RCA interconnect cable

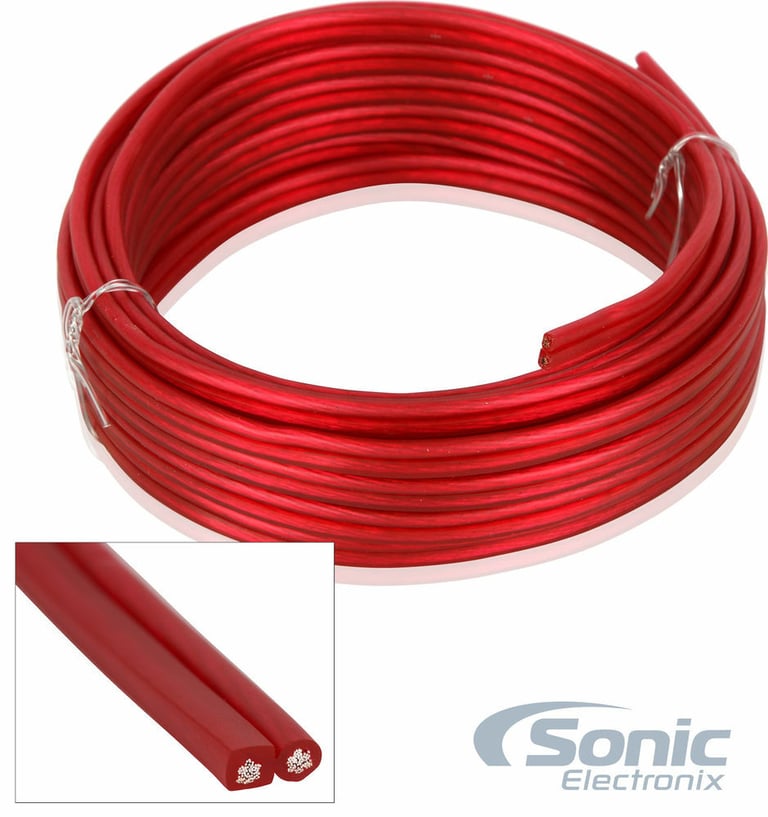

5. 65 ft. (12.2 meters) 16 Gauge Speaker cable

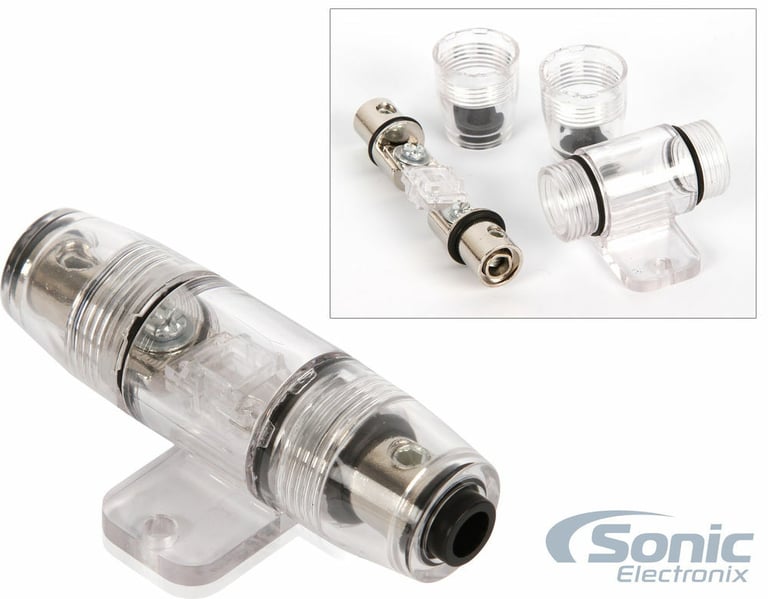

6. One MINI-ANL Fuse Holder with a 80 amp fuse

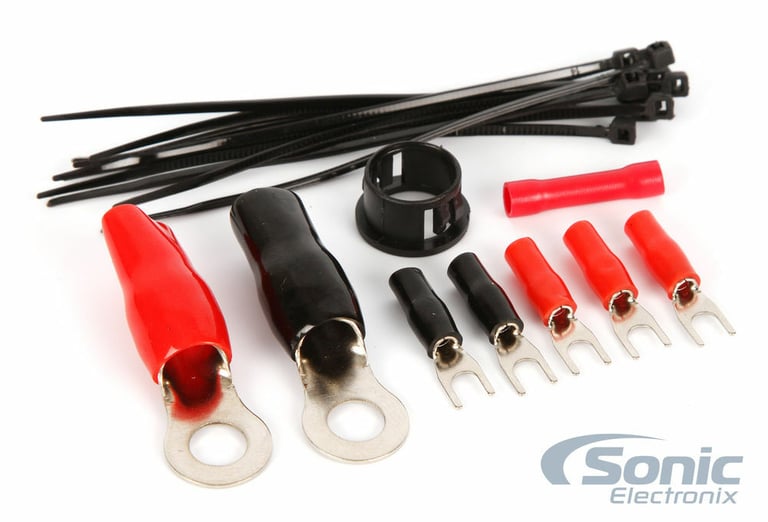

7. One Black rubber firewall grommet
8. One 4 Gauge Red chrome plated ring terminals
9. One 4 Gauge Black chrome plated ring terminal
10. Three 18 Gauge Red Spade terminal
11. Two 18 Gauge Black Spade terminal
12. One 18 Gauge Red butt connector
13. Ten 4" Black zip ties
