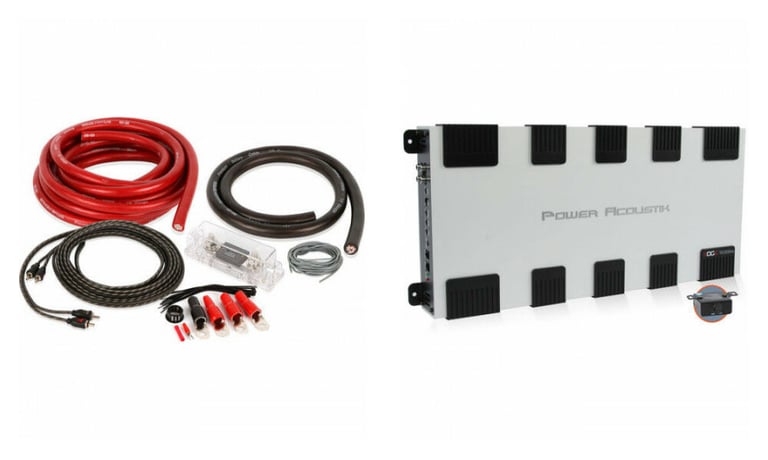

Power Acoustik EG1-10000D + Belva 1/0 Gauge Amp Wiring Kit

10,000W Peak (5000W RMS) Edge Series Monoblock Amplifier with Remote Bass Knob Included

58
Power Acoustik
Shop all Power Acoustik
highlight-star-icon

• 1600 Watts RMS x 1 @ 4 ohms
• 3300 Watts RMS x 1 @ 2 ohms
• 5000 Watts RMS x 1 @ 0.5 ohm
• Total Peak Power: 10,000 Watts
• Military Grade PCB w/ PWM MOSFET power supply
• Variable Bass Boost: 0 to +12 dB bass boost
• Heavy duty aluminum alloy heat-sink
• 9"W x 20.5"L x 2.25"H

Learn more about the eg110000d_bak02

We apologize

This item has been discontinued

Show me more products from this category
Go to Category

Description

Power Acoustik

Authorized dealer

POWER SYSTEM WARNING: This amplifier requires a charging system capable of at least 150 amps. If your vehicle's charging system isn't powerful enough, it will damage or destroy this amplifier and possibly damage your vehicle, as well as void your warranty on the amp. You must perform electrical system upgrades to provide the power this kind of amp demands. Visit our Mean Green High Output Alternators store to find the right alternator for your vehicle.

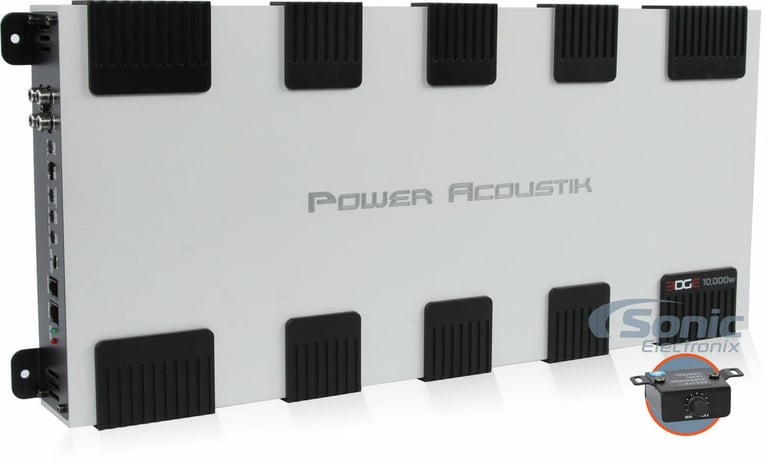

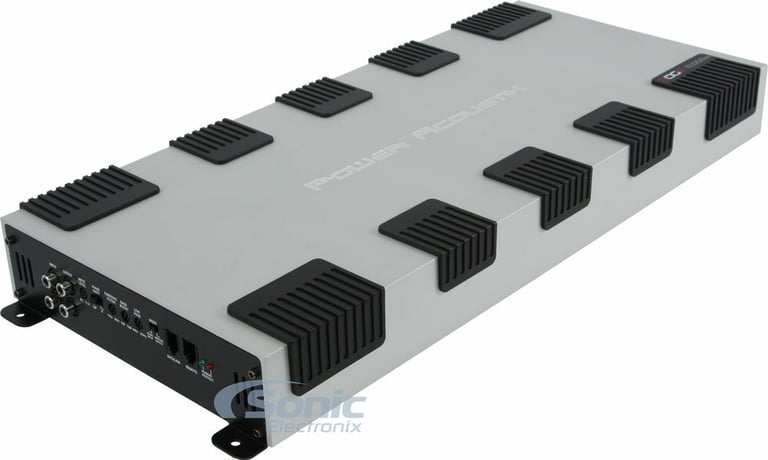

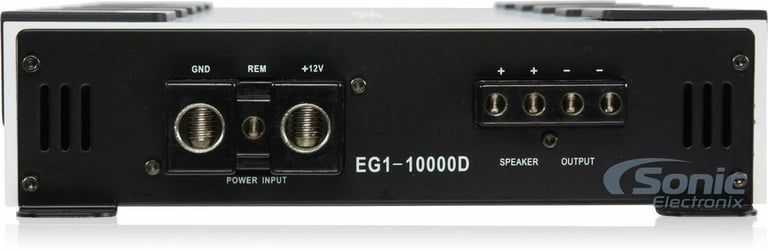

Power Acoustik EG1-10000D

10000W Peak (5000W RMS) Edge Series Monoblock Amplifier with Remote Bass Knob Included
Quantity: 1

General Features:

  • Power Acoustik Edge Series EG1-10000D
  • Class-D Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 1600 watts x 1 chan.
    • 2 ohms: 3300 watts x 1 chan.
    • 1 ohm: 5000 watts x 1 chan.
    • *0.5 ohm: --Not Listed--
  • Total power output: 10,000 watts
  • Military Grade PCB w/ PWM MOSFET power supply

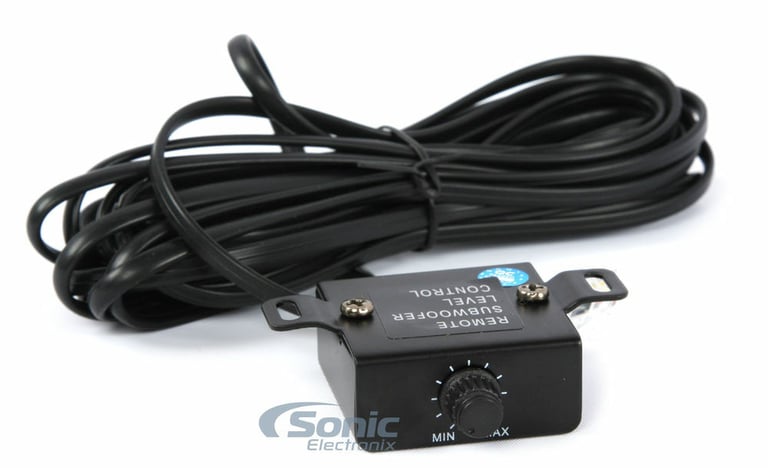

  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation

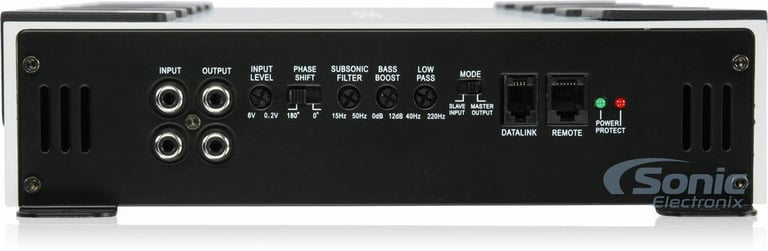

  • Input sensitivity: 200mV - 6V
  • Frequency Response: 15 - 250 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >105 dB
  • Variable low-pass filter: 40 - 220 Hz
  • Subsonic filter: 15 - 50 Hz
  • 180° ; phase shift
  • Variable Bass Boost: 0 to +12 dB bass boost
  • 0 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Dimensions: 9"W x 20.5"L x 2.25"H
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty

Check out the Power Acoustik EG110000D Owner's Manual



*Not Recommended

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

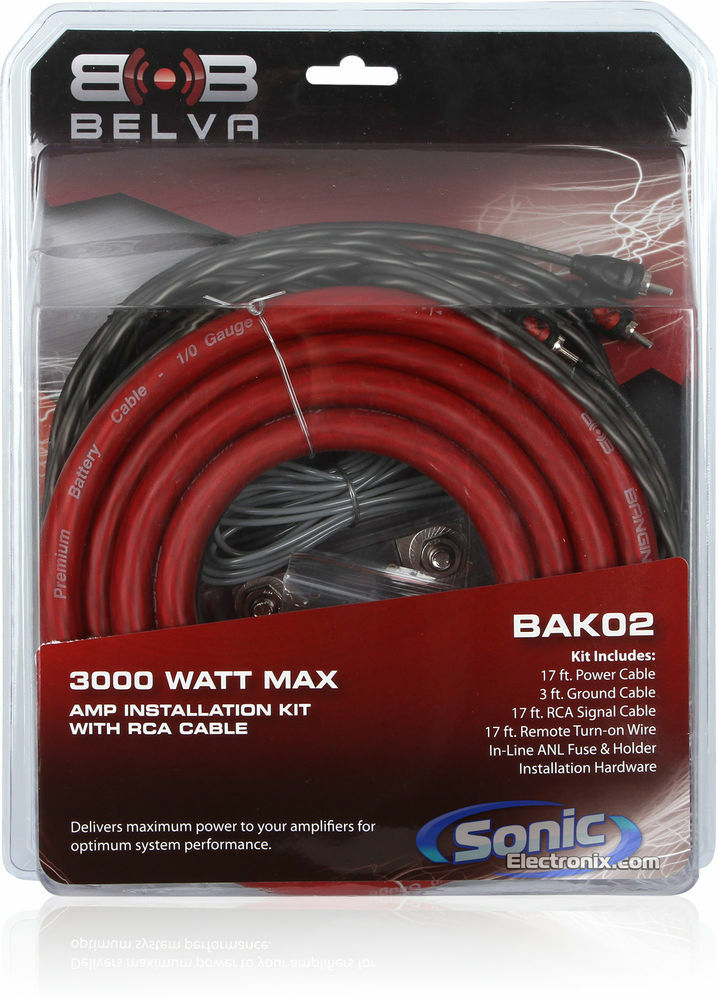

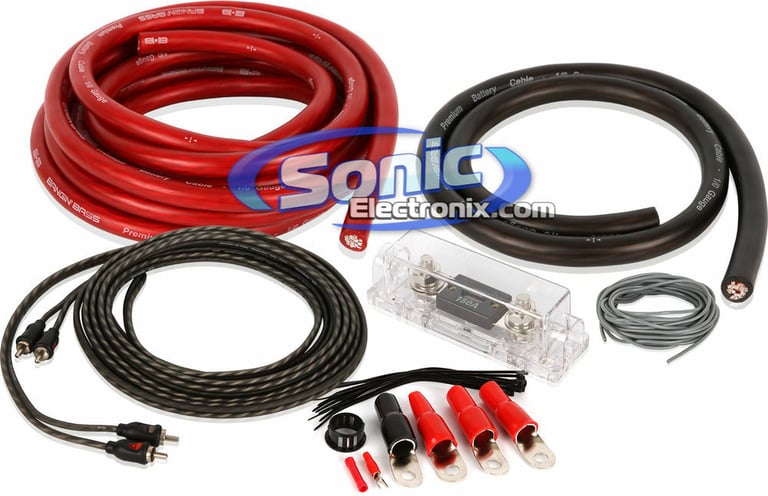

Kit includes:

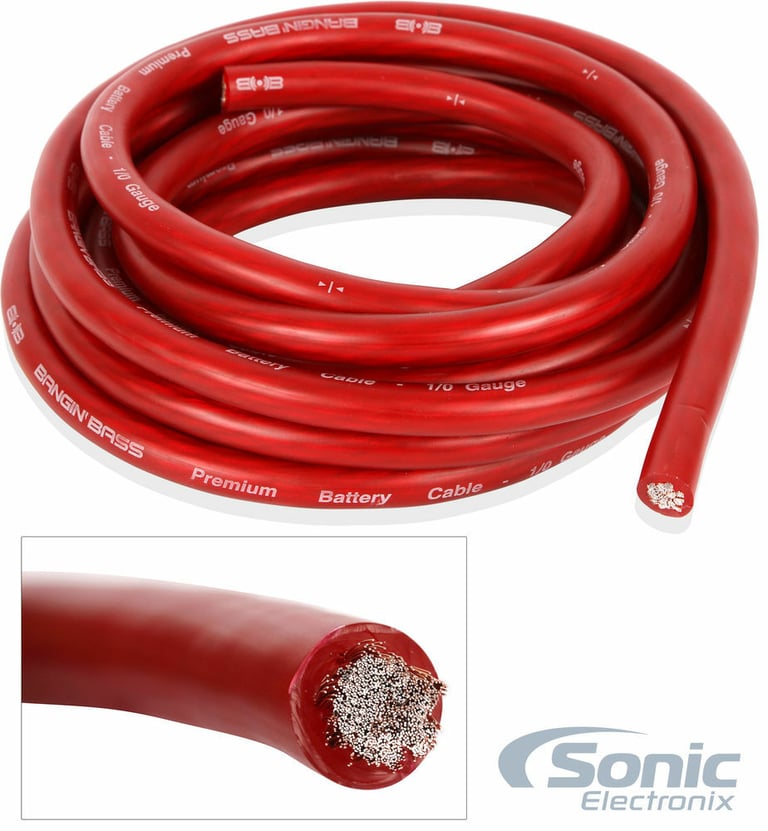

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire

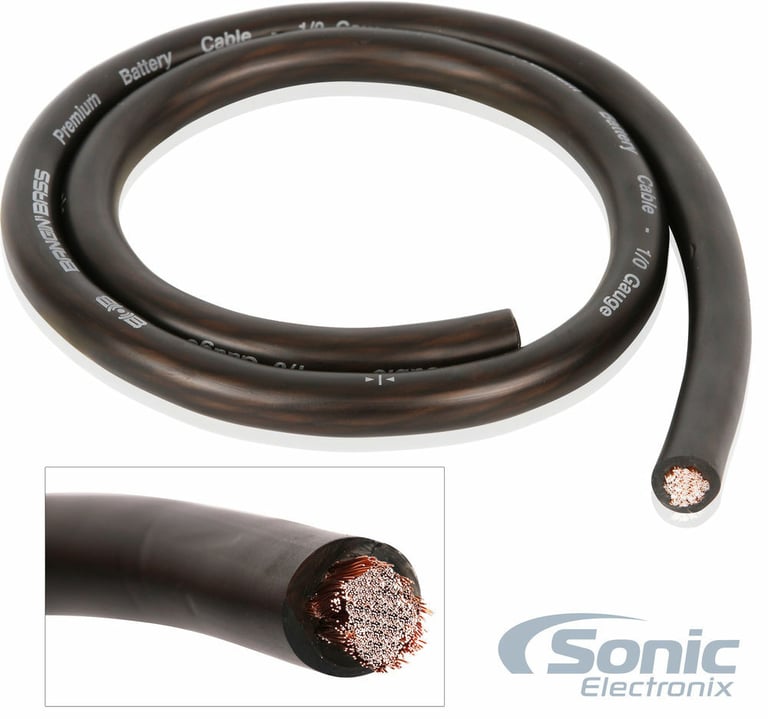

  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire

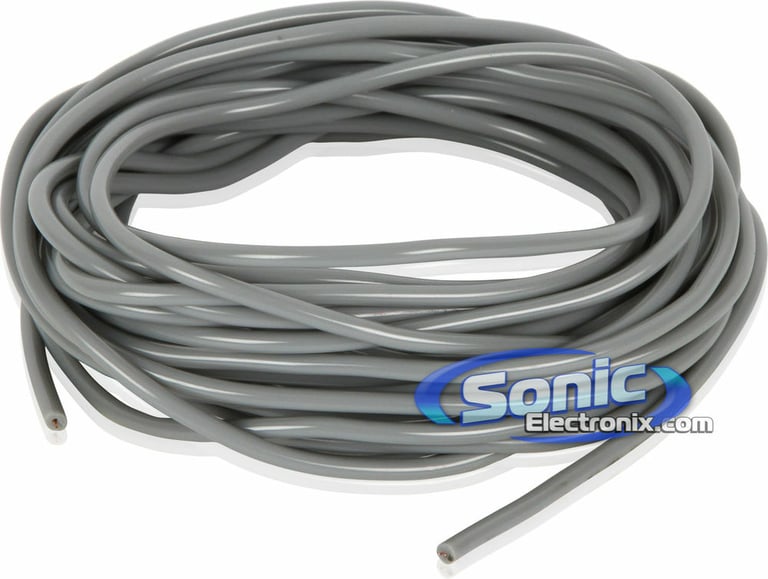

  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

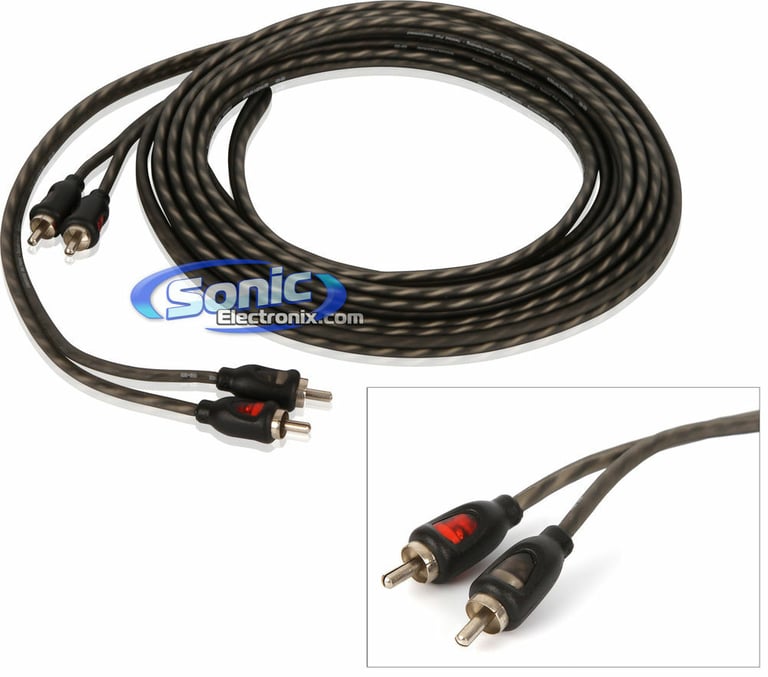

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

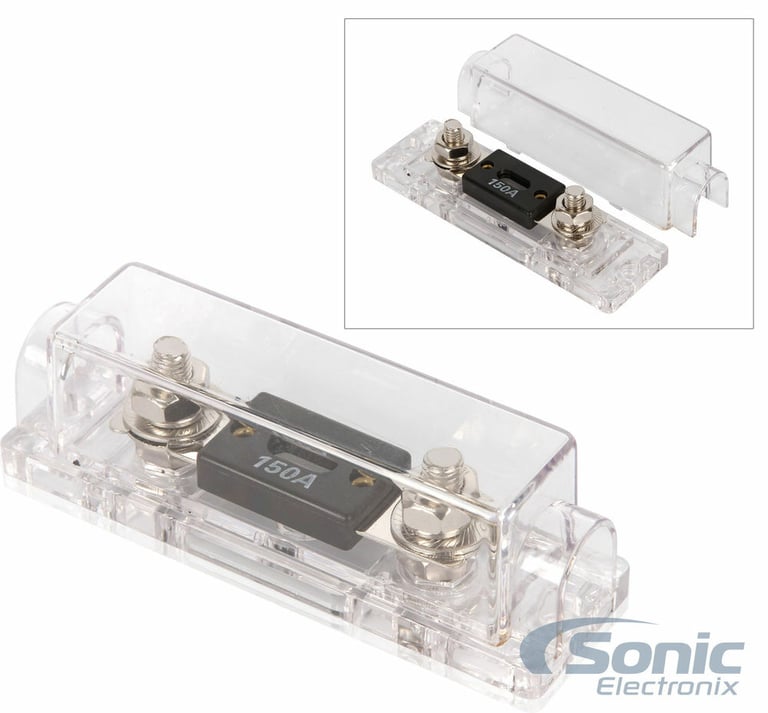

  5. One ANL Fuse Holder with a 150 amp ANL fuse

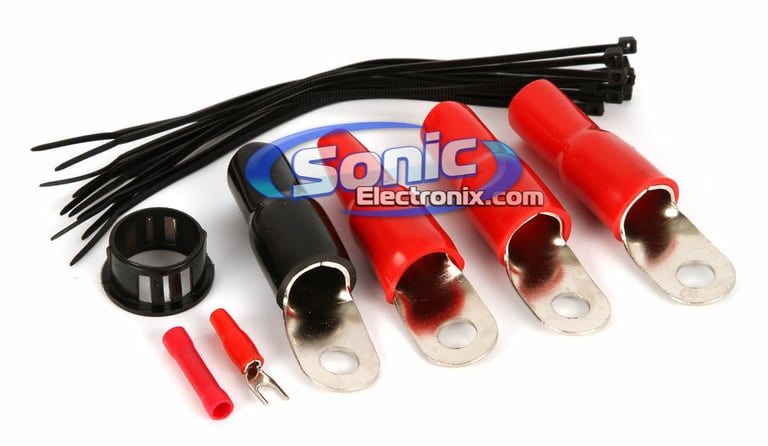

  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Specifications & Details

Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1600 watts x 1 channel
RMS Power @ 2 ohms
3300 watts x 1 channel
RMS Power @ 1 ohm
5000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
10000 watts
Total RMS Power Output
5000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
0.5 ohms
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
40 - 220 Hz
Subsonic Filter
15 - 50 Hz
Signal-to-Noise Ratio
105 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fan Cooled
No
Fuse Rating
300A X 1 In-Line Fuse Recommended
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details

Manufacturer:

Power Acoustik

Model Number:

EG1-10000D, BAK02

Weight:

20.80lbs

Internal SKU:

eg110000d_bak02

Internal Product ID:

192207

Customer Ratings & Reviews

Power Acoustik EG1-10000D + Belva 1/0 Gauge Amp Wiring Kit
58
Rate or review product
5 star
67%
4 star
22%
3 star
3%
2 star
7%
1 star
0%
Durability
4.7
Value
4.7
Features
4.5
Design
4.7
Usability
4.6

Customer Photos & Videos

Customer Reviews

Sort by:
Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

96

found this helpful.
Helpful? Report abuse

Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

82

found this helpful.
Helpful? Report abuse

Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

78

found this helpful.
Helpful? Report abuse

Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

77

found this helpful.
Helpful? Report abuse

a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

77

found this helpful.
Helpful? Report abuse

top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

74

found this helpful.
Helpful? Report abuse

Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

73

found this helpful.
Helpful? Report abuse

Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

72

found this helpful.
Helpful? Report abuse

True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

70

found this helpful.
Helpful? Report abuse

good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

68

found this helpful.
Helpful? Report abuse
See all 58 reviews
