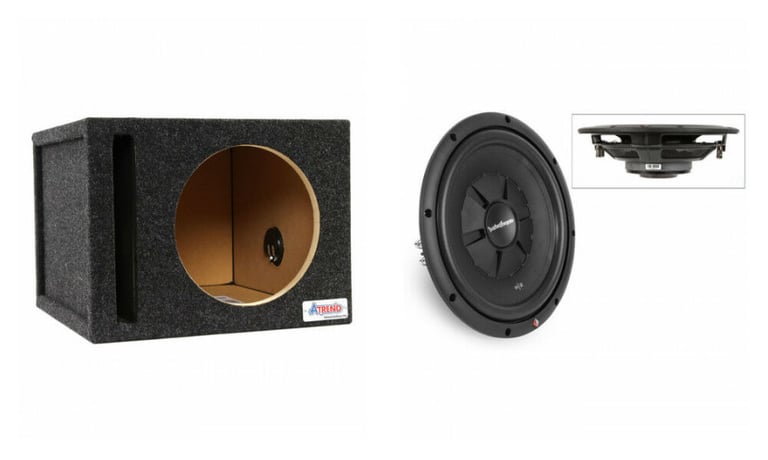

Rockford Fosgate Prime R2SD2-10 + Atrend 10" Vented Subwoofer Enclosure

400W Max (200W RMS) 10" Prime Stage 2 Shallow Mount Dual 2-ohm Subwoofer

highlight-star-icon

• 400W Peak
• 200W RMS
• Mica Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 45-250 Hz

Learn more about the r2sd210_10sqv

We apologize

This item has been discontinued


Loading...
H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

Limited time!
KFC-835C main

Kenwood KFC-835C

80W Peak (20W RMS) 3.5" KFC Series 2 Way Coaxial 4-ohm Car Speakers

31
-44.29%

$39.00

List price $70.00

CS693 main

Crunch CS693

800W Peak (150W RMS) 6x9" CS Series 3-Way Coaxial 4-ohm Car Speakers

25
-32.01%

$33.99

List price $49.99

STUDIO 6.5 FR main

American Bass STUDIO 6.5 FR

320W Peak (160W RMS) 6.5" Studio Series 2 Way Coaxial Full Range 4-ohm Speakers (STUDIO-6.5-FR)

-29.25%

$79.38

List price $112.20

Description


Rockford Fosgate brand icon

Authorized dealer

Eliminate Entry Level and Go Straight to Prime

Sonic Electronix is now carrying the brand new line of Rockford Fosgate Prime Series Car Audio Subwoofers. The R2SD2-10 10" subwoofer has a peak power rating of 400 watts and a continuous RMS power rating of 200 watts giving you a comfortable amount of bass when installing one or some real deep bass when installing more than one. This shallow mount subwoofer is ideal for those with limited space but that still want a system that kicks. Equipped with anodized aluminum voice coil formers for extreme heat dissipation, will allow this sub to perform at optimum level during long hard hitting sessions. Perfect for sealed or ported enclosures the R2SD2-10 is the way to go when looking for Prime performance with an affordable price tag.


Anodized Aluminum Voice Coil Former

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.


CEA-2031 Rockford Fosgate Subwoofers

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.


Rockford Fosgate Stitched Tinsel Leads

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

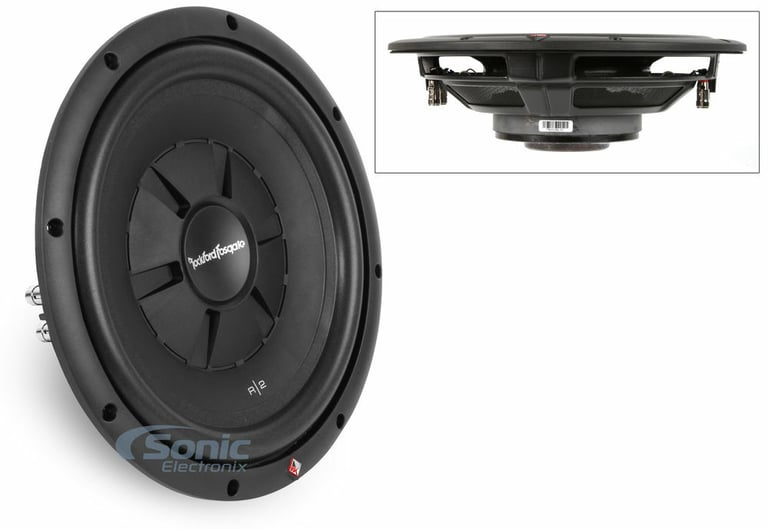

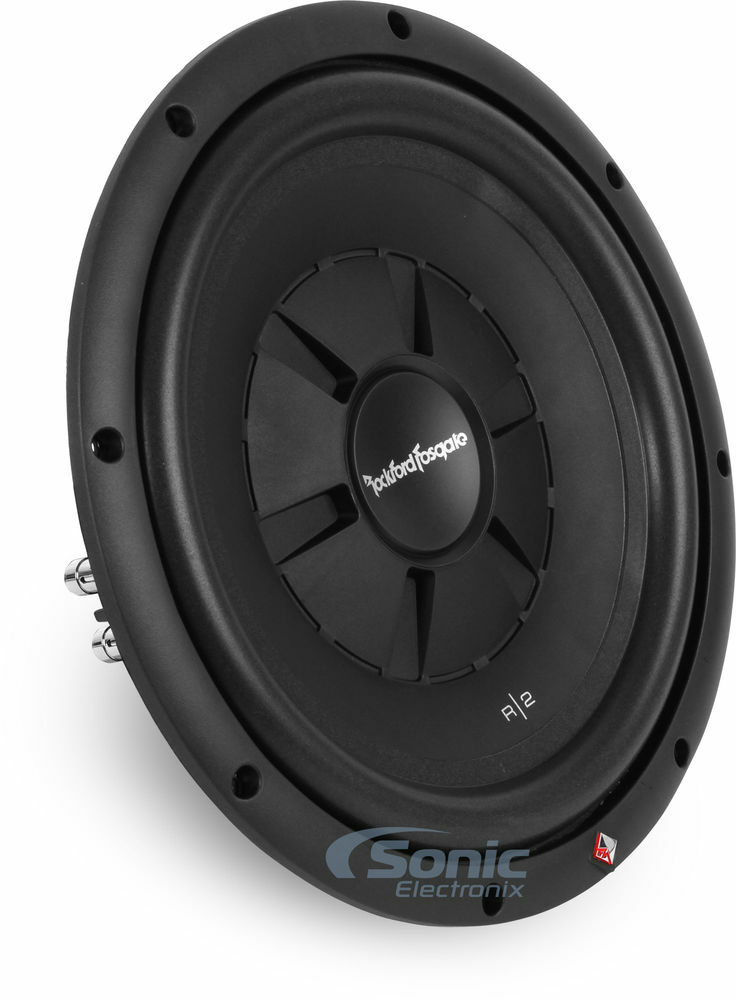

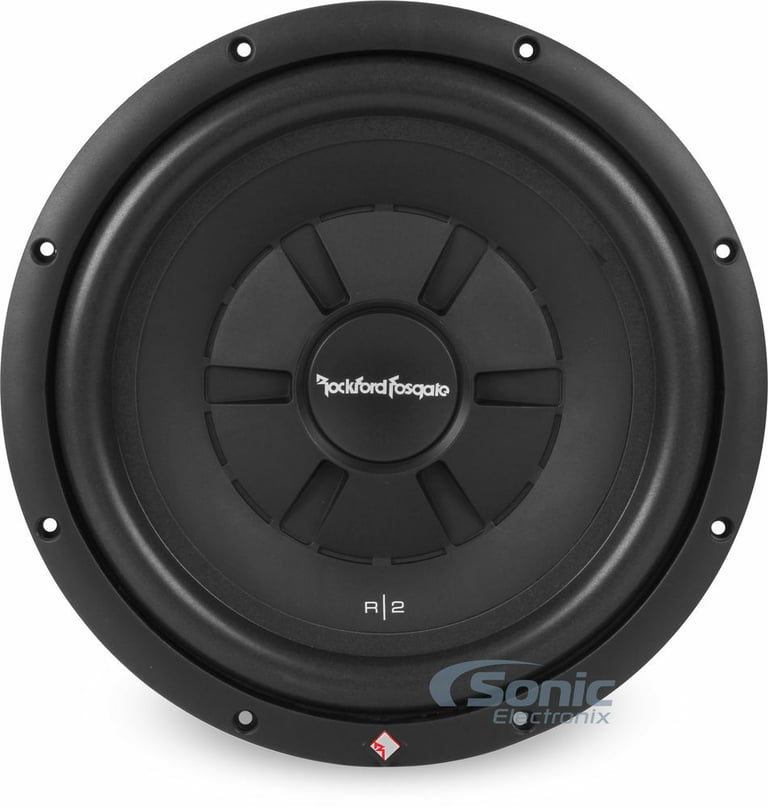

Rockford Fosgate Prime R2 R2SD2-10

400W Peak (200W RMS) 10" Prime Series Dual 2-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 2 ohm Prime Series Subwoofer
  • Power Handling:
    • Peak: 400 watts
    • RMS: 200 watts
  • Mica Injected Polypropylene - MIPP Cone
  • Foam Surround
  • 12 AWG compression terminals
  • Linear spider with embedded 16 AWG tinsel leads
  • Optimized for sealed enclosures

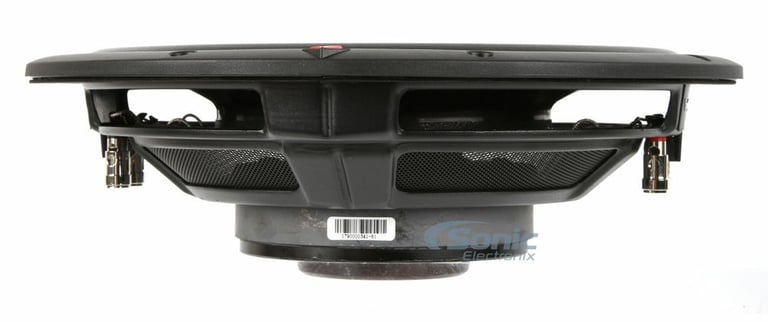

  • Shallow Motor Assembly
  • Integrated PVC trim ring
  • Anodized aluminum voice coil former
  • StampCast basket with integrated spider venting
  • 2" High Temperature Aluminum Voice coil
  • 8 mm Xmax
  • 45 oz. Double Stacked magnet motor structure
  • Frequency Response: 45 - 250 Hz
  • Resonance Frequency (Fs): 38.1 Hz
  • Sensitivity: 82 dB
  • Recommended sealed box volume: 0.7 cubic feet
  • Recommended ported box volume: 1.4 cubic feet
  • Top-mount depth: 3.417"
  • Cutout diameter: 9.125"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

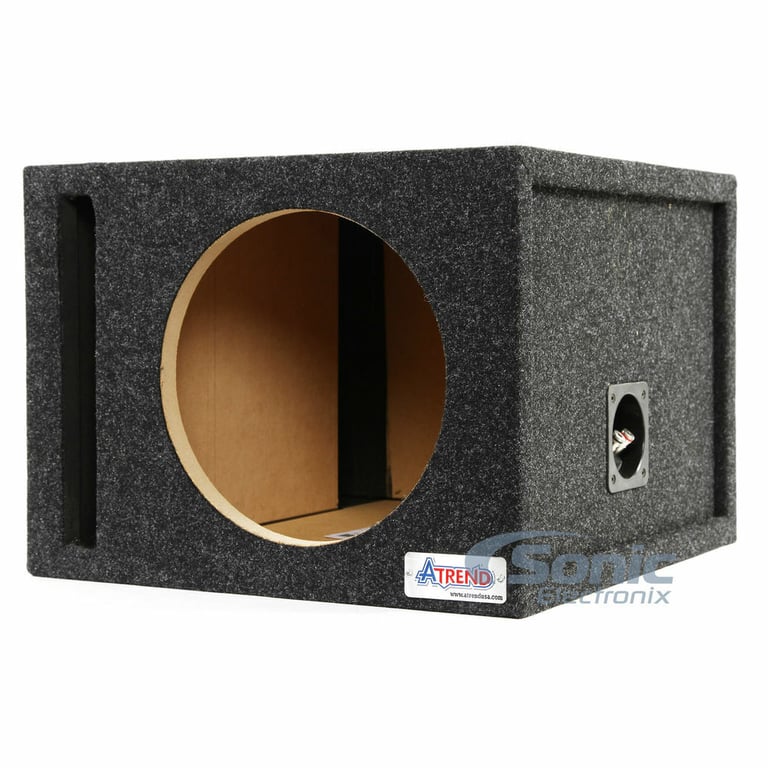

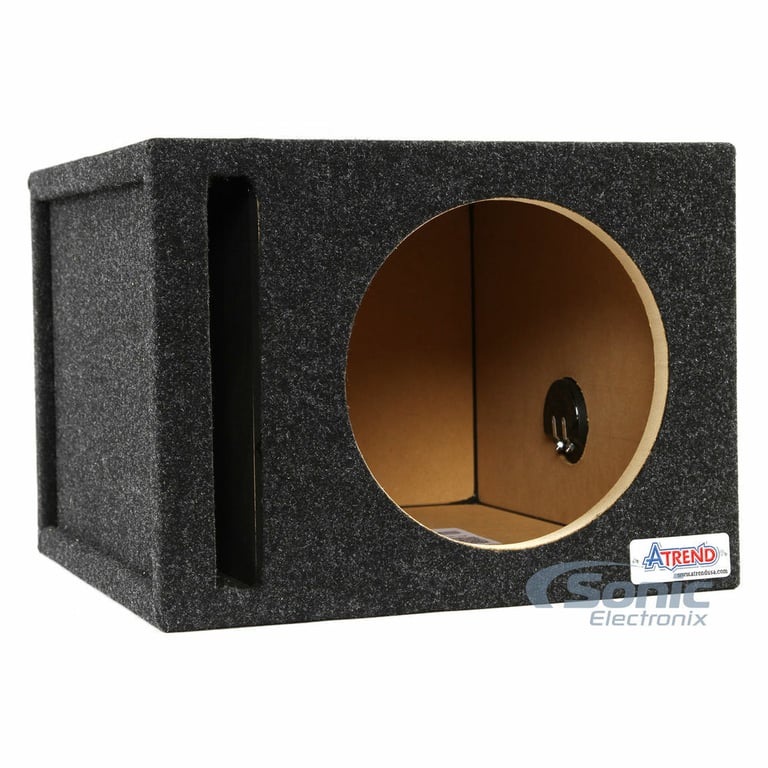

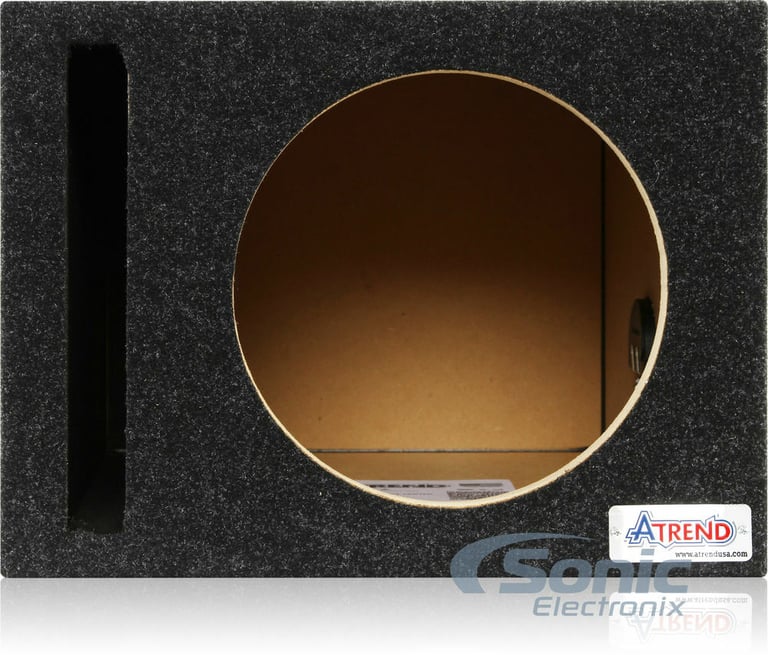

Atrend 10SQV

Empty Single 10" Pro Series Ported Subwoofer Enclosure
Quantity: 1

Product Details:

  • 10" Single Ported Subwoofer Enclosure
  • Maximum subwoofer mounting depth: 16"
  • Subwoofer cutout diameter: 9.13"
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Box volume: 1.25 cubic feet (per chamber)
  • Total box volume: 1.25 cubic feet
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer an 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability
  • Premium charcoal carpet and silver spring-loaded terminal cups
  • Dimensions: 16-1/4" L x 12-1/4" H x 17" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangle/square port
  • Number of ports: 1
  • Estimated port tuned frequency (fb): 41.94 Hz

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

BPKG212v2 small

Belva BPKG212v2 Dual 12" Bass Package

• Works with both Factory and Aftermarket Audio Systems
• Dual 12" Belva Subwoofers
• Monoblock Amp with Bass Knob
• Ported Enclosure
• Complete Amp Wiring Kit

(82)

$279.99

List price $323.99

Specifications & Details


Subwoofer Specifications
Series
Prime R2 Series
Subwoofer Size
10"
RMS Power Handling
200 watts
Peak Power Handling
400 watts
Woofer Composition
Mica Injected Polypropylene - MIPP
Woofer Surround
Foam
Sensitivity
82 dB
Frequency Response
45 - 250 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2SD2-10, 10SQV

Weight:

31.50lbs

Internal SKU:

r2sd210_10sqv

Internal Product ID:

193201

Customer Ratings & Reviews


Rockford Fosgate Prime R2SD2-10 + Atrend 10

5 star
79%
4 star
21%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.8
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

very well built

The following review is for 10SQV, which is a part of the bundle you are viewing.

It is a very well built and nice looking box and it makes the sub sound amazing very good box for the money.

By keven on January 20, 2015

73 found this helpful


This sub is the answer!!

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

I completely recommend this sub. It fit perfect under my 02 2500 superduty extended cab rear seat. I built a sealed box to spec and have amazing tight bass. I'm pushing 300watts rms to it and it takes it beautifully. Rockford fosgate knows how to built clear and durable speakers. Save your money on anything else as this price is perfect.

By Fox on October 19, 2014

57 found this helpful


Great box at a great price

The following review is for 10SQV, which is a part of the bundle you are viewing.

Excellent box quality wise and is a perfect match for my
Rockford Fosgate Punch P3D2-10.. this thing slams ..

By Anonymous on February 28, 2019 Checkmark Icon Verified purchase

51 found this helpful


Well built boxes. No way you could build for the price. Materials alone would cost the same, not to mention the time. And they look good too. Thanks!

The following review is for 10SQV, which is a part of the bundle you are viewing.

I would buy these again. The price is very reasonable and Sonic got me them super fast.

By Anonymous on July 30, 2018

50 found this helpful


R2D2 10"

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Installed a 10" R2D2 in a 2013 Toyota Tacoma behind the rear passenger seat in slightly modified shallow box after removing the storage bin. Used a Boss amp high level inputs off factory deck. What an improvement!! Just the right about of good clean bass for a small cab truck without breaking the bank. Better performance then expected on a shallow speaker and box. Also removed factory door speakers and replaced with JBL GTO's. Good clean sound and money left for gas!

By aklacie on March 24, 2014

54 found this helpful


Awesome Subs

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

These subs are great they are small but pack a punch got them in a 03 f150 crewcab and they hit hard, would defintely recommend

By Rigoberto on September 17, 2013

56 found this helpful


Rockford Fosgate R2SD2-10

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

Nice speaker performs as expected for cost, bass response not the best

By Alex on June 5, 2013

53 found this helpful


great for price

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

had them over powered and ran them hard. never had any issues with them. great sound for a low profile sub.

had 2 mounted under seats of my jeep. had a lot of water contact (yes, i off road it), and damage from the seats themselves, but nothing that actually affected the output. made well.

By ludski on September 16, 2014

53 found this helpful


Great Woofer

The following review is for R2SD2-10, which is a part of the bundle you are viewing.

I purchased two of these for my wife '11 highander. I paired em with a a Jl 360 ...and boy do they knock. Sonic did a great job with price and shipping!

By D. on October 16, 2011

54 found this helpful


nice box!!!

The following review is for 10SQV, which is a part of the bundle you are viewing.

nice box! looks better in person then the picture.. sound great with MTX subwoofer.. well made

By Anonymous on September 23, 2018 Checkmark Icon Verified purchase

47 found this helpful




SB-N-ALT/10W3v3 small

JL Audio SB-N-ALT/10W3v3

Stealthbox for 2007-2012 Nissan Altima Sedan 4dr (excludes Hybrid)

$649.99

List price $1149.99

SB-T-4RNR/10W1v3/GA small

JL Audio SB-T-4RNR/10W1v3/GA

Stealthbox for 1996-2002 Toyota 4-Runner with Gray interior

$649.99

List price $899.99

BRX100.1D_NSW122V2_BBX212BL_BAK42BL small

800W Hifonics + NVX Bass Bundle

Hifonics 800W RMS Monoblock Brutus Amp + Dual 12" NVX N Series V2 Subwoofers + Dual Ported Box + Kit

$365.00

List price $779.95

SB-H-CRV2/10TW3/DG small

JL Audio Stealthbox® SB-H-CRV2/10TW3/DG

Custom fit subwoofer enclosure for select 2012-2016 CR-V (Crystal Black Pearl)

(2)

$899.99

List price $899.99

SB-D-MGACABG4/10TW1 small

Stealthbox® SB-D-MGACABG4/10TW1

Custom fit subwoofer enclosure for select 2006-2024 2500 and 3500 and Ram 3500 / 2500

$1549.99

List price $1549.99

TMS69_SDBSK2 small

Rockford Fosgate TMS69 with Sound Damping

200W Peak (100W RMS) 6”x9” Full-Range Speakers for Harley-Davidson Motorcycle Bag Lids + NVX SDBSK2 Premium Sound Damping

(48)

$454.98

List price $458.73

CR-10RN small

Cort CR-10RN

Classic Resonator Acoustic Guitar with Chrome Hardware (Vintage Sunburst)

$287.99

List price $639.00

SB-HY-SNTFES/10TW3/DG small

JL Audio SB-HY-SNTFES/10TW3/DG

Stealthbox for 2013-Up Hyundai Santa Fe Sport with Black/Black interior

$649.99

List price $0.00

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Saab 9-3

2011 Mazda 3

2001 Acura MDX

2011 Buick Lucerne

2017 Toyota Sienna

1996 Toyota Corolla

2022 Cadillac XT6

1999 Chevrolet S10

1974 MG Midget

2016 Dodge Ram ProMaster 2500

Vehicle
Store
Delete

2016 Can-Am Defender XT CAB HD10

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
