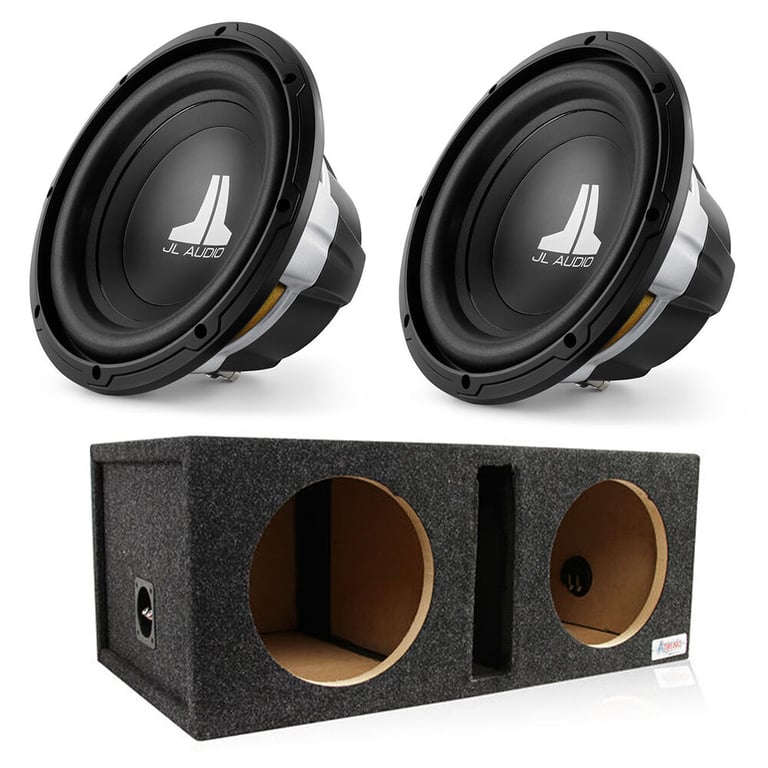

(2) JL Audio 10W0v3-4 with Ported Dual Enclosure

600W Peak (300W RMS) 10" W0v3 Series Single 4-Ohm Subwoofer

JL Audio
Shop all JL Audio
highlight-star-icon

• 300 Watts RMS
• Sensitivity: 84.07 dB
• Mineral-Filled Polypropylene Cone
• Large Roll Surround
• Elevated Frame Cooling
• DMA Optimized Motor System
• Metallic Silver Frame Finish
• Includes Ported Dual Enclosure

Learn more about the 10w0v34_2_10dqv

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

H7410 main

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

14
-16.67%

$69.99

List price $83.99

Limited time!
50CSC4104 main

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

1
-33.36%

$79.96

List price $119.99

V410 main

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

51KSC41004 main

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

-13.33%

$129.99

List price $149.99

DMDX410 main

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

H7410, SDSK2, SDRLR1, BTK106 main

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

153
-28.22%

$98.13

List price $136.71

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

Description


JL Audio brand icon

Authorized dealer

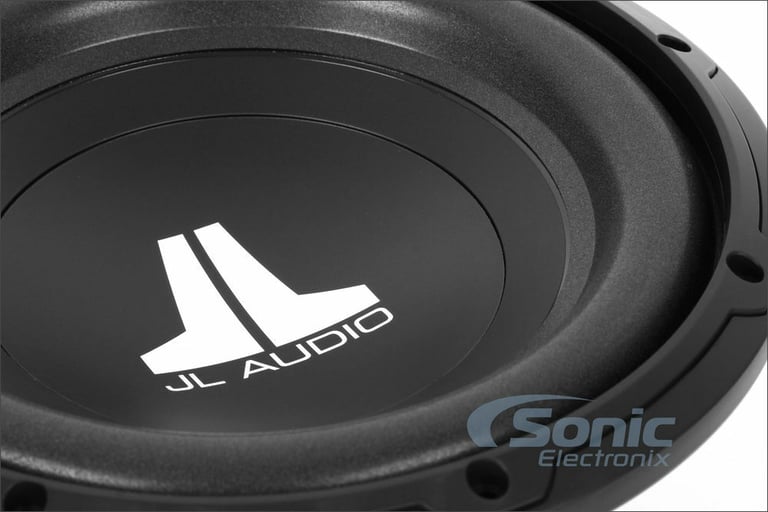

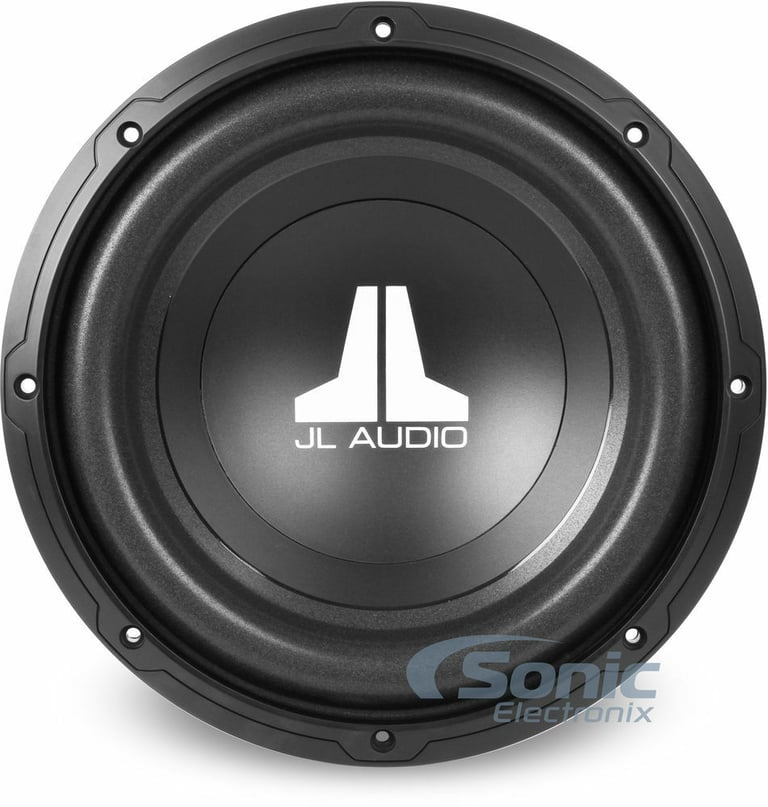

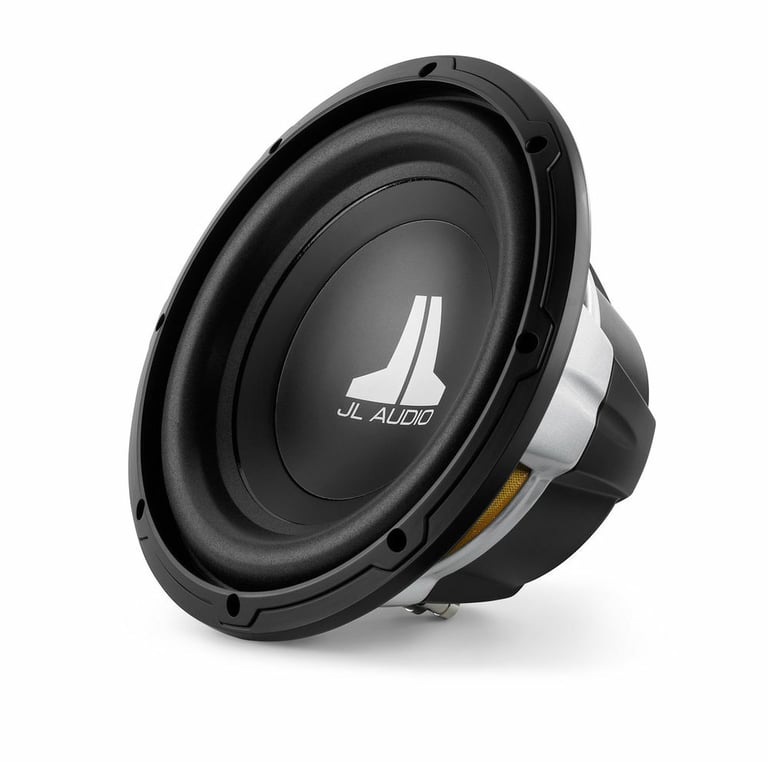

JL Audio W0v3 Series Subwoofer Driver
JL Audio W0v3 Series Subwoofer Driver

The W0v3 offers superb excursion capability, linearity and an overall performance output that puts it right at the top of its price class. The driver features a very beefy 2.0-inch diameter voice coil, a DMA-optimized motor system and JL Audio's patented Elevated Frame Cooling design - all purpose-engineered for enhanced power handling and reliability. What this also means, is your system will be immediately injected with the increase in output and better sound fidelity that one expects from a JL Audio product. In addition, excellent excursion capability and linearity allow it to reproduce sub-bass with striking extension and quality. When matched up with the proper power source, signal and setup the W0v3 is capable of a well rounded sound that is unparalleled by any other driver in its price range.


Flexible JL Audio Power

The 10W0v3 Subwoofer can be driven with as little as 75 Watts. However, for best audio performance it is recommended to run an amplifier capable of between 200 - 300 Watts of continuous power per driver, like the JL Audio XD300/1v2 or JL Audio JX500/1D. In addition, these subwoofers are optimized to operate in either a ported or sealed enclosure, needing only 0.65 cubic feet of air space in a sealed box and 1.125 cubic feet in a ported/vented enclosure. (Specific dimensions and figures can be found in the user manual, linked further below.)


Striking Linearity and Control

Striking Linearity and Control

DMA is JL Audio’s proprietary Dynamic Motor Analysis system and is aimed at delivering superior dynamic stability and low distortion. As a result of DMA optimization, W0v3 motors remain linear in motor force over an extreme range of excursion and also maintain a highly stable fixed magnetic field in the gap over a wide power range. This leads to tight, clean, articulate bass that also allows for extreme linear excursion, phenomenal power handling and control, control, control.



JL Audio 10W0v3 Recommended Power Range

JL Audio 10W0v3-4

300W RMS 10" W0v3 Series Single 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 10" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 300 watts
  • 2" Voice coil
  • 11.4 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 32.09 Hz
  • Sensitivity: 84.07 dB
  • Recommended sealed box volume: 0.65 cubic feet
  • Recommended ported box volume: 1.125 cubic feet
  • Top-mount depth: 4.90"
  • Cutout diameter: 9.0625"
  • Authorized Internet Dealer
  • JL Audio SGRU-10 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

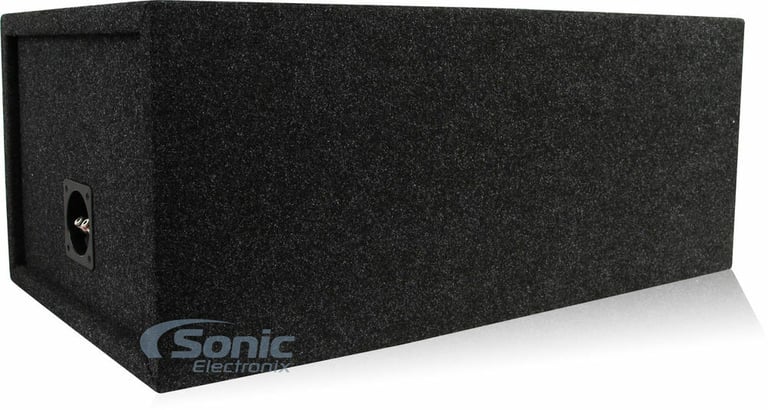

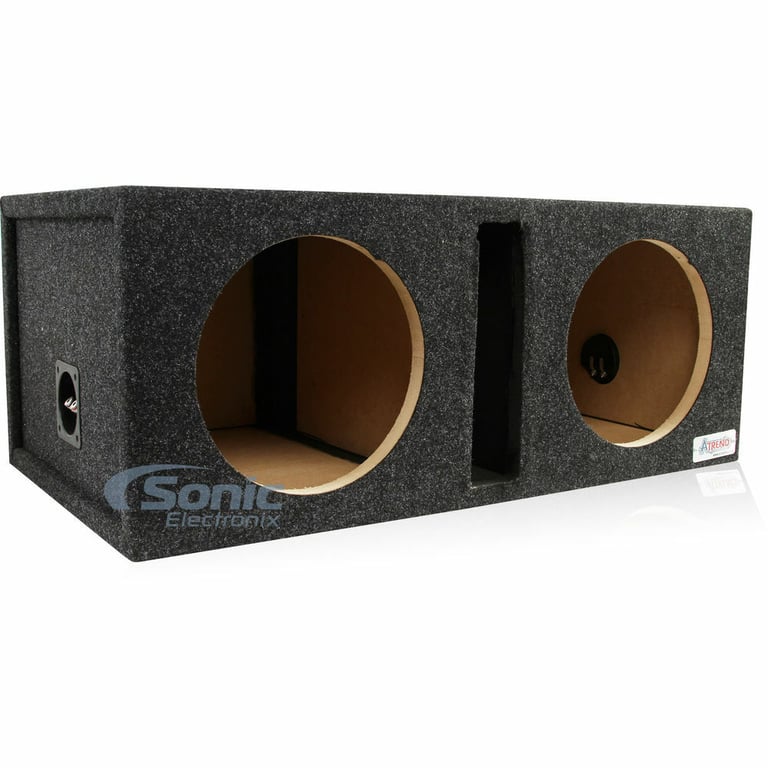

Atrend 10DQV

Empty Dual 10" Vented Subwoofer Enclosure
Quantity: 1

Product Details:

  • 10" Dual Ported Subwoofer Enclosure
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer an 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability
  • Glued and braced with fasteners for added strength
  • Premium black carpeted finish for sleek modern look
  • Silver spring-loaded terminal push cups
  • Maximum subwoofer mounting depth: 15.65"
  • Subwoofer cutout diameter: 9.13"
  • Box volume: 1.25 cubic feet (per chamber)
  • Total box volume: 2.5 cubic feet
  • Dimensions: 30" L x 12" H x 17" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangular port
  • Number of ports: 1
  • Port length: 2.50"
  • Estimated port tuned frequency (fb): 36 Hz

Product history:

JL Audio 10W0v3-4_1, 10dqv thumbnail
(newest, current model)
JL Audio 10W0v2-4 thumbnail
(previous model, replaced by (2) JL Audio 10W0v3-4 with Ported Dual Enclosure)

This item is currently not eligible for our low price guarantee. This may be due to supply constraints, manufacturer restrictions, or another reason. We're always here to help you get the best price possible so give us a call or email today. Our experts will do their best to build the system that works for you within the rules.


Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
10"
RMS Power Handling
300 watts
Woofer Composition
Mineral-Filled Polypropylene
Woofer Surround
Rubber
Sensitivity
84.07 dB
Frequency Response
26 - 250 Hz
Subwoofer Design
Round / Circle
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10W0v3-4_1, 10dqv

Weight:

64.24lbs

Internal SKU:

10w0v34_2_10dqv

Internal Product ID:

193215
