See all parts that fit your 2014 Commander 1000 LTD

(2) Alpine S-W10D2 with Ported Dual Enclosure

1800W Max (600W RMS) 10" S-Series Dual 2-Ohm Car Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• 1800 Watts Max
• 600 Watts RMS
• Pulp/Kevlar Cone
• High Amplitude Multi-Roll (HAMR) Surround
• High Strength Steel Frame Basket
• Progressive Spider with Reinforced Layer Tinsel Leads
• Includes Ported Dual Enclosure

Learn more about the sw10d2_2_10dqv

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Alpine brand icon

Authorized dealer

Alpine S-W10D2

1800W Max (600W RMS) 10" S-Series Dual 2-Ohm Car Subwoofer
Quantity: 2

General Features:

  • 10" 2 ohm S-Series (Type-S) Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket
  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Sealed Enclosure Volume: 0.45 - 0.85 ft.3
  • Ported Enclosure Volume: 0.75 - 1.3 ft.3
  • Top-mount depth: 4-11/16"
  • Cutout diameter: 8-13/16
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 33 Hz
  • Authorized Internet Dealer
  • 1-year Sonic Electronix Warranty
  • Priced Individually

Check out the Alpine S-W10D2 Owner's Manual

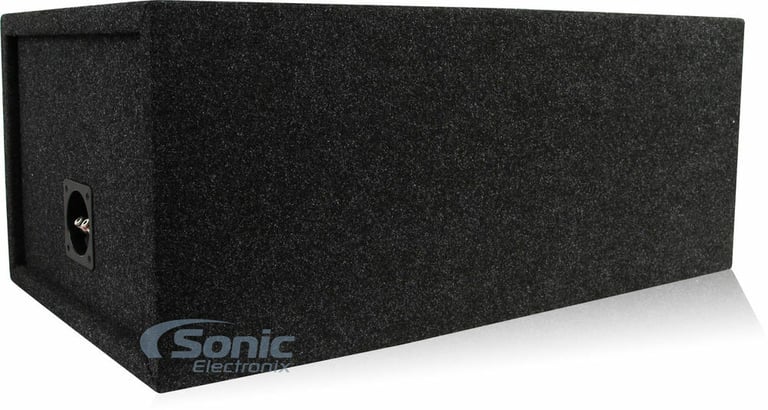

Atrend 10DQV

Empty Dual 10" Vented Subwoofer Enclosure
Quantity: 1

Product Details:

  • 10" Dual Ported Subwoofer Enclosure
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer an 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability
  • Glued and braced with fasteners for added strength
  • Premium black carpeted finish for sleek modern look
  • Silver spring-loaded terminal push cups
  • Maximum subwoofer mounting depth: 15.65"
  • Subwoofer cutout diameter: 9.13"
  • Box volume: 1.25 cubic feet (per chamber)
  • Total box volume: 2.5 cubic feet
  • Dimensions: 30" L x 12" H x 17" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Port Specifications:

  • Rectangular port
  • Number of ports: 1
  • Port length: 2.50"
  • Estimated port tuned frequency (fb): 36 Hz

Product history:

Alpine S-W10D2_2, 10DQV thumbnail
(newest, current model)
Alpine SWS-10D2 thumbnail
(previous model, replaced by (2) Alpine S-W10D2 with Ported Dual Enclosure)
Alpine SWS-1023D thumbnail
(previous model, replaced by Alpine Type-S SWS-10D2)

Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

Specifications & Details


Subwoofer Specifications
Series
Type-S Series
Subwoofer Size
10"
RMS Power Handling
600 watts
Peak Power Handling
1800 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
HAMR
Sensitivity
85 dB
Frequency Response
26 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Charcoal
Box Finish
Carpet
Second Width
17"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

S-W10D2_2, 10DQV

Weight:

65.00lbs

Internal SKU:

sw10d2_2_10dqv

Internal Product ID:

193217

Customer Ratings & Reviews


(2) Alpine S-W10D2 with Ported Dual Enclosure thumbnail image

5 star
89%
4 star
11%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great value

The following review is for 10DQV, which is a part of the bundle you are viewing.

I have 2 10 inch nvx vsw104 and they sound very good and the box seems to be made very well

By Tj on September 4, 2014

59 found this helpful


Great value and price

The following review is for 10DQV, which is a part of the bundle you are viewing.

Good solid well built box great price it's better value then building it it works great with my soundque HDC3 10's had to trim out circle a small bit because the HDC3 10's are a little bigger then normal tens but worth it like said great value on box saves time and money building one you can't beat it

By Robert on May 19, 2017

34 found this helpful


Dual 10" vented sub box

The following review is for 10DQV, which is a part of the bundle you are viewing.

Very sturdy and heavy, well constructed, and everything went together with ease. The only drawback is that the speaker connections are on either side instead of the back, which made it more difficult to wire my DVC subs to a mono amp: excess speaker wire used and the wires show and may get caught up on things.

By Charles on June 10, 2016

33 found this helpful


Good product, good oricd

The following review is for 10DQV, which is a part of the bundle you are viewing.

Box was made well if 3/4" mdf and corners were sealed nicely. Carpeting was done nicely and the box terminal was a step up from the super cheap plastic crap.

By Nick on May 2, 2018

32 found this helpful


Atrend 10DQV

The following review is for 10DQV, which is a part of the bundle you are viewing.

Right volume for Alpine Type R. Insulate with batting. Add a bit of polyfil. Sturdy. Well built.

By Anonymous on June 24, 2018

30 found this helpful


Really good mid level subs

The following review is for S-W10D2, which is a part of the bundle you are viewing.

I bought these subs to put in my corvette mostly for SQ, And really like them but miss having 12's but can never go wrong buy alpine subs. I still have my alpine type r's 12's from 12 years ago that i bought from sonic and i push the hell out of them, And they never let me down. I would always recommend Alpine subs.

By Anonymous on September 21, 2019 Checkmark Icon Verified purchase

23 found this helpful


This sub Slams

The following review is for S-W10D2, which is a part of the bundle you are viewing.

I put one in a fox acoustics ported box tuned to 35 hz in my 2021 Jeep Gladiator paired with a Kicker Key 500.1 and this thing sounds insane. Clean bass in almost a shallow form(only like 4.5 inch mount depth). This sub will make you happy. Very impressed!!!!!!!!!!!!!!!!!!!!!!!!
p.s My dash cam keeps giving me an error as my windshield vibrates so hard with only 1 of these subs.

By Neal on April 16, 2022 Checkmark Icon Verified purchase

17 found this helpful


The following review is for S-W10D2, which is a part of the bundle you are viewing.
By Tyson Cox Sunbelt on March 25, 2024 Checkmark Icon Verified purchase

10 found this helpful


Perfect size and perfect fit.

The following review is for 10DQV, which is a part of the bundle you are viewing.

I chose this box for my two Rockford Fosgate 10” P3s. It has the exact manufacturer cutout size recommendation of 9.13”
Very happy with the condition and quality. Definitely got my money worth. Should last for long time. Very affordable. Proud of the quick service and knowledgeable communication.

By Christopher on August 15, 2025 Checkmark Icon Verified purchase

1 found this helpful




KFC-W3013PS small

Kenwood KFC-W3013PS (Open Box)

12" Single 4 ohm Performance Series Car Subwoofer (Open Box)

$39.99

List price $140.00

GX-139 small

XO Vision GX-139 / GX-1301

13" TFT-LCD Flip-down Overhead Monitor w/ IR Transmitter Built-In

$189.99

List price $499.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2007 Mitsubishi Eclipse Spyder

2005 Toyota Solara

2019 Porsche Cayenne

1993 Saturn SC2

1983 GMC K3500 Pickup

1954 Chevrolet Corvette

2013 Jaguar XF

1999 GMC Sonoma

2014 Infiniti Q60

2019 Lexus RC300

Vehicle
Store
Delete

2007 Harley Davidson FXST Softail Standard

2005 Harley Davidson FXDC Super Glide Custom

Vehicle
Store
Delete

2014 Can-Am Commander 1000 LTD

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
