Name: (2) Rockford Fosgate Prime R2D2-12 Subwoofers + Belva MDFD12 Sealed Enclosure
Brand: Rockford Fosgate
SKU: r2d212_2_mdfd12
Price: 290.07 USD
Availability: Discontinued
Rating: 4.7099 (131 reviews)

131

Shop all Rockford Fosgate

by Rockford Fosgate

About
Specs & Details
Reviews
Add-ons
Similar Products
Related Searches

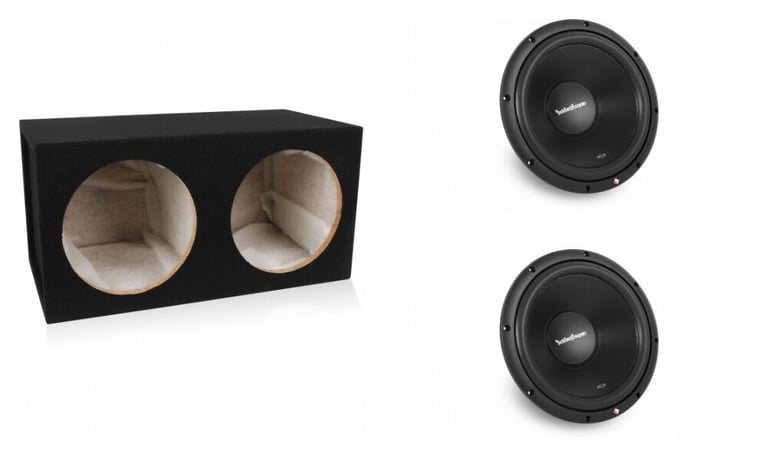

(2) Rockford Fosgate Prime R2D2-12 Subwoofers + Belva MDFD12 Sealed Enclosure

(2) Rockford Fosgate Prime R2D2-12 Subwoofers + Belva MDFD12 Sealed Enclosure-thumbnail

Product highlights

• Peak Power: 500W
• RMS Power: 250W
• Mica Injected Polypropylene Cone
• StampCast Basket
• Anodized Aluminum Voice Coil Former
• Frequency Response: 43-250 Hz

Learn more about the r2d212_2_mdfd12

Description

Authorized dealer

Eliminate Entry Level and Go Straight to Prime

Prime subwoofers are ready to rock and are the perfect first step into performance audio.The Prime R2 12" subwoofers have a peak power rating of 500 watts and a continuous RMS power rating of 250 watts. This makes them an ideal subwoofer for anyone looking to add some modest low end to their car audio system. The Prime R2 drivers feature an anodized aluminum voice coil formers for extreme heat dissipation that allow the driver to perform at optimum level during long hard hitting sessions. These subwoofers are the way to go when looking for a woofer that is built with quality & performance in mind and has been designed by industry's leading car audio manufacture.

These woofers, like their Punch brethren, are built using many of the same speaker technologies that Rockford has been famous for over 30 years for and you won't break the bank buying one. Simply put, the Prime seriesof woofers are held to the same standards of quality and performance as any other Rockford woofer but delivered at an affordable price.

Anodized Aluminum Voice Coil Former

By using an anodized aluminum voice coil former on their subwoofers, Rockford Fosgate is able to dissipate heat from the voice coil more efficiently. A hot voice coil can melt the adhesive bonds, which will lead to eventual subwoofer failure. The aluminum voice coil former acts as a heat-sink to dissipate thermal build-up on the voice coil cool during high SPL conditions.

Conforms to CEA-2031

Rockford Fosgate has built this subwoofer to conform to the CEA-2031 loudspeaker power handling industry standards. This means that you can trust the subwoofer to have the capacity to safely handle the continuous (RMS) power rating. Having a CEA-2031 power handling is important when matching a subwoofer to an amplifier because the power ratings are accurate.

Stitched Tinsel Leads

To improve the reliability and performance by reducing fatigue and possible shorting, Rockford Fosgate has stitched the tinsel leads to the spider. The multipoint periodic stitching lead wires reduce the mass of the tinsel leads to spread the stress over a greater area. This improves the reliability and performance of the subwoofer.

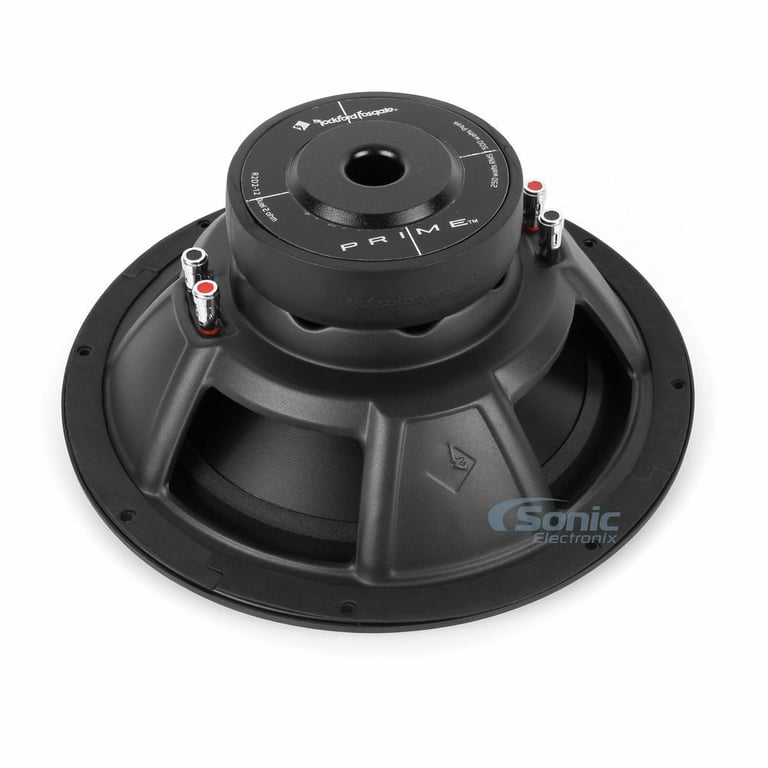

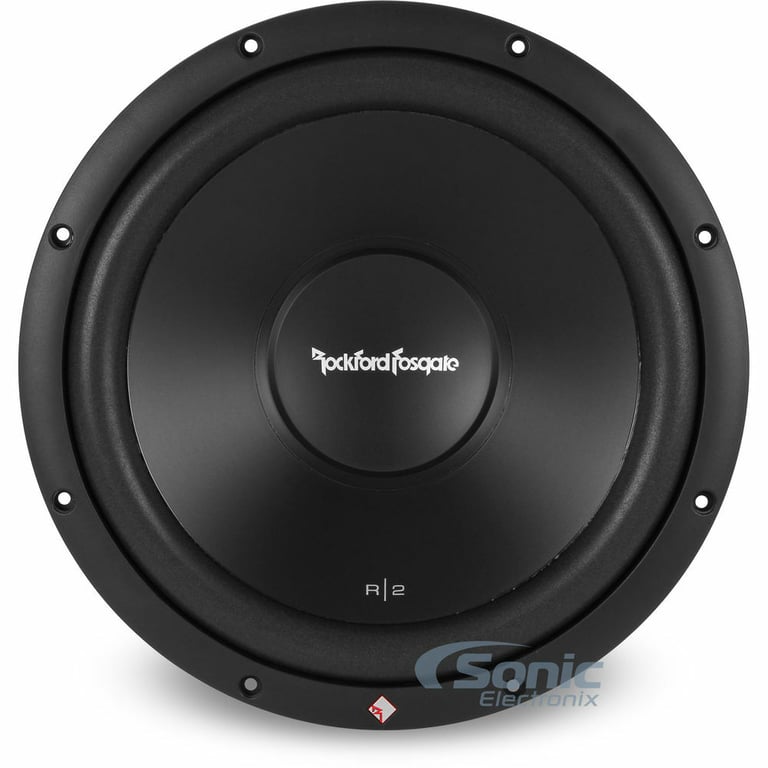

Rockford Fosgate Prime R2D2-12

500W Max (250W RMS) 12" Prime Stage 2 Dual 2 ohm Subwoofer
Quantity: 2

Key Benefits

12" Dual 2 ohm Prime Stage 2 Series Subwoofer
Power Handling:

Peak: 500 watts
RMS: 250 watts

Recommended power range: 200 - 300 watts RMS
CEA-2031 Compliant
Klippel Verified

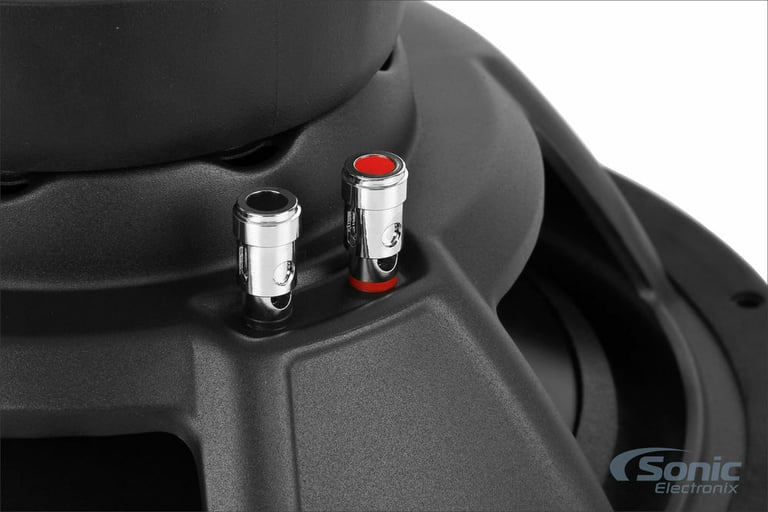

12 AWG compression terminals
Anodized aluminum voice coil former
Injection molded polypropylene cone
Tear & fatigue resistant poly-cotton spider
StampCast basket with integrated spider venting
Linear spider with embedded 16 AWG tinsel leads

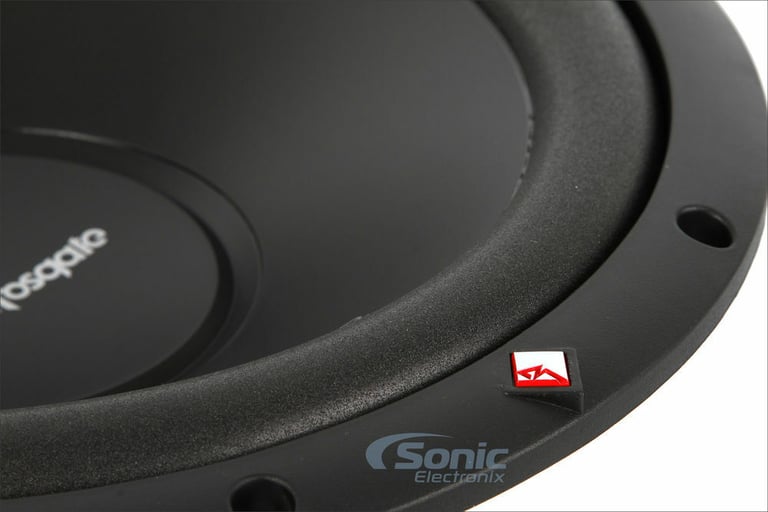

High density compressed half-roll sealed poly-foam surround
Optimized motor magnetics with extended pole and bumped vented backplate
Fatigue resistant and reduced strain "stitched on" flexible lead wire design
Multi-point high-temp/high-strength neck joint bonding technique

Semi-flexible PVC removable protective motor cover
Optimized for both sealed and vented enclosures
All metal compression input terminal assembly
Heavy guage proprietary stamped steel frame
Mounting Depth: 5.067"
Cutout Diameter: 11.25"
Magnet Weight: 47.70 oz
Frequency Response: 43 - 250 Hz
Xmax: 6.5 mm
Sensitivity: 88.7 dB @ 1 watt / 1 meter
Recommended Ported Enclosure: 1.79ft³ @45.0 Hz
Recommended Sealed Enclosure: 1.02ft³ @51.1 Hz
Matching Amplifiers: (one driver)

Rockford Fosgate R500X1D, Series @4ohms
✔ Preferred Match
Rockford Fosgate P300X1, Series @4ohms
Rockford Fosgate P400X1, Series @4ohms
✔ Preferred Match
Rockford Fosgate R750-1D, Series @4ohms

Matching Amplifier: (two drivers)

Rockford Fosgate R500X1D, Series/Parallel @2ohm
✔ Preferred Match
Rockford Fosgate P400X1, Series/Parallel @2ohm
Rockford Fosgate R750-1D, Series/Parallel @2ohm
✔ Preferred Match

Authorized Internet Dealer
1-year Manufacturer's Warranty

Priced Individually

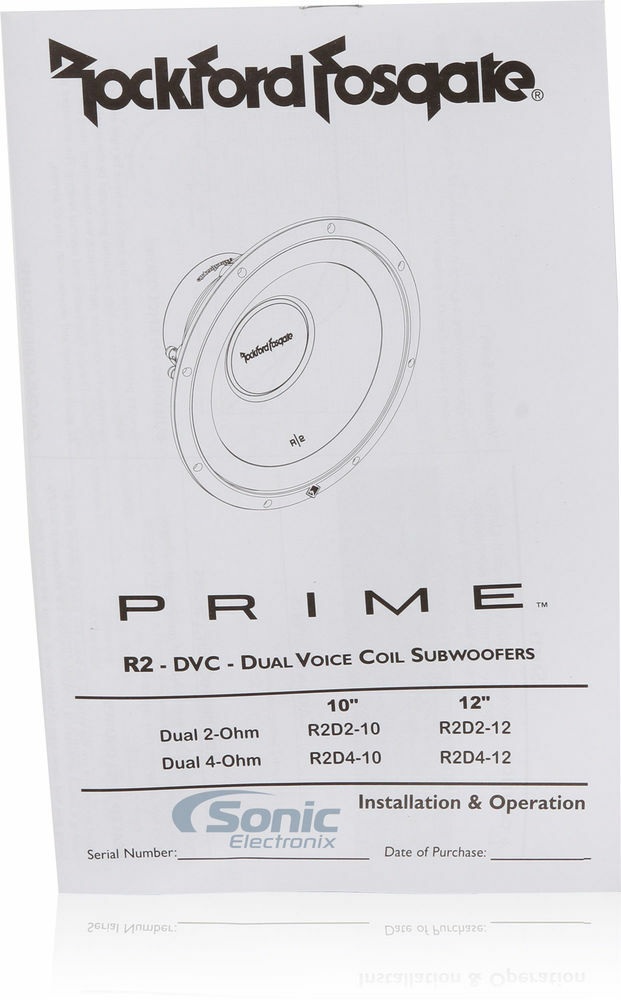

Check out the Rockford Fosgate R2D2-12 Owner's Manual

Check out the Rockford Fosgate R2D2-12 Data Sheet

Tips for Installing the R2D2-12 Subwoofer

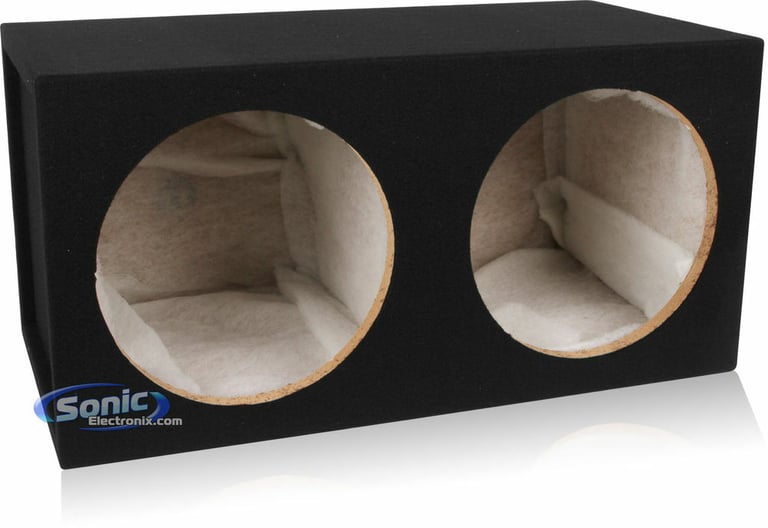

Dual 12" 3/4 MDF Sealed Subwoofer Enclosure (Belva MDFD12)

Dual 12-inch Sealed Car Sub Box Made with 3/4" MDF and lined w/Polyfil (2.46 cu ft Airspace - 12SQB)
Quantity: 1

Belva Subwoofer Boxes with Polyfill and 3/4-inch MDF

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

General Features:

Dual Sealed 12" Enclosure
Internal box volume: 2.5 cubic ft. total air space - 1.25 cubic ft. per chamber.
High Quality 3/4" MDF Construction
Durable black carpeting

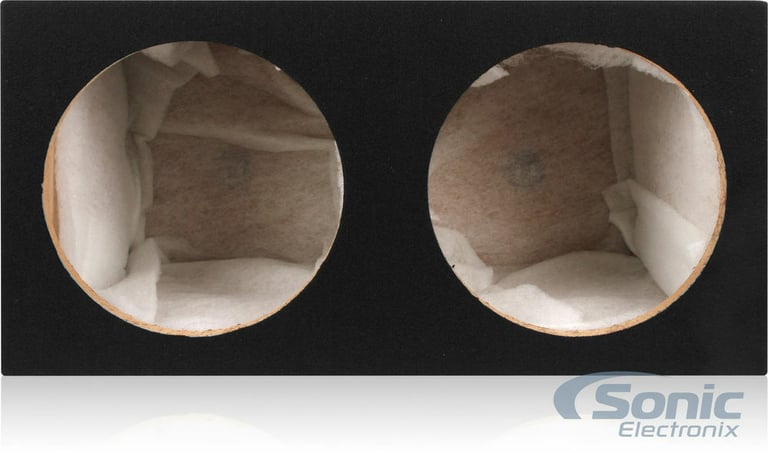

Pre-lined with Poly-Fil
Seams are fully caulked for better efficiency
2 Separate chambers allowing each subwoofer its own air space
Gold post terminals for clean and easy wiring access
Box Dimensions: 28" Wide, 14" Depth, 14" Height
30 Day return policy

Specifications & Details

Subwoofer Specifications

Series

Prime R2 Series

Subwoofer Size

12"

RMS Power Handling

250 watts

Peak Power Handling

500 watts

Woofer Composition

Mica Injected Polypropylene - MIPP

Woofer Surround

Poly-Foam

Sensitivity

88.7 dB

Frequency Response

43 - 250 Hz

Subwoofer Design

Round / Circle

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
