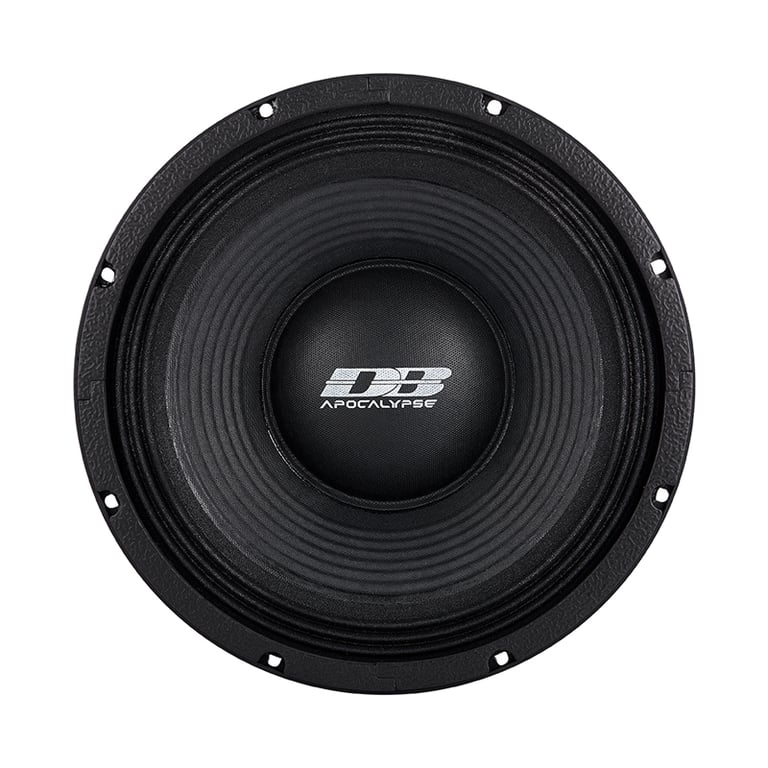

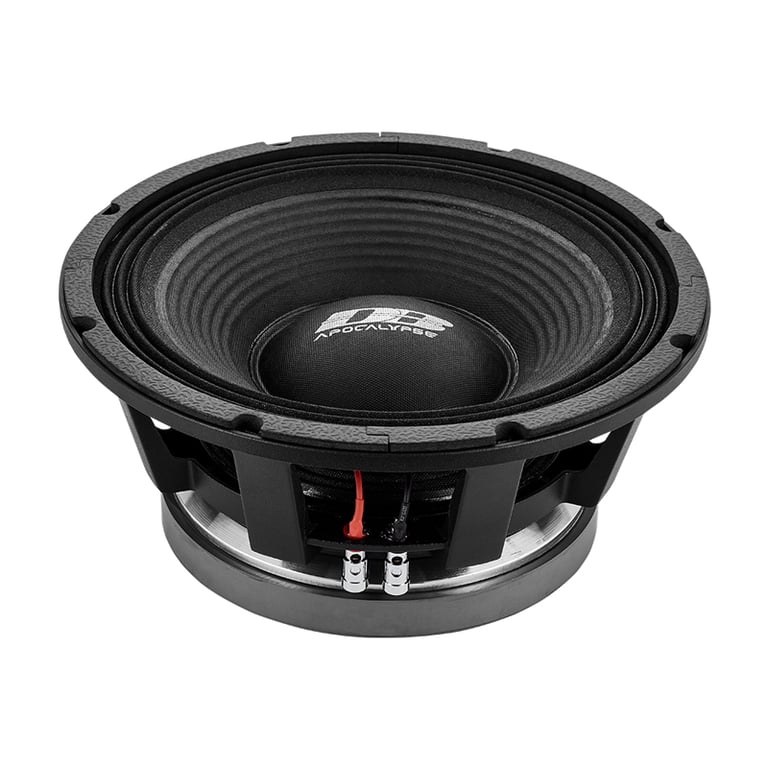

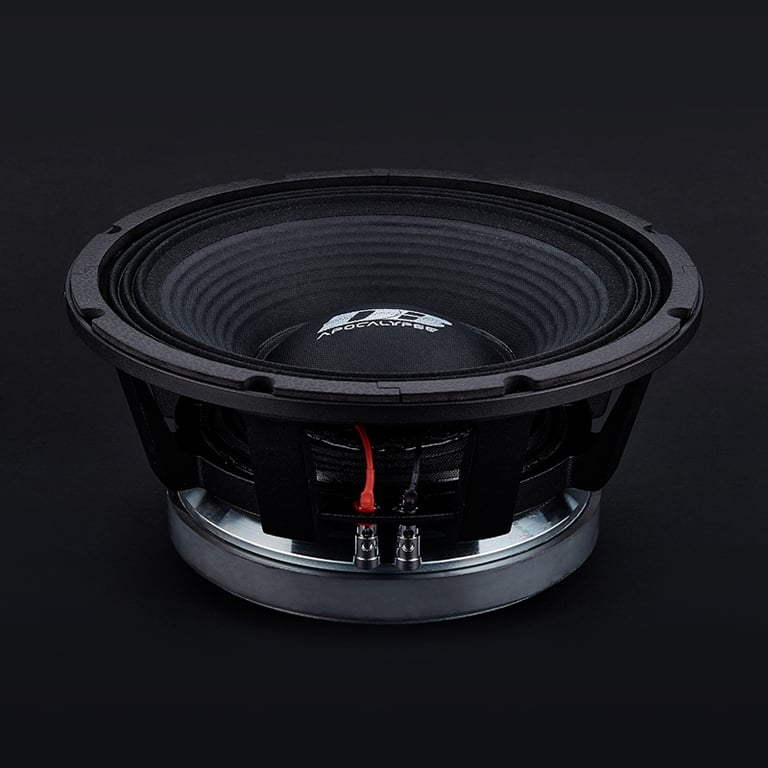

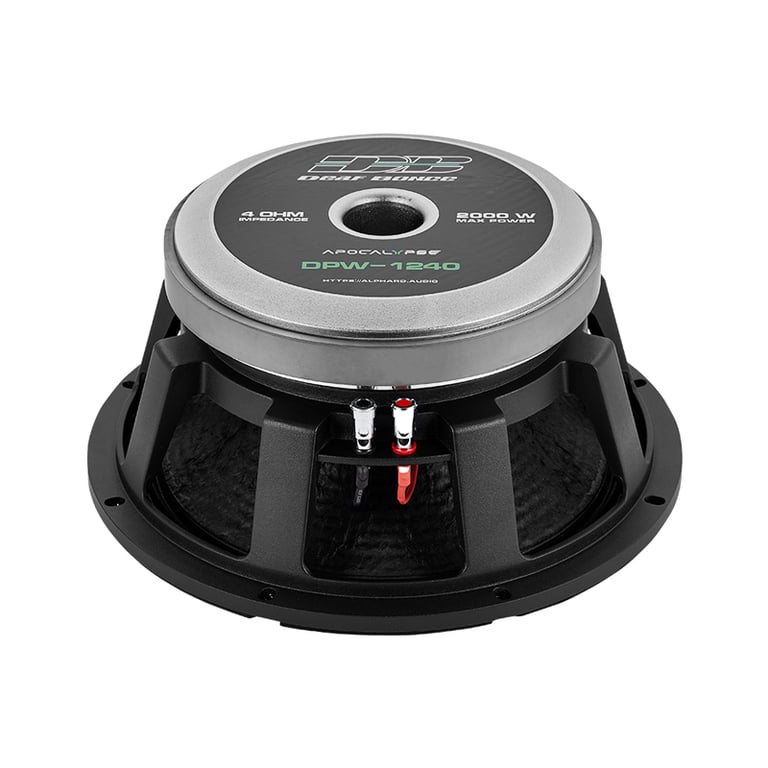

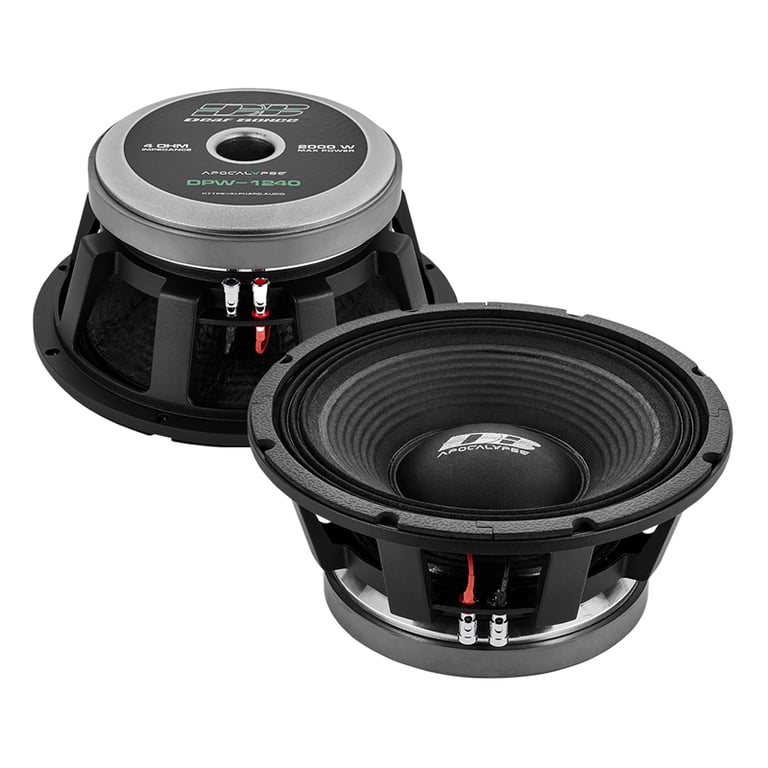

Deaf Bonce DPW-1240

2000W Peak (1000W RMS) 12” Apocalypse Series 4-ohm Car Subwoofer

Deaf Bonce
Shop all Deaf Bonce
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Single 4 ohm
• Pressed Paper Cone
• Cloth Surround
• Mount depth: 5.28"
• Sensitivity: 92.30 dB

Learn more about the dpw1240

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Deaf Bonce brand icon

Authorized dealer

Product Details:

  • 12" Single 4 ohm Apocalypse Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Pressed Paper Cone
  • Cloth Surround
  • 4" High Temperature Aluminum Voice coil
  • 6 mm Xmax
  • Single Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 83.90 Hz
  • Sensitivity: 92.30 dB
  • Recommended ported box volume: 1.4 cubic feet
  • Top-mount depth: 5.28"
  • Cutout diameter: 11.18"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconDeaf Bonce DPW1240 owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Deaf Bonce DPW-1240 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Deaf Bonce DPW-1240 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Deaf Bonce DPW-1240 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Deaf Bonce DPW-1240 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Apocalypse Series
Subwoofer Size
12"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
4"
Sensitivity
92.30 dB
Xmax (millimeters)
6 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Pressed Paper
Woofer Surround
Cloth
Magnet Structure
Single Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.4 cubic feet
Top-Mount Depth (Mounting Depth)
5.28"
Cutout Diameter
11.18"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
83.90 Hz
Equivalent Compliance (Vas)
13.77 liters
Total Speaker Q Value (Qts)
.66
Electrical Resistance of Voice Coil (Re)
3.2 ohm
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DPW-1240

Weight:

10.00lbs

Internal SKU:

dpw1240

Internal Product ID:

196436
