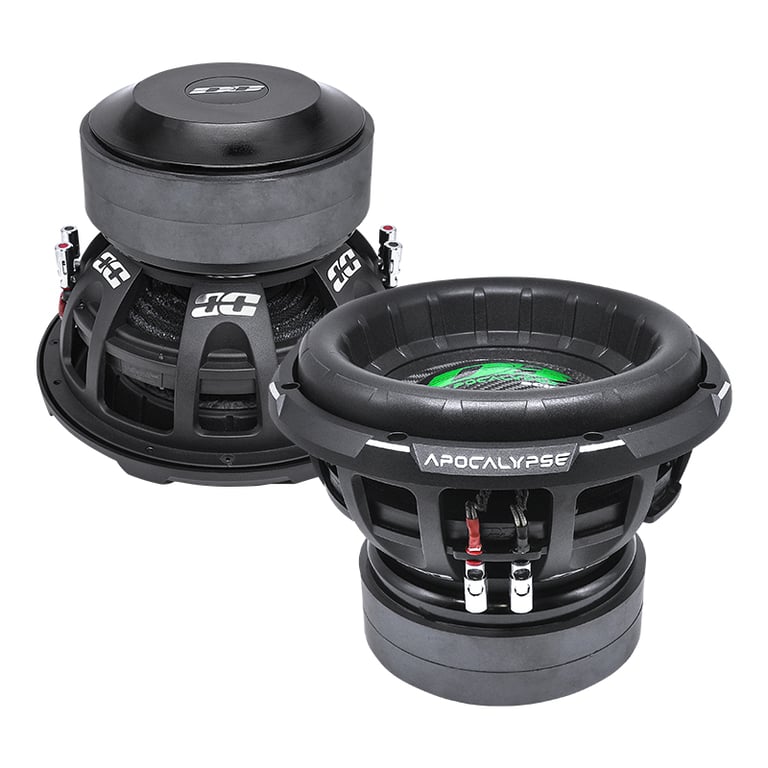

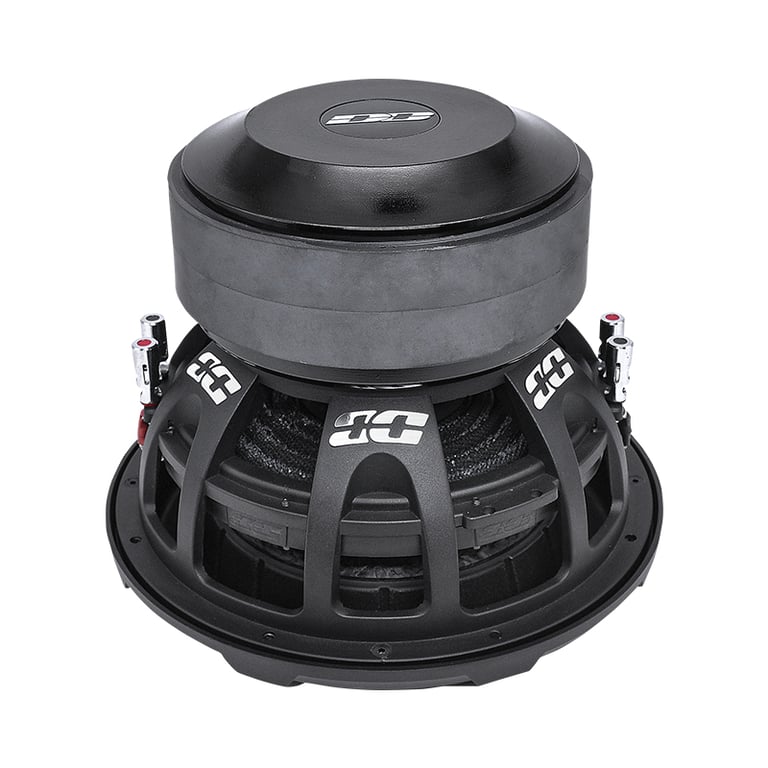

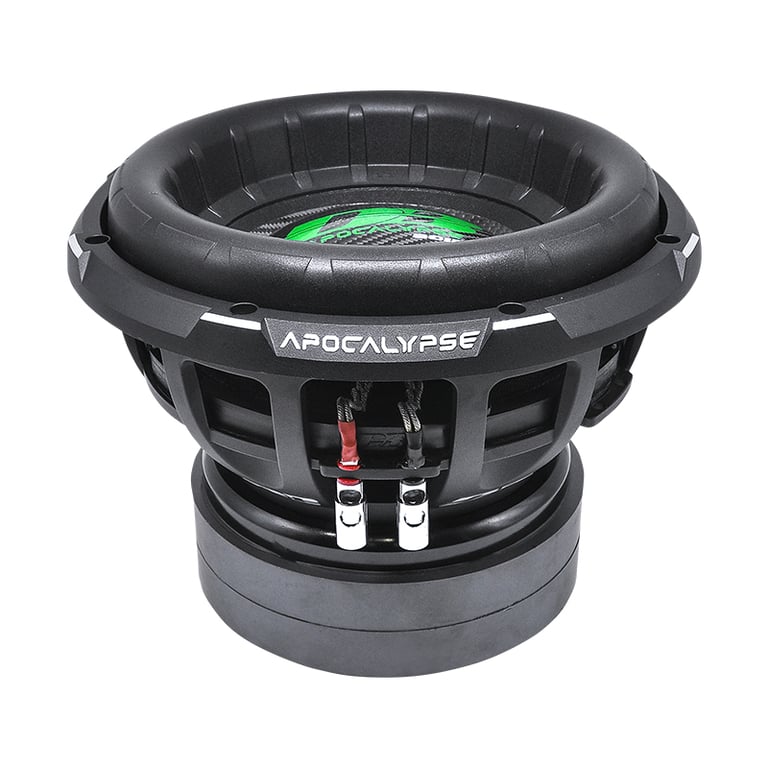

Deaf Bonce DB-3012R D2

5600W Peak (2800W RMS) 12” Apocalypse Series Dual 2-Ohm Subwoofer

Deaf Bonce
Shop all Deaf Bonce
highlight-star-icon

• Peak Power: 5,600 watts
• RMS Power: 2,800 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 1+1 / 2+2 Ohm
• Mount depth: 8.81"
• Sensitivity: 19 dB

Learn more about the db3012rd2

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

P1683 main

Rockford Fosgate Punch P1 P1683

260W Peak (130W RMS) 6x8" Punch Series 3 Way Coaxial 4-ohm Speakers

86
VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$99.99

List price $119.99

P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

47
T1693 main

Rockford Fosgate Power T1 T1693

400W Peak (200W RMS) 6x9" Power Series 3-way 4-ohm Coaxial Car Speakers with Dual Tweeters

35
T2T-S main

Rockford Fosgate Power T2 T2T-S

300W Peak (150W RMS) 1" Power T2 Series Aluminum Tweeter Kit with External Crossovers

6

JBL Stage3 8627 (STAGE38627AM)

500W Peak (100W RMS) 6x8" Stage3 Series 2-way Coaxial 3-ohm Speakers

1
-18.19%

$89.95

List price $109.95

Description


Deaf Bonce brand icon

Authorized dealer

Product Details:

  • 12" Dual 1+1 / 2+2 Ohm Apocalypse Series Subwoofer
  • Power Handling:
    • Peak: 5,600 watts
    • RMS: 2,800 watts
  • Paper Cone
  • Foam Surround
  • 3" High Temperature Voice coil
  • 19 mm Xmax
  • Ferrite magnet motor structure
  • Resonance Frequency (Fs): 33.00 / 33.80 Hz Hz
  • Sensitivity: 19 dB
  • Ported box volume: 1.94 cubic feet
  • Ported Hz Setting: 35
  • Top-mount depth: 8.81"
  • Cutout diameter: 11.18"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide



Loading...
Lowest price in 30 days
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-28.32%

$389.88

List price $543.88

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

59
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

Specifications & Details


Subwoofer Specifications
Series
Apocalypse Series
Subwoofer Size
12"
Peak Power Handling
5,600 watts
RMS Power Handling
2,800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
1+1 / 2+2 Ohm
Voice Coil Diameter
3"
Sensitivity
19 dB
Xmax (millimeters)
19 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Magnet Type
Ferrite
Subwoofer Grille
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
55 cubic feet
Top-Mount Depth (Mounting Depth)
8.81"
Cutout Diameter
11.18"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33.00 / 33.80 Hz Hz
Equivalent Compliance (Vas)
29.50 / 30.20 L liters
Total Speaker Q Value (Qts)
0.41 / 0.43
Electrical Resistance of Voice Coil (Re)
.8+.8 / 1.6+1.6 ohm
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DB-3012R D2

Weight:

60.00lbs

Internal SKU:

db3012rd2

Internal Product ID:

196467
