See all parts that fit your 1991 Tracker

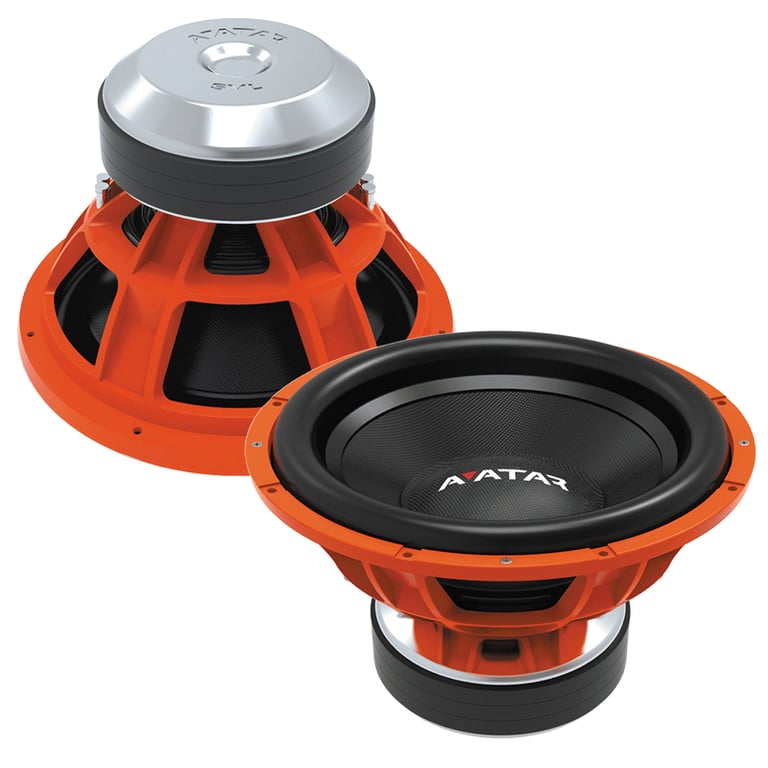

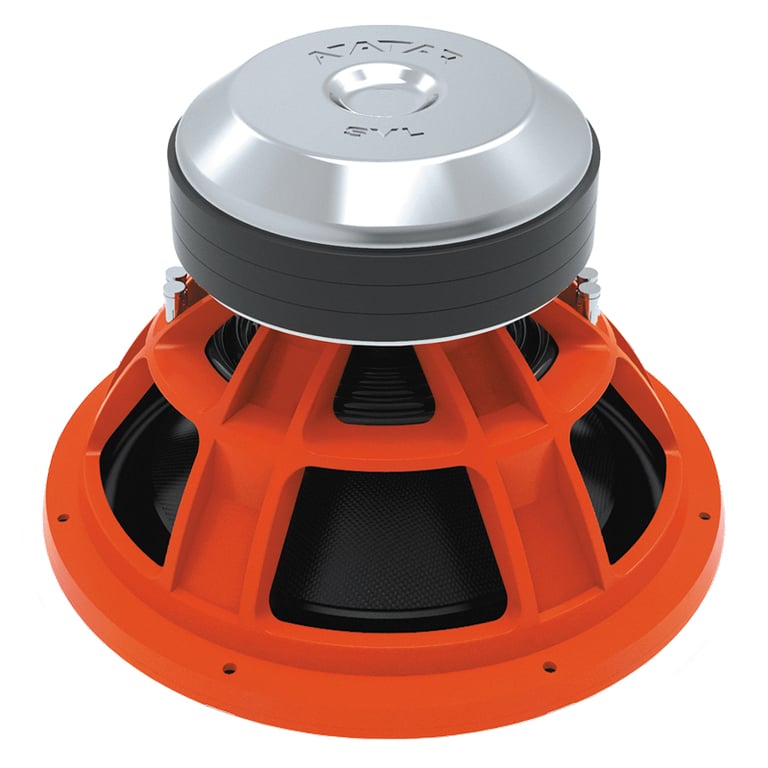

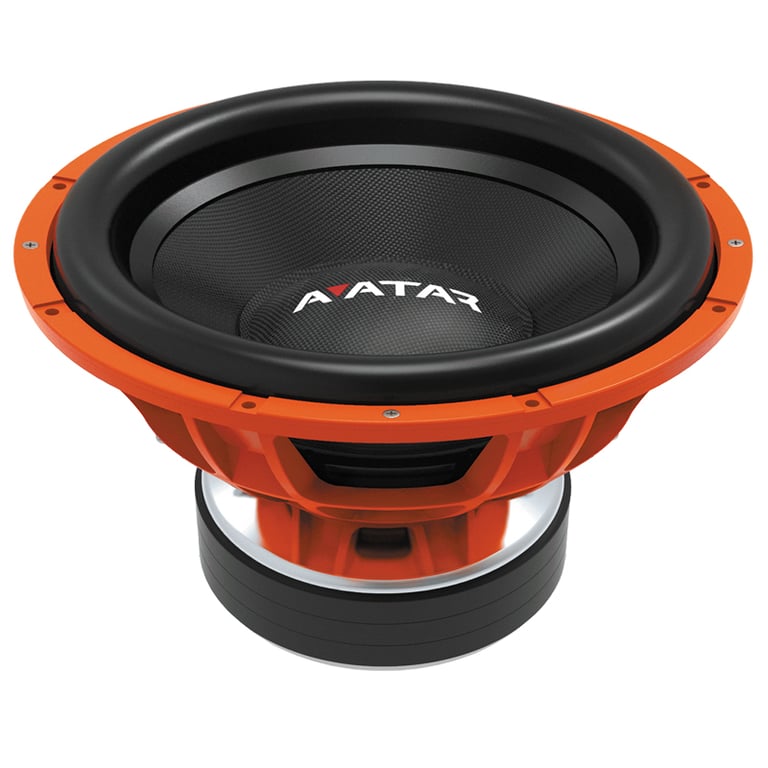

Deaf Bonce Avatar SVL-1847 D2

7600W Peak (3800W RMS) 18” Volcano Series Dual 2-ohm Car Subwoofer

Deaf Bonce
Shop all Deaf Bonce
highlight-star-icon

• Peak Power: 7600 watts
• RMS Power: 3800 watts
• Paper & Fiberglass Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 12.26"
• Sensitivity: 88.50 dB

Learn more about the svl1847d2

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
43DSC404 main

Kicker DSC40 (43DSC404)

240W Peak (60W RMS) 4" DS Series 2-way 4-ohm Coaxial Car Speakers

45
-13.34%

$64.99

List price $74.99

Stage3 427F main

JBL Stage3 427F (STAGE3427FAM)

300W Peak (60W RMS) 4" Stage3 Series 2-Way Coaxial 3-ohm Car Speakers

3
-22.23%

$69.95

List price $89.95

Description


Deaf Bonce brand icon

Authorized dealer

Product Details:

  • 18" Dual 2 ohm Volcano Series Subwoofer
  • Power Handling:
    • Peak: 7600 watts
    • RMS: 3800 watts
  • Paper & Fiberglass Cone
  • Foam Surround
  • Die-cast aluminum frame
  • 4" High Temperature Aluminum Voice coil
  • 33.00 mm Xmax
  • Double Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 33 Hz
  • Sensitivity: 88.50 dB
  • Recommended ported box volume: 5.6 cubic feet
  • Top-mount depth: 12.26"
  • Cutout diameter: 16.81"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Deaf Bonce Avatar SVL-1847 D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Deaf Bonce Avatar SVL-1847 D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Deaf Bonce Avatar SVL-1847 D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Deaf Bonce Avatar SVL-1847 D2 Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

1
-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Best selling similar products

49L7X181 small

Kicker L7X181 (49L7X181)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 13-3/16"

$949.99

List price $1049.99

49L7X182 small

Kicker L7X182 (49L7X182)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 13-3/16"

(1)

$949.99

List price $1049.99

VFLCOMP-1811 small

American Bass VFL Comp Signature 18" (VFLCOMP-1811)

• Peak Power: 10000 watts
• RMS Power: 5000 watts
• Impedance: Dual 1 ohm
• Kevlar Fiber-Enforced Non-Pressed Paper cone
• High Roll Foam surround
• Mount depth: 11"

$1002.36

List price $1618.44

SW-M18D1 small

Sundown Audio M-18 D1 18" (M18D1)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 14.05"
• Sensitivity: 85.83 dB

(3)

$699.99

List price $839.99

VFLCOMP-1822 small

American Bass VFL Comp Signature 18" (VFLCOMP-1822)

• Peak Power: 10000 watts
• RMS Power: 5000 watts
• Impedance: Dual 2 ohm
• Kevlar Fiber-Enforced Non-Pressed Paper cone
• High Roll Foam surround
• Mount depth: 11"

$1002.36

List price $1618.44

SW-XV318D1 small

Sundown Audio X-18 v.3 D1 18" (X12V3D1)

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Dual 1 ohm
• Pressed Paper Cone
• Mega Roll V2 Surround
• Mount depth: 13.6"
• Sensitivity: 88.6 dB

$849.99

List price $1019.99

ZV718D2 small

Sundown Audio Z-18 v.7 D2 18" (Z18V7D2)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 2 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.07 dB

$1399.99

List price $1679.99

SW-XV318D2 small

Sundown Audio X-18 v.3 D2 18" (X12V3D2)

• Peak Power: 5000 watts
• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Pressed Paper Cone
• Mega Roll V2 Surround
• Mount depth: 13.6"
• Sensitivity: 87.6 dB

$849.99

List price $1019.99

M18D2 small

Sundown Audio M-18 D2 18" (M18D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Treated Paper Cone
• Mega Roll V2 Surround
• Mount depth: 14.05"
• Sensitivity: 86.10 dB

(1)

$699.99

List price $839.99

SW-SAV218D4 small

Sundown Audio SA-18 v.2 D4 18" (SA18V2D4)

• Peak Power: 2500 watts
• RMS Power: 1250 watts
• Impedance: Dual 4 ohm
• Competition Grade Paper cone
• Foam surround
• Mount depth: 10.125"
• Sensitivity: 90.7 dB

$349.99

List price $599.99

Specifications & Details


Subwoofer Specifications
Series
Volcano Series
Subwoofer Size
18"
Peak Power Handling
7600 watts
RMS Power Handling
3800 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
4"
Sensitivity
88.50 dB
Xmax (millimeters)
33.00 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper & Fiberglass
Woofer Surround
Foam
Magnet Structure
Double Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
5.6 cubic feet
Top-Mount Depth (Mounting Depth)
12.26"
Cutout Diameter
16.81"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
177.00 liters
Total Speaker Q Value (Qts)
0.33
Electrical Resistance of Voice Coil (Re)
Dual 1.4 ohm
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SVL-1847 D2

Weight:

105.00lbs

Internal SKU:

svl1847d2

Internal Product ID:

196534
