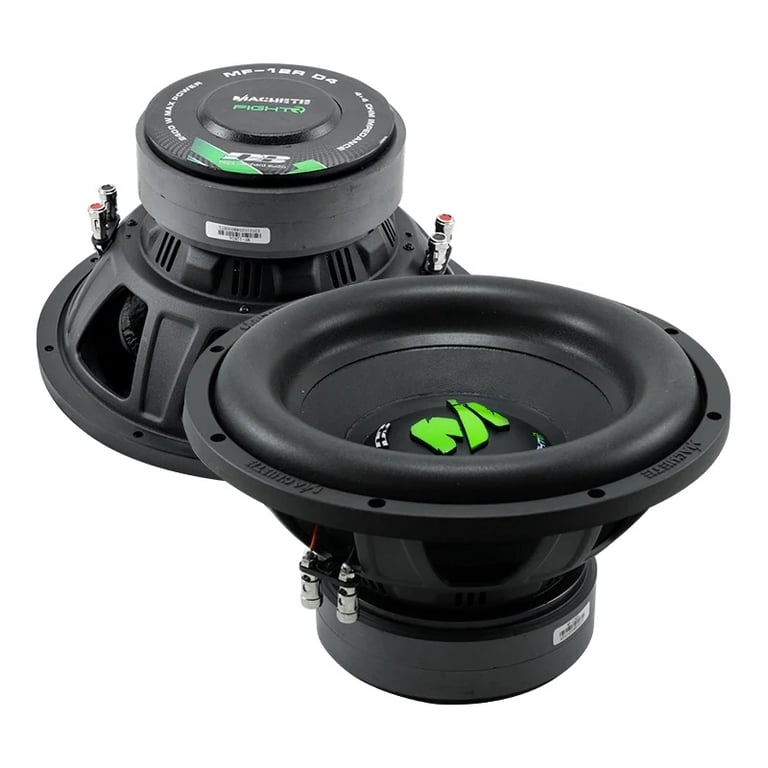

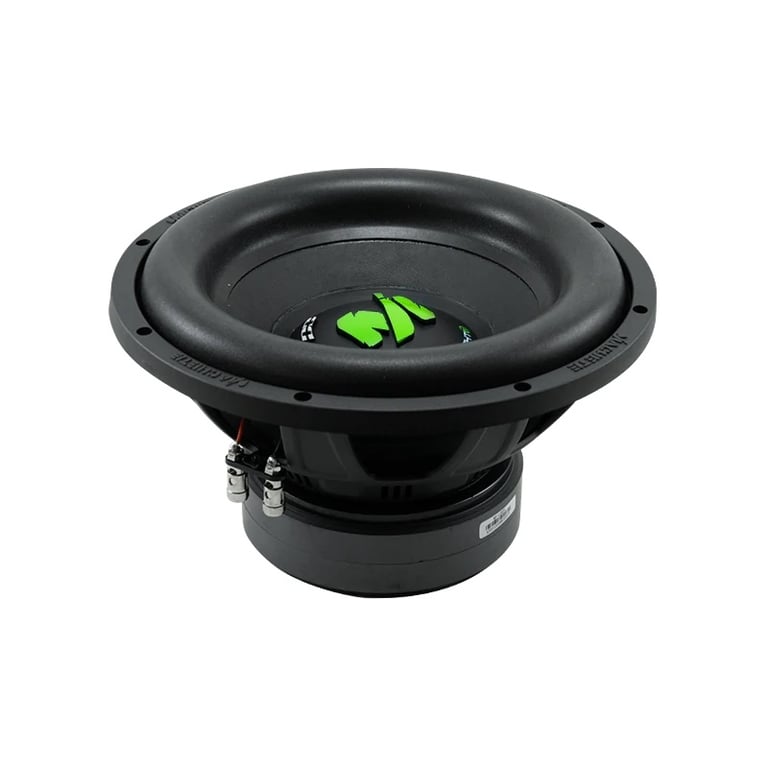

Deaf Bonce MF-12R D2

2400W Peak (1200W RMS) 12” Machete Series Dual 2-Ohm Subwoofer

highlight-star-icon

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohms
• Mount depth: 6.3"
• Sensitivity: 86,00 dB

Learn more about the mf12rd2

We apologize

This item has been discontinued

Description


Deaf Bonce brand icon

Authorized dealer

Product Details:

  • 12" Dual 2 ohms Machete Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts
  • Paper Cone
  • Foam Surround
  • Steel Frame
  • 3" High Temperature Copper Voice coil
  • 15 mm Xmax
  • Ferrite magnet motor structure
  • Resonance Frequency (Fs): 37.60 Hz
  • Sensitivity: 86,00 dB
  • Ported box volume: 1.94 cubic feet
  • Top-mount depth: 6.3"
  • Cutout diameter: 11.1"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Deaf Bonce MF-12R D2 Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Deaf Bonce MF-12R D2 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Deaf Bonce MF-12R D2 Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Deaf Bonce MF-12R D2 Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Machete Series
Subwoofer Size
12"
Peak Power Handling
2400 watts
RMS Power Handling
1200 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohms
Voice Coil Material
Copper
Voice Coil Diameter
3"
Sensitivity
86,00 dB
Xmax (millimeters)
15 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Paper
Woofer Surround
Foam
Magnet Type
Ferrite
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Optimum Ported Box Volume
1.94 cubic feet
Top-Mount Depth (Mounting Depth)
6.3"
Cutout Diameter
11.1"
Shallow Mount Installation
No
Electromechanical Parameters
Free-Air Resonance (Fs)
37.60 Hz
Equivalent Compliance (Vas)
24.80 liters
Total Speaker Q Value (Qts)
0.47
Electrical Resistance of Voice Coil (Re)
1.8+1.8 ohms
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MF-12R D2

Weight:

23.00lbs

Internal SKU:

mf12rd2

Internal Product ID:

196569

Customer Ratings & Reviews



5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.5
Value
4.5
Features
4.5
Design
4.5
Usability
4.5

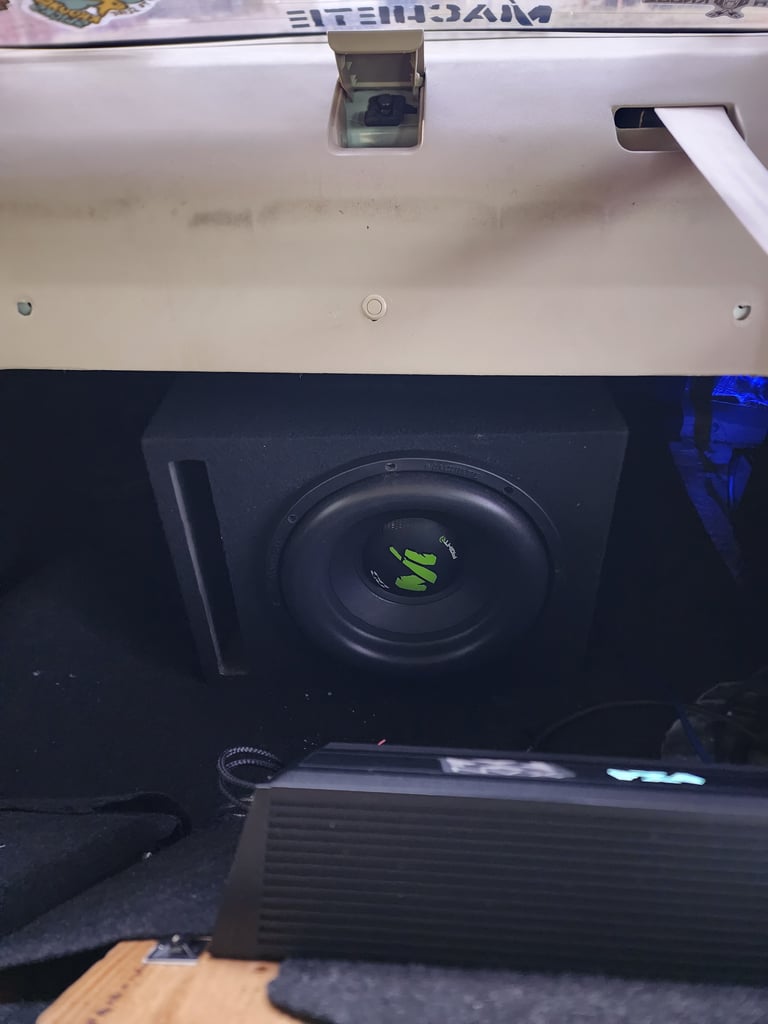

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Hit hard for real tho no joke.

I can't say much to the durability yet bcuz I've only had it installed for maybe a month if that, so it's still breaking in. But I will say I'm pleased with the performance from it, I have it being powered by the nvx 1500 watts rms monoblock wired to a 1 ohm load and everything tuned with the smd dd1 it definitely hits hard and pretty low and I do highly recommend this subwoofer and the box that it recommends on the website they seem to match well.

By Trevor on October 29, 2022

9

found this helpful.

By Jon on March 23, 2024 Checkmark Icon Verified purchase
