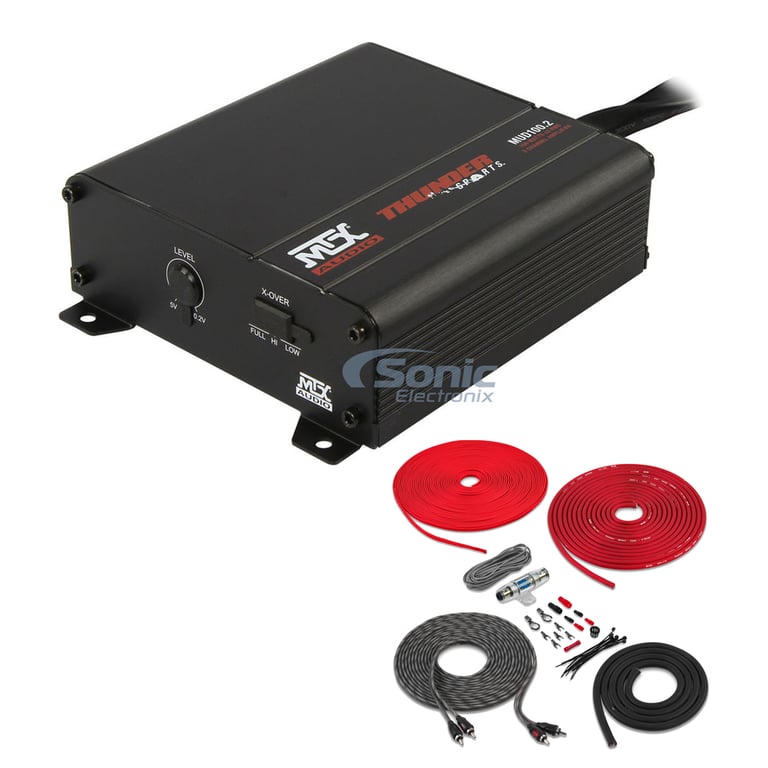

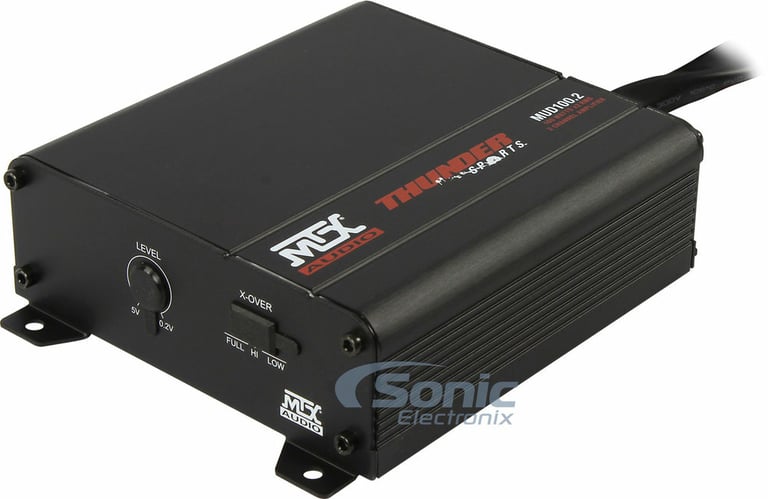

MTX Audio MUD100.2 2-Channel PowerSports Amplifier + Belva BAK82

400W Peak (200W RMS) 2-Channel Bridgeable Ultra-Compact Class D Power Sports Amplifier for Install in Car, Off-Road, SSV + Belva 8 Gauge Amp Wiring Kit

MTX
Shop all MTX
highlight-star-icon

• RMS Power: 50W x 2 @ 4 ohm, 100W x 2 @ 2 ohm
• Total Peak Power: 400W
• Fixed HPF/LPF (80 Hz @ 12dB/Oct)
• Dimensions: 5.71"W x 1.61"L x 4.65"H

Learn more about the mud1002_bak82

We apologize

This item has been discontinued


Loading...
21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Description


MTX brand icon

Authorized dealer

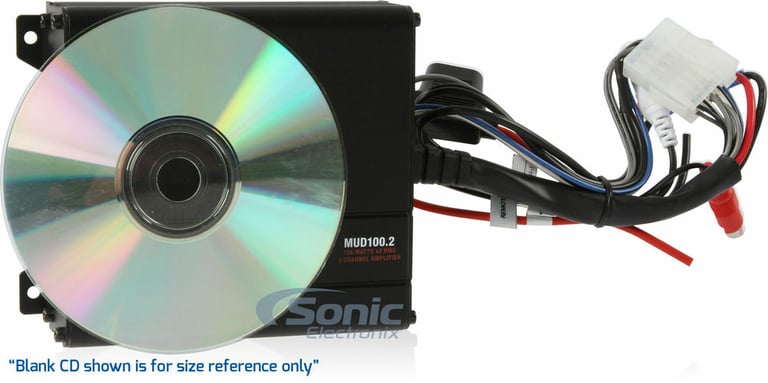

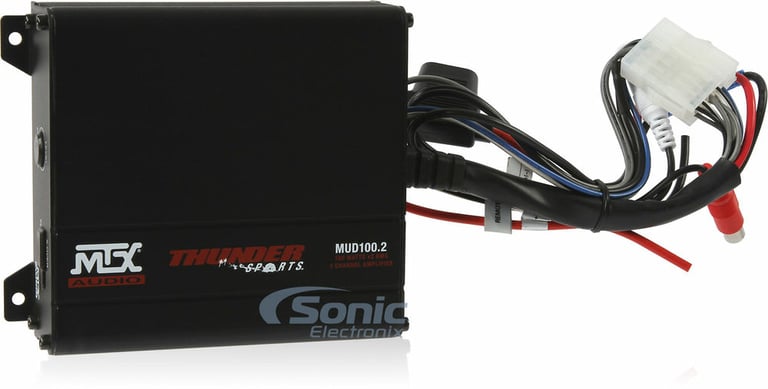

The MTX MUD100.2 is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive a single or dual full range speakers per channel.

The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

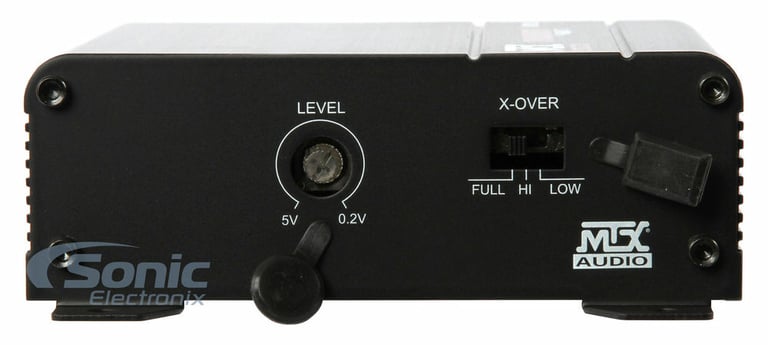

MTX Audio MUD100.2

400W Peak 2-Channel Bridgeable Ultra-Compact Class D Power Sports Amplifier
Quantity: 1

General Features:

  • MTX Power Sports MUD100.2 Amplifier
  • Class D Full Range 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 2 chan.
    • 2 ohm: 100 watts x 2 chan.
    • Bridged, 4 ohm: 200 watts x 1 chan.
  • Max power output: 400 watts
  • Weather Resistant in Accordance with IP66 Rating
  • Conformal Coated Printed Circuit Board that Resists Moisture

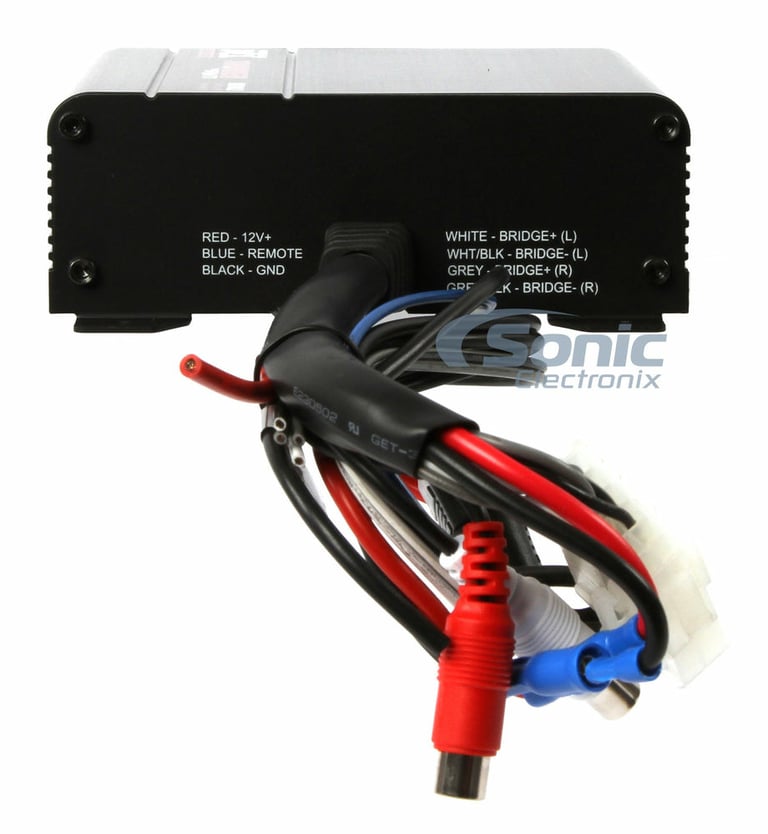

  • Pigtail contains all wiring necessary to connect power, ground and signal
  • Pulse Width Modulated MOSFET power supply
  • Input sensitivity: 200mV - 5V
  • Total Harmonic Distortion (THD): <1.0%
  • Fixed HPF/LPF (80 Hz @ 12dB/Oct)
  • Compact design enables installation anywhere
  • Conformal coated circuit board that resists moisture
  • Frequency Response: 20-20,000 Hz
  • Dimensions: 5.71"W x 1.61"L x 4.65"H
  • 8 - 10 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

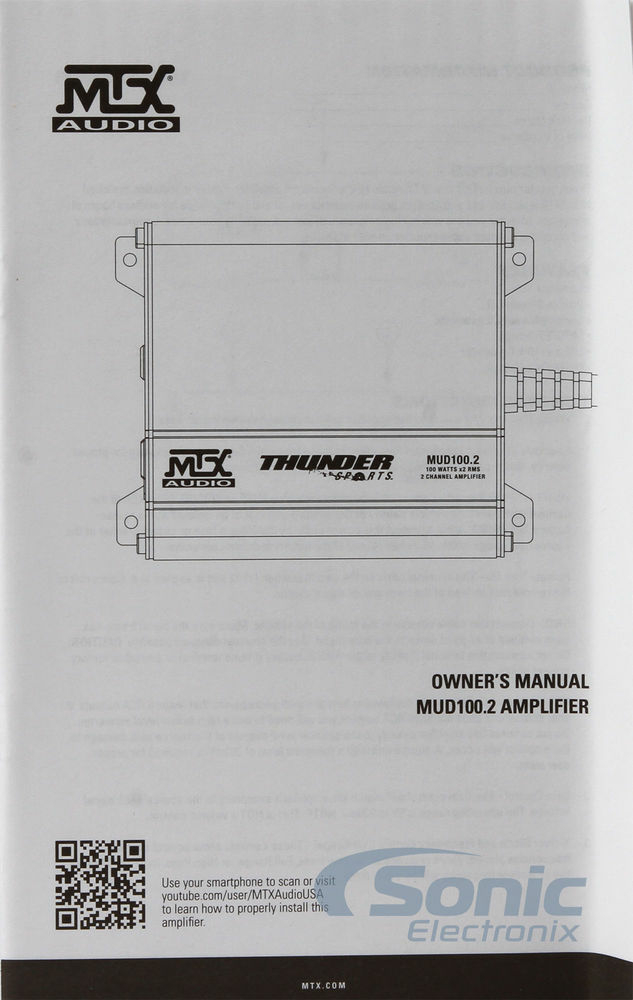

MTX MUD100.2 owner’s manual

Belva BAK82

8 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 600 Watts - RED
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 600 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

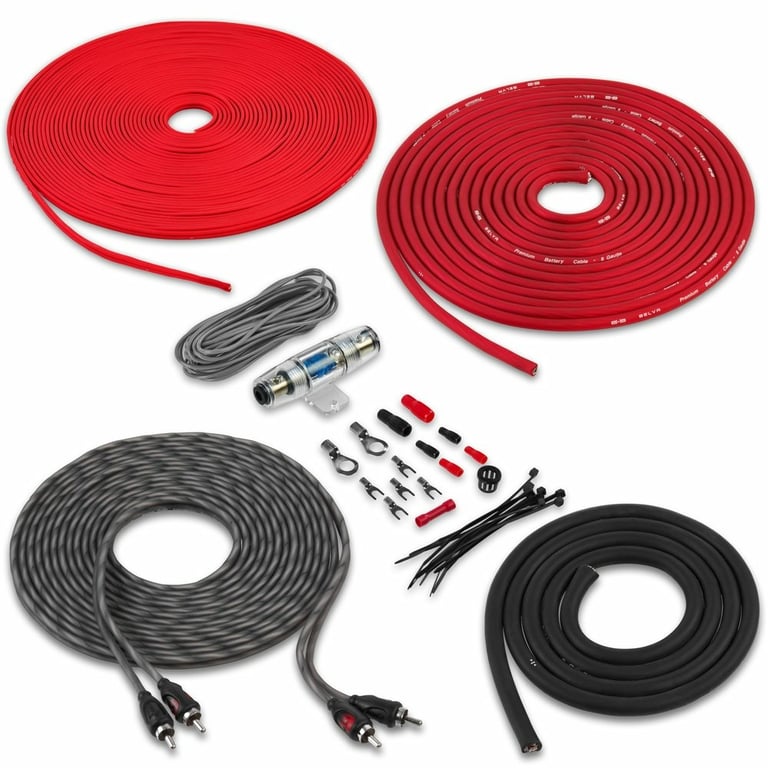

Kit includes:

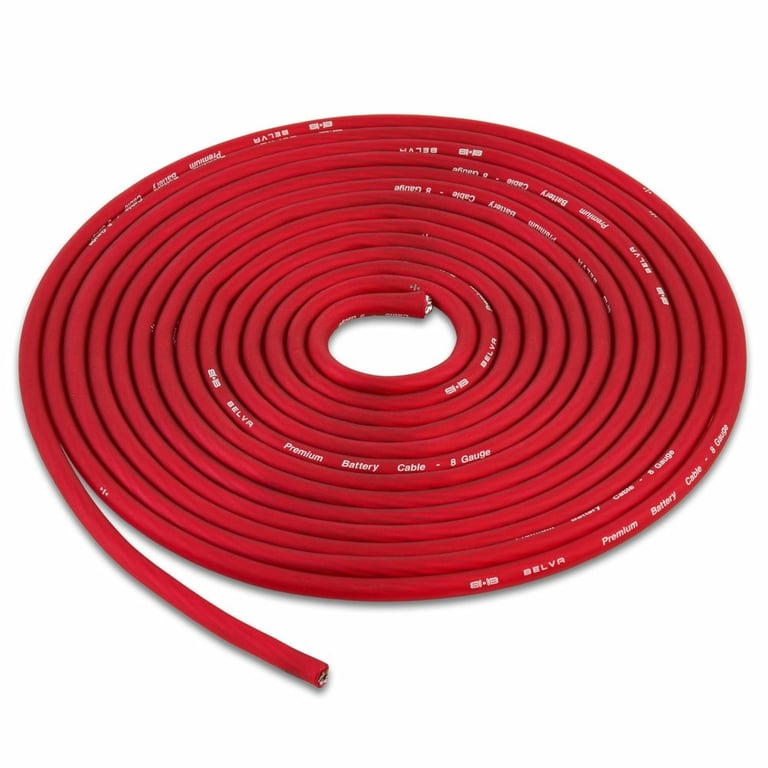

  1. 17 ft. Red 8 gauge power wire
  2. 3 ft. Black 8 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 2 channel
RMS Power @ 2 ohms
100 watts x 2 channel
Bridged RMS Power
200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1.0%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
Signal-to-Noise Ratio
>85 dB
Remote bass/level controller
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

MTX

Model Number:

MUD100.2, BAK82

Weight:

4.10lbs

Internal SKU:

mud1002_bak82

Internal Product ID:

196734

Customer Ratings & Reviews


MTX Audio MUD100.2 2-Channel PowerSports Amplifier + Belva BAK82 thumbnail image

5 star
73%
4 star
20%
3 star
6%
2 star
0%
1 star
1%



Durability
4.6
Value
4.7
Features
4.6
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

BAK 82

The following review is for BAK82, which is a part of the bundle you are viewing.

Nice package, quality wire but could more end connectors for the larger wire.

By Sam on June 19, 2014

203 found this helpful


Good product

The following review is for BAK82, which is a part of the bundle you are viewing.

It's exactly what you need for your car amp installation. I bought this kit with Kenwood KAC-1502S amp for 75 bucks. Good deal from Sonic Electronix.

By Collins on January 6, 2014

185 found this helpful


Great kit for the cost

The following review is for BAK82, which is a part of the bundle you are viewing.

Very nice kit for $18.
Wire seems adequately thick. Good quality fuse (not AGU) and fuse holder. RCA's feel durable. Decent assortment of accessories. All together a solid budget kit IMO.

By n2audio on September 24, 2014

185 found this helpful


Don't know what the other guy is talking about.

The following review is for BAK82, which is a part of the bundle you are viewing.

This kit was awesome and included with my package that I bought. In comparison to others for the same price, there is simply not a comparison and the other review is just wrong on so many levels I felt compelled to write this.

The reality is there are a lot of real shoddy amp kits and wire as a whole being used in car audio in terms of cheap amp kits that have over-insulating wires and fake gauge ratings, huge amounts of aluminum, lousy RCA cables, fuse holders and other accessories. BUT and a BIG BUT, this kit excels in those areas where others fall flat on their face. I have bought a few inexpensive 8 gauge kits in my day and XScorpion, Raptor, Install Bay and others haven't even given me the 8 gauge of wire that I paid for, and in some cases gave me wire that heated up to a dangerous level due to the actual make up of the wire.

I also literally laughed when I see that the other reviewer was intending to use spade terminals to connect his amp power and ground wire... It is for the SPEAKER wire knucklehead :-). I am an installer and the smaller accessories work just fine when you use them correctly. Most amps will still work with them when used with the speaker wire. Of course one can be used for the remote wire connection to the amp and the other end with the butt connector being used to connect to the stereo. The funny thing is, if you do not need them, who cares? It is like ordering this kit for a compact car or single cab pickup. You will not use all of the power wire for these applications, so do you complain that the manufacturer gave you extra wire? That just made me laugh.

Now, onto the other accessories. The AFS fuse and holder that are included are so far superior to others in this price range and the amount of copper (albeit CCA) is much better than others in the price range. Lastly, the RCAs included are awesome for the price. I cannot find ANYTHING to complain about here for $21.99.

All in all, you will not get a better value for the money.

By Double Down on August 14, 2012

180 found this helpful


Good product for the price

The following review is for BAK82, which is a part of the bundle you are viewing.

Good wiring package, good quality fuse holder and wires, I would like more connectors on it and maybe some tube for the power wire, but overall is a good kit.

By Alfredo on October 29, 2014

175 found this helpful


Good Purchase

The following review is for BAK82, which is a part of the bundle you are viewing.

I used this kit to install a 2 channel Boss amp. The quality of the pieces in this kit is five stars, but I'm giving it 4 because it is my belief that to do a clean install you need (4) 8 gauge terminals (one at the batt, one at the amp, one at ground, one at the amp), not just two. I had to spend an extra six bucks at Orchard for the extra terminals, but since the cost of the kit here at Sonic was only $20 at the time, it was still a good deal.

By Jumbo Dumbo on December 19, 2013

167 found this helpful


Good kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Good kit for basic setups. Using it right now in my mothers system powering a simple 12. Could handle more if needed.

Pros: Handles power, Wires are HQ, More copper than rubber, Wires are good length, Fuse is HQ, Comes with lots of ties and rubbers.

Cons: None

I would recommend this kit to anyone who has a simple system. All around good kit.

By Mitch on January 31, 2014

174 found this helpful


Great wiring kit

The following review is for BAK82, which is a part of the bundle you are viewing.

works great on my MB Quart 2x100 watt amp.

By Eric on November 29, 2013

166 found this helpful


Good Kit

The following review is for BAK82, which is a part of the bundle you are viewing.

Great kit for the price. the price is good. Long wires.

By Joshua on December 8, 2013

162 found this helpful


Belva BAK82

The following review is for BAK82, which is a part of the bundle you are viewing.

Worked very well for the money, great value for my system! Only thing that kept me from giving this 5 stars across the board is the design of the fuse holder and how you have to change/connect the fuse, minimal complaint.

By Dwight on April 9, 2014

151 found this helpful



DNX697S, SXV300V1 small

Kenwood eXcelon DNX697S with SiriusXM Tuner

6.75" Double-DIN CD/DVD Touchscreen Multimedia Receiver with Bluetooth, Navigation, Apple CarPlay, Android Auto (Sirius XM Ready)

(154)

$1169.98

List price $1389.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1988 Dodge Mini Ram

1986 Jeep Scrambler

1995 Dodge Ram 3500 Van

1993 Mazda RX-7

1984 Saab 900

2012 Lincoln MKZ

1955 Chrysler Windsor

2004 Volvo XC70

2025 Lexus NX250

2003 Hummer H2

Vehicle
Store
Delete

2015 Can-Am Commander E LSV SE

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
