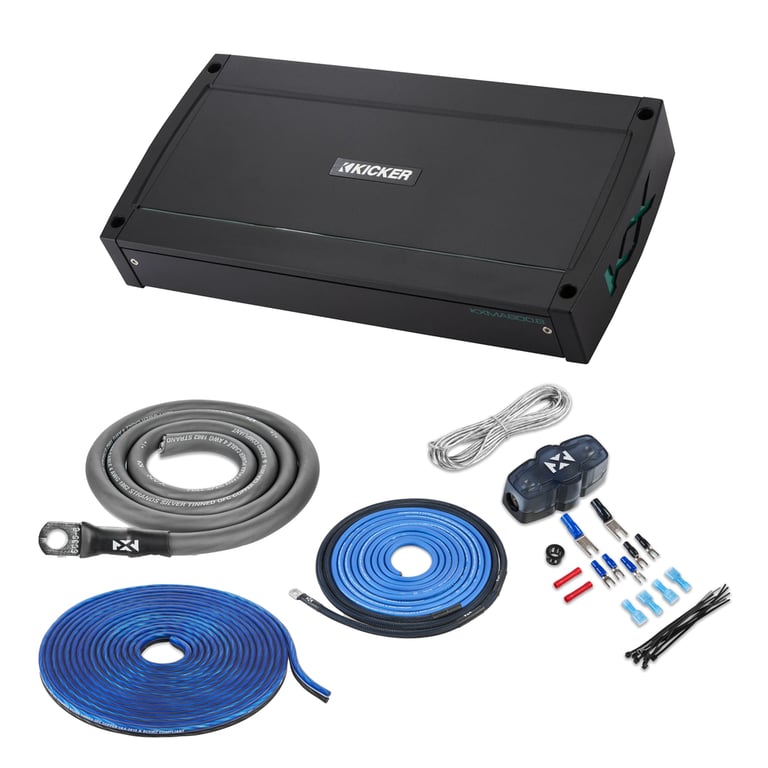

Kicker KXMA800.8 (48KXMA8008) + NVX XAPK4 4 Gauge Power Wiring Kit

800W RMS KXMA Series Class-D Marine 8-Channel Amplifier

Kicker
Shop all Kicker
Lowest price in 30 days
highlight-star-icon

• 50 Watts RMS x 8 @ 4 ohm
• 100 Watts RMS x 8 @ 2 ohm
• 200 Watts RMS x 4 @ 4 ohm bridged
• Total Power: 800 Watts
• CEA-2006 Compliant/
• 0 - +18 Bass Boost
• Heavy Duty Aluminum Heatsink
• Dimensions: 8-5/16" W x 14-3/4" L x 2-1/8" H
• Includes NVX XAPK4 4 Gauge Amp Wiring Kit

Learn more about the 48kxma8008_xapk4

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Kicker brand icon

Authorized dealer

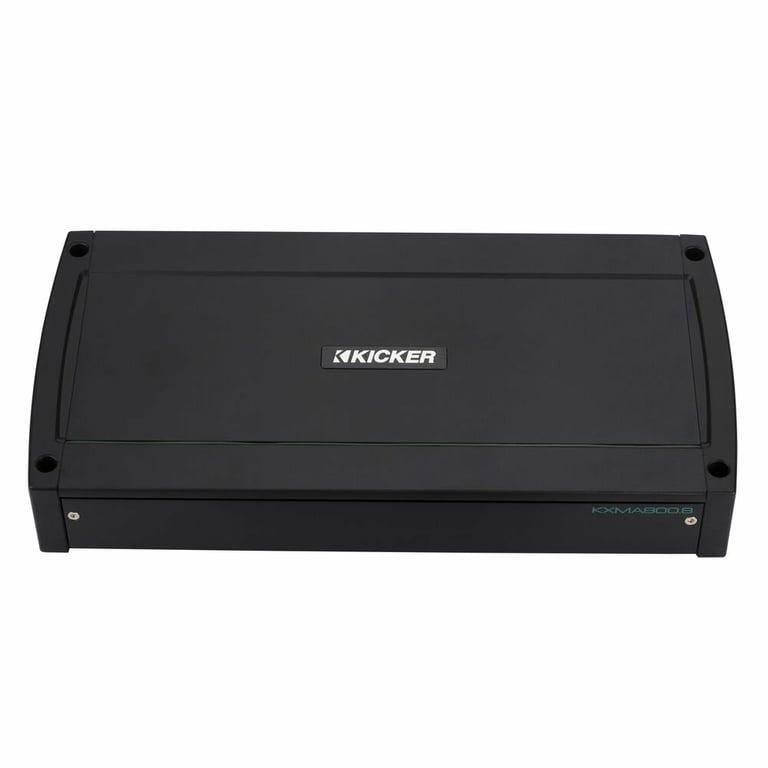

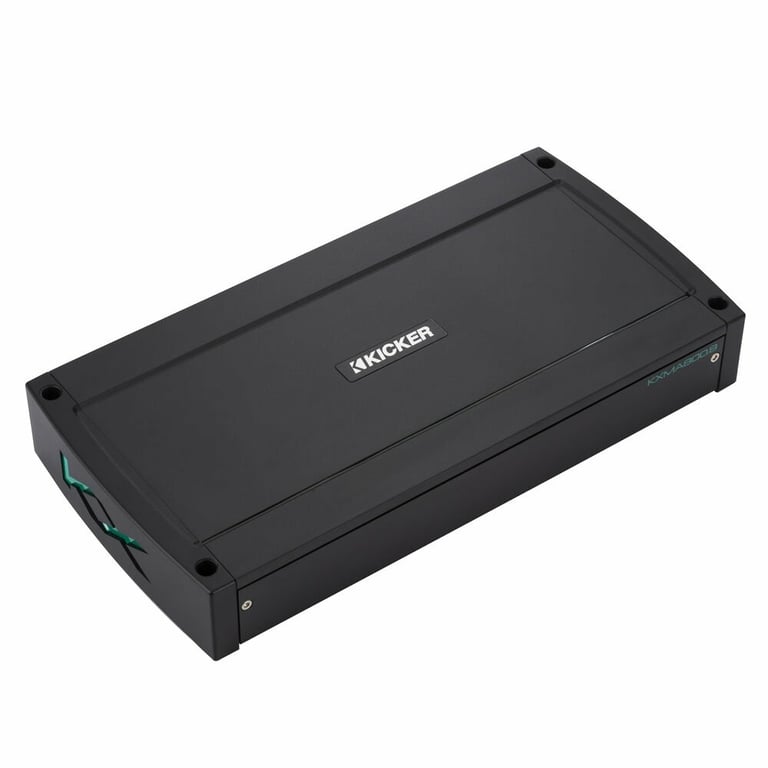

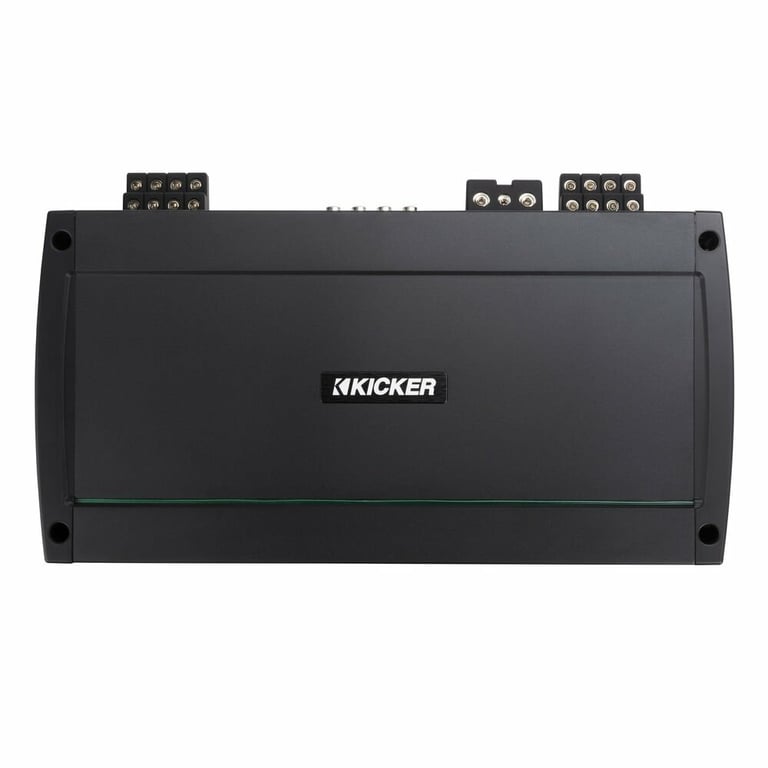

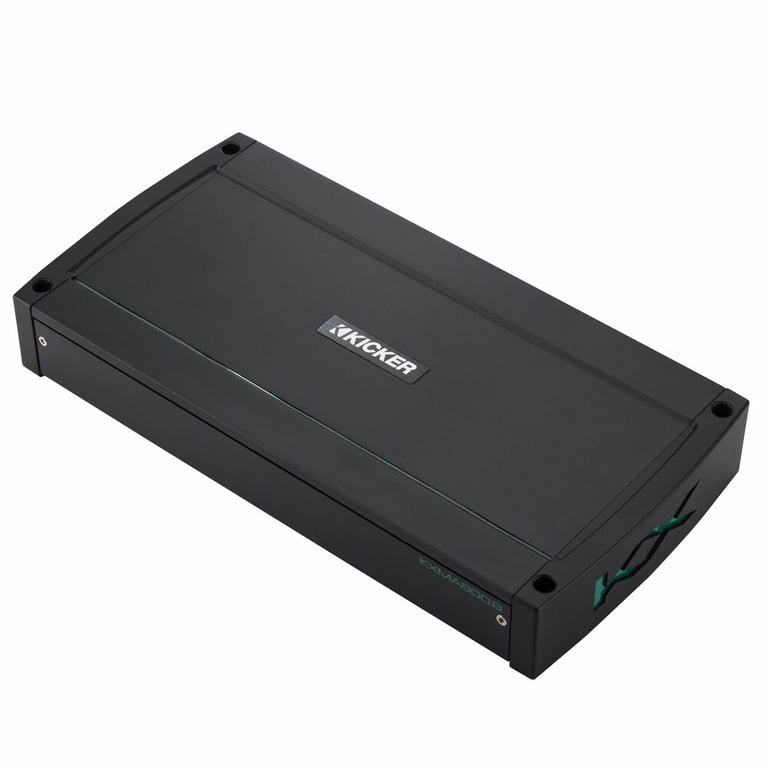

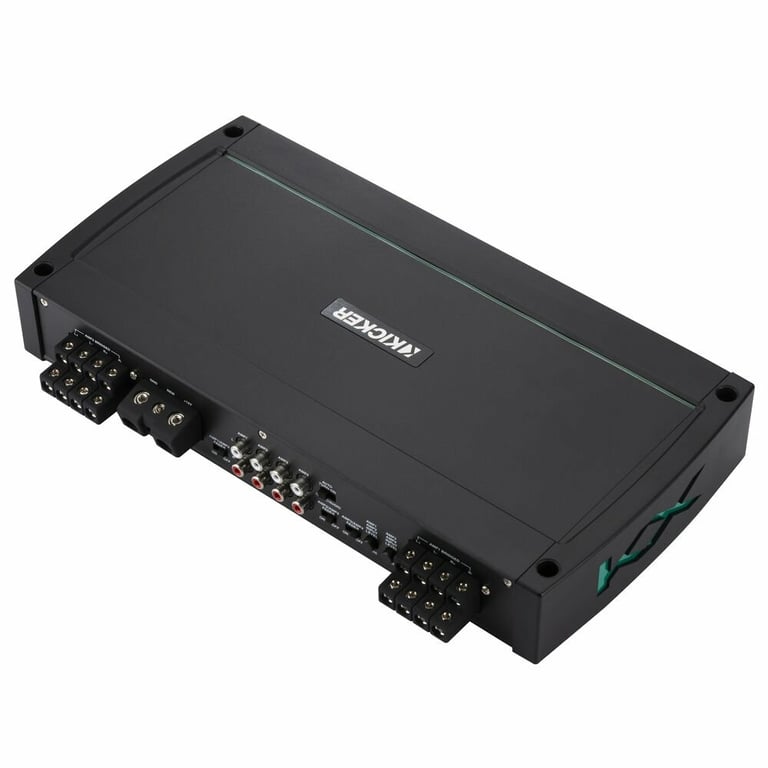

Kicker KXMA800.8 (48KXMA8008)

1200W Peak (800W RMS) Class D KXM Series 8-Channel Marine Amplifier
Quantity: 1

Product Details:

  • KXM Series Class D 2 ohm Stable 8-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 50 watts x 8 channel
    • 2 ohm: 100 watts x 8 channel
    • Bridged: 200 watts x 4 channel @ 4 ohm
  • Total power output: 800 watts
  • Gain control with Gain Match LED indicator
  • Top-mounted teal LED light pipe

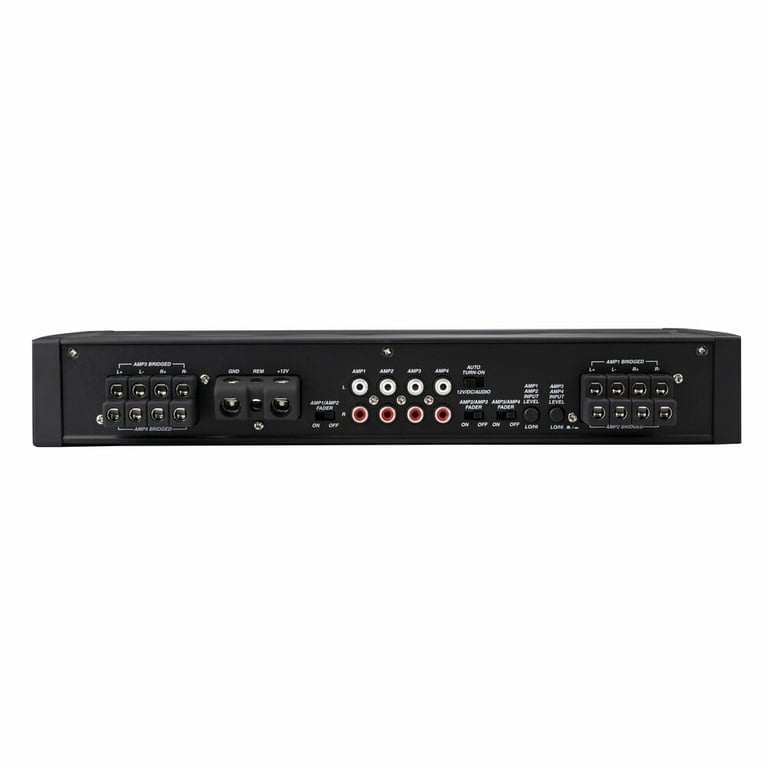

  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 3 pairs of pre-amp outputs
  • Signal sensing remote turn-on
  • Black anodized Aluminum chassis
  • FIT2 (Fail-safe Integration Technology) circuitry
  • DSP-controlled preamp
  • KickEQ bass boost
  • ABYC-NMMA-compliant power terminals
  • Conformal-coated circuit boards

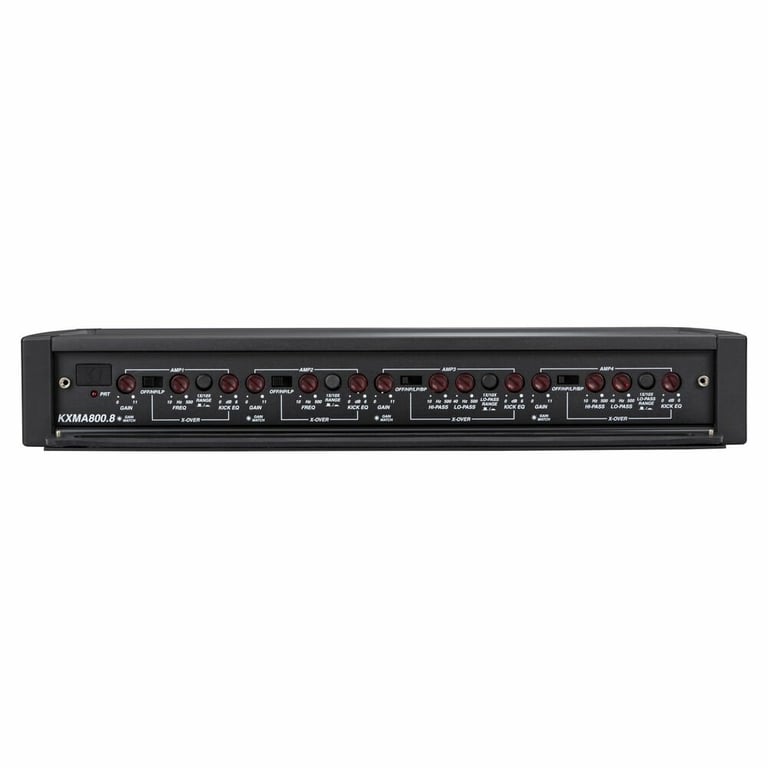

  • Easy access to settings behind a gasket-sealed cover panel
  • Black anodized Aluminum chassis
  • Stainless steel mounting hardware included
  • Input sensitivity:
    • Low level: 125 mV - 5 volts
    • High level: 250 mV - 10 volts
  • Frequency Response: 10 - 20000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 95 dB
  • Variable high-pass filter (Amp 1-4): 10 - 500 Hz
  • Variable low-pass filter (Amp 1-2): 10 - 500 Hz with 10x switch
  • Variable low-pass filter (Amp 3-4): 40 - 500 Hz with 10x switch
  • Variable Bass Boost: 0 - 6 dB
  • Fuse Rating: 120A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 14-3/4" L x 8-5/16" W x 2-1/8" H
  • Authorized Internet Dealer
  • 3 Year Manufacturer's Warranty
  • MFR #: KXMA800.8

NVX XAPK4

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Amplifier Power Wiring Kit with Speaker Wire for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge Gauge X-Series Amplifier Power Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

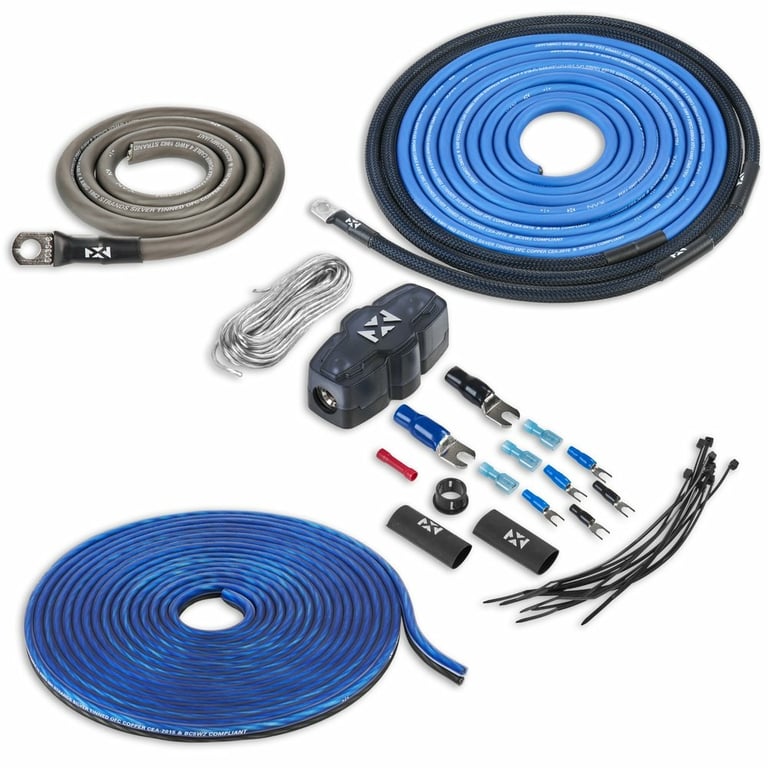

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  6. One Black rubber firewall grommet
  7. Two 4 Gauge Nickel Plated spade terminals
  8. Four 18 Gauge Spade terminal
  9. Two 18 Gauge Red butt connectors
  10. Four 16 Gauge quick disconnect
  11. Five 16 Gauge Nickel Plated spade terminals
  12. Two Heat Shrink tubes with the NVX logo
  13. Ten 6" Black zip ties

Product history:

Kicker KXMA800.8, XAPK4 thumbnail
(newest, current model)
Kicker 44KXMA8008 thumbnail
(previous model, replaced by Kicker KXMA800.8 (48KXMA8008) + NVX XAPK4 4 Gauge Power Wiring Kit)

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
50 watts x 8 channel
RMS Power @ 2 ohms
100 watts x 8 channel
Bridged RMS Power
200 watts x 4 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
8-Channel
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
4 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
10 - 500 Hz
Low-Pass Crossover Frequency
40 - 500 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
No
Fuse Rating
120A x 1
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

KXMA800.8, XAPK4

Weight:

15.80lbs

Internal SKU:

48kxma8008_xapk4

Internal Product ID:

197086

Customer Ratings & Reviews


Kicker KXMA800.8 (48KXMA8008) + NVX XAPK4 4 Gauge Power Wiring Kit thumbnail image

5 star
97%
4 star
3%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.9
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great value for money!

The following review is for XAPK4, which is a part of the bundle you are viewing.

From the braided to the thick true gauge OFC cable, this is a good amp kit, going to trust NVX after all this amazing kit.

By Borneo Man on November 8, 2014

141 found this helpful


Great Amp Kit

The following review is for XAPK4, which is a part of the bundle you are viewing.

I have been buying and installing car audio for about 18 years and out of all those years I have to come across an amp kit like this. This is the best kit I have ever installed. The wire is true to gauge ofc. I installed it in my car without any problems. Very flexible easy to work with. If you want a good amp kit don't buy this one but if you want a great amp kit purchase this one.

By Jared on January 20, 2014

135 found this helpful


Great cables top quailty

The following review is for XAPK4, which is a part of the bundle you are viewing.

hard to bet silver tinned copper cables even the speaker wire it comes with is silver tinned

By joshua on September 19, 2014

135 found this helpful


Super Product

The following review is for XAPK4, which is a part of the bundle you are viewing.

Very nice product. The quality of the power and ground 4 gauge wire was great. Already had one end prepped with a terminal and the power wire has a protective sleeve for about 4 feet. The only complaint I have is that the plastic cover that goes over the fuse holder doesn't snap very tight, easy to knock off and expose the fuse. I put electrical tape down both sides to help hold it on.

By Bill on March 11, 2015

121 found this helpful


Great Amp Kit

The following review is for XAPK4, which is a part of the bundle you are viewing.

High quality amp kit . Everything u need and more to hook up a single amp. Great value also for what is included in kit.

By Mike on November 3, 2014

124 found this helpful


Great Product

The following review is for XAPK4, which is a part of the bundle you are viewing.

This sound deadener is great the best I have ever used. It is very thick and sticks to anything. I used it on my rear speaker deck cover. I didn't know if it would stick do to the that the cover was made of fiberglass. It worked, stuck to the cover like glue. The only down side to the product is like any the black tar like substance if you get it on your hands or fingers have to use paint thinner to remove, other than that the product sticks to just about anything. The price is great too, dynamat for the same about cost about 3 times as much. The NVX is a much superior product than dynamat also not paying to fill chip foose back pocket.

By Jared on February 19, 2014

121 found this helpful


Quality Kit

The following review is for XAPK4, which is a part of the bundle you are viewing.

I bought this kit because it is high quality, uses true 4 gauge wire, and comes with 20ft. of power wire. It is working very well with my JAD1200.1 amp. I get about 0.5V of voltage drop at full power, 1 ohm impedance on test tones. I am very happy with the performance of this wire.

By Matt on October 23, 2014

121 found this helpful


I'm addicted to NVX!

The following review is for XAPK4, which is a part of the bundle you are viewing.

I used this in my 2008 Town & Country too! I purchased this kit to power my NVX JAD900.5 and could not be more pleased! Good quality, thick, durable, flexible... the list goes on! This made my install so easy! I can find only one problem... I don't have enough vehicles to do installs!! I can't get enough of NVX! I would be happy installing NVX on a daily basis! Everything NVX is fun and easy to use!! Thanks guys... you ROCK!

By Eliseo on October 8, 2012

119 found this helpful


Good price Great quality

The following review is for XAPK4, which is a part of the bundle you are viewing.

pros: easy to maneuver, tons of cable, good price, true 4 gauge

cons: the inline fuse holder is a bit tricky to wire in, also don't provide an allen key to tighten it.

By Adrian on June 30, 2014

119 found this helpful


GREAT PRODUCT!!!!!

The following review is for XAPK4, which is a part of the bundle you are viewing.

I bought this kit to go with my rockford fosgate amp, it gets the job done!!!!! Very happy with this purchase!!!!! I will be buying another one for my second car this spring!!!!!

By Theron on January 20, 2015

119 found this helpful



No picture

Polk Audio SR6500 Open Box

Signature Reference Series, SR Series 6-1/2" 2-way Component System

$379.99

List price $899.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2019 Lamborghini Urus

1996 Lexus SC300

2004 Dodge Intrepid

2003 Acura MDX

2015 Mitsubishi Lancer

2008 Toyota RAV4

2012 Chevrolet Camaro

2015 Lincoln MKT

2004 Land Rover Range Rover

2016 Hyundai Veloster

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
