Pioneer AVIC-X910BT (avicx910bt) 5.8" In-Dash Double DIN

Pioneer AVIC-X910BT

5.8" In-Dash Double DIN Touchscreen Monitor w/ DVD, CD, MP3 Receiver, Built-in GPS Navigation, Bluetooth, SD and USB Inputs

5.8" In-Dash Double DIN Touchscreen Monitor with DVD, CD, MP3 Receiver • 32,767 Selectable Color Button Lighting • Conversational Voice Control Voice-Recognition • Built-in Bluetooth And TeleAtlas Nav

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

avicx950bh thumbnail

Pioneer AVIC-X950BH

OUR PRICE: $599.99

View item

Authorized dealer

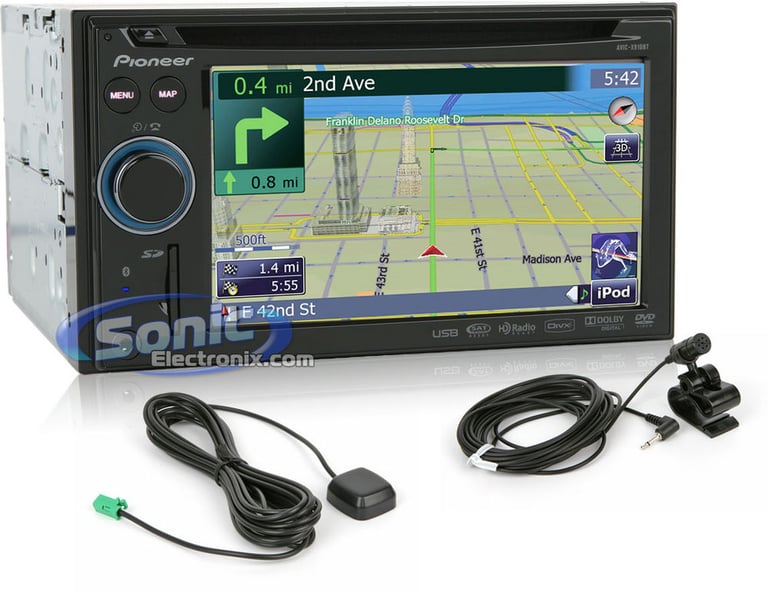

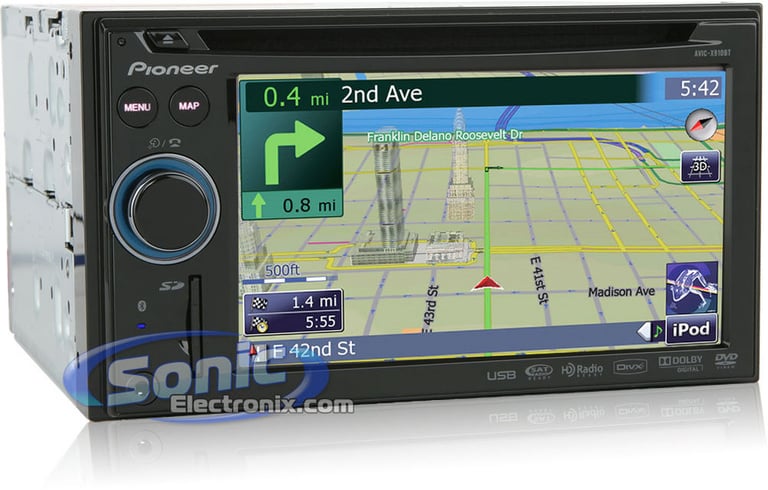

The Pioneer AVIC-X910BT is a feature packed in-dash navigation system that has an outstanding design. It combines navigation, audio, video and other connectivity options for iPod control and Bluetooth capabilities. The AVIC-X910BT offers only the best with a sleek, intuitive user-friendly design. Integration still plays a major role in the AVIC-X line, just like the F-Series and D-Series. The front-panel still has the same upgraded look as the F-Series with the choice of 32,768 customizable illumination colors, allowing the receiver to integrate seamlessly into any dash.

The 2GB flash-based TeleAtlas navigation has over 12 million points-of-interest and a large map database to help you find your next location. The GPS System offers 2D and 3D maps with nearby landmarks and terrain to help you navigate with ease. Users will experience a faster response time while navigating since everything has already been preloaded onto the receiver. Not only will you enjoy a smoother response system, but you will find that voice guidance and text-to-speech will allow you to keep your eyes on the road while using the GPS navigation. The built-in text-to-speech technology will clearly announce street names with turn-by-turn directions to ensure an easy trip. When the map voice guidance is activated, the unit will turn down the music to make an announcement regarding any upcoming turns.

Ditch the headset and use the built-in Bluetooth microphone. The technology allows you to be heard clearly without a headset getting in the way. All you have to do is connect your compatible Bluetooth phone and the receiver will provide instant access to your contacts via the touchscreen. Don’t worry about having to scroll through your phonebook when you want to call someone, simply say the name of the person and the AVIC-X910BT does the rest.

The Pioneer AVIC-X910BT has many expandability features such as a front auxiliary input, SD Card input, a rear USB Input, and it is even satellite and HD radio ready. This head unit has everything you have been looking for with many great features.

General Features:

  • 5.8" In-Dash Double DIN Touchscreen Monitor with DVD, CD, MP3 Receiver
  • Full color TFT active matrix widescreen LCD
  • 16:9 Aspect ratio with a resolution of 800 x 480
  • 32,767 Selectable color button lighting
  • Conversational Voice Control voice-recognition software
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels (Pioneer Certified)
    • RMS: 14 watts x 4 channels (CEA Certified)
  • CD Text Display
  • MP3 ID3 Tag Display (Title/Artist/Album)
  • 1-year Sonic Electronix warranty

Playback and Audio Features:

  • Playback of CD, CD-R, CD-RW, DVD-R, DVD-RW, DVD-R DL, MP3, WMA, AAC and DivX
  • Supertuner IIID features Feed Forward Control which avoids multi path interference
  • 18FM/6AM presets
  • 24-Bit digital-to-analog converter
  • Easy EQ (3-band EQ with 7 preset curves: Super Bass, Powerful, Natural, Vocal, Flat, Custom 1, and Custom 2)
  • High-pass filter: 50Hz, 63Hz, 80Hz, 100Hz, or 125Hz with a slope of 12dB per octave
  • Low-pass filter: 50Hz, 63Hz, 80Hz, 100Hz, or 125Hz
  • Bass boost: adjustable between 0 and 6
  • Loudness: 3 levels of adjustable loudness

Expandability Options:

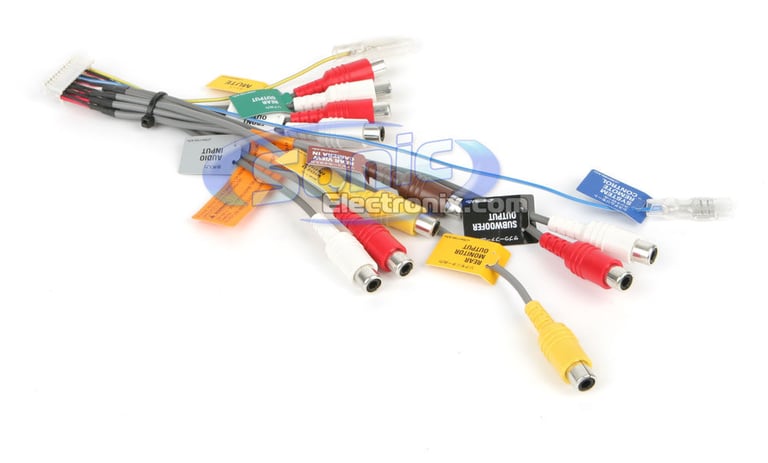

  • 3 Sets of 2.2V preamp outputs (front, rear and subwoofer)
  • Navigation: Built-in flash based TeleAtlas navigation with 12 million points of interest
  • Built-in MSN direct tuner: provides real time traffic, local gas prices, movies times, etc. with purchase of subscription
  • SIRIUS or XM Satellite Radio ready: SIRIUS Satellite Radio Solution Package or Pioneer GEX-P920XM and subscription required and sold separately
  • HD radio ready: Pioneer GEX-P10HD or Pioneer GEX-P20HD required and sold separately

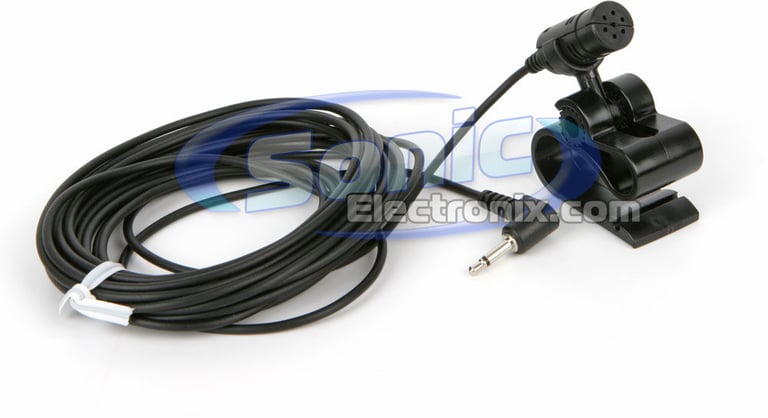

  • Bluetooth ready: Built-in Parrot Bluetooth adapter and microphone
    • A call can be dialed by using the voice command or touch screen
    • Up to 3 Bluetooth-compatible cell phones can be registered to this head unit
    • 400 Phone book entries can be stored in the unit per phone if the phone supports the feature
    • You can dial the free GOOG-411 phone service with one touch
    • Echo cancellation will keep your calls sounding crisp and clear
  • iPod ready: Pioneer CD-IU230V required and sold separately
  • Front-panel A/V auxiliary input: Audio/video 3.5mm (headphone jack) allows connection to portable media devices such as MP3 players, etc.
  • Rear-panel USB input: USB port allows connection to portable media devices such as MP3 players, flash drives, etc.
  • Front-panel SD card input: Allows playback of audio and video as well as picture viewing from SD cards, up to 8GB
  • Steering Wheel control ready: PAC SWI-PSv1 required and sold separately
  • Rear camera input: Pioneer ND-BC2 or Pioneer ND-BC20PA backup camera required and sold separately
  • Rear A/V auxiliary input: RCA audio/video input located on the rear pigtail

Navigation Features:

  • 2 GB of internal flash memory
  • Map database of the entire United States and Canada
  • 12 million points-of-interest
  • Search for POI's near your location, destination, along your route and near an address
  • Voice guidance with languages in English, French or Spanish
  • Text-to-speech announces street names with turn-by-turn directions
Learn more about the AVIC-X910BT at our blog.

Product history:

Pioneer AVIC-X950BH thumbnail
(newest, current model)
Pioneer AVIC-X940BT thumbnail
(previous model, replaced by Pioneer AVIC-X950BH)
Pioneer AVIC-X930BT thumbnail
(previous model, replaced by Pioneer AVIC-X940BT)
Pioneer AVIC-X920BT thumbnail
(previous model, replaced by Pioneer AVIC-X930BT)
Pioneer AVIC-X910BT thumbnail
(previous model, replaced by Pioneer AVIC-X920BT)
Pioneer AVIC-F900BT thumbnail
(previous model, replaced by Pioneer AVIC-X910BT)
Pioneer AVIC-D3 thumbnail
(previous model, replaced by Pioneer AVIC-F900BT)
Key features
Key features
In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Detachable Controls
Motorized Faceplate
Remote Control
Peak Power Output
50 watts x 4 channels
RMS Power Output
22 watts x 4 channels
Preamp RCA Outputs
6-channel (3 pairs)
Dedicated Subwoofer Preamp RCA Output
Preamp Voltage
2.2 volts
Built-In Equalizer
Easy EQ
Display Type
TFT-LCD Monitor
Display Color
Full Color
Button Color
32,767 Selectable Colors
CD Signal-to-Noise
96 dB
CEA-2006 Compliant
Playback Features
AM/FM Tuner
FM Presets
AM Presets
Radio Data System (RDS)
CD-R/RW Playback
MP3 Playback
WMA Playback
DVD Region Number
Dual Zone
Hi-Res Certified
Video in-motion bypass

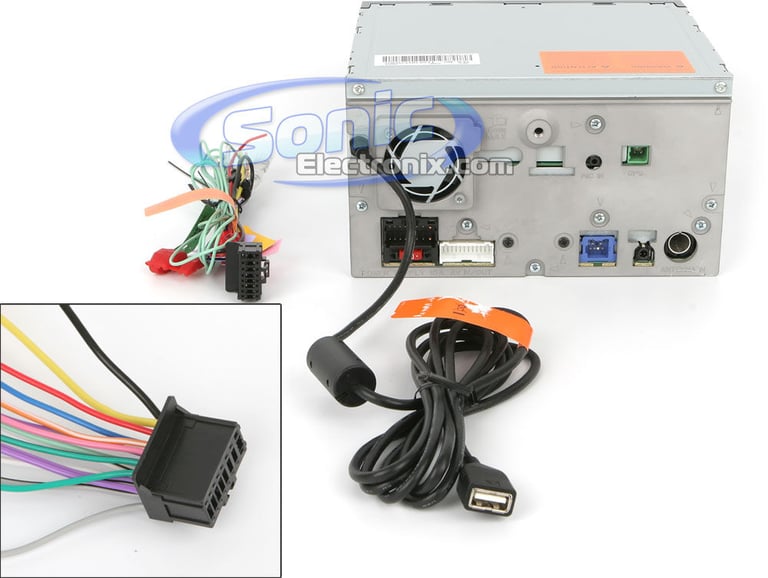

Audio / Video Inputs
USB Input
Number of Front USB Inputs
Number of Rear USB Inputs
Additional Audio/Video Inputs
1 Set of Rear RCA A/V Inputs
Front 3.5mm A/V Input
Monitor Screen Features
Screen Size
Monitor Angle Adjustment
Display Adjustment
MirrorLink Compatible
Device Mirroring
Navigation Features
Map Database
Tele Atlas
Traffic Lane Guidance
Complete 50 USA
Navigation During Audio Playback
Navigation During Video Playback
Map Dimensional Display
Speed Display
Search Options
Map Browsing
Point-of-Interest (POI) Name
Point-of-Interest (POI) Vicinity
Points-of-Interest (POI) Type
Quick Search
Map Source
Built-In Flash Memory
Traffic Tuner
Points of Interest
12 Million
Customizable POI
Expandability Features
Yes (Built-In/Included GPS Navigation)
Compatible Smartphones
Audio/Video Outputs
Satellite Radio
HD Radio
Bluetooth Connectivity
Yes (Built-in/Included [Bluetooth Controls, Adapter and/or Microphone Included])
A2DP Music Streaming
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
Maestro Compatible
Rear View Camera Input
Yes (Universal)
Memory Card Reader
SD Card
Smartphone Integration
iPhone/iPod Features
iPod Audio Integration
Optional (Accessory Required and Sold Separately)
iPod Video Connection
Android Features
Android Audio Integration
Android Video Connection
What is in the box?
Product and accessories
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Authorized Dealer
Authorized Dealer
Specials with this Item
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix
Pioneer AVIC-X910BT

Pioneer AVIC-X910BT



Write a review

Overall rating distribution

5 star
4 star
3 star
2 star
1 star

By feature average rating



August 13, 2010

Solid Performer

A little slow starting up, but all features work and work well. Clean, crisp screens and operation. I recommend this unit, I will say have a professional install it. I have had this unit 1 year


found this helpful.


November 22, 2009

Great Radio!

This really is the most fully featured radio I've ever used.

The only thing I don't like about it is the time it takes to turn on when first turning the key.
it can take about 30 seconds or so to be fully functional..

But thats not really a big deal for me, as the features make up for it. :]


found this helpful.


August 30, 2010

A Bit buggy

As a Factory replacement, the HU is a nice replacement. like others have said, the startup time varies and can get annoying on short trips. I'm using a 32 Gb thumb drive for media. The music selection can get cumbersome at times as it doesn't let you select letters of the artist's name for a faster selection. You've got to hit the down arrow 30 times to scroll from A to -. From there, you can't say you want to hear all CD's, you have to select just one, although the playback will include all the CD's under the artist. It's just a lot of back and forth if you don't remember which song was on what CD.
Navigation is pretty responsive, I have yet to be steered wrong from it. one thing I would suggest would be to SHUT THE NAV VOICE OFF! So annoying! The initial punching everything in to find a location takes some hunting around, and isn't the most user friendly.
The backup camera can be buggy at times too, once you start your vehicle, you've got about a 30 second gap of being able to see through your backup camera before the system either cuts it out and goes back to the splash screen, or you're stuck watching the backup camera instead of the splash screen for the next 3-5 minutes while you drive.
Bluetooth sounds fine from my end (Blackberry 8900) but people on the other end of the line hear themselves after speaking back to me.
Things I love about this H/U are the snappy response of the GPS, the 3 sets of pre-outs for seperate amps, USB playback ability, and the bluetooth contact list option.


found this helpful.


May 31, 2010

Very good budget Navi with loads of features

The good: this unit is packed with features, its got navigation with voice commands and tells you directions, has bluetooth to talk hands free, has USB adapter, plays DVD's, DIVX, MP3, WMA, etc. Has auxiliar video inputs, can also do reverse camera video out as well, touch screen controls and also some simple button and knob controls on the side of the unit, all for a great price.
The bad: its a little slow start up, and the LCD screen is dark, so on sunny days it can be hard to see, also when you use the navigation sometimes it freezes for a few seconds, its almost like a PC when its thinking or loading the next maps

overall I think the goods out weigh the bads, I'm happy with it, and I would recommend it for those who don't want to spend over 1g on navigation.


found this helpful.


June 3, 2010

great deal

i love my system the navigation part is user friendly, the thing wrong with this unit sometimes it freezes up about 30 seconds but that's not a big deal. I recommend it


found this helpful.


October 20, 2009

I reccomend it!

Nice clean display only thing wrong with it is sometimes freezes up and takes kind of a while to load music when starting the nothing really difficult but sometimes can be a nuisance.


found this helpful.


July 12, 2010

Do not waste your money on this system

This unit really sucks. Lots of freeze ups, very slow start up, causes the bluetooth to drop or does not recognize the phone anymore. In the past 6 months I had to delete and reset my iphone with the system 4 times. Gets stuck on one call and freezes after you end the call.
The voice recognition system does not recognize anything at all and you can not train it either.
The GPS is good but the POI is not user friendly. My old $150 Tomtom is easier to use and find the POI. Over all, I do not recommend this product. I had a good experience with Pioneer before but this unit ruined it.


found this helpful.


June 29, 2010

OK product

I have had good experiences with Pioneer but this unit totally let me down. Very slow start up, a lot of freeze ups, voice control does not recognize many words, blue tooth also drops and freezes or gets stuck on one call and does not disconnect.
Overall not happy with the system. I guess my next one will not be a Pioneer.


found this helpful.


December 27, 2010

 • • • • • •Wait for the Directors cut• • • • • •

Large color screen, SD-CD MP3 source player, built in maps. MSN Direct, USB port AV output, Bluetooth phone support
Navigation does not name streets-roads-Hwys to turn on. When changing from one Hwy to another it does not identify which Hwy you are going to turn into, other than the command "stay right, stay right" then "merge left on to Hwy". Navigation does not identify on which side of a road your destination will be found. The only way to describe the next error is the Navigation is easily confused, It will send you off on side roads from the main Hwy route for no reason other than to give you a scenic view or have you make a left turn only to have you make a "Legal U Turn" to get back on your route. No more MSN Direct service after 2012. Voice recognition is also very poor.
Nice unit but you purchase an in-dash Navigation system for the NAVIGATION, at this price the navigation should be flawless. It should have ALL the bell and whistles not just the bell. I've updated the firmware to version 3.0201 so we'll see how much if anything this fix will correct.


found this helpful.


August 30, 2010

great product!

The product is great! the navigation system works the best!


found this helpful.


August 2, 2010

not worth full price

I am glad I waited to purchase last year's model at a discounted price. The units "boot-up" time varies significantly, and once the unit is operable, a random source appears. Volume issues... Despite setting the units blutooth phone volume to its lowest setting, it is too loud! Therefore, I have no interest to download my contacts into the unit and use the bluetooth function. The volume for the navigation voice varies depending on the input source (radio vs. USB).
Once it is operable, the unit works well. The touch screen functions fine, as well as the navigation. I thought about having XM installed, but I cannot imagine how much slower the initial start-up would take. This unit is not worth the full price, and I am uncertain about purchasing a similar product in the future.


found this helpful.


August 8, 2010

Not Even Worth the Discounted Price - Disappointing!

I have experienced the same voice recognition and bluetooth problems mentioned by others. No problem pairing it with my HTC HD2 but Pioneer unit freezes every time I receive a call when paired with the HD2. The Navi unit also fails to turn off the music on incoming or outgoing calls when paired with the HD2. I did not have the freeze up problems with my Blackberry but the bluetooth sound quality was poor. Another undocumented feature is that the display "always" returns to the map screen after using the bluetooth - really annoying being as I rarely use the Nav feature. I have had to take the X910BT unit back Car Toys 6 times for numerous problems. They swapped out the unit twice and have the most current software. All of the undocumented and unwanted features are still there. Not worth the money or trouble.


found this helpful.
