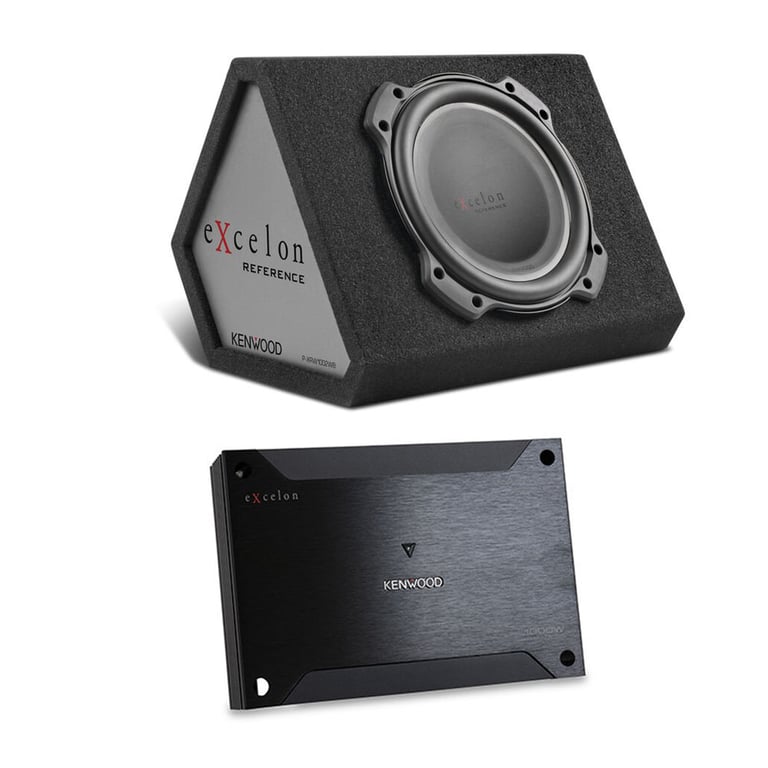

Kenwood eXcelon P-XRW1002WB + Kenwood Excelon X502-1

1300 Watts Single 2 Ohm 10" Pre-Loaded Sealed Wedge Enclosure + 1000W Max X-Series 2-Ohm Stable "X series" Monoblock Amplifier

Kenwood
Shop all Kenwood
highlight-star-icon

• Peak Power: 1300 Watts
• RMS Power: 300 Watts
• Single 2 Ohm Voice Coil
• Stree Free Damper
• Rubber Magnet Cover

Learn more about the pxrw1002wb_x5021

We apologize

This item has been discontinued


Loading...
70-2003 main

Metra 70-2003 Wiring Harness

Install a new car stereo in select 1998-2008 vehicles from Chevrolet, GMC, Kia

33
99-3413 main

Metra 99-3413 Dash Kit

Install a new Single-DIN car stereo in select 1998-2002 Corolla and Prizm

1
-12.50%

$27.99

List price $31.99

Pioneer MVH-S720BHS

Single DIN Digital Media Receiver with Bluetooth, HD Radio and SiriusXM Ready

4
-13.64%

$189.99

List price $220.00

Limited time!

JBL Stage2 624 (STAGE2624)

480W Peak (80W RMS) 6.5" Stage2 Series 2 Way Coaxial 4-ohm Speakers

7
-42.02%

$57.95

List price $99.95

Description


Kenwood brand icon

Authorized dealer

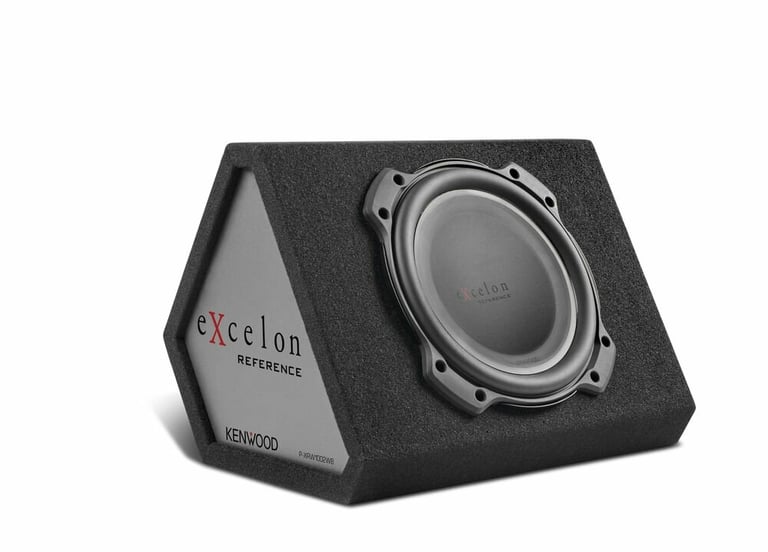

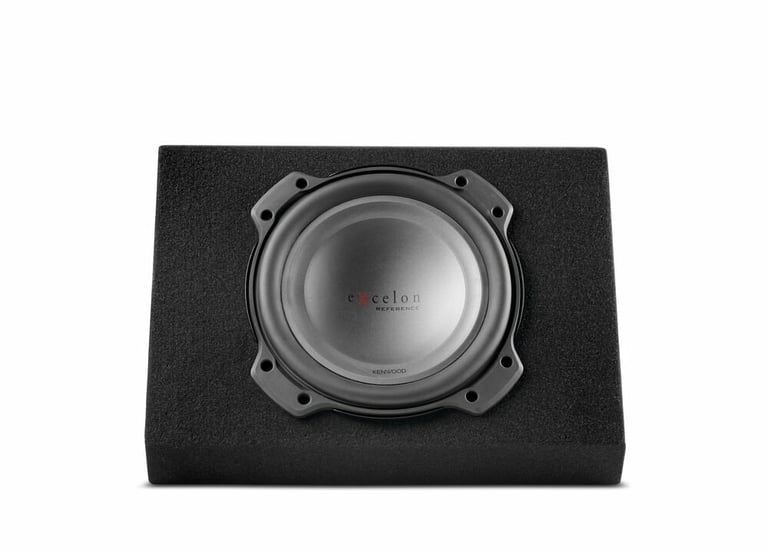

Kenwood eXcelon P-XRW1002WB

1300 Watts Single 2 Ohm 10" Pre-Loaded Sealed Wedge Enclosure
Quantity: 1

General Features:

  • 10" Oversized Cone
  • Power Ratings
    • Peak Power: 1300 Watts
    • RMS Power: 300 Watts
  • Frequency Response: 31 - 300Hz
  • Single 2 Ohm Voice Coil
  • Stress Free Damper
  • 8AWG Push Termninals
  • Rubber Magnet Cover
  • Authorized Internet Dealer
  • 2 Year Sonic Electronix Warranty

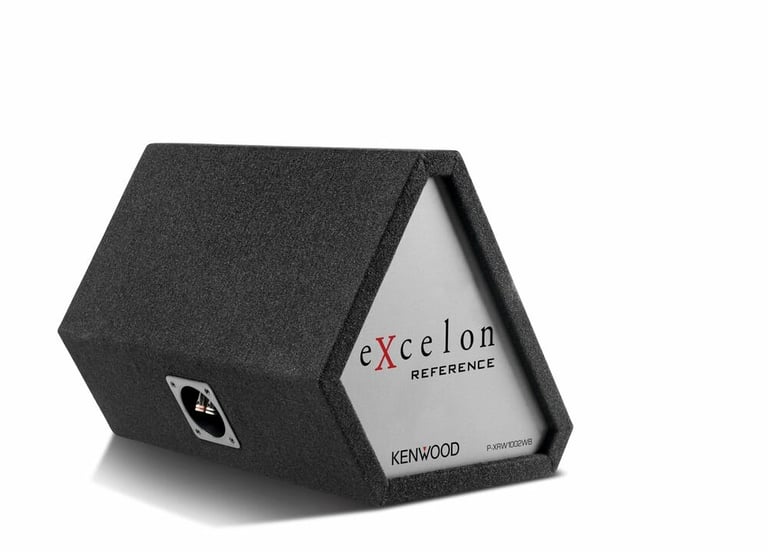

Enclosure Specifications

  • 3/4" MDF Sealed Down-Fire Design
  • Acoustic Damping Material
  • Dimensions: 12-5/8"H x 12-3/4"W x 18"L

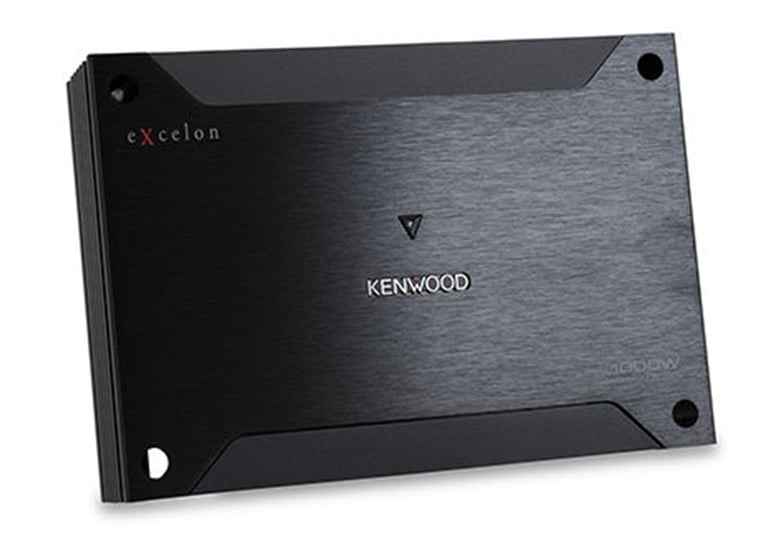

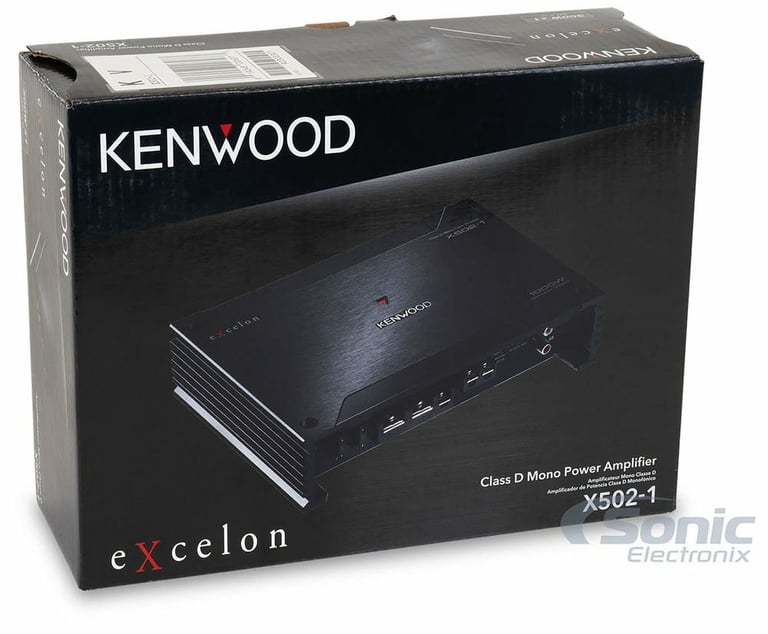

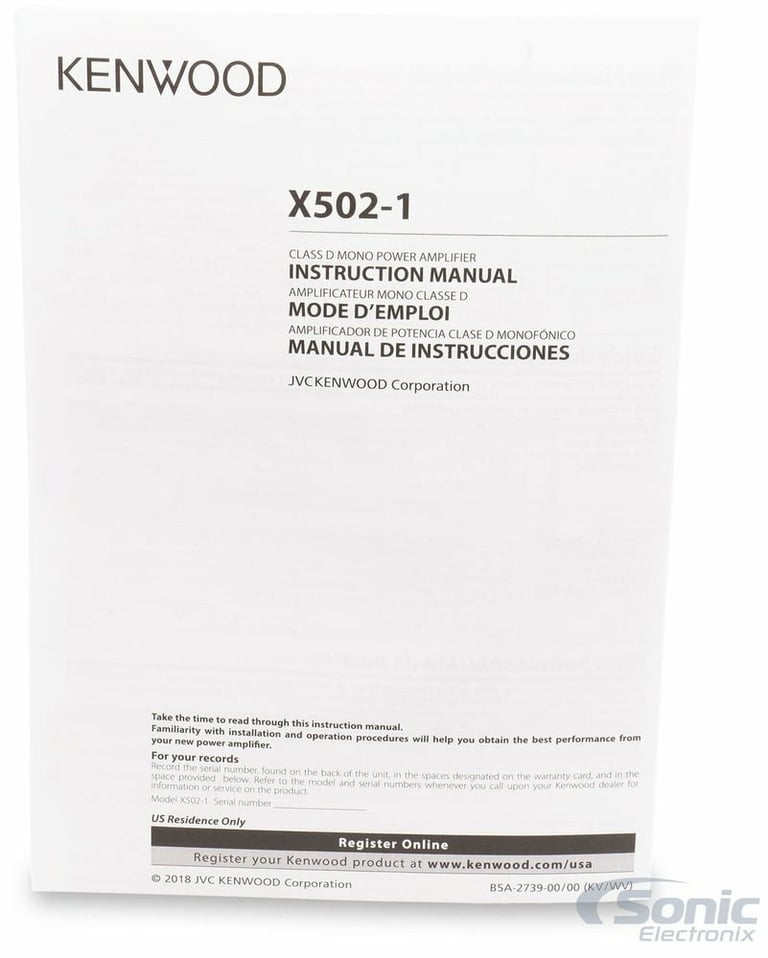

Kenwood Excelon X502-1

1000W Peak (500W RMS) Class D eXcelon Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • eXcelon Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 channel
    • 2 ohm: 500 watts x 1 channel
  • Total RMS power output: 500 watts
  • Wired bass level remote control with optional Kenwood KCA-RC01A

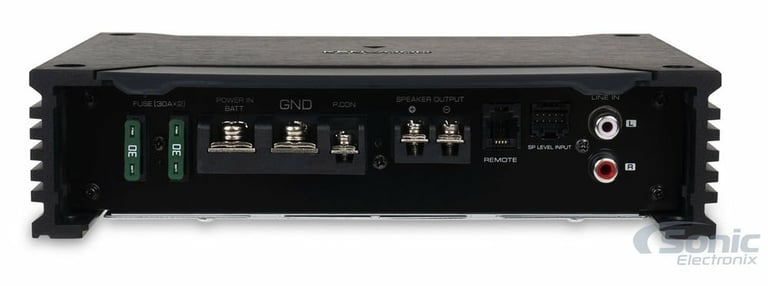

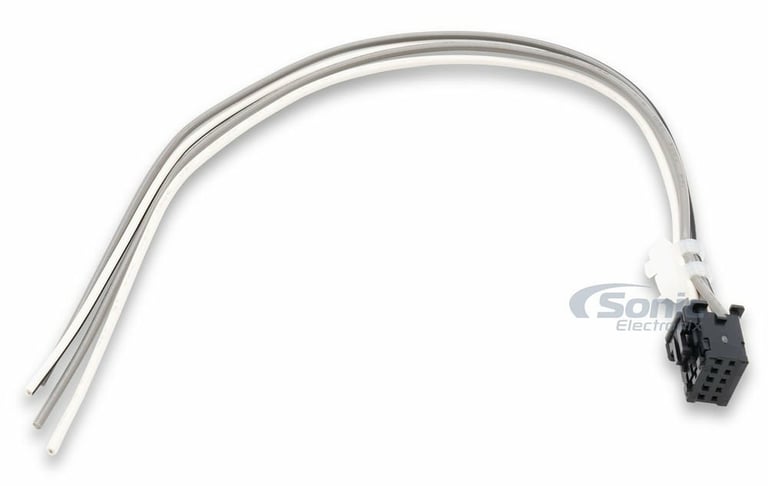

  • Speaker-level (high-level) inputs
  • Sliding terminal
  • Mono output of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Output coil with magnetic shield
  • High quality Polymer multi-layer capacitors

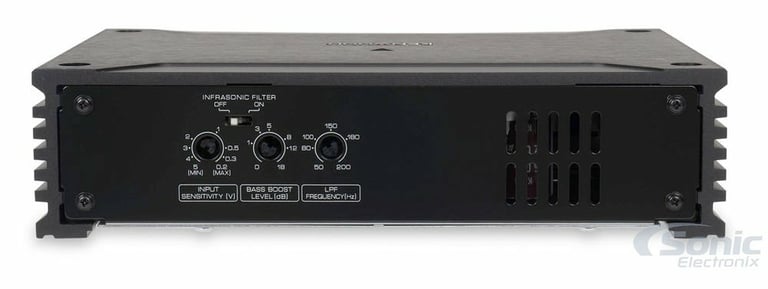

  • Infrasonic Filter cuts off low frequencies below 25 Hz
  • CEA-2006 Compliant
  • Input sensitivity:
    • Low level: 0.2 - 5 volts
  • Frequency Response: 20 - 200 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 200 Hz
  • Subsonic filter: 0 - 50 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Fuse Rating: 60
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8-3/8" L x 5-7/8" W x 2-1/16" H
  • Authorized Internet Dealer
  • 2 Year Sonic Electronix Warranty
  • MFR #: X502-1


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Series
Series
eXcelon Series
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
300 watts
Peak Power Handling
1300 watts
Woofer Surround
Rubber
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 ohm
Frequency Response
31 - 300 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Hatchback Style, Angled Back
Height
12-5/8"
Width
12-3/4"
Depth
18"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Spring clips
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
2 years
Labor Warranty Duration
2 years
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P-XRW1002WB, X5021

Weight:

9.87lbs

Internal SKU:

pxrw1002wb_x5021

Internal Product ID:

197896
