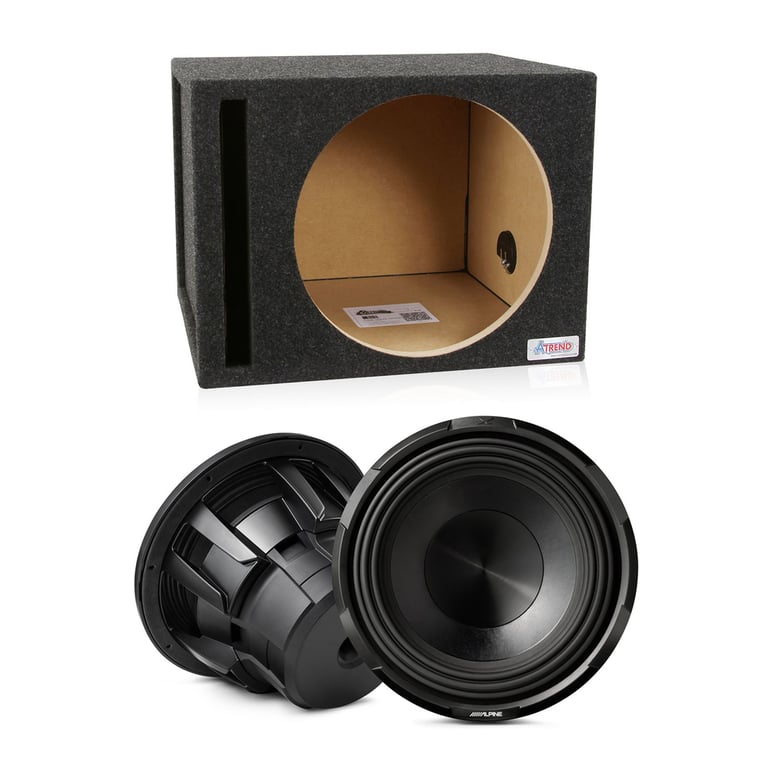

Alpine X-W12D4 with Ported Enclosure

2700W Peak (900W RMS) 12" X-Series Dual 4-Ohms Subwoofer

Alpine
Shop all Alpine
highlight-star-icon

• Peak Power: 2700 watts
• RMS Power: 900 watts
• Polypropylene-Mica Cone
• High Roll Foam Surround
• Impedance: Dual 4 ohm
• Includes Ported Enclosure

Learn more about the alp-xw12d4_12sq

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Description


Alpine brand icon

Authorized dealer

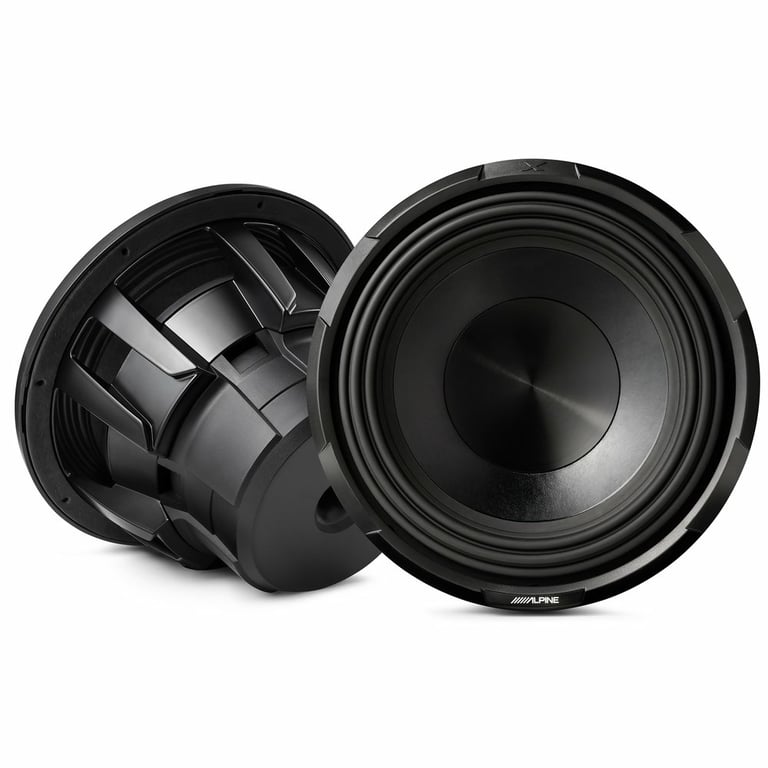

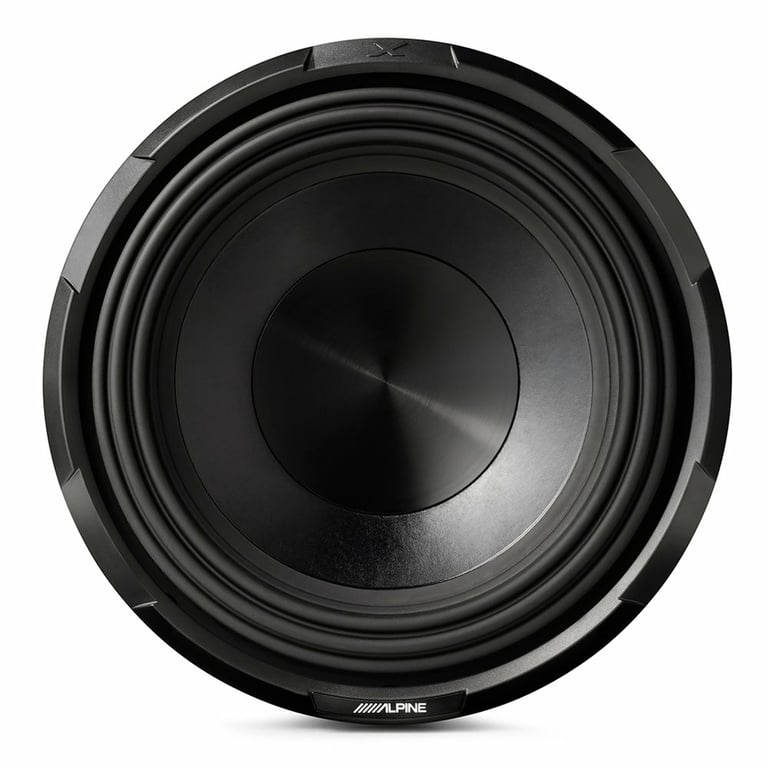

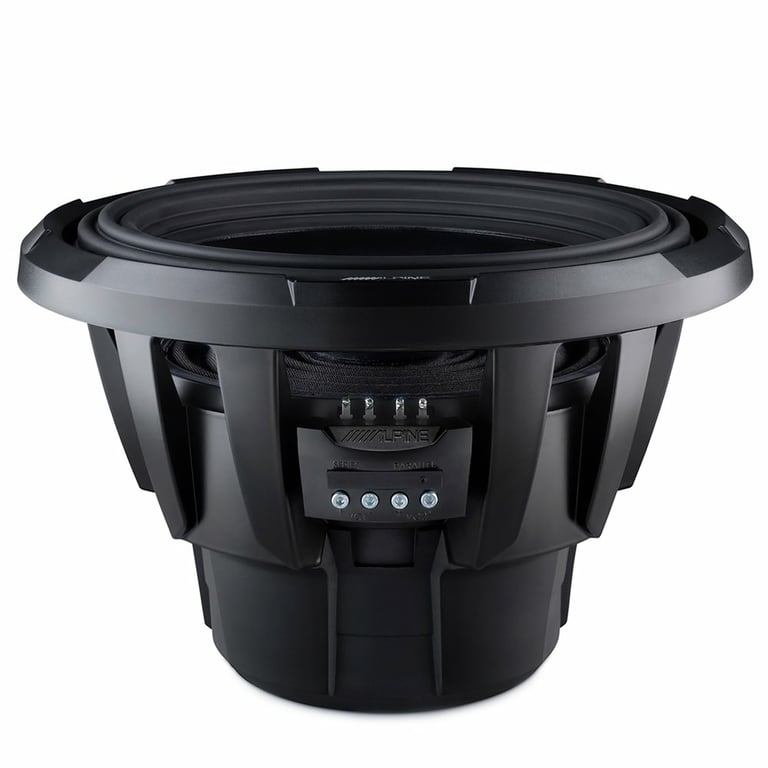

Alpine X-W12D4

2700W Peak (900W RMS) 12" X-Series Dual 4-Ohms Car Subwoofer
Quantity: 1

Product Details:

  • 12" Dual 4 ohm X-Series Subwoofer
  • Power Handling:
    • Peak: 2700 watts
    • RMS: 900 watts
  • Polypropylene-Mica Cone
  • High Roll Foam Surround
  • Dual-spider cone and patented H.A.M.R. rubber surround
  • Grille and trim ring included
  • Aluminum frame cast with rock-solid platform
  • 2.6" High Temperature Voice coil
  • 24 mm Xmax

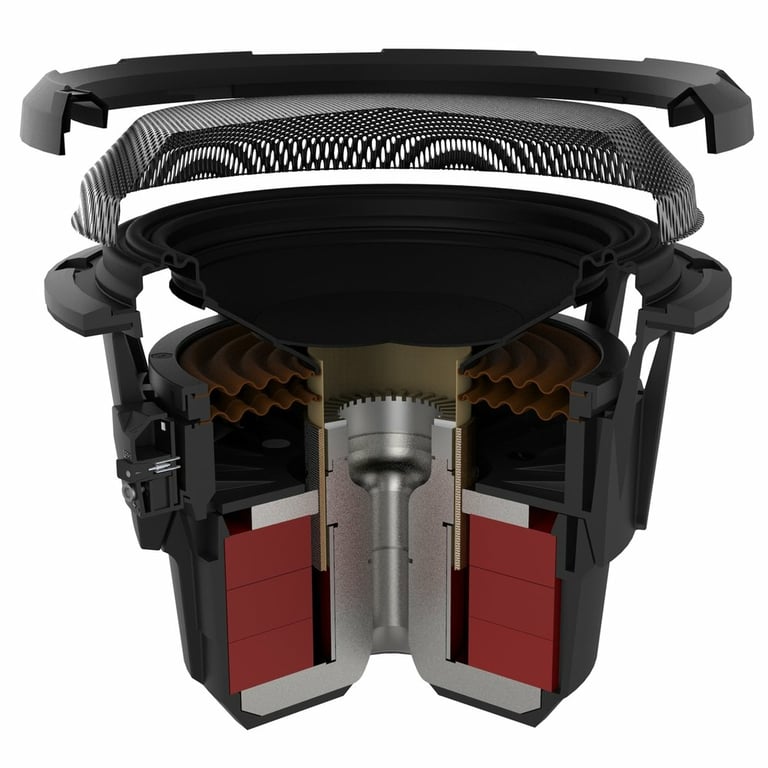

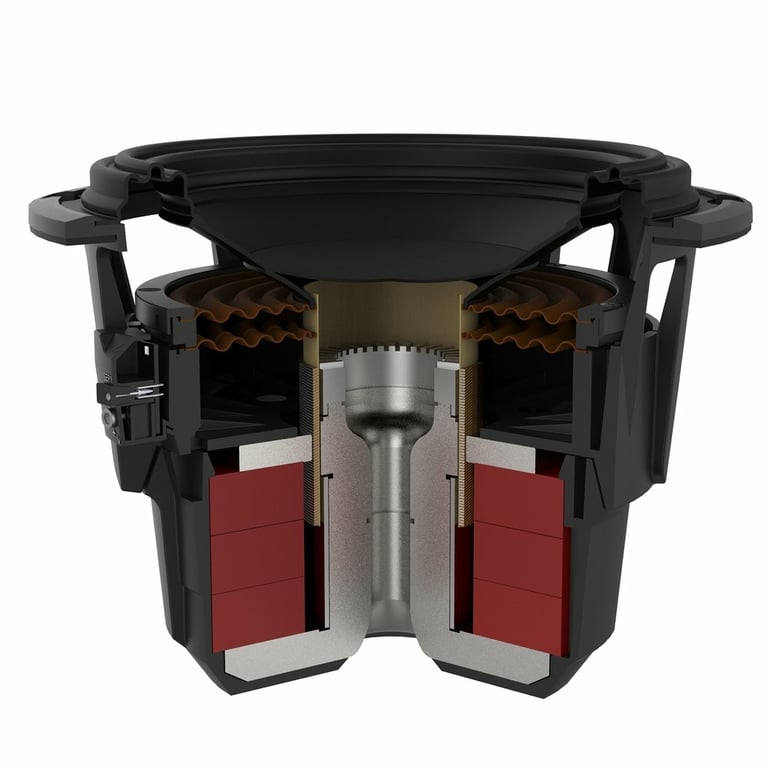

  • 174 oz. Triple Stacked magnet motor structure
  • Frequency Response: 23 - 200 Hz
  • Resonance Frequency (Fs): 27 Hz
  • Sensitivity: 84.3 dB
  • Sealed box volume: 0.4 cubic feet
  • Ported box volume: 1.0 cubic feet
  • Top-mount depth: 7.2"
  • Cutout diameter: 11.06"
  • Authorized Internet Dealer
  • Protective subwoofer grille: Yes - Included
  • 1-year Sonic Electronix Warranty

  • Priced Individually

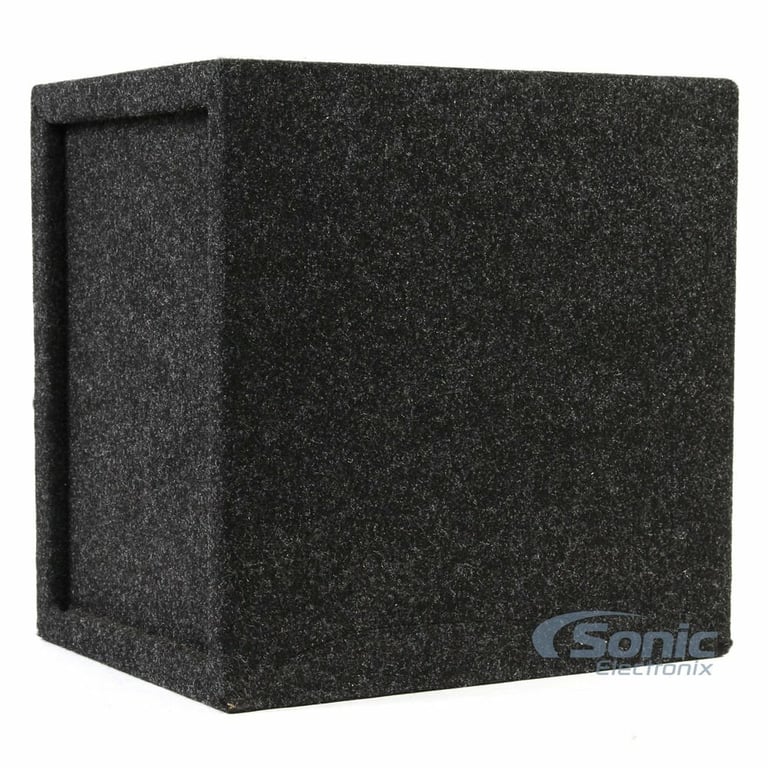

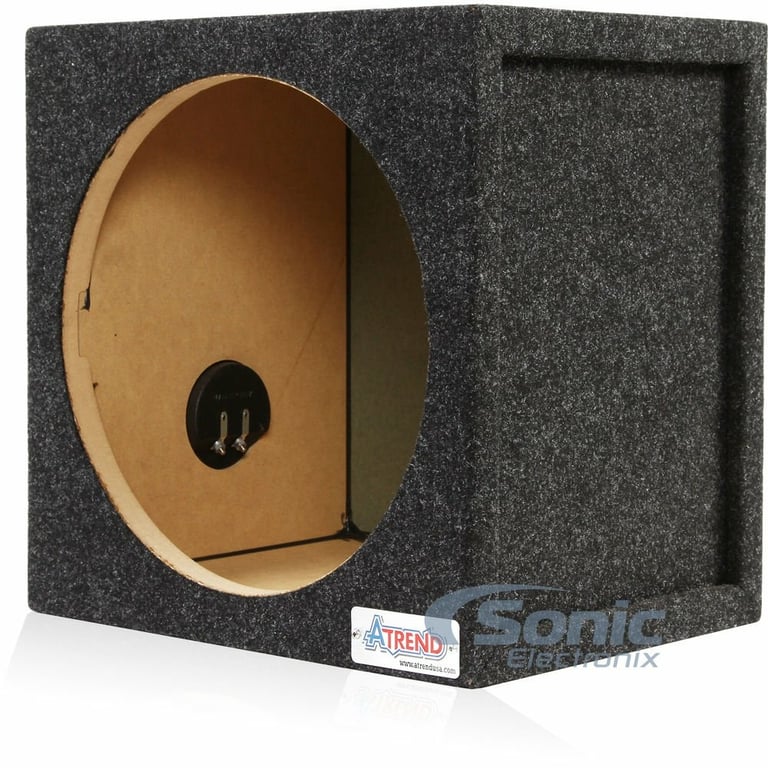

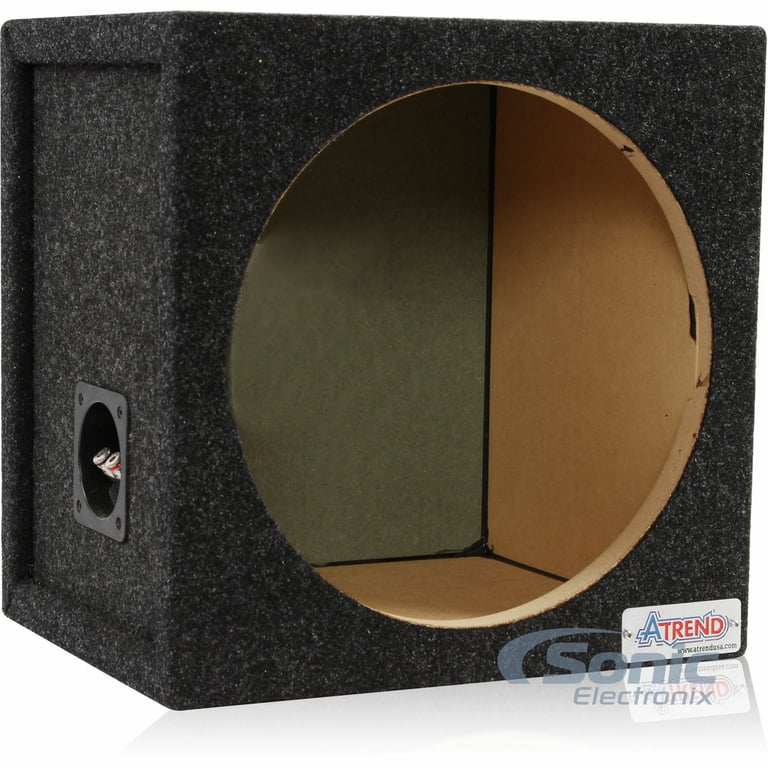

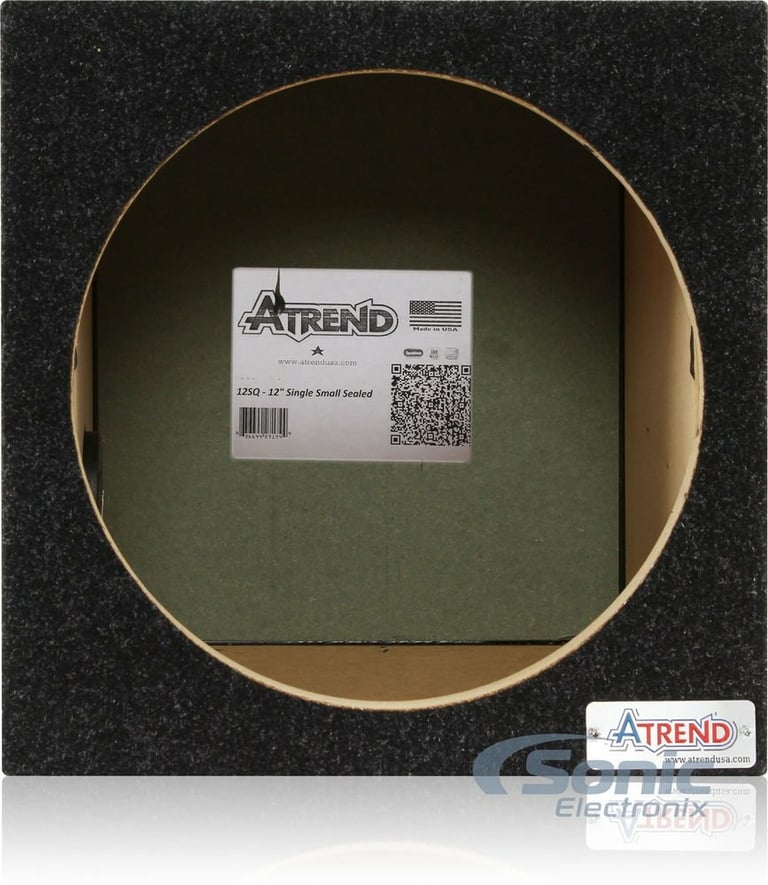

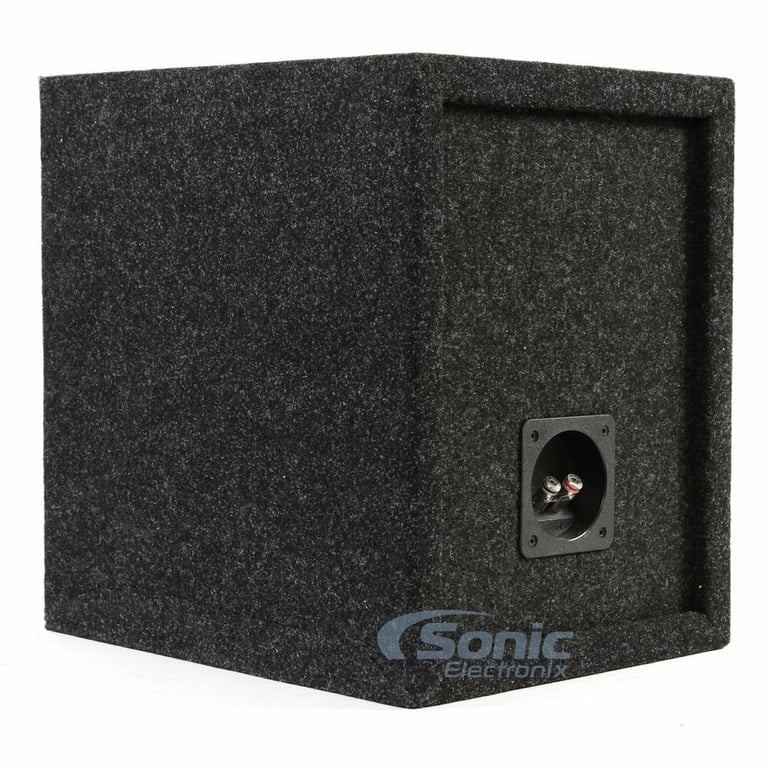

Atrend 12SQ

Empty Single 12" Small Sealed Subwoofer Enclosure
Quantity: 1

Product Details:

  • 12" Single Small Sealed Subwoofer Enclosure
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Mitered edge construction provides cleaner finish
  • Miter joints feature over 41% more surface area
  • More surface area translates into a stronger bond
  • Dado joints offer 80% increase in surface area
  • Built using trick glue for up to 3600 PSI holding ability

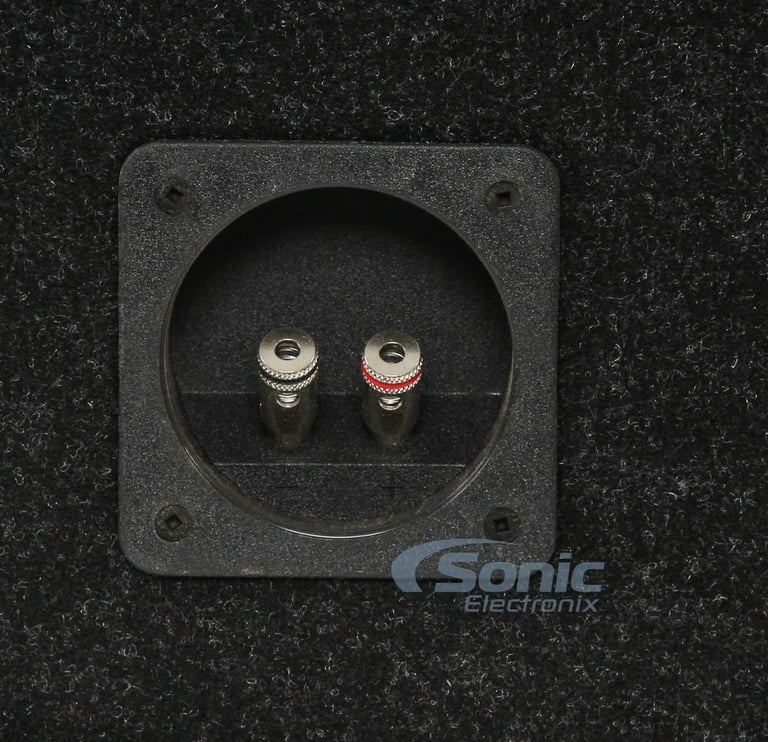

  • Premium charcoal carpet and silver spring-loaded terminal cups
  • Maximum subwoofer mounting depth: 9.53"
  • Subwoofer cutout diameter: 11.13"
  • Total box volume: 0.75 cubic feet
  • Dimensions: 13.50" L x 13.50" H x 10.50" W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
