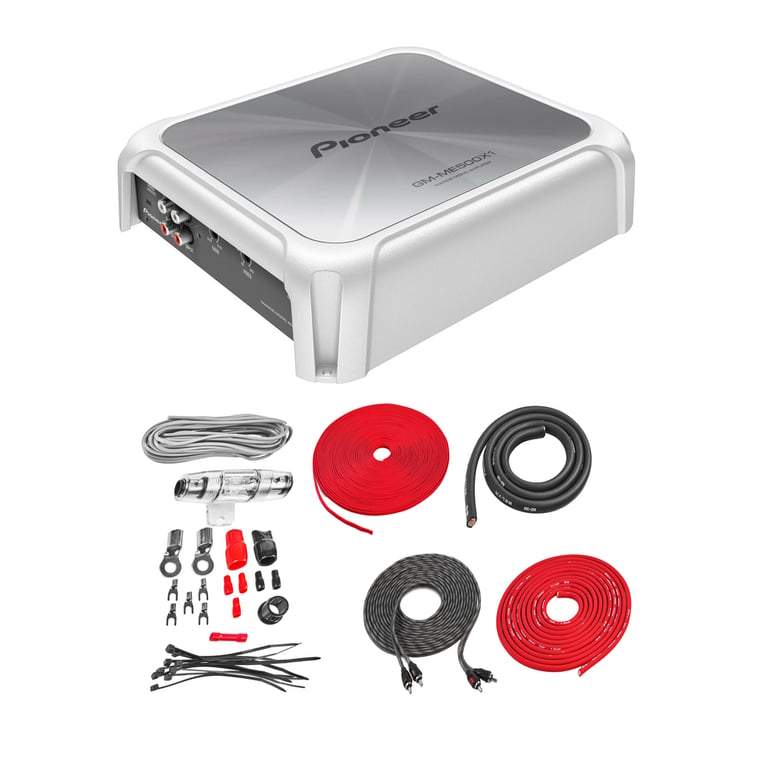

Pioneer GM-ME500X1 with Amplifier Wiring Kit

800W RMS GM Series Class-D Monoblock Marine Amplifier

Pioneer
Shop all Pioneer
highlight-star-icon

• 1 ohm: 800 watts x 1 chan.
2 ohms: 500 watts x 1 chan.
• 4 ohms: 300 watts x 1 chan.
• Frequency Response: 10 Hz to 240 Hz
• Sensitivity: 75dB
• 2-Channel RCA Output
• Includes Amplifier Wiring Kit

Learn more about the gmme500x1_bak42

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

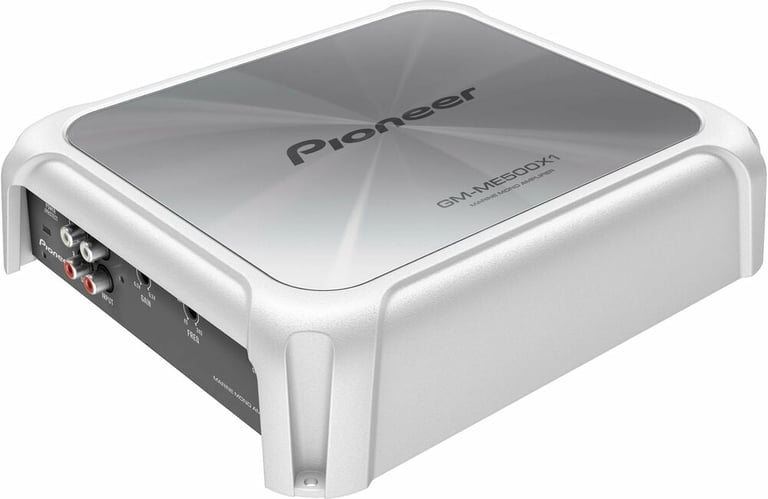

Pioneer GM-ME500X1

1600W Peak (800W RMS) ME-Series Class-D Monoblock Marine Amplifier
Quantity: 1

Product Details:

  • ME Series Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohms: 300 watts x 1 channel
    • 2 ohms: 500 watts x 1 channel
    • 1 ohm: 800 watts x 1 channel
  • Total power output: 800 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Rubber covers protect side panel controls
  • Conformal coating ingress protection
  • Aluminum Top Plate
  • CTA-2006 compliant
  • Input sensitivity:
    • Low level: 200mV - 6.5 volts
    • High level: 800mV - 16 volts
  • Frequency Response: 10 - 240 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 75 dB
  • Variable low-pass filter: 40 - 240 Hz
  • Fuse Rating: 80A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 10-3/4" L x 8-7/16" W x 2-7/16" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: GM-ME500X1

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • Complete 4 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS

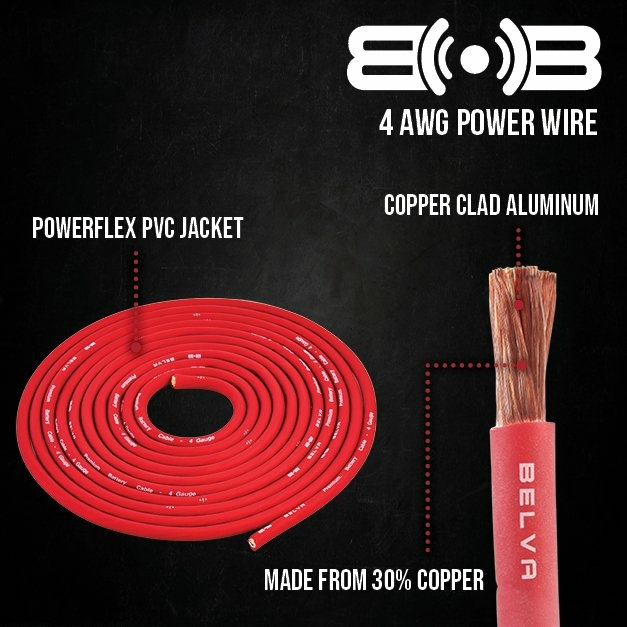

  • Premium Powerflex power and ground wire provides optimal power transfer
  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • MINI-ANL Fuse holder with a 80 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Black and Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

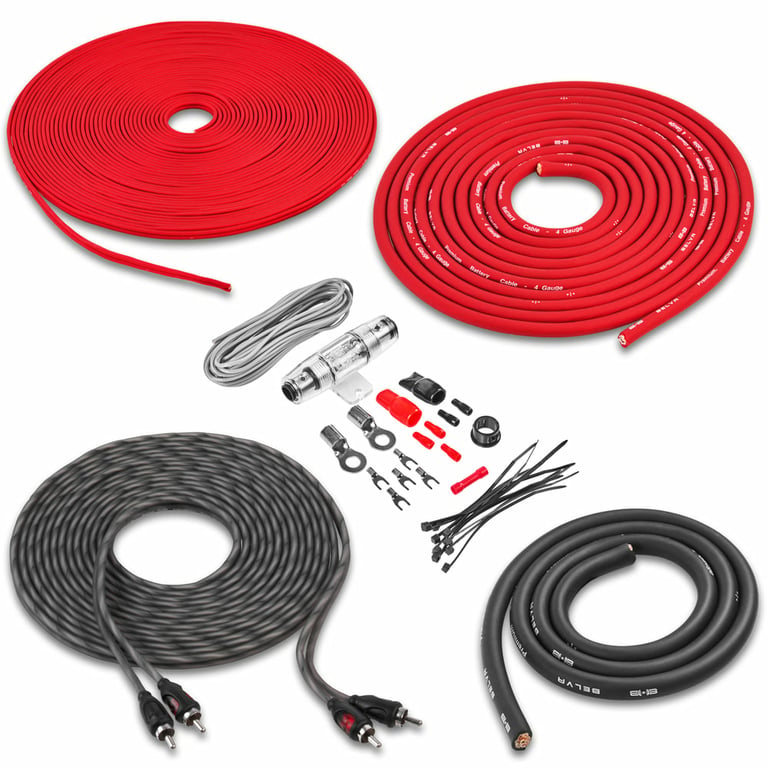

Kit includes:

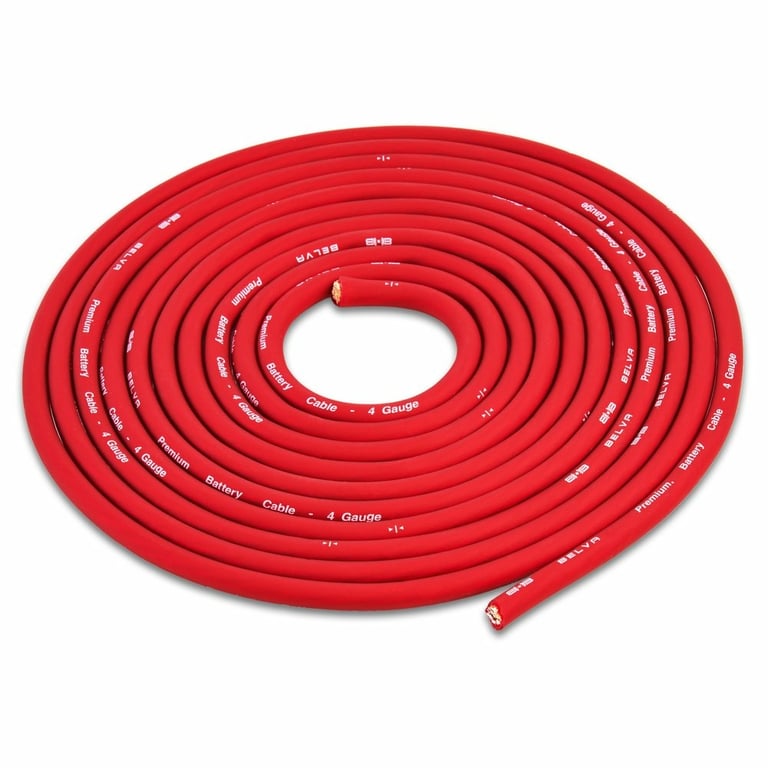

  1. 17 ft. (5.2 meters) Red 4 gauge power wire

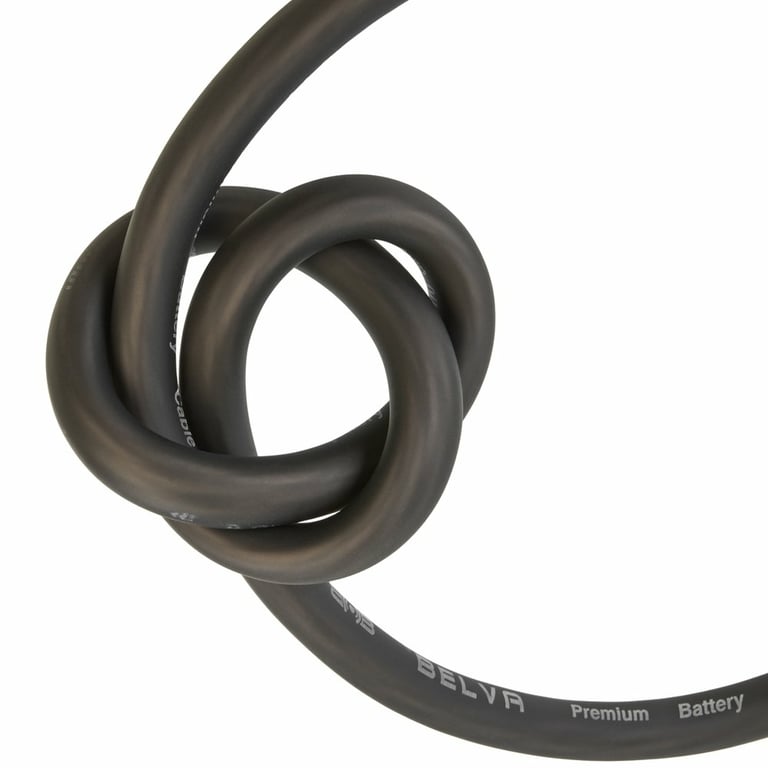

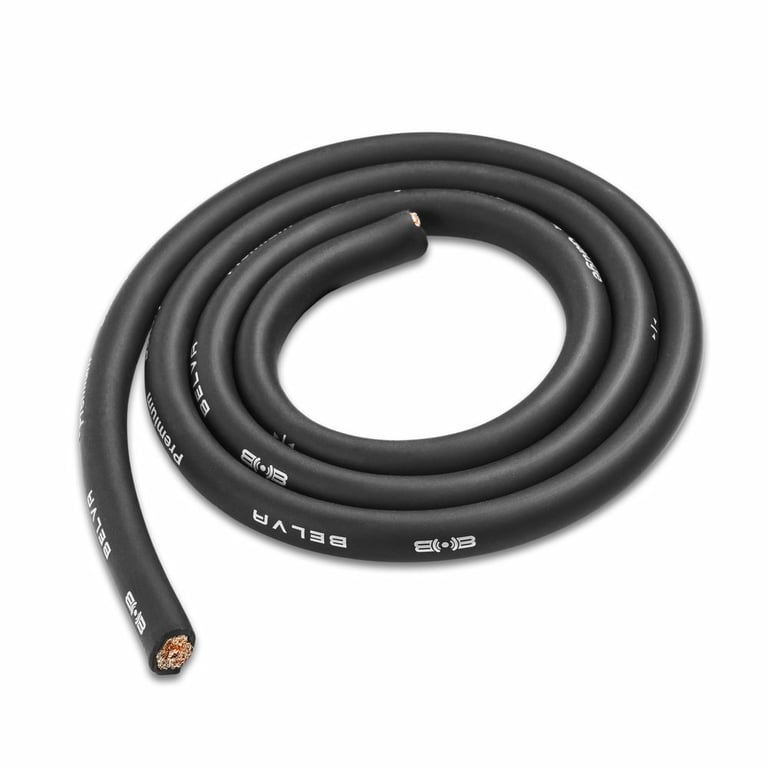

  2. 3 ft. (.91 meters) Black 4 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire

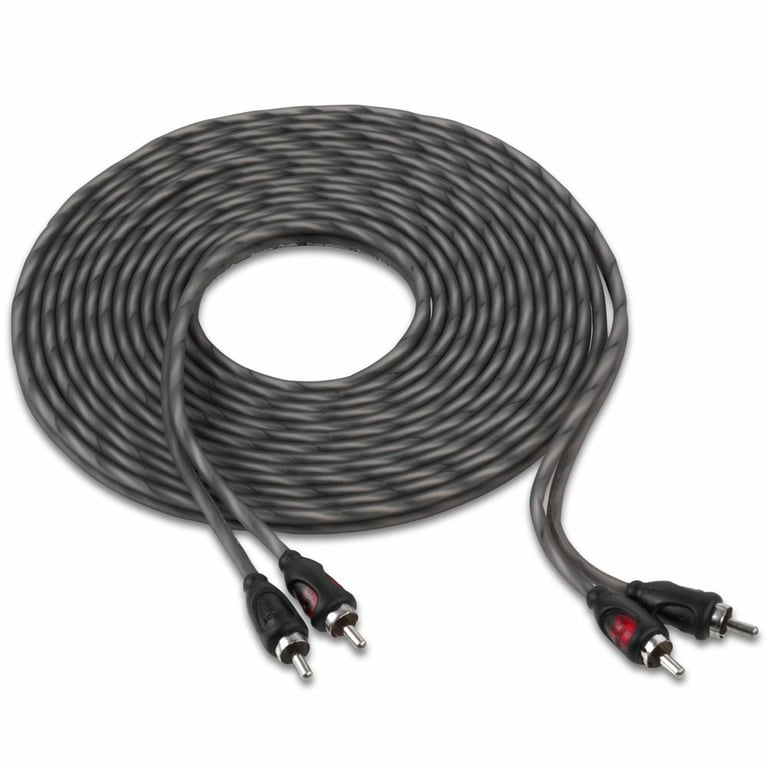

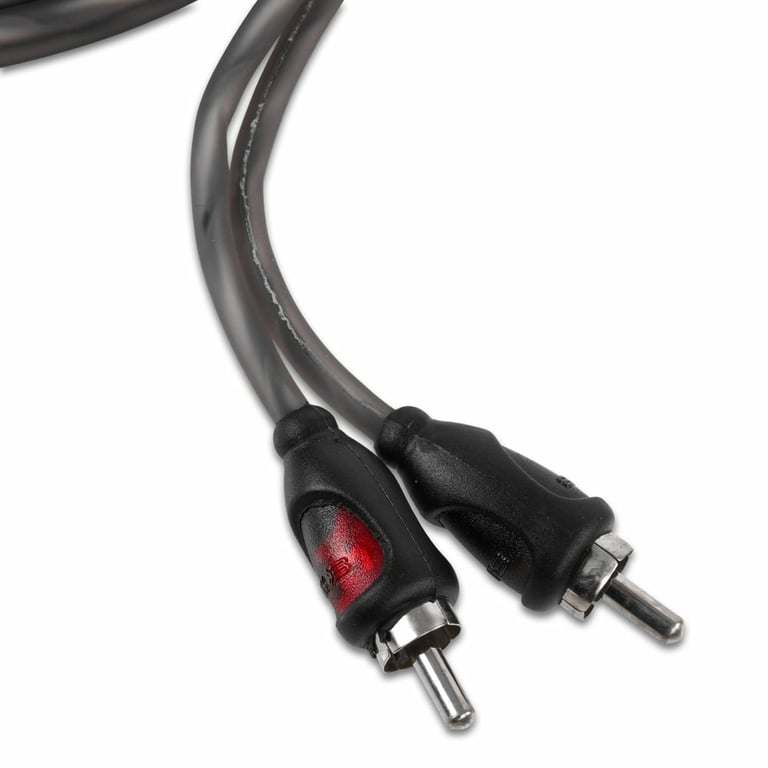

  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

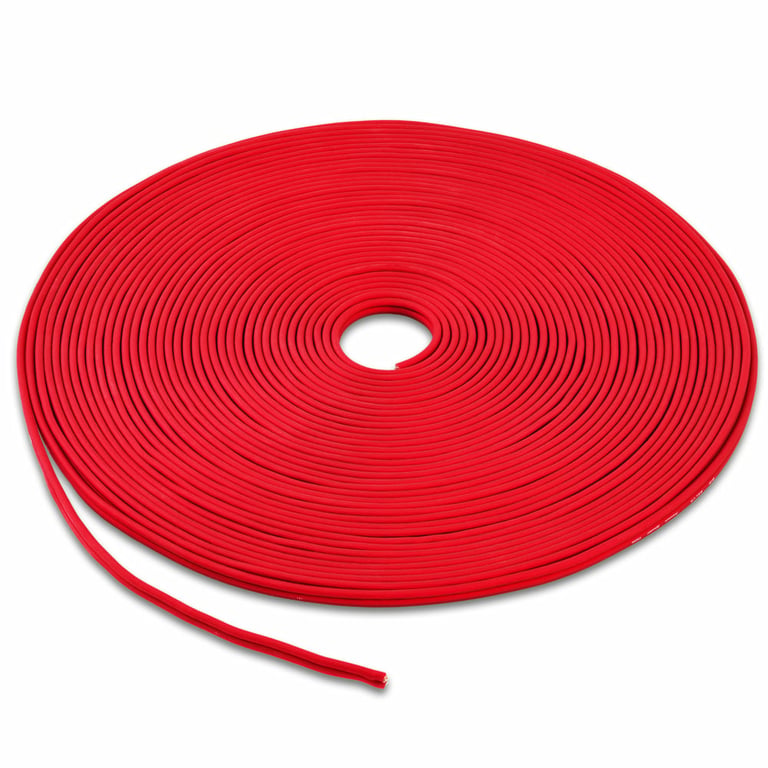

  5. 20 ft. (6.1 meters) 16 Gauge Speaker cable

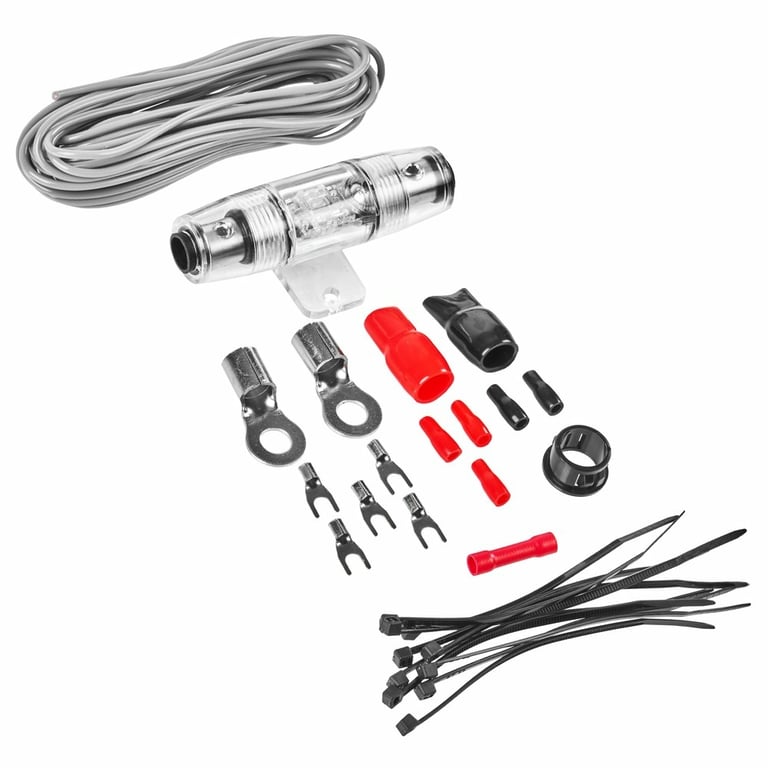

  6. One MINI-ANL Fuse Holder with a 80 amp fuse
  7. One Black rubber firewall grommet
  8. One 4 Gauge Red chrome plated ring terminals
  9. One 4 Gauge Black chrome plated ring terminal
  10. Three 18 Gauge Red Spade terminal
  11. Two 18 Gauge Black Spade terminal
  12. One 18 Gauge Red butt connector
  13. Ten 4" Black zip ties

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Total Peak Power Output
1600 watts
Total RMS Power Output
800 watts
Maximum Input Gauge Size
4 AWG
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GM-ME500X1, BAK42

Weight:

9.83lbs

Internal SKU:

gmme500x1_bak42

Internal Product ID:

198787

Customer Ratings & Reviews



5 star
66%
4 star
22%
3 star
6%
2 star
5%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Belva bak42

The following review is for BAK42, which is a part of the bundle you are viewing.

This item works okay, easy to install, and good for price.

By Danny on June 6, 2014

185

found this helpful.

impressed

The following review is for BAK42, which is a part of the bundle you are viewing.

I ordered this kit because it was fairly cheap but I have to say in very impressed with the quality of the wire as well as the thickness of the insulation. It was much thicker than I had anticipated and was pleasantly surprised.

By Bryan on May 20, 2014

185

found this helpful.

good package

The following review is for BAK42, which is a part of the bundle you are viewing.

Great value and worth your money as far as what you would need for an amplifier/subs system setup. Quality wires.

By john on January 5, 2015

181

found this helpful.

Everything you need

The following review is for BAK42, which is a part of the bundle you are viewing.

This package comes with everything you need to install your amp and speakers. Great value.

By Bradford on January 16, 2014

175

found this helpful.

Wiring kit

The following review is for BAK42, which is a part of the bundle you are viewing.

Very quality wires and very pliable. Will definitely buy again

By Phil on December 25, 2014

177

found this helpful.

best bang for your buck

The following review is for BAK42, which is a part of the bundle you are viewing.

hooked up to my amp with ease subs bump all day long no problems installing except finding a good ground the ground wire could be a little longer but not a major problem.

By Hoffman on January 18, 2015

178

found this helpful.

Not bad

The following review is for BAK42, which is a part of the bundle you are viewing.

It was pretty nice the wire was a little bigger than i thought (wire is about as fat as a sharpie marker just the wire not the insulation), the grommet that came with it was way to big for the wire so i didn't use it the fuse seems ok the connectors are good didn't have trouble crimping. I had to drill out the ring terminals a little but wasn't bad; wire insulation kind of soft and easy to puncture.

By jeff on December 31, 2013

173

found this helpful.

not enough

The following review is for BAK42, which is a part of the bundle you are viewing.

first the terminals are too small for the gauge wire for the power and ground and fuse. a lot of the things that came with the kit didn't seem to have a place with the wires e.g. butt end connectors, cable terminals, all were too small for gauge wire included. im having to run out and buy pieces from my local radioshack. the remote wire has nothing to even connect to my head unit making have to go out and buy more materials to complete my install.

By matthew on March 9, 2014

177

found this helpful.

Belva

The following review is for BAK42, which is a part of the bundle you are viewing.

Parts came fast, and seems to be a good quality for price.

By Ricke on March 3, 2014

172

found this helpful.

Ok product

The following review is for BAK42, which is a part of the bundle you are viewing.

The product works. Not the best quality though. The cables are pretty lightweight. If I did it again I would spend a little more money and get a higher quality cable.

By JR on April 28, 2014

174

found this helpful.
