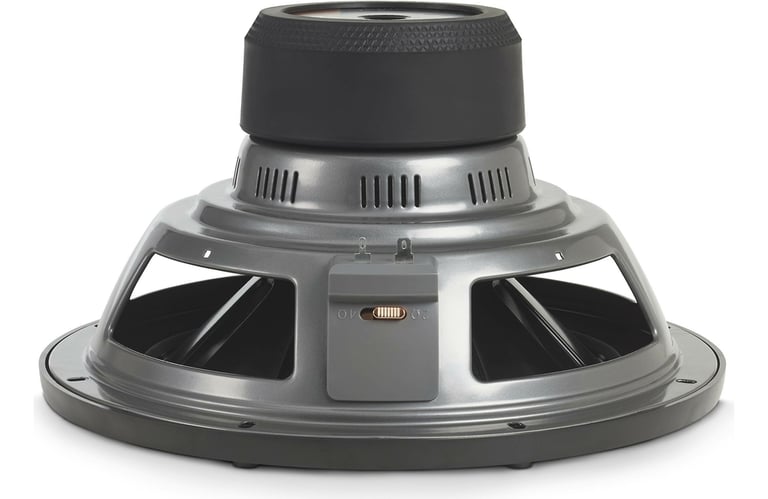

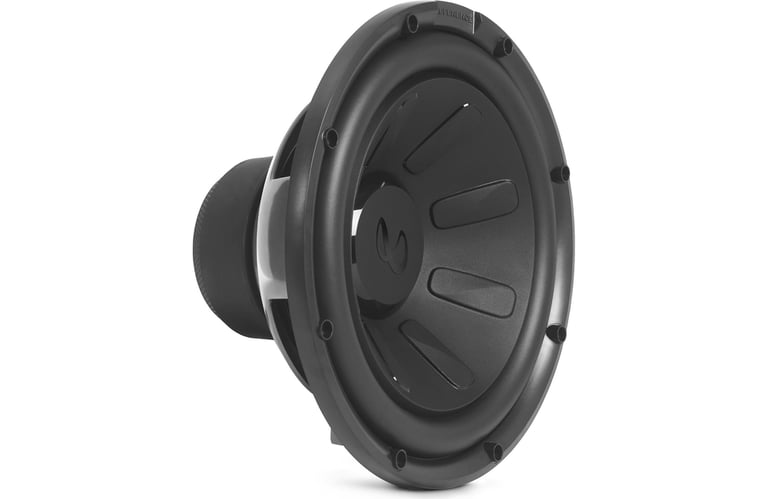

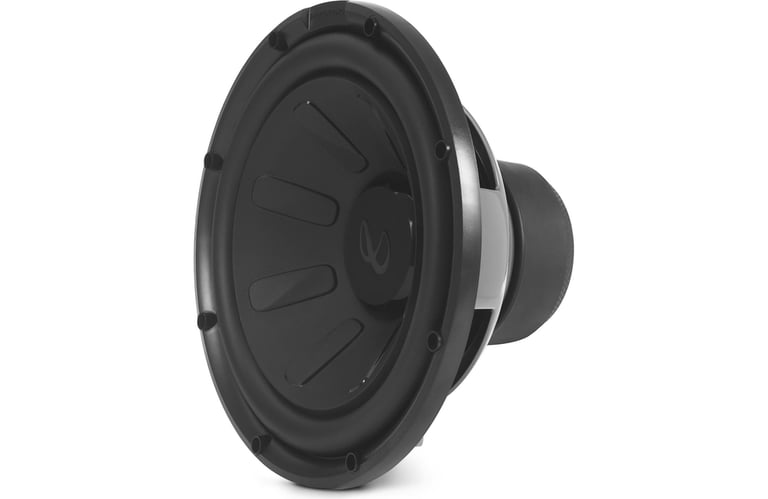

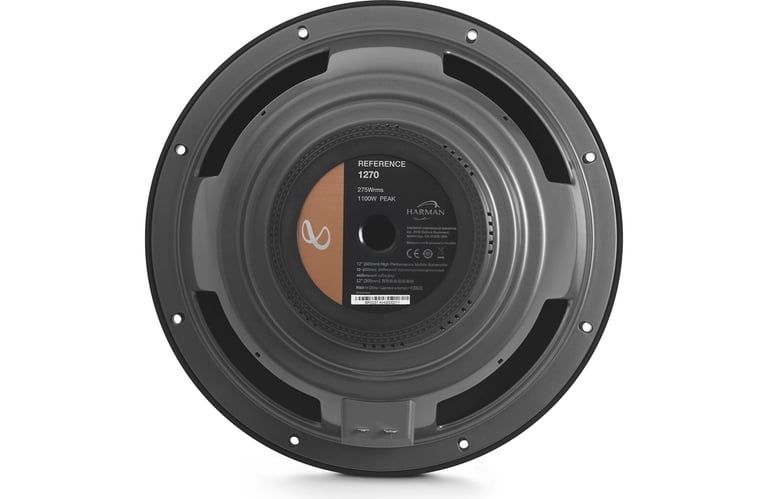

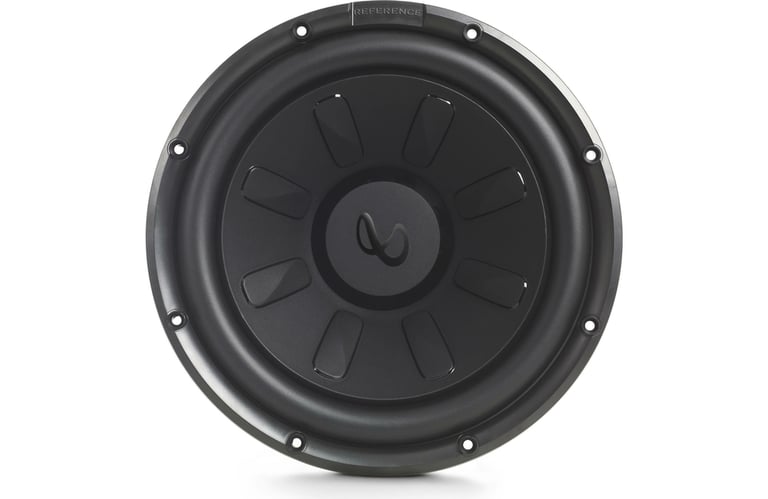

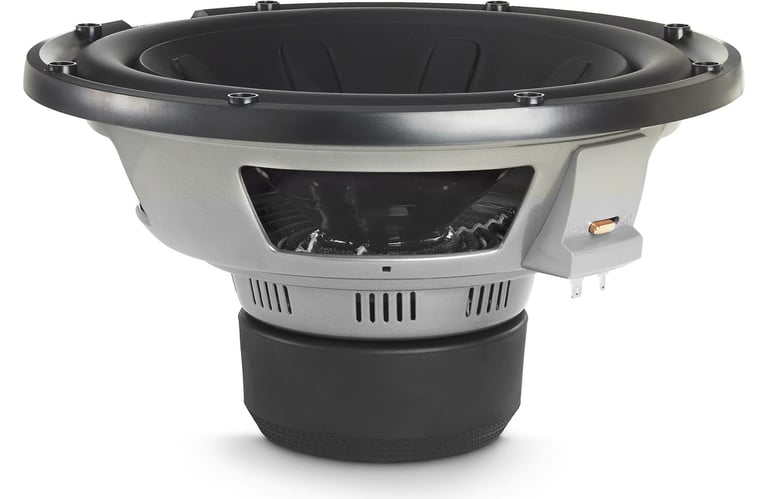

Infinity Reference 1270

1100W Peak (275W RMS) 12” Reference Series Selectable 2-or 4-Ohm Impedance Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• Peak Power: 1100 watts
• RMS Power: 275 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 2 or 4 ohm
• Mount depth: 6.5"
• Sensitivity: 93 dB at 2.83 volts

Learn more about the reference1270

We apologize

This item has been discontinued


Loading...

Rockford Fosgate Punch P1 P1572

240W Peak (120W RMS) 5x7" Punch Series 2 Way Coaxial 4-ohm Speakers

7

$109.99

Description


Infinity brand icon

Authorized dealer

Product Details:

  • 12" Single 2 or 4 ohm Primus Series Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • Polypropylene Cone
  • Rubber Surround
  • Switchable 2- or 4-ohm impedance
  • Stamped steel basket provides a stable home so this sub can play accurately at high levels
  • Works equally well in sealed or ported enclosures
  • 2" High Temperature Voice coil
  • 10.25 mm Xmax
  • Ferrite magnet motor structure
  • Frequency Response: 25 - 175 Hz
  • Resonance Frequency (Fs): 64.3 Hz
  • Sensitivity: 93 dB at 2.83 volts
  • Sealed box volume: .75 cubic feet
  • Ported box volume: 2.5 cubic feet
  • Top-mount depth: 6.5"
  • Cutout diameter: 11.25"
  • Authorized Internet Dealer
  • Protective subwoofer grille:
  • 1-year Manufacturer's Warranty

  • Priced Individually


Infinity REFERENCE 1270 Manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Infinity Reference 1270 Subwoofer

Mono Amp

Wiring Guide to Wire 2 Infinity Reference 1270 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 3 Infinity Reference 1270 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Infinity Reference 1270 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

P3D4-12 small

Rockford Fosgate Punch P3 P3D4-12

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 6.66"
• Sensitivity: 85 dB

(134)

$229.99

List price $259.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$89.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

Specifications & Details


Subwoofer Specifications
Series
Primus Series
Subwoofer Size
12"
Peak Power Handling
1100 watts
RMS Power Handling
275 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
2 or 4 ohm
Voice Coil Diameter
2"
Frequency Response
25 - 175 Hz
Sensitivity
93 dB at 2.83 volts
Xmax (millimeters)
10.25 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Rubber
Magnet Type
Ferrite
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Minimum Sealed Box Volume
.75 cubic feet
Minimum Ported Box Volume
2.5 cubic feet
Top-Mount Depth (Mounting Depth)
6.5"
Cutout Diameter
11.25"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
64.3 Hz
Equivalent Compliance (Vas)
2.1358 liters
Total Speaker Q Value (Qts)
.55
Electrical Q Value (Qes)
.65
Mechanical Q Value (Qms)
3.83
What is in the box?
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DO-NOT-USE-THIS-MODEL-5

Weight:

11.03lbs

Internal SKU:

reference1270

Internal Product ID:

198912
