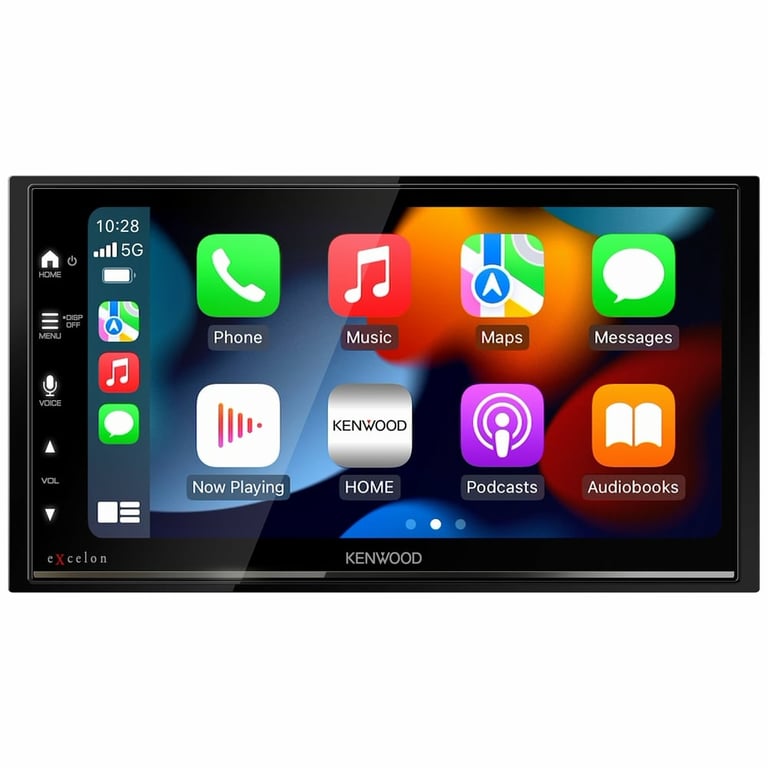

Kenwood eXcelon DMX709S with Backup Camera Image 9 — Kenwood eXcelon DMX709S with Backup Camera

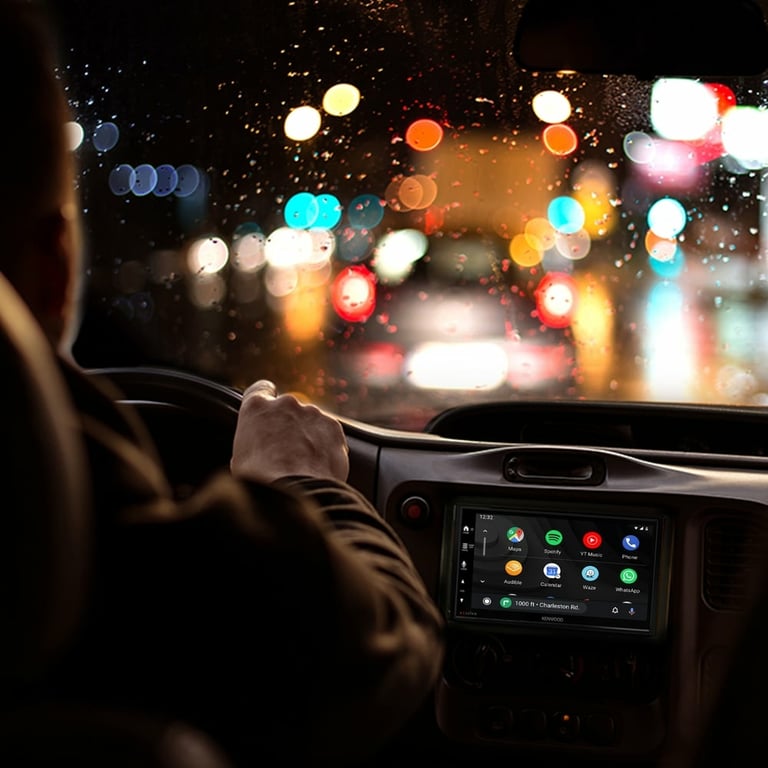

Kenwood eXcelon DMX709S with Backup Camera Image 10 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 11 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 12 — Kenwood eXcelon DMX709S with Backup Camera

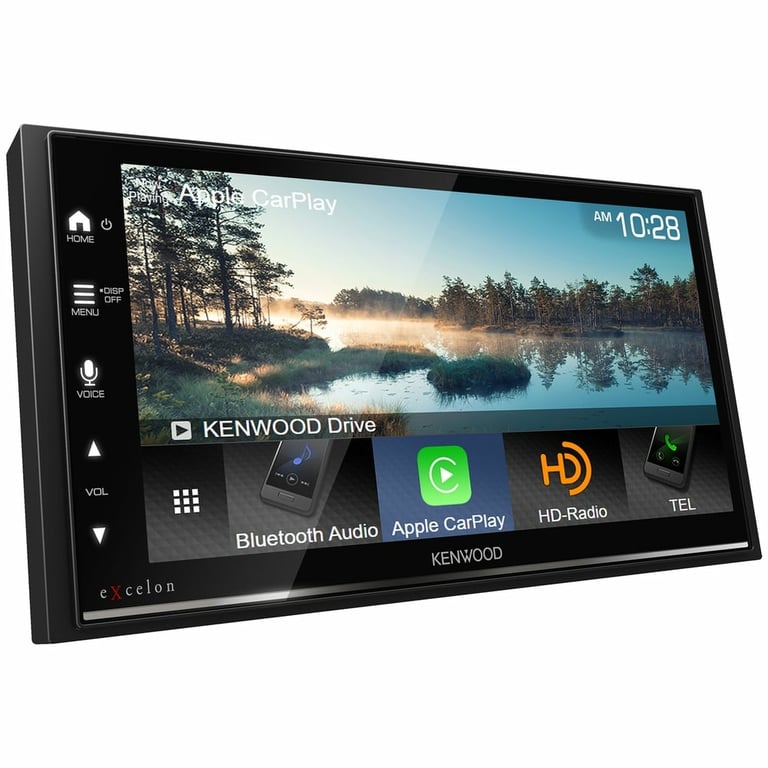

Kenwood eXcelon DMX709S with Backup Camera Image 13 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 14 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 15 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 16 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 17 — Kenwood eXcelon DMX709S with Backup Camera

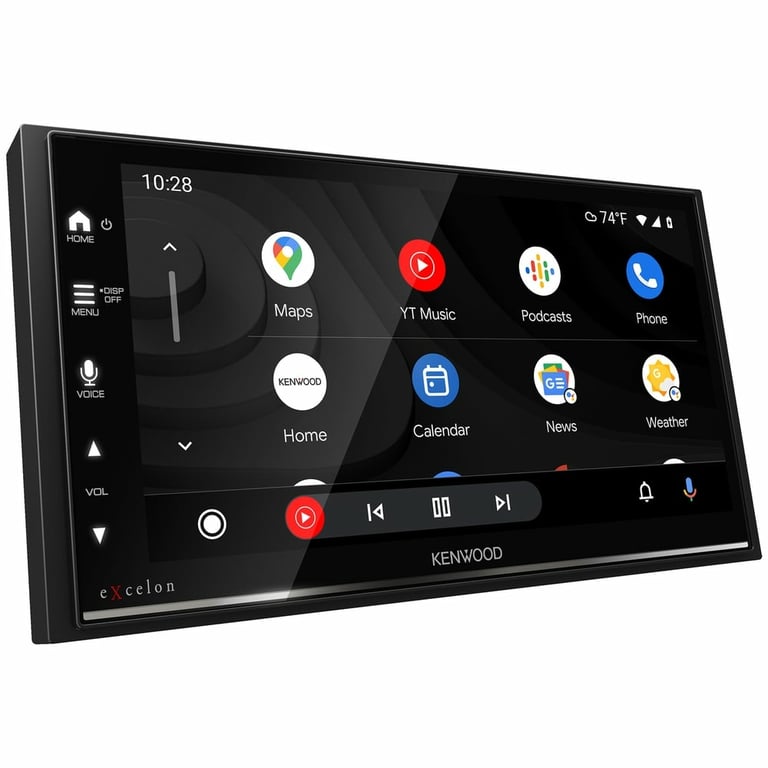

Kenwood eXcelon DMX709S with Backup Camera Image 18 — Kenwood eXcelon DMX709S with Backup Camera

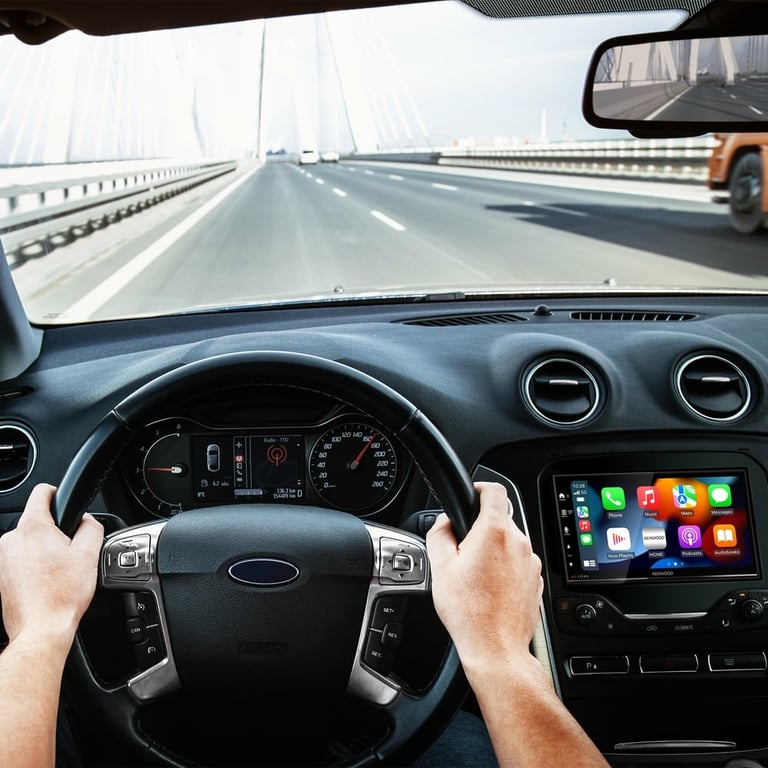

Kenwood eXcelon DMX709S with Backup Camera Image 19 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 20 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 21 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 22 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 23 — Kenwood eXcelon DMX709S with Backup Camera

Kenwood eXcelon DMX709S with Backup Camera Image 24 — Kenwood eXcelon DMX709S with Backup Camera

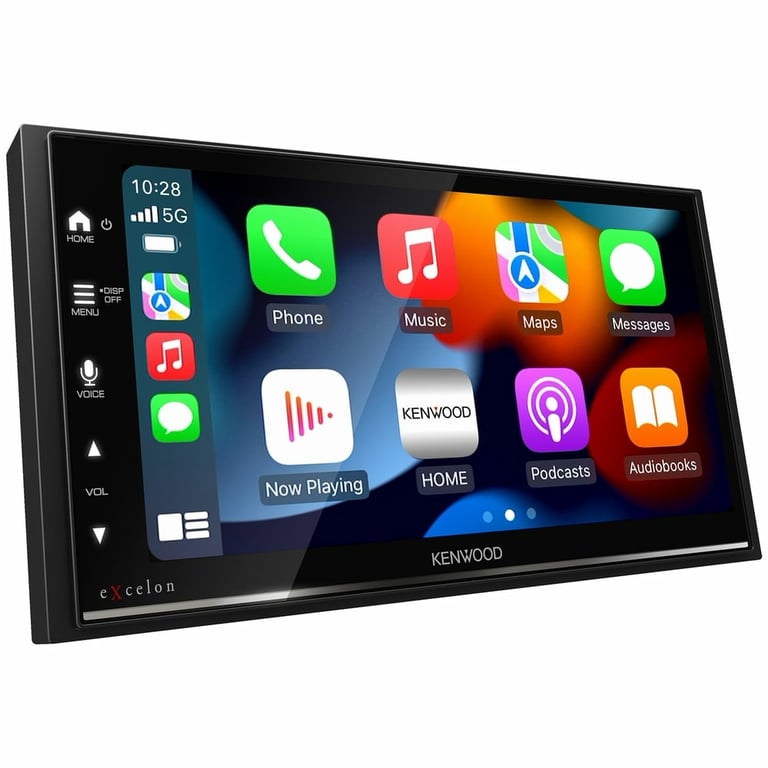

Kenwood eXcelon DMX709S with Backup Camera Image 25 — Kenwood eXcelon DMX709S with Backup Camera

Product highlights

• Double DIN Bluetooth Digital Multimedia Receiver
• 6.75" Capacitive Touchscreen Display Display
• Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic Equalizer with Digital Time Alignment
• SiriusXM Satellite Radio Ready
• iDatalink Maestro compatible
• Includes Backup Camera

Learn more about the dmx709s_barcam221

Confirm fitment. Set your vehicle.

Get free or discounted install kits when available

Dash kit to mount your stereo
Harness to avoid cutting vehicle wires
Retain AM/FM radio with adapter

List price $699.99

-37%

$438.99

with warranty

Starting at $40/mo

or 4 payments of $110

Free shipping in USA. Provide zip for delivery date.

Quantity Qty

In Stock

Brand new

Alternative financing

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Add an Extended Warranty Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires. Read more

This plan covers:

Hassle-free immediate replacement within minutes!
Easy online claims 24/7
Covers product breakdowns and failures

Extend by 2-years $29.99

Extend by 3-years $39.99

Our X-Factor Guarantees

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award-Winning Service

FREE Shipping Orders $49+

60-Day Easy Returns

Guaranteed Lowest Price

In-House Experts

Current Promotions (1 offer)

Get the Best Module in Vehicle Functionality!

This offer cannot be combined with any other coupons or offers.

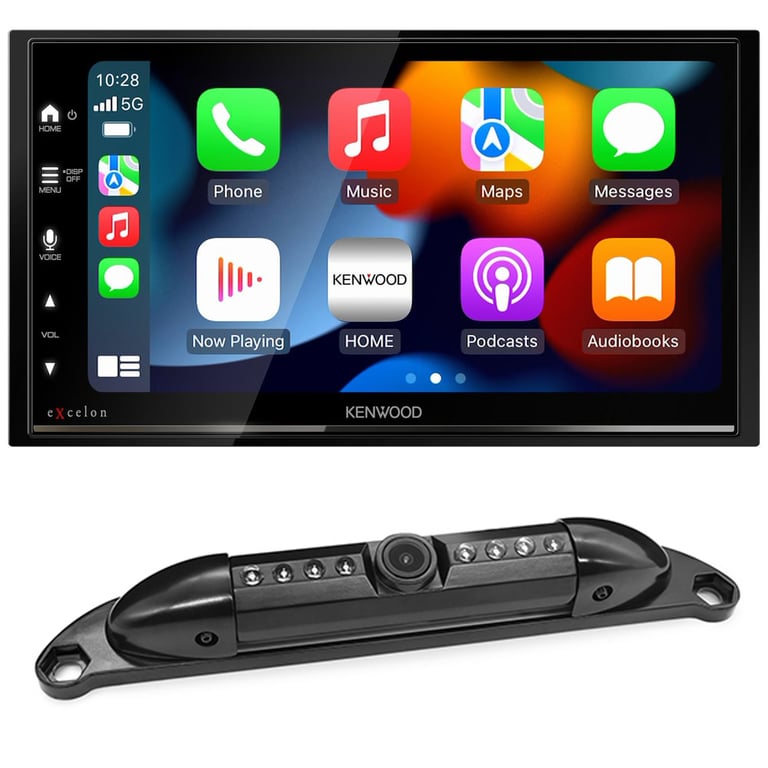

Kenwood eXcelon DMX709S with Backup Camera

https://images.sonicelectronix.com/images/5368553/main/adsmrr2.jpg

10% off

Kenwood eXcelon DMX709S with Backup Camera

$438 ⁹⁹

iDataLink Maestro RR2 Interface Module

$259 ⁹⁹

Priced separately $698 ⁹⁸

Promo Savings of $26 ⁰⁰

Total price:

$672 ⁹⁸

Description

Authorized dealer

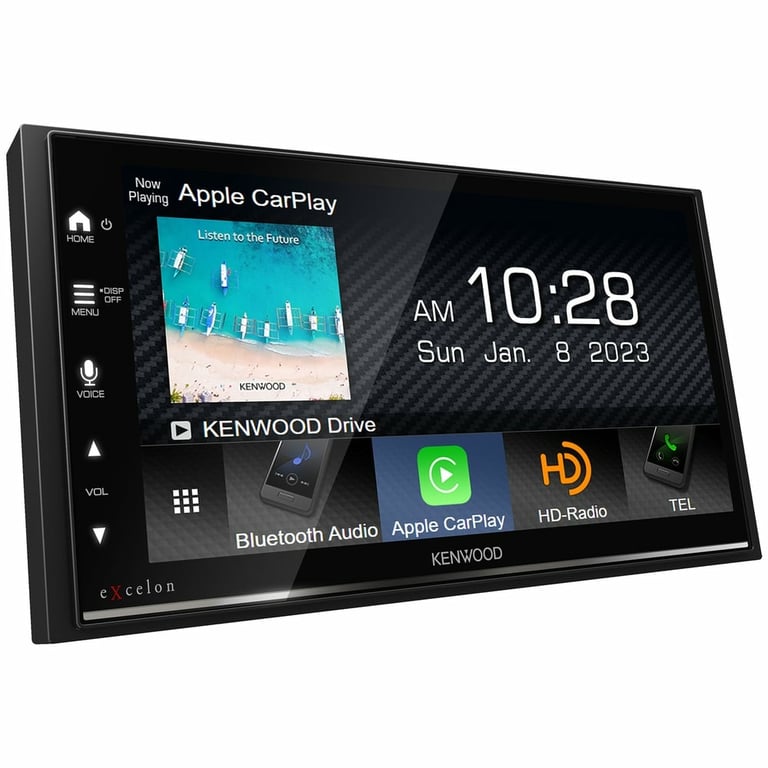

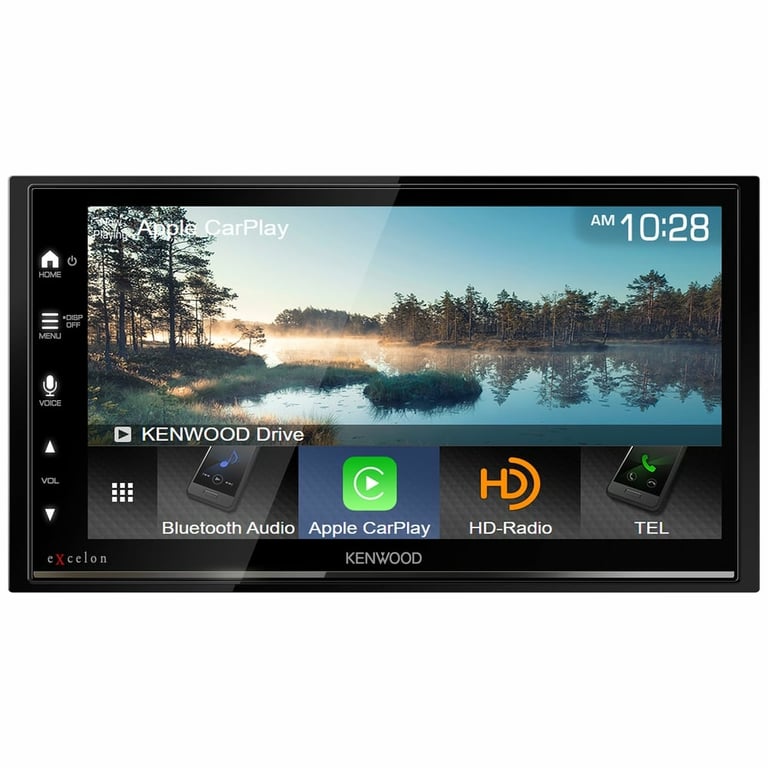

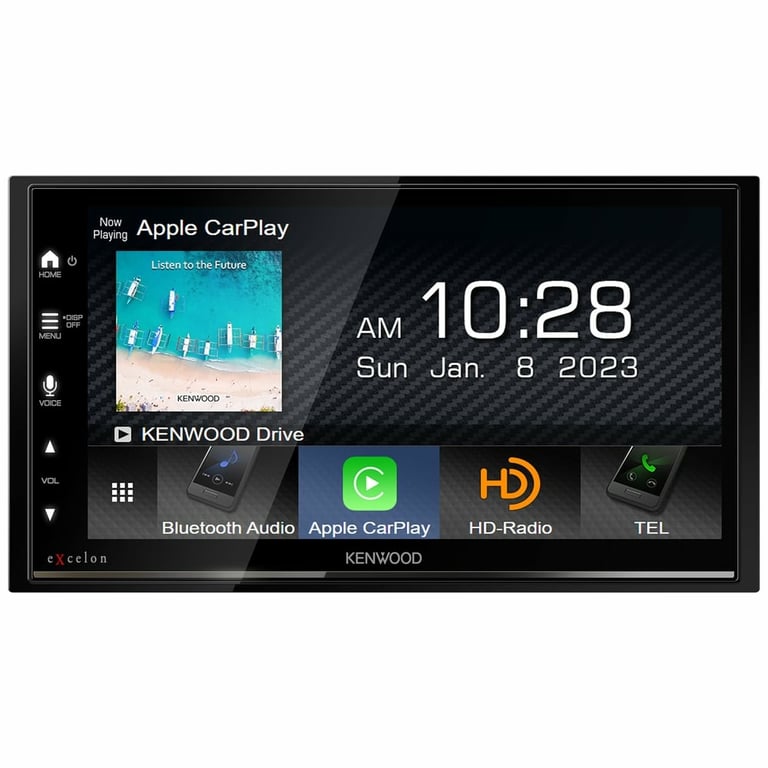

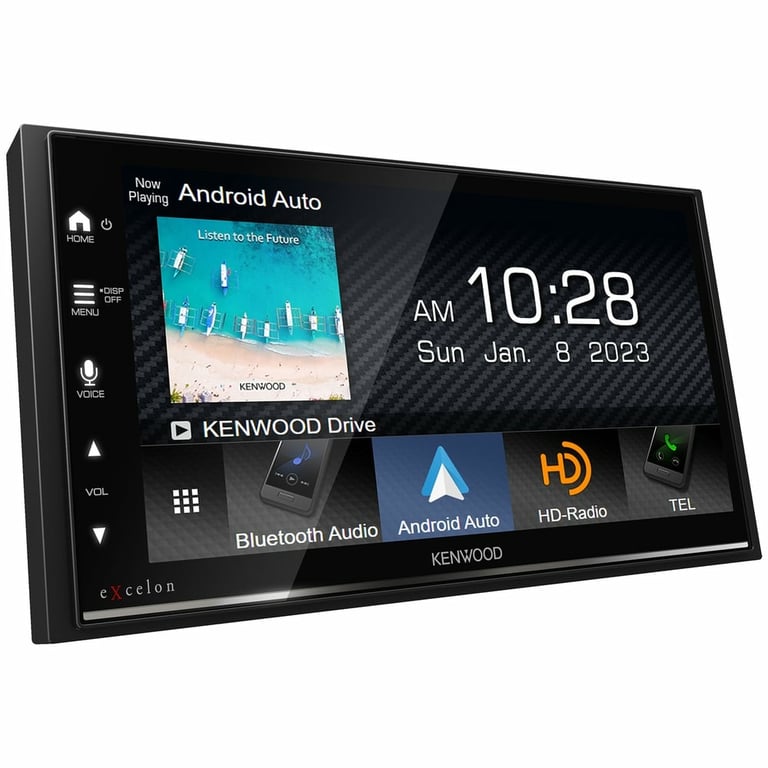

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)
Quantity: 1

Product Details

Double DIN In-Dash Bluetooth Digital Multimedia Receiver
6.8" WVGA Display
Power Output:

Peak: 50 watts x 4 channel
RMS: 22 watts x 4 channel

Short chassis for flexible installation
Variable color illumination to match stereo unit with any color dash lighting
13-Band Graphic Equalizer with Digital Time Alignment
Drive EQ boosts specific frequencies in the audio signal to overcome negative impact of road noise
Kenwood KCA-RCDV340 remote control sold separately
Built-in HD Radio Tuner
Authorized Internet Dealer
1-year Manufacturer's Warranty
MFR #: DMX709S

Smartphone Features

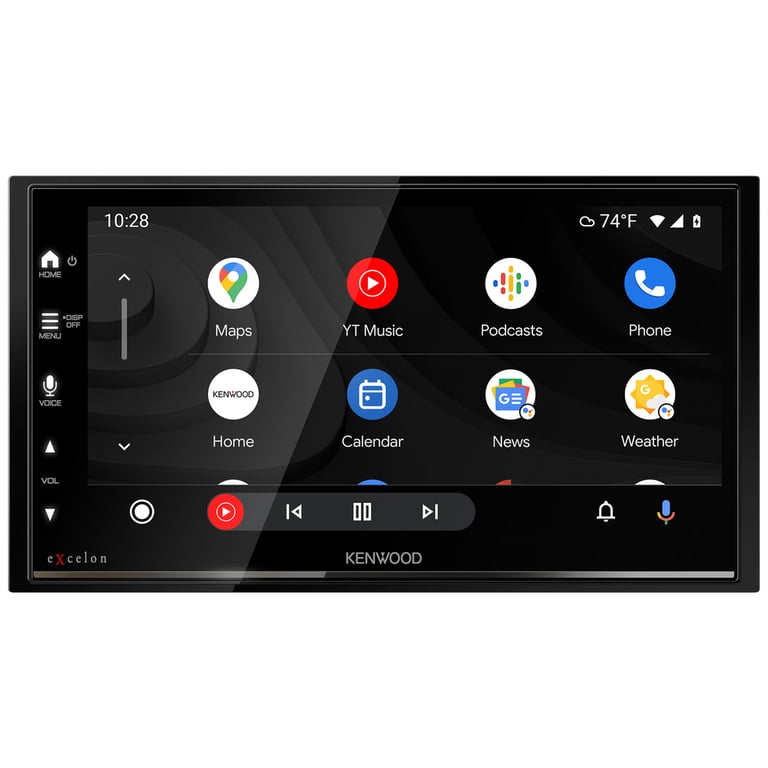

Apple CarPlay and Android Auto compatible
Display and control music, navigation, and other apps with iPhone and Android
Dual phone connection via Bluetooth
Kenwood Music Mix allows connection and switching of up to 5 Bluetooth devices
Voice assistant button for Siri or Google Assistant
Wired phone-mirroring for select Android devices via USB

Playback and Audio Features

MP3 | WMA | WAV | AAC | FLAC Audio Playback
MPEG1 | MPEG2 | MPEG4 | H.264 | MWV | MKV Video Playback
JPEG | PNG | 24-bit BMP Picture Files
AM/FM tuner with 15FM / 5 AM presets
MP3 ID3 Tag Display (Title/Artist/Album)
13-Band Graphic Equalizer with Digital Time Alignment

Expandability Options

Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
iDataLink ADS-MRR module (Sold separately). In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

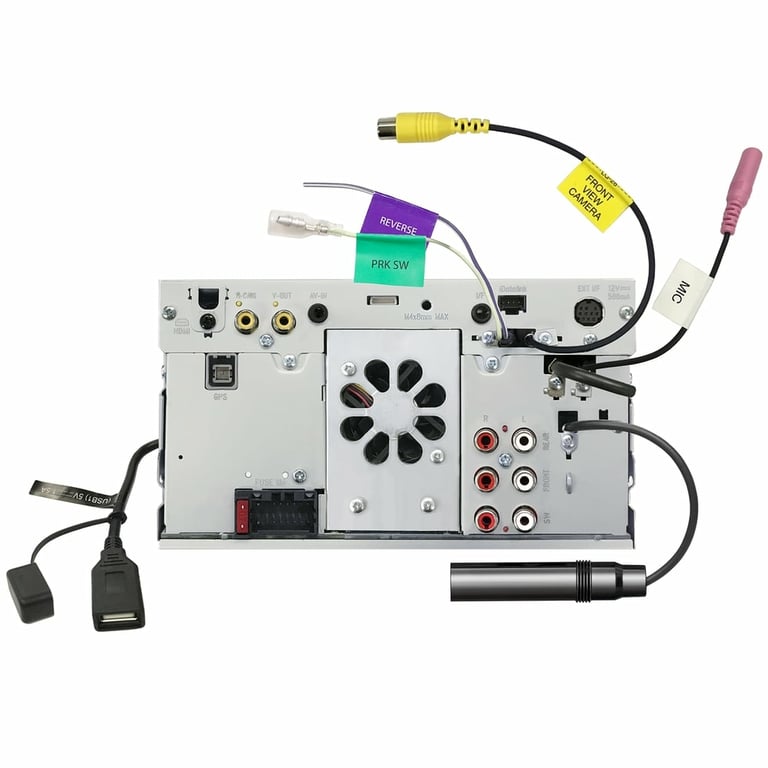

Audio/Video Inputs and Outputs

3 sets of 5 volts preamp outputs (front, rear, and subwoofer)
Allows for a 3-way connection (tweeter, midrange and woofer)
Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
Backup Camera Input: Used for universal rear view cameras with an RCA composite input
Front-view Camera Input: Used for universal cameras with an RCA composite input
Rear HDMI input

Navigation Features

Parking guidelines using optional rear view camera (sold separately)
Includes External GPS antenna

Bluetooth Features

Built-in Bluetooth technology for hands-free talking, audio streaming, and phonebook access profile
Includes an external wired microphone for clear, convenient, distortion-free talking

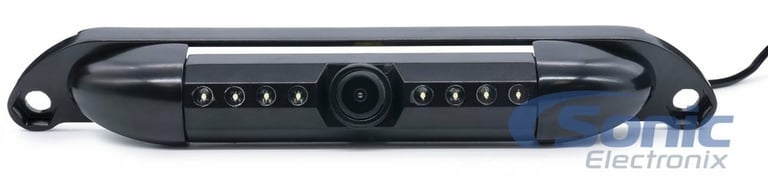

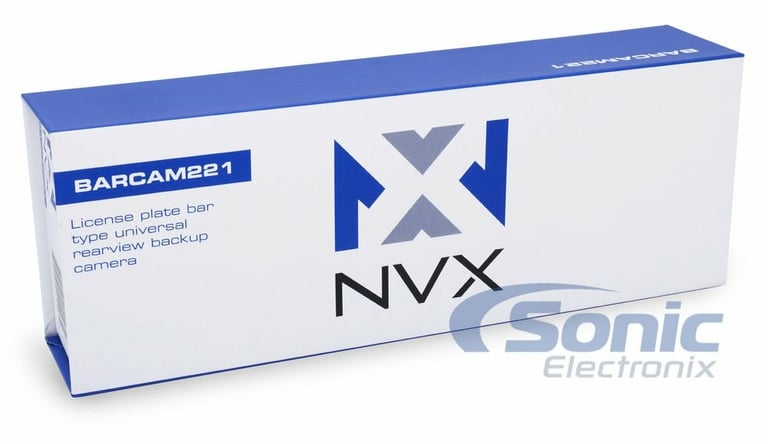

NVX BARCAM221

Universal Waterproof License Plate Mount Backup Camera with Full Metal Body
Quantity: 1

Product Details:

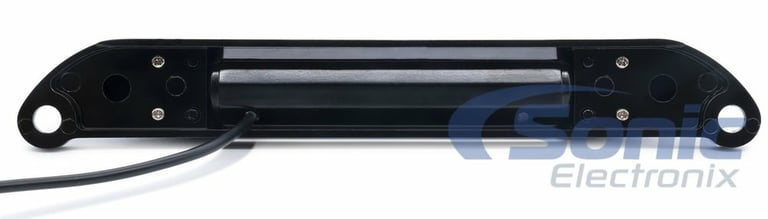

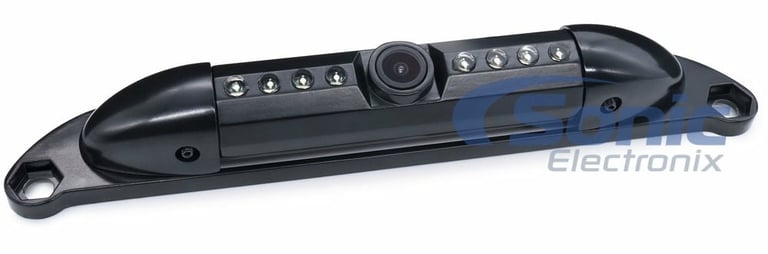

Universal License Plate Mount Rear View Backup Camera
Full metal body for premium durability compared to plastic competitors
High-Resolution CMOS PC1089 Image Sensor
Equipped with distance mark feature
Can be used as a front or rear camera (standard or mirror image option ON or OFF)

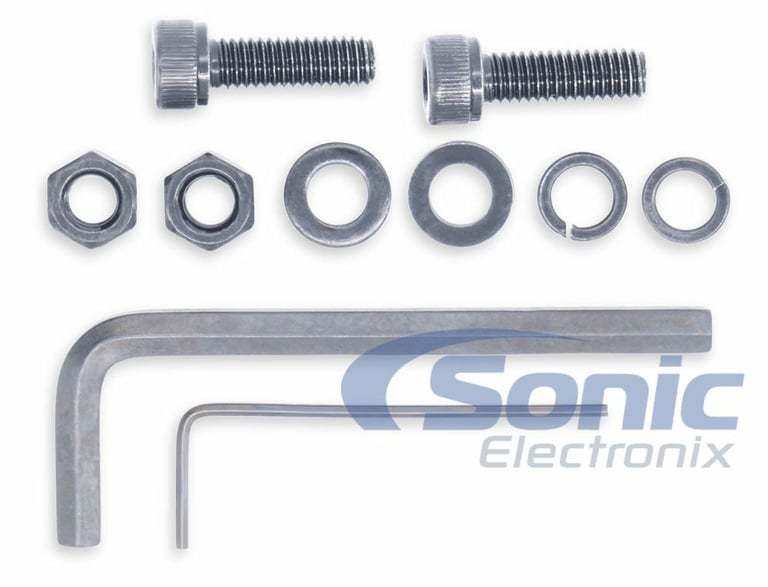

Mounts using license plate bolts

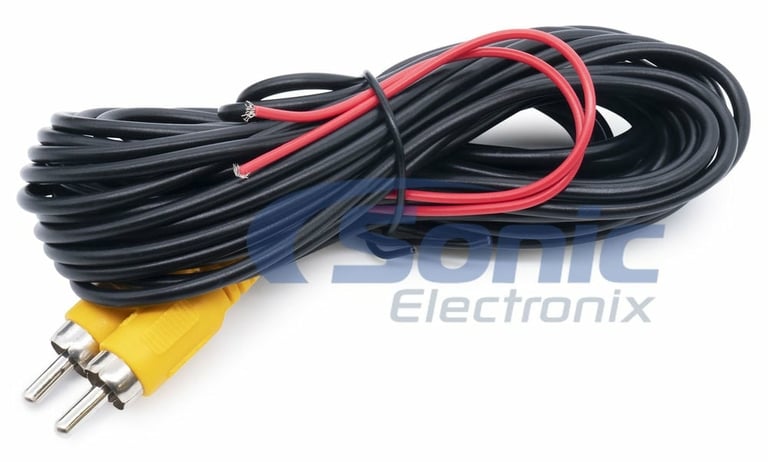

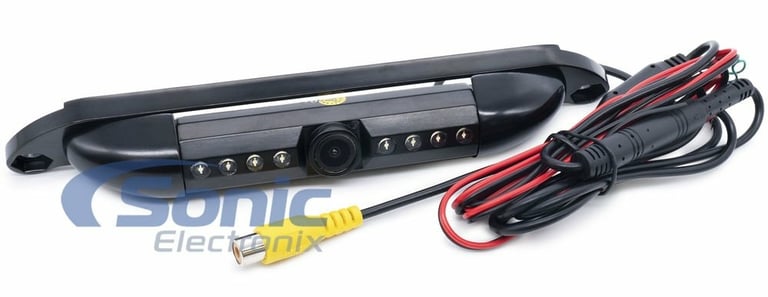

21 foot 4 pin din wiring harness included for easy installation
Mounting Style: Top of License Plate Frame
Viewing Angle: 170 ° (super wide viewing angle for greater visibility behind the car)
Waterproof: Yes (IP67/68 waterproof for durability in all weather conditions)
Night vision: Infrared LED's
Resolution: 510 x 496
Parking Guidelines: Removable (can be turned ON or OFF)
Minimum Illuminance: 0.1 lx
Authorized Internet Dealer
1-year Manufacturer's Warranty

Specifications & Details

Key Features

SiriusXM Ready
HD Radio
Idatalink Maestro capable
USB input
HDMI input
Aux input
Touchscreen

In-Dash Receiver Specifications

Receiver Size

Double DIN

Radio Type

Digital Multimedia (does not play discs)

Bluetooth Features

Hands-free Calling
Audio Streaming (A2DP)
External Microphone

Anti-Theft Security

None

Wireless Remote

Optional (Accessory and sold separately)

Kenwood KCA-RCDV340

Peak Power Output

50 watts x 4 channel

RMS Power Output

22 watts x 4 channel

Preamp RCA Outputs

3 Sets (6-channel)

Dedicated Subwoofer Preamp RCA Output

Yes

Preamp Voltage

5 volts

Built-In Equalizer

13-Band Graphic Equalizer with Digital Time Alignment

Display Type

Capacitive Touchscreen Display

Touchscreen

Yes

Screen Size

6.75"

Display Adjustment

Brightness
Dimmer

Smartphone Integration

Compatible Smartphones

iPhone (iOS)
Android

iPhone Control

CarPlay
Navigation App Compatible
Pandora Control

Android Control

Android Auto
Navigation App Compatible
Pandora Control

Expandability Features

Inputs

Audio/Video (Rear)
Backup Camera
Second Camera
HDMI
USB (Rear)

Outputs

Audio/Video (RCA)
3.5mm MiniJack Audio
HDMI

Steering Wheel Control Compatible

Yes (Accessory required and sold separately)

Axxess ASWC-1

Tuner

AM/FM Tuner

Yes

FM Presets

AM Presets

Radio Data System (RDS)

Yes

Playback

Music File Playback Type

MP3

Navigation Features

Map Database

Determined By Phone Connected

What is in the box?

Paperwork

User manual
Warranty/Registration card

Product and accessories

In-dash receiver
Wiring harness with all connections
Mounting sleeve (attached)
Trim ring (attached)
Microphone with attached cable

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year
