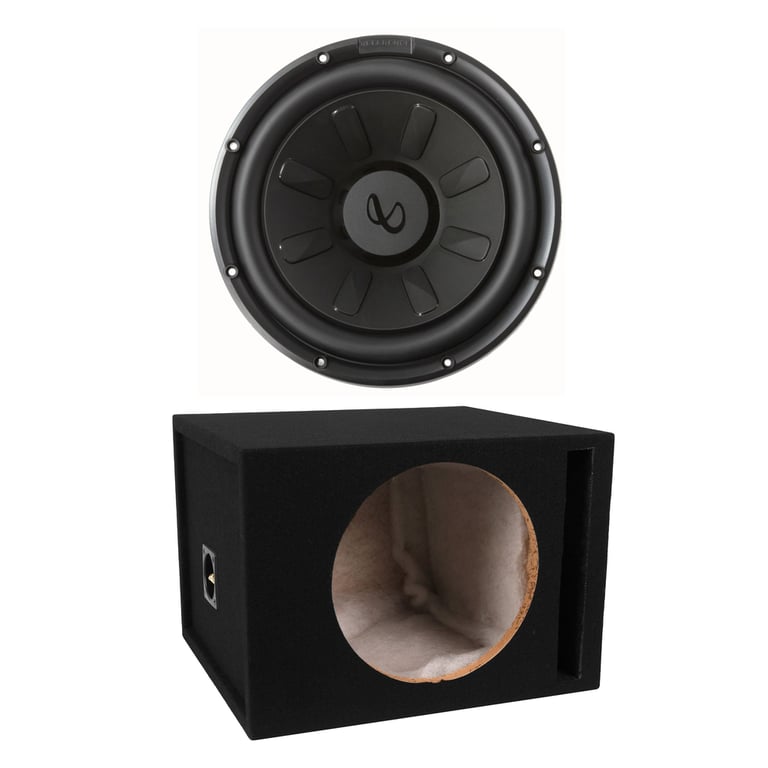

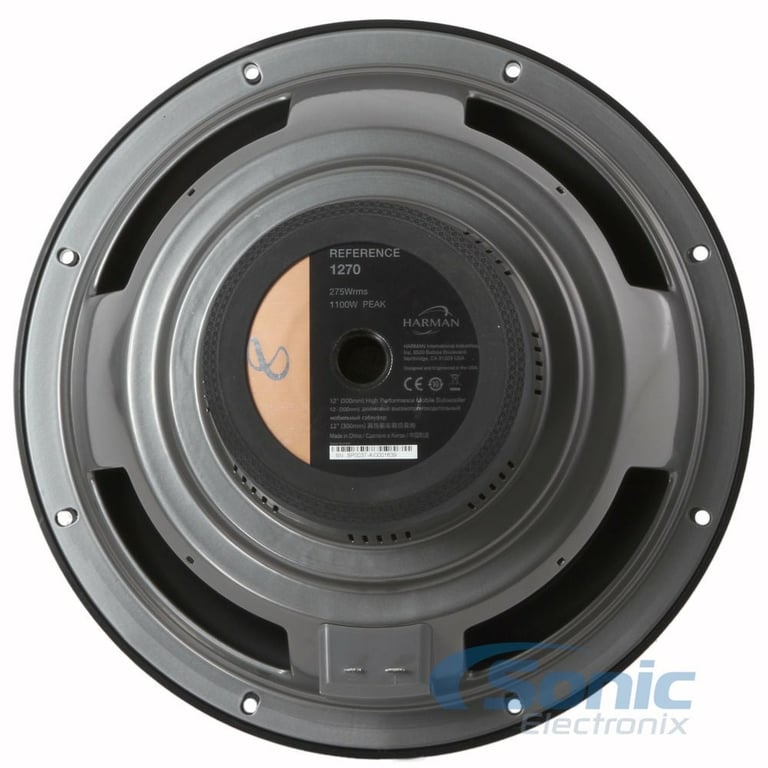

Infinity REF1270 with Ported Enclosure

1100W Max (275W RMS) 12" Reference Series Single 2 or 4 Ohm Car Subwoofer

Infinity
Shop all Infinity
highlight-star-icon

• 1100 Watts Max
• 275 Watts RMS
• Infinity Logo On Face
• Frequency Response: 25 - 175 Hz
• Foam Mounting Gasket Included
• Matte Black Design
• Includes Ported Enclosure

Learn more about the ref1270_1sv12b

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC684 main

Kicker CSC68 (46CSC684)

450W Peak (150W RMS) 6x8” CS Series 2 Way Coaxial 4-ohm Speakers

11
-33.36%

$79.96

List price $119.99

T1650-S main

Rockford Fosgate Power T1 T1650-S

320W Peak (160W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

1
CVMPCL8.0 main

Cerwin Vega CVMPCL8.0 (Sold Individually)

400W Peak (200W RMS) 8" Stroker Pro Series Full Range 4-ohm Speakers

-16.67%

$139.99

List price $167.99

GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Limited time!
CST20 main

Kicker CST204 (46CST204)

200W Peak (100W RMS) 3/4” CS Series 4-ohm Titanium Dome Tweeters

3
-30.04%

$55.96

List price $79.99

Crunch CS5768CX

500W Peak (100W RMS) 5x7"/6x8" CS Series 2-Way Coaxial 4-ohm Car Speakers

13
-11.77%

$29.99

List price $33.99

Limited time!

JVC KW-M595BT

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-30.30%

$299.00

List price $429.00

Description


Infinity brand icon

Authorized dealer

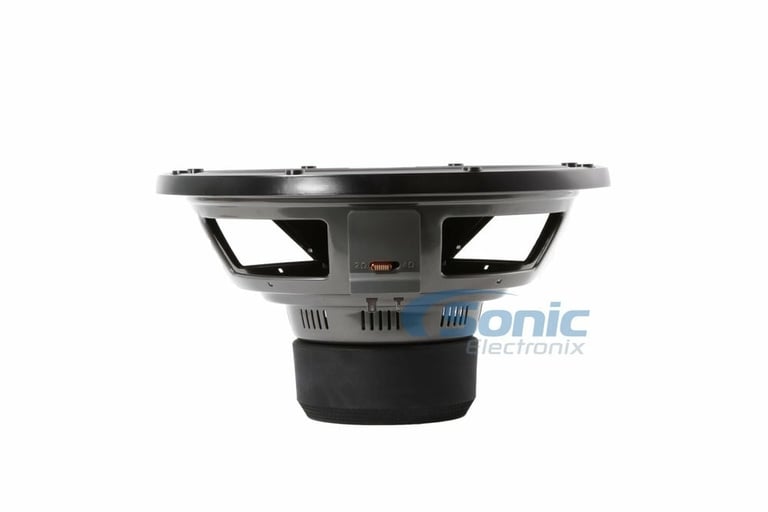

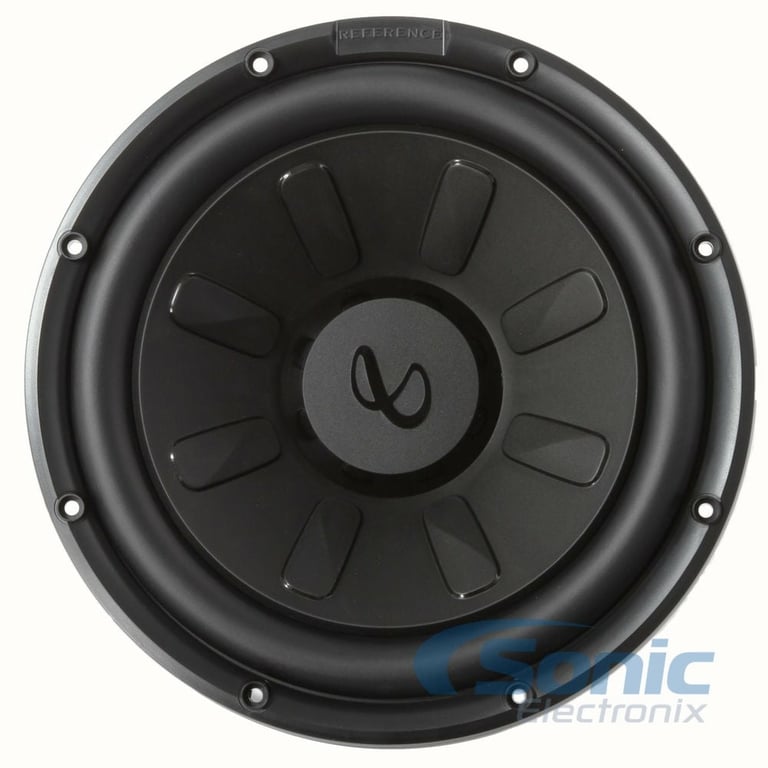

Infinity Reference 1270

1100W Peak (275W RMS) 12" Reference Series Single 2-or 4-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 12" Single 2 or 4 ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 1100 watts
    • RMS: 275 watts
  • Polypropylene cone
  • Rubber surround
  • Proprietary cone design
  • Long excursion design
  • 1.12" High Temperature voice coil
  • 10.25 mm Xmax
  • Single Stacked magnet motor structure
  • Frequency Response: 25 - 175 Hz
  • Smart Selectable Impedance: 2 or 4 ohm
  • Resonance Frequency (Fs): 31.9 Hz
  • Sensitivity: 93 dB
  • Recommended sealed box volume: 0.75 cubic feet
  • Recommended ported box volume: 2.5 cubic feet
  • Top-mount depth: 6-1/2"
  • Cutout diameter: 11-5/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

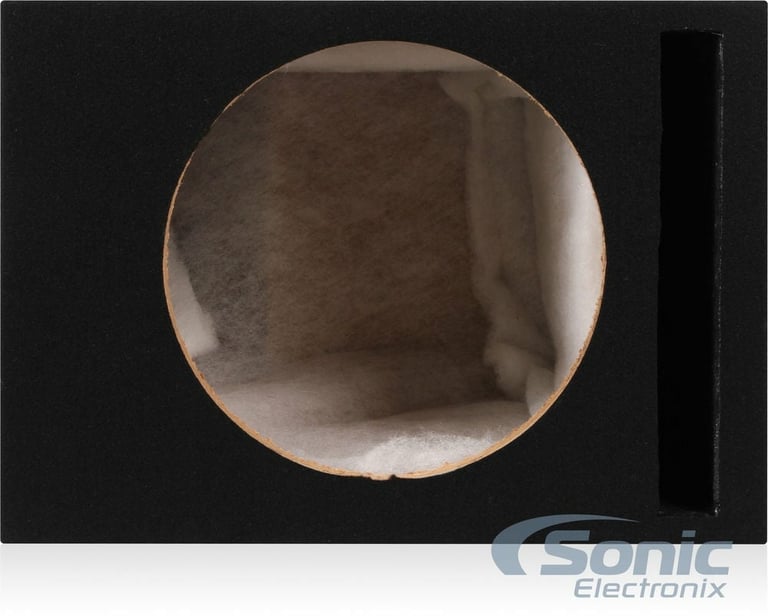

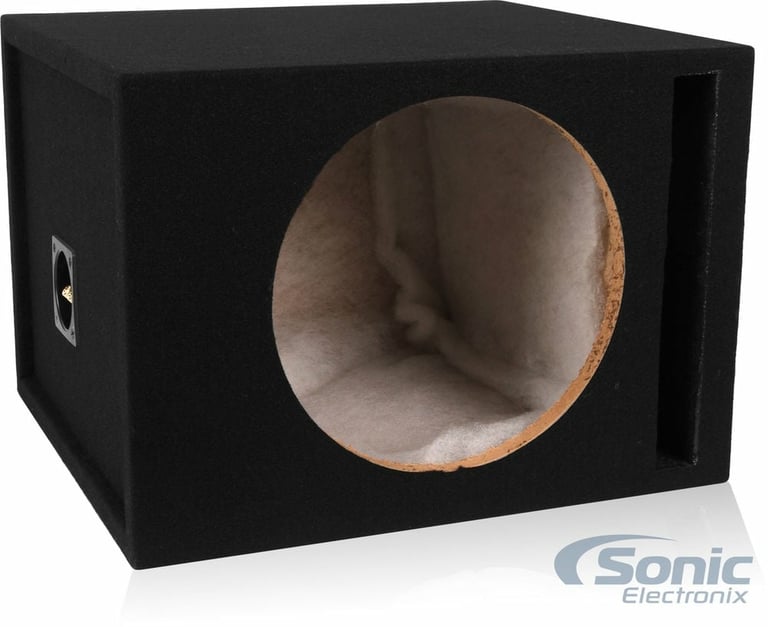

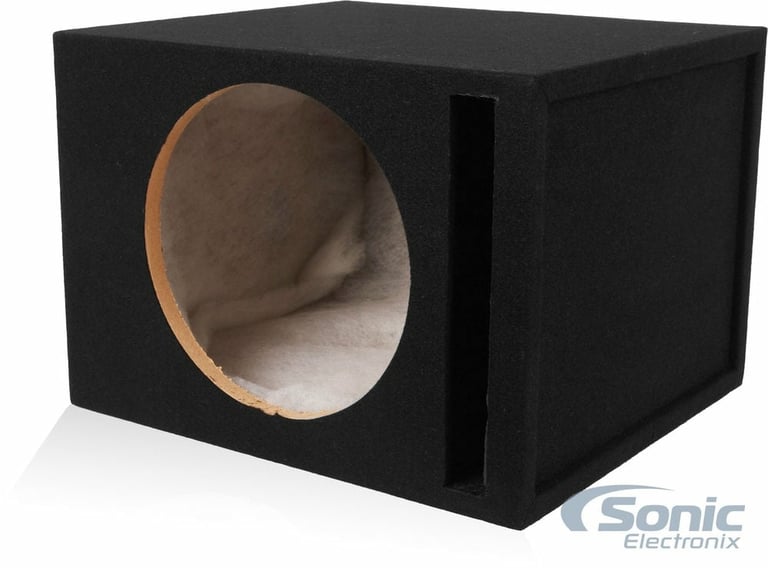

Single 12" Vented MDF Subwoofer Enclosure (Belva 1SV12B)

12-inch Vented Car Sub Box Made with 3/4" MDF and lined w/ Polyfil (1.8 cu ft airspace 1SV12B)
Quantity: 1

Built for Bass

You've got an awesome subwoofer there, pal. But where's it gonna go? You can't just throw that thing in the trunk and call it a day. Don't worry, Belva's got your back. With superior construction, great features and everything you need for bass, you'll be ready to pass up that entry-level box you've been eyeballing.

Belva Subwoofer Boxes are CARB Phase 2 Compliant

You get quality boxes with solid 3/4" MDF because nothing else will do the job right. You want to flex your windshield, not your box's innards. You get polyfill built into the box, making sure your subs perform perfectly. On top of that, you get a box that's CARB Phase 2 Compliant, meaning your box won't emit as much nasty formaldehyde as the competition. Better for your bass and better for you.

Belva MDF 3/4-inch Thickness

Look, nobody buys a subwoofer and says, 'Aw man, I just want a teeny bit of thump.' Naw man, you want something that kicks you in the chest, but you need a box that's gonna put up with it. That's where Belva comes in. While other brands use less-than-optimal 1/2-inch MDF, we've got 3/4-inch MDF to make sure you get all the bass you can handle. Why risk a busted box? Belva's the obvious choice when it comes to giving your sub a good home and giving you the low end you're looking for.

Belva MDF 3/4-inch Thickness

  • Single 12" Vented MDF Enclosure
  • Holds one 12" subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Durable black carpeting

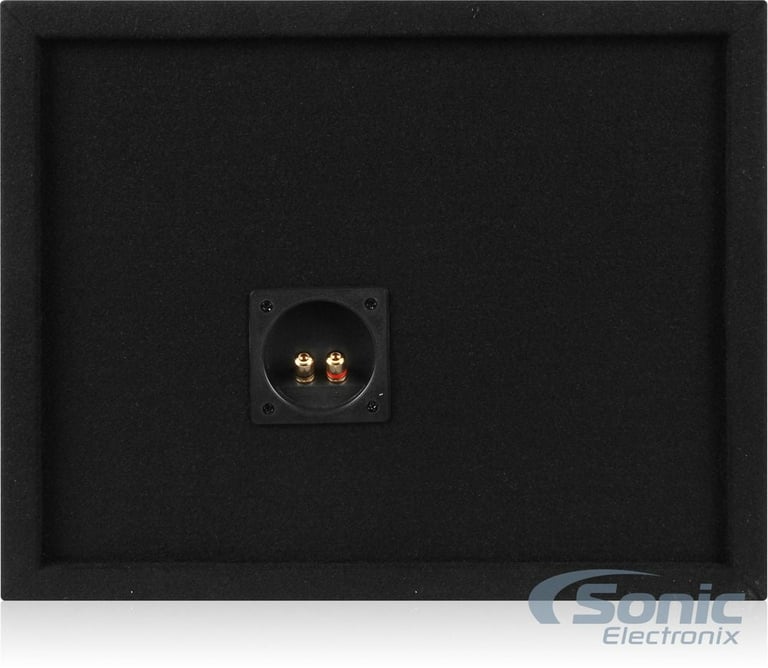

  • Gold Terminals
  • Tuning Frequency: 36Hz
  • Internal Box Volume: 1.8 cubic ft.
  • Dimensions: 13-5/8"H x 17"D x 19-1/4"W
  • 30 Day return policy

Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
12"
RMS Power Handling
275 watts
Peak Power Handling
1100 watts
Woofer Composition
Polypropylene
Woofer Surround
Nitrile Butadiene Rubber NBR
Sensitivity
93 dB
Frequency Response
25 - 175 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Gray
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference 1270, 1SV12B

Weight:

46.03lbs

Internal SKU:

ref1270_1sv12b

Internal Product ID:

199179

Customer Ratings & Reviews


Infinity REF1270 with Ported Enclosure thumbnail image

5 star
75%
4 star
17%
3 star
6%
2 star
2%
1 star
1%



Durability
4.7
Value
4.8
Features
4.7
Design
4.7
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

good

The following review is for 1SV12B, which is a part of the bundle you are viewing.

Pretty well made box. The sub hole was a little too small for my 12" hcca but a little cutting solved that. I didn't have time to make my own box so this suited me realyl well.

By Trevor on October 29, 2014

136 found this helpful


good product

The following review is for 1SV12B, which is a part of the bundle you are viewing.

Sound really good and looks good. Made fairly good. Would for sure recommend

By Bryan on May 28, 2014

136 found this helpful


Very very nice, exact specs below.

The following review is for 1SV12B, which is a part of the bundle you are viewing.

Very nice box. The carpet is nice and seems to be glued properly, although it does look like it might rub off in time. Build quality is very nice, feels very sturdy. There are some globs of dried glue on the exterior but nothing I can't get over. It would have been nice to not have the sub cutout so close to the port but that's just nitpicking. Doesn't come with wires internally but the terminals are much nicer than I've seen on other prefab boxes.
Regardless of what Belva has published, this box is not 1.8 ft.

The gross volume is 1.97 ft, but after taking into account port displacement, it's net volume is 1.30 ft. It's also tuned to 34.4 Hz. Determined using the Torres Speaker Box Calculator.

By Alex B. on July 4, 2013

130 found this helpful


well built box

The following review is for 1SV12B, which is a part of the bundle you are viewing.

For the price it cannot be beat. This box meets the recommended size enclosure for the single sub i ordered, which is the Rockford P2D4. Ported to trick the sub its in a bigger box with poly fill lining. Well built and carpeted in dark gray. I highly recommend it. Hits lows hard and loud.

By Rick on December 19, 2013

126 found this helpful


Not bad

The following review is for 1SV12B, which is a part of the bundle you are viewing.

So I bought one of the "Sonic Boxes" a couple years back and it was similar to this box but gray. The sonic box was better build quality. This box has a hole cut that is nowhere near center. It's up and to the right a bit, but that's what you get for a 55 dollar box I guess. The carpet around the ported has started to come unglued and the box hasn't had any play time what so ever. It seems to be mdf and 3/4". The dimensions are correct. Port tune is around 35 hz and net box size is around 1.4 cubic ft. The poly fill probably needs to be glued down so I will stay inside the box. The port used to be rounded on the inside with the sonic box now it is not. It is a good box to get by on since it is built pretty well, but I would recommend getting a box built to spec for the woofer you have for optimal sound. For 55 bucks it's not a bad way to get by, just don't expect the best for that price point.

By Luke on December 23, 2013

120 found this helpful


Great Prefab box

The following review is for 1SV12B, which is a part of the bundle you are viewing.

I would highly recommend this box it sounds like it is tuned between 34-36hz hits lows really good unlike i was expecting since it is vented. I had a rockford fosgate p3 and it sounded amazing in the box and now I have an Alpine type S in there until my new p3 comes back in and the type s even sounds great i didnt think a type s would pound like it did. Good box would def recommend and buy again if need be.

By Christopher on September 23, 2013

122 found this helpful


Great product

The following review is for 1SV12B, which is a part of the bundle you are viewing.

Slim and powerful speaker that packs massive power for a great price.

By Ernest on June 8, 2014

123 found this helpful


Worth the space

The following review is for 1SV12B, which is a part of the bundle you are viewing.

I downgraded from a much larger box to this one and noticed no difference. Saved me some space, though it's still pretty big, and handles the sub perfectly. Feels sturdy and looks good.

By Matthew on May 5, 2014

121 found this helpful


Awesome box

The following review is for 1SV12B, which is a part of the bundle you are viewing.

This box sounds great coupled with a Pioneer Champion Series Pro and 1500 watt amp. Very deep bass tones and very loud. Definitely would recommend.

By Bob_D on December 15, 2014

116 found this helpful


Belva

The following review is for 1SV12B, which is a part of the bundle you are viewing.

This cost more then the gray one but they both perform the same just that the black exterior looks way better then the gray

By eduardo on February 11, 2015

114 found this helpful




RDP-V20iPRED small

Sony RDP-V20iPRED - Red

Portable Speaker Dock for iPod and iPhone

$49.99

List price $169.95

V940 small

BEL Beltronics Vector 940

Radar Detector with Shadow Technology II

(8)

$140.50

List price $229.99

PRIMUS 1270B small

Infinity PRIMUS 1270B

1200W Max (300W RMS) 12" Primus Series Single/Dual 4 Ohm Car Loaded Subwoofer Enclosure

$109.95

List price $209.93

OPC1540 small

Icom OPC1540

20-ft Cable with Waterproof Mounting Plug for Icom M162 (ICMM162)

$39.99

List price $49.99

SST-804N small

Soundstream SST-804N

8" Single 4 ohm Pro Series Neodymium Mid-Bass Driver

$119.95

List price $149.99

No picture

DS18 PRO-ZT6 (Sold Individually) (Open Box, Great)

450W Peak (225W RMS) 6.5” PRO-ZT Series 4-ohm Water-Resistant Midrange Loudspeaker

$67.17

List price $95.95

0180009-1 small

Cobra RAD 480i

Radar and Laser Detector with Bluetooth and App Control

(1)

$149.95

List price $149.95

XCAMLP small

NVX XCAMLP

High Resolution License Plate Frame Backup Camera

(51)

$49.99

List price $59.99

BARCAM221 small

NVX BARCAM221

Universal Waterproof License Plate Mount Backup Camera with Full Metal Body

(39)

$39.99

List price $99.99

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2015 Ford Expedition

2008 Saturn Vue

2012 Toyota Yaris

1998 Mercury Sable

2016 Audi S3

2015 BMW M4

2020 Lexus NX300h

2012 Ram C/V

2016 Ford Expedition EL

2016 Nissan Leaf

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
