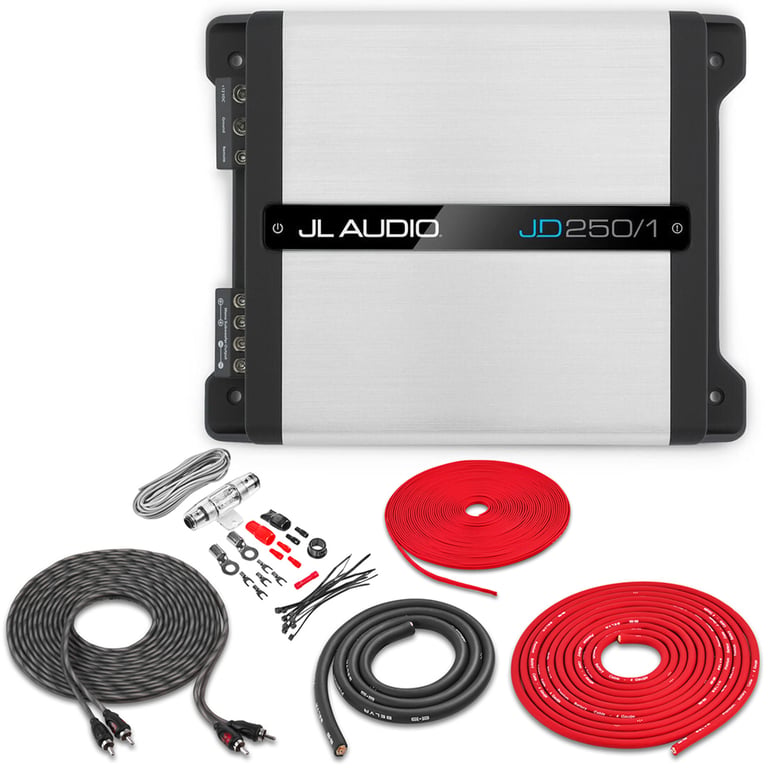

JL Audio JD250/1 with Amplifier Wiring Kit

250W RMS JD Series Monoblock Class D Subwoofer Amplifier

JL Audio
Shop all JL Audio
highlight-star-icon

• Compact and Powerful
• NexD Switching Technology
• Differential-balanced Inputs
• LED-clipping indicator ring
• Monoblock Class D Subwoofer Amplifier
• Includes Amplifier Wiring Kit

Learn more about the jd2501_bak42

We apologize

This item has been discontinued


Loading...
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

REF507CF main

Infinity REF507CF (INFSPKRF507CFUS)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

-12.00%

$219.95

List price $249.95

DMDX5 main

Diamond Audio DMDX5

240W Peak (80W RMS) 5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

C1-400x main

JL Audio C1-400x

70W RMS 4" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8
DSK 130.3 main

Hertz DSK 130.3

240W Peak (120W RMS) 5.25” Dieci Series 2-way 4-ohm Component Speaker System

-13.05%

$199.99

List price $230.00

DB5252 main

Polk Audio DB5252 (DB 5252)

600W Peak (200W RMS) 5.25” DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4

$200.00

List price $209.99

Limited time!
46CSC54 main

Kicker CSC5 (46CSC54)

450W Peak (150W RMS) 5.25” CS Series 2 Way Coaxial 4-ohm Speakers

5
-33.36%

$79.96

List price $119.99

Description


JL Audio brand icon

Authorized dealer

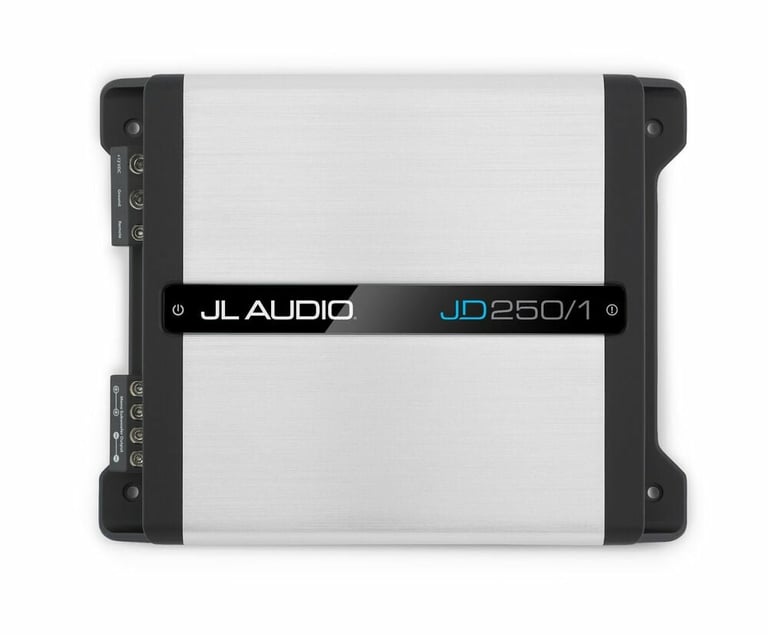

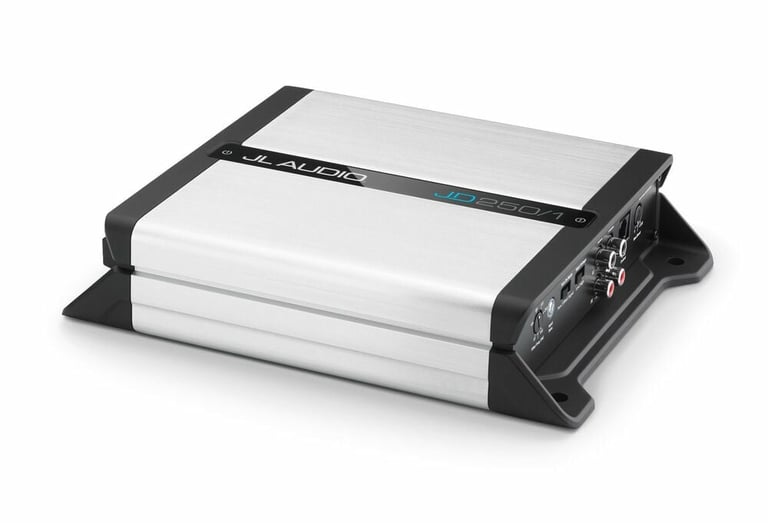

JL Audio JD250/1

250W RMS Class D JD Series Monoblock Car Amplifier
Quantity: 1

Product Details:

  • JD Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 channel
    • 2 ohm: 250 watts x 1 channel
  • Total power output: 250 watts
  • LED Power/Protect Light
  • Optional wired bass remote control (sold separately)
  • Speaker-level (high-level) inputs (Requires adapter like the JL Audio XD-CLRAIC2-SW)
  • Input under/over voltage, over temperature, short protection
  • NextD switching amp technology
  • Differential-balanced inputs help eliminate noise
  • Advanced Rollback Protection System prevents thermal shut-down

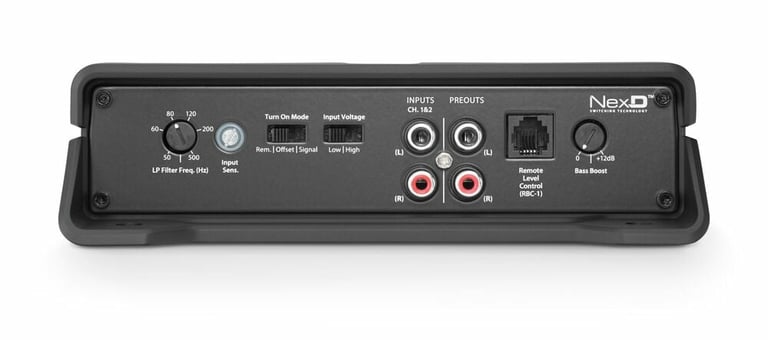

  • Input sensitivity:
    • Low level: 0.2 - 2 volts
    • High level: 0.8 - 8 volts
  • Frequency Response: 7 - 500 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 80 dB
  • Variable low-pass filter: 50 - 500 Hz
  • Variable Bass Boost: 0 - 12 dB

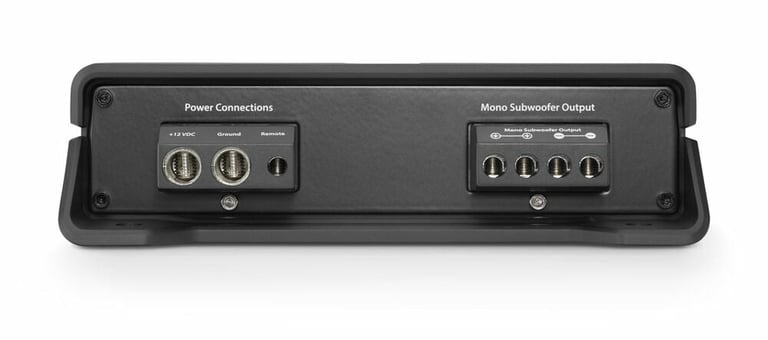

  • Fuse Rating: 30A (AFS, AGU or MaxiFuse)
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.50" L x 7.50" W x 2.10" H
  • Authorized Internet Dealer
  • 2 Year Manufacturer's Warranty
  • MFR #: JD250/1

Belva BAK42

4 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1200 Watts - RED
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1200 watts RMS
  • Made from 100% Copper-Clad Aluminum (CCA)
  • Satin chromed Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • RCA Interconnect Cable
  • Twisted-pair construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

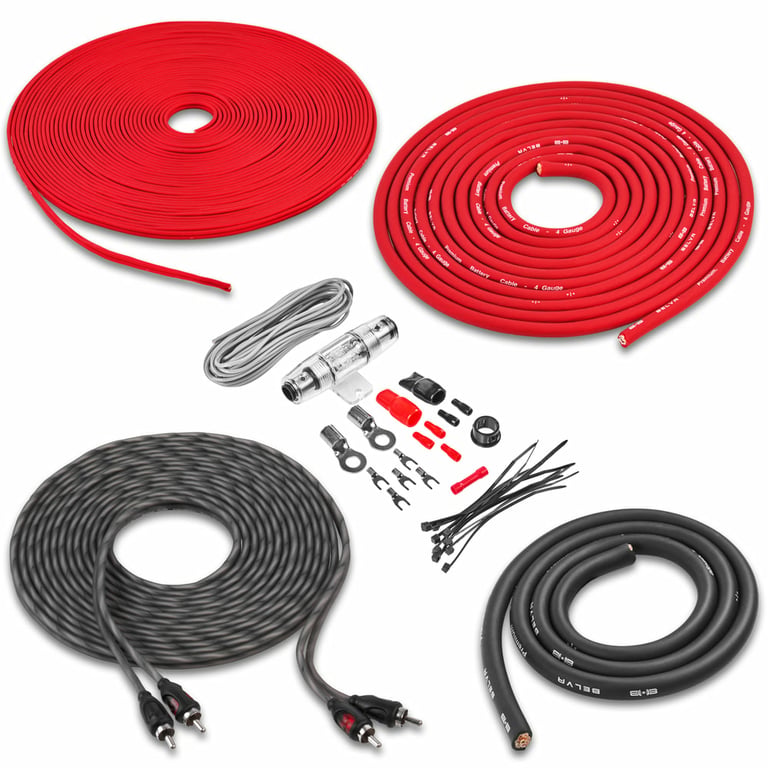

Kit includes:

  1. 17 ft. Red 4 gauge power wire
  2. 3 ft. Black 4 gauge ground wire
  3. 17 ft. Gray 18 gauge remote lead wire
  4. 20 ft. 16 gauge speaker wire
  5. One 17 ft. 2-channel twisted-par construction RCA interconnect Cable
  6. One Mini-ANL Fuse Holder with 80 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Chrome Plated ring terminals
  9. Five 16 Gauge Spade terminal
  10. One 18 Gauge Red butt connectors
  11. Ten 4" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
250 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
250 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
THD at Rated RMS Power
>1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 500 Hz
Signal-to-Noise Ratio
60 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 1
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
20 feet
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
Mini ANL
Fuse Size
80A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

JD250/1, BAK42

Weight:

10.60lbs

Internal SKU:

jd2501_bak42

Internal Product ID:

199192

Customer Ratings & Reviews


JL Audio JD250/1 with Amplifier Wiring Kit thumbnail image

5 star
69%
4 star
20%
3 star
6%
2 star
5%
1 star
1%



Durability
4.5
Value
4.7
Features
4.4
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Belva bak42

The following review is for BAK42, which is a part of the bundle you are viewing.

This item works okay, easy to install, and good for price.

By Danny on June 6, 2014

195 found this helpful


good package

The following review is for BAK42, which is a part of the bundle you are viewing.

Great value and worth your money as far as what you would need for an amplifier/subs system setup. Quality wires.

By john on January 5, 2015

192 found this helpful


impressed

The following review is for BAK42, which is a part of the bundle you are viewing.

I ordered this kit because it was fairly cheap but I have to say in very impressed with the quality of the wire as well as the thickness of the insulation. It was much thicker than I had anticipated and was pleasantly surprised.

By Bryan on May 20, 2014

194 found this helpful


Wiring kit

The following review is for BAK42, which is a part of the bundle you are viewing.

Very quality wires and very pliable. Will definitely buy again

By Phil on December 25, 2014

188 found this helpful


best bang for your buck

The following review is for BAK42, which is a part of the bundle you are viewing.

hooked up to my amp with ease subs bump all day long no problems installing except finding a good ground the ground wire could be a little longer but not a major problem.

By Hoffman on January 18, 2015

184 found this helpful


Everything you need

The following review is for BAK42, which is a part of the bundle you are viewing.

This package comes with everything you need to install your amp and speakers. Great value.

By Bradford on January 16, 2014

179 found this helpful


Belva

The following review is for BAK42, which is a part of the bundle you are viewing.

Parts came fast, and seems to be a good quality for price.

By Ricke on March 3, 2014

180 found this helpful


Not bad

The following review is for BAK42, which is a part of the bundle you are viewing.

It was pretty nice the wire was a little bigger than i thought (wire is about as fat as a sharpie marker just the wire not the insulation), the grommet that came with it was way to big for the wire so i didn't use it the fuse seems ok the connectors are good didn't have trouble crimping. I had to drill out the ring terminals a little but wasn't bad; wire insulation kind of soft and easy to puncture.

By jeff on December 31, 2013

177 found this helpful


Ok product

The following review is for BAK42, which is a part of the bundle you are viewing.

The product works. Not the best quality though. The cables are pretty lightweight. If I did it again I would spend a little more money and get a higher quality cable.

By JR on April 28, 2014

181 found this helpful


not enough

The following review is for BAK42, which is a part of the bundle you are viewing.

first the terminals are too small for the gauge wire for the power and ground and fuse. a lot of the things that came with the kit didn't seem to have a place with the wires e.g. butt end connectors, cable terminals, all were too small for gauge wire included. im having to run out and buy pieces from my local radioshack. the remote wire has nothing to even connect to my head unit making have to go out and buy more materials to complete my install.

By matthew on March 9, 2014

182 found this helpful



BASS 3K, BAK02 small

Taramps BASS 3K with Amplifier Wiring Kit

3000W RMS BASS Series Class-D Monoblock Amplifier

(76)

$324.99

List price $389.98

NBA401, XKIT44 small

NVX NBA401 Amplifier + NVX 4 Gauge Premium Amp Wiring Kit

800W Total RMS N-Series Class-AB 4-Channel Amplifier Package (Includes Amplifier and Amp Wiring kit)

(88)

$289.98

List price $343.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1984 Isuzu Trooper

2014 Toyota Avalon

2000 Chevrolet C3500 Pickup

2022 Mercedes-Benz E-Class

2011 Land Rover LR4

2006 Nissan Maxima

2023 Chevrolet Corvette

2004 GMC Envoy XL

2002 Toyota Solara

2009 GMC Canyon

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
