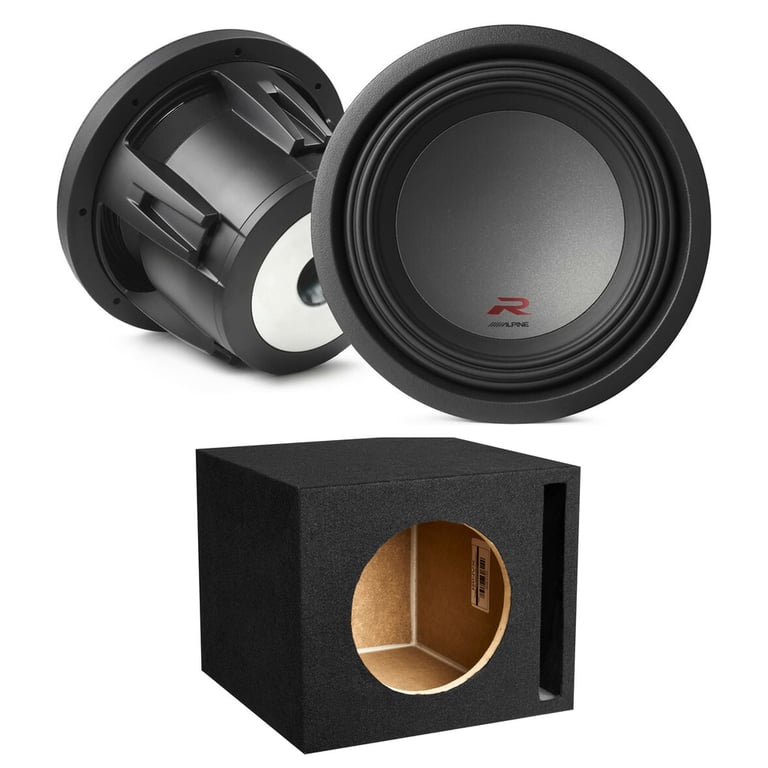

Alpine R2-W10D4 with Ported Enclosure

2250W Peak (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer

Alpine
Shop all Alpine
Lowest price in 30 days
highlight-star-icon

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (H.A.M.R) Surround
• Impedance: Dual 4 ohm
• Sensitivity: 82.8 dB
• Includes Ported Enclosure

Learn more about the r2w10d4_xmdfp101

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Alpine brand icon

Authorized dealer

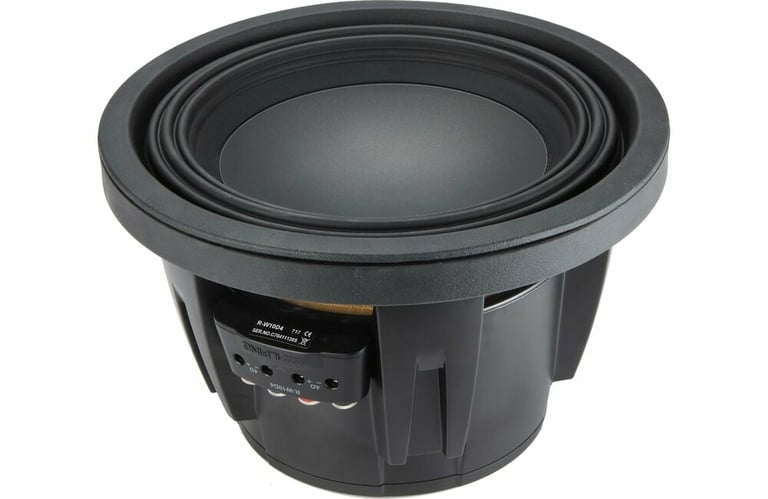

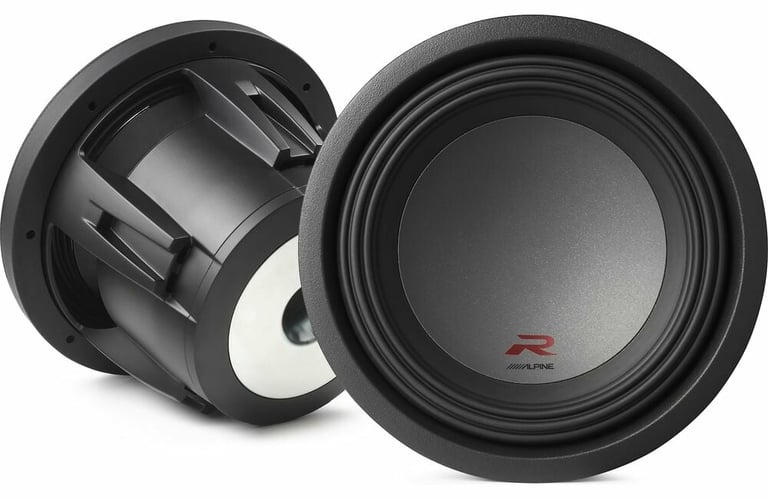

Alpine R2-W10D4

2250W Peak (750W RMS) 10" R2-Series Dual 4-ohm Car Subwoofer
Quantity: 1

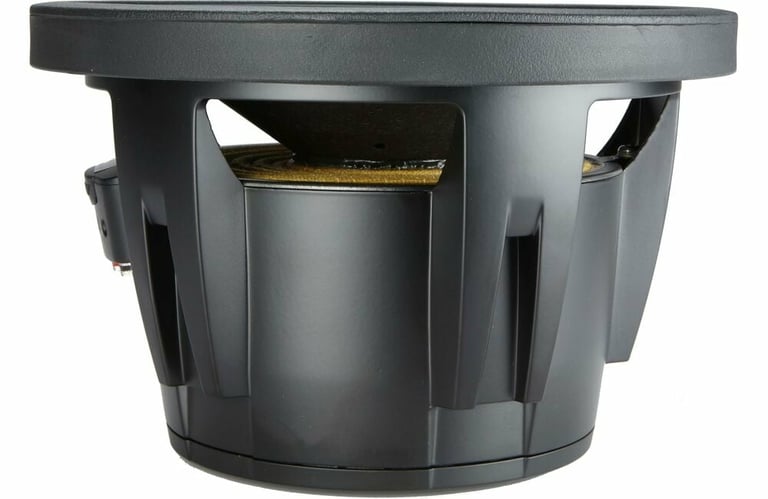

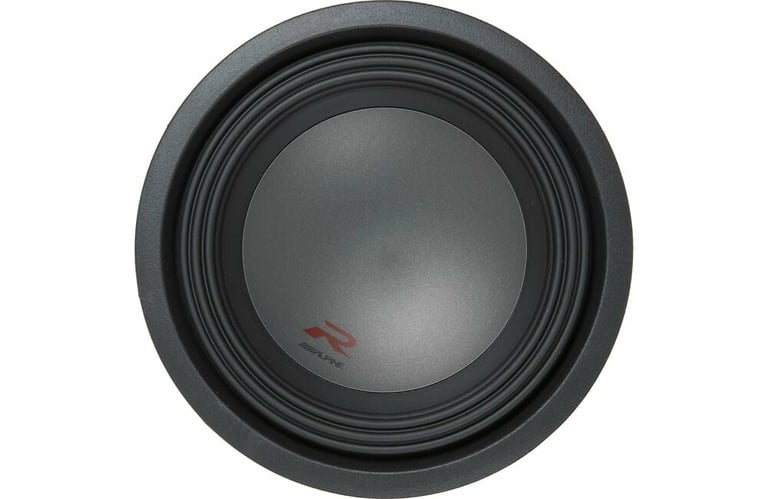

Product Details:

  • 10" Dual 4 ohm R2 Series Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Kevlar Reinforced Pulp Paper Cone
  • High-Amplitude Multi-Roll (HAMR) Surround
  • 2.6" High Temperature Voice coil
  • 20 mm Xmax

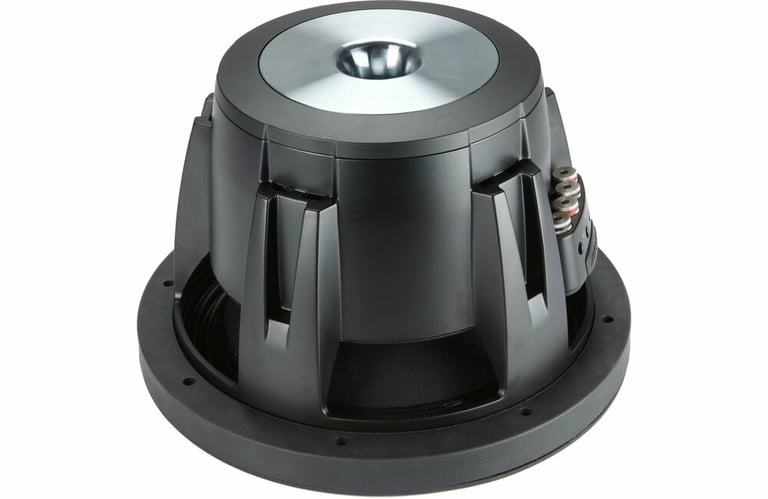

  • 123 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 26 - 200 Hz
  • Resonance Frequency (Fs): 32 Hz
  • Sensitivity: 82.8 dB
  • Recommended sealed box volume: .4 cubic feet - .85 cubic feet
  • Recommended ported box volume: .75 cubic feet - 1.3 cubic feet
  • Top-mount depth: 5.92"
  • Cutout diameter: 9.06"
  • Authorized Internet Dealer
  • Subwoofer grille Alpine KTE-10G optional (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconAlpine R2W10D4 owner’s manual

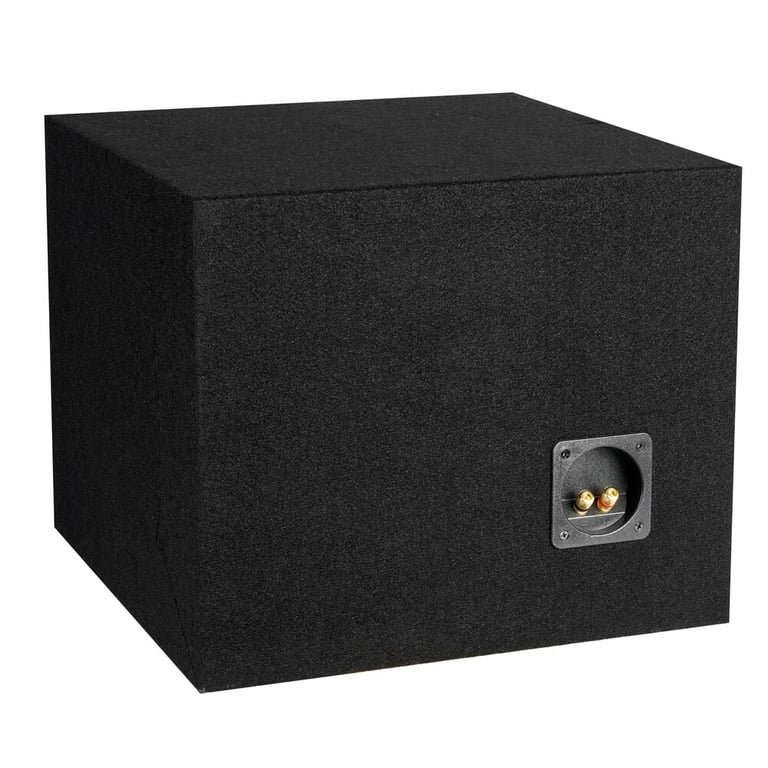

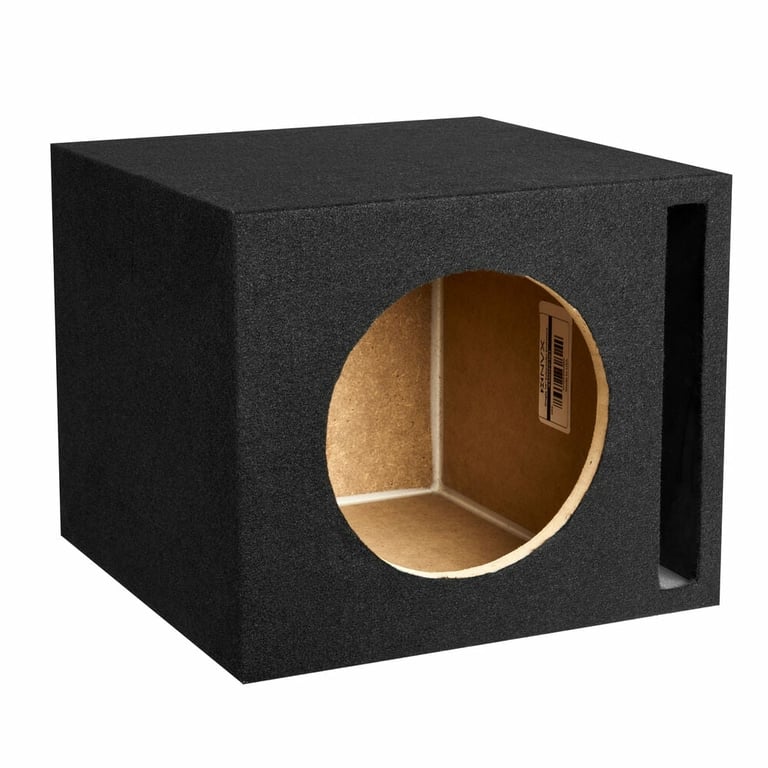

NVX XMDFP101

Single 10” Ported 3/4" (1.2 cubic ft) MDF Black Carpeted Subwoofer Enclosure (Made in the USA)
Quantity: 1

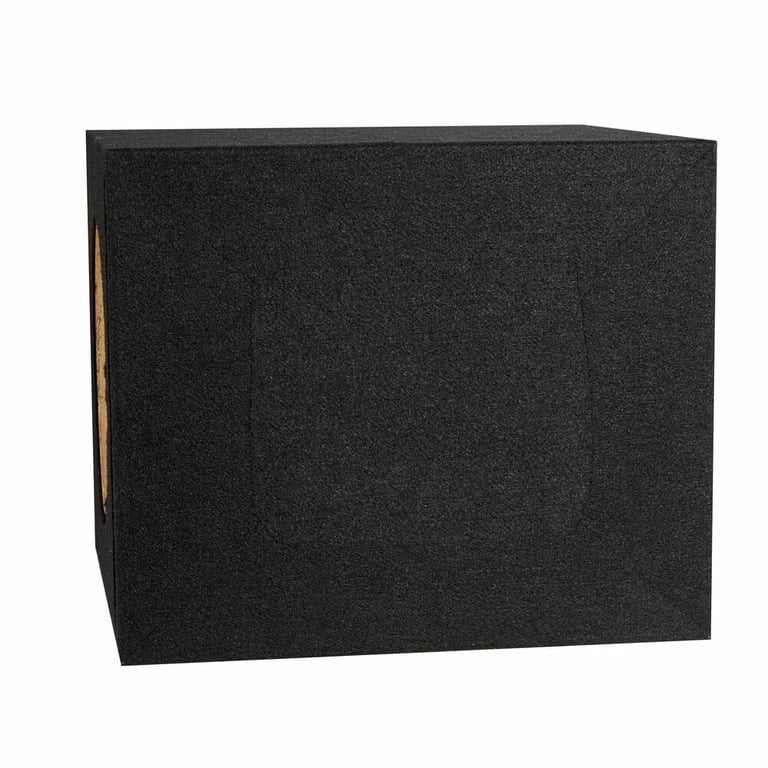

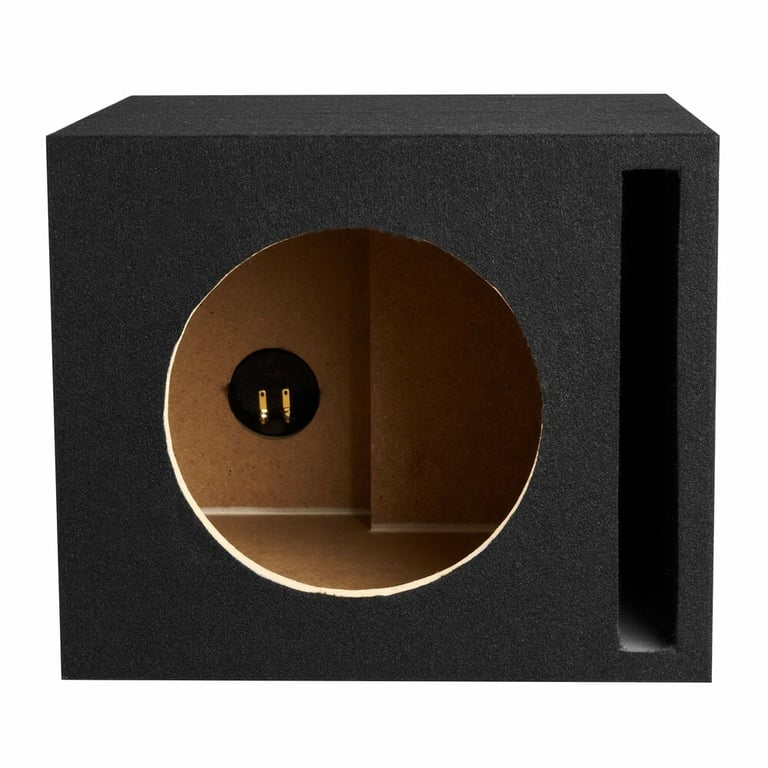

Product Details:

  • Single 10" Vented MDF Enclosure
  • Holds one 10" subwoofer

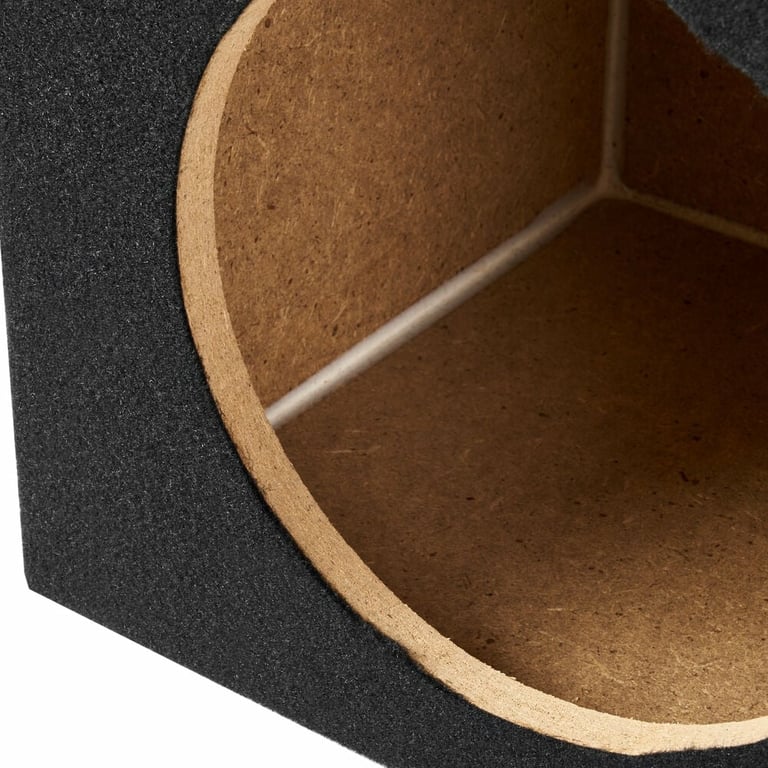

  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Made in the USA
  • Each Piece is CNC Cut Exact to Specification
  • Ported Box Design
  • Durable black carpeting

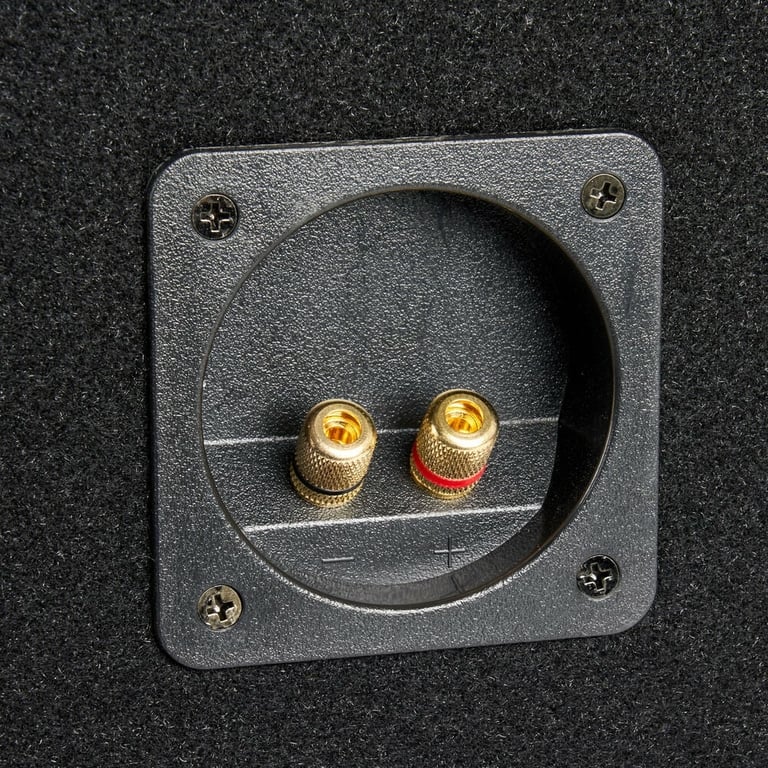

  • Gold Terminals
  • Internal Box Volume: 1.2 cubic ft.
  • Dimensions: 13.5"H x 16"D x 16"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
RMS Power Handling
750 watts
Peak Power Handling
2250 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
High-Amplitude Multi-Roll (H.A.M.R)
Sensitivity
82.8 dB
Frequency Response
26 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2-W10D4, XMDFP101

Weight:

47.00lbs

Internal SKU:

r2w10d4_xmdfp101

Internal Product ID:

199747
