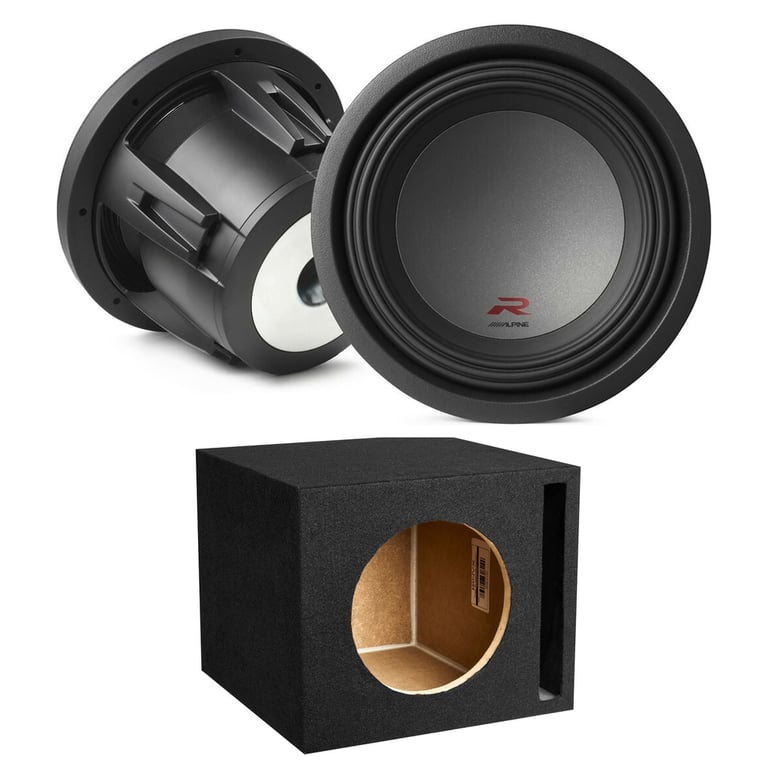

Alpine R2-W10D2 with Ported Enclosure

2250W Peak (750W RMS) 10" R-Series Dual 2-Ohm Car Subwoofer

Alpine
Shop all Alpine
Lowest price in 30 days
highlight-star-icon

• Peak Power: 2250 watts
• RMS Power: 750 watts
• Kevlar Reinforced Pulp Paper Cone
• High-Amplitude Multi-Roll (H.A.M.R) Surround
• Impedance: Dual 2 ohm
• Sensitivity: 82.3 dB
• Includes Ported Enclosure

Learn more about the r2w10d2_xmdfp101

We apologize

This item has been discontinued


Loading...
MI3017B main

Scosche MI3017B / MI3017 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2012 Eclipse and Eclipse Spyder (Black)

6
-18.07%

$39.99

List price $48.81

DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Description


Alpine brand icon

Authorized dealer

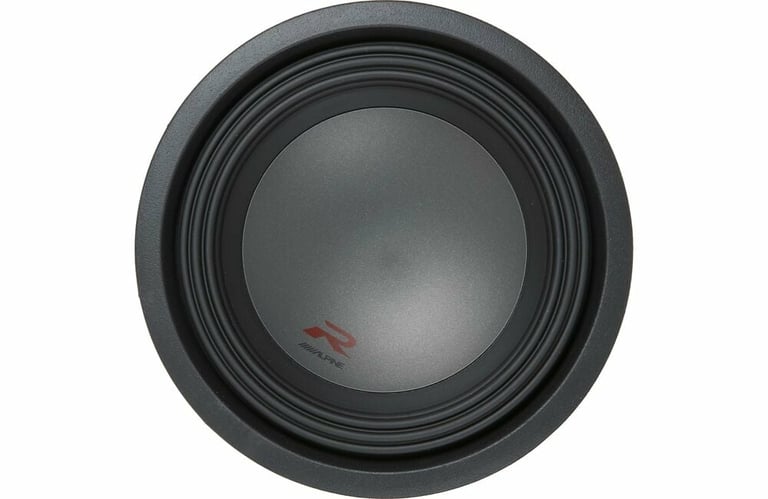

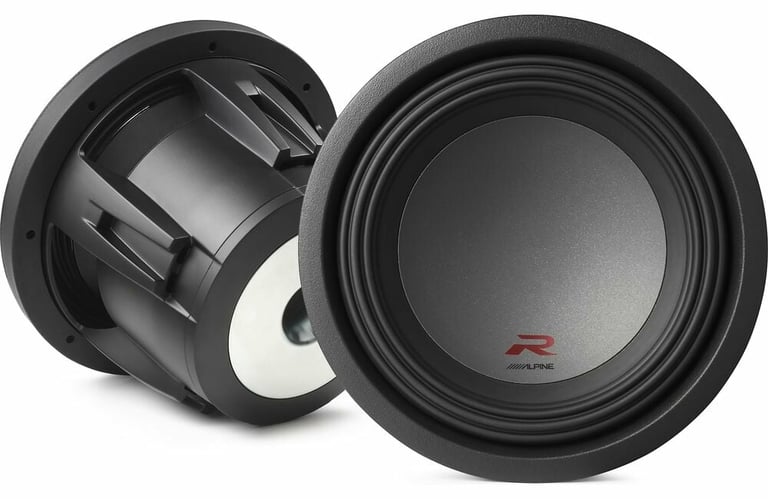

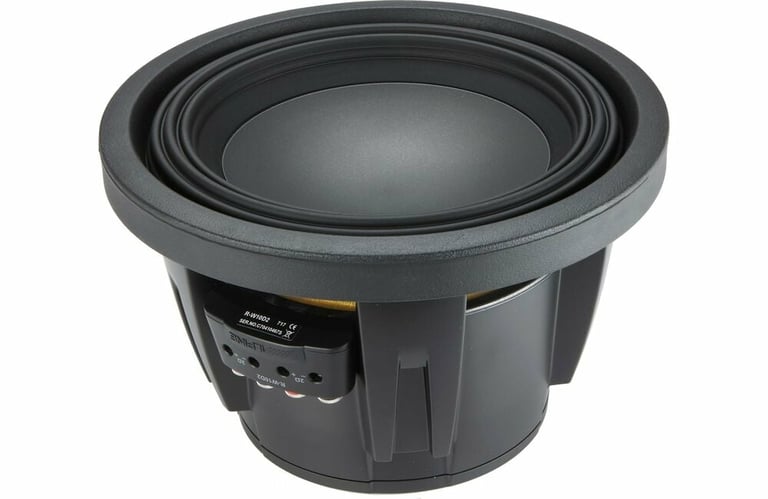

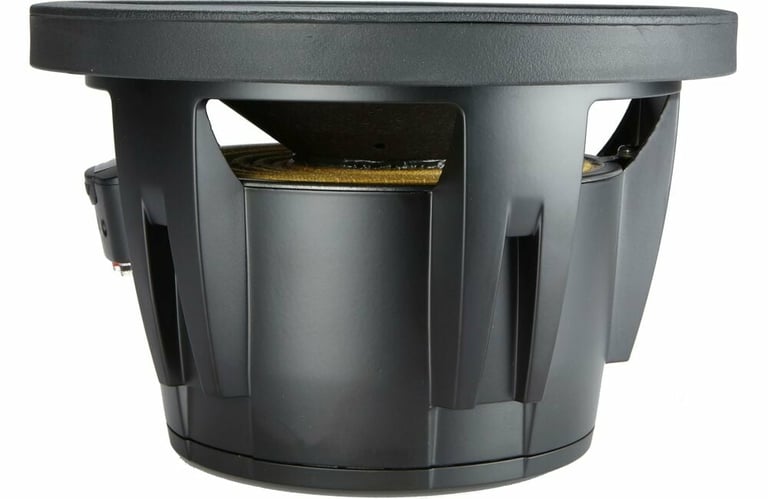

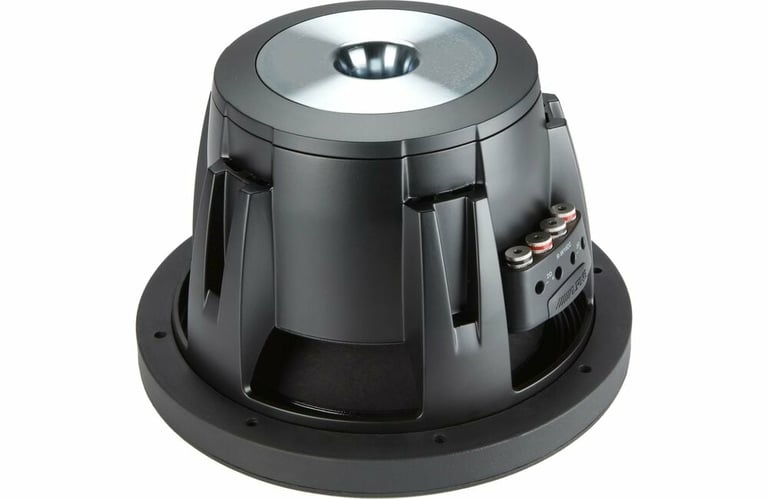

Alpine R2-W10D2

2250W Peak (750W RMS) 10" R2-Series Dual 2-ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 2 ohm R2 Series Subwoofer
  • Power Handling:
    • Peak: 2250 watts
    • RMS: 750 watts
  • Kevlar Reinforced Pulp Paper Cone
  • High-Amplitude Multi-Roll (HAMR) Surround
  • 2.6" High Temperature Voice coil
  • 20 mm Xmax
  • 123 oz. Double Stacked Ferrite magnet motor structure
  • Frequency Response: 26 - 200 Hz
  • Resonance Frequency (Fs): 31 Hz
  • Sensitivity: 82.3 dB
  • Recommended sealed box volume: .4 cubic feet - .85 cubic feet
  • Recommended ported box volume: .75 cubic feet - 1.3 cubic feet
  • Top-mount depth: 5.92"
  • Cutout diameter: 9.06"
  • Authorized Internet Dealer
  • Subwoofer grille Alpine KTE-10G optional (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconAlpine R2W10D2 owner’s manual

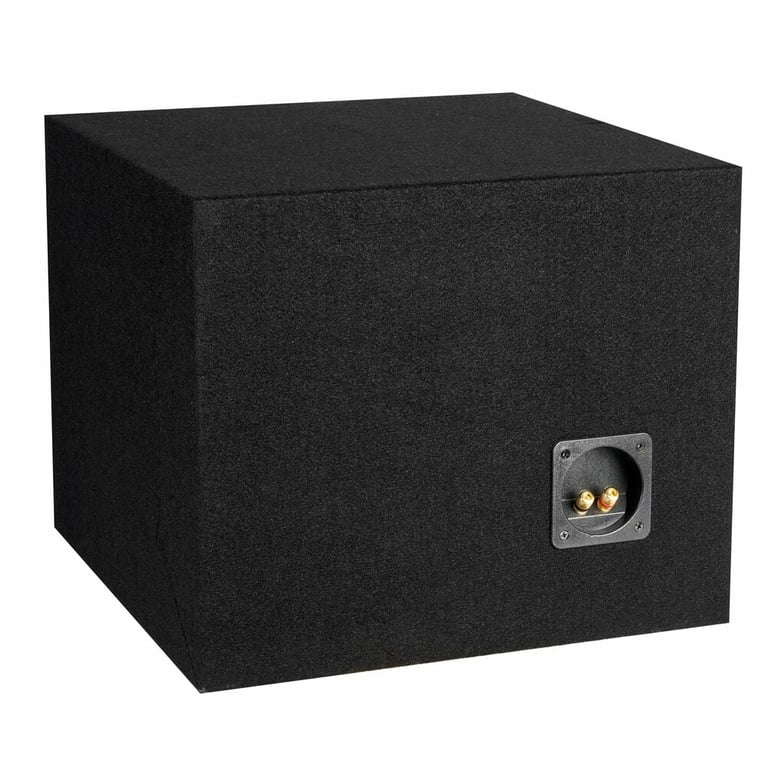

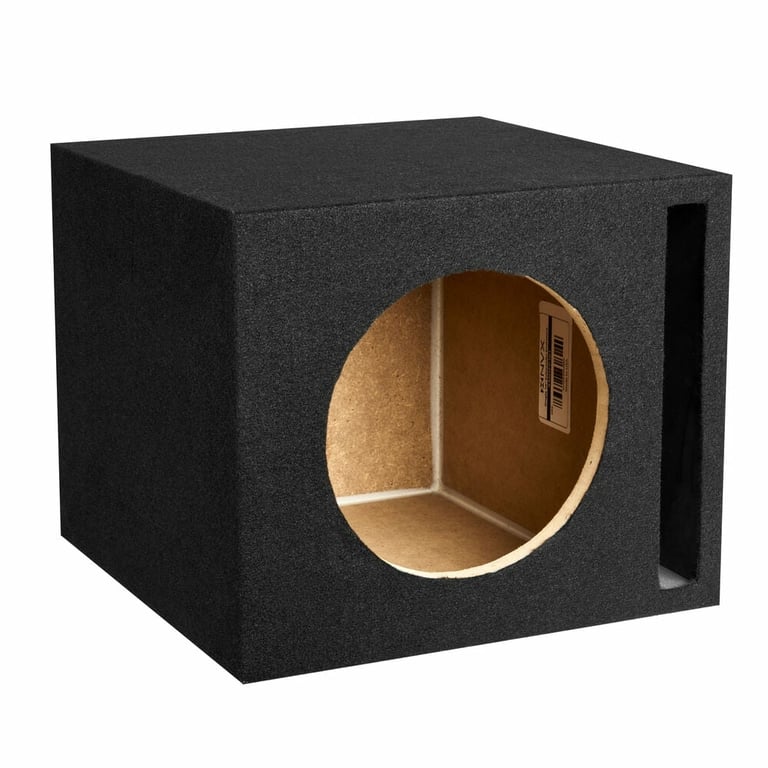

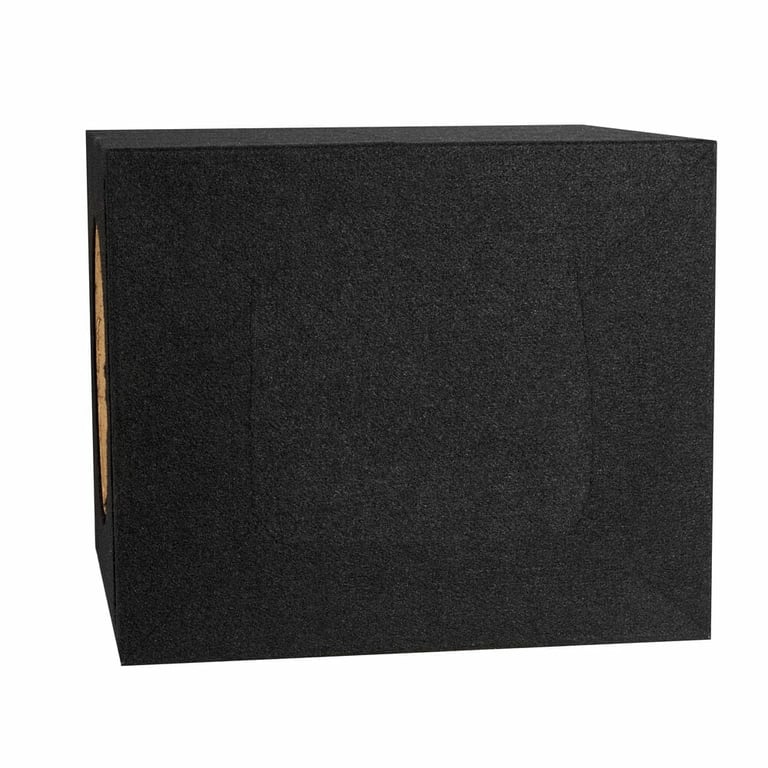

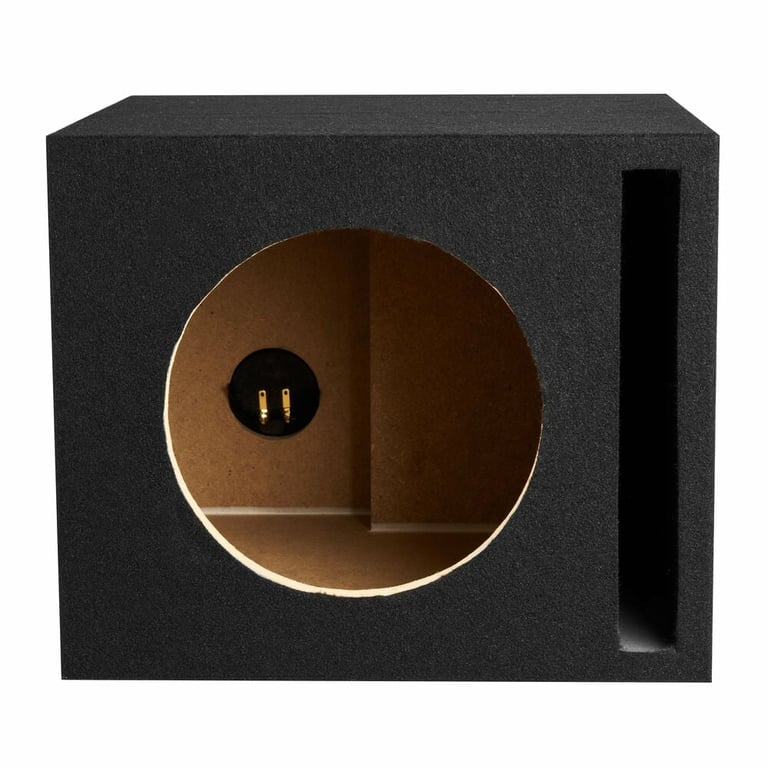

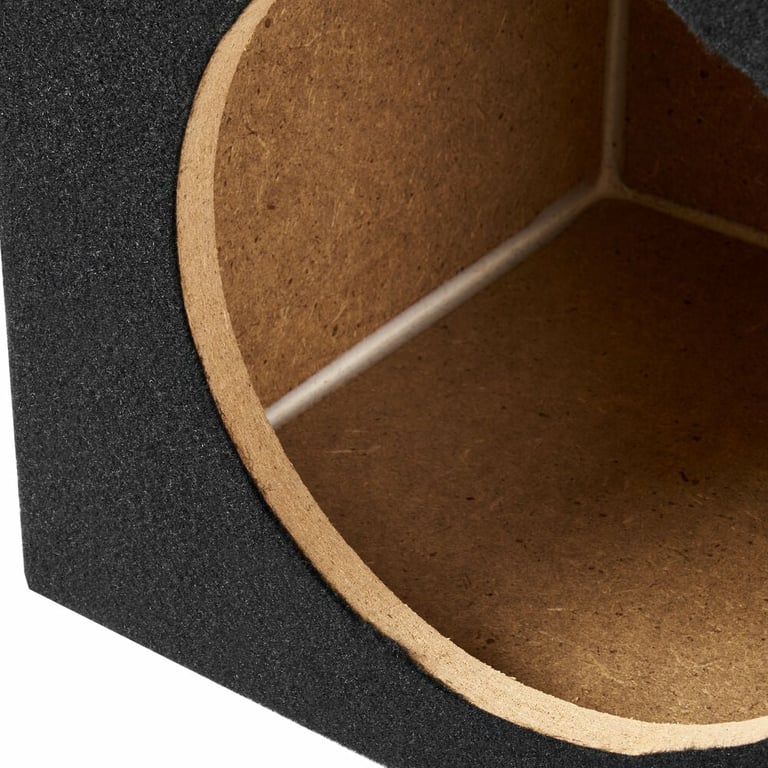

NVX XMDFP101

Single 10” Ported 3/4" (1.2 cubic ft) MDF Black Carpeted Subwoofer Enclosure (Made in the USA)
Quantity: 1

Product Details:

  • Single 10" Vented MDF Enclosure
  • Holds one 10" subwoofer
  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Made in the USA
  • Each Piece is CNC Cut Exact to Specification
  • Ported Box Design
  • Durable black carpeting

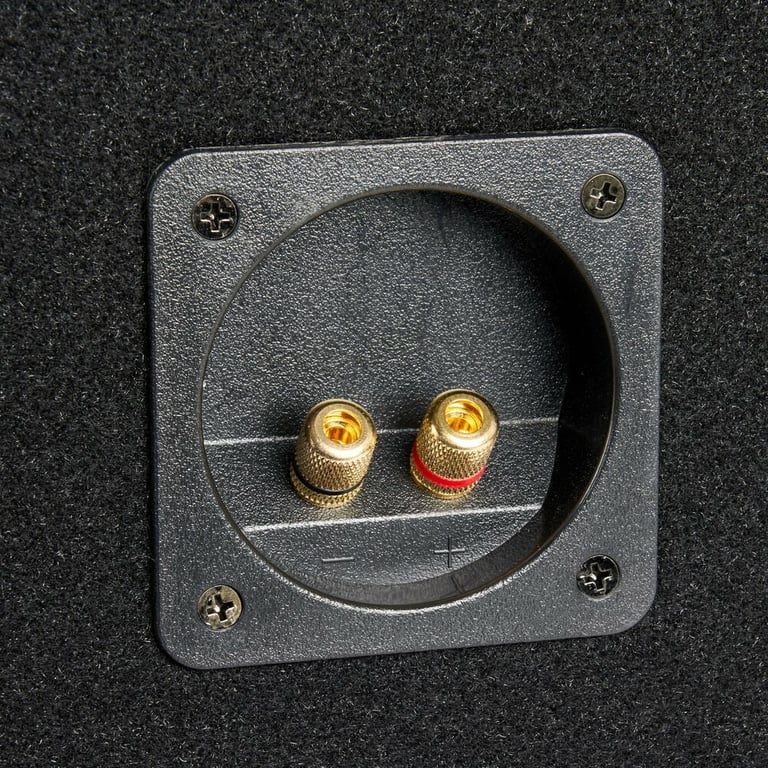

  • Gold Terminals
  • Internal Box Volume: 1.2 cubic ft.
  • Dimensions: 13.5"H x 16"D x 16"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

DCWR122 small

Kicker DCWR122 (48DCWR122)

• Ported enclosure with 2 12" CompR Series Subwoofer
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 32-3/8" L x 16" H x 14" W x 17-1/4" W2

(2)

$439.96

List price $599.99

CP110-W0v3 small

JL Audio BassWedge CP110-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$229.99

List price $229.99

P1-2X12 small

Rockford Fosgate Punch P1-2X12

• Two 12" Punch Series Stage 1 Subwoofers
• Kevlar Reinforced Paper Cone
• Tear and Fatigue Resistant
• Proprietary Spider Venting/Cooling Technique
• Solid 5/8" MDF Construction

(17)

$439.99

List price $489.99

CP212-W0v3 small

JL Audio CP212-W0v3

• Dual 12" 12W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(14)

$449.99

List price $449.99

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
RMS Power Handling
750 watts
Peak Power Handling
2250 watts
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
High-Amplitude Multi-Roll (H.A.M.R)
Sensitivity
82.3 dB
Frequency Response
26 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

R2-W10D2, XDMFP101

Weight:

47.00lbs

Internal SKU:

r2w10d2_xmdfp101

Internal Product ID:

199752
