Planet Audio P10AW

1000W Peak (500W RMS) 10" Amplified and Loaded Under Seat Subwoofer System

Planet Audio
Shop all Planet Audio
highlight-star-icon

• 10" Amplified Loaded Subwoofer System
• 500 watts RMS
• Built-In Class D Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control

Learn more about the p10aw

We apologize

This item has been discontinued

Description


Planet Audio brand icon

Authorized dealer

General Features:

  • Single 10" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • PWM MOSFET Power Supply
  • Overload, short circuit, and thermal protection
  • Final Impedance: 2.6
  • Built-in Class D amplifier

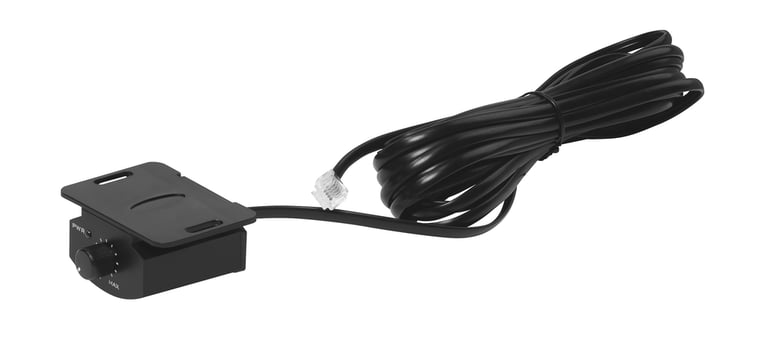

  • Includes Remote Bass Level Controller
  • Sealed Square/Rectangle enclosure
  • 8 AWG gauge power and ground wiring is recommended for installation
  • Enclosure Dimensions: 13.58" L x x 10.43" W x 3.15" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Features:

  • 10" Subwoofer
  • Ferrite Magnet Motor Structure

Amplifier Features:

  • Class D Monoblock Amplifier
  • Low-Pass Crossover Frequency: 50 - 150 Hz
  • Bass Boost: 0 - 12 dB
  • Speaker-level (high-level) inputs
  • Input sensitivity: .05 - .3 volts

Planet Audio P10AW Manual

Specifications & Details


Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 150 Hz
Low-Level Input Sensitivity
.05 - .3 volts
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
Total RMS Power Handling
500 watts
Total Peak Power Handling
1000 watts
Magnet Type
Ferrite
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
3.15"
Width
10.43"
Depth
13.58"
Box Finish
Aluminum
Final Wired Impedance
2.6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P10AW

Weight:

12.67lbs

Internal SKU:

p10aw

Internal Product ID:

199808
