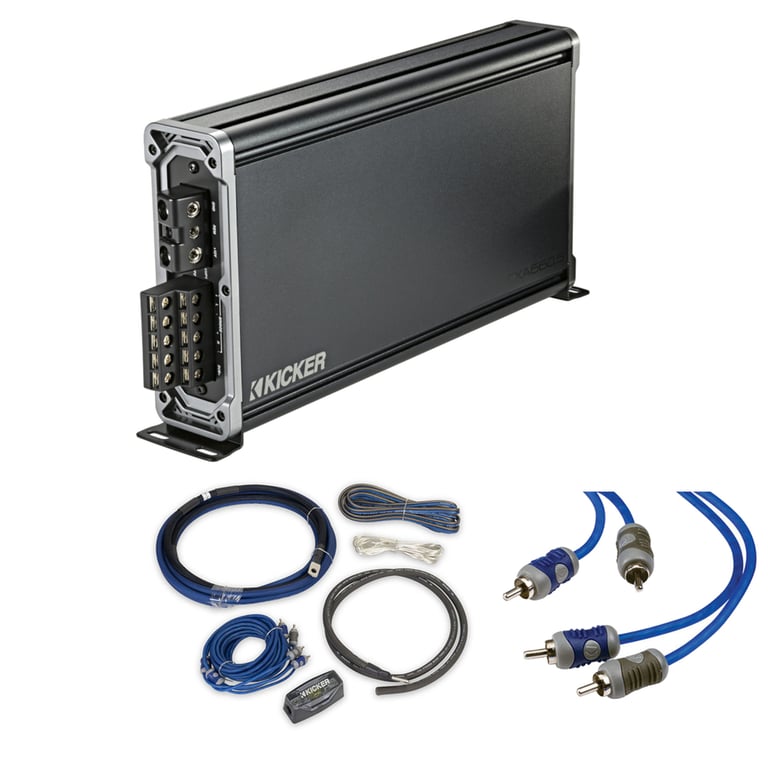

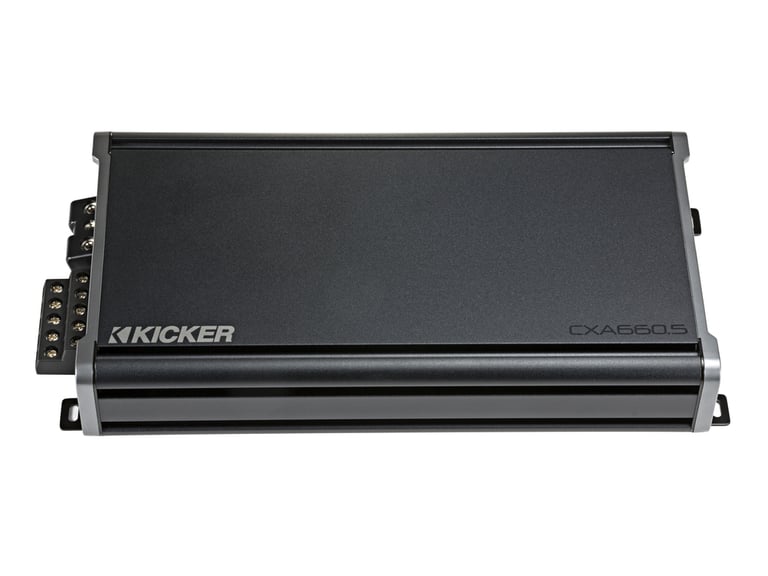

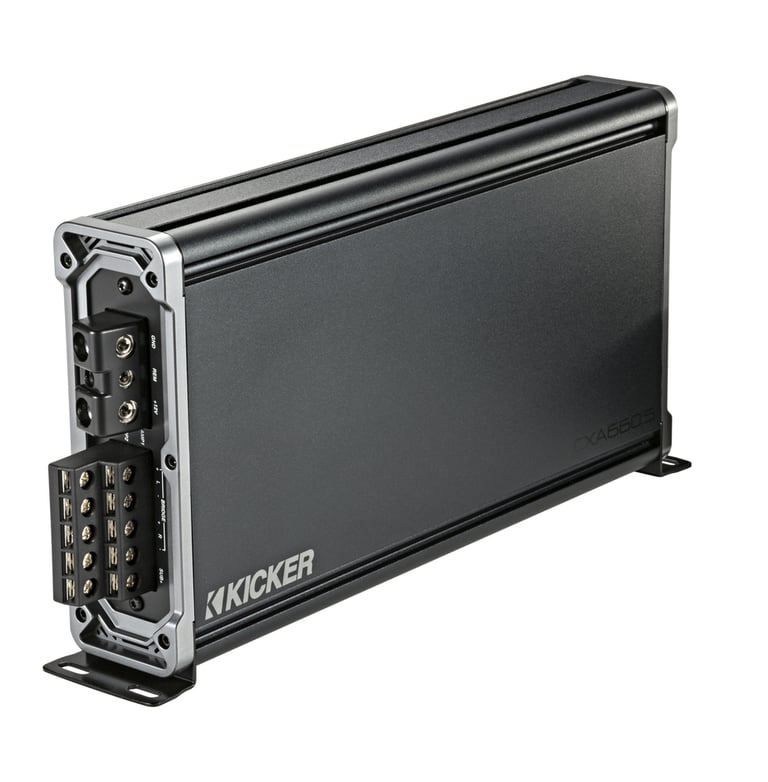

Kicker 46CXA660.5 with Amp Kit and 3 Year Warranty

360W RMS CX-Series Class-D 5-Channel Amplifier with 4 Gauge Amp Kit

Kicker
Shop all Kicker
Out of stock
highlight-star-icon

• 65 Watts RMS x 4 @ 4 ohm
• 90 Watts RMS x 4 @ 2 ohm
• 180 Watts RMS x 2 @ 4 ohm (bridged)
• 150 Watts RMS x 1 @ 4 ohm (sub channel)
• 300 Watts RMS x 1 @ 4 ohm (sub channel)
• Class A/B Full-Range Channel Amplifier w/Class-D Bass Channel
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
• Amplifier wiring kit included

Learn more about the 46cxa6605_ampkit
Was $723.97 Details
Thanks , You Pay:

$693.97

 with warranty

Heads up

We confirm fitment and offer accessories for speakers. Please set your vehicle first if you would like to purchase more than one 46cxa6605_ampkit.

Set your vehicle or Return to product page
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 24 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Description


Kicker brand icon

Authorized dealer

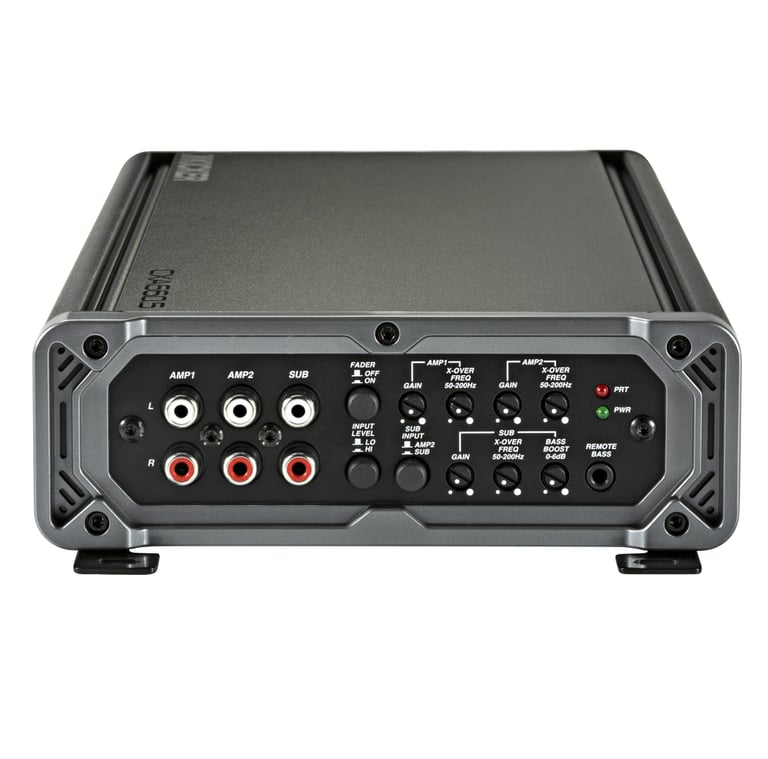

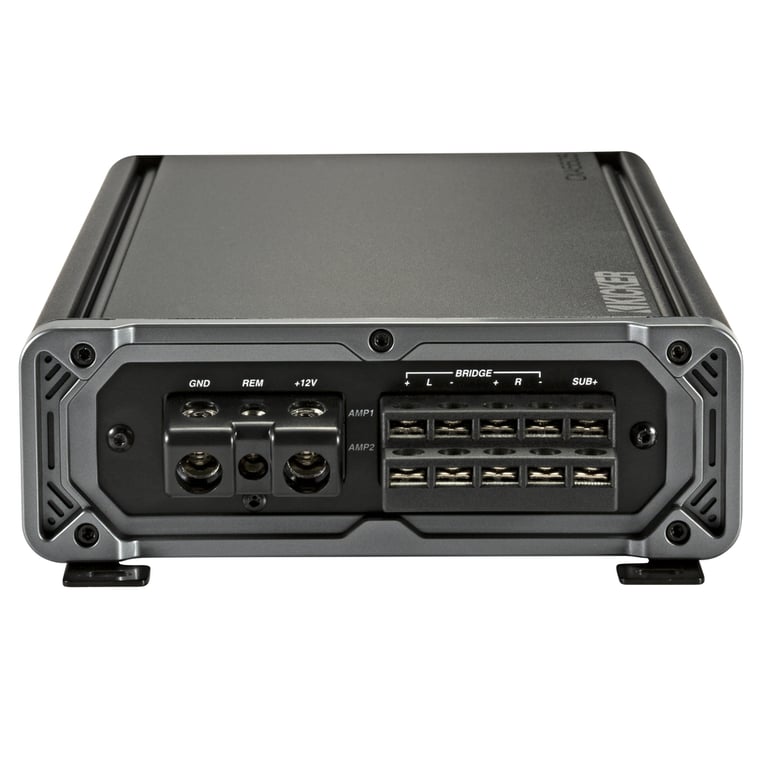

Amplifier Features:

  • Class A/B Full-Range Channel Amplifier w/Class-D Bass Channel
  • RMS Power Rating:
    • 4 ohm: 65 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • 4 ohm (bridged): 180 watts x 2 chan.
    • 4 ohm (sub channel): 150 watts x 1 chan.
    • 2 ohm (sub channel): 300 watts x 1 chan.
  • Speaker-level (high-level) inputs
  • KickEQ™ 6dB variable bass boost for those additional low frequencies
  • FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
  • Input sensitivity:
    • Low level: 250mV-10V
    • High level: 1V-40V
  • Frequency Response:
    • 10 - 20,000 Hz
    • 25 - 200 Hz (Sub Ch.)
  • Signal to Noise Ratio: 90 dB
  • Active Crossover:
    • Amp 1-2: High Pass 10-200Hz @ 12dB/Octave
    • Sub Channel: Low Pass 50-200Hz @ 12dB/Octave
  • Variable Bass Boost: 0 to +6 dB bass boost at 40 Hz
  • Dimensions: 6-3/4"W x 14-1/8"L x 2-3/8"H

Kicker CXA660.5 owner’s manual

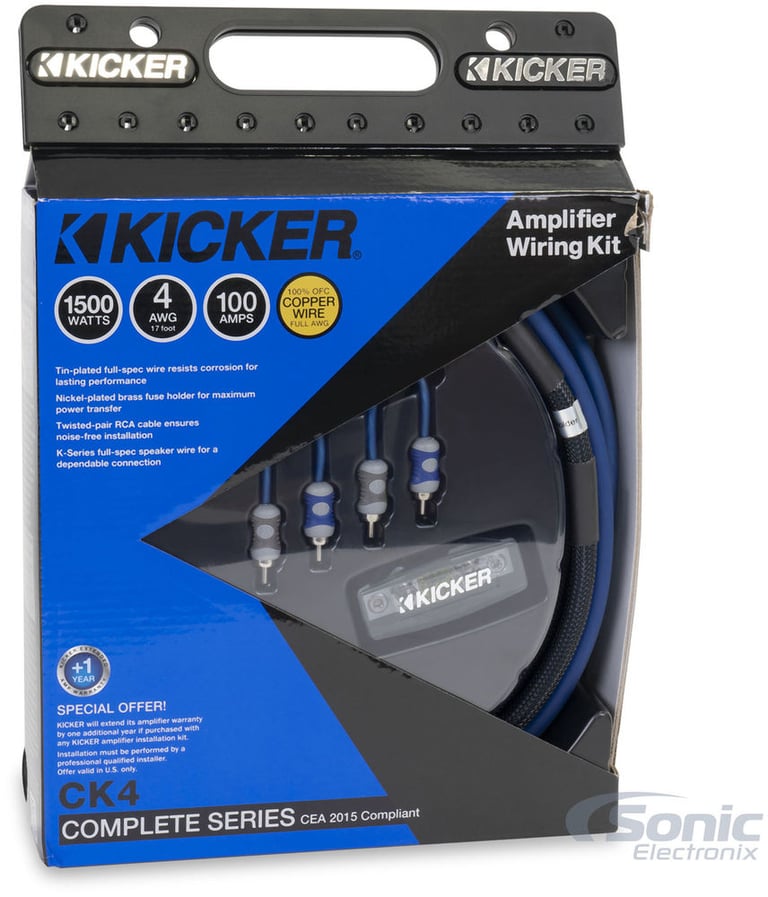

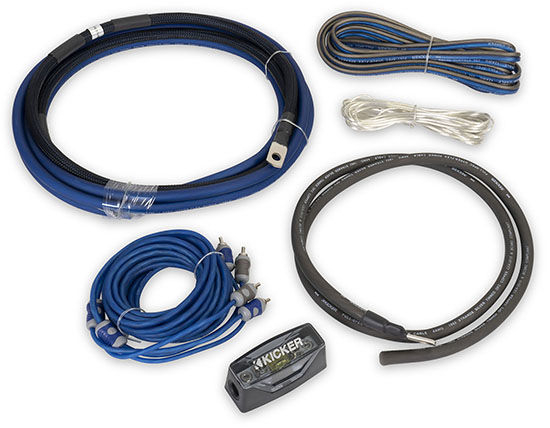

Wiring Kit Features:

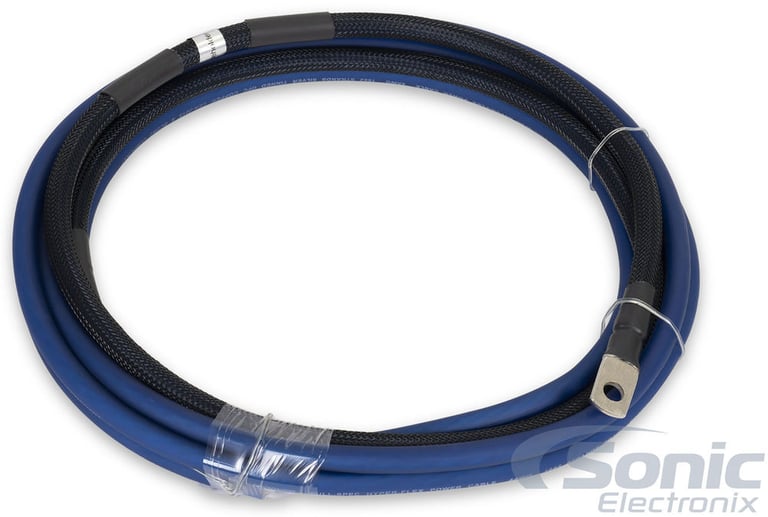

  • 17 ft 4 awg blue power wire

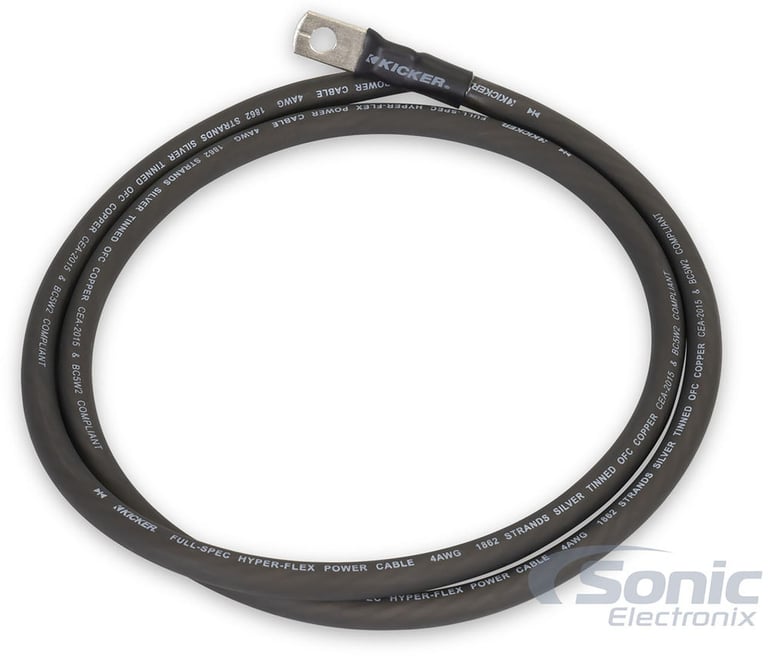

  • 4 ft 4 awg gray ground wire

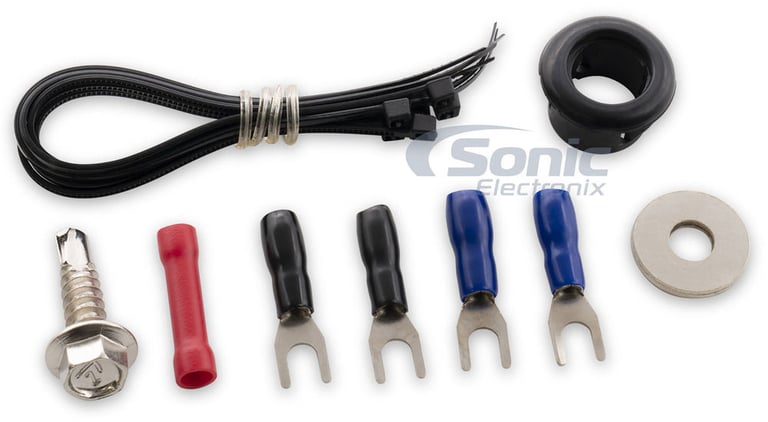

  • Self tapping bolt and washer

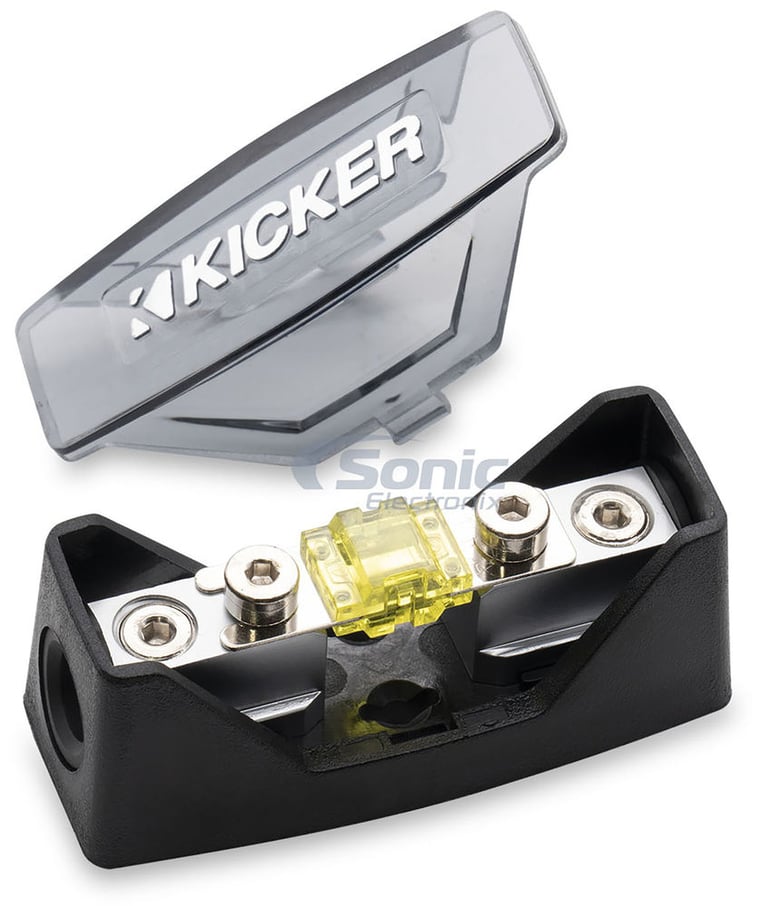

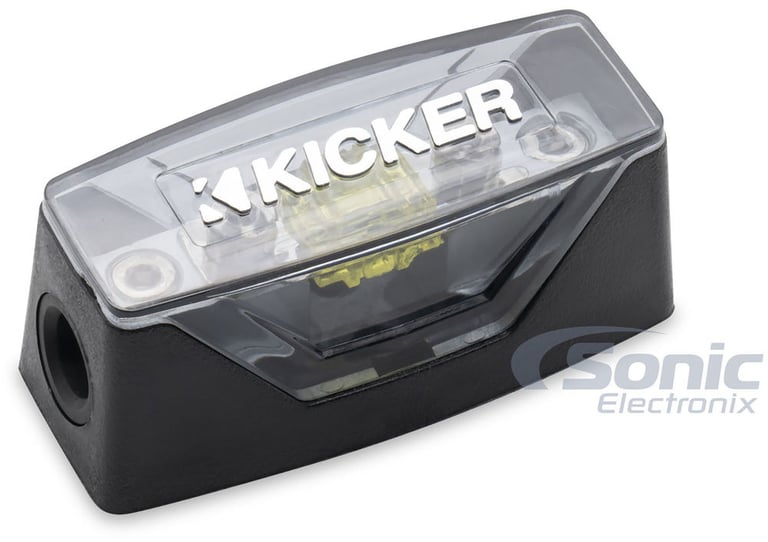

  • FHS fuse holder with 100 amp fuse L=3.06", W=1.33", H=1.32"

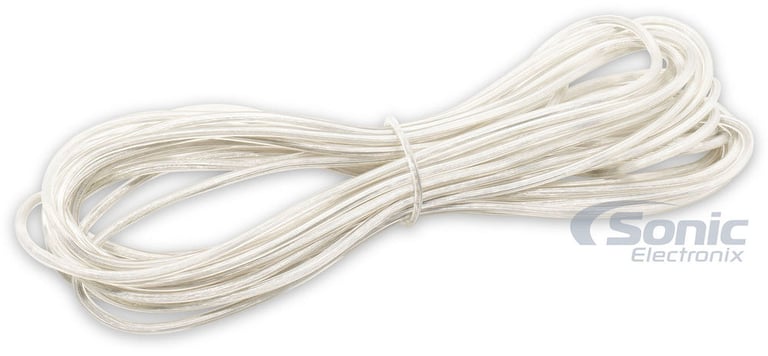

  • 7 ft 16 gauge remote wire

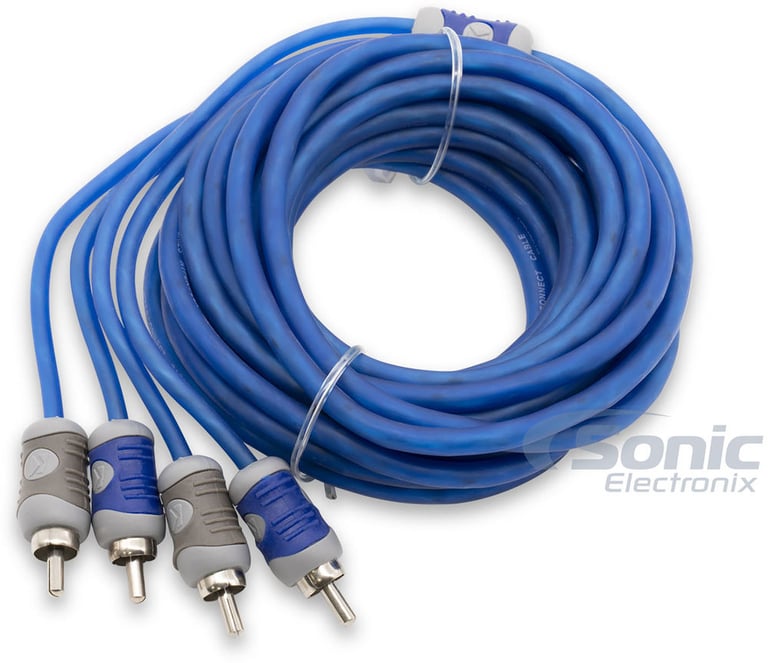

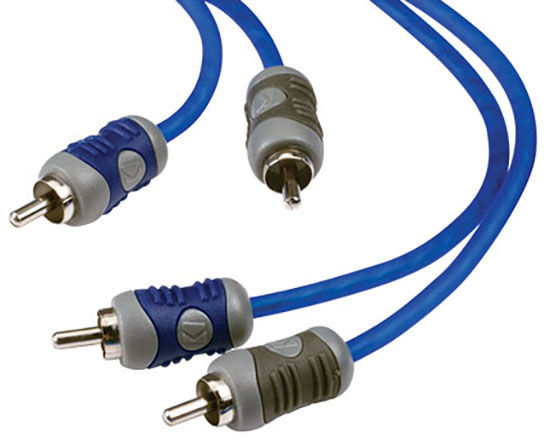

  • 16.4 ft KI RCAs

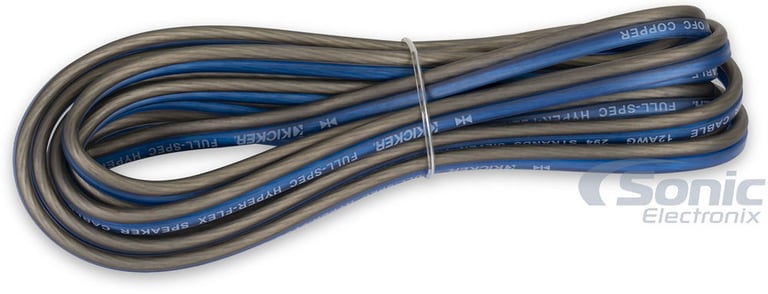

  • 12 ft Q series 12 awg speaker wire
  • 4 awg firewall grommet
  • 1x 18-22 awg butt connector
  • 4x 12 awg fork terminals
  • 2x blue fork terminal boots
  • 2x black fork terminal boots
  • Extended 3-Year Warranty
  • Authorized Internet Dealer
  • Product history:

    Kicker CXA660.5, 46CK4, 46KI46 thumbnail
    (newest, current model)
    Kicker 43CXA6005 thumbnail
    (previous model, replaced by Kicker 46CXA660.5 with Amp Kit and 3 Year Warranty)
    Kicker CX600.5 thumbnail
    (previous model, replaced by Kicker CXA600.5 Amplifier (43CXA6005))

    This product is temporarily out of stock. May we recommend...

    Kicker 46CXA3604 + 6.5" Coaxial Speakers (2-Pairs)


    •65 watts x 4 channel @ 4 ohm
    •90 watts x 4 channel @ 2 ohm
    • Bridged: 180 watts x 2 channel @ 4 ohm
    •Total RMS Power: 360 watts
    • Class A/B 2 ohm Stable 4-Channel Amplifier
    • Includes Two Pairs of 6.5" Series Coaxial Speakers

    (123)

    $429.97

    List price $489.97

    Pioneer GM-D1004 with Amplifier Wiring Kit

    • RMS Power: 45W x 4 @ 4 ohm, 45W x 4 @ 2 ohm
    • Total Peak Power: 400W
    • CEA-2006 Compliant
    • Dimensions: 7-1/8" W x 2-1/2" D x 1-1/2" H

    (46)

    $158.95

    List price $269.99

    Rockford Fosgate Punch P1000X2 + NVX XKIT42 4 Gauge Amp Wiring Kit

    • 300W x 2 Chan. @ 4 ohm
    • 500W x 2 Chan. @ 2 ohm
    • Built In NOMAD "Real Time" Analog Computer
    • 2/1 Channel Operation
    • 4 Gauge Power and Ground Inputs
    • MESHA3 Reduces MOSFET Temperatures for Improved Durability
    • Includes NVX XKIT42 4 Gauge Amp Wiring Kit

    (124)

    $579.99

    List price $693.98

    Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

    • RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
    • Total RMS Power: 500W
    • CEA-2006 Compliant
    • Remote PLC (Punch Level Control) Included
    • Efficient Class-D circuit topology
    • 4 Gauge Power Amplifier Installation Kit
    • Ideal for Systems Up to 650 Watts
    • Premium Power and Ground Wire Provides Optimal Power Transfer
    • 2-Channel Twisted RCA Cables

    (72)

    $279.99

    List price $369.98

    Rockford Fosgate Prime R500X1D Amplifier + 1.0 Farad Capacitor + 4 Gauge Amp Kit

    • Rockford Fosgate R500X1D 500W RMS Prime Monoblock Amplifier
    • Belva BAK42 Complete 4 Gauge 2-Channel Amplifier Installation Kit
    • Belva BB1D 1.0 Farad Capacitor
    • RMS: 500W x 1 @ 2 ohm
    • Premium Power and Ground Wire Provides Optimal Power Transfer

    (152)

    $369.99

    List price $449.97

    Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

    • R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
    • BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

    (77)

    $279.99

    List price $369.98

    Kicker 46CXA1200.1T with Amp Kit and 3 Year Warranty

    • 600 Watts RMS x 1 @ 4 ohm
    • 1200 Watts RMS x 1 @ 2 ohm
    • 1200 Watts RMS x 1 @1 ohm
    • Efficient Class-D Monoblock Amplifier
    • KickEQ™ 6dB variable bass boost for those additional low frequencies
    • FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
    • Amplifier wiring kit included

    (27)

    $539.98

    List price $629.98

    Rockford Fosgate R2-750X5 with Amplifier Wiring Kit

    • 50 Watts RMS x 4 @ 4 ohm
    • 100 Watts RMS x 4 @ 2 ohm
    • Total Peak Power: 600 Watts
    • CEA-2006 Compliant
    • Balanced Differential Inputs with RCA Pass Through Outputs
    • Variable Infrasonic Filter
    • Includes Amplifier Wiring Kit

    (46)

    $489.99

    List price $719.98

    Rockford Fosgate Punch P500X1BD with Amplifier Wiring Kit

    • RMS: 150W x 1 @ 4 ohm, 300W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
    • Total RMS Power: 500W
    • CEA-2006 Compliant
    • Tuned Bass EQ: 0 to +18 dB
    • Super Efficient Class BD Circuitry
    • Dimensions: 11"L x 7-3/4"W x 2-3/8"H

    (130)

    $489.98

    List price $573.98

    Kicker 48KXMA500.4 with Amp Kit and 3 Year Warranty

    • 50 Watts RMS x 4 @ 4 ohm
    • 100 Watts RMS x 4 @ 2 ohm
    • 200 Watts RMS x 2 @ 4 ohm Bridged
    • Total Power: 400 Watts
    • CEA-2006 Compliant/
    • 0 - +18 Bass Boost
    • Heavy Duty Aluminum Heatsink
    • Dimensions: 8-5/16" W x 11-3/16" L x 2-1/8" H
    • Amplifier wiring kit included

    $619.98

    List price $649.98

    Specifications & Details


    Power Specifications - Full Range Channels
    RMS Power @ 4 ohms
    65 watts x 4 channel
    RMS Power @ 2 ohms
    90 watts x 4 channel
    Bridged RMS Power
    180 watts x 2 channel
    Power Specifications - Subwoofer Channel
    RMS Power @ 4 ohms
    150 watts x 1 channel
    RMS Power @ 2 ohms
    300 watts x 1 channel
    Amplifier Specifications
    Amplifier Class
    A/B
    Number of Channels
    5-Channel
    Total RMS Power Output
    360 watts
    Maximum Input Gauge Size
    4 AWG
    Minimum Impedance Unbridged
    2 ohm
    Minimum Impedance Bridged
    2 ohms
    Speaker Level Inputs
    Yes
    Preamp Outputs
    No
    Built-in Crossover
    Low-Pass (LP)
    High-Pass (HP)
    High-Pass Crossover Frequency
    50 - 200 Hz
    Low-Pass Crossover Frequency
    50 - 200 Hz
    Bass Boost
    0 - 6 dB
    Remote bass/level controller
    Optional (Accessory required and sold separately)
    CEA-2031 Compliant
    No
    Sonic Certified Amplifier
    Not Tested
    Amp Bluetooth Connectivity
    No
    Hi-Res Certified
    No
    Low-Level Input Sensitivity
    .125 - 5 volts
    High-Level Input Sensitivity
    1 - 40 volts
    Warranty and Return Policy
    Parts Warranty Duration
    2 years
    Labor Warranty Duration
    2 years
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    CXA660.5, 46CK4, 46KI46

    Weight:

    13.45lbs

    Internal SKU:

    46cxa6605_ampkit

    Internal Product ID:

    200013
