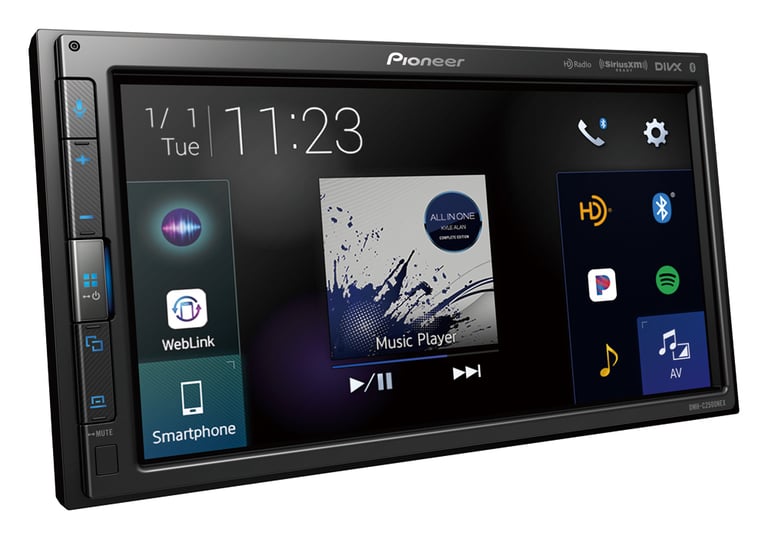

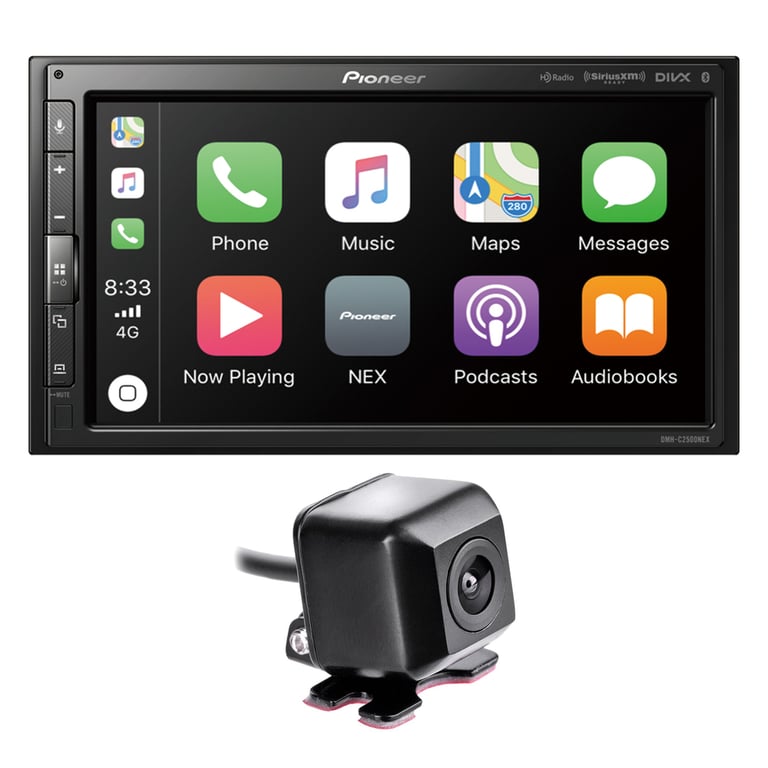

Pioneer DMH-C2550NEX with Backup Camera

Product Details

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 6.8" WVGA Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Touchscreen and chassis can be installed together or independently
• Great for problem vehicles where standard radios won't fit
• Pioneer CD-RGB150E for mounting the chassis away from the screen (sold separately)
• Pioneer RD-RGB150A for extra length for the antenna (sold separately)
• Features Pioneer advanced sound retriever

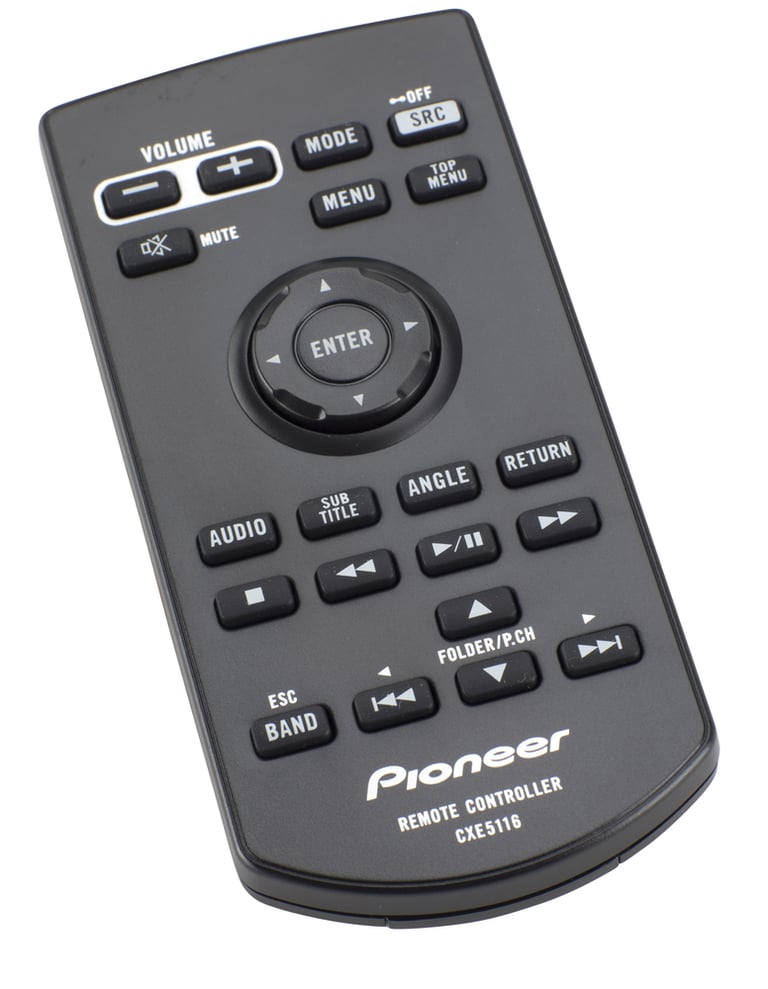

• Wireless remote control included
• Built-in HD Radio Tuner
• Apple HomeKit Compatible
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMH-C2550NEX

Smartphone Features

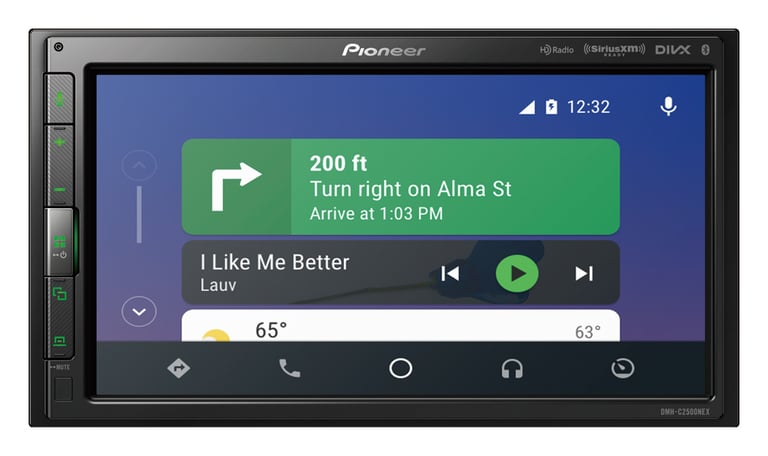

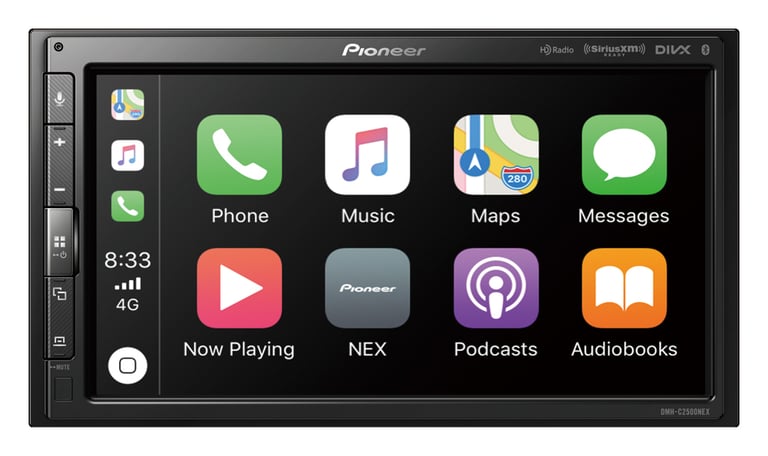

• Apple CarPlay and Android Auto compatible
• Display and control music, navigation, and other apps with iPhone and Android
• Built-in Amazon Alexa Paired with Pioneer Vozsis (with Wi-Fi connection)
• Pandora and Spotify capable
• Siri Eyes Free control for select iPhones and Google Assistant for Android

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC and FLAC (Hi-Res) Audio Playback
• AVI | MPEG4 | MKV | MOV | FLV | Divx and WMV Video Playback
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with Digital Time Alignment

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio
• Pioneer CD-MC20 Auto-EQ Microphone (sold separately)

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• 2 Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking

Pioneer DMH-C2550NEX owner’s manual

Product Details:

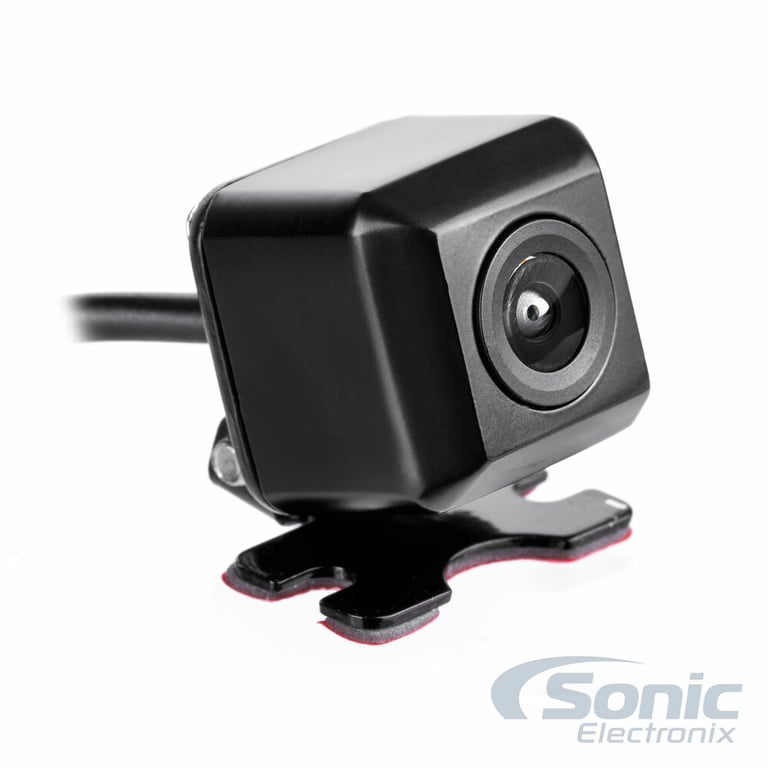

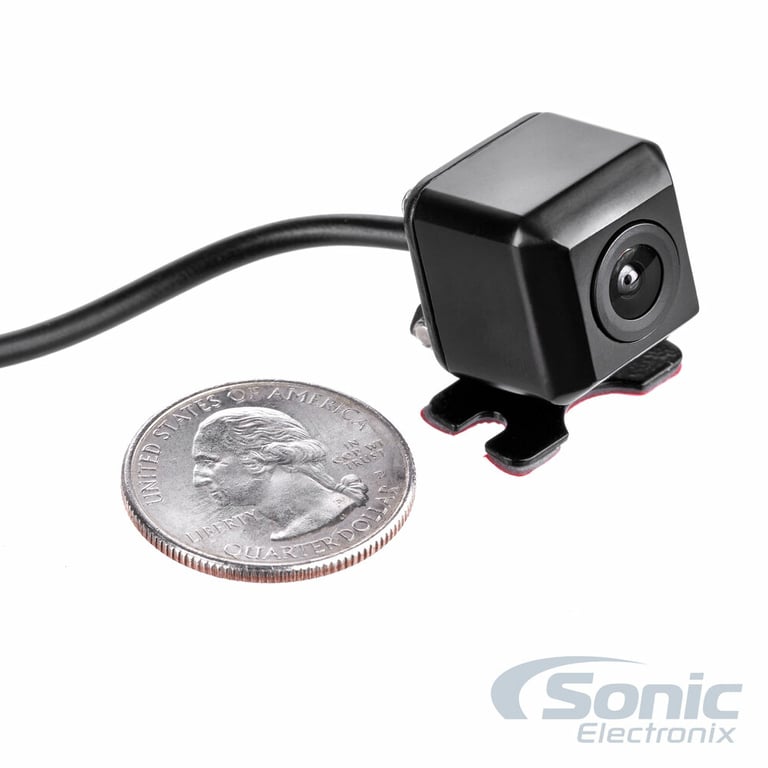

• Rear View Backup Camera with universal vehicle fitment
• Unique All Metal Body - built to be strong and durable to outlast the cheap, plastic competitors
• High Resolution 1089HDCCD Image Sensor
• Wide 170° viewing angle for greater visibility behind the car
• IP68-rated Waterproof - can withstand dust, dirt and sand, and are resistant to submersion up to a maximum depth of 1.5m underwater for up to thirty minutes
• Equipped with distance mark feature
• Guidelines Can be turned ON or OFF
• Can be used as a Front or Rear Camera
• Install with simple 6-pin connector, rather than bulky RCA
• 19 foot extension wiring harness included - assures you can install in even the largest vehicles
• NTSC Video Signal Out (RCA)
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Why You Need This

• Keep an eye on your trailer or an eye out for your cat
• Don't worry about hitting anything when you're backing up
• Don't strain yourself looking over your shoulder when backing up
• To not hit a pole and mess up your clean paint job
• Make sure your trailer is still attached
• Simply make things more convenient and safe when driving
• You deserve it

Specifications

• High Resolution 1089 HDCCD Image Sensor
• Resolution: 800 x 533 Resolution
• System: NTSC
• VTL: 540TV lines Video output
• 6 Pin Din Harness (for clean, easy installation)
• Signal to Noise Ratio: +50dB
• Viewing Angle: 170°
• Min illumination: 0.05Lm
• Power Supply: 12V DC

What's in the box?

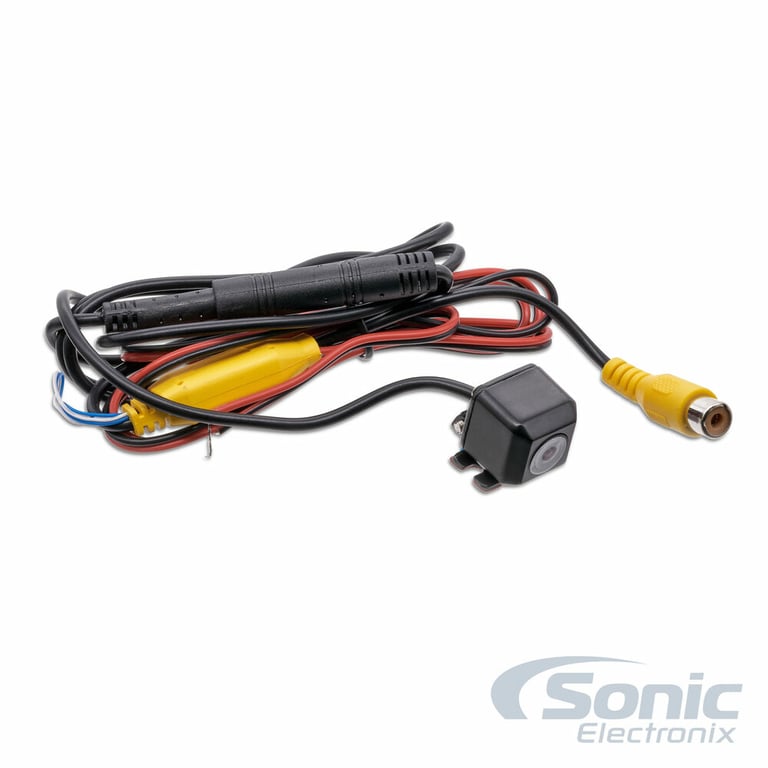

• Camera attached to main wiring harness with 6-pin connector with guideline + reverse view loops
• 3M adhesive strip

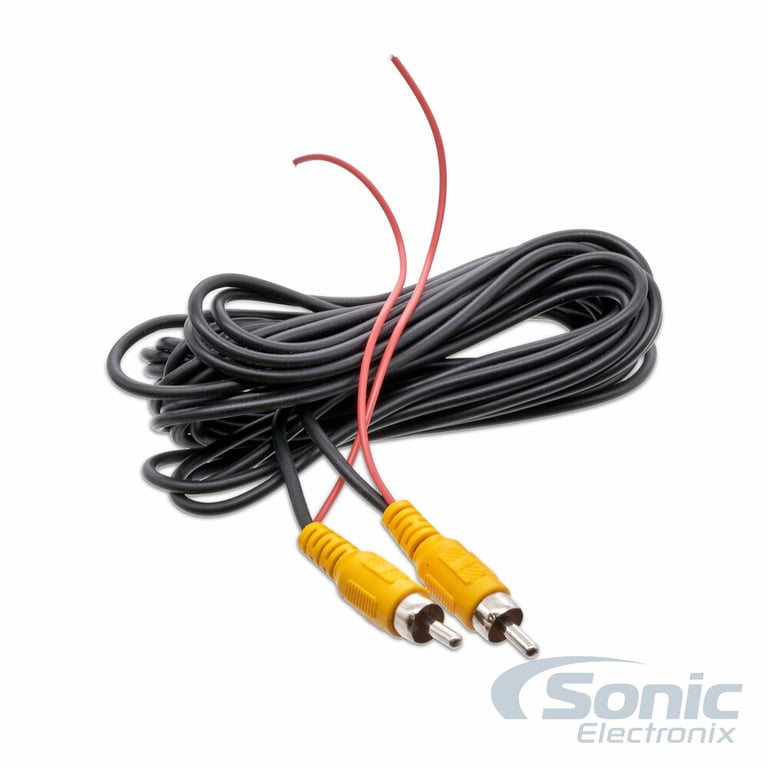

• 19ft extended connection cable
• Mounting screws
• Owner's manual with installation guide
