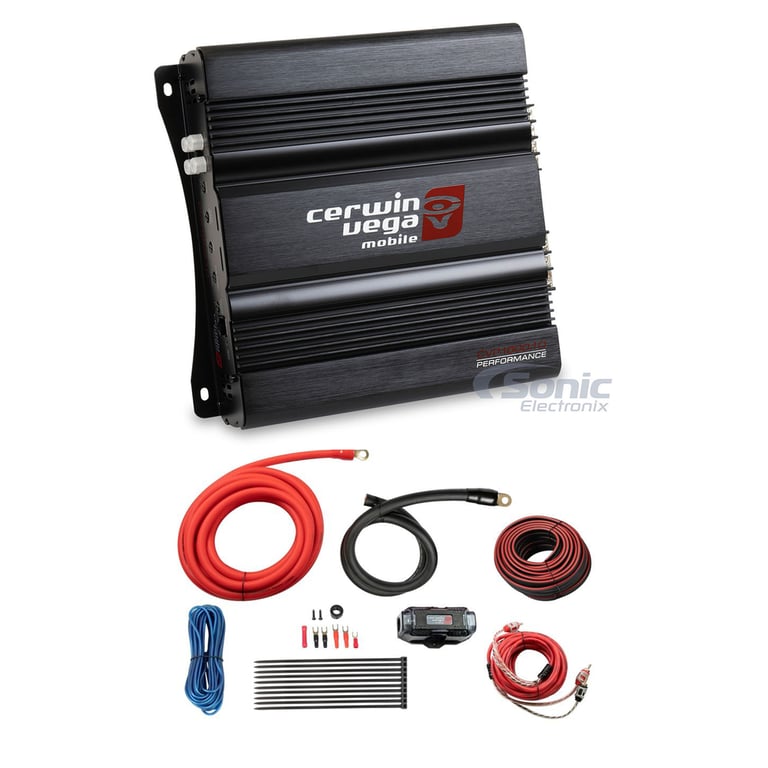

Cerwin Vega CVP1600.1D with Cerwin Vega 1/0 Amp Kit

CVP Series Monoblock Class-D Amplifier + Cerwin Vega 1/0 Gauge Amp Wiring Kit

highlight-star-icon

• CVP Series Monoblock Amplifier
• 200W RMS X 1 @ 2Ω / 120W RMS X 1 @ 4Ω
• 1-Ohm Stable Class D Monoblock Operation
• Direct Short, Thermal, & Overload Circuits Protect Amplifier
• 200mV-6V High Level or Low Level RCA Input
• 12dB Bass Boost Increases Low Octave Harmonics

Learn more about the cvp16001d_cak02

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

22
-20.01%

$119.95

List price $149.95

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Description


Cerwin-Vega brand icon

Authorized dealer

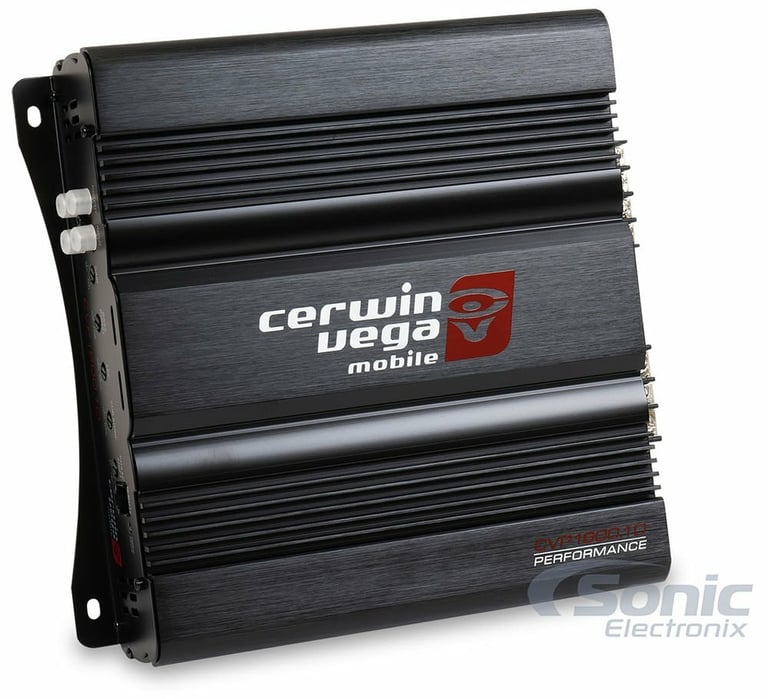

Cerwin-Vega CVP1600.1D

1600W Peak (200W RMS) Class AB CVP Series Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • CVP Series Class A/B 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 120 watts x 1 channel
    • 2 ohm: 200 watts x 1 channel
  • Total RMS power output: 200 watts
  • LED Power/Protect Light

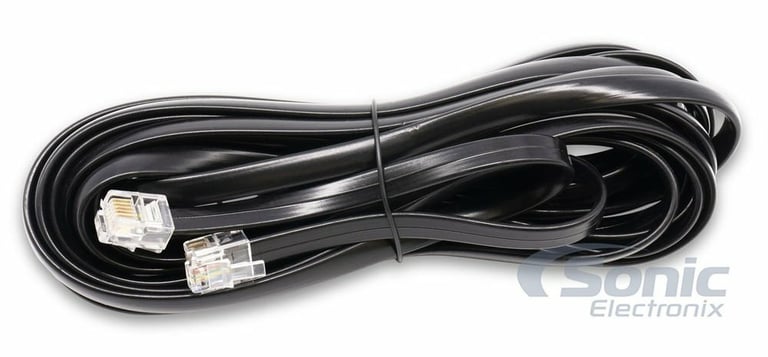

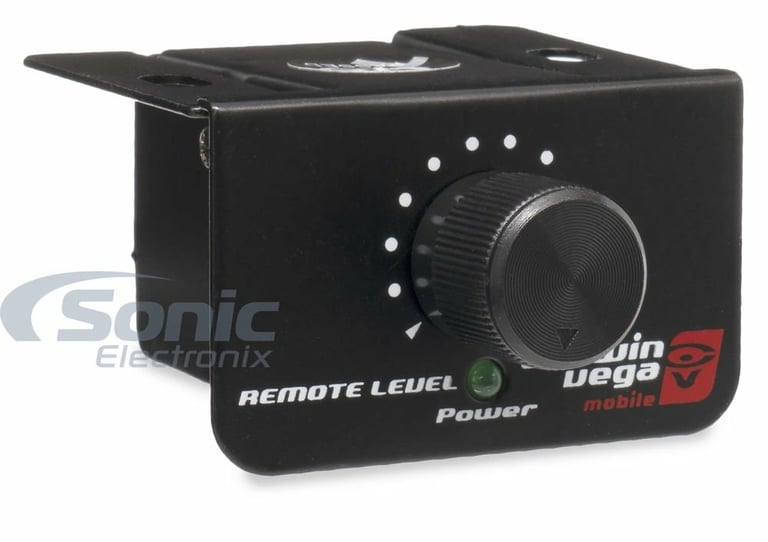

  • Wired bass level remote control included
  • Speaker-level (high-level) inputs (Requires adapter like Kicker KISL-2)
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Thermal, overload, and speaker short protection
  • Input and output selected

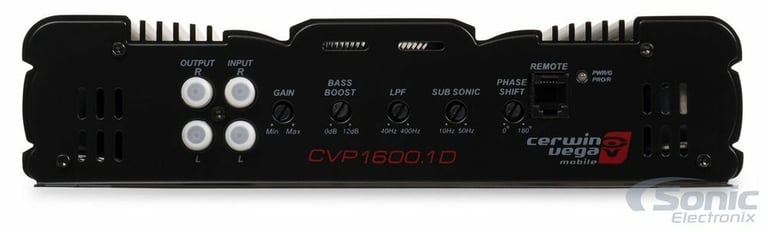

  • Gain, LPF, subsonic, and bass boost control

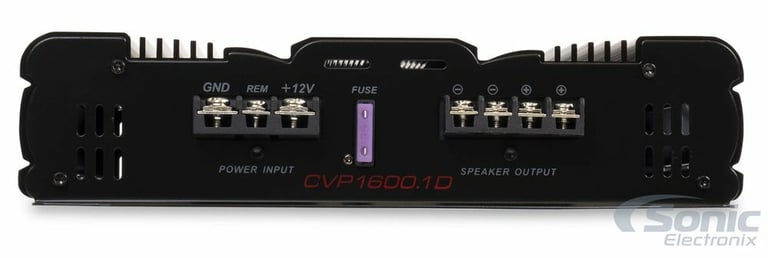

  • Power input and speaker output
  • Input sensitivity:
    • Low level: 0.2 - 6 volts
    • High level: 0.2 - 6 volts
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: 90 dB
  • Variable low-pass filter: 40 - 400 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB

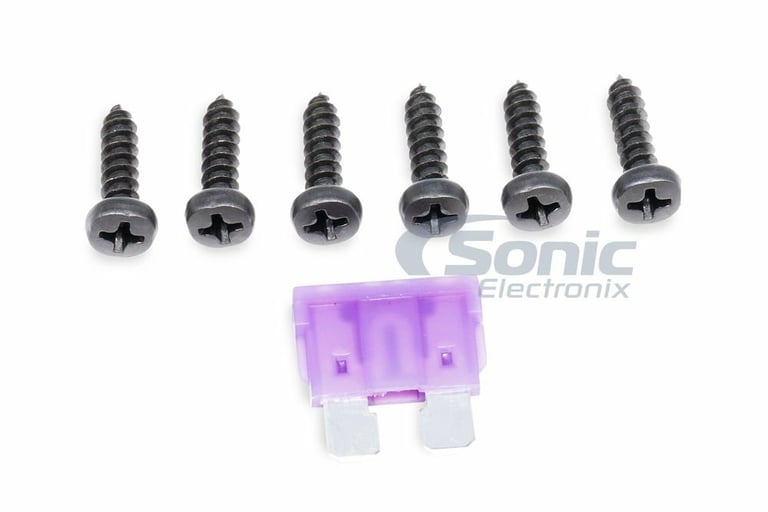

  • Fuse Rating: 35A
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.38" L x 8.67" W x 2.25" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: CVP1600.1D

Cerwin Vega CAK02 Amp Kit

1/0 GA 2-Channel Amplifier Connection Kits
Quantity: 1

General Features:

  • 1/0 gauge 2 Channel Amplifier Installation Kit
  • Designed specifically for car audio systems up to 4000 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are Nickel-plated for excellent signal transfer
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

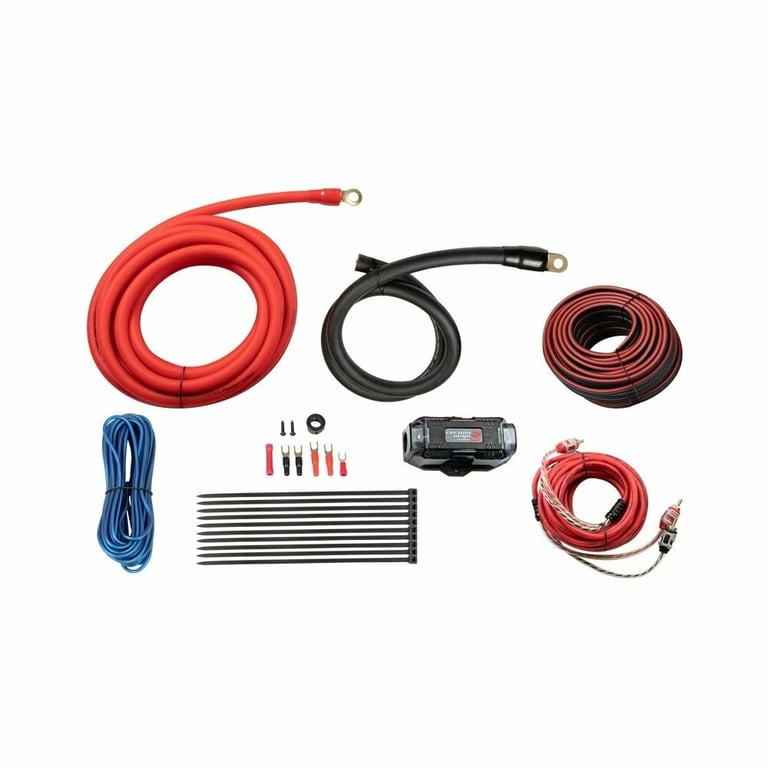

Package Includes:

  1. 17ft. 1/0 Gauge Matte Red Power Wire with ring terminated
  2. 3ft. 1/0 Gauge Matte Black Ground Wire with ring terminated
  3. 17ft. 18 Gauge Remote Turn-on wire
  4. 20ft. 12 Gauge Speaker Wire
  5. 7ft. 2-Ch. Vega series RCA interconnect
  6. ANL fuse holder with 250A fuse
  7. All Hardware include
