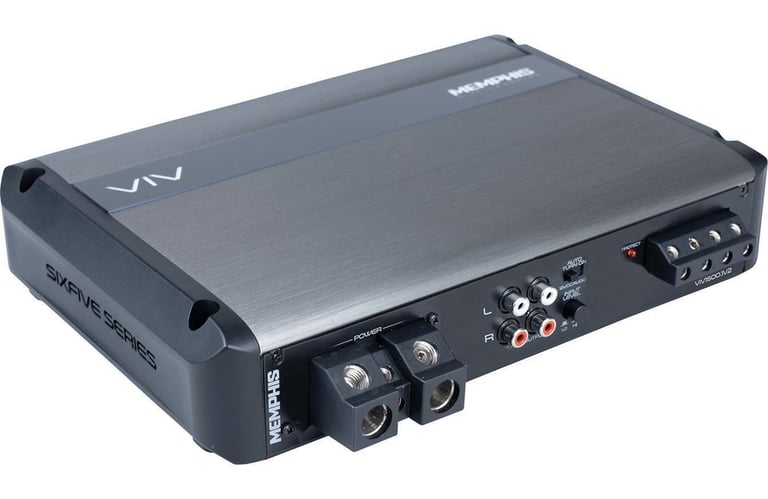

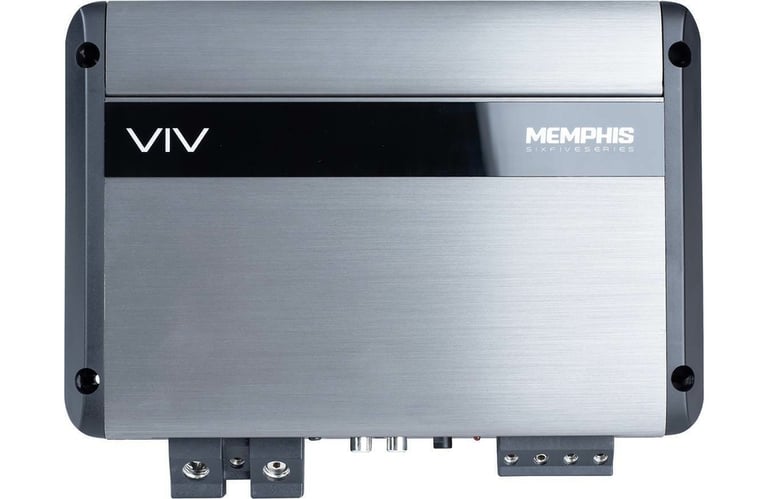

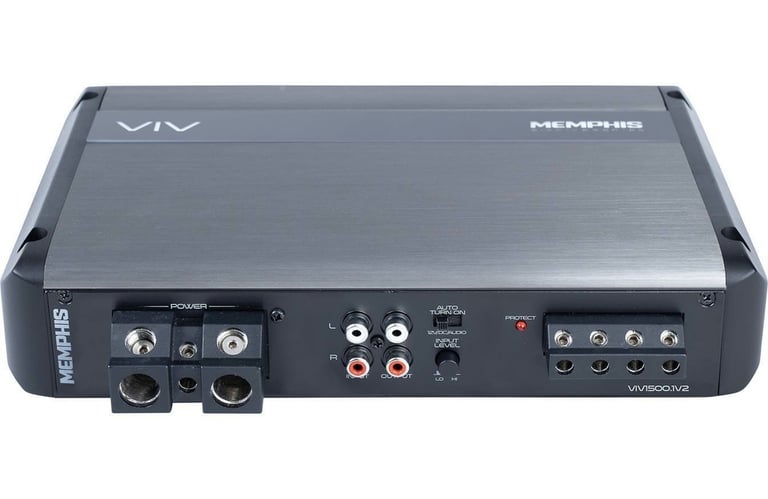

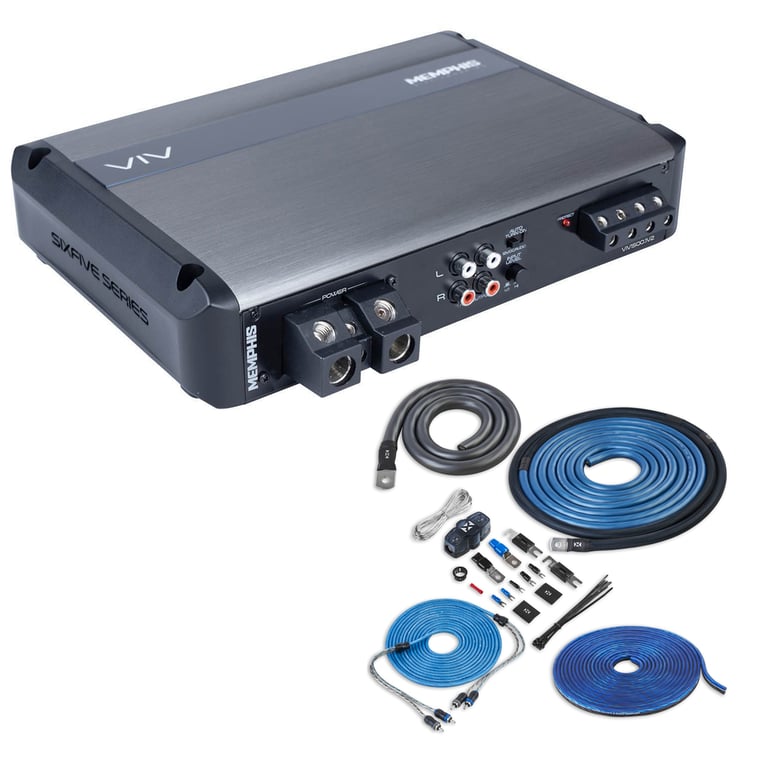

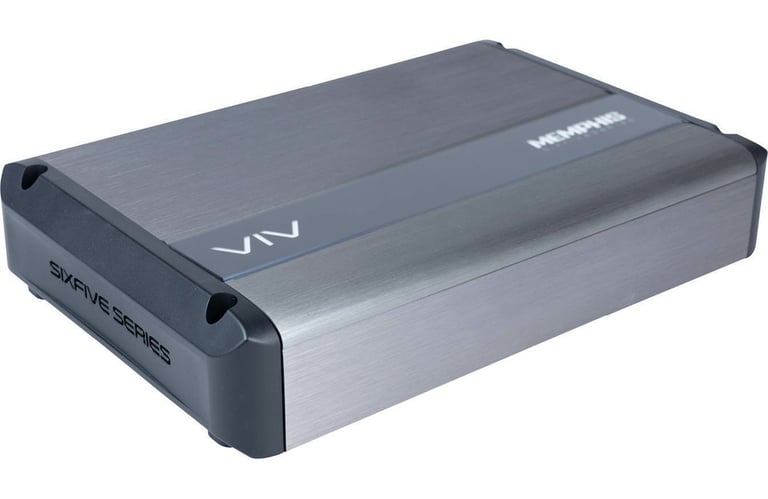

Memphis VIV1500.1V2 with Amplifier Wiring Kit

Product Details:

• SixFive Series Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 375 watts x 1 channel
• 2 ohms: 750 watts x 1 channel
• 1 ohm: 1500 watts x 1 channel
• Total RMS power output: 1500 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Brushed anodized aluminum gunmetal finish
• 7-Color selectable LED logo and ground lighting end caps
• Reversible LED logo accent strip
• Ultra-efficient full range class D topology
• LED Power/Protect Light
• Optional wireless bass remote w/ improved response VIVREMV2

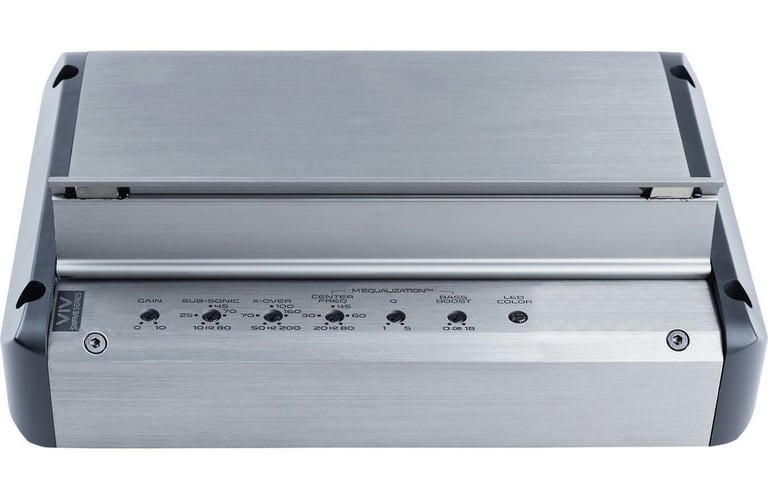

• M-Equalization allows Bass Boost, Freq and Q to be dialed in
• Soft start turn-on
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level: 220mV - 5V volts
• Frequency Response: 20 - 200 Hz
• Total Harmonic Distortion (THD): 1%
• Signal to Noise Ratio: 95 dB
• Variable low-pass filter: 50 - 200 Hz
• Subsonic filter: 10 - 80 Hz
• Variable Bass Boost: 0 - 18 dB
• Fuse Rating: 150A
• 1/0 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 11" W x 9-7/8" L x 2-1/4" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 4000 watts RMS
• Made from 100% (OFC) Oxygen-Free Copper for pure uninterrupted power and current transfer
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects power wire from being damaged
• Solid Brass and Satin Chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full Spec cables meet or exceed the American Wire Gauge standards
• Strand Count: 4704
• CEA-2015 and BC5W2 Compliant
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

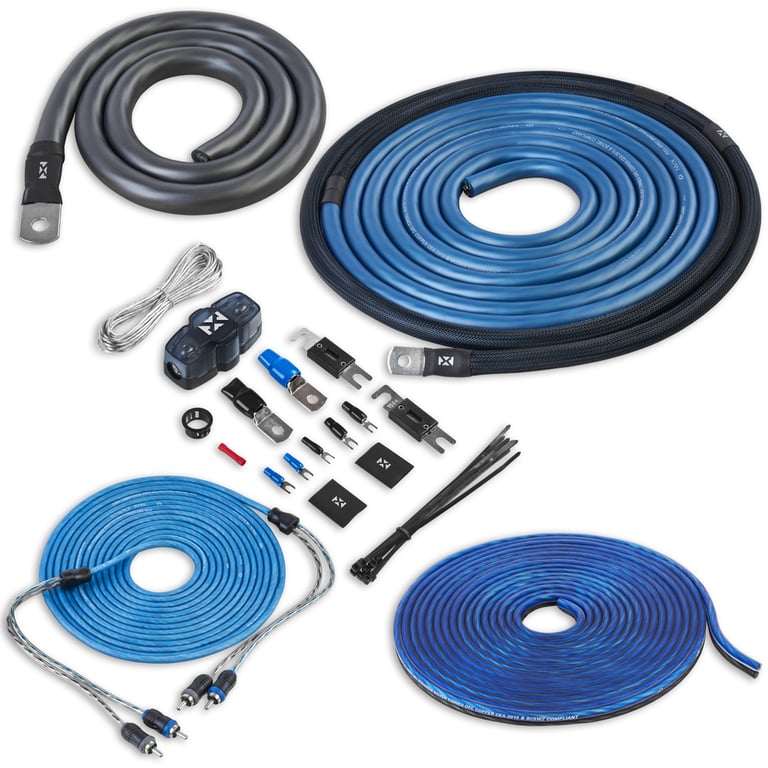

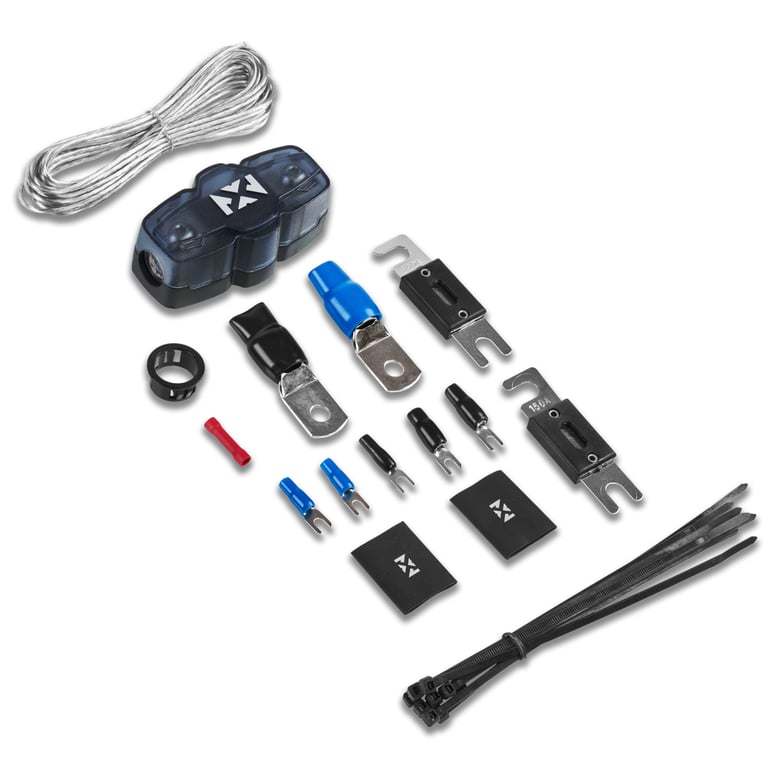

Kit includes:

1. 20 ft. (6.1 meters) Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. (.91 meters) Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
4. 20 ft. (6.1 meters) Frosted Black/Blue 12 gauge speaker wire
5. One 16 ft. (5 meters) 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 12 Gauge Red butt connectors
11. Two Heat Shrink tube with NVX logo
12. Ten 6" Black zip ties
