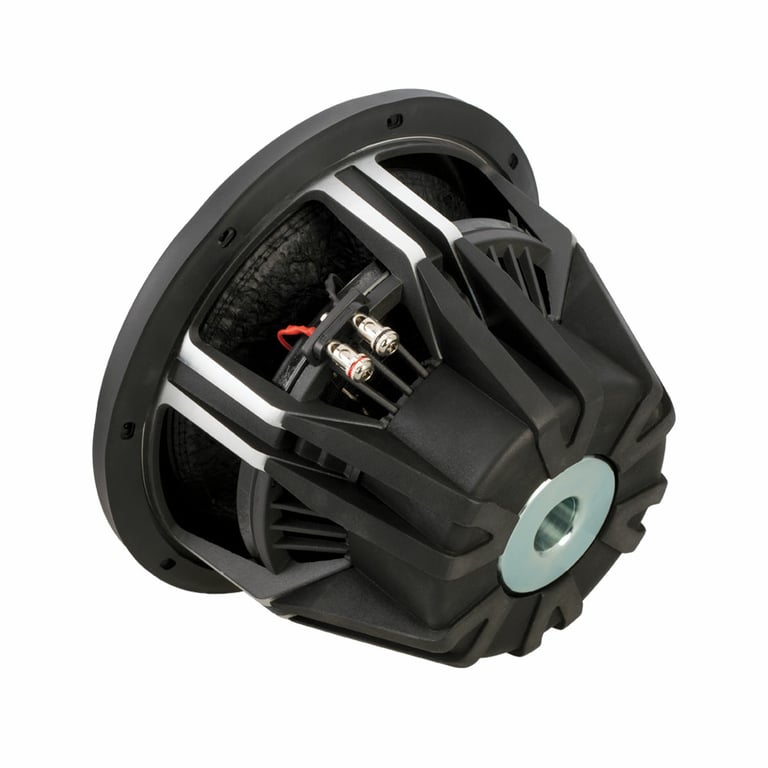

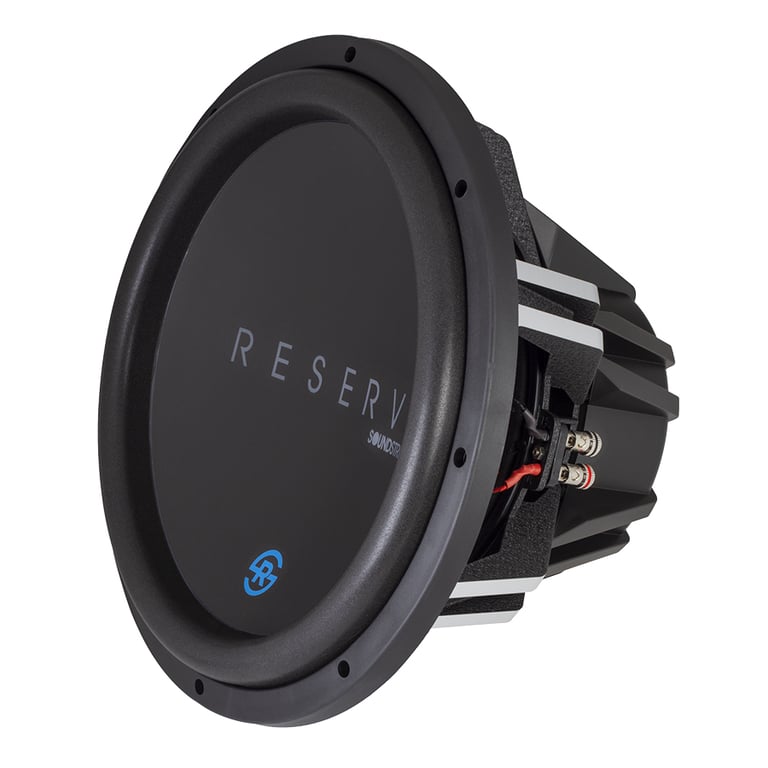

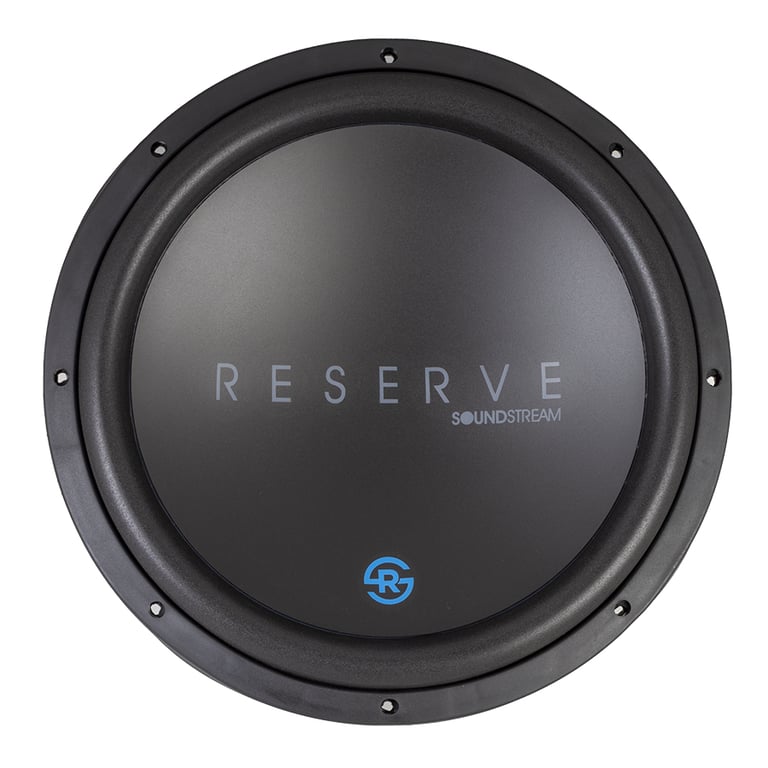

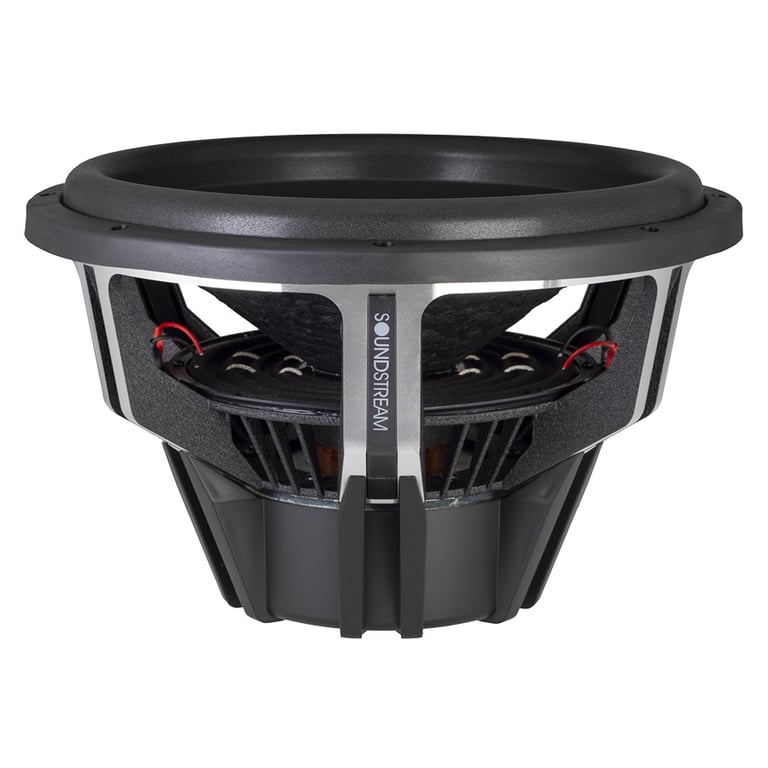

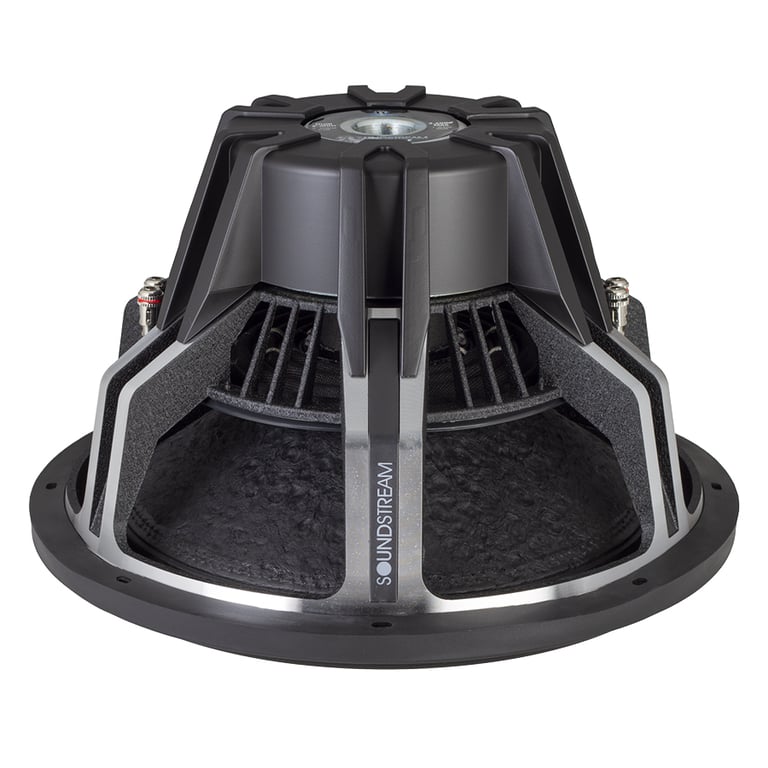

Soundstream RSW-154

2600W Peak (1300W RMS) 15" Reserve Series Dual 4-ohm Car Subwoofer

Limited time!
highlight-star-icon

• Peak Power: 2600 watts
• RMS Power: 1300 watts
• Spruce Pulp cone
• Polyether Foam surround
• Impedance: Dual 4 ohm
• Mount depth: 9.25"
• Sensitivity: 83.5 dB

Learn more about the rsw154

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
TS-G1620F main

Pioneer TS-G1620F

600W Peak (80W RMS) 6.5" G-Series 2-Way Coaxial 4-ohm Car Speakers

13
-26.15%

$48.00

List price $65.00

Description


Soundstream brand icon

Authorized dealer


Soundstream RSW-154

Soundstream subwoofers have evolved to meet various performance and placement goals in recent years, keeping your, the Soundstream fanatic, suggestions in mind. New for 2020, Soundstream introduces Reserve subwoofers, available exclusively to our Exclusive Soundstream Reserve dealers. Premium materials & performance characteristics include over-saturated 12mm top plate and t-yoke, high-density poly-ether foam surround, & a massive 3” voice coil. High-density Spruce pulp cone and double poly-cotton blend suspension hold everything together. These behemoths are not for the faint-hearted…

The RSW.154 is equally at home in a ported or sealed enclosure, so you can choose the sound you want for your system. You can wire the two 2-ohm voice coils for either 1-Ohm or 4-Ohm impedance, giving you extra versatility as your system changes. Add one or two of these RSW subs and a quality amplifier in your journey, and you’ll feel the bass like never before.


Product Details:

  • 15" Dual 4 ohm Reference Series Subwoofer
  • Power Handling:
    • Peak: 2600 watts
    • RMS: 1300 watts
  • UV and chemical-resistant Spruce Pulp cone
  • UV and chemical resistant Polyether Foam surround
  • Stitched and glued surround and cone joints
  • Poly-cotton suspension
  • 12mm vented T-yoke and top plate
  • Non-magnetic non-resonate die-cast aluminum frame
  • 3" 4-layer voice coil
  • High-temperature tolerance adhesives
  • 1 piece gasket/trim ring with concealed mounting holes included
  • 16.5 mm Xmax
  • Double Stacked Ferrite magnet motor structure
  • Resonance Frequency (Fs): 26 Hz
  • Sensitivity: 83.5 dB
  • Recommended sealed box volume: 1.50 cubic feet - 2.50 cubic feet
  • Recommended ported box volume: 3.00 cubic feet - 5.00 cubic feet
  • Optimum sealed box volume: 2.00 cubic feet
  • Optimum ported box volume: 4.00 cubic feet
  • Top-mount depth: 9.25"
  • Cutout diameter: 13-15/16"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Soundstream RSW-154 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Soundstream RSW-154 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Soundstream RSW-154 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Soundstream RSW-154 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

GX608C main

JBL GX608C (GX608CAM)

420W Peak (140W RMS) 6.5” GX Series 2 Way 2.3-ohm Component Speaker System

7
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-1726S main

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

52L7XS151 small

Kicker L7XS151 (52L7XS151)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 11-9/16"

$1499.99

List price $1599.99

P3D2-15 small

Rockford Fosgate Punch P3 P3D2-15

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• Santoprene Rubber Surround
• Mount depth: 7.58"
• Sensitivity: 86 dB

(27)

$309.99

List price $339.99

YSW152 small

NVX YSW152

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

Specifications & Details


Subwoofer Specifications
Series
Reference Series
Subwoofer Size
15"
Peak Power Handling
2600 watts
RMS Power Handling
1300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
83.5 dB
Xmax (millimeters)
16.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Spruce Pulp
Woofer Surround
Polyether Foam
Magnet Structure
Double Stacked
Magnet Type
Ferrite
Subwoofer Grille
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.50 cubic feet
Optimum Sealed Box Volume
2.00 cubic feet
Maximum Sealed Box Volume
2.50 cubic feet
Minimum Ported Box Volume
3.00 cubic feet
Optimum Ported Box Volume
4.00 cubic feet
Maximum Ported Box Volume
5.00 cubic feet
Top-Mount Depth (Mounting Depth)
9.25"
Cutout Diameter
13-15/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
26 Hz
Equivalent Compliance (Vas)
3.08 liters
Total Speaker Q Value (Qts)
0.90
Electrical Q Value (Qes)
1.046
Electrical Resistance of Voice Coil (Re)
3.6 ohm
Mechanical Q Value (Qms)
6.446
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Subwoofers
Subwoofer
Other Accessory #1
Rubber gasket
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

RSW-154

Weight:

27.50lbs

Internal SKU:

rsw154

Internal Product ID:

200705
