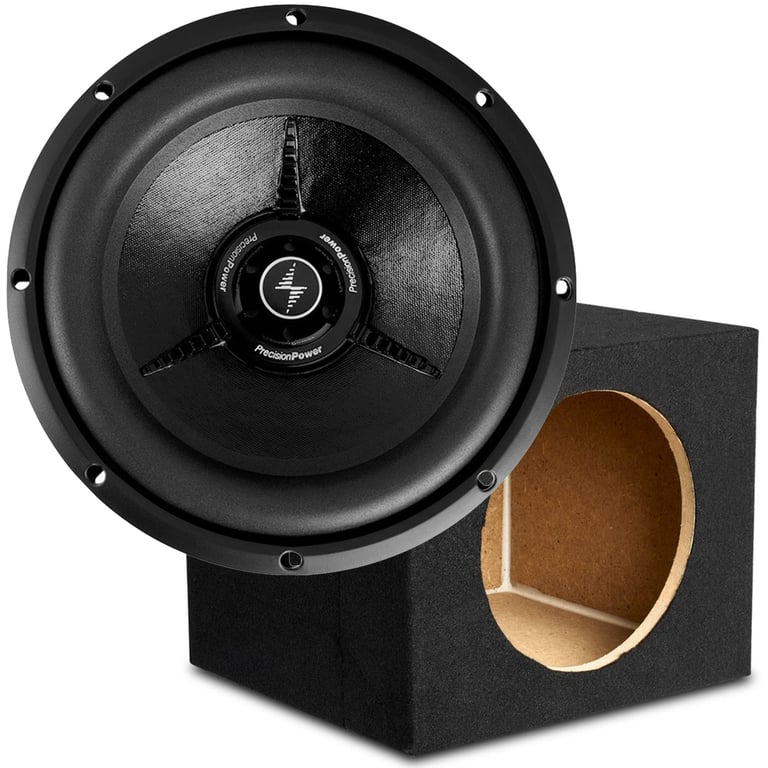

Precision Power AW-10D4 with Sealed Subwoofer Enclosure

1000W Peak (500W RMS) 10″ ATOM Series DVC 4-Ohm Car Subwoofer

highlight-star-icon

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Aluminum Cone
• Rubber Surround
• Impedance: Dual 2 ohm
• Sensitivity: 82.5 dB
• Includes Sealed Subwoofer Enclosure

Learn more about the aw10d4_xmdfs101

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


Precision Power brand icon

Authorized dealer

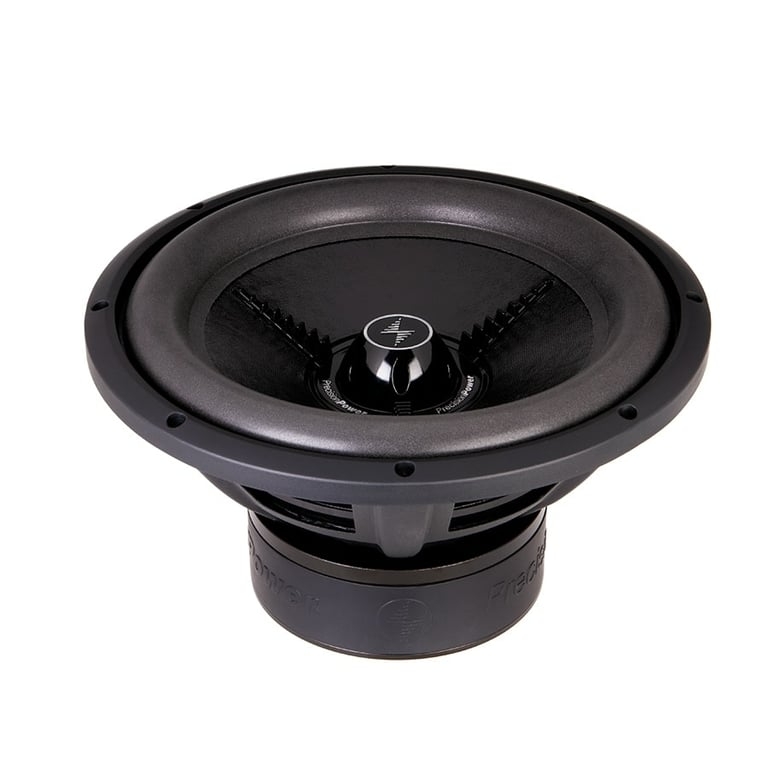

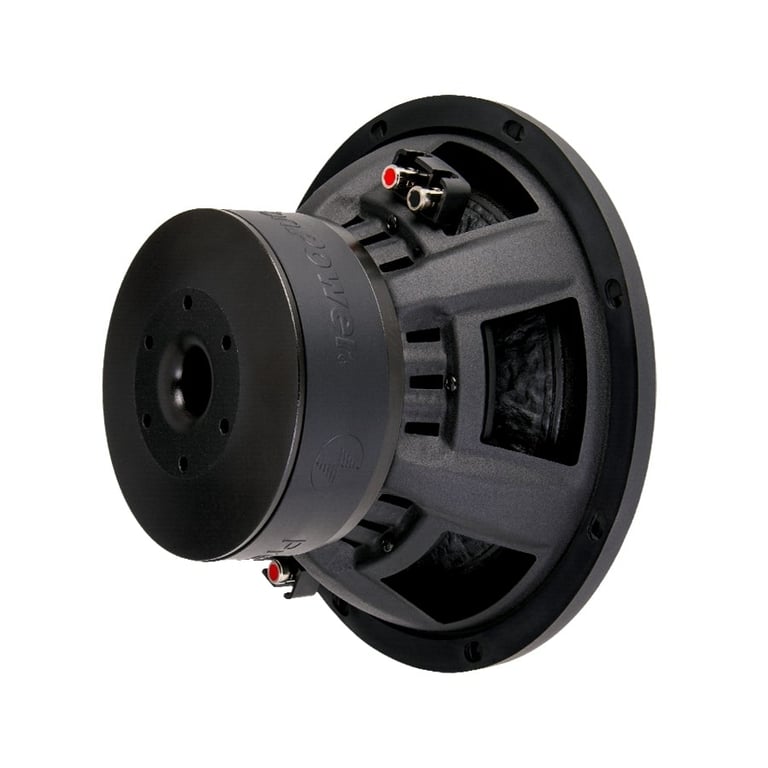

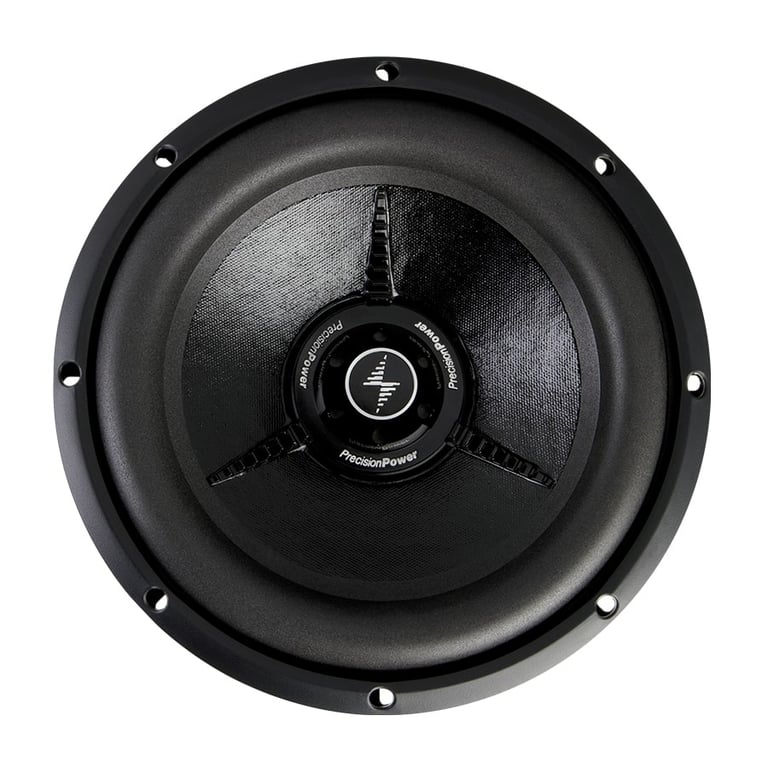

Precision Power AW-10D4

1000W Peak (500W RMS) 10" ATOM Series Dual 4-Ohm Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 4 ohm Atom Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 500 watts
  • Non-Transfer Spruce Pulp cone with UV and chemical protection
  • 2.5"4-layer oxygen-free Copper voice coil on Aluminum former
  • Cast aluminum heatsink dust cap coupled to the voice coil former
  • Dual poly-cotton suspension maintains magnetic gap linearity
  • Hot forged 1-piece 10mm top plate with +5mm expanded magnetic gap
  • Hot forged 1-piece 10mm T-yoke with center pole and back plate venting
  • 22.5 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 29.24 Hz
  • Sensitivity: 82.5 dB
  • Recommended sealed box volume: 0.75 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 6"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

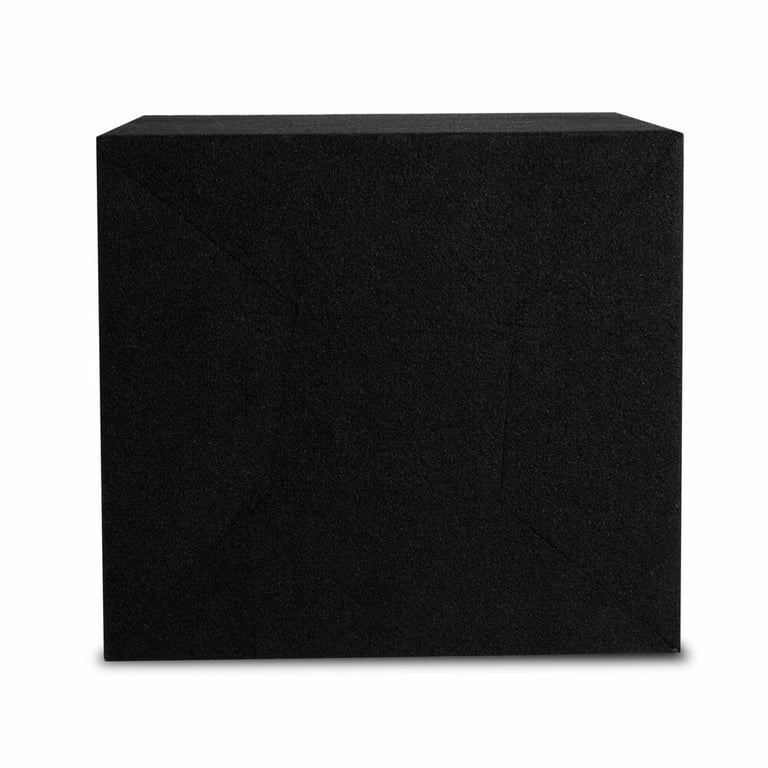

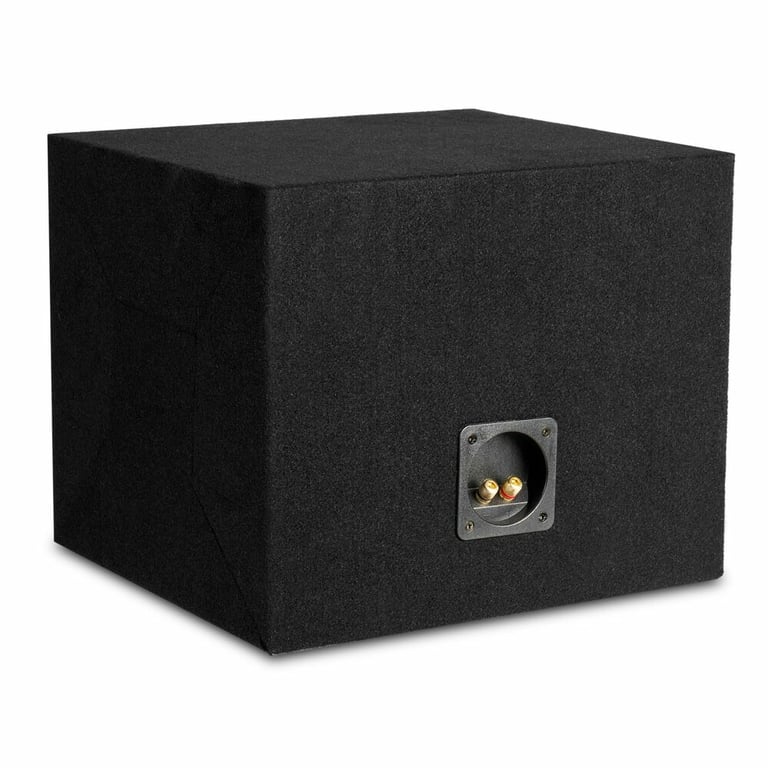

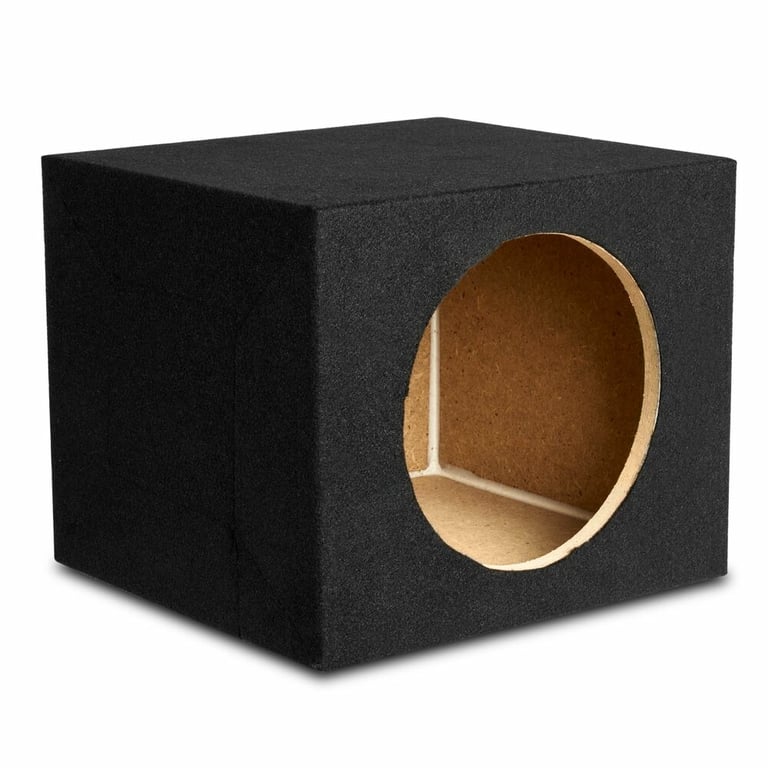

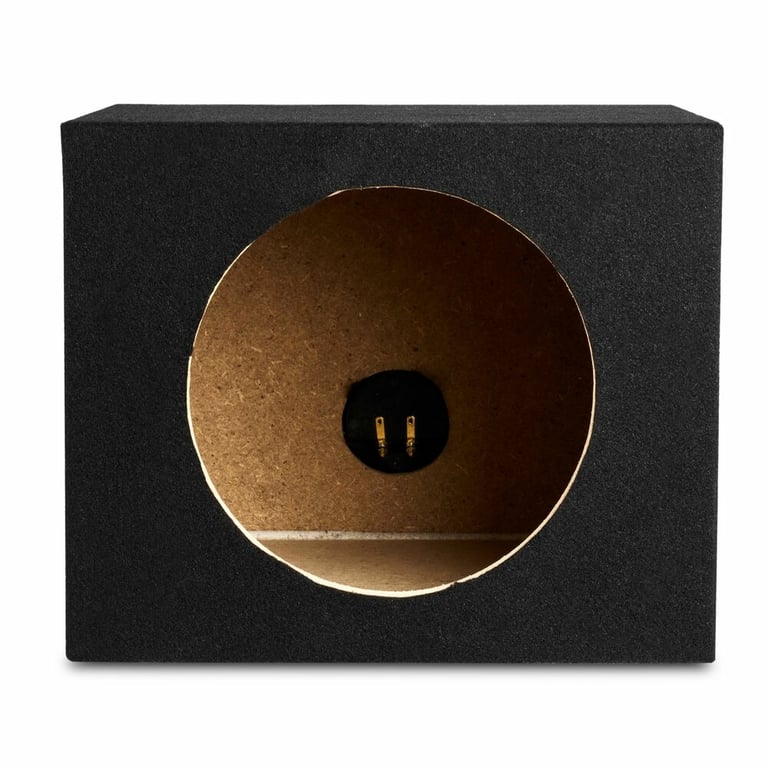

NVX XMDFS101

Single 10" Sealed 3/4" (1.2 cubic ft) MDF Black Carpeted Subwoofer Enclosure (Made in the USA)
Quantity: 1

Product Details:

  • Single 10" Sealed MDF Enclosure
  • Holds one 10" subwoofer

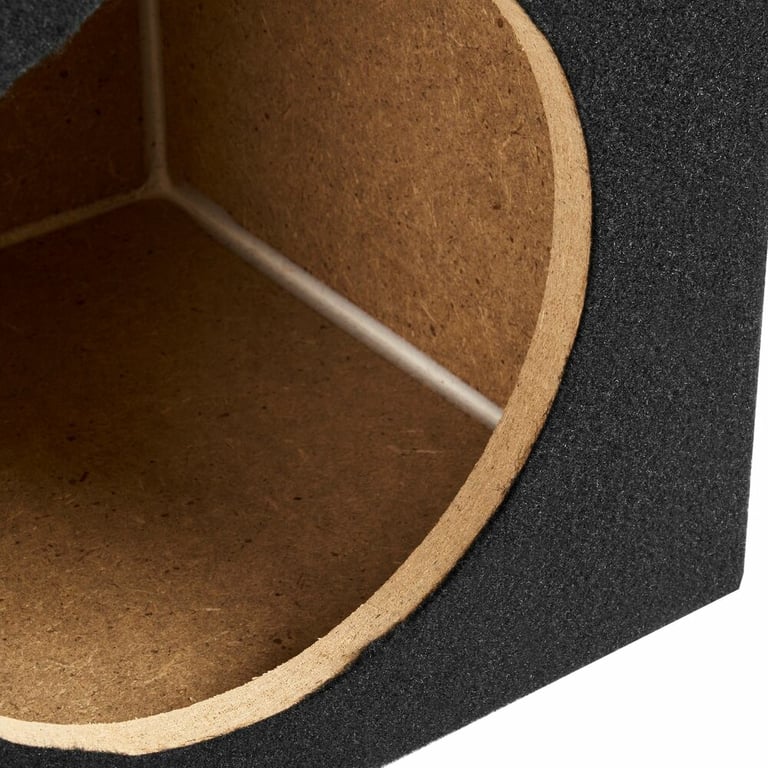

  • 3/4 MDF (Medium Density Fiberboard) Construction
  • Made in the USA
  • Each Piece is CNC Cut Exact to Specification
  • Sealed Box Design
  • Durable black carpeting

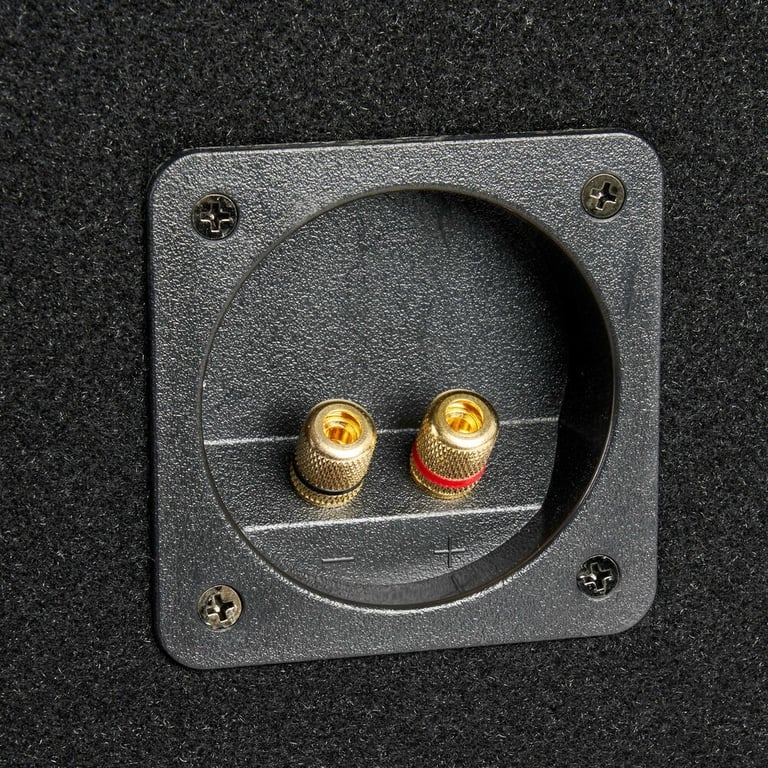

  • Gold Terminals
  • Internal Box Volume: 1.2 cubic ft.
  • Dimensions: 12"H x 13.5"D x 14.75"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
