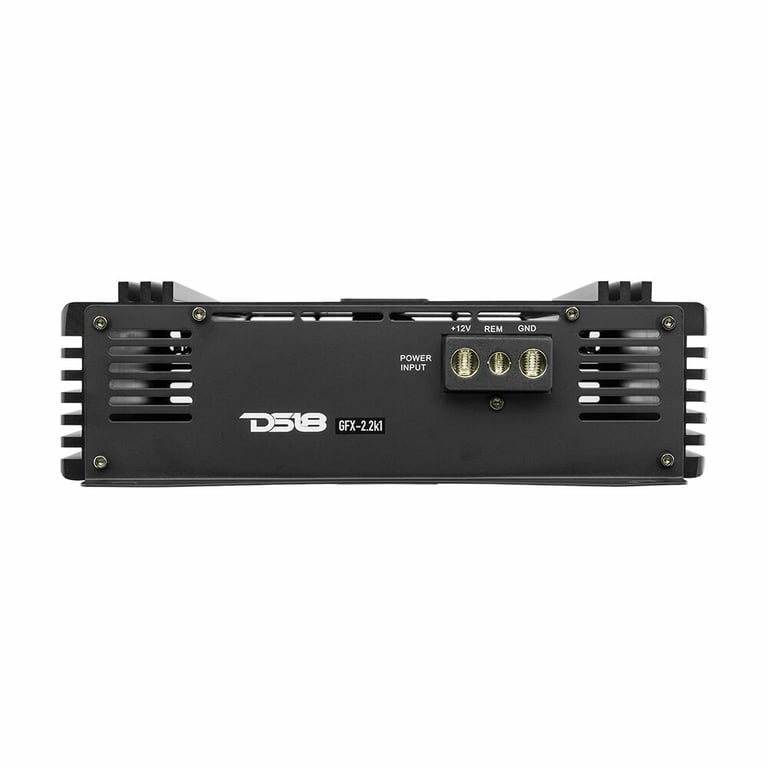

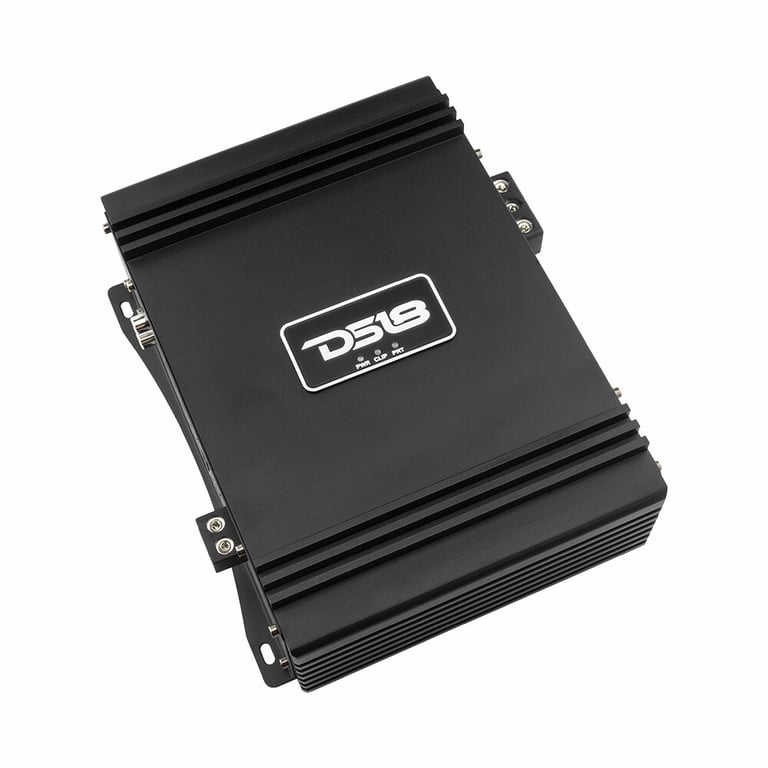

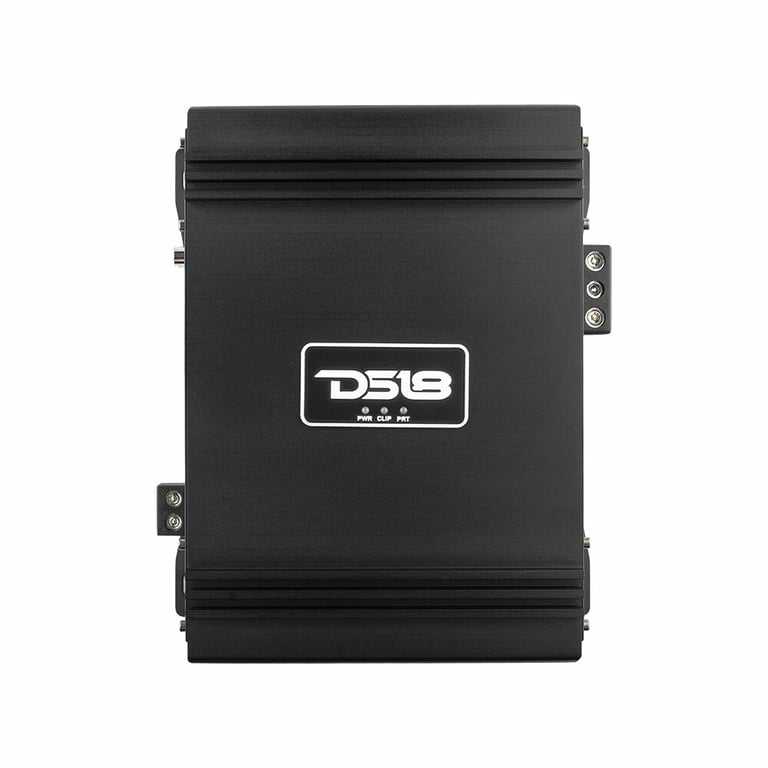

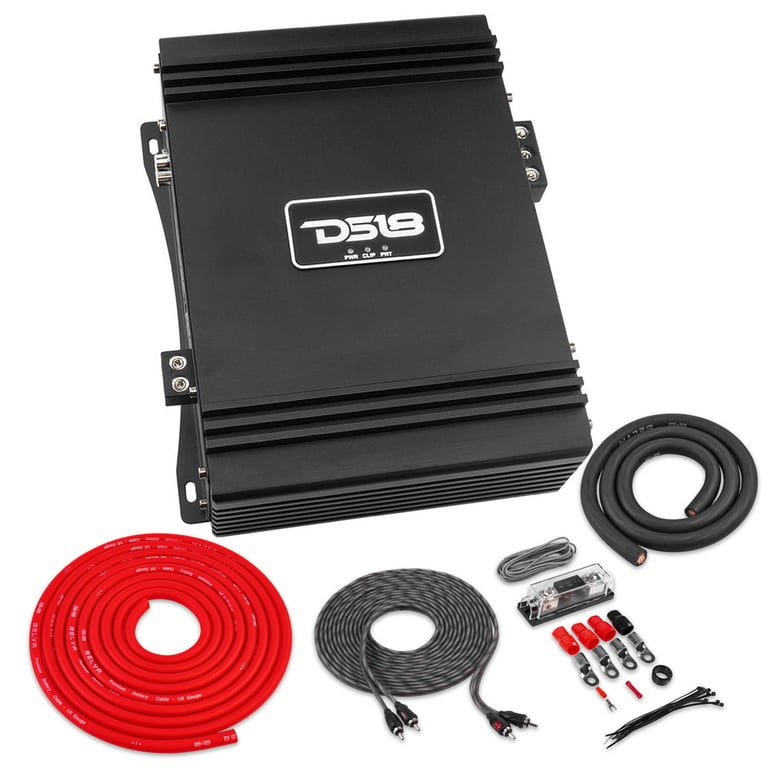

DS18 GFX-2.2K1 with Amplifier Wiring Kit

2200W RMS GFX Series Full-Range Class-D Monoblock Amplifier with Bass Remote

DS18
Shop all DS18
highlight-star-icon

• 800 watts x 1 channel @ 4 ohm
• 1500 watts x 1 channel @ 2 ohm
• 2200 watts x 1 channel @ 1 ohm
• Total RMS Power: 2200 watts
• Class D 1 Ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the gfx22k1_bak02

We apologize

This item has been discontinued


Loading...
KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

Description


DS18 brand icon

Authorized dealer

Product Details:

  • Class D 1 Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 channel
    • 2 ohm: 1500 watts x 1 channel
    • 1 ohm: 2200 watts x 1 channel
  • Total RMS power output: 2200 watts

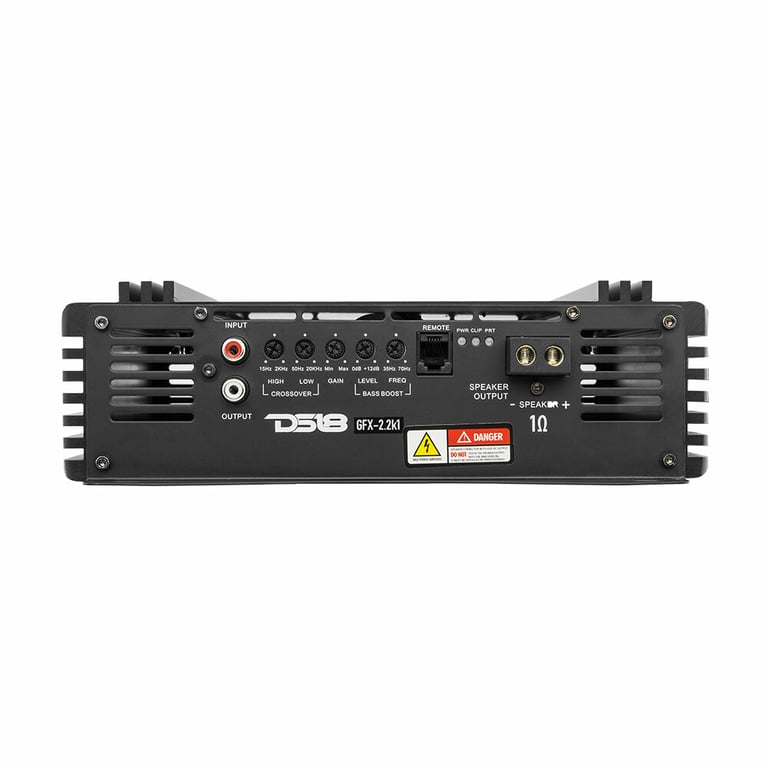

  • Compact Size and Wide Band Crossover for more applications
  • Specially designed for Mid-bass, Midrange or Driver speakers.

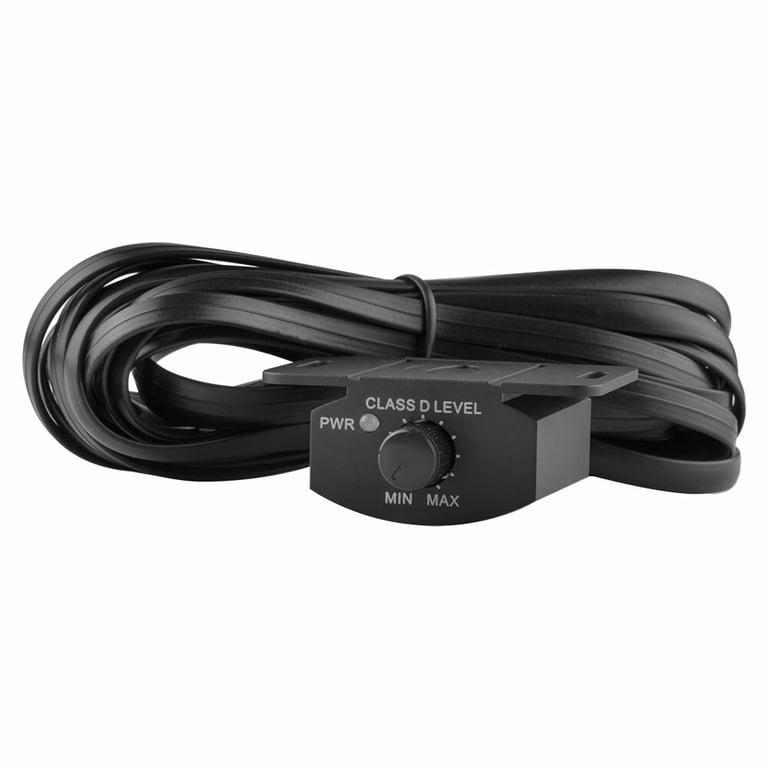

  • Level Knob Remote Control for dashboard included
  • Power / Protection / Clip LED indicator
  • Multiple ways of electronic protection (thermal, overload, short circuit, impedance, voltage, clipping)
  • Input sensitivity:
    • Low level: .5 - 8 volts
  • Frequency Response: 15 - 20,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable high-pass filter: 15 - 2,000 Hz
  • Variable low-pass filter: 50 - 20,000 Hz
  • Variable Bass Boost: 0 - 12 dB @ 35Hz-70HZ
  • Fuse Rating: 220A
  • 2 AWG Gauge power and ground wiring is recommended for installation.
  • Dimensions: 9.29" W x 7.51" L x 2.83" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1500 watts x 1 channel
RMS Power @ 1 ohm
2200 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
2200 watts
Maximum Input Gauge Size
2 AWG
Minimum Impedance Unbridged
1 Ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
15 - 20,000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 20,000 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
220A
CEA-2031 Compliant
No
Amp Bluetooth Connectivity
Yes
Hi-Res Certified
No
Low-Level Input Sensitivity
.5 - 8 volts

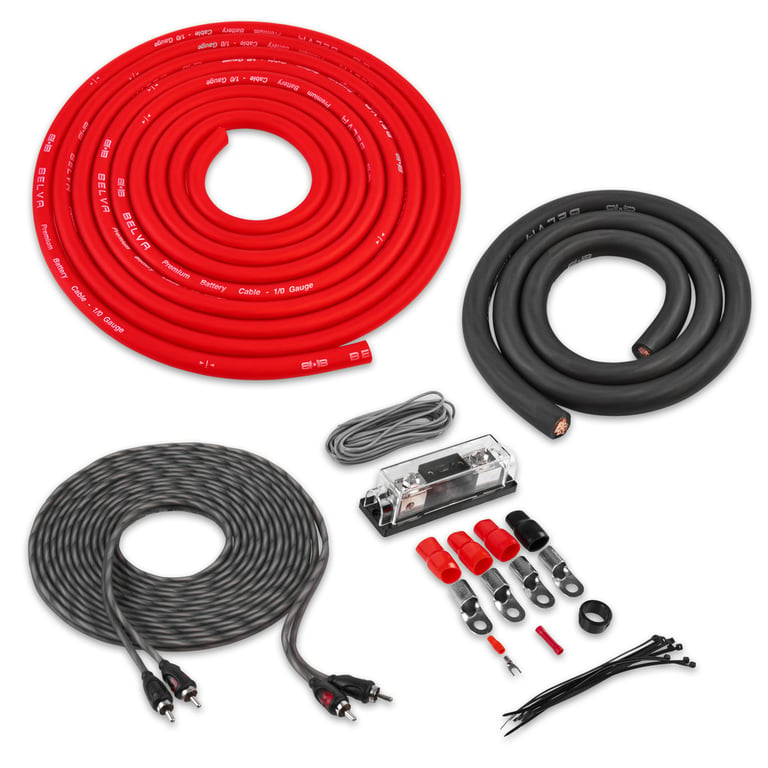

Amplifier Kit Specifications
Number of Amplifiers Supported
1

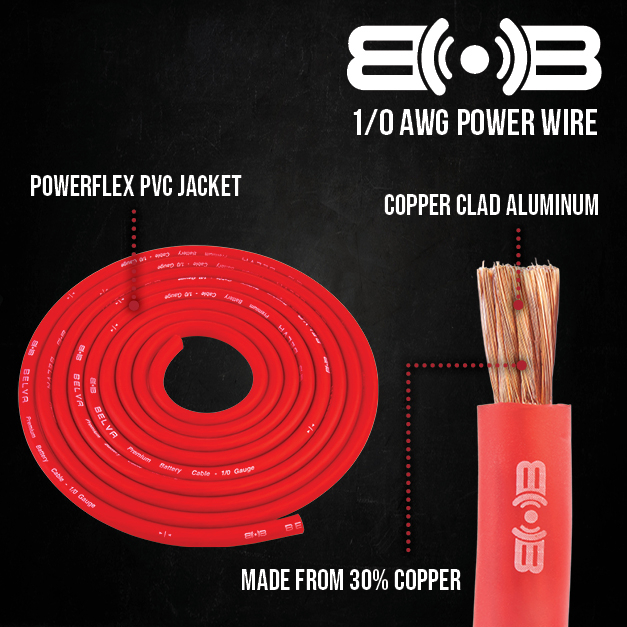

Power/Ground Wire Size
1/0 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel

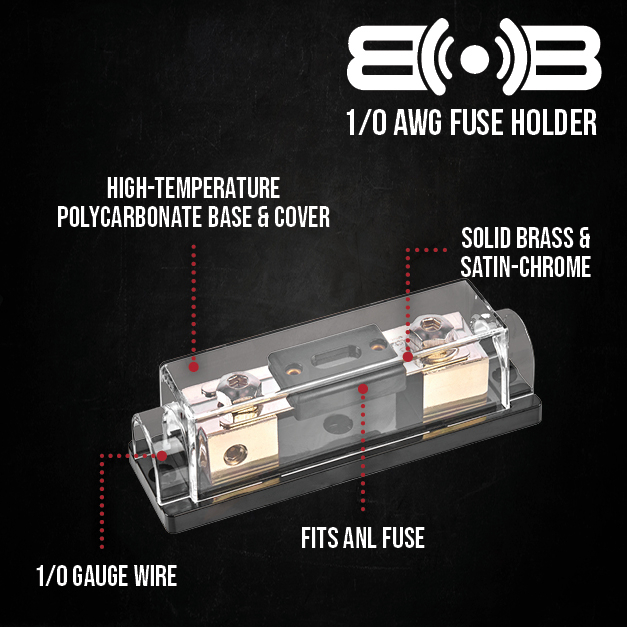

Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GFX-2.2K1, BAK02

Weight:

10.10lbs

Internal SKU:

gfx22k1_bak02

Internal Product ID:

200887
