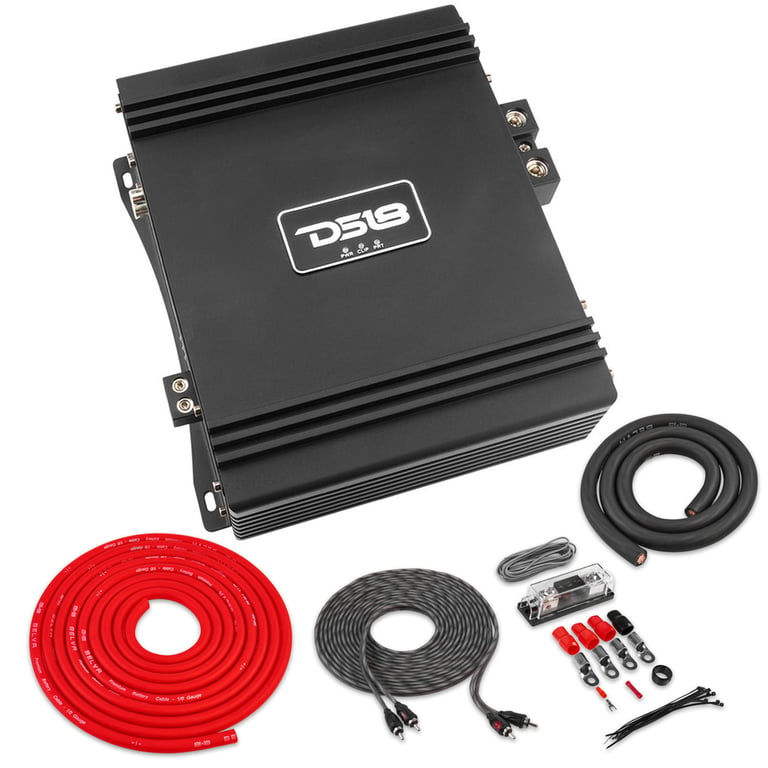

DS18 GFX-3K1 with Amplifier Wiring Kit

3000W RMS GFX Series Full-Range Class-D Monoblock Amplifier with Bass Remote

DS18
Shop all DS18
highlight-star-icon

• 1000 watts x 1 channel @ 4 ohm
• 2000 watts x 1 channel @ 2 ohm
• 3000 watts x 1 channel @ 1 ohm
• Total RMS Power: 3000 watts
• Class D 1 Ohm Stable Monoblock Amplifier
• Includes Amplifier Wiring Kit

Learn more about the gfx3k1_bak02

We apologize

This item has been discontinued


Loading...
Limited time!
KFC-415C main

Kenwood KFC-415C

320W Peak (80W RMS) 4x10" Performance Series 2-Way Coaxial 4-ohm Car Speakers

25
-45.00%

$99.00

List price $180.00

H410 main

Cerwin-Vega H410

420W Peak (140W RMS) 4x10" Vega Series 2-Way Coaxial 4-ohm Speakers

-16.67%

$99.99

List price $119.99

H7410 main

Cerwin Vega H7410

640W Peak (100W RMS) 4x10" HED Series 2-Way Coaxial 4-ohm Speakers

14
-16.67%

$69.99

List price $83.99

Limited time!
50CSC4104 main

Kicker CSC410 (50CSC4104)

450W Peak (150W RMS) 4x10" CS Series 2 Way Coaxial 4-ohm Speakers

1
-33.36%

$79.96

List price $119.99

V410 main

Cerwin-Vega V410

540W Peak (180W RMS) 4x10" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

51KSC41004 main

Kicker KSC410 (51KSC41004)

300W Peak (150W RMS) 4x10" KS Series 2 Way Coaxial 4-ohm Speakers

-13.33%

$129.99

List price $149.99

DMDX410 main

Diamond Audio DMDX410

270W Peak (90W RMS) 4x10" DMDX Series 2-Way Coaxial 4-ohm Car Speakers

H7410, SDSK2, SDRLR1, BTK106 main

Cerwin-Vega H7410 with Speaker Installation Kit

Includes: (Pair) 4" x10" Coaxial Speakers, Sound Damping , Roller and Panel Removal Kit

153
-28.22%

$98.13

List price $136.71

RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

Description


DS18 brand icon

Authorized dealer

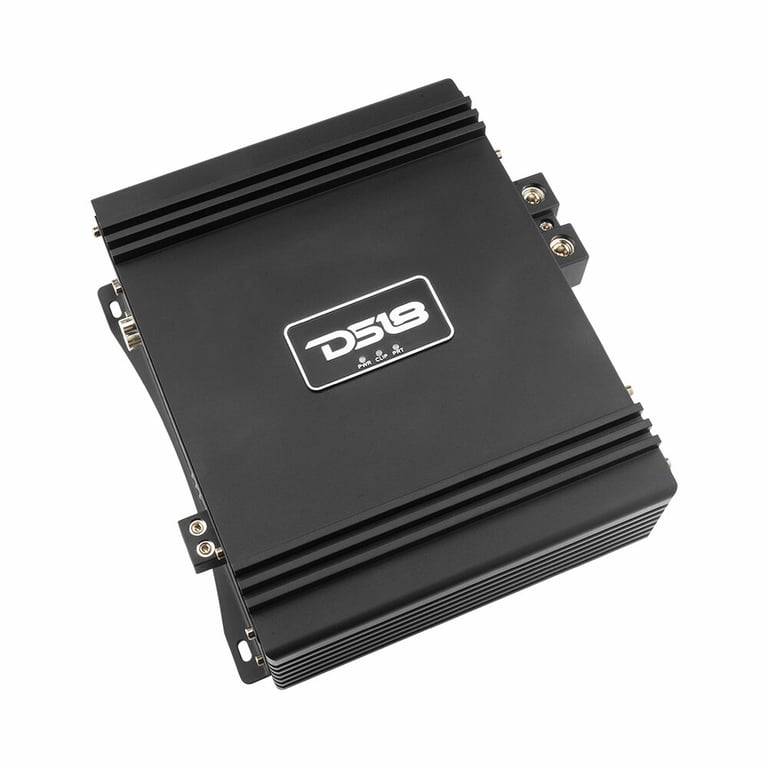

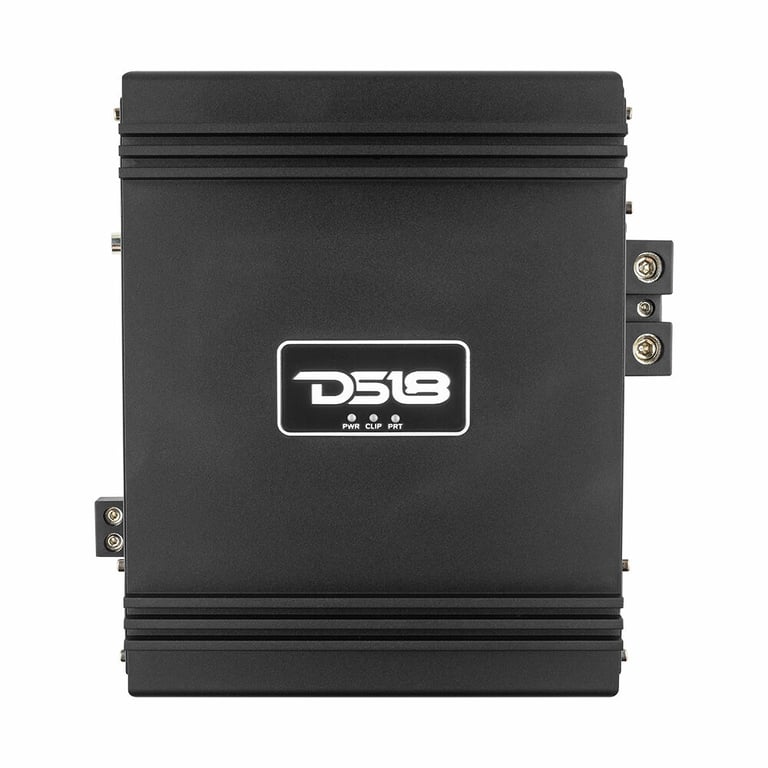

DS18 GFX-3K1

3000W RMS GFX Series Full-Range Class-D Monoblock Amplifier with Bass Remote
Quantity: 1

Product Details:

  • GFX Series Class D 1 Ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 1000 watts x 1 channel
    • 2 ohm: 2000 watts x 1 channel
    • 1 ohm: 3000 watts x 1 channel
  • Total RMS power output: 3000 watts
  • Compact Size and Wide Band Crossover for more applications
  • Surface Mount Component
  • Audio Precision Quality Control Verification
  • Stable & Reliable Four Layers PCB Trace Layout
  • Level Knob Remote Control for dashboard included.

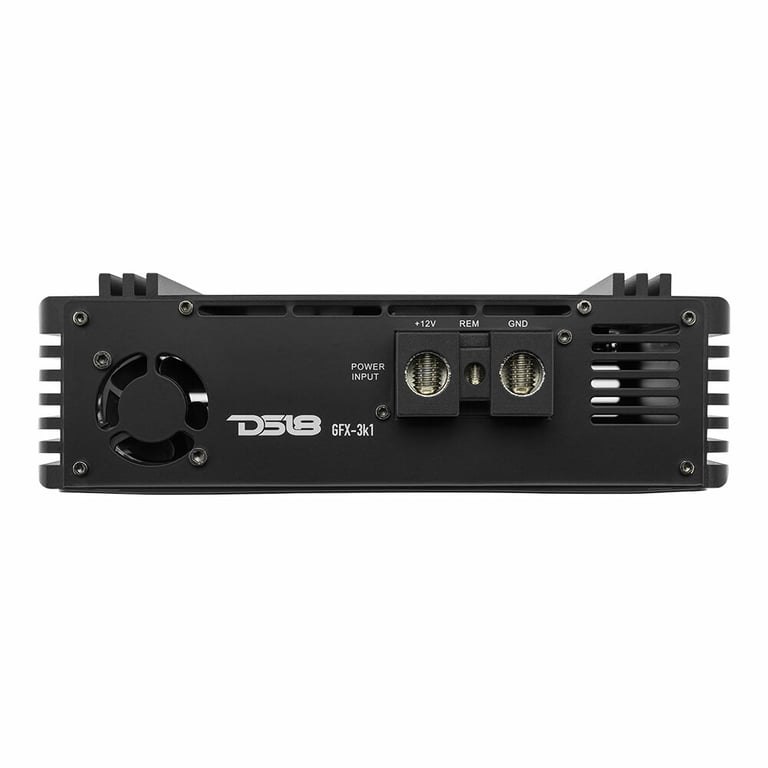

  • Heavy Duty Heat-sink Chassis and Forced Cooling System Build In
  • Multiple ways of electronic protection (thermal, over-Load, short circuit, impedance, voltage, clipping)

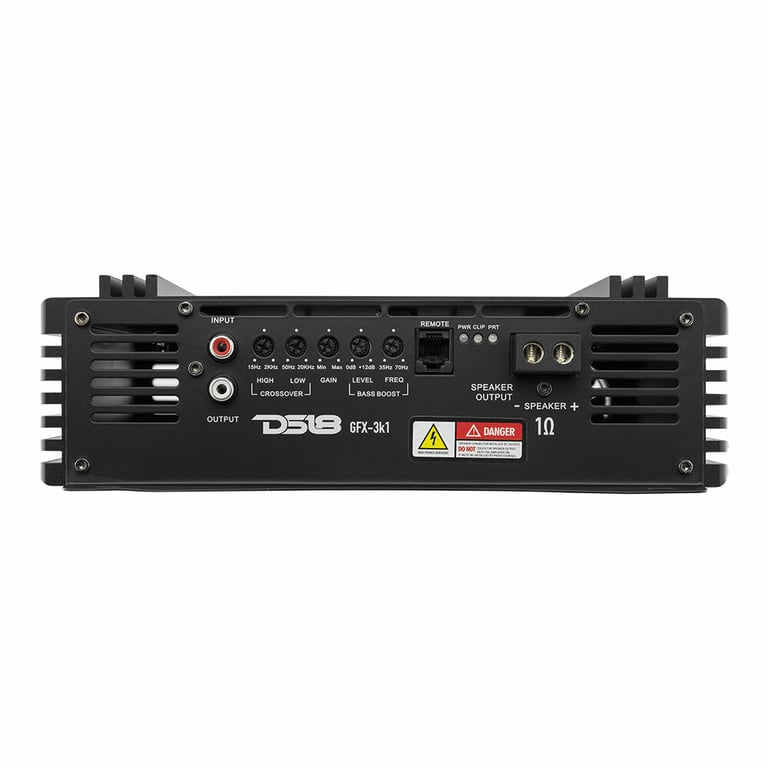

  • Input sensitivity:
    • Low level: .5 - 8 volts
  • Frequency Response: 15 - 20,000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable high-pass filter: 15 - 2,000 Hz
  • Variable low-pass filter: 50 - 20,000 Hz
  • Variable Bass Boost: 0 - 12 dB @ 35Hz - 70Hz
  • Fuse Rating: 300A
  • 1/0 AWG Gauge power and ground wiring is recommended for installation.
  • Dimensions: 9.29" W x 8.30" L x 2.83" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Belva BAK02

1/0 Gauge Premium (CCA) Copper Clad Aluminum Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 2000 Watts - RED
Quantity: 1

Product Details:

  • 1/0 Gauge 2-Channel Amplifier Installation Kit
  • Designed for car audio systems up to 2000 watts RMS
  • Premium Powerflex power and ground wire provides optimal power transfer

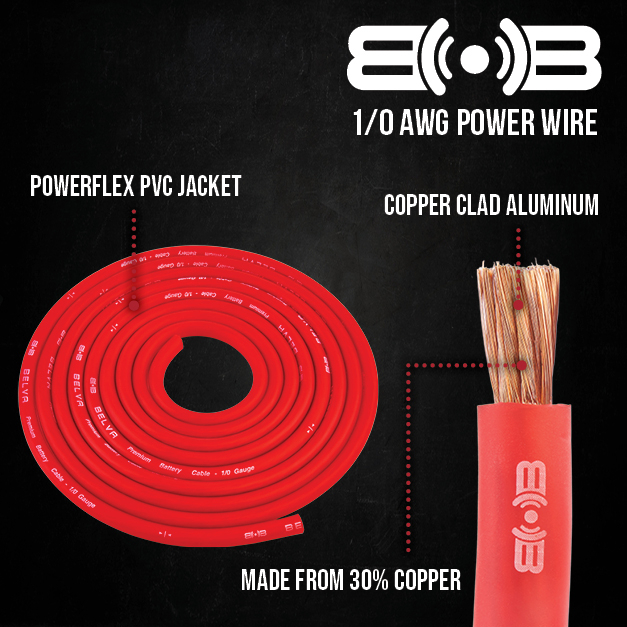

  • Belva CCA wire is made from 30% copper while the competition uses only 10%
  • Helical Twist Construction Audio Interconnect RCA cables minimize noise and interference
  • ANL Fuse holder with a 150 amp fuse offers ideal protection for high powered systems
  • Complies to American Wire Gauge standards
  • Also available in Blue
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

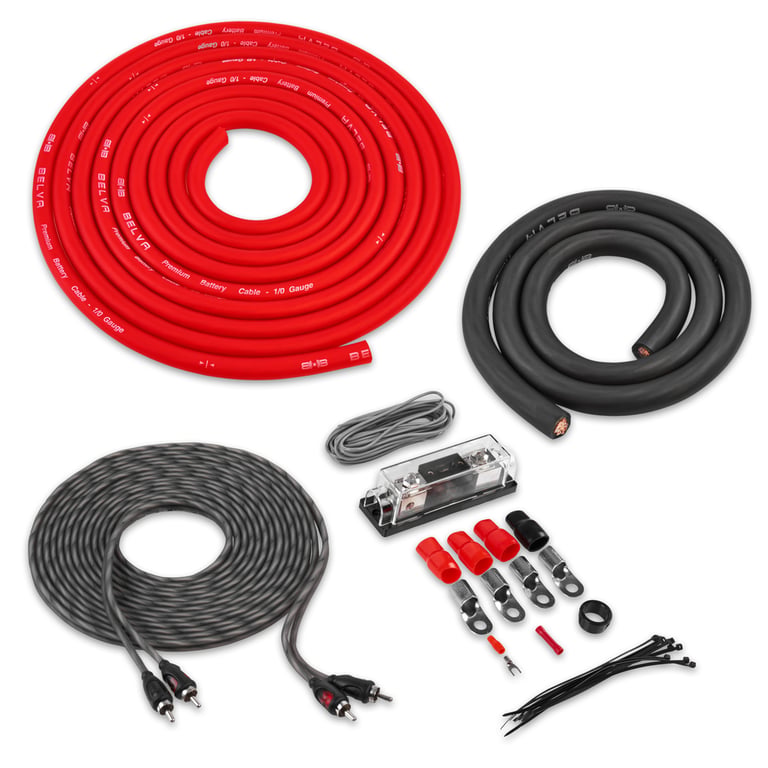

Kit includes:

  1. 17 ft. (5.2 meters) Red 1/0 gauge power wire
  2. 3 ft. (.91 meters) Black 1/0 gauge ground wire
  3. 17 ft. (5.2 meters) Gray 18 gauge remote lead wire
  4. 17 ft. (5.2 meters) Helical Twist 2-channel RCA interconnect cable

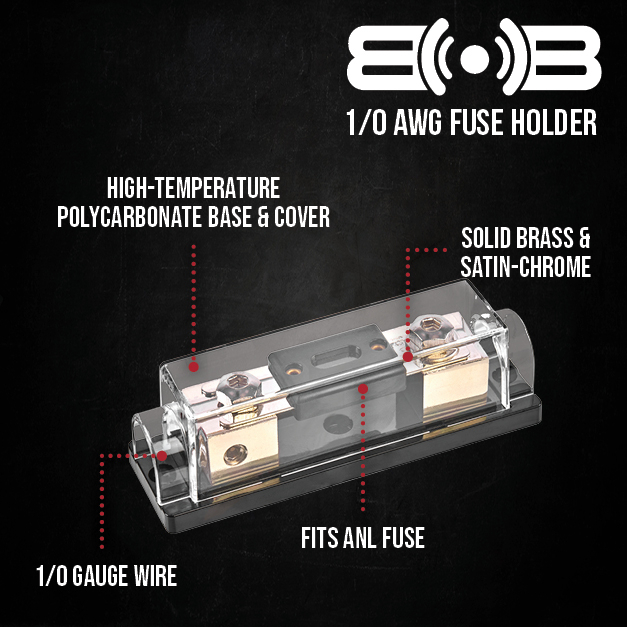

  5. One ANL Fuse Holder with a 150 amp ANL fuse
  6. One Black rubber firewall grommet
  7. Three 1/0 Gauge red chrome plated ring terminals
  8. One 1/0 Gauge chrome plated ring terminal
  9. One 18 Gauge red Spade terminal
  10. One 18 Gauge red butt connector
  11. Eight 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
1000 watts x 1 channel
RMS Power @ 2 ohms
2000 watts x 1 channel
RMS Power @ 1 ohm
3000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
3000 watts
Maximum Input Gauge Size
1/0 AWG
Minimum Impedance Unbridged
1 Ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
15 - 20,000 Hz
THD at Rated RMS Power
1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
15 - 2,000 Hz
Low-Pass Crossover Frequency
50 - 20,000 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Total Fuse Rating
300A
CEA-2031 Compliant
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.5 - 8 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
1/0 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GFX-3K1, BAK02

Weight:

11.10lbs

Internal SKU:

gfx3k1_bak02

Internal Product ID:

200888

Customer Ratings & Reviews


DS18 GFX-3K1 with Amplifier Wiring Kit thumbnail image

5 star
67%
4 star
21%
3 star
7%
2 star
5%
1 star
0%



Durability
4.7
Value
4.8
Features
4.5
Design
4.7
Usability
4.6

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Good

The following review is for BAK02, which is a part of the bundle you are viewing.

This wire is very flexible and fit nicely in my 2000 nissan maxima. ring terminals were a little fussy, but that was operator error. very nice 150 amp fuse. Lots of wire crammed into it. Very inexpensive for the quality. I would recommend this to anyone looking for an upgrade.

By Blane on February 24, 2014

140 found this helpful


Great

The following review is for BAK02, which is a part of the bundle you are viewing.

It is what it says it is.. no problems with install.

By PJ on September 17, 2013

126 found this helpful


a great kit for the price

The following review is for BAK02, which is a part of the bundle you are viewing.

these are great for the money and would definitely buy again

By Joseph on February 6, 2014

125 found this helpful


Decent Amp Kit

The following review is for BAK02, which is a part of the bundle you are viewing.

I am a professional installer first of and my father is an electrician. Following the AWG- American Wire Gauge standards this is not 1/0 wire it's closer to 2AWG, please understand that true 1/0AWG copper wire will cost around $5-8 a foot.

That being said for the price it is an amazing kit but should be marketed as 2AWG.

When compare to Kicker and Memphis true to spec 1/0AWG wire there is a major difference in size and weigh over all. 5 feet of Memphis 1/0 Wire weigh the same as 17 feet of Belva 1/0AWG.

By josh on October 3, 2014

125 found this helpful


Great Wire

The following review is for BAK02, which is a part of the bundle you are viewing.

It's the size it says it is, and powers my 1400 watt system with no problems. For the price and ease of install, I couldn't be happier!

By Bay on May 18, 2014

120 found this helpful


top quality

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit on a deal with a amplifier I purchased thought it looked good turned out to be one of the best amp kits I have ever owned would of paid full price for it

By Drew on March 28, 2014

116 found this helpful


Great deal

The following review is for BAK02, which is a part of the bundle you are viewing.

I got this kit because I got a deal on it with my amp...great starting kit...didn't have any problem with it when I installed it...The ground cable was to short for me but that is due to my custom box..All in all good 1/0 Guage kit

By Robert on August 8, 2014

116 found this helpful


good product

The following review is for BAK02, which is a part of the bundle you are viewing.

Good product, they give you plenty of length. Only complaint is that the o connectors are really hard to clamp down and the rcas are kinda cheesey but work

By Zach on September 12, 2013

114 found this helpful


Huge

The following review is for BAK02, which is a part of the bundle you are viewing.

I have never ran 0 gauge before and when I got it and took it out I was surprised but the big wire didn't really hurt the install it is still hidden under the carpet and it's thick and flexible so it was easy to run through the firewall. Now I'm gonna get the Belva big 3

By Brennen on June 9, 2014

112 found this helpful


True 0 AWG!

The following review is for BAK02, which is a part of the bundle you are viewing.

Pros:
This kit comes with everything you need for a 0 AWG amp install with RCA inputs.

Cons:
NONE

I would definitely recommend purchasing this kit if you need a quality 0 AWG kit at a fair price with super fast shipping!

By Michael on October 10, 2013

106 found this helpful


Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1972 GMC K2500 Pickup

2022 BMW X5 M

1997 Oldsmobile Aurora

1988 Cadillac Brougham

1981 Nissan 210

2008 Toyota RAV4

Vehicle
Store
Delete

2018 Can-Am Commander 1000 XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
