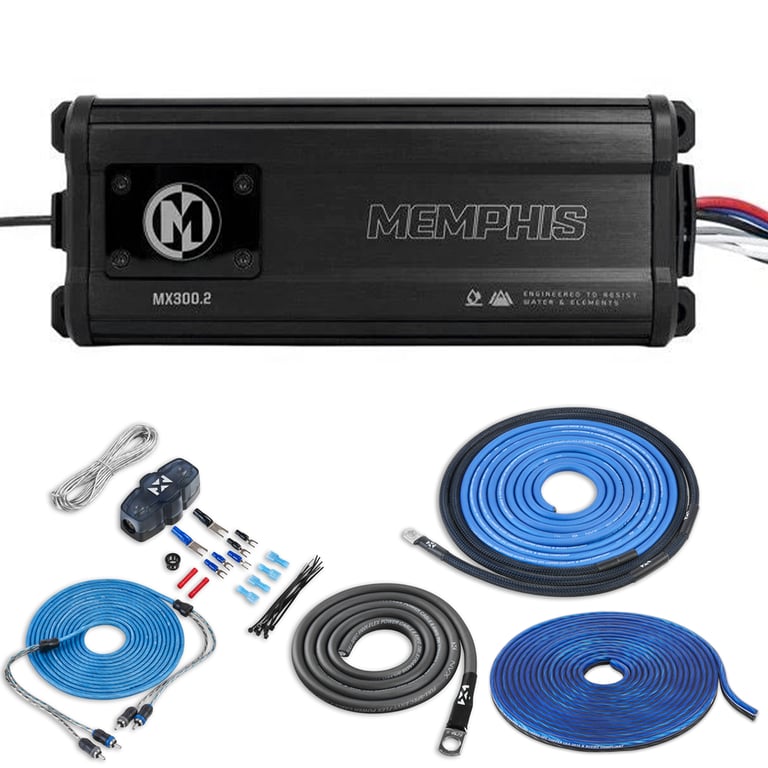

Memphis MX300.2 with Amplifier Wiring Kit

300W RMS MX-Series 2-Channel Class-D Marine/Powersports Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 100 watts x 2 channel @ 4 ohm
• 150 watts x 2 channel @ 2 ohm
• Bridged: 300 watts x 1 channel @ 4 ohm
• Total RMS Power: 300 watts
• Class D 2 ohm Stable 2-Channel Amplifier

Learn more about the mx3002_xkit82

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

220-US2-C65U-200 main

SSV Works US2-C8U-200

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Description


Memphis brand icon

Authorized dealer

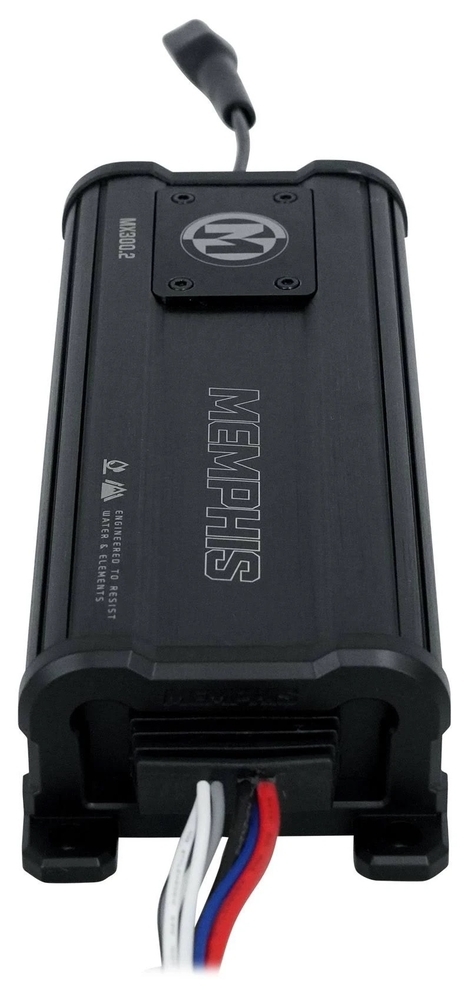

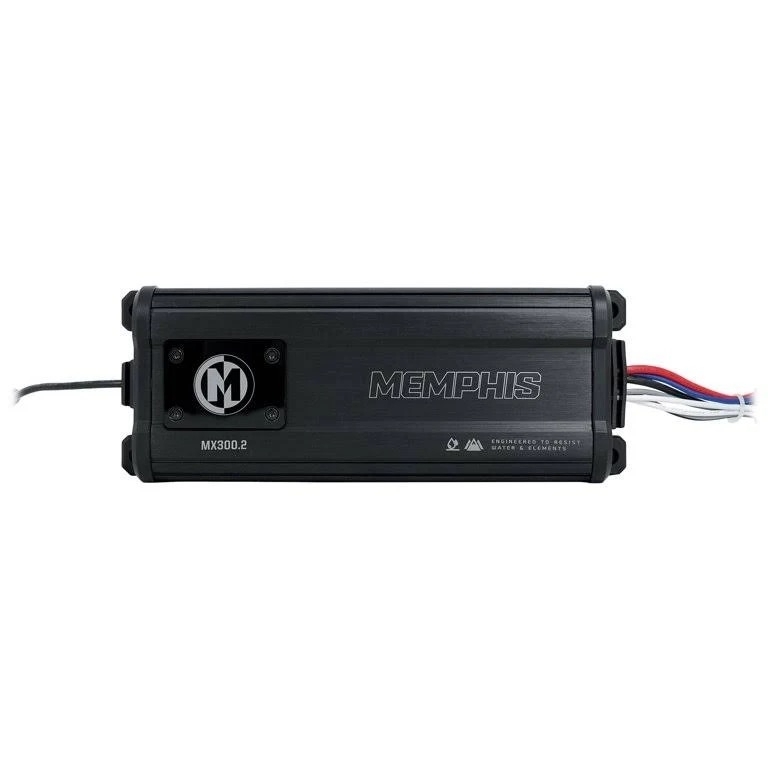

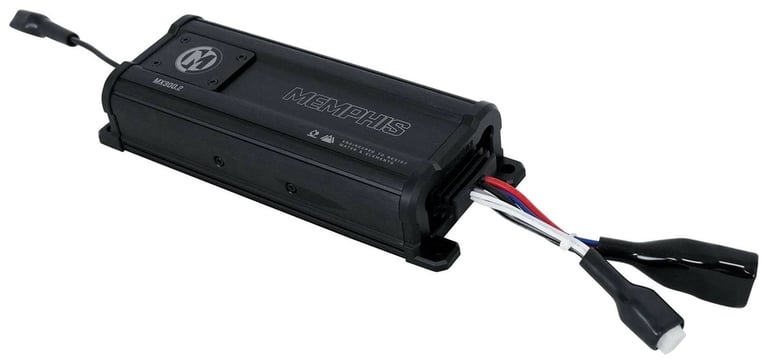

Memphis MX300.2

300W RMS MX-Series Class-D 2-Channel Marine Amplifier
Quantity: 1

Product Details:

  • MX Series Class D 2 ohm Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 2 channel
    • 2 ohm: 150 watts x 2 channel
    • Bridged: 300 watts x 1 channel @ 4 ohm
  • Total power output: 300 watts
  • LED Power/Protect Light
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Conformal coated board

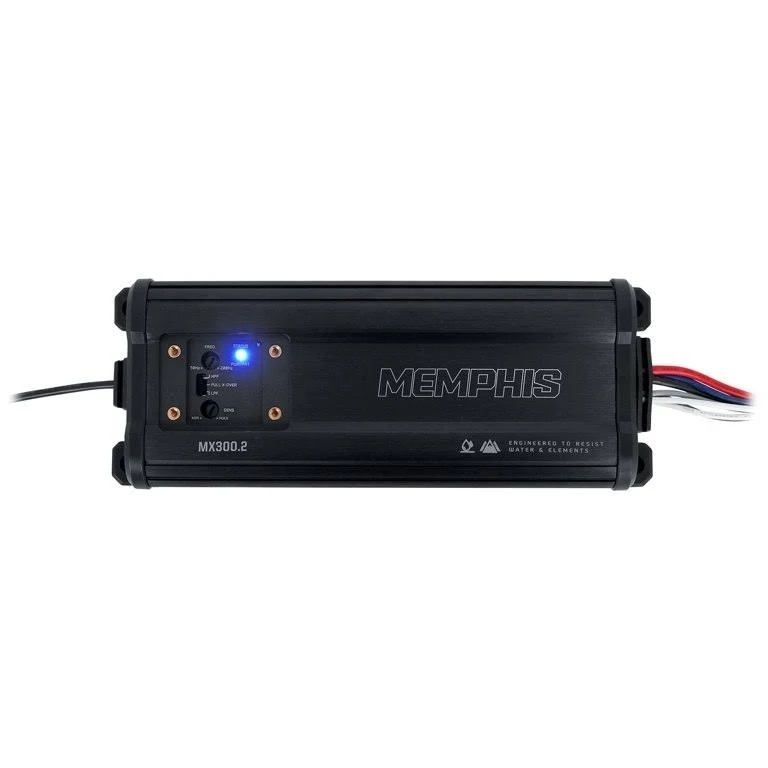

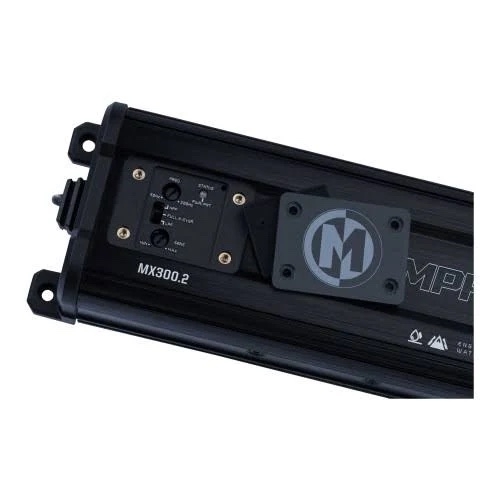

  • Top mounted controls
  • Sealed connectors
  • Input sensitivity: 0.30 - 9.7 volts
  • Frequency Response: 10 - 20K Hz
  • Total Harmonic Distortion (THD): <1%
  • Variable high-pass filter: 50 - 200 Hz
  • Variable low-pass filter: 50 - 200 Hz
  • 8 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 8.75" L x 3.25" W x 1.75" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MX300.2

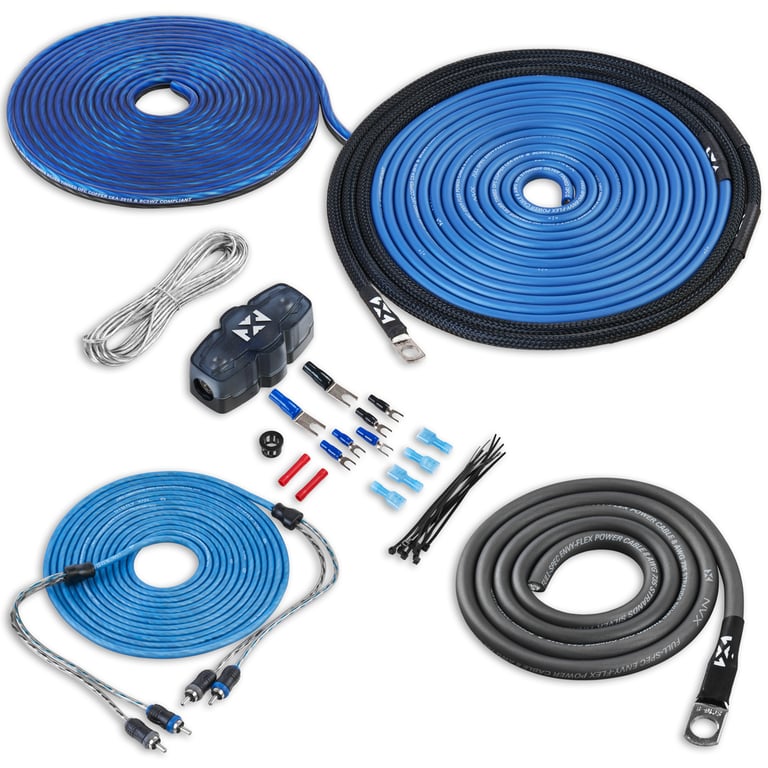

NVX XKIT82

Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1

Product Details:

  • 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 800 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 8 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

BAK42BK,R500X1D small

Rockford Fosgate R500X1D 500 Watt Car Amplifier + Amp Wiring Kit Bundle

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(76)

$344.98

List price $369.98

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(257)

$486.93

List price $677.43

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(246)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

R2-500X1, XKIT42 small

Rockford Fosgate R2-500X1 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 500 Watts RMS x 1 @ 2 ohm
• CEA-2006 Compliant
• Top Mounted Control Panel
• Class-D Amplifier
• Includes Amplifier Wiring Kit

(137)

$364.98

List price $453.98

46CXA8001T, BAK42 small

Kicker 46CXA8001 with Amplifier Wiring Kit

• 300 Watts RMS x 1 @ 4 ohm
• 600 Watts RMS x 1 @ 2 ohm
• 800 Watts RMS x 1 @ 1 ohm
• Efficient Class-D Monoblock Amplifier
• KickEQ™ 6dB variable bass boost for those additional low frequencies
• Includes Amplifier Wiring Kit

(188)

$324.48

List price $389.98

43DC122_46CX_BK82_2SK small

Kicker Subwoofer (43DC122) and Amplifier (46CXA4001T) w/ Free Amp Install Kit

  • Kicker Comp DC12 600W Peak Dual 12" Loaded Vented Subwoofer Enclosure
  • 400W RMS Class D CX-Series Monoblock Car Amplifier
  • Belva 8 Gauge Premium CCA Complete 2-Channel Amplifier Wiring Kit with RCA
  • NVX Premium Polyurethane Foam Can Insulator Sleeve Koozie
  • Complete bundle designed for powerful bass and seamless installation

(128)

$570.00

List price $679.94

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
100 watts x 2 channel
RMS Power @ 2 ohms
150 watts x 2 channel
Bridged RMS Power
300 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
2-Channel
Total RMS Power Output
300 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
2 ohms
Frequency Response
10 - 20000 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Remote bass/level controller
No
CEA-2031 Compliant
No
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
300mV - 9.7 volts
High-Level Input Sensitivity
300mV - 9.7 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
60A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MX300.2, XKIT82

Weight:

7.21lbs

Internal SKU:

mx3002_xkit82

Internal Product ID:

201350

Customer Ratings & Reviews


Memphis MX300.2 with Amplifier Wiring Kit thumbnail image

5 star
92%
4 star
8%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
5
Features
4.9
Design
5
Usability
5

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Best bang for the buck

The following review is for XKIT82, which is a part of the bundle you are viewing.

DO NOT buy Non-Name brand kits that are under 50$, Get this one, NVX is a brand name and they don't cut corners on their products. This kit is everything I needed to install my 12" Rockford Fosgate sub, The gauge is true to spec, everything is fine, the RCA cables are top notch, highly recommend

By anton on March 9, 2014

154 found this helpful


Great Deal!!

The following review is for XKIT82, which is a part of the bundle you are viewing.

I dont think I can find another kit that is as good as this one. Sure is very high quality as well as the materials of the sure insulator. It just feels right. Realy heavybduty too. Just buy it. Good stuff.

By Bugatti on January 30, 2014

144 found this helpful


The Real Deal

The following review is for XKIT82, which is a part of the bundle you are viewing.

I originally purchased this kit because it was a good price and I liked the idea of having true-gauge wire. I was leery of the stuff at my local store as it looked a little cheap. Lots of plastic and not much wire. Not the case here. This is a high-quality wiring kit that gets you everything you need for a basic amp install. Convenient markings on the wire to help you lace the fuse holder and measure your speaker wire. High quality covering and wire, very flexible and plenty of length to help you do a quality job. The connectors supplied could be a little better, but they did do the job. It is nice they are stiff metal, but hand-crimping effectively was a little rough. That is a minor complaint.

I have since purchased a second kit for another amp and from now on NVX is a go-to brand for me.

By Mark on January 17, 2015

141 found this helpful


amp kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is the first time going with NVX. Now..... NVX will be what I always go with.

By Shannon on October 1, 2014

139 found this helpful


Great ofc kit

The following review is for XKIT82, which is a part of the bundle you are viewing.

This is a great kit all of the wires including the RCA is super flexible, I would buy it again in a heartbeat

By Corey on April 26, 2014

137 found this helpful


NVX XKIT82

The following review is for XKIT82, which is a part of the bundle you are viewing.

I purchased this sub woofer set kit and it had everything needed to install the sub and all for a great price.I would recommend this kit for anyone needing the complete wire kit.

By Galen on March 3, 2014

136 found this helpful


Just what I needed, again!

The following review is for XKIT82, which is a part of the bundle you are viewing.

This amp kit is perfect for installing the 3channel JBL amp I purchased. Amazing quality for the best price out there. Do yourself a favor and look at everything NVX.

I had an extra RCA laying around so I only needed one.

By Ryan on January 19, 2014

135 found this helpful


quick turnaround

The following review is for XKIT82, which is a part of the bundle you are viewing.

When I ordered the product it was out of stock. Estimated delivery was weeks away, but it arrived just a few days later. True 8AWG OFC power and ground cable, high quality remote lead and high quality rca's and speaker leads. 10/10 would purchase again

By AK on May 17, 2015

105 found this helpful


I love it

The following review is for XKIT82, which is a part of the bundle you are viewing.

I'm glad I bought this kit it has everything I needed and the quality is excellent.

By Peter on April 26, 2015 Checkmark Icon Verified purchase

104 found this helpful


professional look

The following review is for XKIT82, which is a part of the bundle you are viewing.

I got this for free when i purchased my amp that it was recommended for. I was a little skeptical at first. But after a quick reference to my apm's manual and a little reassurance from the knowledgeable techs at sonic, i was ready. The whole kit come with everything you need and more. The quality is great and looks awesome. I also got a nvx bass knob as well. Thanks sonic.

By Keon on August 10, 2015

91 found this helpful



ZXi6.5C small

Hifonics Zeus ZXi 6.5C Open Box

(Open Box) 6-1/2" Zeus ZXI Series Component System (ZXi6.5C, ZXi 65C)

$52.99

List price $149.99

AVIC-Z2+ND-BC2+CD-IB100II small

Combo: Pioneer AVIC-Z2 + ND-BC2 + CD-IB100II

Double DIN In-dash DVD player/navigation system with 30GB hard drive and 7" TFT-LCD video screen + iPod Adapter + Back-up Camera

$1349.99

List price $2494.99

AVIC-D3+CD-I200 small

Combo: Pioneer AVIC-D3 + CD-i200

Double DIN 6.1" TFT-LCD Touchscreen DVD/CD/MP3 Receiver with GPS Navigation System AND iPod Adapter Cable Included

$659.99

List price $1299.99

No picture

Polk Audio MOMO MM6 (Silver) Open Box

(Open Box) 6-3/4" (Oversized 6-1/2") MOMO Series 2-way Component Speaker System

$119.99

List price $349.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2019 Lamborghini Urus

1967 Buick Riviera

2014 Ford Fiesta

2021 Lamborghini Urus

2023 Lamborghini Urus

2022 Lamborghini Urus

1996 BMW 750iL

2004 Dodge Intrepid

1983 Nissan Maxima

2019 Land Rover Range Rover Evoque

Vehicle
Store
Delete

2012 Harley Davidson FLHTC Electra Glide Classic

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
