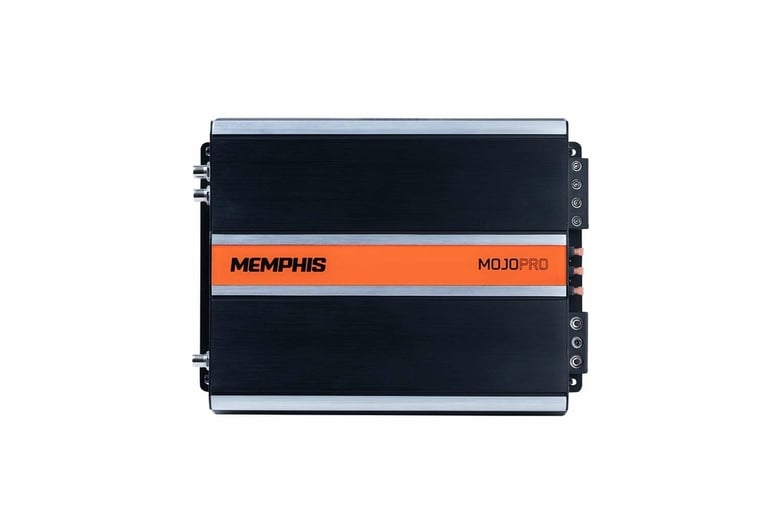

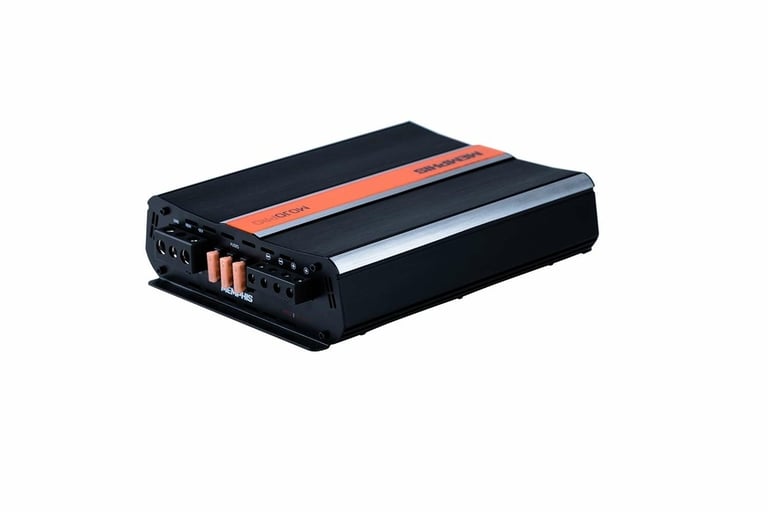

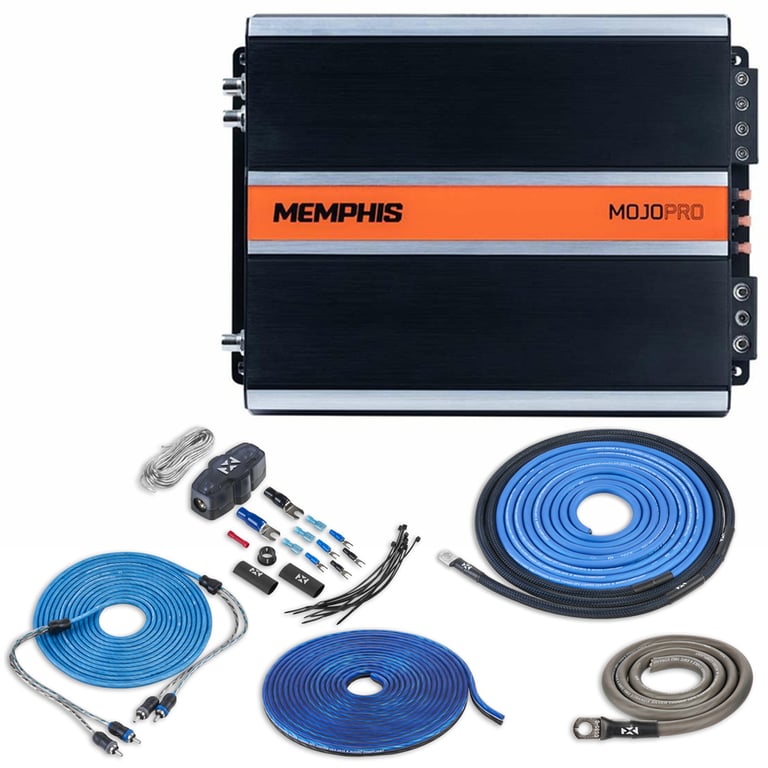

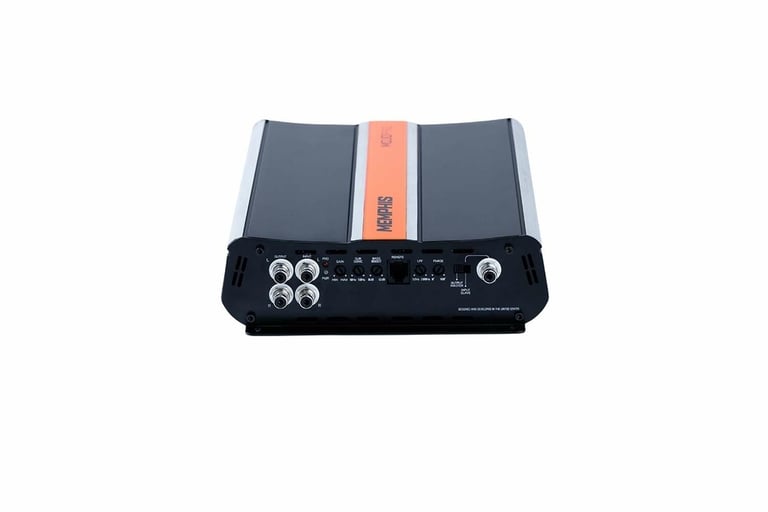

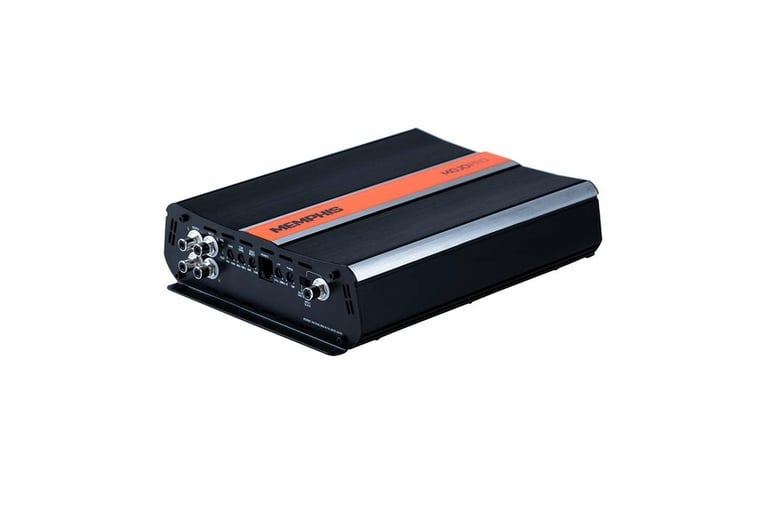

Memphis MJP1000.1 with Amplifier Wiring Kit

1000W RMS MOJO Pro Series Class-D Monoblock Car Amplifier

Memphis
Shop all Memphis
highlight-star-icon

• 425 watts x 1 channel @ 4 ohm
• 725 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Class D Stable Monoblock Amplifier

Learn more about the mjp10001_xkit42

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

CR1277B main

Scosche CR1277B / CR1277 Dash Kit

Install a new Single-DIN car stereo in select 1998-2010 vehicles from Dodge, Chrysler, Jeep (Black)

162
-21.22%

$10.99

List price $13.95

70-6502 main

Metra 70-6502 Wiring Harness

Install a new car stereo in select 2002-2010 vehicles from Dodge, Chrysler, Jeep

17
VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-16.67%

$119.99

List price $143.99

MEX-N5300BT main

Sony MEX-N5300BT

Single DIN CD Receiver with Bluetooth and Built-in NFC

82

$158.00

List price $159.99

560BRGB main

Boss Elite 560BRGB

Single DIN CD Receiver with Bluetooth (Black)

3
Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

31
-17.86%

$229.99

List price $279.99

DM-65-G main

Alpine DM-65-G

400W Peak (100W RMS) 6.5" DM Series 2-Way Coaxial 4-ohm Car Speakers

1
-18.23%

$89.95

List price $110.00

XAV-AX8100 main

Sony XAV-AX8100

8.95" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, WebLink, Apple CarPlay and Android Auto (SiriusXM Ready)

3
-8.00%

$598.00

List price $649.99

Description


Memphis brand icon

Authorized dealer

Memphis MJP1000.1

1000W RMS Class D MOJO Pro Series Monoblock Car Amplifier with Bass Remote
Quantity: 1

Product Details:

  • MOJO Pro Series Class D 2 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 425 watts x 1 channel
    • 2 ohm: 725 watts x 1 channel
    • 1 ohm: 1000 watts x 1 channel
  • Total RMS power output: 1000 watts
  • LED Power/Protect Light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Variable EQ bass boost (mono block amps)
  • Strap-able (mono block amps)
  • Input sensitivity: 200mV - 6 volts
  • Frequency Response: 11 - 200 Hz
  • Total Harmonic Distortion (THD): 1%
  • Variable low-pass filter: 32 - 200 Hz
  • Subsonic filter: 10 - 50 Hz
  • Variable Bass Boost: 0 - 12 dB
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 7.5" L x 9.5" W x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: MJP1000.1

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

254
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

72
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

214
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

T500-1bdCP, BAK42 small

Rockford Fosgate Power T500-1bdCP & BAK42 4 AWG Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm, 500W x 1 @ 1 ohm
• Dynamic Power Output: 690W
• CEA-2006 Compliant
• Variable Bass Boost: 0 to +18 dB at 45 Hz
• Ultra Efficient Class bD Circuitry
• Dimensions: 11-7/16"L x 8-3/16"W x 2-3/16"H

(216)

$574.48

List price $609.98

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
425 watts x 1 channel
RMS Power @ 2 ohms
725 watts x 1 channel
RMS Power @ 1 ohm
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1000 watts
Maximum Input Gauge Size
4 AWG
Frequency Response
11 - 200 Hz
THD at Rated RMS Power
<1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Low-Pass Crossover Frequency
32 - 200 Hz
Subsonic Filter
10 - 50 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Sonic Certified Amplifier
No
Amp Bluetooth Connectivity
No
Hi-Res Certified
No
Low-Level Input Sensitivity
.2 - 6 volts
High-Level Input Sensitivity
3 - 20 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

MJP1000.1, XKIT42

Weight:

13.26lbs

Internal SKU:

mjp10001_xkit42

Internal Product ID:

201358

Customer Ratings & Reviews


Memphis MJP1000.1 with Amplifier Wiring Kit thumbnail image

5 star
84%
4 star
16%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Durable

The following review is for XKIT42, which is a part of the bundle you are viewing.

The wire is so thick for quality sound production and yet so flexible. I didn't do my own install but the installer guy asked me about the kit and seemed to like the ease it offered

By Joseph on September 18, 2013

161 found this helpful


Quality

The following review is for XKIT42, which is a part of the bundle you are viewing.

Top quality kit. The power cable is very easy to bend, and the fuse block is well built. My only complaint is the oddball fuse

By Alex on January 13, 2014

156 found this helpful


NVX XKIT42

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is the perfect kit for anything around 1000 watts RMS. I have it hooked to a NVX JAD1200.1, and it is perfect. I literally have nothing bad to say about this kit. Every wire is true to gauge and it comes with plenty of wire, even 40ft of speaker wire! The RCA works great and the wires are strong and flexible. It'd be nice if it was a little cheaper, but it's definitely worth it. NVX makes some of the best, high quality wires and instillation equipment.

By Smuck on January 9, 2014

154 found this helpful


Real nice

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is a really nice kit has everything you need

By Clint on July 17, 2014

153 found this helpful


Great service again

The following review is for XKIT42, which is a part of the bundle you are viewing.

Another great buy! Chris took care of me again! Every one looking for car audio and your not shopping here your getting robbed!!!! If you don't believe me check for yourself. Just the customer service makes it worth buying anything from here. And any questions you have they are quick to get back to you and help you out.

By craig on August 31, 2014

148 found this helpful


great product!!!!

The following review is for XKIT42, which is a part of the bundle you are viewing.

this has to be the best connection kit I have ever used.. everything was flawlessly constructed and everything you need is in the kit, remember you get what you pay for... I am using this in a small suv that has no carpet but herculiner throughout and I need pure copper for corrosion resistance.. could be cheaper I guess..

By Dan on September 20, 2013

149 found this helpful


Best wiring overall

The following review is for XKIT42, which is a part of the bundle you are viewing.

when i received this and opened it up i was amazed when i saw how a 4ga. wire could look so much like 0ga. and bend so easily. the speaker wire is so thick that you would not believe that it is speaker wire. the wires also make your music sound so much clearer than any other wiring can. all the components are the best in quality.

By Kevin S. on June 2, 2013

146 found this helpful


Not your average amp kit.

The following review is for XKIT42, which is a part of the bundle you are viewing.

If you're picking up a bad*ss amp, why wouldn't you pick up a PROPER wiring kit ?!
I've previously used NVX Power/Ground wire for a BIG 3 Upgrade install, and was blown away by the Quality of the wire. High Strand, True To Spec, Super Flexible, Very Durable, and Conducts Very Well. Same can be said for the Speaker Wire and RCAs. I wish NVX made a kit with their higher end RCA cables, but the ones with this kit definitely get the job done. The fact that the Power/Ground come Crimped and Shrink Wrapped really save on install time, and the flex wrap on the Power Wire makes the install look Very professional. I ended up using the other goodies (ties and connectors) for various other things, but its pretty cool that it comes with the kit.

By REM on July 8, 2014

146 found this helpful


Very good wires at a cheap price

The following review is for XKIT42, which is a part of the bundle you are viewing.

Wire if true to gauge, also 100 percent copper very cheap price for the better quality of wires you get plus the hyper flex material makes it very easy to run wires ,overall great wires for price

By jason on May 26, 2014

145 found this helpful


Love this kit

The following review is for XKIT42, which is a part of the bundle you are viewing.

Great true 4 gauge wire kit. Both power/ground cables are flexible easy to work with, rca calbe is great. This kit comes with everything you need for an amp install. I will be using NVX amp kits for now on future installs.

By Ben on January 9, 2014

143 found this helpful




CLUB-5501AM, BAK42 small

JBL CLUB-5501 + Free Belva Amp Kit

1300W Peak (650W RMS) Club Series Class D Monoblock Amplifier

(71)

$169.95

List price $378.99

ST2.1000D, BAK82 small

Soundstream ST2.1000D Amplifier + 8 Gauge Amp Wiring Kit

1000W Max (500W RMS) Stealth Series 2 ohm Stable 2-Channel Class-D Amplifier

(98)

$139.98

List price $199.98

SQ 3 12-GRAY small

Ground Shaker SQ 3 12-GRAY

12” Triple Sealed Square Subwoofer Box

$119.95

List price $159.95

GM1520B small

Scosche GM1520B / GM1520

Double DIN or Single DIN w/ Pocket Installation Kit for select 2005-2011 Aveo and Aveo5 and G3 Vehicles

(2)

$13.99

List price $17.70

PN1.1000D, BAK82BL small

Soundstream PN1.1000D + 8 Gauge Amp Wiring Kit

1000W Monoblock Picasso Nano Series Class D Amplifier + Amp Wiring Kit

(40)

$199.98

List price $309.98

BP800.4 V2, BAK44 small

Massive Audio BP800.4 V2 + Belva BAK44

800W Peak (480W RMS) BP Series Class A/B 4 Channel Amplifier + Belva 4 Gauge Amp Wiring Kit

(63)

$159.98

List price $249.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Dodge Viper

1989 Mercury Topaz

2014 Kia Optima

1991 Jeep Cherokee

2000 Toyota Solara

2006 Toyota Camry

1988 Isuzu Pickup

2009 Volvo S80

1981 Oldsmobile Ninety Eight Regency

2017 Mazda 3

Vehicle
Store
Delete

2024 Can-Am Defender XT

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
