Pioneer TS-A523FH

640W Peak (110W RMS) 5.25" A-Series 2-way 4-ohm Coaxial Car Speakers

Pioneer
Shop all Pioneer
highlight-star-icon

• 320 watts Peak Each, 55 watts RMS Each
• 0.78" Component Polyetherimide (PEI) Hard Dome tweeters with neodymium magnets
• Aramid fiber reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

Learn more about the tsa523fh

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00

Limited time!
CAR1013 main

Jensen CAR1013

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto

8
-11.43%

$309.99

List price $349.99

Description


Pioneer brand icon

Authorized dealer

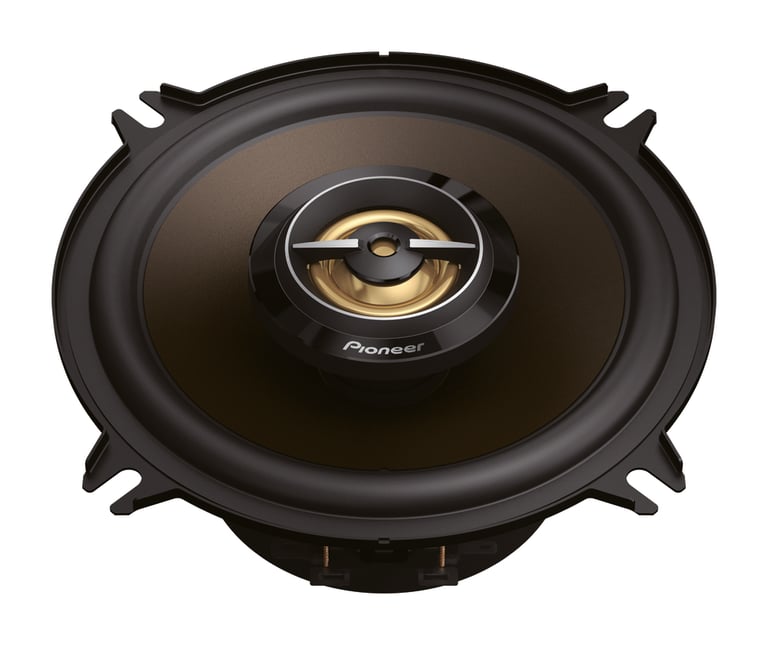

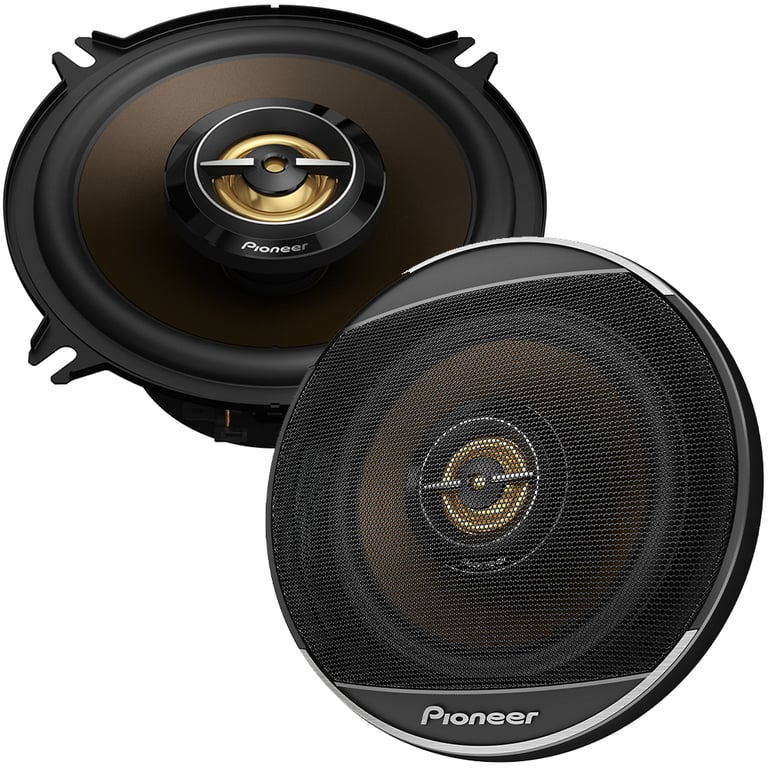

Pioneer TS-A523FH

Introducing the Pioneer A-Series speakers, your ticket to a premium audio experience that won't leave your wallet feeling lighter. These speakers not only deliver better audio details with rich bass notes, louder output, and clear and balanced audio but also do it in an affordable manner.

Their sound design purposefully matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high-impact bass that lets you hear and feel the music, all without breaking the bank. Pioneer’s OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.

The A-Series lineup not only expands flexibility and improves acoustic performance but also does it affordably. The integrated inline crossover network allows for increased installation flexibility without the need for an outboard module. And as an added bonus, the Pioneer A Series includes multi-fit installation adapters and tweeter mounts (when applicable) to make upgrading your car's audio system easier on your budget. Enjoy premium sound without sacrificing your savings with Pioneer A-Series speakers.

Product Details:

  • 5-1/4" A Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 640 watts per pair / 320 watts each
    • RMS: 110 watts per pair / 55 watts each
  • CEA-2031 compliant

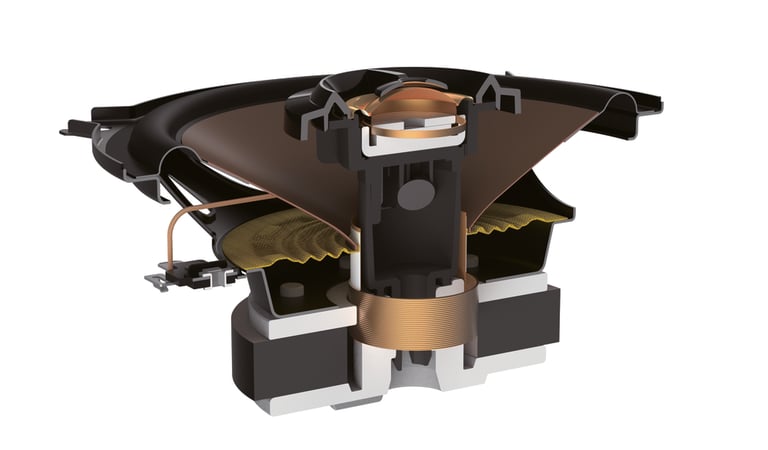

  • Aramid fiber reinforced Injection Molded Polypropylene cone material with Progressive Flex Suspension System (PFSS spider)
  • Elastic Polymer speaker surround
  • 0.78" Component Polyetherimide (PEI) Hard Dome tweeters with neodymium magnets
  • 1" voice coil with copper wire and glass imide bobbin
  • 7.41 oz. Ferrite magnet motor structure
  • Open & Smooth sound concept between the midrange and tweeter
  • CarSoundFit technology-compatible
  • Custom-fit for original equipment 5.25" speakers
  • Top-mount Depth: 2-1/8"
  • Cutout Dimensions: 4-3/4"
  • Impedance: 4 ohm
  • Frequency Response: 39 - 49,000 Hz
  • Sensitivity: 88 dB

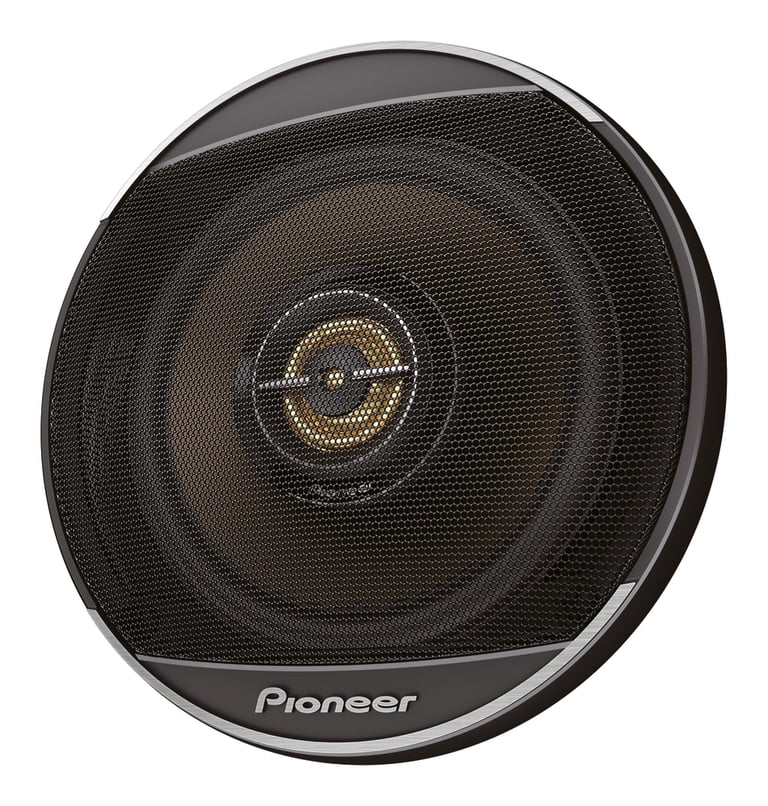

  • 2 speaker grilles included
  • Authorized Internet Dealer
  • MFR #: TS-A523FH
  • 1-year Manufacturer's Warranty

  • Priced Per Pair


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$74.99

List price $129.95

PNW-525 small

AudioControl PNW-525

• 75 watts Peak Each, 50 watts RMS Each
• Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.41 dB

(1)

$239.00

List price $259.00

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(15)

$79.96

List price $119.99

43DSC504 small

Kicker DSC50 (43DSC504)

• 200 watts Peak Each, 50 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(59)

$74.99

List price $84.99

TS-G1320S small

Pioneer TS-G1320S

• 250 watts Peak Each, 35 watts RMS Each
• 1-3/16" Polyethylene Terephthalate (PET) Balanced Dome tweeters
• Mica Injected Polypropylene - MIPP cone material with Progressive Flex Suspension System (PFSS) spider
• Impedance: 4 ohm
• Sensitivity: 87 dB

(34)

$44.99

List price $65.00

VSP525 small

NVX VSP525

• 240 watts Peak Each, 80 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.16"

(23)

$79.99

List price $95.99

DB522 small

Polk Audio DB522 (DB 522)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• UV-tolerant Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(68)

$100.00

List price $109.99

P152 small

Rockford Fosgate Punch P1 P152

• 80 watts Peak Each, 40 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(29)

$109.99

List price $109.99

T152 small

Rockford Fosgate Power T1 T152

• 120 watts Peak Each, 60 watts RMS Each
• 1" Aluminum Dome offset cantilever coaxial mounted tweeters
• Polypropylene-Carbon Fiber Hybrid cone material
• Impedance: 4 ohm
• Sensitivity: 86.5 dB

(23)

$219.99

List price $219.99

ZS525CX small

Hifonics ZS525CX

• 200 watts Peak Each, 30 watts RMS Each
• 1" Neo-Mylar Soft Dome tweeters with Kapton former
• Alpha-Cellulose cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(7)

$19.99

List price $28.99

Specifications & Details


Speaker Specifications
Series
A Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
5-1/4"
Design
2-way Coaxial
Tweeter Design
Hard Dome
Tweeter Size
0.78"
Tweeter Composition
Component Polyetherimide (PEI)
Woofer Composition
Aramid fiber reinforced Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Peak Power Handling
320 watts
RMS Power Handling
55 watts
Total PEAK Per Pair/Set
640 watts
Total RMS Per Pair/Set
110 watts
Sensitivity
88 dB
Frequency Response
39 - 49,000 Hz
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
1"
Shallow Mount Installation
No
Magnet weight
7.41 oz.
Magnet Type
Ferrite
Top-Mount Depth (Mounting Depth)
2-1/8"
Cutout Dimensions
4-3/4"
CTA-2031 Compliant
Yes
General specifications
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
What is in the box?
Paperwork
User manual
Warranty/Registration card
WITB: Speakers
Speakers (2)
Grilles (2, attached)
Mounting screws (8)
Speaker connection cables (2)
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TS-A523FH

Weight:

10.00lbs

Internal SKU:

tsa523fh

Internal Product ID:

201456
