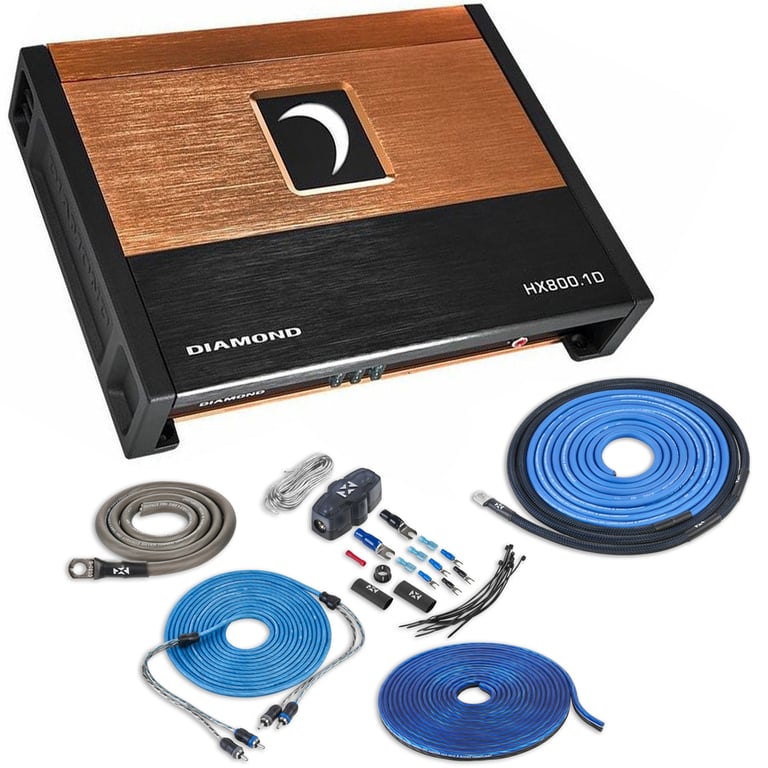

Diamond Audio HX800.1D with 4 Gauge Amplifier Wiring Kit

800W RMS Hex Series Class-D Monoblock Amplifier + NVX XKIT42 4-Channel Amp Wiring Kit

Out of stock
highlight-star-icon

• 340 watts x 1 channel @ 4 ohm
• 560 watts x 1 channel @ 2 ohm
• 800 watts x 1 channel @ 1 ohm
• Total RMS Power: 1600 watts
• Class D 1 ohm Stable Monoblock Amplifier

Learn more about the hx8001d_xkit42
Was $713.98 Details
Thanks , You Pay:

$626.98

 with warranty

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

Save 10% Off Package Deals at Checkout!
Quantity
Out of stock - Order risk-free, cancel any time.
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
Limited time!
46CSS674 main

Kicker CSS67 (46CSS674)

600W Peak (200W RMS) 6.75" CS Series 2 Way Component 4-ohm Speaker System

2

$134.96

List price $199.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

47

$109.99

List price $109.99

CK 165 main

Hertz CK 165

570W Peak (190W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

$399.99

List price $460.00

R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

55

$79.99

List price $79.99

CK 165L main

Hertz CK 165L

600W Peak (200W RMS) 6.5" Cento Series 2-way 4-ohm Component Speaker System

2

$399.99

List price $460.00

P1675-S main

Rockford Fosgate Punch P1 P1675-S

240W Peak (120W RMS) 6.75" Punch Series 2 Way Component 4-ohm Speakers

20

$159.99

List price $159.99

Limited time!
46CSC674 main

Kicker CSC67 (46CSC674)

600W Peak (200W RMS) 6.75” CS Series 2 Way Coaxial 4-ohm Speakers

9

$74.96

List price $119.99

K 165 main

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

3

$99.99

List price $115.00

DCX 170.3 main

Hertz DCX 170.3

200W Peak (100W RMS) 6.75" Dieci Series 2-way 4-ohm Coaxial Car Speakers

1

$129.99

List price $150.00

Limited time!
S2-S65 main

Alpine S2-S65

480W Peak (160W RMS) 6.5" S-Series 2-way Coaxial 4-ohm Speakers

5

$119.95

List price $180.00

Description

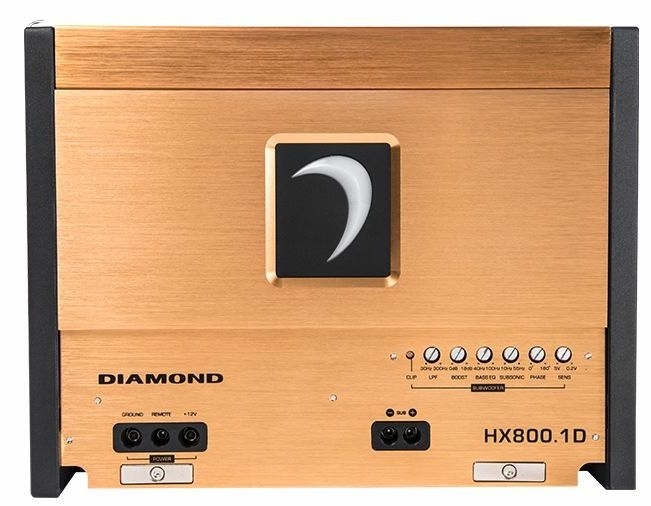

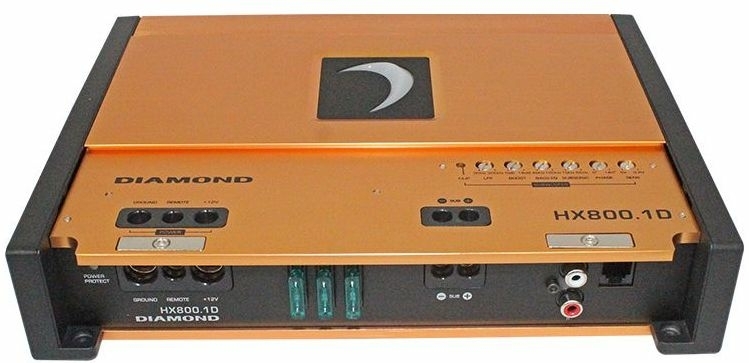

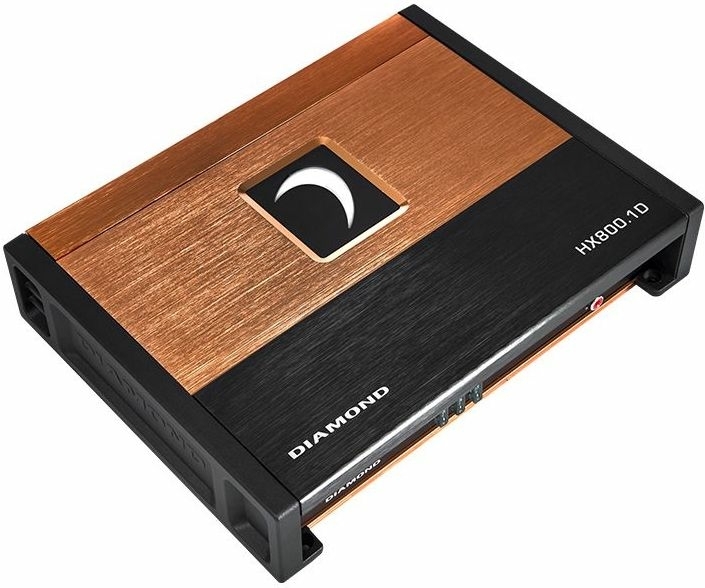

Diamond Audio HX800.1D

800W RMS Class D Hex Series Monoblock Car Amplifier (with Bass Remote)
Quantity: 1

Product Details:

  • HEX Series Class D 1 ohm Stable Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 340 watts x 1 channel
    • 2 ohm: 560 watts x 1 channel
    • 1 ohm: 800 watts x 1 channel
  • Total RMS power output: 800 watts
  • LED Power/Protect Light
  • Wired bass level remote control included
  • Speaker-level (high-level) inputs
  • 1 pair of pre-amp outputs
  • Signal sensing remote turn-on
  • Anodized extruded aluminum heat sink
  • 4-layer PCB board with balanced differential inputs
  • Full range Class D IR chipset
  • SNAP capacitors throughout the circuit
  • Audiophile grade high tolerance components
  • Spring steel FET clips provide a cleaner board design
  • Illuminated logo and fully concealed mounting
  • Output clip indicators for precise set-up
  • Fine-tuned fully variable crossovers and phase control
  • Top mounted controls for convenient amplifier adjustment
  • Input sensitivity: 200 mV - 5 volts
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.01%
  • Signal to Noise Ratio: >80 dB
  • Variable low-pass filter: 30 - 300 Hz
  • Subsonic filter: 10 - 55 Hz
  • Variable Bass Boost: 0 - 18 dB
  • Variable Phase Shift: 0 - 180 degrees
  • Fuse Rating: 90A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 9.9" L x 7.67" W x 2" H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • MFR #: HX800.1D

NVX XKIT42

Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1

Product Details:

  • 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
  • Designed for car audio systems up to 1500 watts RMS
  • Made from 100% Oxygen-Free Copper (OFC)
  • Tinned conductors for corrosion resistance
  • Pre-installed black nylon mesh covering protects the power wire from damage
  • Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
  • Pre-terminated seamless power and ground ring terminals provide reliable performance
  • Full spec power and speaker wire meet or exceed American Wire Gauge standards
  • CEA-2015 and BC5W2 compliant
  • V-Series RCA Interconnect Cable
  • Shielded noise-rejecting coaxial construction provides protection against interference
  • Split-tip silver-plated ends offer high-quality performance
  • Molded ends equipped with colored channel identifiers for easy recognition
  • Twisted-pair construction featuring two conductors per channel
  • Includes an assortment of wire termination hardware and cable ties
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

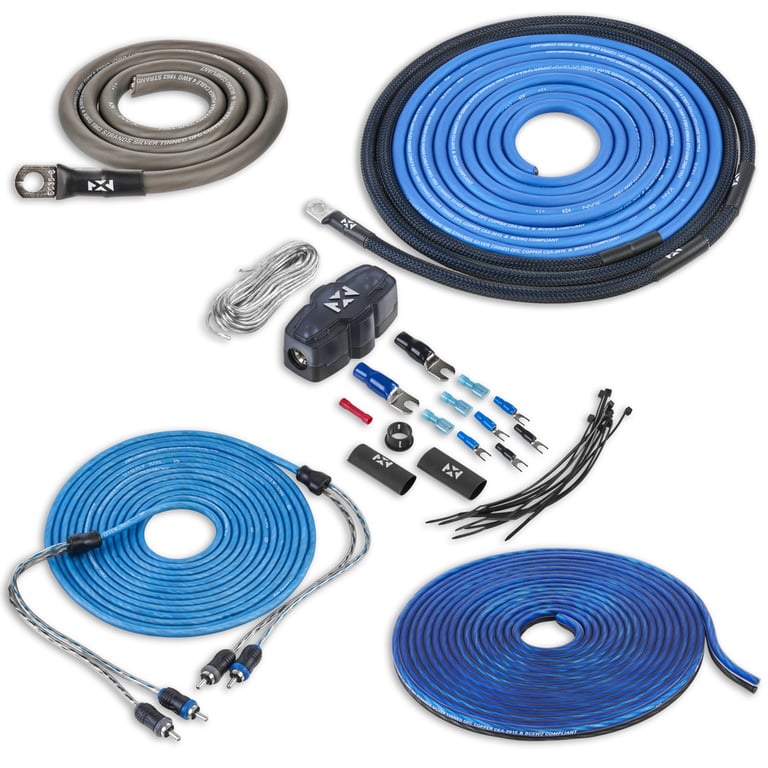

Kit includes:

  1. 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
  2. 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
  3. 17 ft. Clear 18 gauge remote lead wire
  4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
  5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
  6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
  7. One Black rubber firewall grommet
  8. Two 4 Gauge Nickel Plated spade terminals
  9. Four 18 Gauge Spade terminal
  10. Two 18 Gauge Red butt connectors
  11. Four 16 Gauge quick disconnect
  12. Five 16 Gauge Nickel Plated spade terminals
  13. Two Heat Shrink tubes with the NVX logo
  14. Ten 6" Black zip ties

This product is temporarily out of stock. May we recommend...

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(313)

$468.43

List price $681.43

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(310)

$459.43

List price $675.43

Sundown Audio SW-NSV612D1 + NVX XCA6K

• Peak Power: 7000 watts
• Sensitivity: RMS Power: 3000 watts
• Sensitivity: Impedance: Dual 1 ohm
• Sensitivity: Polypropylene Cone
• Sensitivity: Mega Roll V2 Surround
• Sensitivity: Mount depth: 12.75"
• Sensitivity: Sensitivity: 83.02 dB

(1)

$2779.97

List price $3599.97

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(72)

$309.99

List price $369.98

NVX NPKG212 with Free BAK82BL Amp Kit

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(41)

$359.99

List price $469.98

NVX XCW122 + XQA25001 + XKIT02

• One 12" XCW122 XC-Series 2000W RMS Subwoofer
• 5000W Peak (2500W RMS) Class D XQA25001 Monoblock Amplifier
• XKIT02 Complete 0 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(39)

$1179.97

List price $1667.97

NVX Audio Upgrade Kit – QB12SPA with 2 Pair 6.5" Speakers

• 12" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$360.43

List price $555.42

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(304)

$342.43

List price $531.42

Sundown Audio ZV6 15" D2 + NVX XCA6K

• RMS Power: 2500 watts
• Impedance: Dual 2 ohm
• Mega Roll V2 Surround
• Mount depth: 12.93"
•Sensitivity: 86.57 dB

(1)

$2899.97

List price $3599.97

Alpine Full Audio Truck Package

• 600W RMS Dual Ported 8" Loaded Enclosure
• Modular Stackable Design
• Integrated Amplifier Tray
• Class D 8-Channel-Channel Amplifier
• 6"x9" Component Speakers
• 6.5" Coaxial Speakers

(11)

$1945.99

List price $2690.00

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
340 watts x 1 channel
RMS Power @ 2 ohms
560 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total RMS Power Output
1600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
1 ohm
Minimum Impedance Bridged
Not Bridgeable
Frequency Response
80 - 120 Hz
THD at Rated RMS Power
0.01%
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Subsonic
Low-Pass Crossover Frequency
30 - 300 Hz
Subsonic Filter
10 - 55 Hz
Signal-to-Noise Ratio
>80 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 4
Total Fuse Rating
30
CEA-2031 Compliant
No
Sonic Certified Amplifier
Not Tested
Low-Level Input Sensitivity
0.20 - 5 volts
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL/MINI ANL
Fuse Size
100A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HX800.1D_XKIT42

Weight:

14.30lbs

Internal SKU:

hx8001d_xkit42

Internal Product ID:

202082

Customer Ratings & Reviews



5 star
84%
4 star
16%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.9
Design
5
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Durable

The following review is for XKIT42, which is a part of the bundle you are viewing.

The wire is so thick for quality sound production and yet so flexible. I didn't do my own install but the installer guy asked me about the kit and seemed to like the ease it offered

By Joseph on September 18, 2013

158 found this helpful Helpful?


Quality

The following review is for XKIT42, which is a part of the bundle you are viewing.

Top quality kit. The power cable is very easy to bend, and the fuse block is well built. My only complaint is the oddball fuse

By Alex on January 13, 2014

153 found this helpful Helpful?


Real nice

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is a really nice kit has everything you need

By Clint on July 17, 2014

152 found this helpful Helpful?


NVX XKIT42

The following review is for XKIT42, which is a part of the bundle you are viewing.

This is the perfect kit for anything around 1000 watts RMS. I have it hooked to a NVX JAD1200.1, and it is perfect. I literally have nothing bad to say about this kit. Every wire is true to gauge and it comes with plenty of wire, even 40ft of speaker wire! The RCA works great and the wires are strong and flexible. It'd be nice if it was a little cheaper, but it's definitely worth it. NVX makes some of the best, high quality wires and instillation equipment.

By Smuck on January 9, 2014

152 found this helpful Helpful?


Great service again

The following review is for XKIT42, which is a part of the bundle you are viewing.

Another great buy! Chris took care of me again! Every one looking for car audio and your not shopping here your getting robbed!!!! If you don't believe me check for yourself. Just the customer service makes it worth buying anything from here. And any questions you have they are quick to get back to you and help you out.

By craig on August 31, 2014

147 found this helpful Helpful?


great product!!!!

The following review is for XKIT42, which is a part of the bundle you are viewing.

this has to be the best connection kit I have ever used.. everything was flawlessly constructed and everything you need is in the kit, remember you get what you pay for... I am using this in a small suv that has no carpet but herculiner throughout and I need pure copper for corrosion resistance.. could be cheaper I guess..

By Dan on September 20, 2013

148 found this helpful Helpful?


Best wiring overall

The following review is for XKIT42, which is a part of the bundle you are viewing.

when i received this and opened it up i was amazed when i saw how a 4ga. wire could look so much like 0ga. and bend so easily. the speaker wire is so thick that you would not believe that it is speaker wire. the wires also make your music sound so much clearer than any other wiring can. all the components are the best in quality.

By Kevin S. on June 2, 2013

145 found this helpful Helpful?


Not your average amp kit.

The following review is for XKIT42, which is a part of the bundle you are viewing.

If you're picking up a bad*ss amp, why wouldn't you pick up a PROPER wiring kit ?!
I've previously used NVX Power/Ground wire for a BIG 3 Upgrade install, and was blown away by the Quality of the wire. High Strand, True To Spec, Super Flexible, Very Durable, and Conducts Very Well. Same can be said for the Speaker Wire and RCAs. I wish NVX made a kit with their higher end RCA cables, but the ones with this kit definitely get the job done. The fact that the Power/Ground come Crimped and Shrink Wrapped really save on install time, and the flex wrap on the Power Wire makes the install look Very professional. I ended up using the other goodies (ties and connectors) for various other things, but its pretty cool that it comes with the kit.

By REM on July 8, 2014

145 found this helpful Helpful?


Very good wires at a cheap price

The following review is for XKIT42, which is a part of the bundle you are viewing.

Wire if true to gauge, also 100 percent copper very cheap price for the better quality of wires you get plus the hyper flex material makes it very easy to run wires ,overall great wires for price

By jason on May 26, 2014

144 found this helpful Helpful?


Love this kit

The following review is for XKIT42, which is a part of the bundle you are viewing.

Great true 4 gauge wire kit. Both power/ground cables are flexible easy to work with, rca calbe is great. This kit comes with everything you need for an amp install. I will be using NVX amp kits for now on future installs.

By Ben on January 9, 2014

142 found this helpful Helpful?




Kicker TL7T122 (46TL7T122)

600W RMS Loaded Single 12" Sealed Truck Subwoofer Enclosure

(9)

$277.96

List price $399.99

DS18 FRP-5K/BL

5000W RMS Class D FRP Series Monoblock Car Amplifier with Bass Remote (Blue)

$575.96

List price $863.99

Deaf Bonce Apocalypse ASA 4000.1

4000W RMS Class D Apocalypse Sport Series Monoblock Car Subwoofer Amplifier

$637.42

List price $749.90

Power Acoustik RZ1-3500D with Belva 4 Gauge Amp Kit

3500W Max (2100W RMS) Razor Series Class-D Monoblock 1-Ohm Stable Amplifier

(178)

$187.23

List price $289.98

Belva BB200ABv2

500W Peak Class A/B Monoblock Amplifier

(14)

$59.99

List price $75.99

Belva BLPCAM2

License Plate Mounted Waterproof Rearview Backup Camera with Built in Night Vision

(53)

$39.99

List price $99.99

Massive Audio P8

7000W Peak (3500W RMS) Class D Primo Series Monoblock Car Amplifier

$649.99

List price $1189.99

Hifonics HAC-1500.1D with Belva 1/0 Gauge Amp Kit

1500W Peak Colossus Pro Series Class-D Monoblock Amplifier with Bass Remote

(74)

$249.99

List price $519.98

Hertz K 165

300W Peak (75W RMS) 6.5" Uno Series 2-way 4-ohm Component Speaker System

(3)

$99.99

List price $115.00

Related Searches


Save up to 10 different vehicles in your garage

2006 Lamborghini Murcielago

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner’s manual
  • Vehicle’s insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver’s side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
