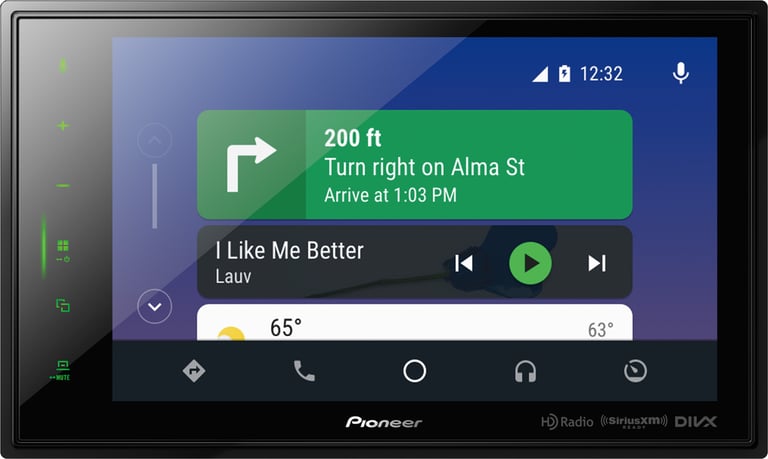

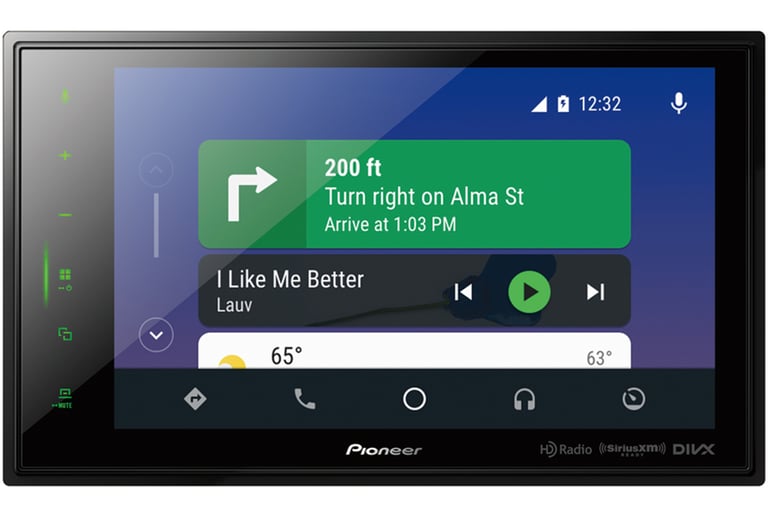

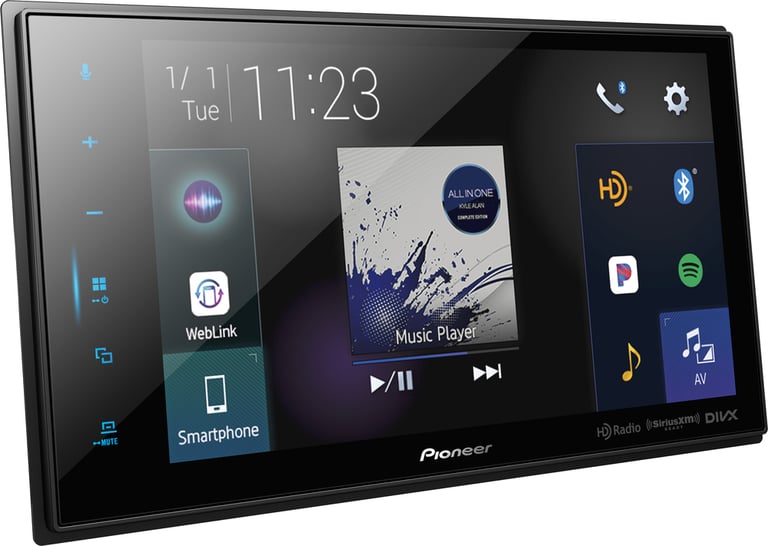

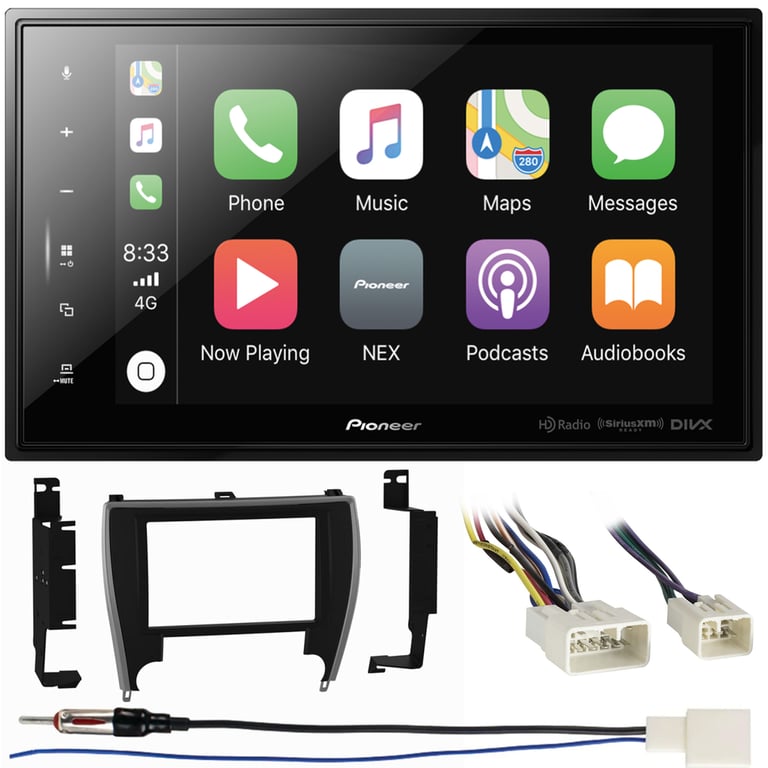

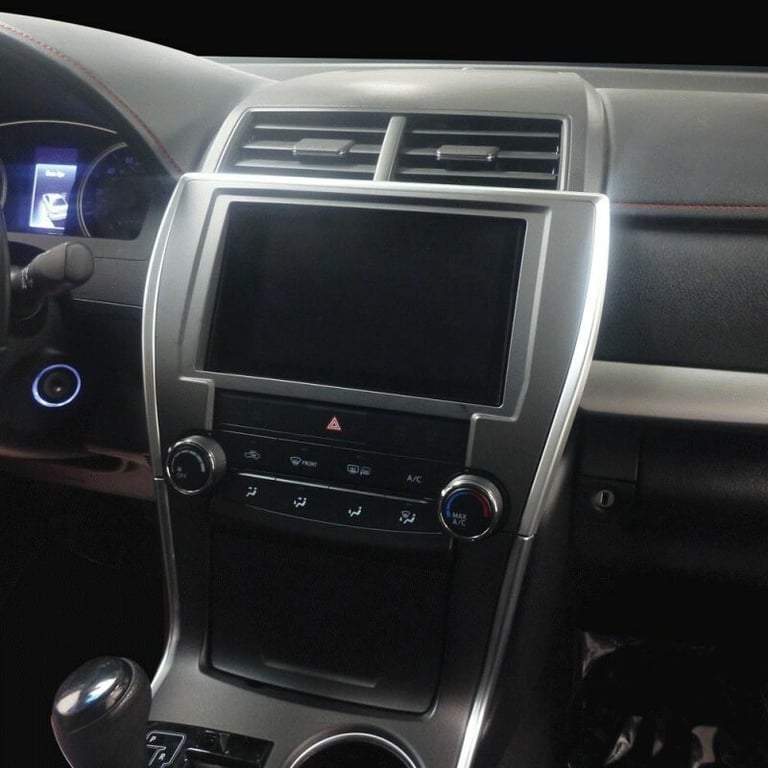

Pioneer DMH-C5500NEX Package for 2015-2017 Toyota Camry

Product Details

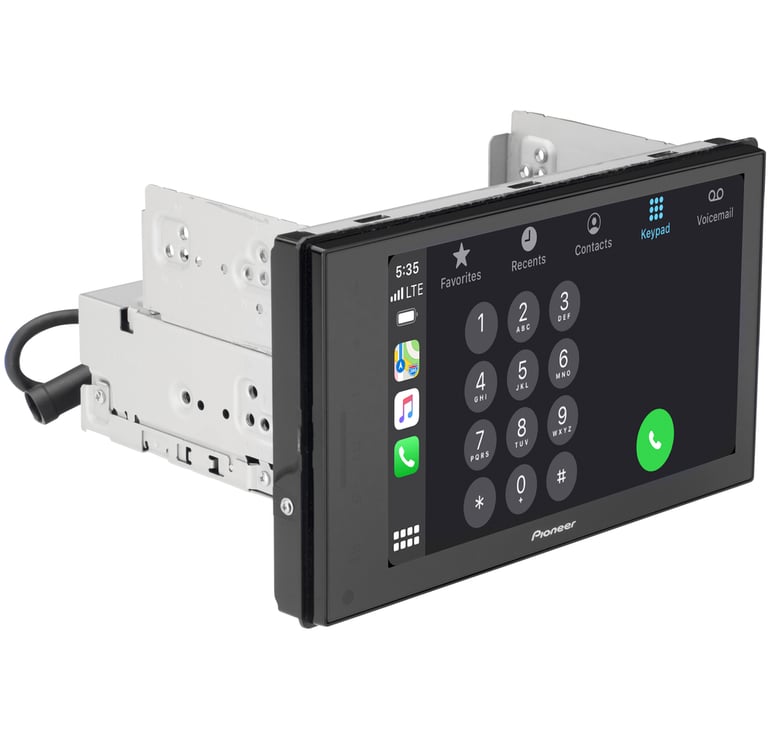

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver
• 8" Capacitive Touchscreen Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 14 watts x 4 channel

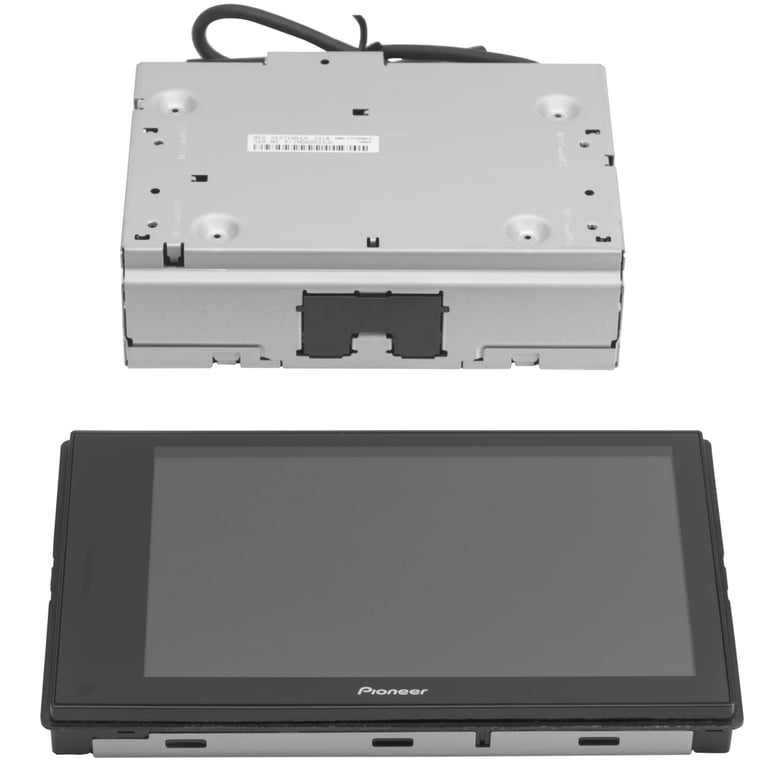

• Touchscreen and chassis can be installed together or independently
• Bluetooth hands-free calling and audio streaming
• Features Pioneer advanced sound retriever
• 5 display colors, 112 key colors color customization
• Modular, Non-DIN device display
• Fixed monitor mechanism
• Supports English, French, Spanish Portuguese, Chinese (Simplified)

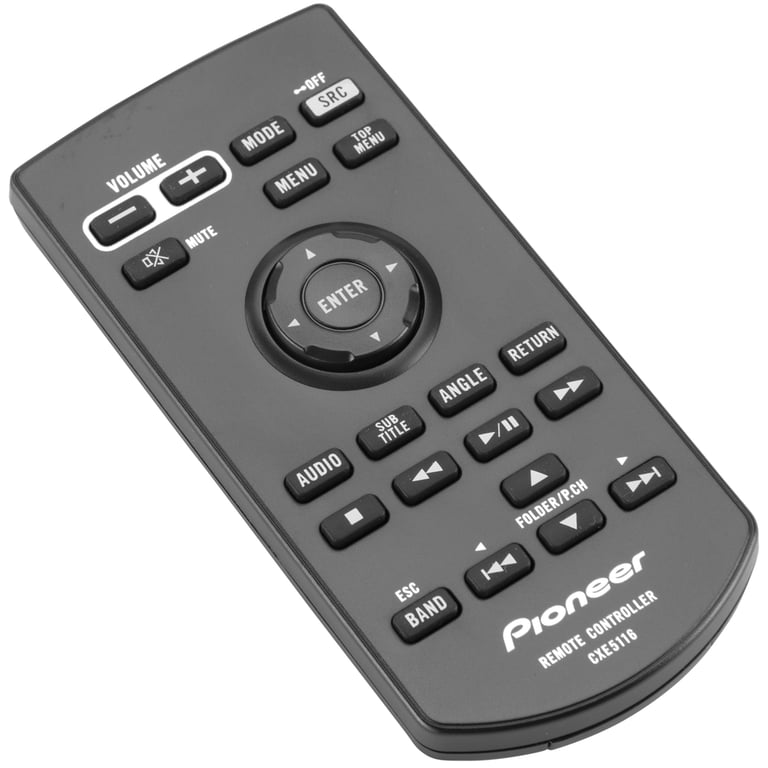

• Wireless remote control included
• Built-in HD Radio Tuner
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMH-C5500NEX

Smartphone Features

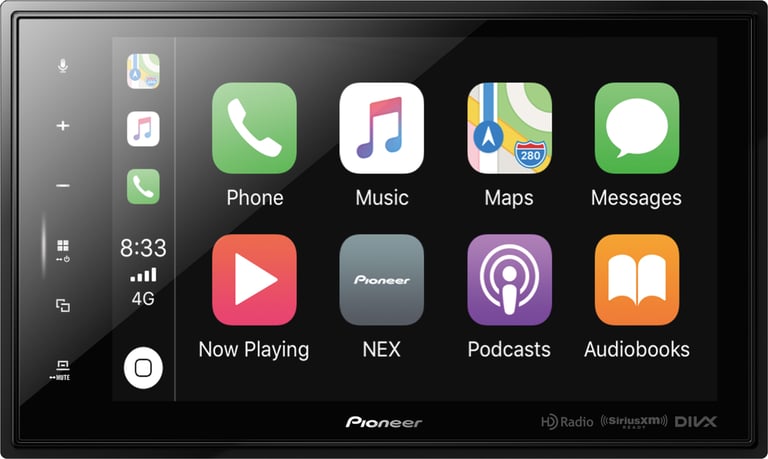

• Apple CarPlay and Android Auto compatible
• Display and control music, and other apps with iPhone and Android
• Pandora and Spotify capable
• Built-in Amazon Alexa Paired with Pioneer Vozsis (with Wi-Fi connection)
• Siri Eyes Free control for select iPhones and Google Assistant for Android
• Register up to 5 phones/devices via Bluetooth

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG | MOV and WMV Video Playback
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with Digital Time Alignment

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess AXSWC-2 required and sold separately
• iDataLink ADS-MRR module compatible. In a wide selection of vehicles, this module lets you keep factory features you'd otherwise lose when installing a new radio.

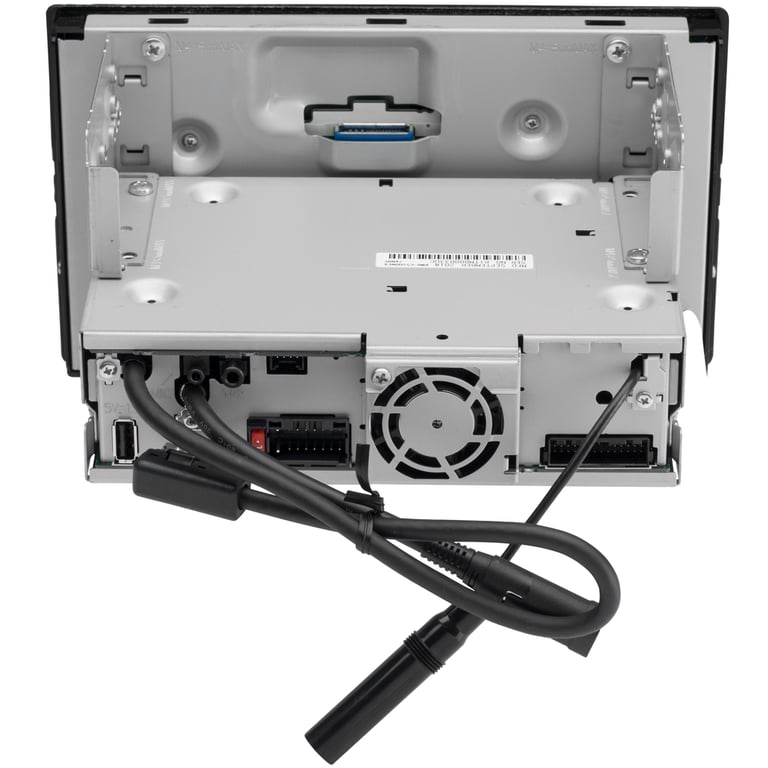

Audio/Video Inputs and Outputs

• 3 sets of 4 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with select 2015-2017 Camry
• Designed for Pioneer's Pioneer DMH-C5500NEX multimedia receiver with 8" screen
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

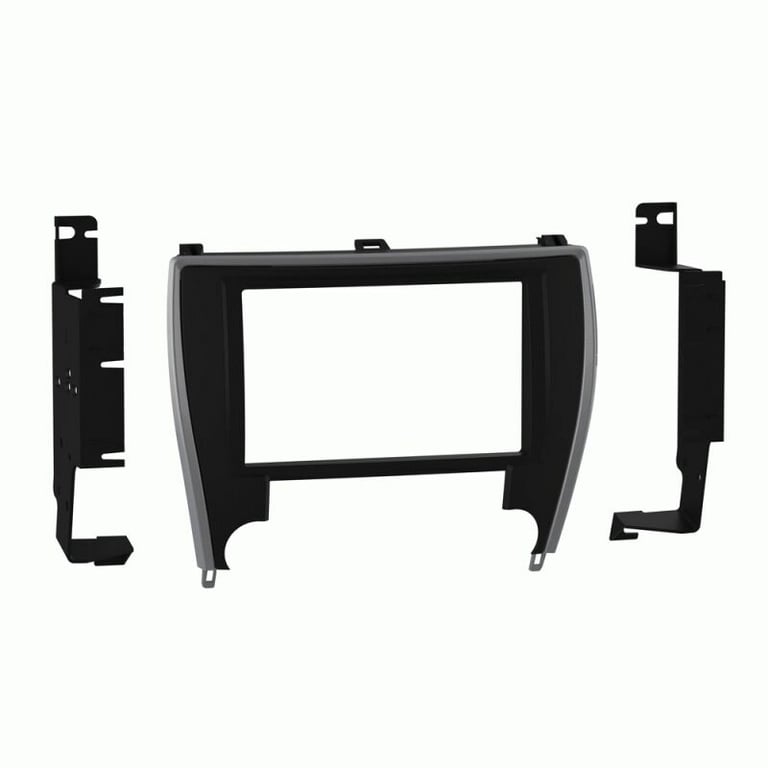

Kit Includes:

1. Radio Trim Panel
2. (2) Brackets
3. Step by step instructions

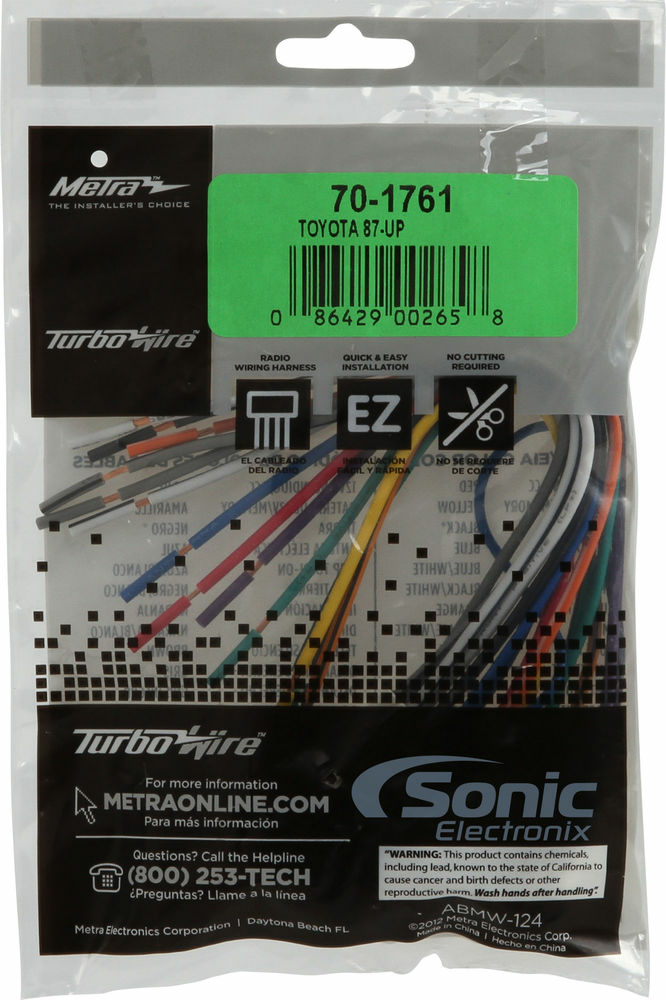

Product Features:

• Compatible with select 1984-2022 vehicles from Toyota, Subaru, Scion

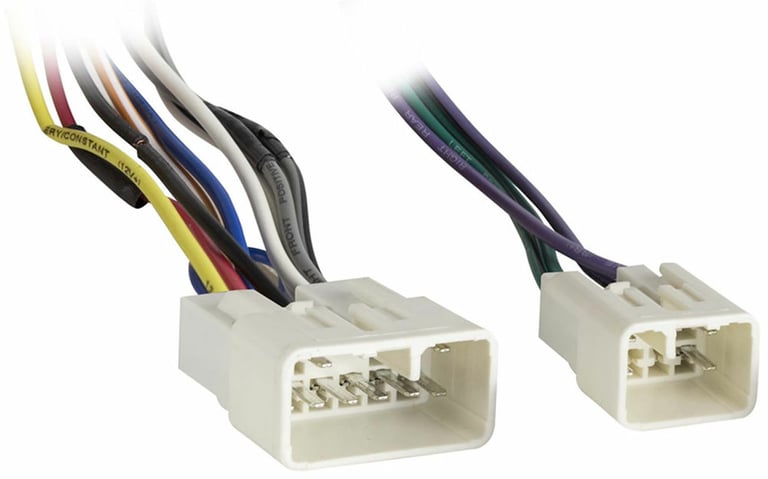

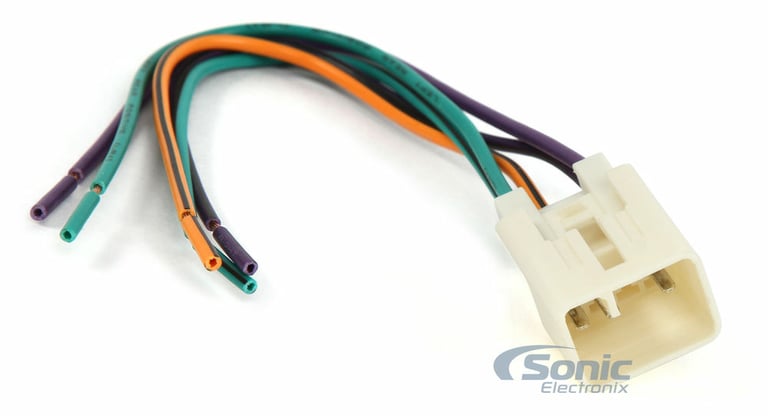

• Includes one 8" power/front speaker harness and 7.5" rear speaker harness
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

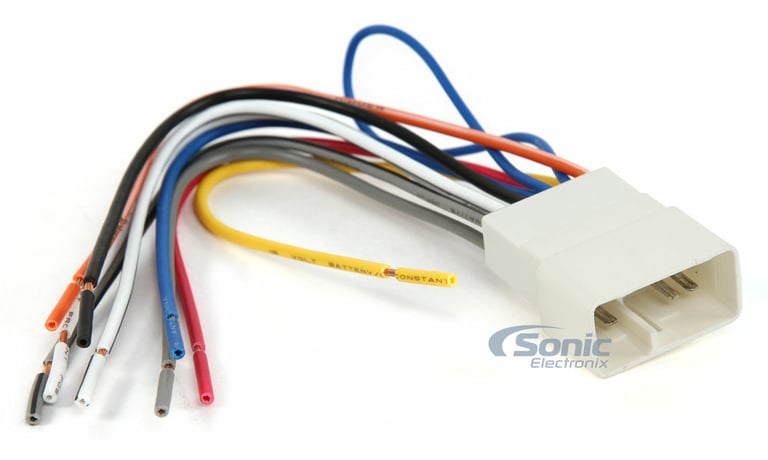

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Blue - Power Antenna
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)

Product Details:

• Compatible with select 2006-2025 vehicles from Toyota, Subaru, Lexus

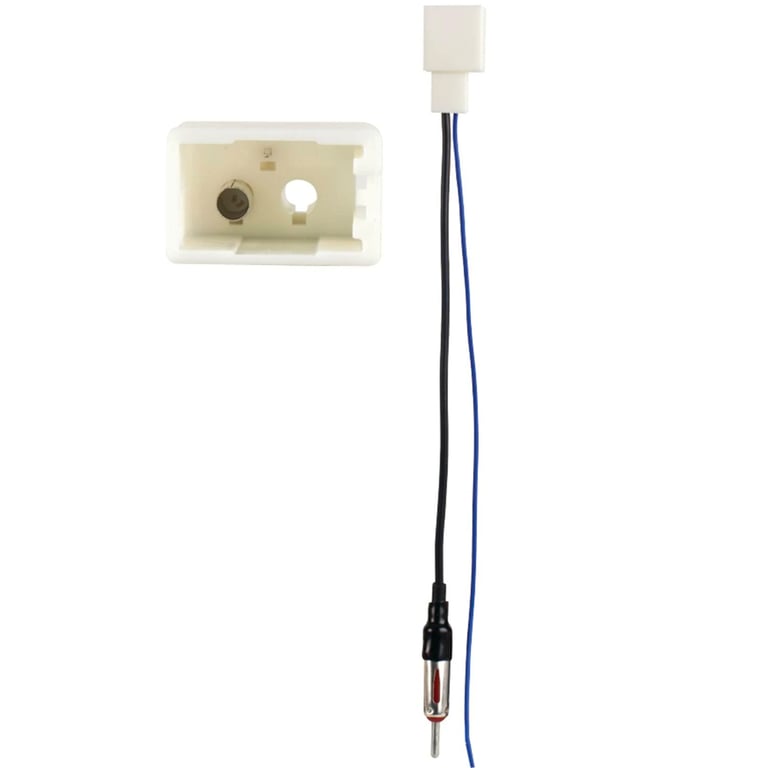

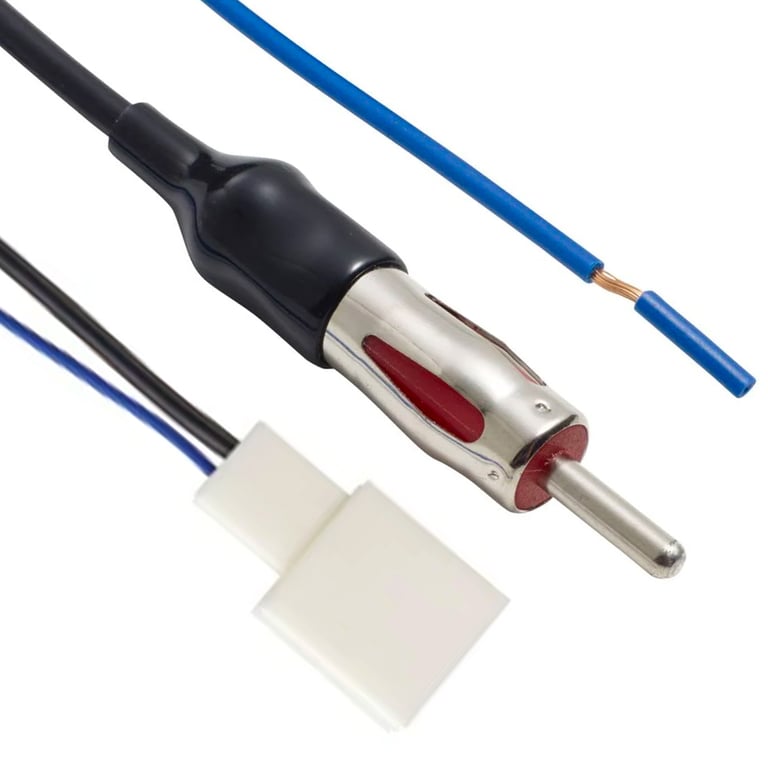

• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector and a blue wire lead on one end
• Female Molex connector on the other end
• A blue wire is attached to the adapter that connects to the antenna turn-on lead of the aftermarket radio
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
