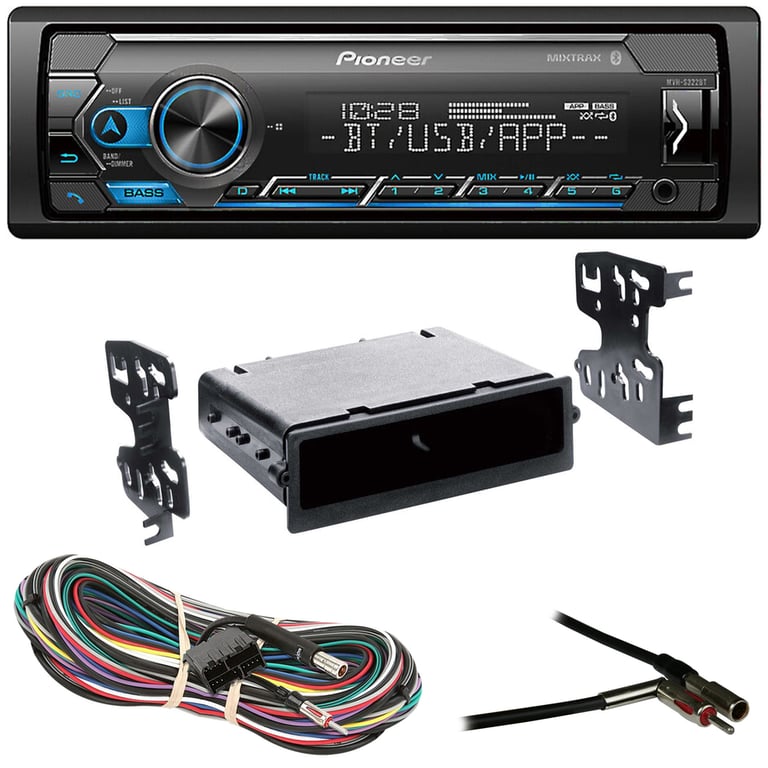

1990-1996 Chevy Corvette Single DIN Bluetooth Car Stereo Upgrade | Pioneer

Product Details

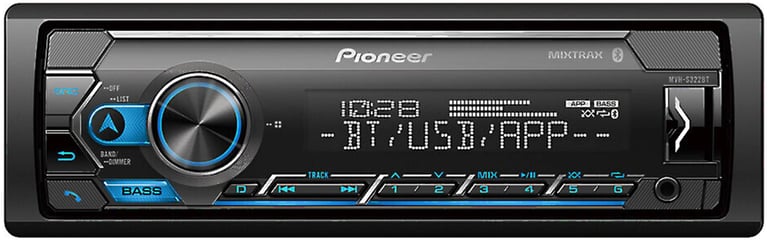

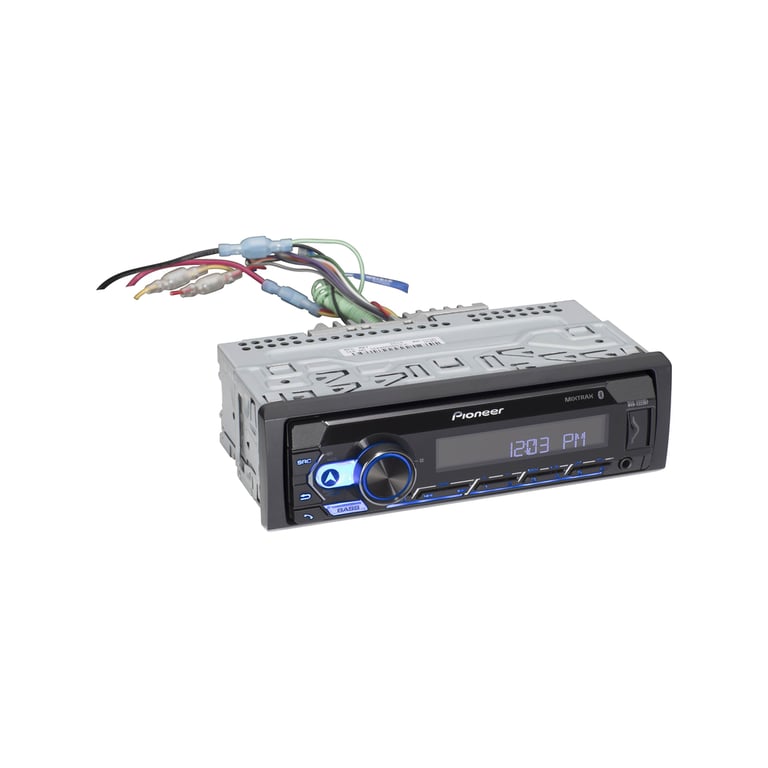

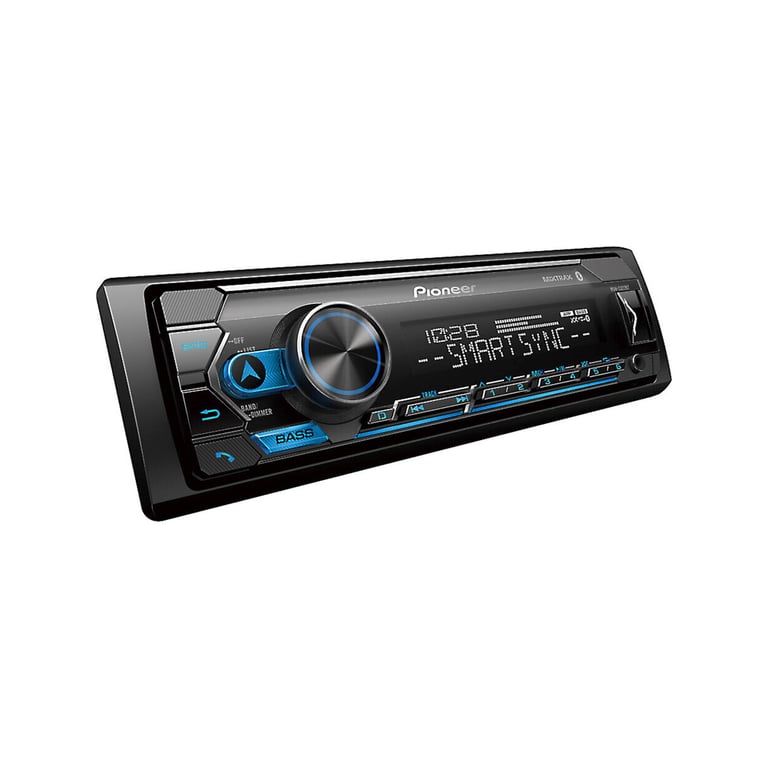

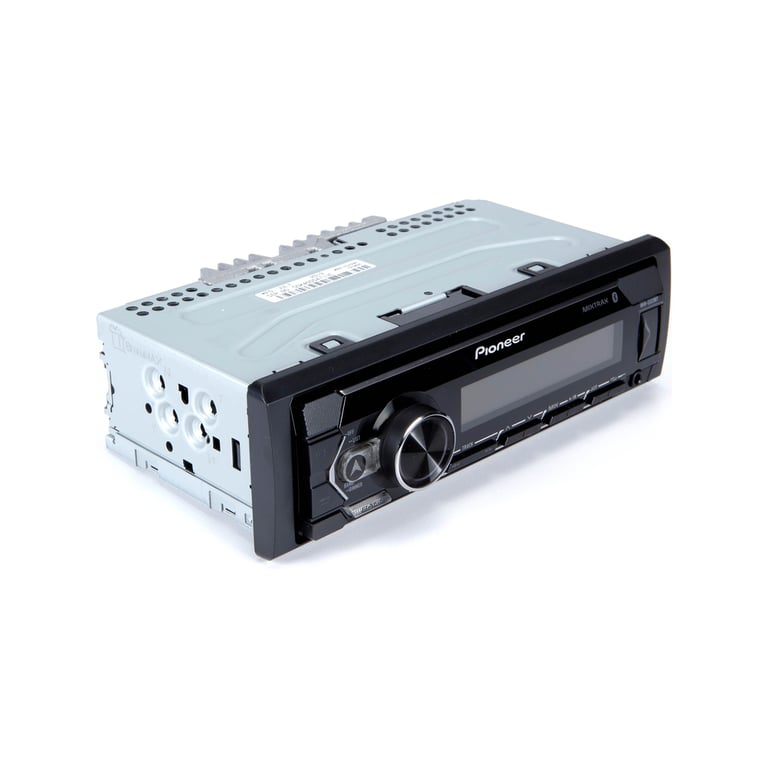

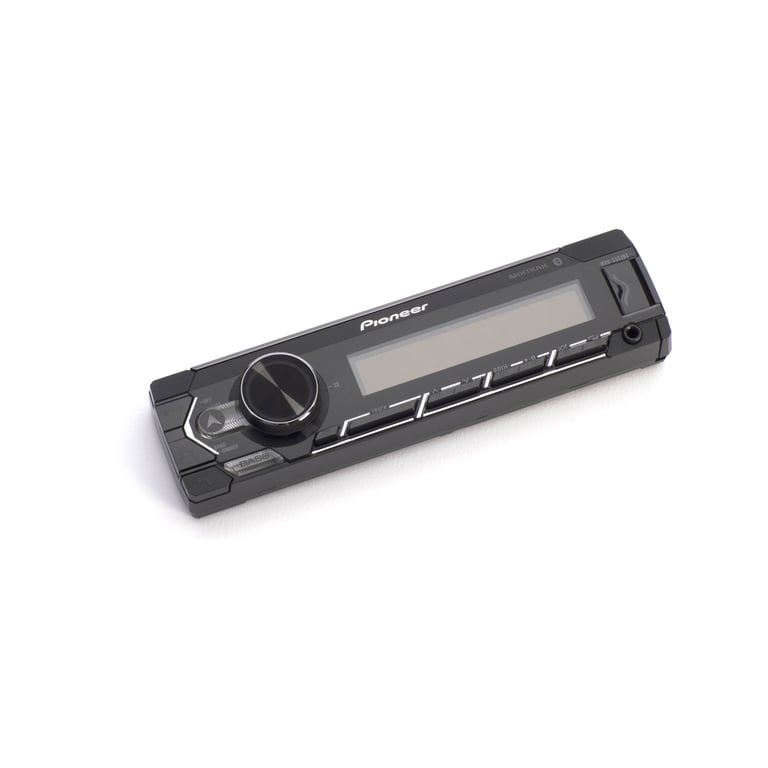

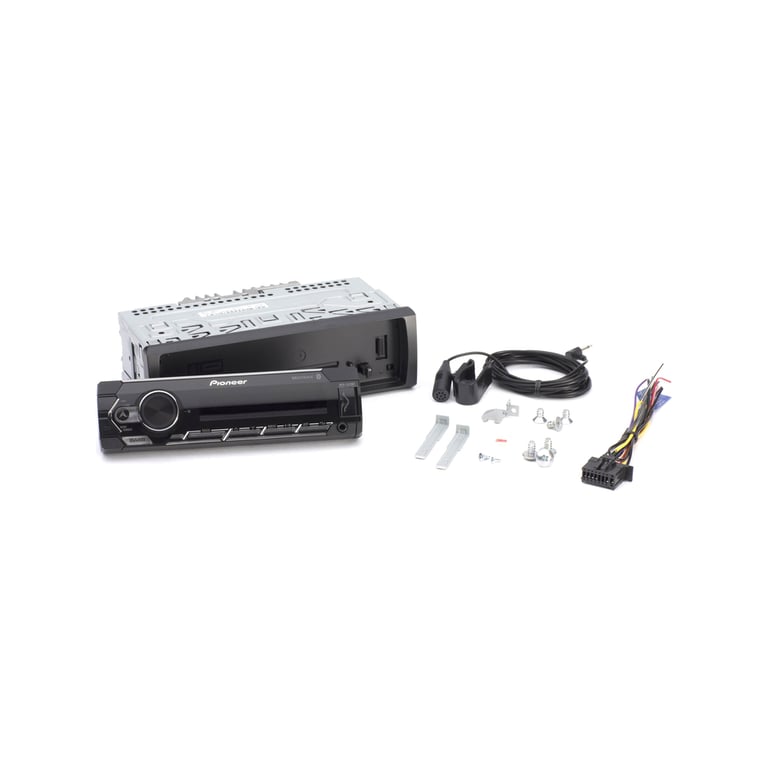

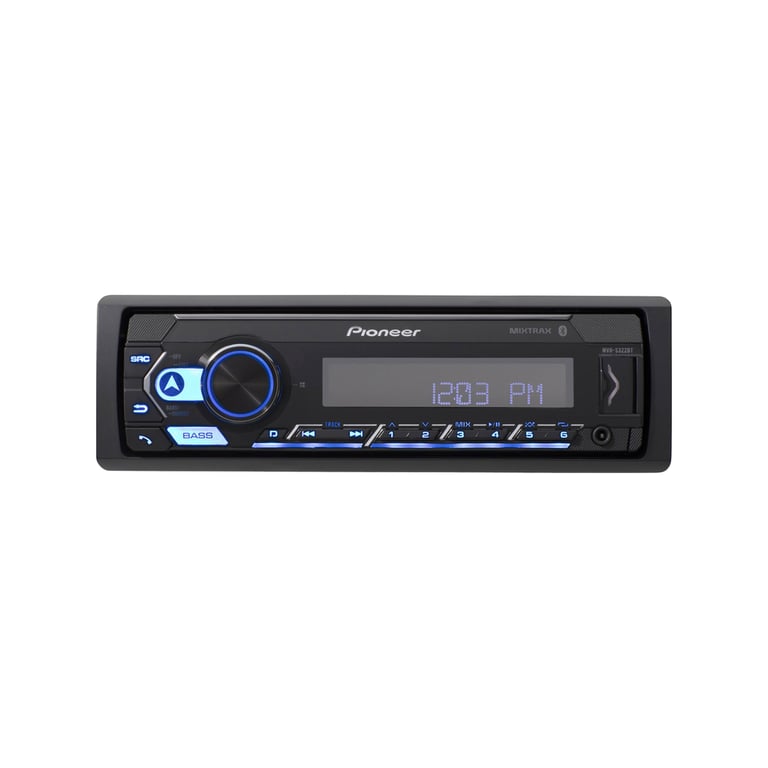

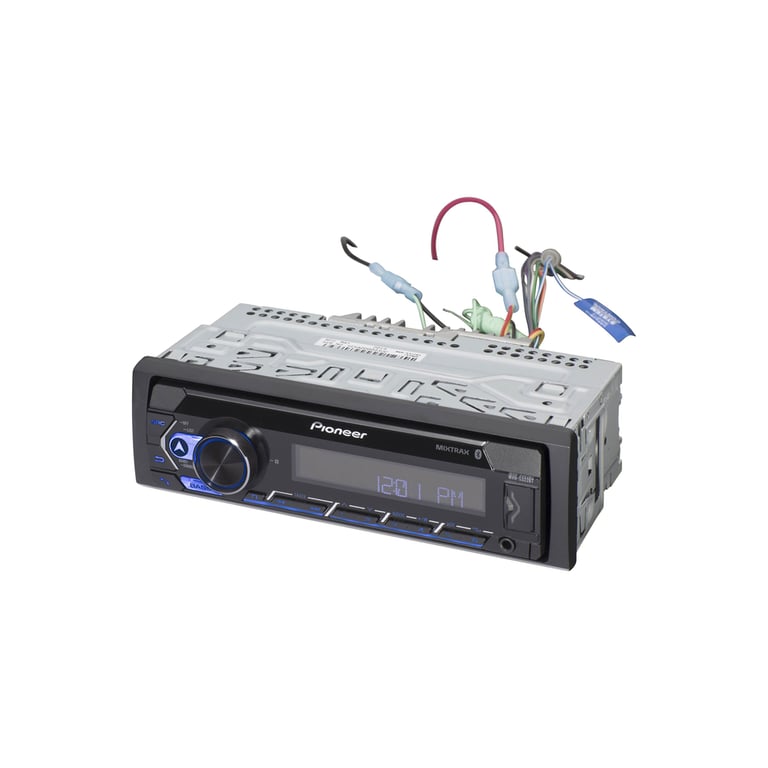

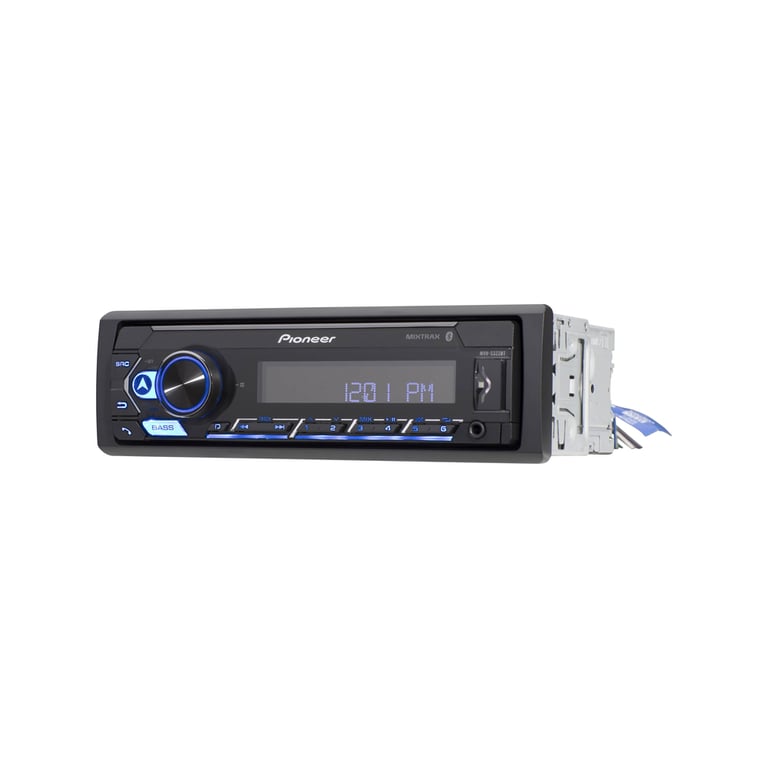

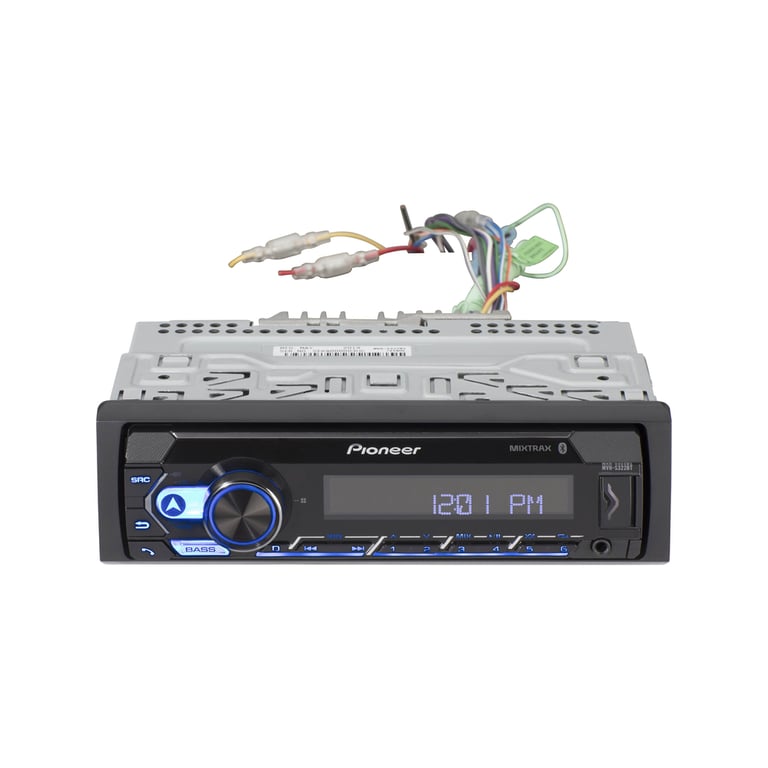

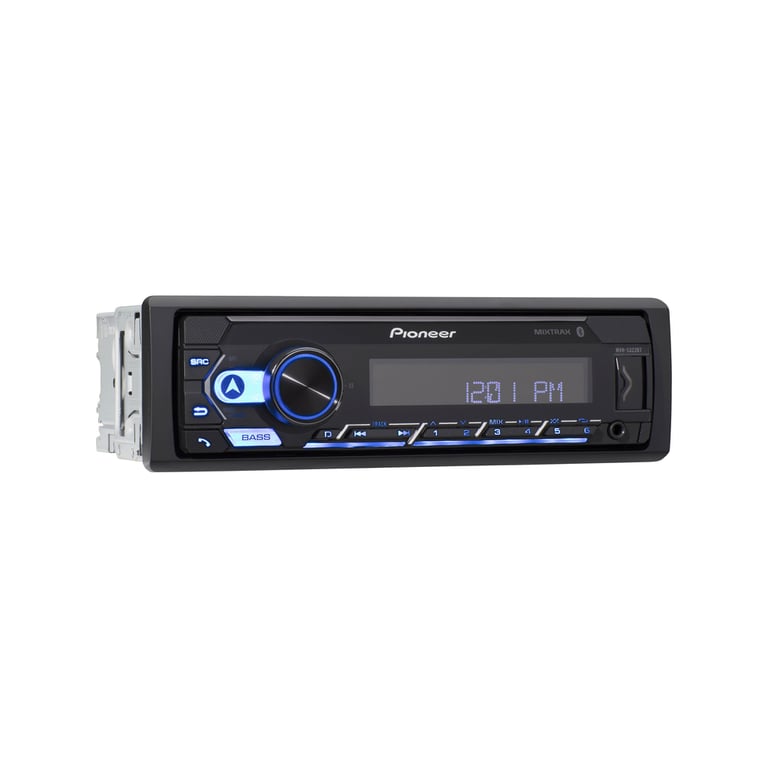

• Single DIN In-Dash Bluetooth Digital Media Receiver
• Digital LED Backlit Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Detachable face plate
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MVH-S322BT

Smartphone Features

• Display and control music, and other apps with iPhone and Android
• Pandora and Spotify capable
• Built-in Amazon Alexa (with Wi-Fi connection)
• Siri Eyes Free control for select iPhones

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Equalizer

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

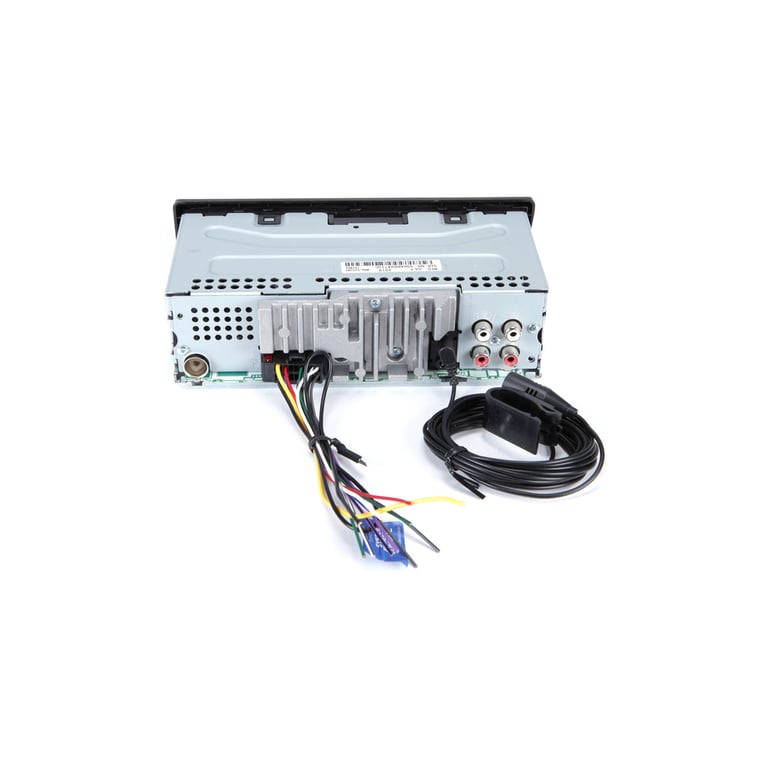

Audio/Video Inputs and Outputs

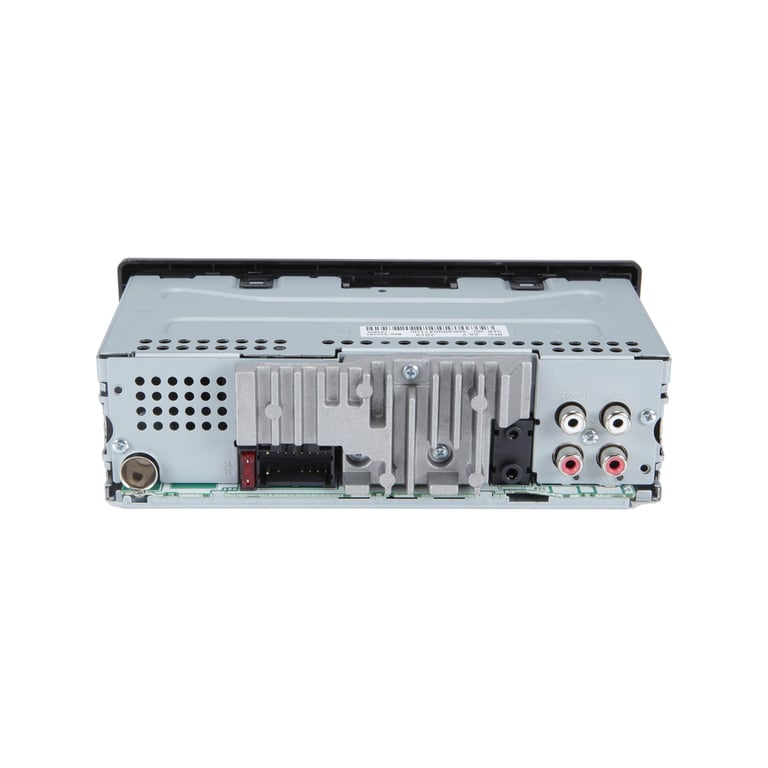

• 4 preamp outputs (4-volt front, rear/sub)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external wired microphone for clear, convenient, distortion-free talking

Product Features:

• Allows for installation of an aftermarket Single/Double-DIN car stereo
• Compatible with select 1990-1996 Chevrolet Corvette trucks
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant matte black
• *Modifications to the dash cavity are necessary*
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

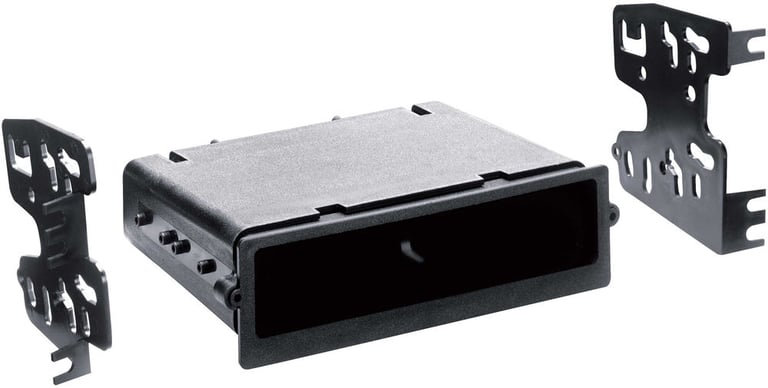

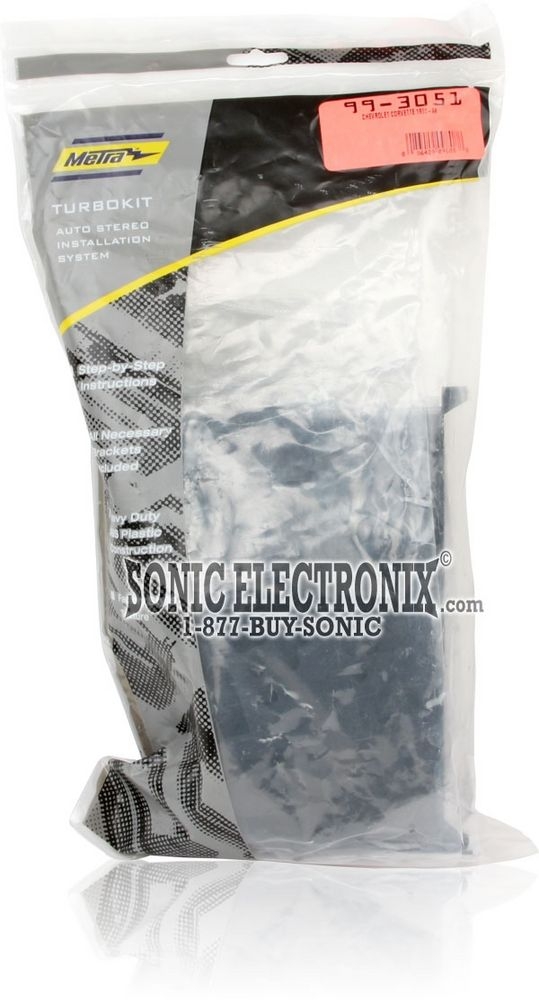

Kit Includes:

1. Pocket
2. Brackets
3. Trim Plate
4. (4) #6 X 1/4” Phillips Head Screws
5. (2) #8 X 3/8” Phillips Head Screws
6. Step by step instructions

Product Features:

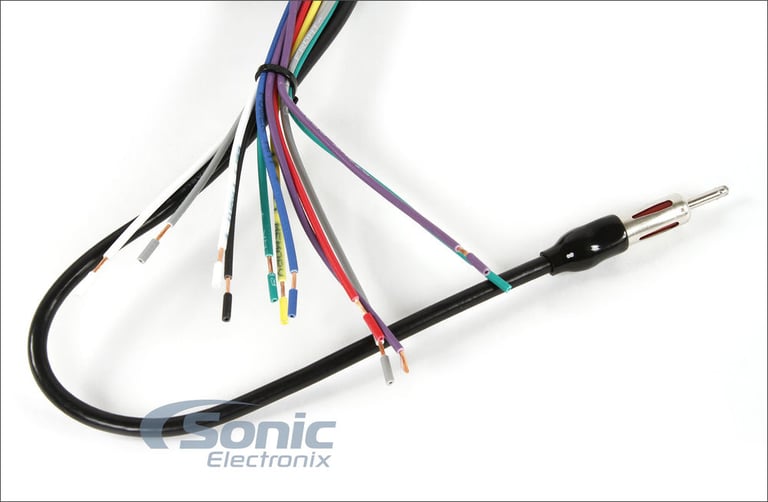

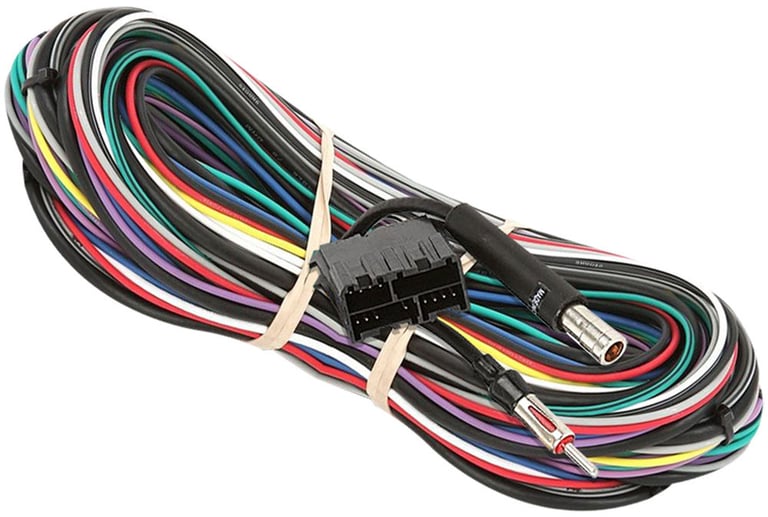

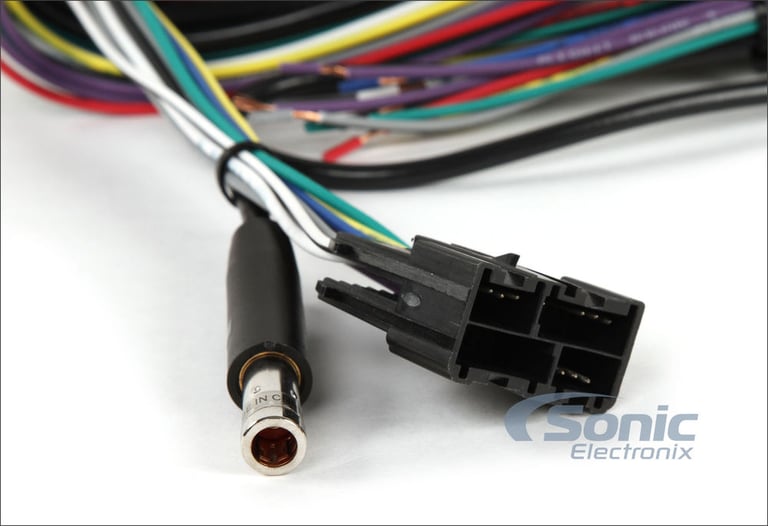

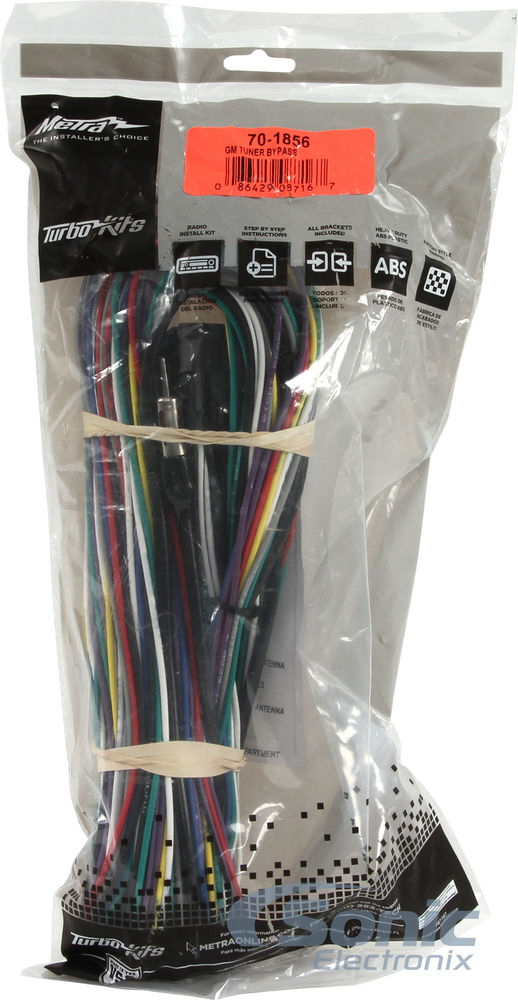

• Wire harness to Install a new car stereo in Compatible with select 1990-1996 vehicles from Chevrolet, Cadillac
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Product Details:

• Compatible with select 1958-2023 vehicles from GMC, Chevrolet, Pontiac

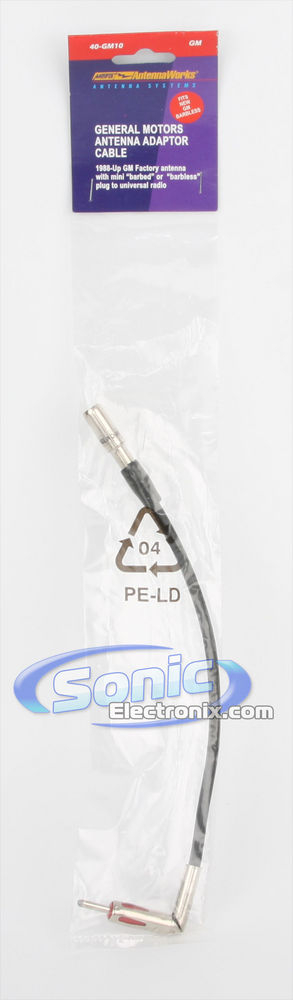

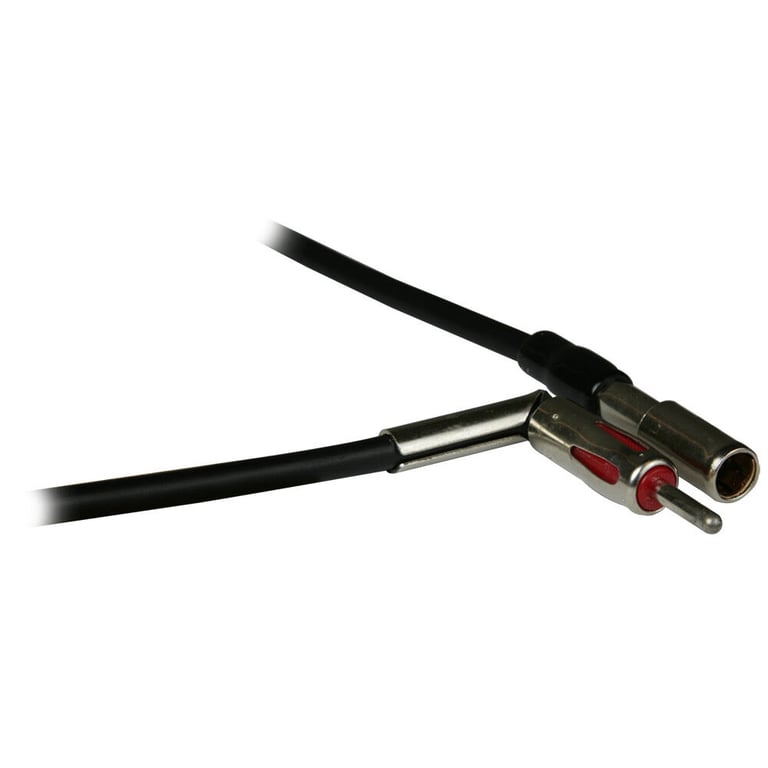

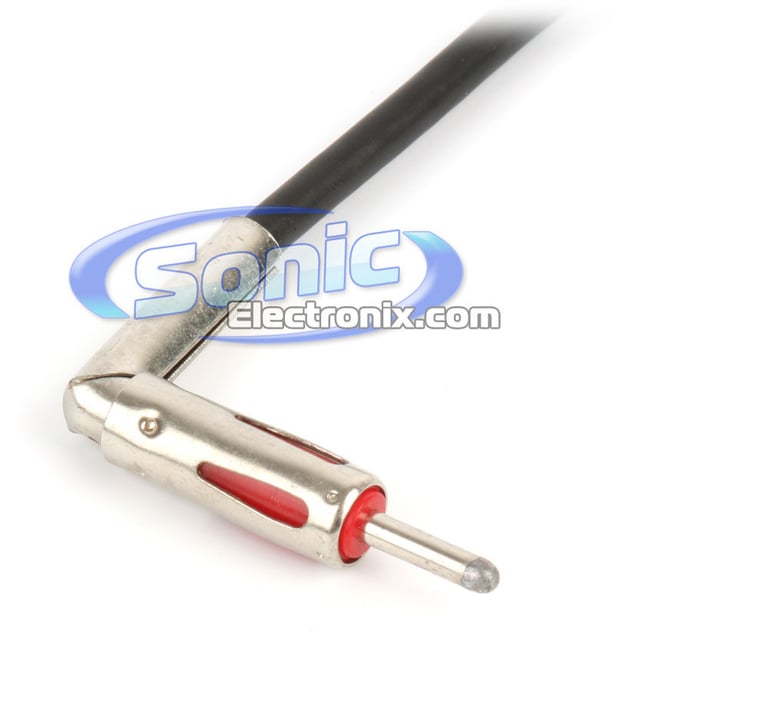

• Used to adapt the vehicle’s antenna cable to use with an aftermarket radio
• Male Motorola connector on one end

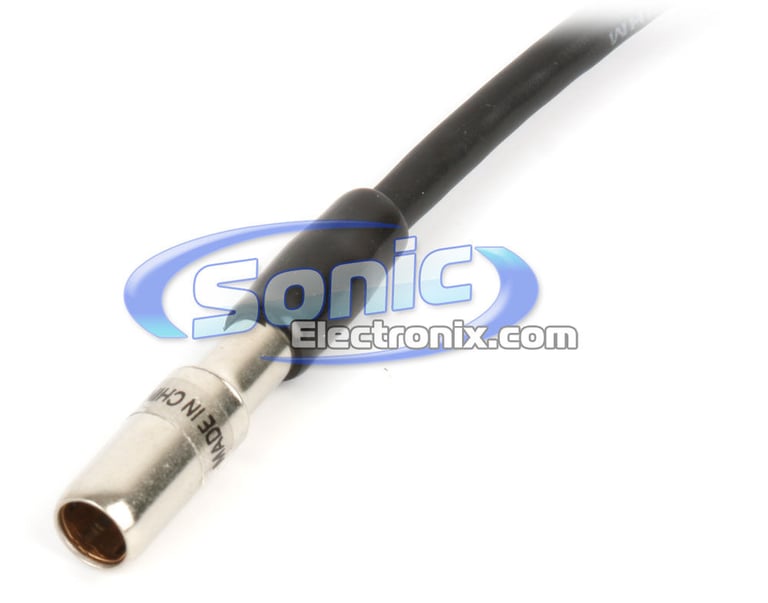

• Female connector for a mini “barbed” or “barbless” connector from the factory antenna on the other end
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Equivalent to: Scosche MDA1B & American International GM-6
