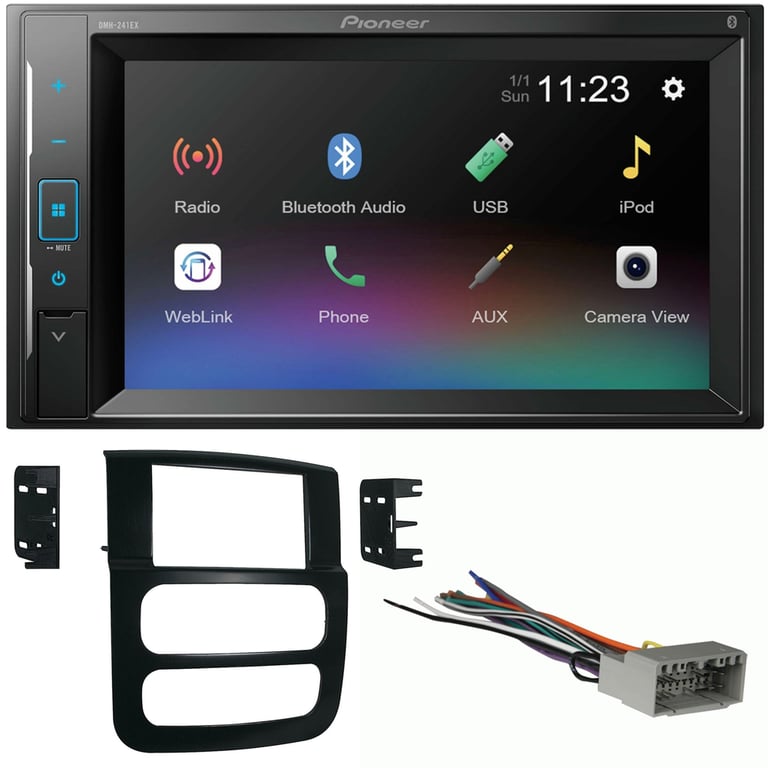

2002-2005 Dodge RAM1500 6.2" Touchscreen Bluetooth Car Stereo Upgrade | Pioneer

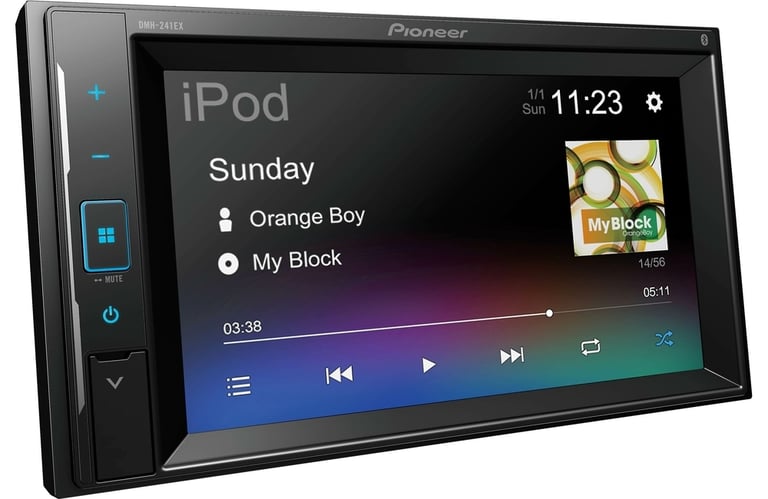

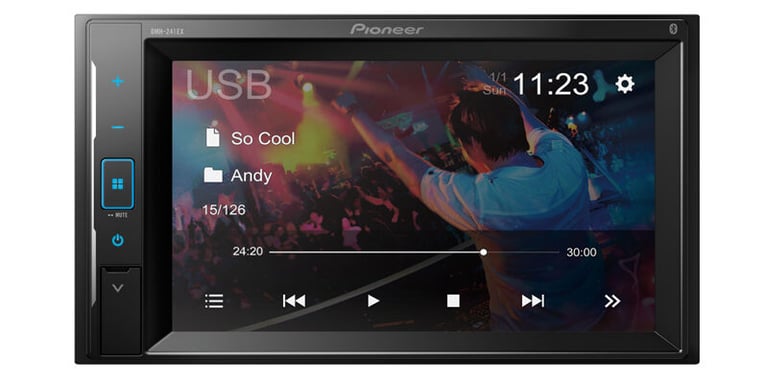

Product Details

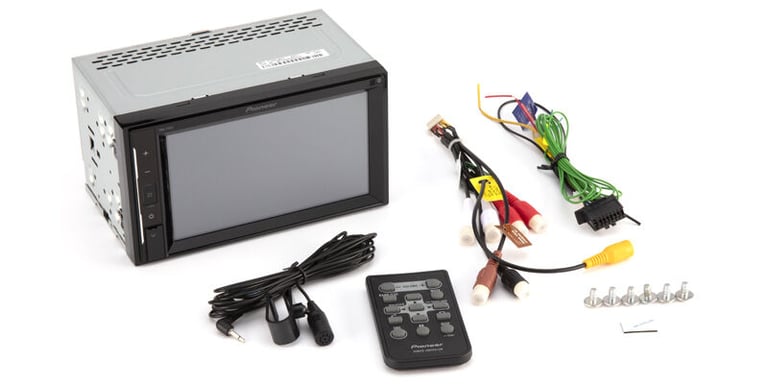

• Double DIN In-Dash Bluetooth Digital Multimedia Receiver

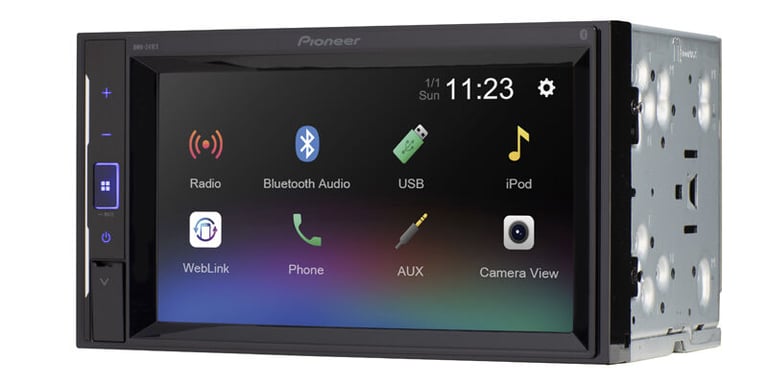

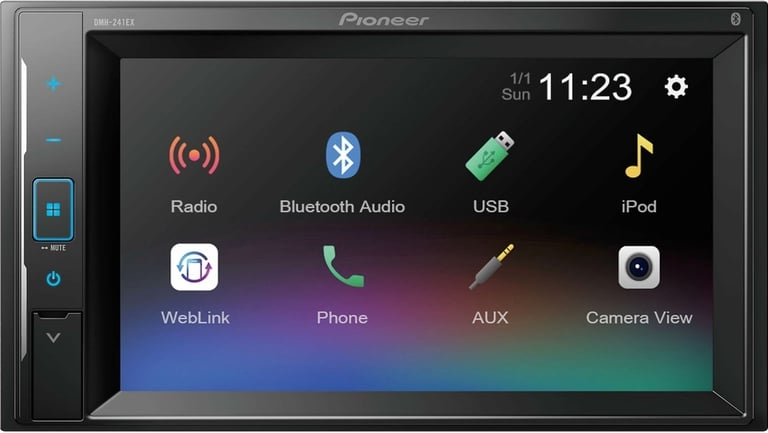

• 6.2" Resistive Touchscreen Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control included
• Variable color button illumination
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DMH-241EX

Smartphone Features

• Apple and Android compatible (control via USB)
• Display and control music, navigation and other apps with iPhone and Android
• Pandora and Spotify capable via Bluetooth
• Built-in Amazon Alexa (with Wi-Fi connection), supports Vozsis smartphone app
• Siri Eyes Free control for select iPhones
• Voice assistant button for Siri in select devices
• Compatible with WebLink 2.0
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MPG/MPEG | MP4 | MKV | MOV | FLV | M4V | TS | M2TS | MTS | H.263 | H.264 Video Playback
• AM/FM tuner with 18 FM / 6 AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

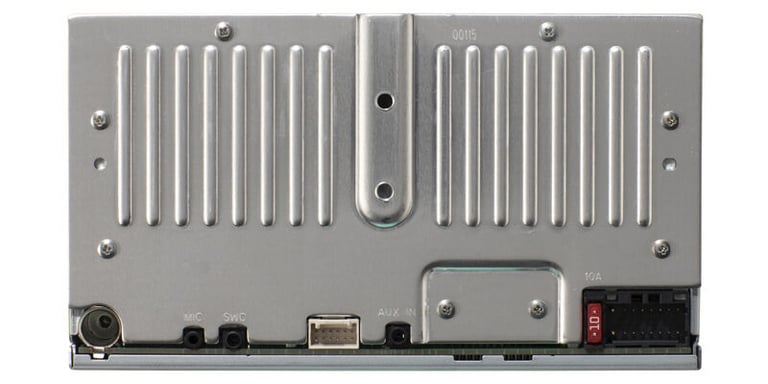

Audio/Video Inputs and Outputs

• 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes external 10" wired microphone for clear, convenient, distortion-free talking

Product Features:

• Allows for installation of an aftermarket Double-Din car stereo
• Compatible with 2002-2005 Dodge Ram 2500, Ram 3500, Ram 1500 truck
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant matte black
• *Sub-dash modifications required*
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

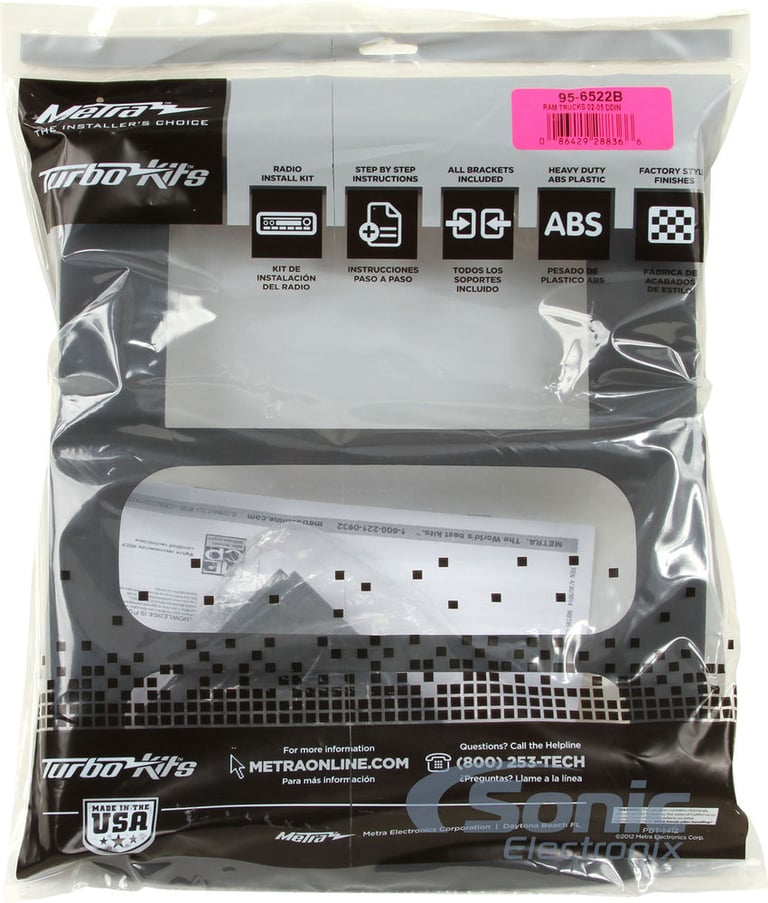

Kit Includes:

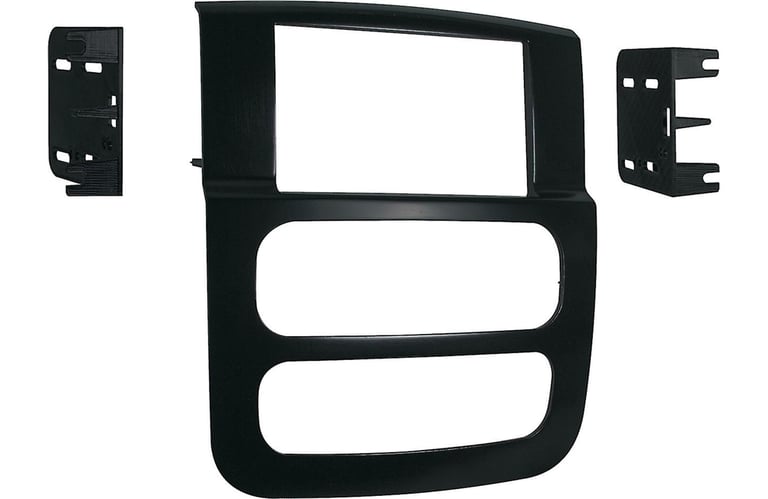

1. Radio Trim Panel
2. Brackets
3. Retaining caps (5 large, 2 small)
4. (5) #8 x 1/2” screws
5. (2) #8 x 3/8” screws

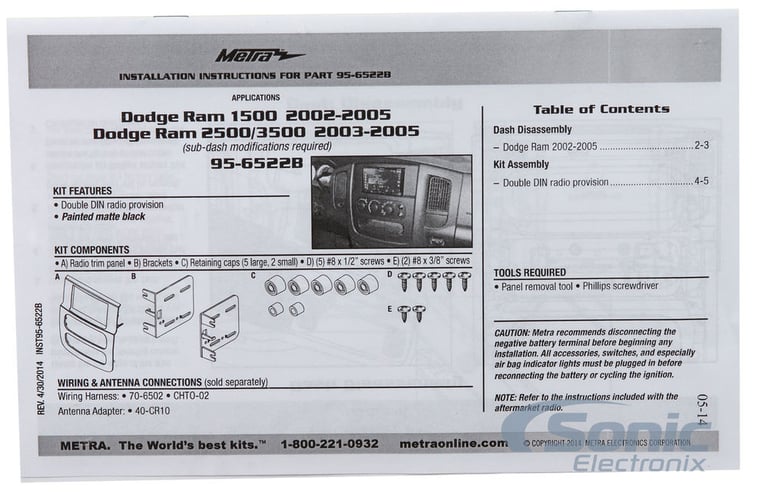

6. Step by step instructions

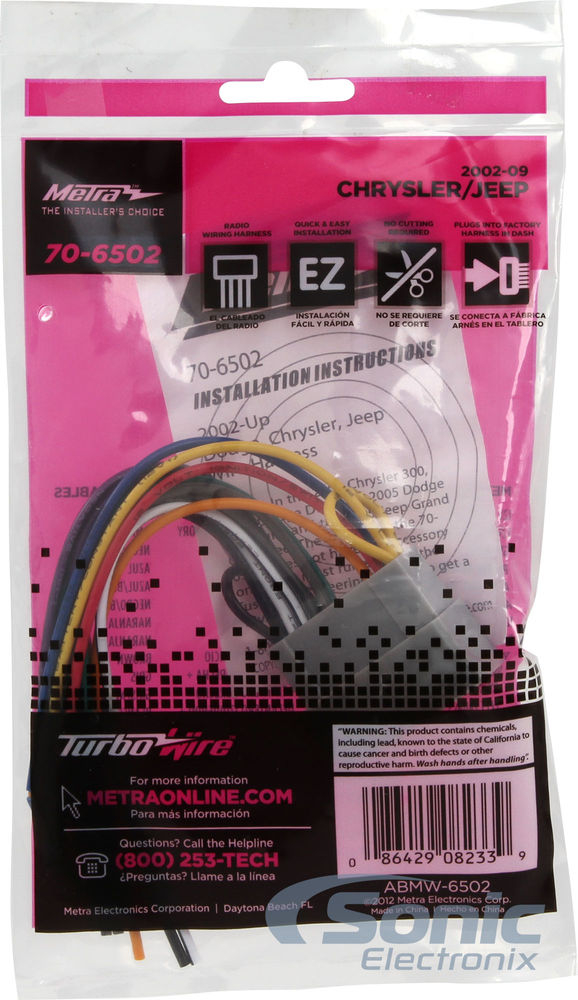

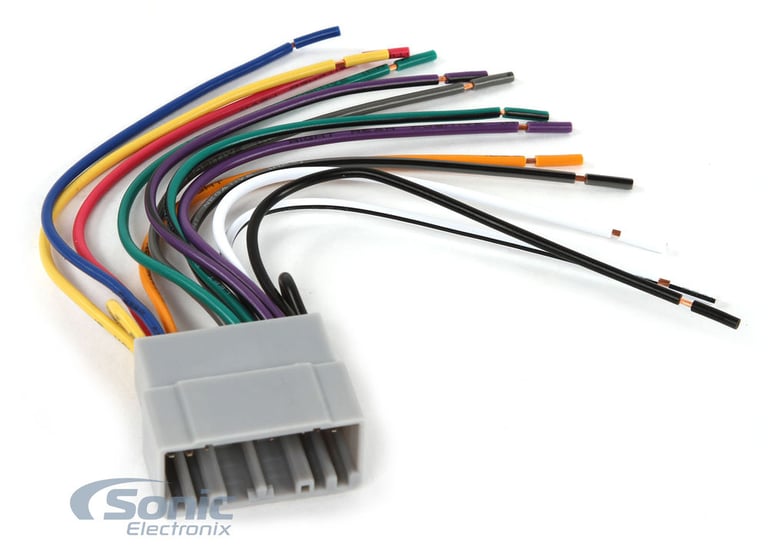

Product Features:

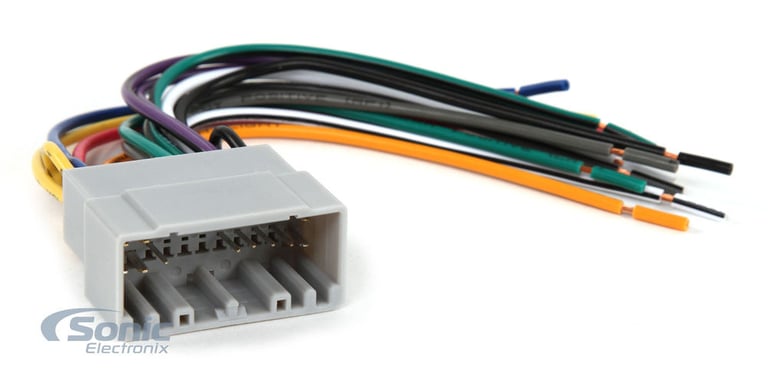

• Wire harness to Install a new car stereo in Compatible with select 2002-2010 vehicles from Dodge, Chrysler, Jeep
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
