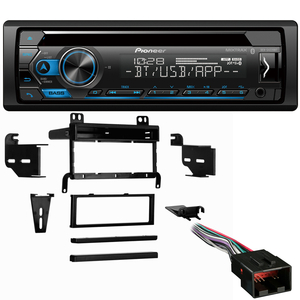

2001-2003 Ford Mustang Single DIN Bluetooth Car Stereo Upgrade | Pioneer

Product Details

• Single DIN In-Dash Bluetooth CD Media Receiver
• Digital LED Backlit Display Display
• Power Output:
• Peak: 50 watts x 4 channel
• RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Detachable face plate
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: DEH-S4220BT

Smartphone Features

• Compatible with Pioneer's Smart Sync App for multimedia functionality
• Display and control music and other apps with iPhone and Android
• Pandora and Spotify capable
• Selectable source lets you charge your phone without activating the USB port as a source
• USB Quick Charge (1.5 amps)
• Voice control button to access phone assistant

Playback and Audio Features

• CD | CD-R/RW | MP3 | WMA | WAV (Hi-Res) | AAC and FLAC (Hi-Res) Audio Playback
• Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
• AM/FM tuner with 18FM/6AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Equalizer
• 7 Equalizer Presets
• Low-pass and high-pass filters
• Subwoofer level control

Expandability Options

• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

Audio/Video Inputs and Outputs

• 2 sets of 4 volts preamp outputs (front and rear/subwoofer)
• Front Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Front USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes a external wired microphone for clear, convenient, distortion-free talking

Pioneer DEH-S4220BT owner’s manual

Product Features:

• Allows for installation of an aftermarket Single-Din car stereo
• Compatible with select 1995-2011 vehicles from Ford, Mazda, Mercury
• Made from the highest quality ABS plastic for an original factory-like fit and finish
• Includes brackets and hardware parts needed with detailed installation instructions
• Painted scratch-resistant black
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit Includes:

1. Radio housing
2. Radio housing trim piece “A”
3. Radio housing trim piece “B”
4. ISO Brackets
5. Rear support
6. ISO Trim plate
7. Mounting bracket
8. (4) #8 x 3/8” Phillips screws
9. Step by step instructions

Product Features:

• Compatible with select 1998-2011 vehicles from Ford, Mazda, Mercury
• Plugs into the cars original factory radio connectors
• Color-coded wires for easy installation to the aftermarket radio
• No wire cutting needed for factory radio connectors
• 1-year Manufacturer's Warranty

Power Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Green – Left Rear Speaker (+)
• Green with Black Stripe - Left Rear Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
