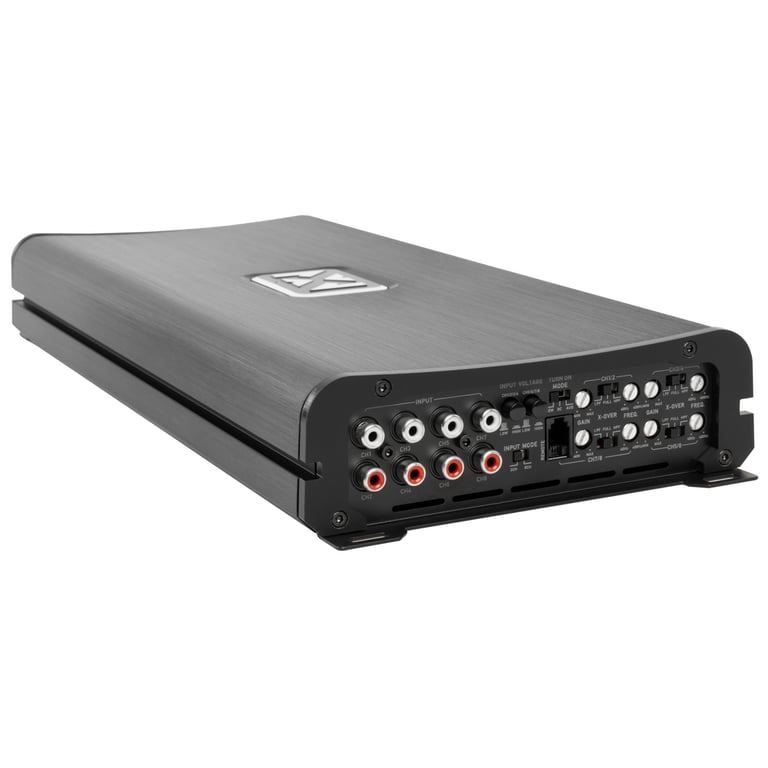

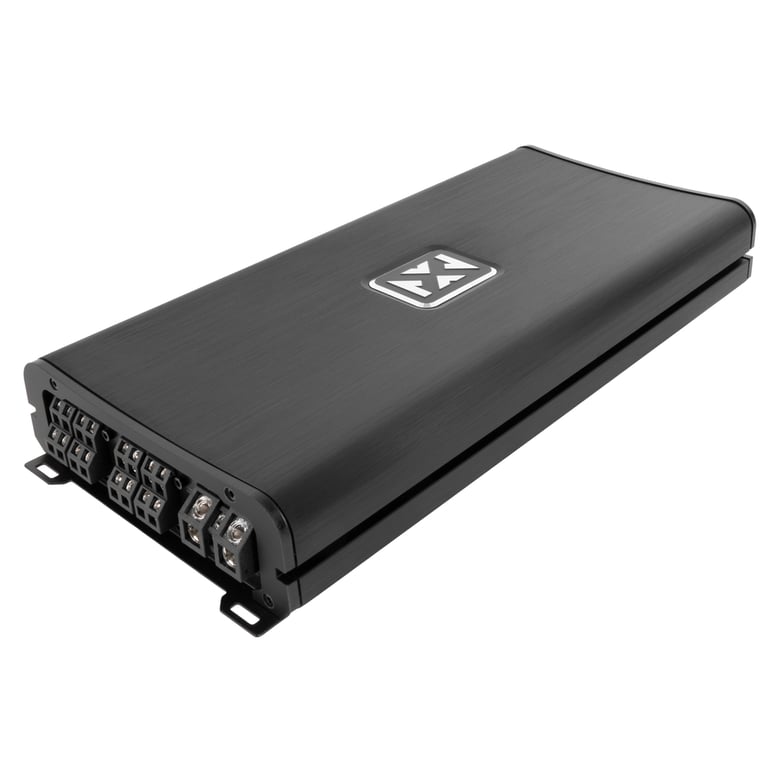

NVX VAD22008 v2 (VAD22008v2) (Open Box, Good)

Product Details:

• Marine Certified V Series Class D 2 ohm Stable 8-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 150 watts x 6 channel + 250W x2
• 2 ohm: 225 watts x 6 channel + 400W x 2
• Bridged: 450 watts x 3 channel + 850W x1 @ 4 ohm
• Total RMS power output: 2200 watts
• Conformal Coated Marine Grade Circuit Board
• LED Indicators: Power and Protect lights

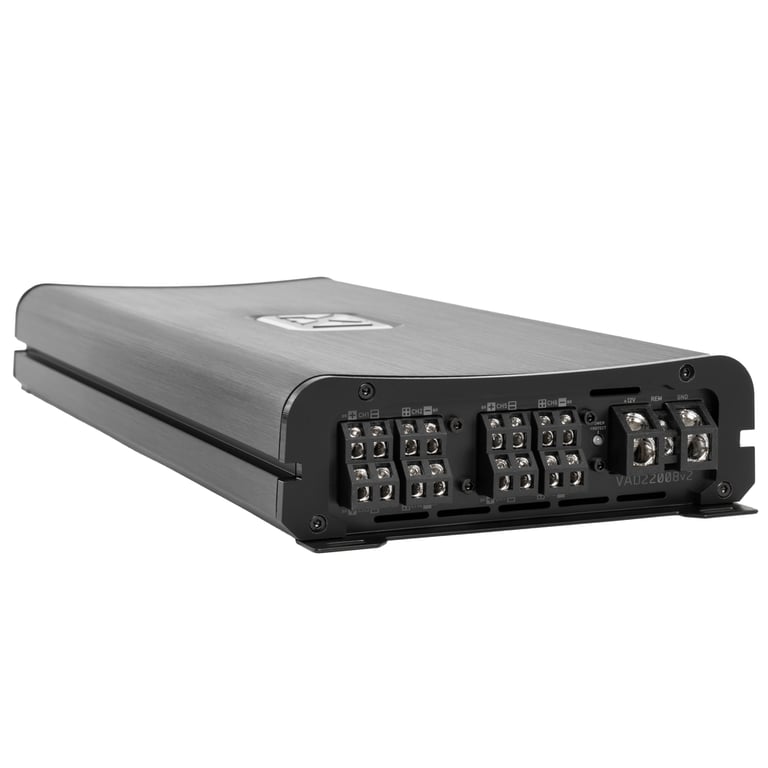

• Platinum-plated Power and Speaker terminals

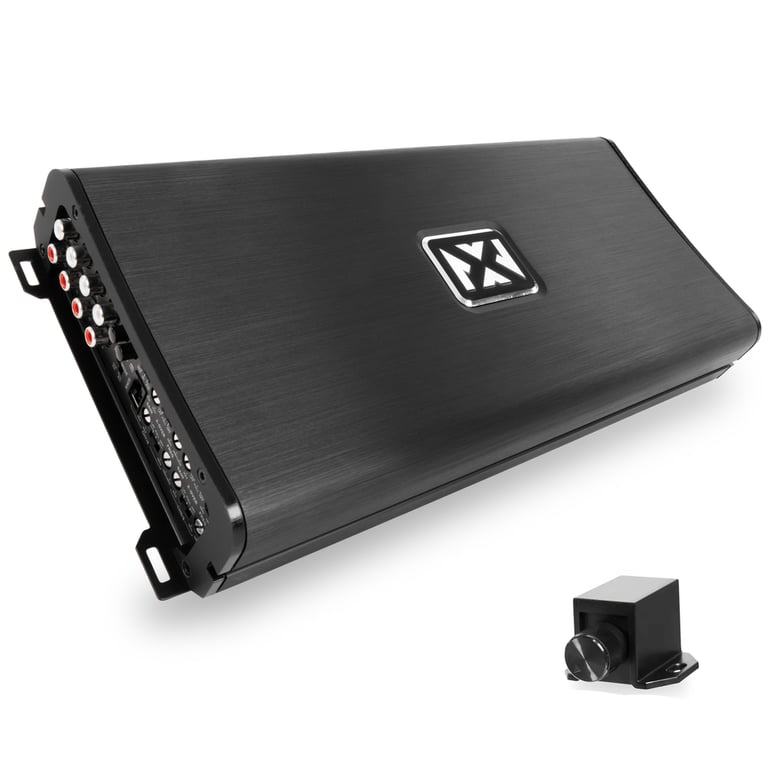

• Includes a Wired Bass Level Remote Control
• Balanced differential inputs eliminate noise picked up by signal cables
• Speaker-Level (High-Level) Inputs (Requires adapter like the Kicker KISL)

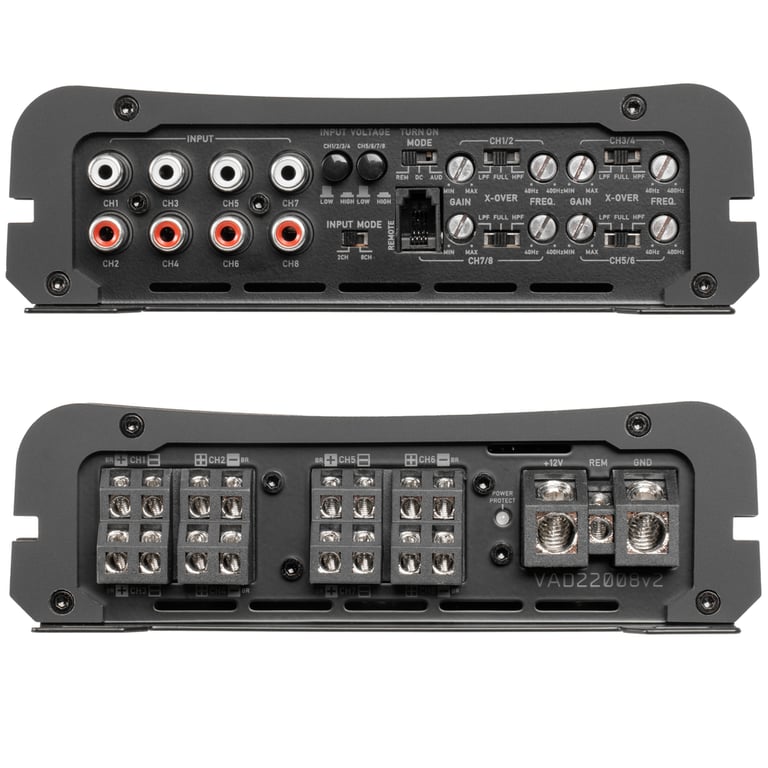

• 2 or 8 channel selectable input mode
• RCA Pre-Amp Outputs
• Signal-Sensing Remote Turn-On: Supports Remote, DC Offset, and Audio activation
• 4-Way Protection Circuitry: Thermal, overload, speaker short, and DC offset protection
• Input sensitivity: 0.2 - 18 volts
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): <0.3%
• Signal to Noise Ratio: >80 dB
• Variable high-pass filter: 40 - 400 Hz, 12 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 12 dB/octave
• Fuse Rating: 220A
• 4 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 15.01" L x 6.81" W x 2.05" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: VAD22008v2
