DS18 ZXI15.4D

2000W Peak (1000W RMS) 15" ZXI Series Dual 4-ohm High Excursion Subwoofer

DS18
Shop all DS18
highlight-star-icon

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Non-Pressed Paper Cone
• Foam Surround
• Mount depth: 8.72"
• Sensitivity: 89 dB

Learn more about the zxi154d

We apologize

This item has been discontinued


Loading...
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

43
-16.69%

$149.95

List price $180.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

TS-A1081F main

Pioneer TS-A1081F

460W Peak (100W RMS) 4” A Series 2-way 4-ohm Coaxial Car Speakers

3
-18.18%

$90.00

List price $110.00

DB402 main

Polk Audio DB402 (DB 402)

270W Peak (90W RMS) 4" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

4
-9.99%

$90.00

List price $99.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

Description


DS18 brand icon

Authorized dealer

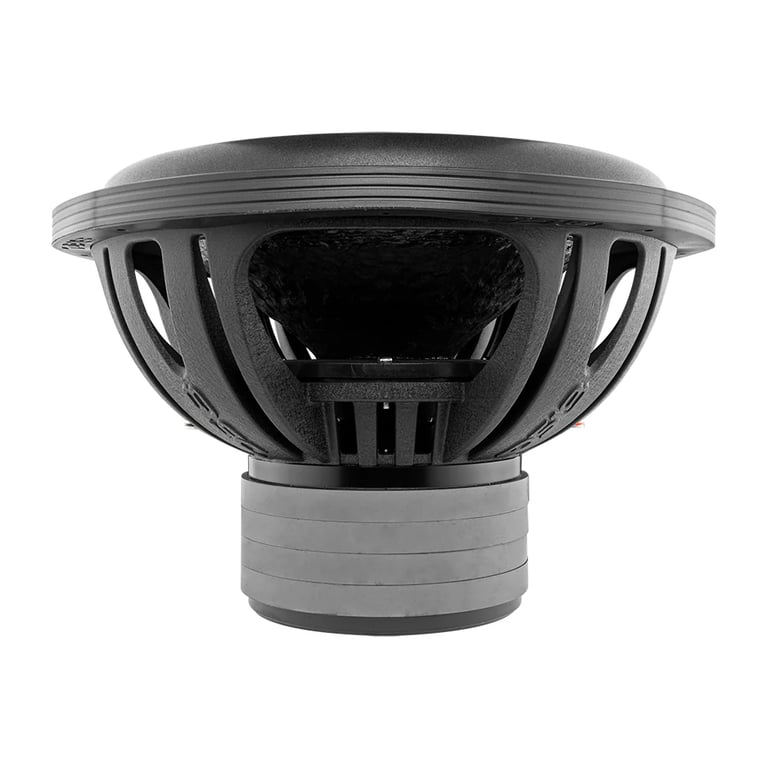

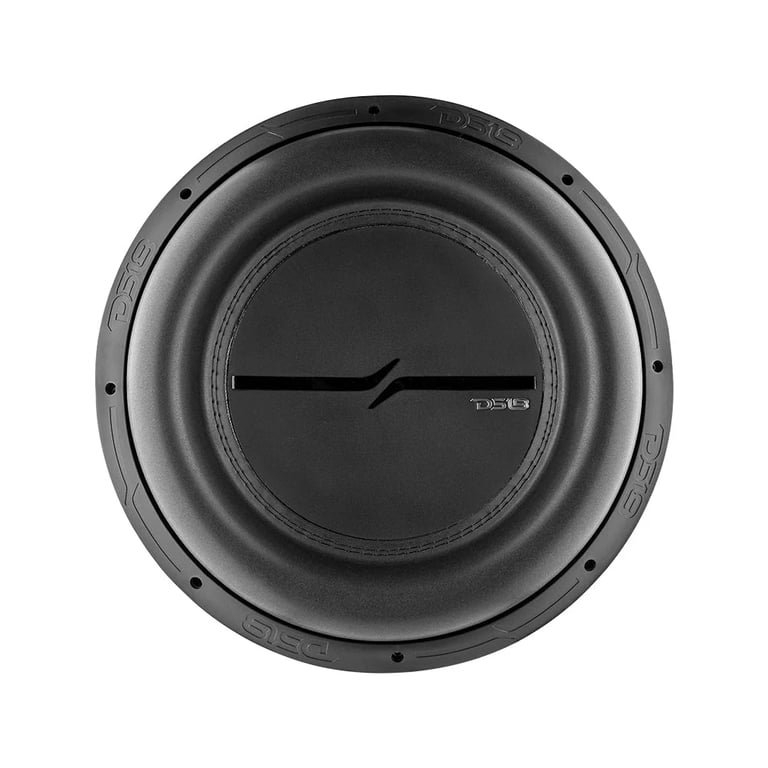

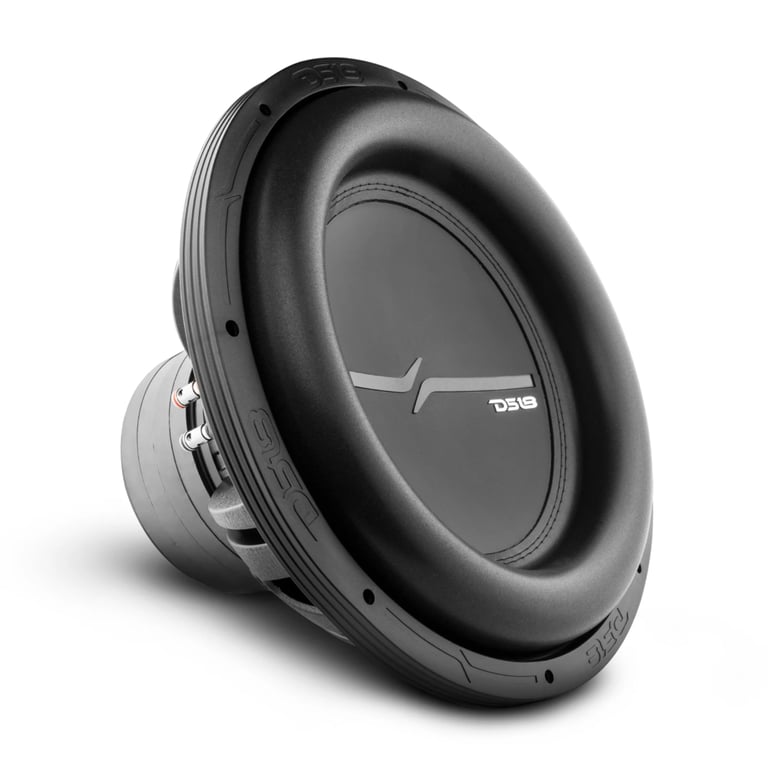

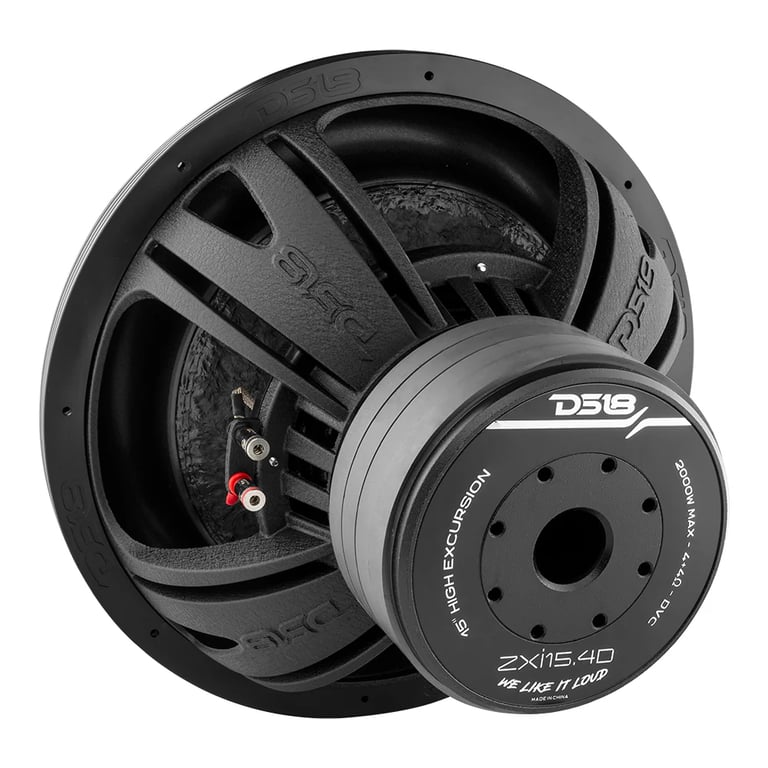

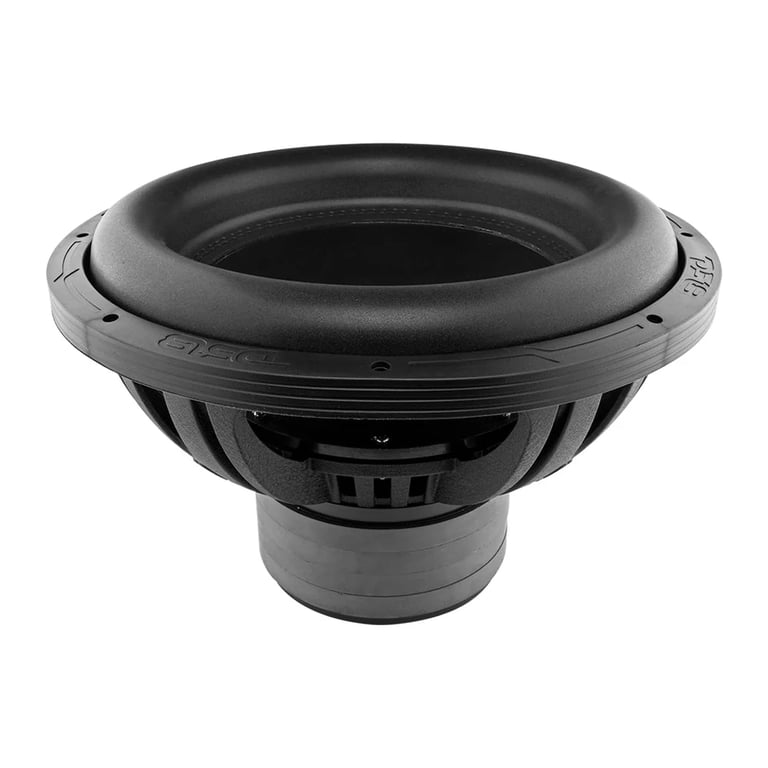

ZXI15.4D

The ZXI subline is renowned for its high excursion capabilities, and the ZXI15.4D is no exception. This subwoofer handles wattage as high as 2000W while delivering smooth ultra-low frequency responses. The ZXI15.4D’s lower than normal FS (Resonant Frequency), allows it to excel in larger boxes with lower tuning. Whether you prefer sealed or ported boxes, the ZXI15.4D will excel in both, giving you the flexibility to optimize placement in any vehicle.

The ZXI15.4D goes beyond raw power and precision. It features a strong stamped basket adorned with show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. The quad stacked magnets on the ZXI15.4D offer a multitude of benefits, including increased magnetic field strength, improved power handling, enhanced cone control, higher excursion capabilities, greater durability, and superior heat dissipation. Not only will it impress your ears, but it will also outlast any vehicle. This subwoofer is designed to provide you with crisp and clear bass for years to come.


Product Details:

  • 15" Dual 4 ohm ZXI Series Subwoofer
  • Power Handling:
    • Peak: 2000 watts
    • RMS: 1000 watts
  • Non-Pressed Paper Cone
  • Foam Surround
  • Black sandblasted aluminum basket
  • Copper clad aluminum winding material
  • PPI dust cap material
  • 3" High Temperature Aluminum Voice coil
  • 232 oz. Quad Stacked Ferrite magnet motor structure
  • Frequency Response: 15 - 900 Hz
  • Resonance Frequency (Fs): 28 Hz
  • Sensitivity: 89 dB
  • Recommended sealed box volume: 2 cubic feet
  • Recommended ported box volume: 2.8 cubic feet
  • Top-mount depth: 8.72"
  • Cutout diameter: 13.96"
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconDS18 ZXI154D owner’s manual

Subwoofer Wiring Guide


Wiring Guide to Wire 1 DS18 ZXI15.4D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 DS18 ZXI15.4D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 DS18 ZXI15.4D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 DS18 ZXI15.4D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

DB-SA305 D1 small

Deaf Bonce Apocalypse DB-SA305 D1

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 1 ohm
• Mount depth: 7.85"
• Sensitivity: 88.30 dB

(1)

$399.90

List price $399.90

DB-SA255 D2 small

Deaf Bonce Apocalypse DB-SA255 D2

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Pressed Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 7.4"
• Sensitivity: 87.50 dB

(1)

$259.90

List price $259.90

VCW152v3 small

NVX VCW152 Version 3 (VCW152v3)

• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 8.19"
• Sensitivity: 88 dB (1W/1m)

(39)

$259.99

List price $311.99

YSW154 small

NVX YSW154

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 4 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 7.47"
• Sensitivity: 85 dB

(3)

$129.99

List price $167.99

XCW151 small

NVX XCW151

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 1 ohm
• Enhanced Woven Fiber Paper Composite Cone
• Custom High Roll Foam Surround
• 30 mm Xmax (One Way)
• Sensitivity: 87.3 dB

(1)

$599.99

List price $659.99

ZV715D1 small

Sundown Audio Z-15 v.7 D1 15" (Z15V7D1)

• Peak Power: 7000 watts
• RMS Power: 3500 watts
• Impedance: Dual 1 ohm
• Treated Paper Cone
• Treated Foam Surround
• Sensitivity: 91.58 dB

$1364.99

List price $1559.99

EXL-XX15.4DHE small

DS18 EXL-XX15.4DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 4 ohm
• Paper Cone
• Foam Surround
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

EXL-XX15.2DHE small

DS18 EXL-XX15.2DHE

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Paper Cone
• Foam Surround
• Impedance: Dual 2 ohm
• Mount depth: 8.86"
• Sensitivity: 88 dB

$599.95

List price $599.95

L7S152 small

Kicker L7S152 (44L7S152)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 2 ohm
• Injection Molded Polypropylene Cone
• Ribbed Santoprene Surround
• Mount depth: 8 11/16"
• Sensitivity: 88.56 dB

(11)

$383.96

List price $509.99

49L7X152 small

Kicker L7X152 (49L7X152)

• RMS Power: 1000 - 2000 watts
• Impedance: Dual 2 ohm
• Double-pressed pulp Cone
• UV-resistant Santoprene Surround
• Mount depth: 11-9/16"

(2)

$799.99

List price $899.99

Specifications & Details


Subwoofer Specifications
Series
ZXI Series
Subwoofer Size
15"
Peak Power Handling
2000 watts
RMS Power Handling
1000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Material
Aluminum
Voice Coil Diameter
3"
Frequency Response
15 - 900 Hz
Sensitivity
89 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Non-Pressed Paper
Woofer Surround
Foam
Magnet Structure
Quad Stacked
Magnet weight
232 oz.
Magnet Type
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
CTA-2031 Compliant
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
2 cubic feet
Optimum Ported Box Volume
2.8 cubic feet
Top-Mount Depth (Mounting Depth)
8.72"
Cutout Diameter
13.96"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
77.82 liters
Total Speaker Q Value (Qts)
0.516
Electrical Q Value (Qes)
0.632
Electrical Resistance of Voice Coil (Re)
Dual 3.6 ohm
Mechanical Q Value (Qms)
7.641
Efficiency Bandwidth Product (EBP)
44.3
