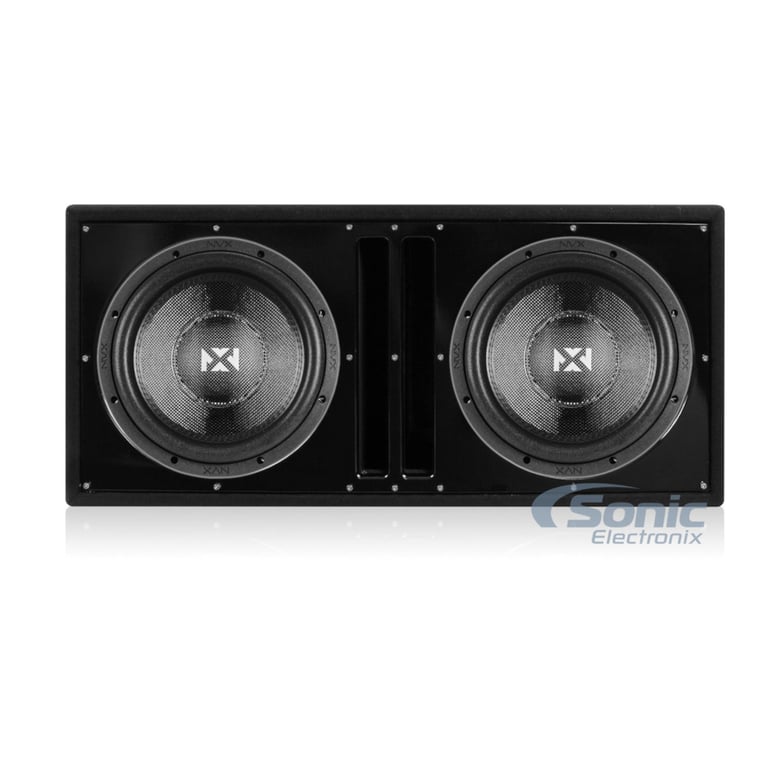

NVX VCW124 Version 3 (VCW124v3) with Ported Enclosure (BBX212BK)

2400 Watt Peak (1200W RMS) 12" VC-Series v3 Dual 4-Ohm Car Subwoofer + Subwoofer Box Enclosure with Custom Black Baffle

NVX
Shop all NVX
highlight-star-icon

• RMS Power: 1200 Watts
• 3” 4-Layer High Temperature Black Aluminum Voice coil
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• 202 oz. Triple stacked High Energy ferrite magnet
• Die Cast aluminum vented basket
• Includes Ported Subwoofer Enclosure

Learn more about the vcw124_bbx212bk

We apologize

This item has been discontinued


Loading...
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

JS35K main

Jensen JS35K

150W Peak (50W RMS) 3.5" Apex Series 2-Way Coaxial 4-ohm Car Speakers

51KSC3504 main

Kicker KSC35 (51KSC3504)

200W Peak (100W RMS) 3.5" KS Series 2 Way Coaxial 4-ohm Speakers

4
-11.11%

$79.99

List price $89.99

Club 34F main

JBL Club 34F (JBLSPKCB34F)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

4
-27.29%

$79.95

List price $109.95

CF-350mt main

JL Audio CF-350mt

70W RMS 3.5" CF Series Custom-Fit Midrange 4-ohm Tweeters

4
P132 main

Rockford Fosgate Punch P1 P132

80W Peak (40W RMS) 3.5” Punch Series 2 Way Coaxial 4-ohm Speakers

43
Limited time!
46CSC354 main

Kicker CSC35 (46CSC354)

180W Peak (60W RMS) 3.5” CS Series 2 Way Coaxial 4-ohm Speakers

16
-30.71%

$51.96

List price $74.99

V3 main

Cerwin-Vega V3

360W Peak (120W RMS) 3" Vega Series 2025 Edition 2-Way Coaxial 4-ohm Speakers

CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
DMDX35 main

Diamond Audio DMDX35

150W Peak (50W RMS) 3.5" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

Description


NVX brand icon

Authorized dealer

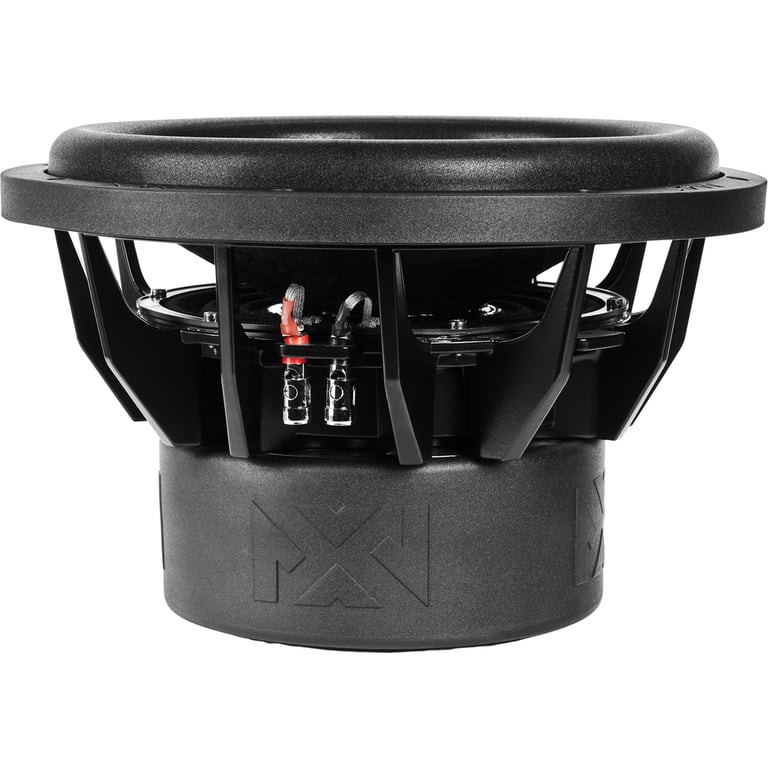

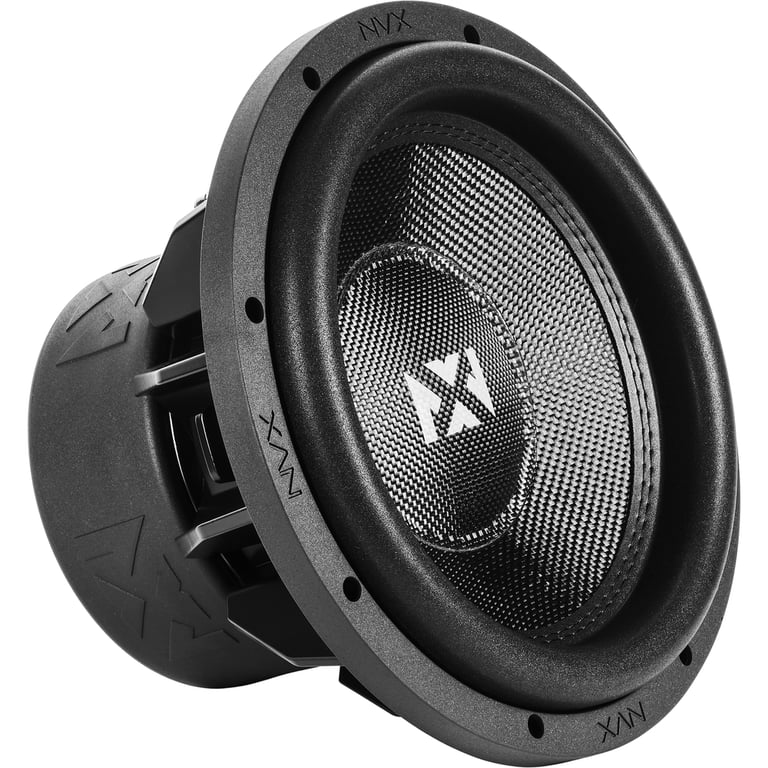

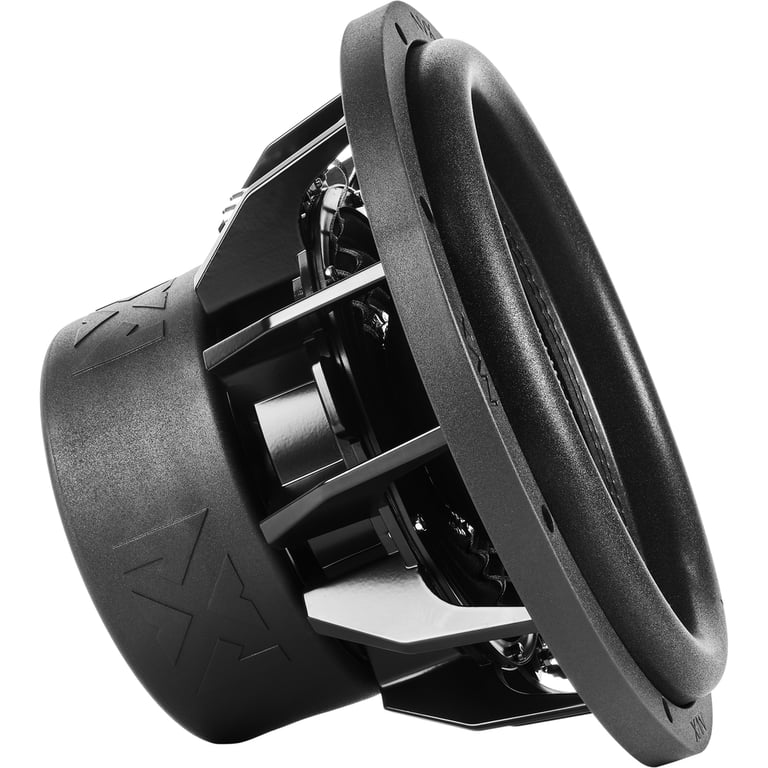

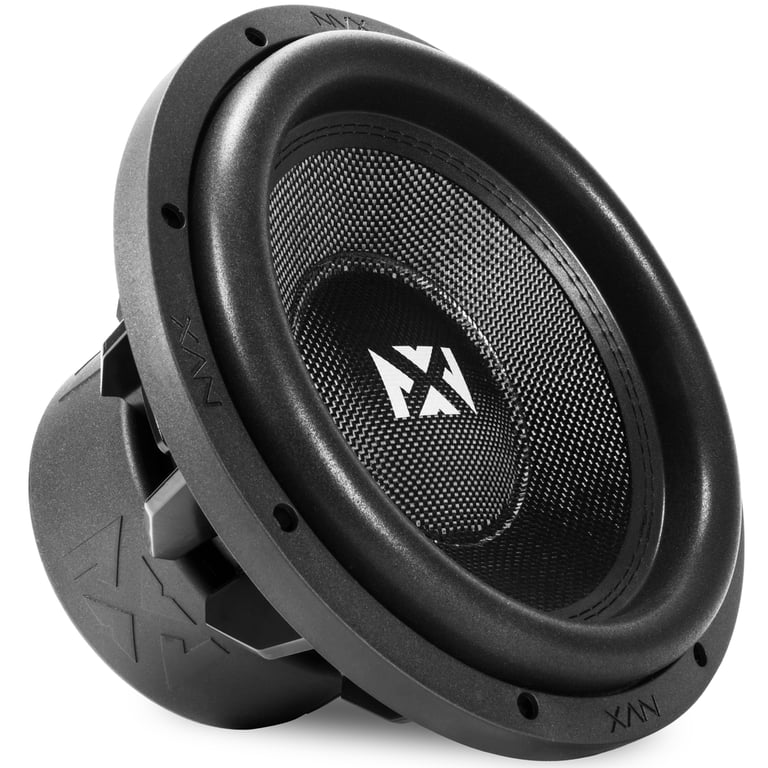

NVX V3 12 Inch Subwoofer
Bolt On Spiders 3 Inch Voice Coil T-Yoke With Vented Magnet Gap
Copper-Clad Aluminum 1/0 Gauge Wire

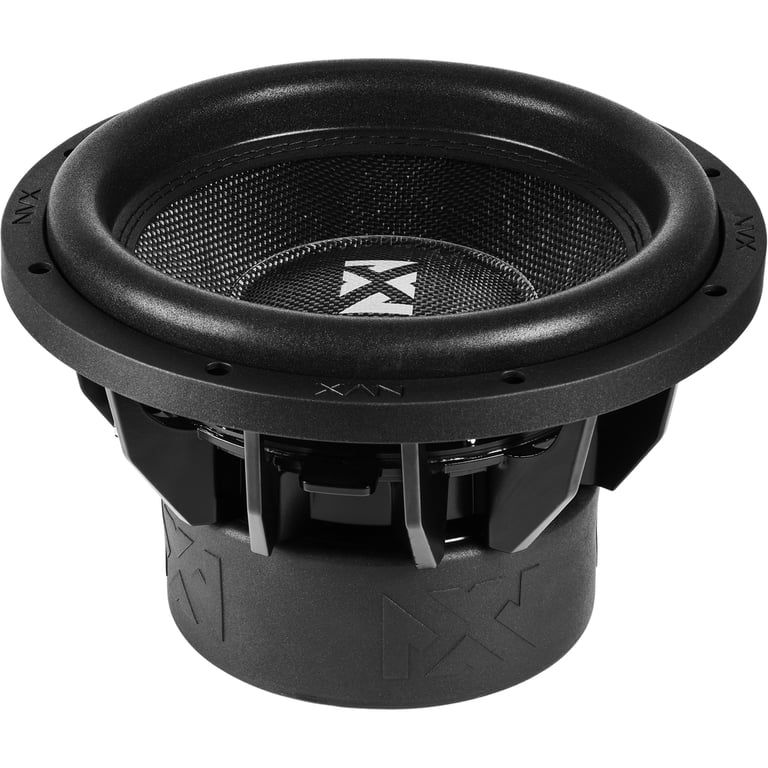

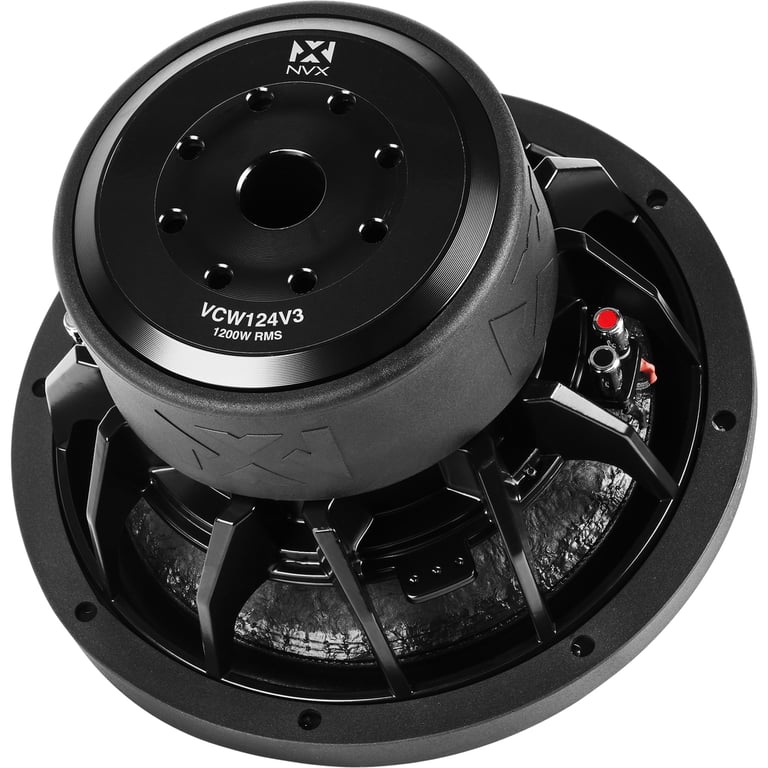

NVX VCW124 Version 3 (VCW124v3)

2400W Peak (1200W RMS) 12" VC-Series v3 Dual 4-ohm Car Subwoofer
Quantity: 2

Product Details:

  • 12" Dual 4 ohm VC Series Subwoofer
  • Power Handling:
    • Peak: 2400 watts
    • RMS: 1200 watts

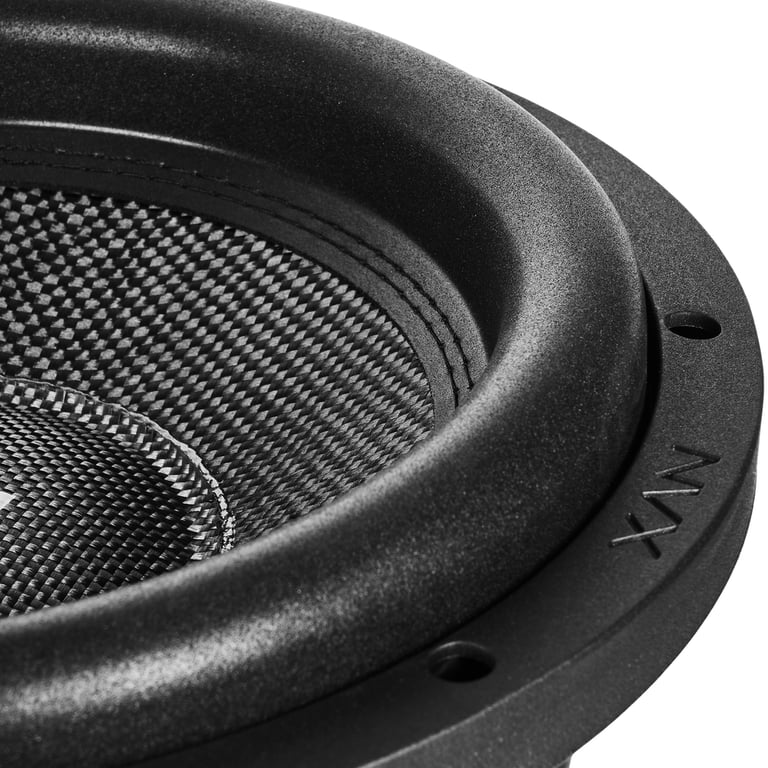

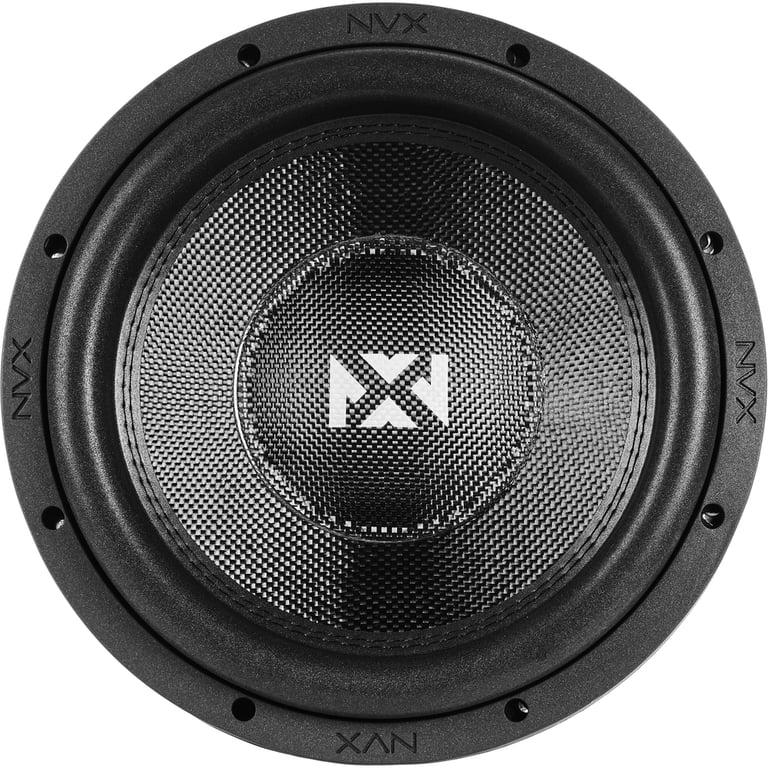

  • Carbon Fiber Enhanced Non-Pressed Paper Cone

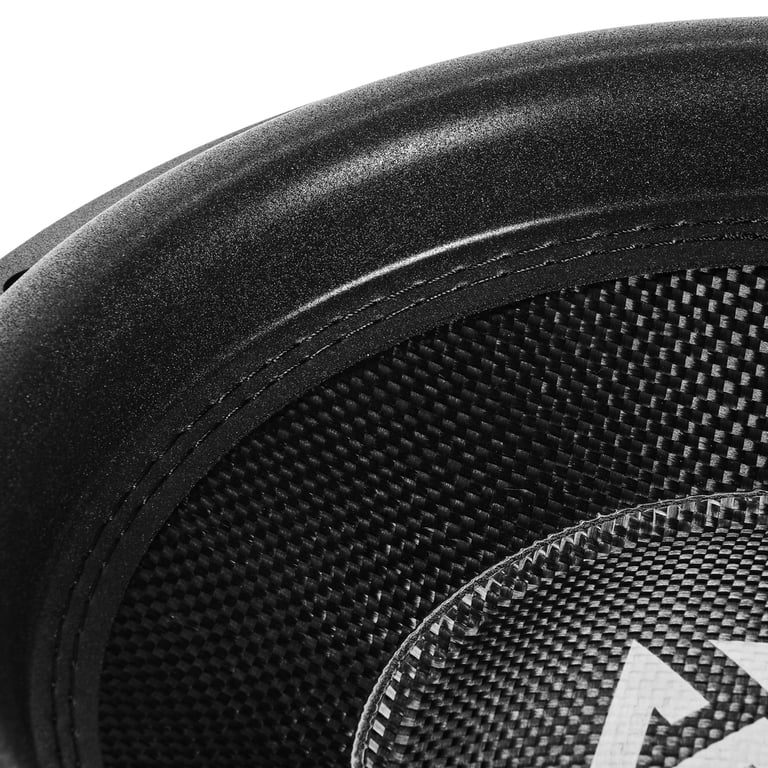

  • Custom High Roll Foam Surround with black nylon stitching
  • Die cast aluminum vented basket

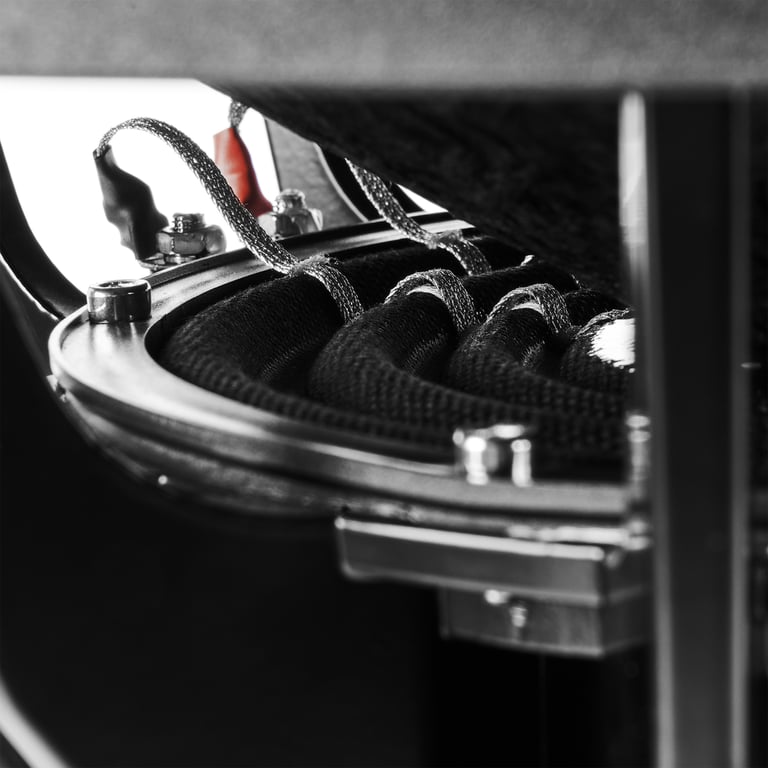

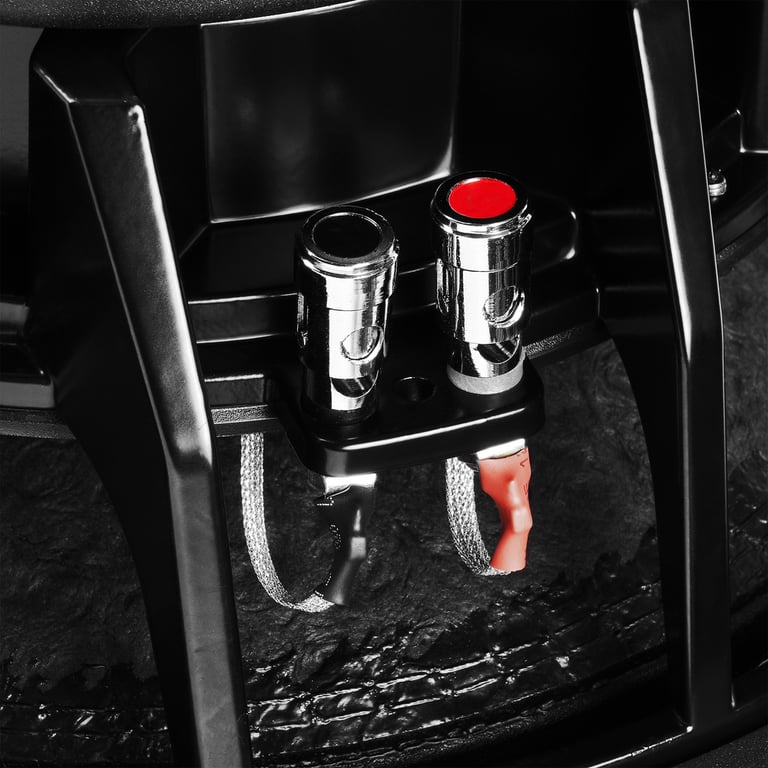

  • Dual progressive-roll spiders with integrated flat-braided leads
  • 3" 4-Layer High Temperature Black Aluminum Voice coil
  • Optimized high-velocity pole vent

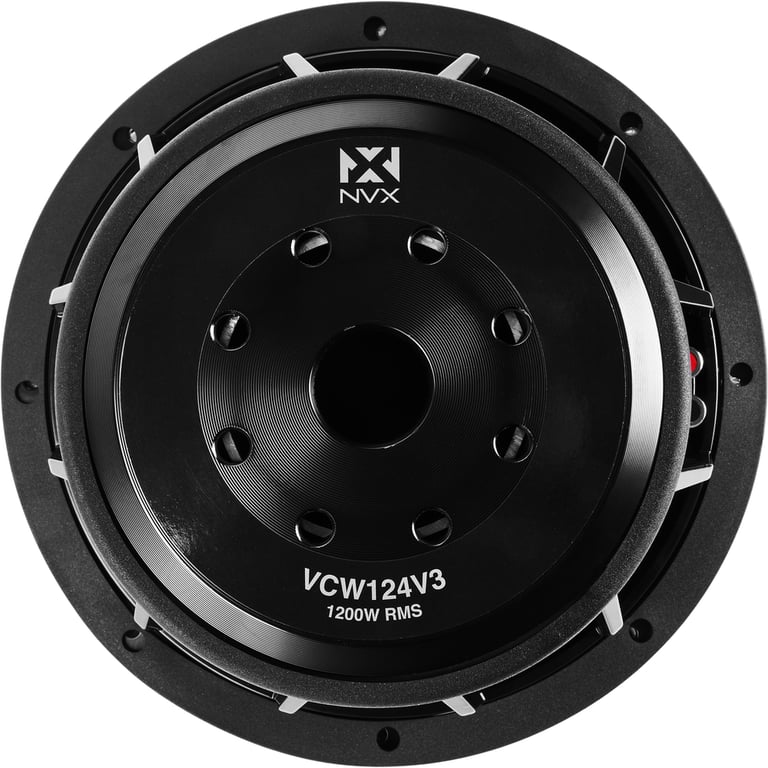

  • One-piece T-Yoke with integrated gap venting
  • 202 oz. Triple Stacked High Energy Y35 Ferrite with protective rubber boot
  • 23 mm Xmax (one-way) for massive air movement
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 25 Hz
  • Sensitivity: 85 dB (1W/1m)
  • Optimal sealed box volume: 0.85 cubic feet
  • Optimal ported box volume: 1.85 cubic feet
  • Top-mount depth: 7.02"
  • Cutout diameter: 11.26"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

  • Priced Individually

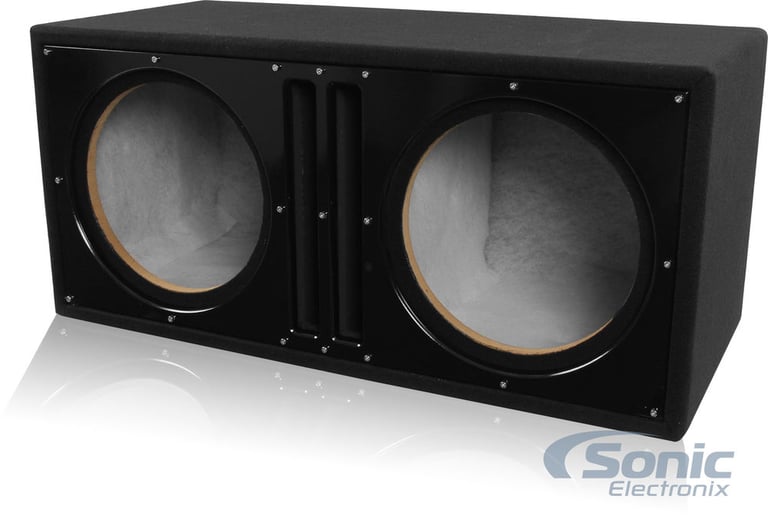

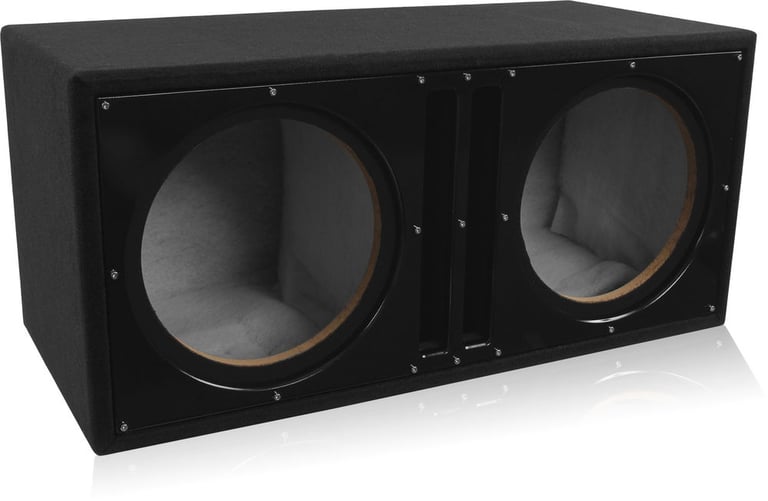

Belva BBX212BK (BLACK)

3.70 Total Cu Ft - Dual 12" 3/4" MDF Ported Subwoofer Box Enclosure with Custom Black Baffle
Quantity: 1

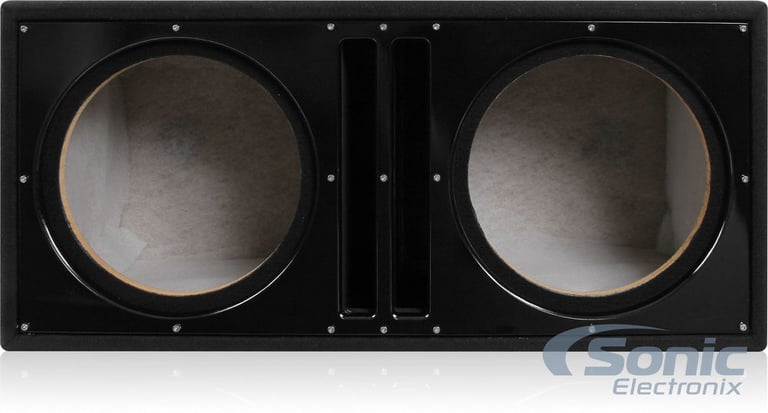

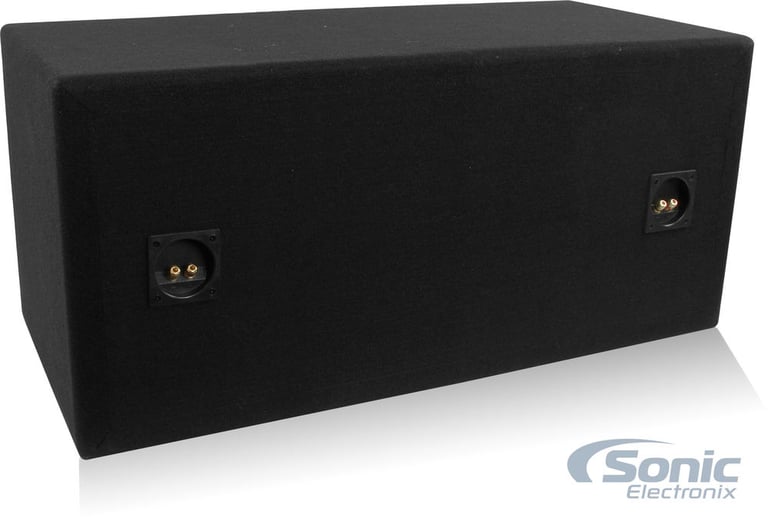

General Features:

  • 12" Dual Ported Subwoofer Enclosure
  • Black satin finish front face board
  • Covered in black carpet
  • Durable 3/4" Medium Density Fiberboard (MDF) construction
  • Subwoofer mounting depth: 14 1/2"
  • Subwoofer cutout diameter: 11 1/4"
  • Box volume: 1.85 cubic feet (per chamber)
  • Total box volume: 3.7 cubic feet
  • Dimensions: 16"D x 35"W x 16.25"H
  • Also available in Blue and Red
  • Authorized Internet Dealer
  • 30-Day Return Policy

Port Specifications:

  • Rectangular Slot Port
  • Number of ports: 2
  • Port volume: 0.18 cubic feet (per port)
  • Total port volume: 0.36 cubic feet
  • Estimated port tuned frequency (fb): 35 Hz
  • Port dimensions: 1.5"Width 12.5"Depth

Best selling similar products

R2S-1X10 small

Rockford Fosgate Prime R2S-1X10

• Sealed truck enclosure with 1 10" Prime R2 Series Subwoofer
• 200 watts RMS (400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 19" L x 13.5" H x 5.25" W x 3.25" W2

(17)

$239.99

List price $239.99

TNE212D small

MTX Audio TNE212D

• Sealed enclosure with 2 12" Terminator Series Subwoofer
• 200 watts RMS each
• Final Impedance: 2-ohm
• Dimensions: 29.63" L x 14" H x 13.5" W

(32)

$219.95

List price $249.95

49L7TDF122 small

Kicker L7TDF122 (49L7TDF122)

• Sealed truck enclosure with 1 12" Solo-Baric L7 Series Subwoofer
• 300-600 watts RMS Power Rating
• Final Impedance: 2-ohm
• Dimensions: 23 7/8" L x 6 1/2" H x 15" W

(5)

$399.99

List price $429.99

CLS113RG-W7AE small

JL Audio CLS113RG-W7AE

• ProWedge 13" W7AE Loaded Sealed Subwoofer Enclosure
• 3000W Peak
• 1500W RMS
• 3 Ohm Final Impedance
• High Grade Black Carpet Finish
• Engraved JL Audio and W7 Logos
• Rear Firing Design
• 10th Anniversary Edition W7 Subwoofer

(8)

$2299.99

List price $2299.99

TL7T122 small

Kicker TL7T122 (46TL7T122)

• Sealed truck enclosure with 1 12" Solo-Baric L7T Series Subwoofer
• 600 watts RMS power handling
• Final Impedance: 2-ohm
• Dimensions: 21.5" L x 13.75" H x 7.75" W x 4.375" W2

(9)

$295.96

List price $399.99

BE-TSLAY-G1P small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1P (Passenger's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Passenger Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$279.99

List price $562.99

BE-TOYHIG3-VS102 small

NVX Loaded BOOST Box - 2014-2019 Toyota Highlander - BE-TOYHIG3-VS102

• Sealed BOOST enclosure with 1 10" N Series Subwoofer
• Fits select 2014-2019 Highlander and Highlander Hybrid
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(2)

$349.99

List price $437.99

49DL7TDF122 small

Kicker DL7TDF122 (49DL7TDF122)

• Sealed enclosure with 2 12" Solo-Baric L7T Series Subwoofer
• 1200 watts RMS Power
• Final Impedance: 2-ohm
• Dimensions: 38-3/16" L x 8-1/4" H x 17-1/8" W

(1)

$749.99

List price $849.99

BE-TSLAY-G1D small

NVX Loaded BOOST Box - 2020-2023 Tesla Model Y - BE-TSLAY-G1D (Driver's Side)

• Sealed BOOST enclosure with 1 10" N Series Subwoofer (Driver Side)
• Fits select 2020-2023 Model Y (5-seat models only)
• 500 watts RMS (1000 watts Peak)
• Final Impedance: 2-ohm

(1)

$279.99

List price $562.99

BXSQ112 small

NVX BXSQ112

• Sealed enclosure with 1 12" SQ Series Subwoofer
• 600 watts RMS (1200 watts Peak)
• Final Impedance: 2-ohm

$349.99

List price $479.99

Specifications & Details


Subwoofer Specifications
Series
VC Series
Subwoofer Size
12"
RMS Power Handling
1200 watts
Peak Power Handling
2400 watts
Woofer Composition
Woven Fiber Pressed Paper
Woofer Surround
High Roll Foam
Sensitivity
85 dB
Frequency Response
20 - 200 Hz
Subwoofer Design
Round / Circle
Enclosure Specifications
Box Type
Ported
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
2

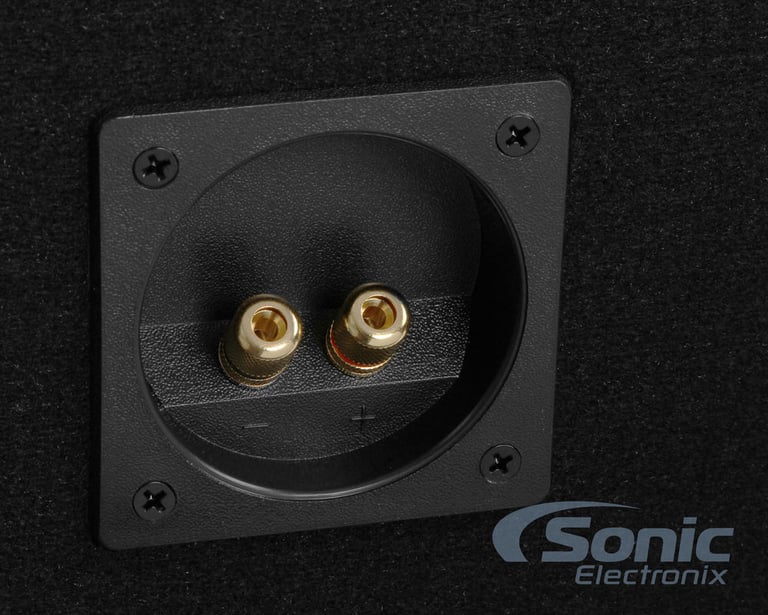

Terminal Type
Spring posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

NVX

Model Number:

VCW124_BBX212BK

Weight:

130.00lbs

Internal SKU:

vcw124_bbx212bk

Internal Product ID:

205301

Customer Ratings & Reviews


NVX VCW124 Version 3 (VCW124v3) with Ported Enclosure (BBX212BK) thumbnail image

5 star
89%
4 star
8%
3 star
2%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

Extremely Accurate

The following review is for VCW124v3, which is a part of the bundle you are viewing.

For a $200 subwoofer driver, this piece is one of the most accurate in it's price bracket.

What does it do for you? It creates a listening pleasure like no other, whether you listen to classical, rock, pipe organ, or any other genre of music, this speaker delivers.

It's quick response is well appreciated. I would or could go on and on about the different setups and what yielded the most listening pleasure, but that would be highly selective to my ears.

Bottom line is I would recommend this speaker on any given day of the week.

By samuel on May 19, 2014

145 found this helpful


well structured subs

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Great subs, sounds awesome. Just can't get the subwoofers displacement anywhere and I'm having difficulty contacting technical support

By fredy on December 21, 2013

151 found this helpful


POUND POUND POUND!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

That's all these do is POUND! They sound amazing. I have them ran 1 ohm to my Hifonics X2200.1, giving them 1000 watts RMS easily, and they are begging for more. Can't wait to get them in a custom box (going to do 1.9 cubic ft per chamber tuned to 30-34 hz), and have them really perform. NVX is great quality, and sound amazing. Heads turn when you have these in your trunk!!!!

By Matt on August 20, 2014

140 found this helpful


Best subs yet!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

I bought the NVX VCW124s (2) to use in my vehicle with a Hifonics Brutus 2200 RMS Monoblock amp. The subs Voice coils are hooked in parallel giving me roughly a 2 Ohm load per speaker. So these babies are capable of getting 1100 amps RMS each but I don't push them that hard because I really don't need too and I want them to last. They hit harder than any sub I have ever bought and I am a solid NVX believer now. I also just bought the entry level NSW122s at a great deal, 2 for $99! If you are thinking about these, DO IT! You will not be disappointed one bit, and then you will likely not even consider anything else but NVX when it comes to serious performance and value.

By Ja_surplus on June 3, 2014

138 found this helpful


NVX for the win NVX>ALPINE FOR SURE!!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Took long to get home but worth the wait out of the box it was just an impressive subwoofer triple stack good looking and made Super tuff loaded them to a ported box and theyre louder than my broken in alpine type R subs i just love them definitely hi def sound thumbs up to nvx thanks sonicelectronix

By ARTILLERY CAR CLUB on January 16, 2014

124 found this helpful


great bass

The following review is for VCW124v3, which is a part of the bundle you are viewing.

The weight of the NVX Sub is nice and the bass is dumping.

By fresh on October 13, 2014

124 found this helpful


awsom powding bass beastly subwoofer

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i recommend this subwoofer to any one who is looking to get big bass for the right money i have three of these in a q power three hole m.d.f box and running them off of a 3000 watt s.p.l amp and all i have to say is holey chees and bees knees i can hear the bass six block's away and feel the bass running on to my chest from three and people have told me when i am washing my car and i have every thing playing start's to knock their china and glass cups out from their place. i plan to un pug one until i get another battery as well as a battery isolator do to my head light's diming and having to jump start my car every now and then i already got a strike Capacitor that is 10 farad so as soon as that all comes in BOOM im back is business ... other than that al i got left to say is that give it a try and i know you will love it... i was a kicker hater i always hated those subwoofer's and when i heard them in my friend's car on a boss amp i was wowd so when i was told that n.v.x was just as good as m.t.x i said to my self i will try one for my self and i loved them so much i bought three as well as a q power 3 hole box

By shaun on August 25, 2014

124 found this helpful


NVX is a great company

The following review is for VCW124v3, which is a part of the bundle you are viewing.

Ok first off let me say my last system was 2 american bass xfl 12 (old style baskets) on a crescendo 2000d at .5ohm..could burp a mid 147db at 35hz.. had that setup for over a year..
anyhow i sold everything and went almost a entire year with NO bass at all..not even a cd player..
so i decided to get back into audio again..I 1st heard of nvx from mazda2284 on youtube.. and after talking to him i decided to order some nvx products..
i have 2 of these vcw 12s on a BELVA 5000d.. wired to 1ohm and gains set and O SCOPED for a CLEAN 2000w.. i have a 180a alternator and 150amp hr of battery bank and 0g wires..
i have these subs in a 3.8 cubic foot NET (meaning each sub really sees 1.9 cubes each) using 14" of port per cubic foot and tuned to 30hz..
i 1st tried the recommended 1.2 cube ported box but the ouput was absolutely HORRIBLE.. the 1.9 cubes REALLY made them come to life
they are JUST as loud as my xfls were and play a good bit lower also (xfls struggled below 25hz these nvx's play 20hz EASILY)
and they take the power all day long.. with my voltage dropping to around 13.2s full tilt i can play for a constant 1hr and the subs are still COOL and so is the amp

By jake on May 9, 2013

119 found this helpful


Buy it NOW before it's doubled in price!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

These subs are the BEST I have ever owned or heard anywhere and the price is way bellow what their competitors are asking for similar subs at NVX specs. I own 3 of these babies and am planning on buyin nothing but these subs for my subwoofer needs. Buy these subs NOW at these prices while you still can because the are definitely going to get more expensive and soon too. My next purchase will be for the VCW15 for another home subwoofer custome build. I only wish they made an 18" subwoofer for my current 18" subwoofer satellite custome built box that is good but could be so much better with an NVX subwoofer at its core. Amazing sound, quality, and value!

By Jlircs on September 30, 2014

120 found this helpful


amazing spl,sq, sub buy it !!!

The following review is for VCW124v3, which is a part of the bundle you are viewing.

i just got this sub have it in a 1.8 cube box at 30 hz when i say 1.8 thats what the sub is getting with all displacements. this sub hits lows better than any sub i have heard in my life amazing then it still bangs every other note as well its just all around amazing powering a kicker 1200.1 and eating up the power has 20xmax wich is amazing as well just well built and flawless design buy this subwoofer

By zfenton on April 23, 2014

111 found this helpful




VCW122_BBX212BK small

NVX VCW122 Version 3 (VCW122v3) with Ported Enclosure (BBX212BK)

2400 Watt Peak (1200W RMS) 12" VC-Series v3 Dual 2-Ohm Car Subwoofer + Ported Subwoofer Box Enclosure with Custom Black Baffle

(128)

$629.97

List price $785.97

No picture

Kicker CompRT CWRT121 (43CWRT121) - Damaged Packaging Only (New)

1000W Max (500W RMS) 12" Dual Voice Coil Comp RT 1 Ohm Shallow Mount Subwoofer

(4)

$205.28

List price $249.95

ARC1130S small

Aroma ARC1130S

60 Cup Cool Touch Rice Cooker

$116.95

List price $173.00

Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1983 GMC K3500 Pickup

2018 Jaguar XE

2013 Jaguar XF

2007 Mitsubishi Eclipse Spyder

1981 GMC C1500 Suburban

2003 Jeep Wrangler

1996 Isuzu Oasis

1984 Datsun 720

2003 Lincoln Aviator

1954 Chevrolet Corvette

Vehicle
Store
Delete

2007 Harley Davidson FXST Softail Standard

Vehicle
Store
Delete

2014 Can-Am Commander 1000 LTD

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
