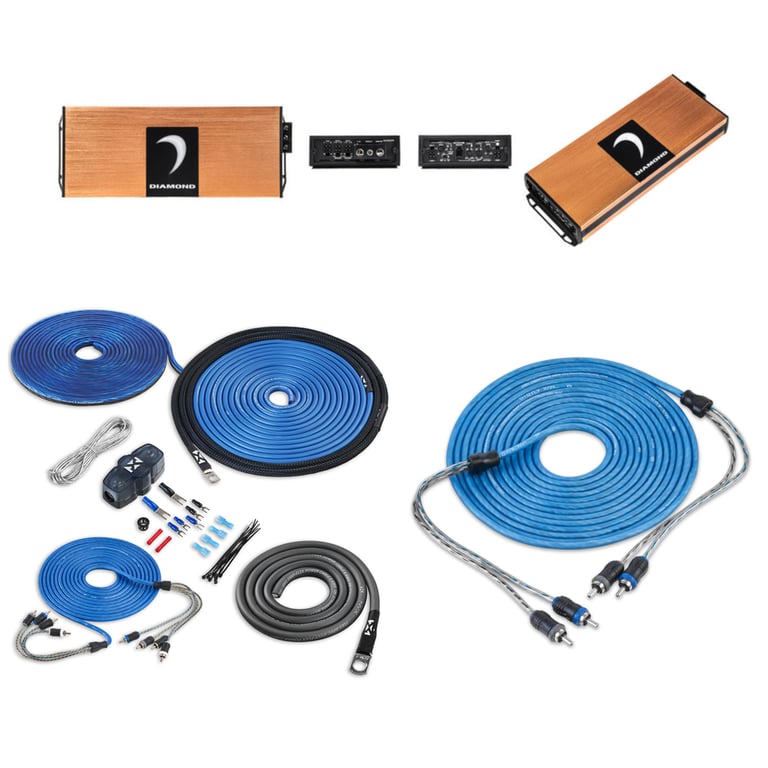

Diamond Audio MICRO5V2 with NVX 8 Gauge Amp Kit

Product Details:

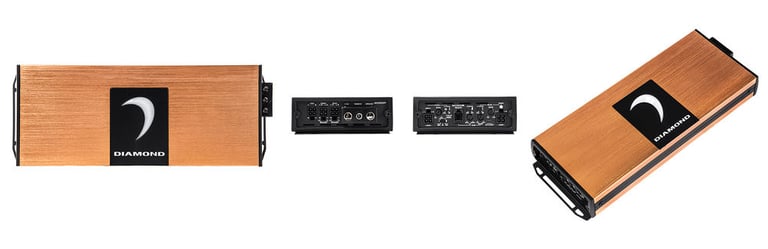

• MicroV2 Series Class D 2 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohm: 80 watts x 4 channel + 200 watts x 1 channel
• 2 ohm: 150 watts x 4 channel + 350 watts x 1 channel
• Bridged: 300 watts x 2 channel + 200 watts x 1 channel @ 4 ohm
• Total RMS power output: 950 watts
• LED Power/Protect Light
• Wired bass level remote control included
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Selectable turn-on mode (Remote, DC Offset, Signal Sensing)
• Advanced rollback and thermal protection
• Full range Class D IR chipset
• DirectFET power MOSFET output stage
• SMD technology on 4-layer glass PC board
• ICAD circuit provides superior overload protection
• Variable 12dB crossovers
• Ultra-compact and versatile
• Bluetooth receiver enabled for Diamond Audio Datura/12 Bluetooth receivers only
• Input sensitivity: 200 mV - 10 volts
• Frequency Response: 20 - 30000 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: 85 dB
• Variable high-pass filter: Flat or fixed 70 Hz
• Variable low-pass filter: 40 - 400 Hz
• Subsonic filter:
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 60A
• 8 AWG gauge amplifier wiring kit is recommended for installation
• Dimensions: 10.65" L x 4.0" W x 1.46" H
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: MICRO5V2

Product Details:

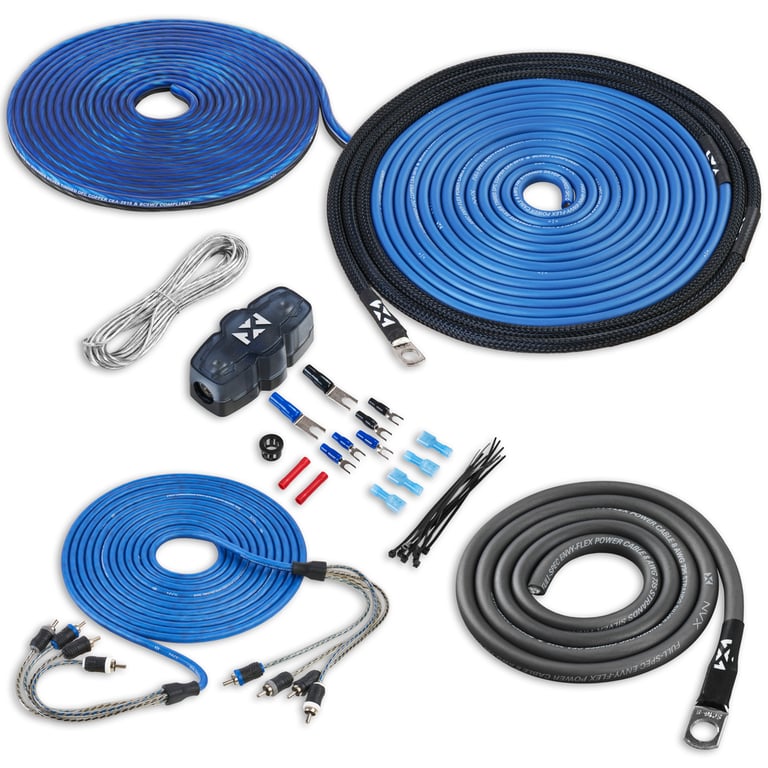

• 8 Gauge 4-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 800 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Kit includes:

1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal

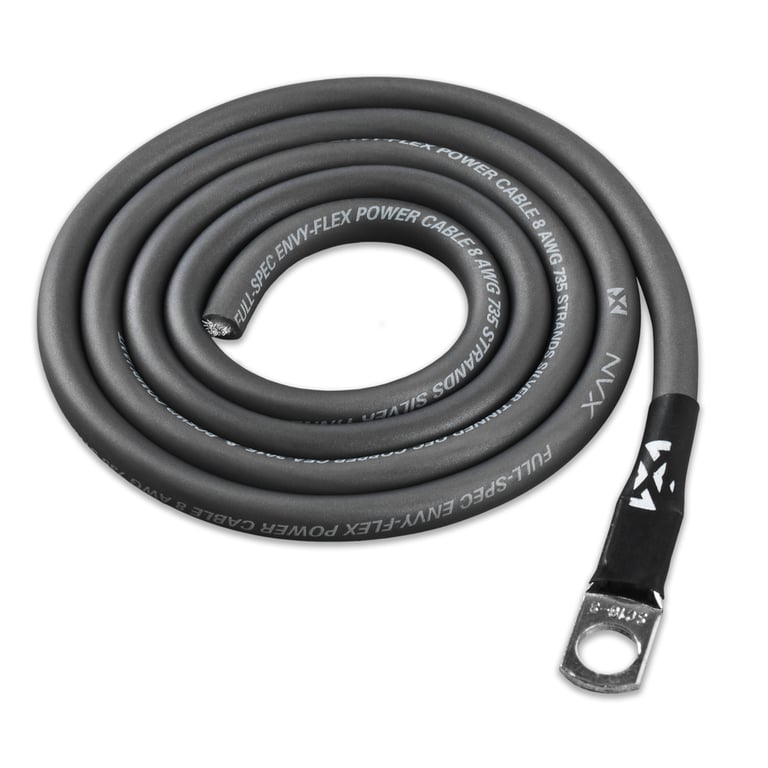

2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 4-channel dual twisted construction RCA interconnect Cable (NVX XIV45)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 8 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties

Product Features:

• 16.4 feet (5 meters) 2-Channel V-Series Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Heavy gauge OFC conductors ensure superior sound quality and unmatched signal transfer
• Split-tip Silver-Plated ends offer high-quality performance, best in class signal transfer and resist corrosion
• High-strength molded strain reliefs enhance durability
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Authorized Internet Dealer
• 1-year Manufacturer's warranty
