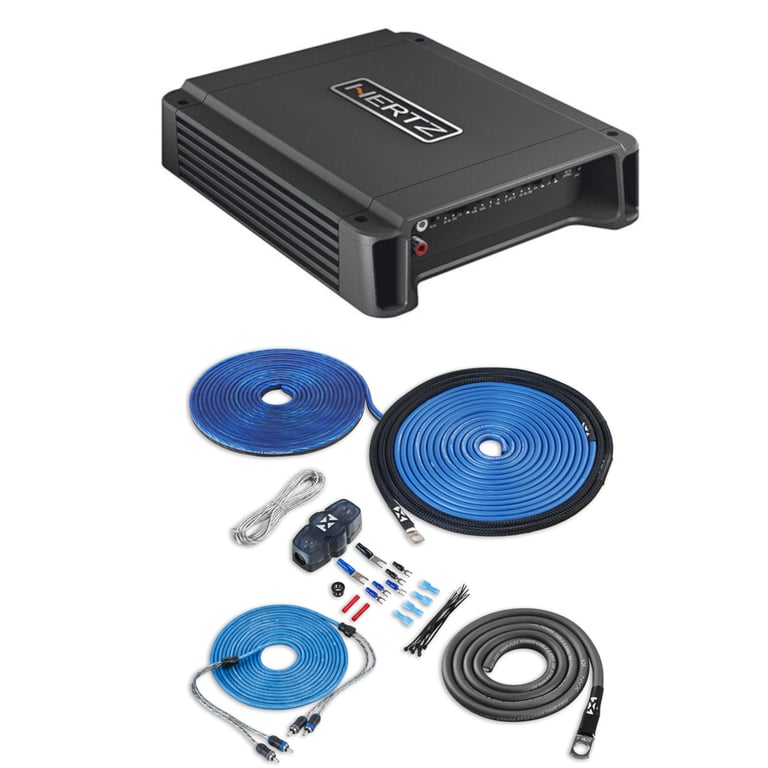

Hertz HCP1D with NVX 8 Gauge Amp Kit

Product Overview

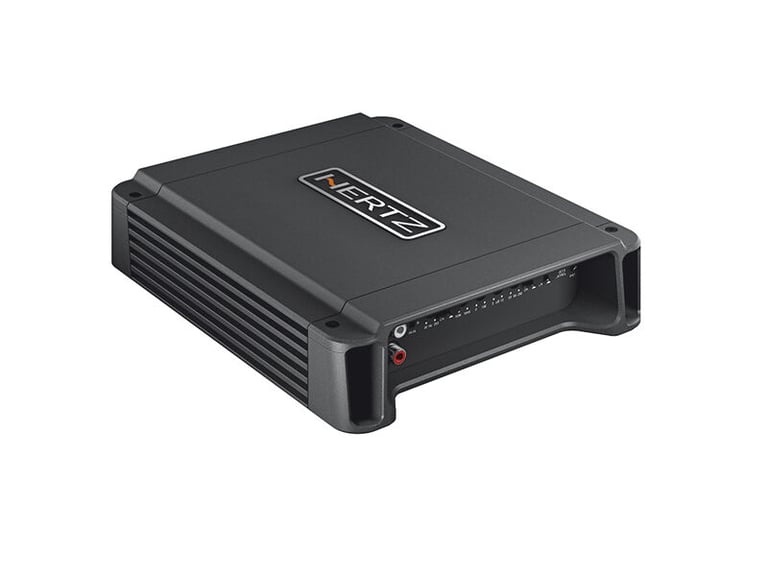

HCP 1D is a monoblock D Class car audio amplifier , with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1D has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.

General Features:

• Hertz HCP1D
• Class D 2-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohm: 380 watts x 1 chan.
• 2 ohm: 700 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• Refined Heatsink with High Convection Capability
• Completed Filter Section
• HCP Electronics
• Automatic Remote Turn-On/Off function
• Mono channel operation
• Class-D amplifier technology
• Frequency Response: 10 - 20000 Hz
• Total Harmonic Distortion (THD): 0.2%
• Signal to Noise Ratio: 100 dB
• Fuse Rating: 25 A x 2
• 8 gauge power and ground wiring is recommended for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier. Click Here for our contact information.
• Dimensions: "8.46 x "7.48 x "1.97
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Product Details:

• 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 800 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

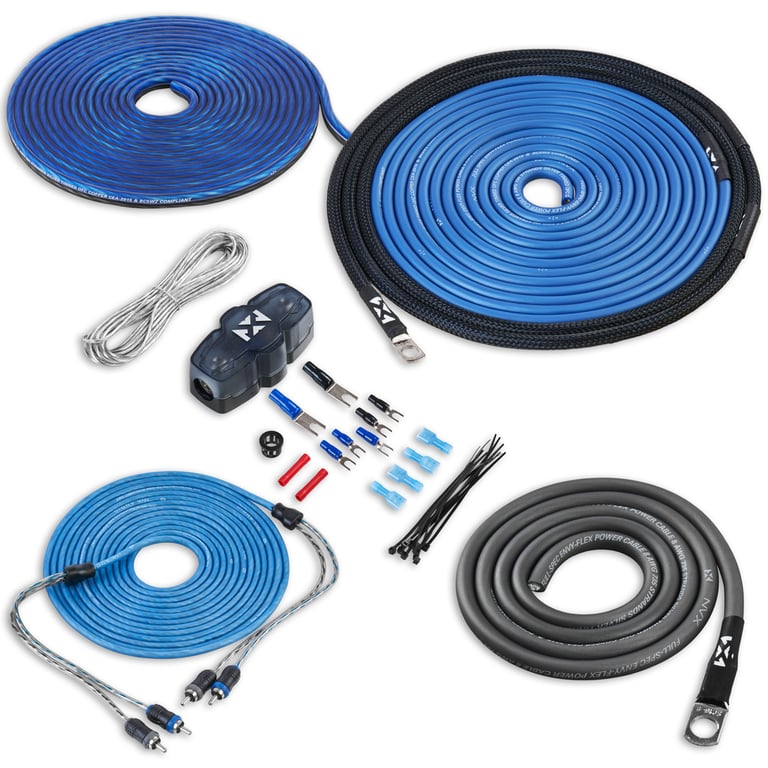

Kit includes:

1. 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal

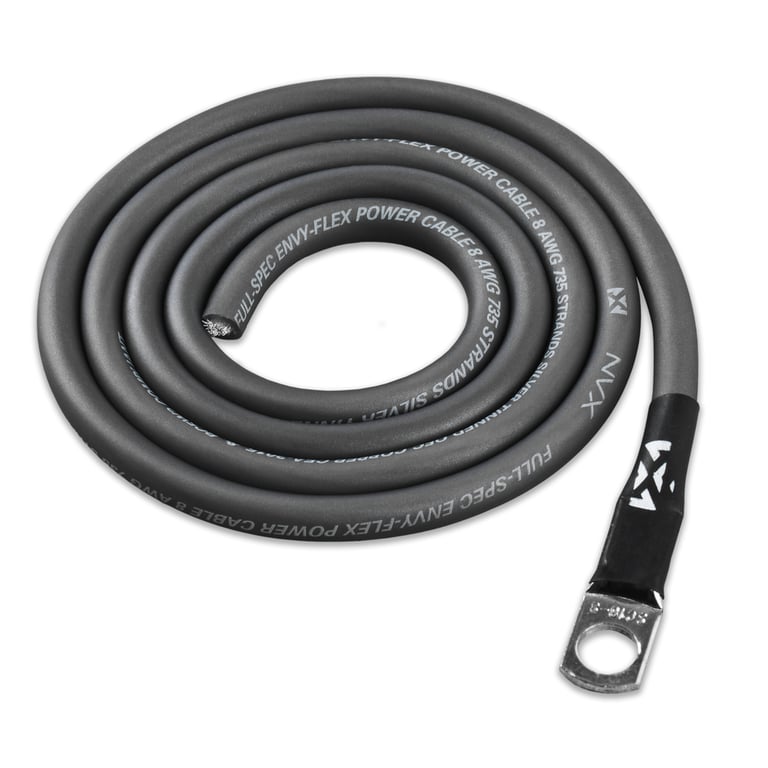

2. 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 16 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 8 Gauge Nickel Plated spade terminals
9. Four 18 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Four 16 Gauge quick disconnect
12. Five 16 Gauge Nickel Plated spade terminals
13. Two Heat Shrink tubes with the NVX logo
14. Ten 6" Black zip ties
