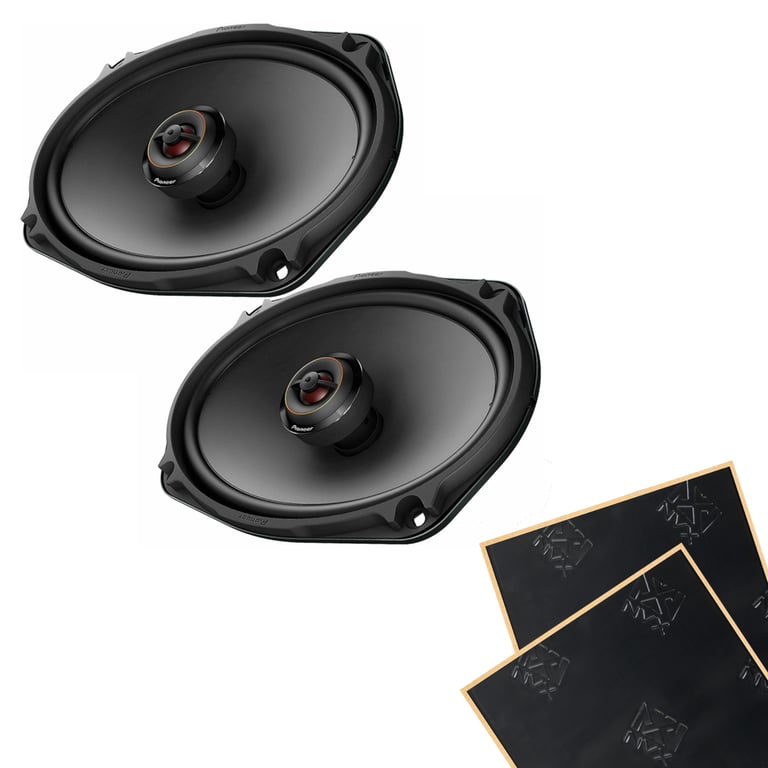

Pioneer TS-D69F with Sound Damping

660W Peak (220W RMS) 6x9” D Series 2-way 4-ohm Coaxial Car Speakers + NVX SDBSK2 Premium Sound Damping

Pioneer
Shop all Pioneer
highlight-star-icon

• 330 watts Peak Each, 110 watts RMS Each
• 1" Polyester Fiber Soft Dome tweeters
• Aramid fiber reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

Learn more about the tsd69f_sdbsk2
No Fit Icon

Doesn't fit your 1997 Viper

Similar items | Update vehicle | Vehicle store
List price $258.74
Thanks , You Pay:
-42%

$150.99

 with warranty
Starting at $14/mo or 4 payments of $38 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
In Stock
Brand new

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
DEH-S6220BS main

Pioneer DEH-S6220BS

Single DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-13.05%

$199.99

List price $230.00

Description


Pioneer brand icon

Authorized dealer

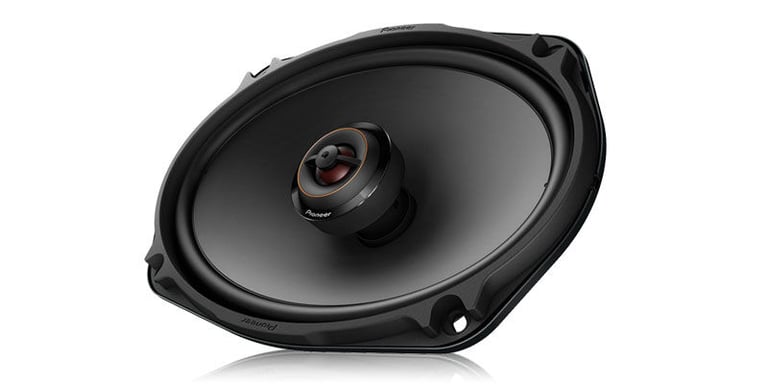

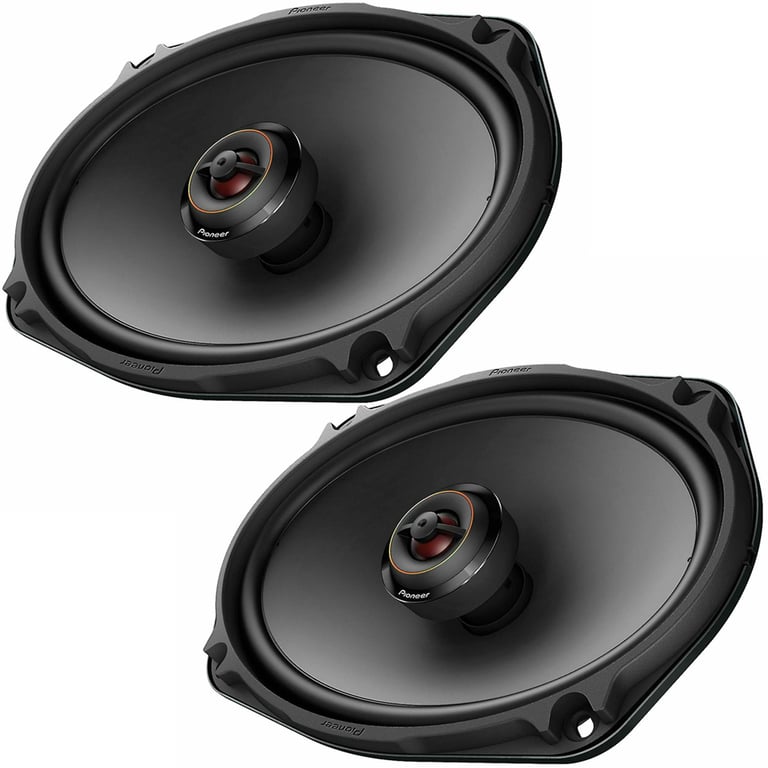

Pioneer TS-D69F

The TS-D69F 6"x9" 2-way car speakers give you low distortion and unfailing performance, even under the harsh conditions of life in your car doors.


Pioneer TS-D69F

660W Peak (220W RMS) 6x9” D Series 2 Way Coaxial 4-ohm Speakers
Quantity: 1

Product Details:

  • 6" x 9" D-Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 660 watts per pair / 330 watts each
    • RMS: 220 watts per pair / 110 watts each
  • Aramid fiber reinforced Injection Molded Polypropylene cone material
  • Rolled Rubber speaker surround

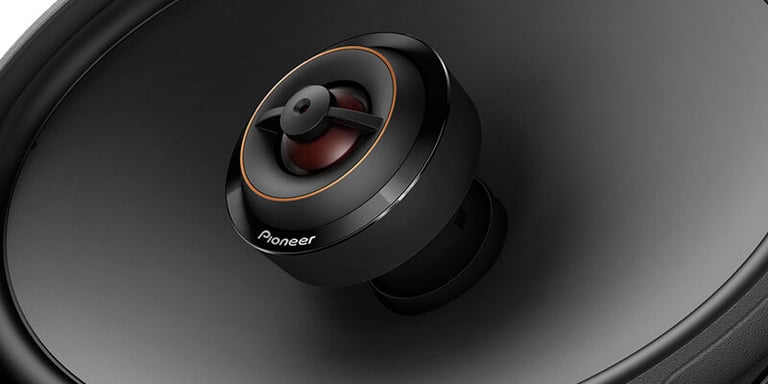

  • 1" Polyester Fiber Soft Dome tweeters
  • Swivel tweeter design with multiple mounting options
  • Copper voice coil with glass imide bobbin
  • 15.2 oz. Ferrite magnet motor structure
  • Universal metal woofer basket material and design
  • Open & Smooth sound concept for smooth midrange and balanced frequency response
  • OFC short ring stabilizes voice coil impedance to reduce distortion and extend high-frequencies
  • Compatible with Pioneer's Car Sound Fit app
  • Lug-type wire terminals
  • Top-mount Depth: 2-7/8"
  • Cutout Dimensions: 8-3/4" x 6"
  • Impedance: 4 ohm
  • Frequency Response: 33 - 42000 Hz
  • Sensitivity: 87 dB
  • Two speaker grilles included
  • Authorized Internet Dealer
  • MFR #: TS-D69F
  • 1-year Manufacturer's Warranty

  • Priced Per Pair

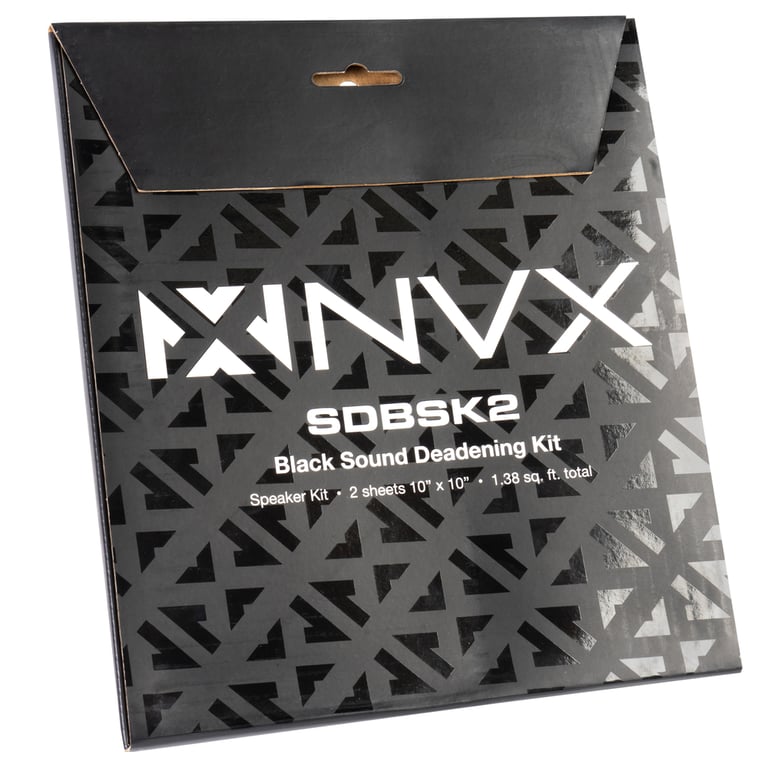

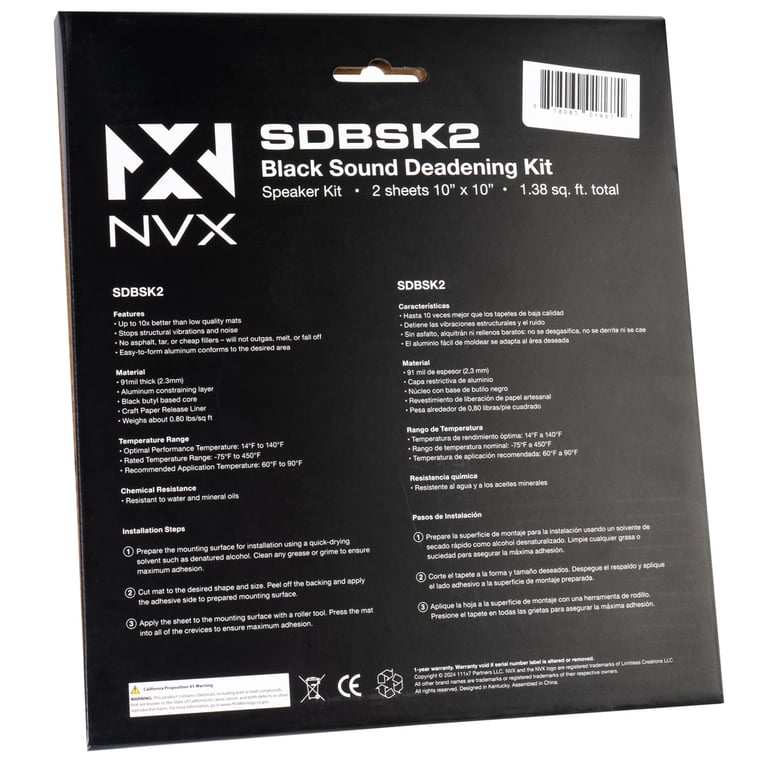

NVX SDBSK2 Premium Stealth Black

91 mil 1.38 sq ft Car Speaker Sound Deadening Kit (Two 10" x 10" Sheets)
Quantity: 1

Product Details:

  • 1.38 square feet sound deadening kit
  • Solid black design for any stealth car audio installation
  • Core is based with 100% pure butyl rubber to withstand extreme heat
  • No asphalt, tar, or cheap fillers - will not outgas, melt or fall off
  • Waterproof barrier protects against moisture damage and mechanical oils

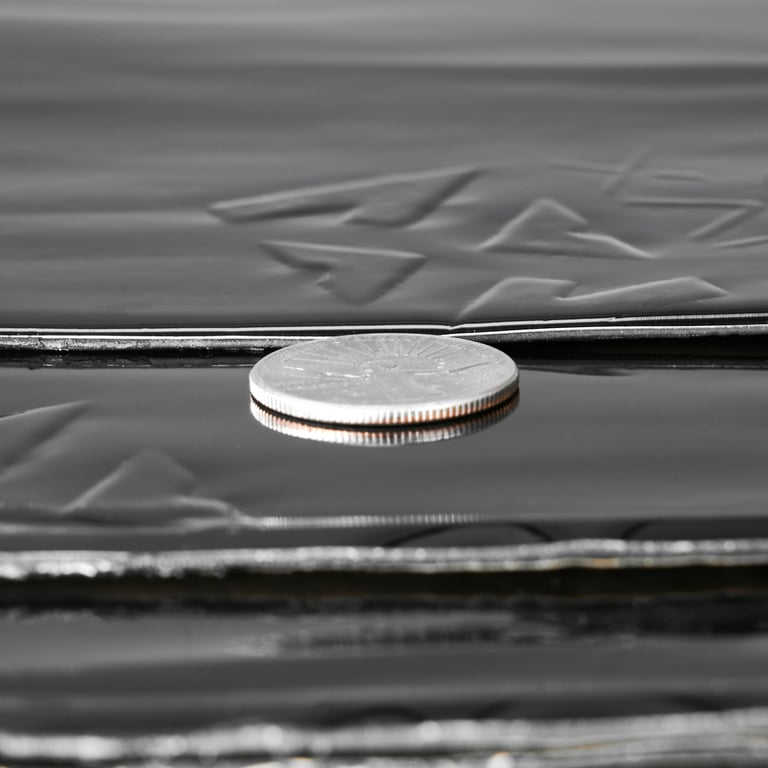

  • Up to 30% thicker than cheap 50–80 mil alternatives
  • Flexible aluminum backing contours tightly to complex door panels and vehicle curves with ease
  • Structural damping kills unwanted sheet metal resonance caused by heavy mid bass
  • Seals the door cavity to drastically increase speaker bass response and clarity
  • Lowers cabin ambient noise so you hear your music instead of the highway
  • Reflects radiant heat to help keep your vehicle interior cooler

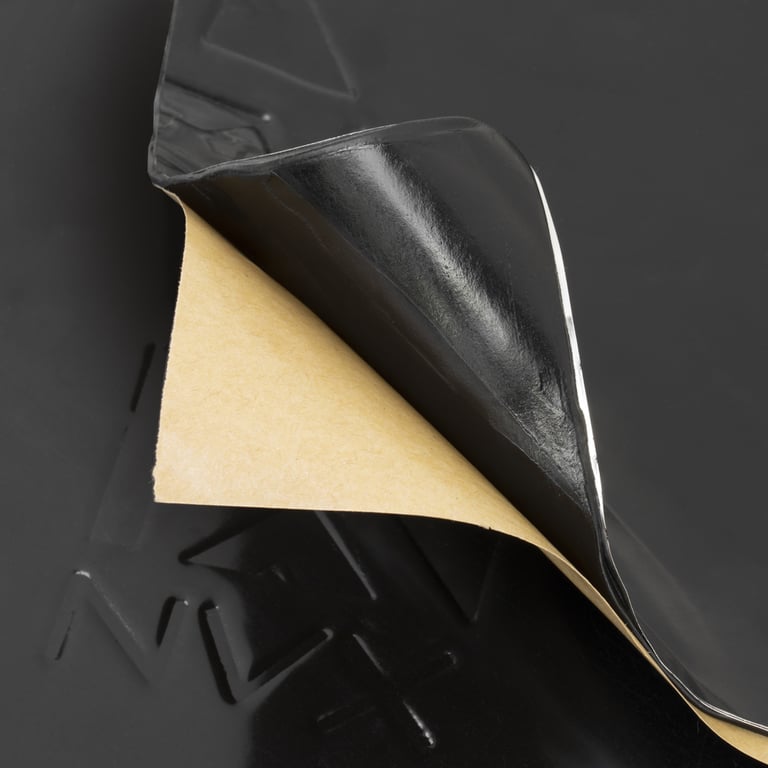

  • Simple three step peel and stick installation process makes upgrading your sound quick

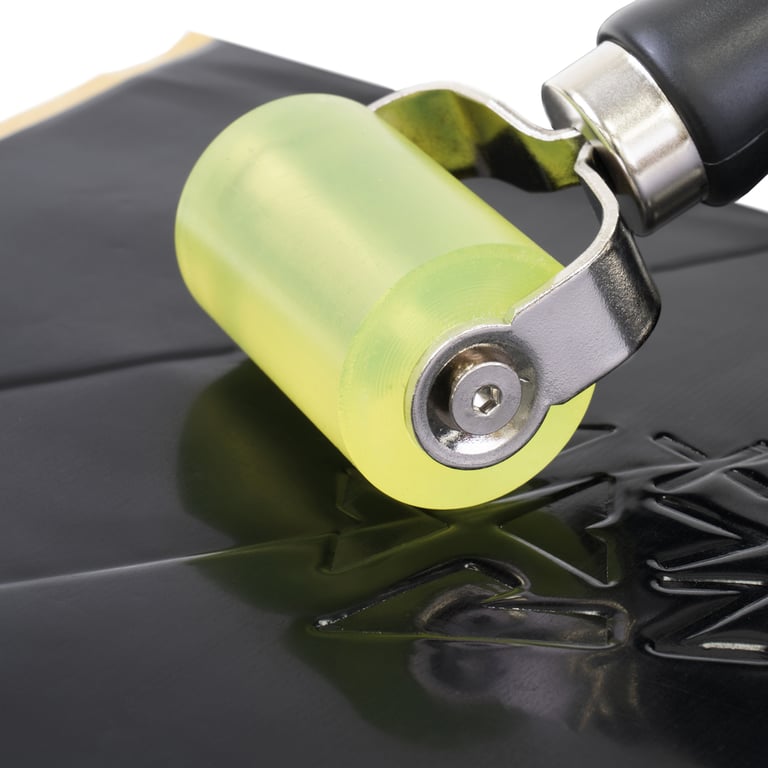

  • Combine this kit with NVX SDRLR1 Rubber Roller for easy installation

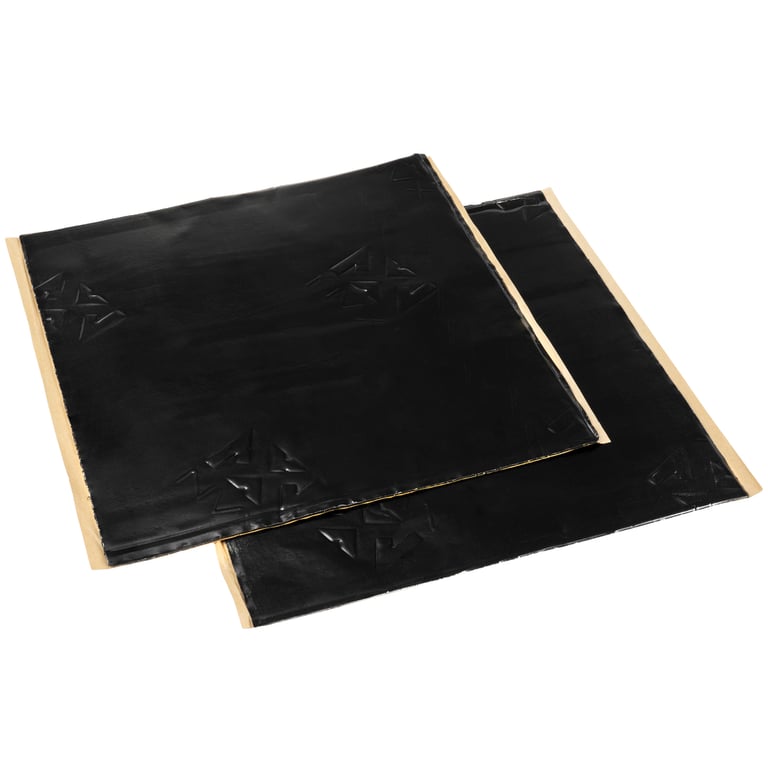

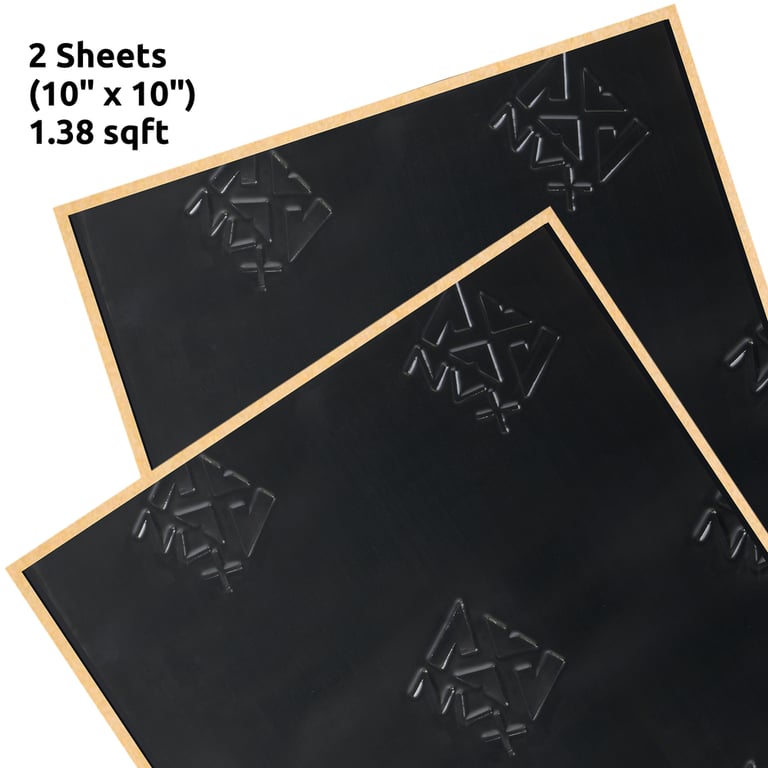

  • Pack includes two 10" x 10" sheets
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Install Location: Speaker
  • Material Thickness: 0.091 (2.3 mm)
  • Amount of Material: 1.38 square feet
  • Material Use: Vibration Dampener
  • Optimal Performance Temperature: 14°F to 140°F
  • Rated Temperature Range: -75°F to 450°F
  • Application Temperature: 60°F to 90°F
  • Dimensions (each piece): 10"L x 10"W

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95


Best selling similar products

HDZ653_SDSK2 small

Alpine HDZ-653 with Sound Damping

• 300 watts Peak Each, 100 watts RMS Each
• 1-1/4 Composite Dome Tweeters
• Carbon Composite cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

(46)

$974.94

List price $1458.74

KAPPA63XF_ACC_KIT small

Infinity Kappa 63XF with Installation Accessories

• 255 watts Peak Each, 85 watts RMS Each
• Silk Dome Tweeters
• Glass Fiber cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(339)

$244.01

List price $387.66

DCX 690.3, XBAF69, SDRLR1, SDSK2, BTK106 small

Hertz CK 130 with Speaker Installation Kit

• 90 Watts Max Each, 45 Watts RMS Each
• 2 Piece Foam Speaker Ring Kit
• 1.38 Square Feet of Sound Damping
• Installer Panel Removal Tool Kit
• Rubber Roller

(156)

$251.40

List price $323.71

XS162GS_SDBSK2 small

Sony XS-162GS with Sound Damping

• 250 watts Peak Each, 45 watts RMS Each
• 1-3/16" Silk Dome tweeters
• Composite Polypropylene Cone - CPPC cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(46)

$212.99

List price $218.73

XS680GS_SDBSK2S small

Sony XS-680GS with Sound Damping

• 230 watts Peak Each, 40 watts RMS Each
• 13/16" Silk Soft Dome tweeters
• Composite Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(47)

$162.99

List price $168.73

XS690GS_SDBSK2 small

Sony XS-690GS with Sound Damping

• 420 watts Peak Each, 60 watts RMS Each
• 1" Silk Soft Dome tweeters
• Composite Polypropylene Cone - CPPC cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(46)

$182.99

List price $188.73

XS160GS_SDBSK2 small

Sony XS-160GS with Sound Damping

• 250 watts Peak Each, 45 watts RMS Each
• 13/16 Silk Soft Dome tweeters
• Composite Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

(46)

$162.99

List price $168.73

S2S80C_SDSK2 small

Alpine S2-S80C with Sound Damping

• 260 watts Peak Each, 85 watts RMS Each
• 1" Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 80 dB

(46)

$254.94

List price $308.74

PNW65CS2_ACC_KIT small

AudioControl PNW-65CS2 with Installation Accessories

• 125 watts Peak Each, 75 watts RMS Each
• 3/4" Silk Dome Tweeters
• Polypropylene-Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.8 dB

(333)

$363.06

List price $426.71

STADIUM862F_SDBSK2 small

JBL Stadium 862F (JBLSPKSD862FAM) with Sound Damping

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Aluminum Edge-driven Dome tweeters
• Fiberglass cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(51)

$249.95

List price $318.69

Specifications & Details


Speaker Specifications
CTA-2031 Compliant
Yes
Series
D-Series
Total PEAK Per Pair/Set
660 watts
RMS Power Handling
110 watts
Peak Power Handling
330 watts
Woofer Surround
Rubber
Woofer Composition
Aramid fiber reinforced Injection Molded Polypropylene
Tweeter Composition
Polyester Fiber
Tweeter Size
1"
Tweeter Design
Soft Dome
Design
2-way Coaxial
Speaker Size
6" x 9"
Priced Per
Pair
Total RMS Per Pair/Set
220 watts
Sensitivity
87 dB
Number of Speakers
2
Cutout Dimensions
8-3/4" x 6"
Bottom-Mount Depth
3-3/8"
Top-Mount Depth (Mounting Depth)
2-7/8"
Magnet Type
Ferrite
Magnet weight
15.2 oz.
Shallow Mount Installation
No
Impedance (Per Voice Coil)
4 ohm
Frequency Response
33 - 42000 Hz
General specifications
Speaker Grilles
Yes
Illumination
None
Color
Black
Hi-Res Certified
No
Sound Damping Specifications
Secondary Use
Vibration Dampener
Material Use
Sound Absorber
Total Amount of Material
1.38 square feet
Installation Location
Speaker
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

TSD69F_SDBSK2

Weight:

7.20lbs

Internal SKU:

tsd69f_sdbsk2

Internal Product ID:

207275

Customer Ratings & Reviews


Pioneer TS-D69F with Sound Damping thumbnail image

5 star
90%
4 star
8%
3 star
2%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
5
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Great deal

The following review is for SDBSK2, which is a part of the bundle you are viewing.

Got this product free with the purchase of a pair of speakers it helps out a lot looks more professional and sounds cleaner definitely give it a try for your next project.

By Anonymous on August 8, 2019

62 found this helpful


Don't go without it

The following review is for SDBSK2, which is a part of the bundle you are viewing.

This really helps with overall sound quality, especially mid-bass in my experience. NVX offers excellent quality at better prices are than other popular sound deadening brands.

By Anonymous on September 9, 2019 Checkmark Icon Verified purchase

60 found this helpful


Very Thick Dynamat

The following review is for SDBSK2, which is a part of the bundle you are viewing.

This product is very thick compared to cheap versions. Priced excellent. If you want to reduce any vibration or road sound, choose this!

By Adrian on June 21, 2020 Checkmark Icon Verified purchase

59 found this helpful


Very pleased

The following review is for SDBSK2, which is a part of the bundle you are viewing.

I am glad I went with this brand. Easy application and works great in keeping my Corolla quiet and audio clean.

By Anonymous on November 26, 2019

59 found this helpful


NVX SDBSK2 Premium Stealth Black

The following review is for SDBSK2, which is a part of the bundle you are viewing.

Thick and heavy. I was suprised with the actual quality. For the price they’re great quality

By Anonymous on June 22, 2018

61 found this helpful


Good product

The following review is for SDBSK2, which is a part of the bundle you are viewing.

Sticky and did hook well to the cars body . Got it for free with my speakers purchase. Sonic electronix for life

By Anonymous on October 6, 2019

58 found this helpful


NVX SDBSK2 Premium Stealth Black

The following review is for SDBSK2, which is a part of the bundle you are viewing.

For the price, I wish it came with a bit more of the material compared to other packages, but it definitely does what it's supposed to and will make a noticeable difference if you knock on the door/panel where it was placed vs where it wasn't.

By Anonymous on June 12, 2018 Checkmark Icon Verified purchase

55 found this helpful


NVX SDBSK2 Premium Stealth Black

The following review is for SDBSK2, which is a part of the bundle you are viewing.

Easy to use and reduced vibration, allowing clear sound coming from my door speakers.

By Anonymous on June 8, 2018

54 found this helpful


Great value

The following review is for SDBSK2, which is a part of the bundle you are viewing.

I installed these on each rear door of my 2005 Silverado. Could really hear a difference in sound quality.

By Reid on March 28, 2018

55 found this helpful


NVX SDBSK2 Premium Stealth Black

The following review is for SDBSK2, which is a part of the bundle you are viewing.

Great product, Sonic Electronix is great. I've ordered a few things from time to time and have had no problems. I get the item quickly. I ordered this and was so pleased. I ordered another set. Works great.

By Joshua on May 25, 2020 Checkmark Icon Verified purchase

50 found this helpful



2-CHANNEL-TERMINAL small

SMD 2 Channel Heavy Duty Square Speaker Terminal (Stainless)

Two Channel Square Speaker Terminal with Stainless Terminals, 3/4" PVC (Black)

(1)

$31.99

List price $34.48

49L7X82_2 small

Kicker L7X82 (49L7X82) - Pair

800W RMS 8" SoloX Series Dual 2-ohm Subwoofer

$899.98

List price $959.98

PK1169_2 small

MB QUART PK1-169 (2-Pairs, 4-Total)

440W Peak (220W RMS) 6x9" Premium Series 2-Way Coaxial Car Speakers (2-Pairs)

$305.48

List price $439.98

SW-UV210D2 small

Sundown Audio U-10 v.2 D2 10" (U10V2D2)

4000W Peak (2000W RMS) 10" U Series Dual 2-ohm Car Subwoofer (SW-UV210D2)

$529.99

List price $695.99

4204-2 small

Viper 4204 Responder LE

2-Way Remote Start System w/ Keyless Entry

(3)

$189.99

List price $349.99

X165_2 small

Hertz X 165 (2-Pairs, 4-Total)

880W Peak (220W RMS) 6.5” Uno Series 2-way Coaxial Speakers (2-Pairs)

(1)

$159.98

List price $190.00

ZS525CX_2 small

Hifonics ZS525CX (2-Pairs, 4-Total)

800W Peak (120W RMS) 5.25” Zeus Series Coaxial 2-way Car Speakers (2-Pairs)

(7)

$39.98

List price $57.98

No picture

NVX XUBT4 Universal Bluetooth Receiver and Remote Control (Open Box, Good)

X Series Marine Grade Bluetooth Audio Controller/Receiver with Membrane Switchpad for Cars, Trucks, Motorcycles, ATVs & Boats (X-Series)

$45.99

List price $62.49

No picture

Lightning Audio TKSS (B4.320.4 + B4.69.2TK +B4.TWT.TK + B4.40.2TK)

960W Multi-Channel Amplifier, Tweeter Kit, 4" Speakers, 6" x 9" Speakers, and Wiring Kit

(2)

$99.99

List price $199.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2023 Toyota Sequoia

1997 Dodge Viper

2014 Ford Explorer

2001 Daewoo Nubira

2025 Cadillac Escalade

2012 Toyota Yaris

2021 Dodge Durango

2017 Hyundai Sonata

2012 Buick Regal

2015 Audi A8 Quattro

Vehicle
Store
Delete

2018 Can-Am Defender DPS HD5

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
